Why CNC Machines Need High Breaking Capacity Circuit Breakers

Imagine you use CNC machine tools and there is a sudden electrical problem. If you do not have circuit breakers with high breaking capacity, fires or bad damage can happen. Your safety depends on choosing the right breaking capacity. Electrical safety is very important in these places. The right breaking capacity keeps you safe from overload and earth leakage problems. You should always think about safety first when picking circuit breakers for CNC machines.

Key Takeaways

High breaking capacity circuit breakers keep CNC machines safe. They stop too much current very fast. This helps prevent fires and damage to the machines.
Knowing about breaking capacity is very important. It shows how much short-circuit current a breaker can handle. The breaker must not break or fail. Always look at this rating before you install it.
Using the right circuit breakers helps CNC machines work well. They stop sudden stops and keep production going. This makes everything run smoothly and saves time.
Following safety rules is very important. High breaking capacity breakers help you follow these rules. They can also lower insurance costs and legal problems.
Check and upgrade circuit breakers often for your CNC machines. Doing this helps stop expensive repairs. It also makes everything safer.

Breaking Capacity in Circuit Breakers

What Is Breaking Capacity?

When you pick a circuit breaker for CNC machines, you need to know about breaking capacity. Breaking capacity is the biggest short-circuit current a circuit breaker can stop without harm. This number tells you how much current the device can handle if something goes wrong. You might see words like Icu and Ics on circuit breaker labels. Icu means the most fault current the breaker can stop one time. Ics means the current the breaker can stop many times and still work. Breaking capacity is very important for safety. It keeps your equipment and workspace safe from dangerous current spikes.

Tip: Always look at the breaking capacity before you put in a circuit breaker. This helps you avoid mistakes and keeps your CNC machines safe.

Here is a table that shows the main ratings for circuit breakers used in factories:

Parameter	Definition and Role	Selection Criteria and Notes
Rated Current (In)	The most current the breaker can carry all the time without tripping.	Should be at least as much as the line’s rated current so it works right under load.
Ultimate Breaking Capacity (Icu)	The most short-circuit current the breaker can stop once without damage.	Should be more than or equal to the highest short-circuit current to keep things safe during faults.
Service Breaking Capacity (Ics)	The most short-circuit current the breaker can stop over and over while still carrying its rated current.	Usually a part of Icu (like 50%-75%), showing how tough it is during repeated faults.

Why It Matters for CNC Machines

CNC machines use a lot of current. You need a circuit breaker with high breaking capacity to keep your machines safe from short-circuit faults. If the breaking capacity is too low, the breaker cannot stop big currents during a fault. This can cause fires or damage your CNC machines. You want your machines to run safely and not stop working. Breaking capacity helps you do this.

Look for these things when you pick a circuit breaker for CNC machines:

Ampere rating: Shows the most current the breaker can carry.
Voltage rating: Tells you the highest voltage the breaker can handle.
Interrupting capacity: Says the biggest short-circuit current the breaker can safely stop.

Breaking capacity is more than just a number. It protects you from electrical dangers. You keep your CNC machines, your team, and your business safe when you pick the right circuit breaker. High breaking capacity lets your breaker handle sudden jumps in current and keeps your system safe.

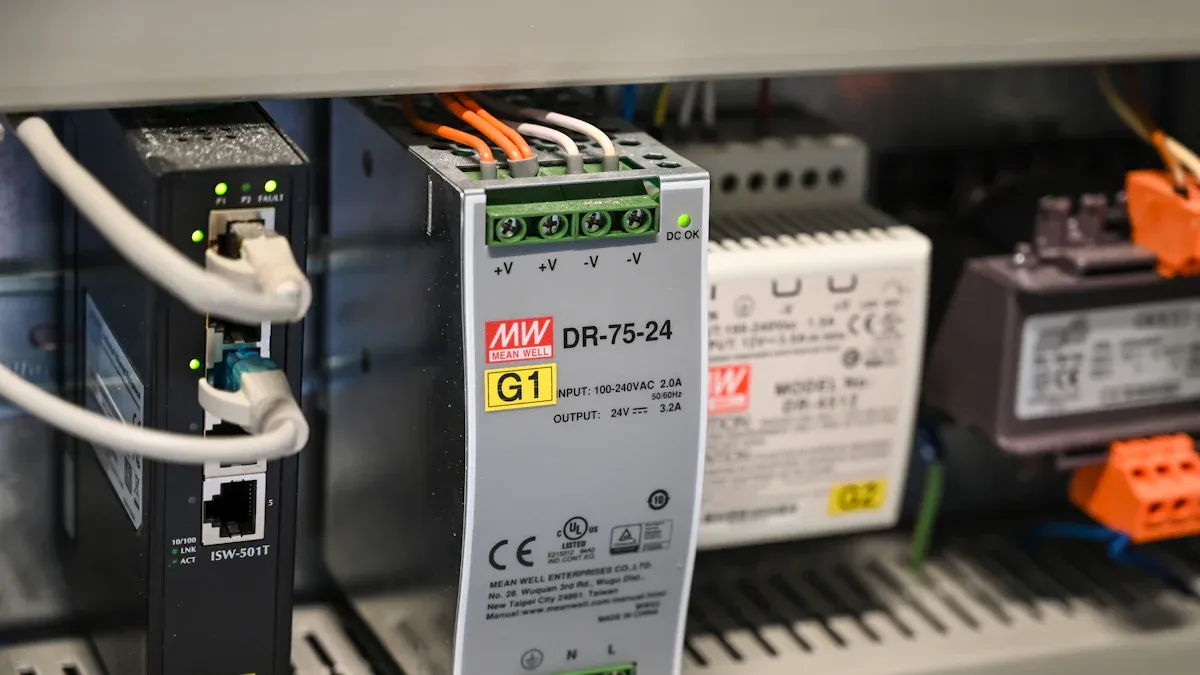

Circuit Breakers with High Breaking Capacity for CNC Machine Tools

High Power Demands

CNC machines use more current than older machines. They have electric motors and control systems. These parts need a lot of power, especially when starting. Circuit breakers with high breaking capacity can handle these big currents. They do not trip when the machine starts. If you use a breaker with low breaking capacity, it cannot stop big fault currents. This can cause fires or damage your machines.

Here is a table comparing the power needs of different machines:

Machine Type	Power Requirements	Key Features
Modern CNC Machines	Use more energy because of complex electronics and strong motors	Depend on electric motors, variable frequency drives, and advanced control systems. They use a lot of reactive power.
Older Mechanical Machines	Use less energy and have fewer electronics	Mostly mechanical, with little concern for reactive power.

You need circuit breakers with high breaking capacity for CNC machines. These breakers stop big fault currents fast. This helps prevent fires and protects your machines. Using the right breakers makes it easier to watch energy use. You can see current flow and find problems before they get worse.

Overcurrent and Fault Protection

CNC shops can have many types of faults. Overcurrent, short circuits, and system failures can happen anytime. Circuit breakers with high breaking capacity give strong protection. They use thermal and magnetic tripping. Thermal tripping works when there is too much current for a long time. It senses heat and trips the breaker. Magnetic tripping works fast when there is a sudden spike, like a short circuit. It stops the current before a fire starts.

Here is a table showing how these breakers work:

Feature	Description
High Breaking Capacity	Rated for 10kA Short-Circuit Current Rating (SCCR), giving strong protection for factories.
Thermal Magnetic Trip	Uses both thermal and magnetic ways to keep circuits safe.
Current Limiting Design	Stops fault currents very quickly, so damage is less.

CNC shops often see system failures and random alarms. Overheating happens a lot during busy jobs. Bad airflow and high heat make things worse. Circuit breakers with high breaking capacity help stop fires and equipment loss. They also help you watch energy use and find overloads early.

Safeguarding Sensitive Components

CNC machines have many sensitive electronic parts. Motors, control panels, and circuit boards can get hurt by voltage spikes and too much current. Circuit breakers with high breaking capacity protect these parts. They stop dangerous surges before they reach your machines. If you use the wrong breaker, motors and panels can burn out. Fires can start.

You should think about voltage spikes from lightning or wiring problems. These can hurt your machines if you do not have good protection. Good installation and grounding help, but you need circuit breakers with high breaking capacity first. They keep your machines safe and stop fires that could ruin your shop.

Note: Always use circuit breakers with high breaking capacity for CNC machines. This lowers the chance of fires, equipment loss, and downtime. Watch current and energy use often to find problems early and keep your shop safe.

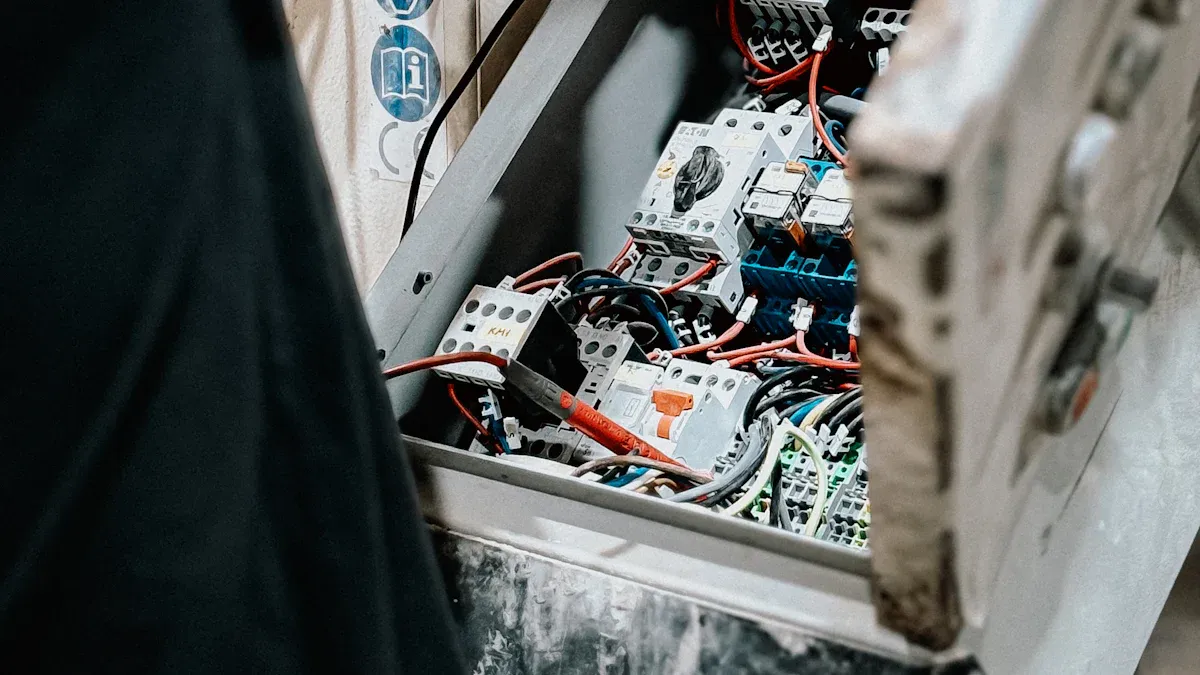

Risks of Low Breaking Capacity Circuit Breakers

Equipment Damage

CNC machines need to work well every day. If you use circuit breakers with low breaking capacity, your machines are not safe. These breakers cannot stop big fault currents. When a short circuit happens, the breaker might not work. Important parts inside your CNC machines can get burned. Motors, drives, and control boards need to be protected from sudden current spikes. Low breaking capacity breakers let too much current go through. This can make voltage drop or jump up fast. You might have to pay a lot to fix or replace machines.

To keep your machines safe, always check the breaking capacity before you install a breaker.

Safety Hazards

Low breaking capacity circuit breakers can be very dangerous. If a breaker cannot stop a big current, it gets too hot. Too much heat can melt wires and make sparks. In a busy shop, this can start a fire. You could also get shocked if the breaker does not trip. Here are some dangers you might face:

Fires from breakers that get too hot or overloaded
Machines get damaged from bad current or voltage spikes
Work stops when breakers do not work right
People can get hurt if there is an electrical problem

You need to keep your team and your shop safe. High breaking capacity breakers stop bad currents before they cause trouble.

Downtime and Financial Loss

Downtime is bad for your business. If a low breaking capacity breaker fails, your CNC machines stop. You lose time making products. Big companies can lose over $100,000 every hour when machines stop. In car factories, one minute of downtime can cost $22,000. That is $1.3 million in just one hour. You cannot ignore this risk. Every time a breaker does not stop a big current, you lose money and miss deadlines.

Pick the right breaking capacity so your machines keep working and you do not lose money.

Benefits of High Breaking Capacity Circuit Breakers

Enhanced Safety

When you pick circuit breakers with high breaking capacity, you keep your team safe. These breakers stop dangerous current very fast. They protect CNC machines from electrical problems. This lowers the chance of fire or injury in your shop. High breaking capacity circuit breakers cut off too much current before it can hurt anything. This keeps equipment safe and makes accidents less likely. People can work in a safer place every day.

High breaking capacity circuit breakers give strong protection from electrical faults.
They stop too much current quickly, so fires are less likely.
You make the shop safer for everyone who uses CNC machines.
Using these breakers can lower arc flash energy by up to 30%. This means there is less risk of getting hurt from arc flash.

Reliable Operation

You want CNC machines to work well all the time. High breaking capacity circuit breakers help you do this. They handle big current spikes and keep machines running during hard jobs. These breakers make the system more reliable by stopping problems before they get worse. You avoid sudden stops and keep making products. The right breaking capacity protects important parts from damage. Your machines last longer and work better. You also get better results because your electrical system stays steady.

High breaking capacity breakers act fast when there is too much current.
They help protect motors, drives, and control boards from damage.
You have less downtime and your shop stays busy.

Compliance with Standards

You need to follow strict rules in CNC machine shops. High breaking capacity circuit breakers help you meet IEC and UL standards. These rules are about safety and making sure things work right. If you follow them, you pay less for insurance and avoid legal trouble. Insurance companies may give you better deals if you use the right circuit breakers. If you do not follow the rules, you could get fined or sued. In places like aerospace or medical shops, special insurance depends on meeting these rules.

Compliance Benefit	Impact on Facility
Lower insurance premiums	You save money on insurance
Reduced legal liabilities	You avoid fines and lawsuits
Enhanced operational safety	You keep workers and equipment safe

When you follow these rules, people trust your shop more. Customers know you care about safety and quality.

You must use circuit breakers with high breaking capacity for CNC machines. This keeps your machines safe and working well. Industrial-grade MCCBs can stop very large fault currents. They help protect your equipment from getting damaged.

Type of Circuit Breaker	Applications	Key Features
Industrial-Grade MCCBs	CNC shops, factories	10kA–150kA Breaking Capacity, robust design

Some engineers think all breakers are the same, but they are not. You should look at your breakers and see if their breaking capacity matches your machine’s needs. If not, you should get better ones. Checking your breakers often helps you avoid problems and keeps your shop working.

FAQ

What is a smart circuit breaker?

A smart circuit breaker uses sensors and digital controls. You can monitor and manage your CNC machines in real time. This device helps you spot problems early. You get alerts if something goes wrong. Smart circuit breakers improve safety and efficiency in your shop.

How do smart circuit breakers help with CNC machine safety?

You get instant data from smart circuit breakers. They track current, voltage, and temperature. If a fault happens, you receive a warning. You can act fast to prevent damage. Smart features help you avoid fires and keep your machines running safely.

Can you upgrade old breakers to smart models?

Yes, you can replace old breakers with smart ones. You need to check compatibility with your panel. Smart upgrades give you better control and more information. You make your shop safer and more efficient by using smart technology.

Why should you choose smart breakers for CNC machines?

Smart breakers give you more than just protection. You can see energy use, set alerts, and track machine health. These smart features help you save money and reduce downtime. You make smarter decisions for your business with real-time data.

Do smart circuit breakers save money in the long run?

You save money with smart technology. Smart breakers help you spot problems before they get worse. You avoid costly repairs and downtime. You also use less energy because you can track and manage power use. Smart solutions pay off over time.
