You use circuit breakers to keep wind turbine generator distribution protection systems safe from electrical problems. These devices stop damage and help things run safely. New solutions, like ABB’s Emax 2 air circuit breaker and smart circuit breakers with real-time monitoring, give better reliability for bigger turbines. Smart features like predictive maintenance and remote control make things work better and safer. As wind turbines get stronger, you get help from these new ideas that solve new problems in energy distribution.
Key Takeaways
- Circuit breakers keep wind turbine systems safe from electrical problems. They stop harm and help the system work safely.
- Smart circuit breakers watch the system all the time. They help find issues early and make the system more reliable.
- Picking the right circuit breaker is very important. Think about voltage, safety, and the effect on the environment when you choose.
- Checking and taking care of circuit breakers often makes things safer. This stops accidents and helps the wind turbine work well.
- Using new circuit breaker technology can save money. Watching the system in real time lowers repair costs and makes turbines work better.
Wind Turbine Generator Distribution Protection
Electrical Risks
When you work with wind turbine generator distribution protection, you face many electrical dangers. These dangers can hurt people and break equipment. Some common dangers are:
- Arc flash can burn people and break things.
- Electric shock happens if equipment is not cared for.
- Too much power in circuits can cause fires or stop systems.
- Bad insulation can make things unsafe.
- Wet places make electrical accidents more likely.
- Broken or old equipment can stop turbines and cause danger.
Arc flash and shock need special care. You should check voltage and equipment often. Too much power and bad insulation can break the system. Wet places and broken equipment can cause big trouble for wind turbine generator distribution protection. You must watch for these dangers to keep your system safe and working well.
Protection Needs
Wind turbine generator distribution protection needs strong safety systems. Wind turbines are tall and face tough weather. Lightning is a big risk because turbines are high up. Surges from lightning or the grid can break sensitive electronics. Surge protection helps keep these parts safe.
Wind turbines also need special safety from short circuits and too much power. You must use graded protection to guard against lightning and high voltage. Keeping workers safe is very important. Tall metal turbines can get hit by lightning, which can cause power loss and danger. Fixing turbines costs a lot, so you want to stop damage and repairs.
Wind turbines use complex electrical systems. These systems can break if voltage changes fast. When turbines connect to power grids, they can get voltage swings and surges. You need the right safety devices to keep everything safe and working right.

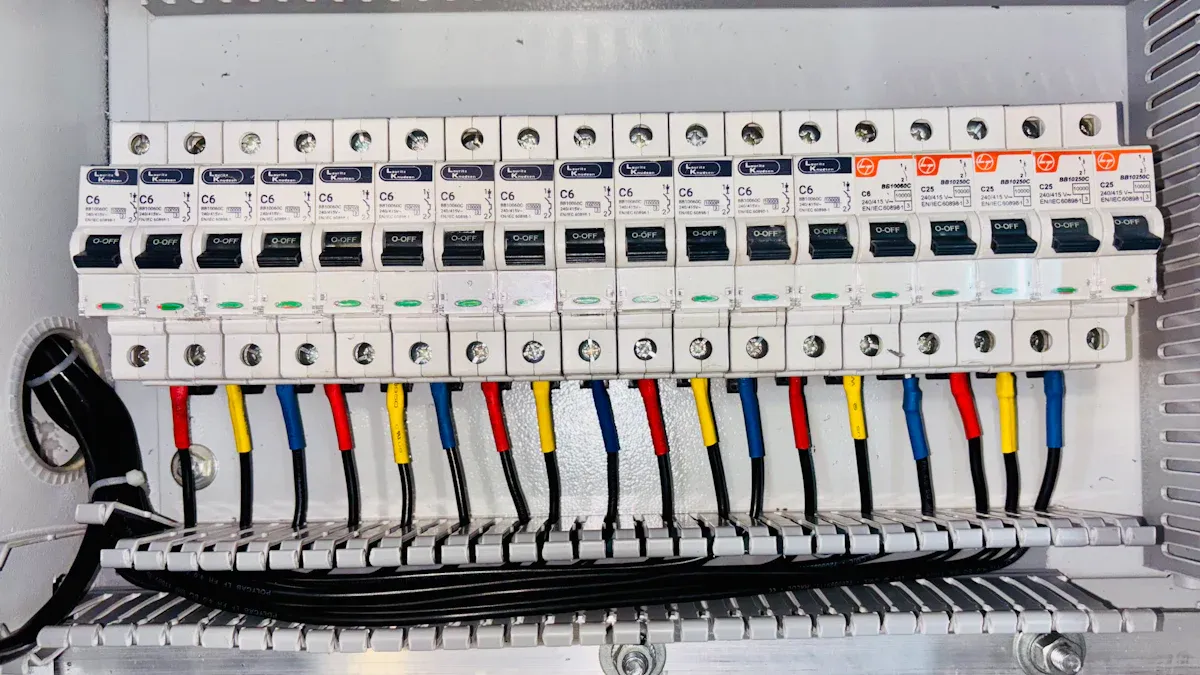

Circuit Breaker Functions
Fault Detection
Circuit breakers help find problems fast in wind turbine systems. If there is a short circuit or too much power, the circuit breaker acts quickly. This stops damage and keeps bigger problems away. ABB’s 3-station circuit breaker uses smart sensors to spot faults fast. You get better safety for your wind turbine generator distribution protection system.
Circuit breakers do more than just turn off power. They protect wires, transformers, and other parts from harm. Smart circuit breakers show real-time data. This helps you find weak spots before they break. Your wind turbines work longer and safer.
Tip: Fast circuit breakers can stop long power outages and save money on repairs.
Isolation and Grounding
You need to keep workers and equipment safe during repairs or after a fault. Circuit breakers help with isolation and grounding. These features let you work safely on the system.
Here is how these functions help:
| Function | Description |
|---|---|
| Breaking Function | Finds too much power or short circuits and quickly disconnects the line. |
| Isolating Function | Keeps the broken part separate during repairs, so engineers stay safe. |
| Grounding Function | Sends leftover energy to the ground, making it safer for technicians. |
Fast grounding switches give extra safety. They make installation easier and help find problems faster. These switches work with the main circuit breaker, so you have fewer parts.
- Makes system installation easier.
- Helps find faults faster.
- Combines grounding and circuit breaker jobs.
Using these features lowers the chance of accidents. Your wind turbine generator distribution protection system works better. ABB’s 3-station circuit breaker and fast grounding switch give you a simple and safe way to protect wind turbines from electrical dangers.
Circuit Breaker Technologies
Vacuum Breakers
Vacuum circuit breakers use a vacuum to stop arcs. They are common in wind turbine systems. They work well for medium voltage. The vacuum puts out the arc fast. This keeps the contacts from wearing out quickly. These breakers last a long time and need little care.
Here is a table that shows the main good and bad points of vacuum circuit breakers:
| Advantage | Description |
|---|---|
| Arc Quenching Efficiency | The vacuum puts out arcs fast and keeps contacts in good shape. |
| Low Maintenance | You do not need to service them often because there are few moving parts. |
| Long Service Life | The contacts last a long time, even with many operations. |
| Compact Size | You can fit them in small spaces, which helps in modern wind turbine designs. |
| Environmental Safety | They do not use harmful gases or oils. |
| High Insulation Strength | The vacuum gives strong insulation, especially at medium voltages. |
| Safe Operation | They work safely outdoors and do not explode or catch fire. |
| Disadvantage | Description |
|---|---|
| Limited Voltage Range | They work best up to 72.5 kV, not for very high voltages. |
| Higher Initial Cost | You may pay more at first for vacuum interrupters. |
| Sensitive to Overvoltage | Sometimes, they can cause voltage spikes and need extra protection. |
| Specialized Manufacturing | Making them needs special equipment and clean rooms. |
You can find vacuum circuit breakers in products like the Eaton VCP-Wind. This breaker is made for wind turbine generator distribution protection. These breakers give you safety, long life, and low upkeep.
SF6 Breakers
SF6 circuit breakers use a special gas to stop arcs. This gas gives strong insulation and works well at high voltages. Many wind farms use SF6 breakers for big turbines and grid links.
SF6 gas is a strong greenhouse gas. It can hurt the environment if it leaks. You must follow strict rules for handling and recycling SF6. For example, California will ban new SF6 breakers from 2024. By 2033, they will be phased out. You can keep using old ones until they wear out. But you cannot buy new ones after the ban starts.
SF6 breakers, like the Siemens SDV-R, give you high reliability and strong arc control. They protect large wind turbines well. But you must think about the environment and future rules.
Note: If you use SF6 breakers, always check for leaks and follow recycling rules to help the environment.
Solid-State Breakers
Solid-state circuit breakers use electronic parts, not moving contacts. They switch very fast, sometimes in nanoseconds. This speed helps stop arc flashes and keeps your system safe.
Here are some good things about solid-state breakers:
- Arc flash mitigation: They switch so fast that arcs do not form.
- Configurability: You can change their settings for different needs.
- No maintenance: With no moving parts, you do not need to service them.
- Smart capabilities: They can monitor and control power in real time.
- Device integration: One solid-state breaker can do the job of many regular devices.
You may pay more for solid-state breakers than for regular ones. The higher price comes from advanced electronics. Still, you get better performance and reliability. In wind turbine systems, solid-state breakers help you avoid costly downtime and give you exact protection. Some wind farms use devices like the SEL-352 Breaker Failure Relay to add smart features and improve safety.
Comparing Technologies for Wind Turbine Generator Distribution Protection
You have many choices for circuit breakers in wind turbine systems. Here is a quick comparison:
| Technology | Best Use Case | Key Benefit | Main Limitation | Example Product |
|---|---|---|---|---|
| Vacuum Breaker | Medium voltage, frequent switching | Low maintenance, long life | Not for very high voltage | Eaton VCP Wind Energy, ONESTOP Electrical |
| SF6 Breaker | High voltage, grid connection | Strong insulation, reliable | Environmental concerns, regulations | ONESTOP Electrical |
| Solid-State Breaker | Fast protection, smart systems | Instant switching, no maintenance | Higher cost | SEL-352 Breaker Failure Relay |
You should pick the breaker that matches your wind turbine’s voltage, safety needs, and future rules. Each type gives you different strengths for wind turbine generator distribution protection.
Selection and Integration
Key Features
When you pick circuit breakers for wind turbine generator distribution protection, you want features that keep things safe and simple. The table below lists important features and why they help:
| Feature | Description |
|---|---|
| Proven Technology | Uses vacuum interrupting technology for reliable switching during normal and high-stress currents. |
| Green and SF6 Free | Avoids SF6 gas, which is harmful to the environment, and uses solid insulation instead. |
| Compact Footprint | Saves space in your switchgear, making installation easier. |
| Remote Racking for Enhanced Safety | Lets you operate breakers from a safe distance, which protects workers during maintenance. |
| Protected Components Reduce Maintenance | Encapsulated parts keep high-voltage areas safe and lower the need for repairs. |
| Easy Access | Direct roll-in design makes moving and handling breakers simple. |
| Customized Design | Allows you to fit breakers to your specific wind turbine setup. |
| Certified to Meet Requirements | Meets ANSI and IEEE standards, which is important for new wind energy systems. |
Smart circuit breakers help you control wind turbines better. You can see real-time data about current, overloads, and faults. This information goes to your control center without wires. You can find problems early and fix them before they get worse. IoT-enabled breakers help you plan repairs, so turbines last longer and work better. Modular monitoring lets you control each turbine and keep energy steady.
Implementation Steps
You can follow these steps to add circuit breakers to your wind turbine system:
- Figure out the LVRT (Low Voltage Ride Through) by checking your local relay protection settings.
- Check line voltages at the inverter output to watch for voltage dips.
- Set up the system to turn off the breaker if voltages drop too low.
You should also:
- Give each turbine and transformer its own breaker for better safety.
- Use medium-voltage breakers with built-in monitoring to make things safer and more reliable.
- Pick breakers that sense high voltages and disconnect turbines fast to stop damage.
- Choose eco-friendly breakers that do not use SF6 gas.
- Add extras like trip-free interlocks for more safety.
Tip: Always check that your breakers meet the newest standards and fit your wind turbine’s needs. This keeps your wind turbine generator distribution protection system safe, reliable, and ready for the future.
Benefits
Reliability
You want your wind turbine to work all the time. Circuit breakers help you reach this goal. They make your system more reliable by finding problems fast. They stop issues before they get worse. Smart relay coordination helps your system keep running during faults. This uses load flow checks, short circuit tests, and reliability checks. These steps make sure everything works together.
- Relay coordination keeps things steady when faults happen.
- Load flow and short circuit tests find weak spots.
- Reliability checks show where you can do better.
You can also check how well your circuit breakers work. Here are some common ways to measure reliability:
| Metric | Description |
|---|---|
| λDCCB | Failure rate of the hybrid DC circuit breaker |
| μDCCB | Repair rate of the hybrid DC circuit breaker |
| λRLC | Failure rate of the current-limiting reactor |
| λFD | Failure rate of the mechanical switch |
| λADB | Failure rate of the additional devices |
| λTB | Failure rate of the transformer |
| λMOV | Failure rate of the metal-oxide varistor |
Safety
You need to keep your wind farm safe for people and equipment. Circuit breakers help stop fires. They find faults and disconnect bad parts quickly. This stops overloads that could start fires or overheat wires. When a breaker opens, it can send an alarm to your control system. This makes your wind turbine generator distribution protection safer and lowers risks.
Tip: Always check your breakers and alarms to make sure they work. This keeps your team and equipment safe.
Cost Savings
Circuit breakers help you save money in many ways. New technology, like IoT sensors, lets you watch your system in real time. You can fix problems before they cause outages. This means you spend less on repairs and keep turbines working longer.
- Real-time monitoring and predictive maintenance lower repair costs.
- Fewer outages mean more energy and higher profits.
- Good circuit protection keeps the power grid steady, which helps your wind farm make money.
You get better financial results when you use the right circuit breaker solutions.
You can fix lots of problems in wind turbine generator distribution protection with modern circuit breakers. These devices help your system stay safe, work well, and save money. Experts say you should use digital frequency relays and inertial control for better safety.
| Strategy | Description |
|---|---|
| Digital Frequency Relay | Stops big changes in frequency from hurting the system |
| Inertial Control | Helps control wind energy in hybrid systems |
You should ask experts in the industry to help you pick the best solutions for your wind farm.
ONESTOP Electrical provides professional distribution protection circuit breaker solutions for wind turbines
FAQ
What does a circuit breaker do in a wind turbine?
A circuit breaker stops electricity when it detects a problem. You use it to protect your wind turbine from damage. It helps keep your system safe and working well.
How do you choose the right circuit breaker for your wind turbine?
You look at voltage, size, and safety features. You check if the breaker meets standards. You pick one that fits your turbine and protects against faults.
Why should you use vacuum circuit breakers in wind turbines?
Vacuum circuit breakers last a long time. You need less maintenance. They work well for medium voltage. You get safe and reliable protection for your wind turbine.
Can circuit breakers help lower costs for your wind farm?
Yes! You use smart circuit breakers to find problems early. You fix issues before they get worse. This saves money on repairs and keeps turbines running longer.
What is the difference between SF6 and solid-state circuit breakers?
SF6 breakers use gas to stop arcs. Solid-state breakers use electronics. You get fast switching and no moving parts with solid-state. SF6 breakers work for high voltage but need careful handling.
