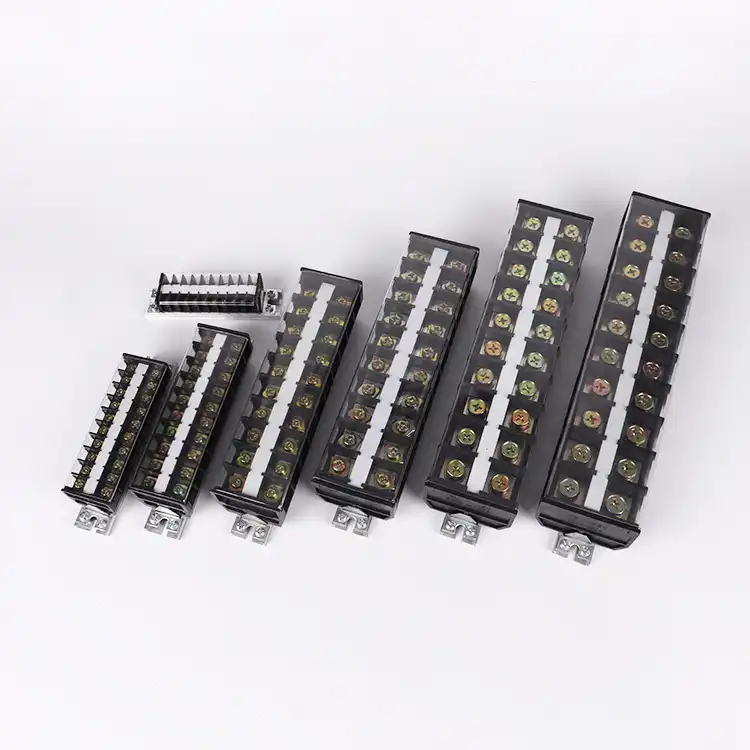

SENTOP TD Series
Combined Rail-Type Terminal Blocks | High-Current Power Solutions
Product Overview
The SENTOP TD Series is a premium combined terminal block system designed for high-current industrial wiring. These blocks feature a unique combination of polycarbonate insulation and nickel-plated brass conductors, offering exceptional heat resistance, anti-aging properties, and superior conductivity. The screw terminals utilize a composite groove process, making them compatible with both straight and cross screwdrivers. Equipped with a transparent, removable protective cover, the TD series allows for safe visual inspection and easy maintenance in control panels and power distribution systems.
Technical Specifications
| Model No. | Rated Current | Rated Voltage | Conductor Section | Dimensions (W×T×H mm) | Screw Size |
|---|---|---|---|---|---|
| TD-1510 | 15A | 660V | 1.5 mm² | 30 × 115 × 29.5 | M3 × 8 |
| TD-2010 | 20A | 660V | 2.5 mm² | 37.8 × 150 × 38.3 | M4 × 8 |
| TD-3010 | 30A | 660V | 6.0 mm² | 43.5 × 170 × 44 | M5 × 10 |
| TD-6010 | 60A | 660V | 10.0 mm² | 51.5 × 220 × 51 | M5 × 10 |
| TD-10010 | 100A | 660V | 25.0 mm² | 60 × 255 × 49.5 | M6 × 12 |
| TD-15010 | 150A | 660V | 36.0 mm² | 68 × 315 × 58 | M8 × 16 |
| TD-20010 | 200A | 660V | 35.0 mm² | 65 × 315 × 58 | M10 × 20 |
* Standard configuration: 10 sections per unit. Custom poles and configurations are available for OEM/ODM orders.
Advanced Material Science
- Housing: High-impact Polycarbonate (PC), moisture-resistant and anti-aging.
- Conductor: High-purity nickel-plated brass for minimal voltage drop and maximum corrosion resistance.
- Screws: Composite groove screws compatible with all standard industrial tools.
Mechanical Reliability
- Combined Technology: Uses screw crimping for a secure connection with OT/UT terminals.
- G-Type Mounting: Specifically designed for seamless installation on G-type guide rails.
- Intuitive Safety: Transparent cover protects against accidental contact while keeping all parts visible.
Industry Applications
🏭 Heavy Manufacturing
Stable power delivery for industrial furnaces, CNC machinery, and production lines.
⚡ Power Substations
Reliable distribution for low-voltage switchgears and secondary circuit wiring.
🌊 Marine & Offshore
Moisture-resistant materials and robust connections ideal for naval electrical systems.
Request a Custom Quote or Free Samples
SENTOP provides professional technical support and bulk pricing for the entire TD Terminal Block series.
