SENTOP SAK/JXB Series
Universal Screw Terminal Blocks | Heavy-Duty Connection Technology
Product Overview

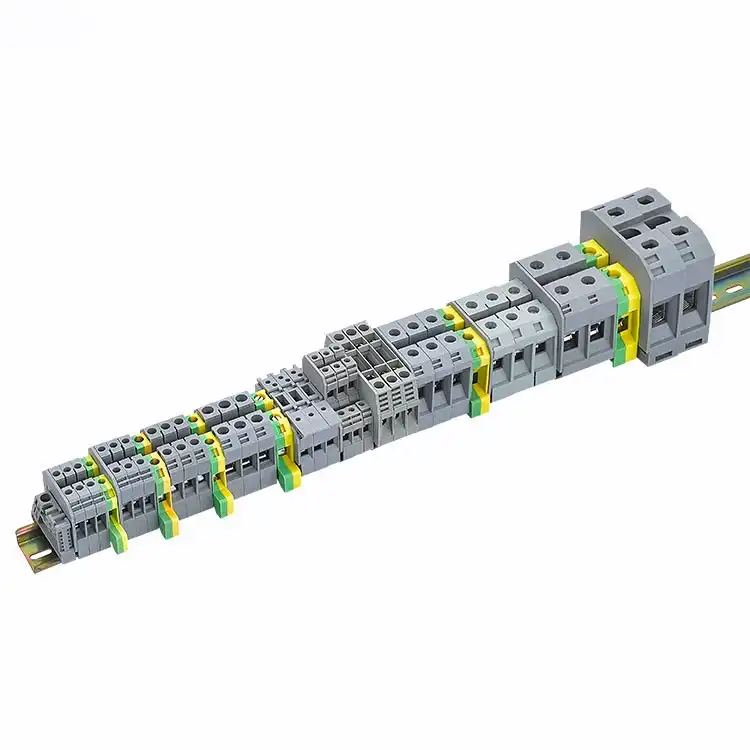

SENTOP SAK/JXB series universal terminal blocks represent the pinnacle of connection technology in industrial electrical systems. Combining classic screw-clamp principles with modern engineering, these blocks offer a reasonable installation design with strong versatility. They are compatible with both G-type and Top-hat (TH) mounting rails. Despite their compact size, the SAK series provides high contact force and reinforced accessories to guarantee stable connection points for demanding automation and power distribution environments.
SAK/JXB Series Specifications
| Model No. | Dimensions (mm) | Voltage (V) | Current (A) | Wire Range (mm²) | Strip Length |
|---|---|---|---|---|---|
| SAK-2.5EN | 41 x 32.5 x 6 | 800V | 24A | 0.5 – 4.0 | 10mm |
| SAK-4EN | 41 x 32.5 x 6.5 | 800V | 32A | 0.5 – 6.0 | 12mm |
| SAK-6EN | 41 x 32.5 x 8 | 800V | 41A | 0.5 – 10.0 | 12mm |
| SAK-10EN | 51 x 47 x 10 | 800V | 57A | 1.5 – 16.0 | 12mm |
| SAK-16EN | 51 x 47 x 12 | 800V | 76A | 2.5 – 16.0 | 15mm |
| SAK-25EN | 51 x 47 x 15 | 800V | 101A | 4.0 – 25.0 | 15mm |
| SAK-35EN | 59 x 62.5 x 18 | 800V | 125A | 6.0 – 35.0 | 20mm |
| SAK-70EN | 76.5 x 71.5 x 22.5 | 800V | 192A | 16.0 – 50.0 | 24mm |
| SAK-DK4G | 50.5 x 56.5 x 6 | 500V | 32A | 0.5 – 4.0 | 10mm |
| SAK-WTL6 | 66 x 56.5 x 8 | 500V | 41A | 0.5 – 4.0 | 10mm |
EK Grounding Series
| Model No. | Dimensions (mm) | Rated Current | Wire Range (mm²) |
|---|---|---|---|
| EK-2.5/35 | 58 x 34 x 6 | 24A | 0.5 – 6.0 |
| EK-4/35 | 58 x 41 x 6.5 | 32A | 0.5 – 6.0 |
| EK-6/35 | 58 x 41 x 8 | 40A | 0.5 – 10.0 |
| EK-10/35 | 58 x 41 x 10 | 57A | 1.5 – 16.0 |
| EK-16/35 | 58 x 50 x 12 | 75A | 2.5 – 16.0 |
Robust Engineering
- High-Quality Insulation: PA66 housing ensures electrical safety and heat resistance.
- Stable Contacts: Reinforced accessories ensure reliable contact even under vibration.
- Universal Mounting: Fits standard DIN rails (TS 32 / TS 35) with high density.
Global Compliance
The SENTOP SAK/JXB series meets the most stringent international industrial standards:
CE Certified
RoHS
UL Standards
Industry Applications
🏭 Control Cabinets
High-density wiring for industrial automation and process control systems.
🚉 Railway Signal
Vibration-proof screw connections suitable for demanding transportation infrastructure.
☀️ Power Distribution
Reliable power handling for renewable energy installations and switchgears.
