SENTOP TB Series
High-Current Fixed Barrier Terminal Blocks | Robust Power Distribution

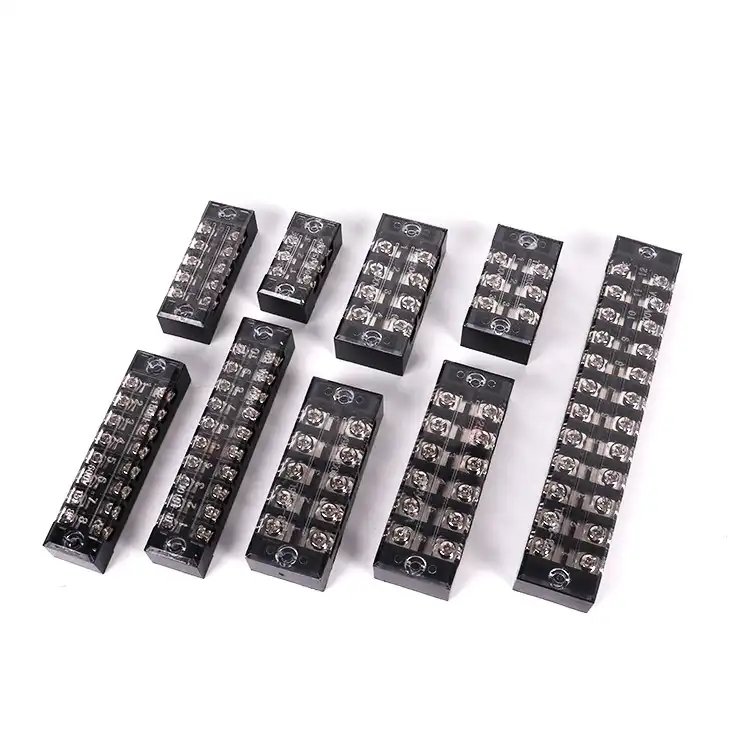

Product Overview
The SENTOP TB series is specifically designed for high-power electrical equipment and machine tool manufacturing. These terminal blocks feature a dual-row fixed screw system with a high-transparency protective cover that allows for easy visual inspection while preventing accidental electrical contact. Constructed from high-strength Polycarbonate (PC), the base offers exceptional impact resistance and heat stability (-40°C to +125°C). The conductive parts are crafted from nickel-plated brass to ensure maximum conductivity and corrosion resistance, supporting conductor sectional areas from 1.5mm² up to 25mm².
Full Technical Specifications
| Model (Poles 3-12) | Current (A) | Voltage (V) | Screw Size | Dimensions (WxH) | Length Formula (mm) | Wire Range |
|---|---|---|---|---|---|---|
| TB-1503 to TB-1520 | 15A | 600V | M3 | 22 x 15 mm | (Poles × 9) + 15 | 0.5 – 2.5 mm² |
| TB-2503 to TB-2520 | 25A | 600V | M4 | 30 x 17 mm | (Poles × 12) + 20 | 0.5 – 2.5 mm² |
| TB-4503 to TB-4512 | 45A | 600V | M4 | 38 x 23.5 mm | (Poles × 17) + 18 | 0.5 – 4.0 mm² |
* Note: “P” refers to the number of sections/poles. For example, a TB-1512 (12-pole) has a length of (12×9)+14 = 122mm.
Mechanical Reliability
- Composite Groove Screws: Universal design for both straight and cross screwdrivers.
- Combined Crimping: Compatible with OT/UT ring and fork terminals for vibration resistance.
- Surface Mounting: Pre-drilled mounting holes for secure direct-to-panel installation.
Premium Protection
Designed for extreme industrial environments:
Dust-Proof
Anti-Aging Base
Moisture Resistant
