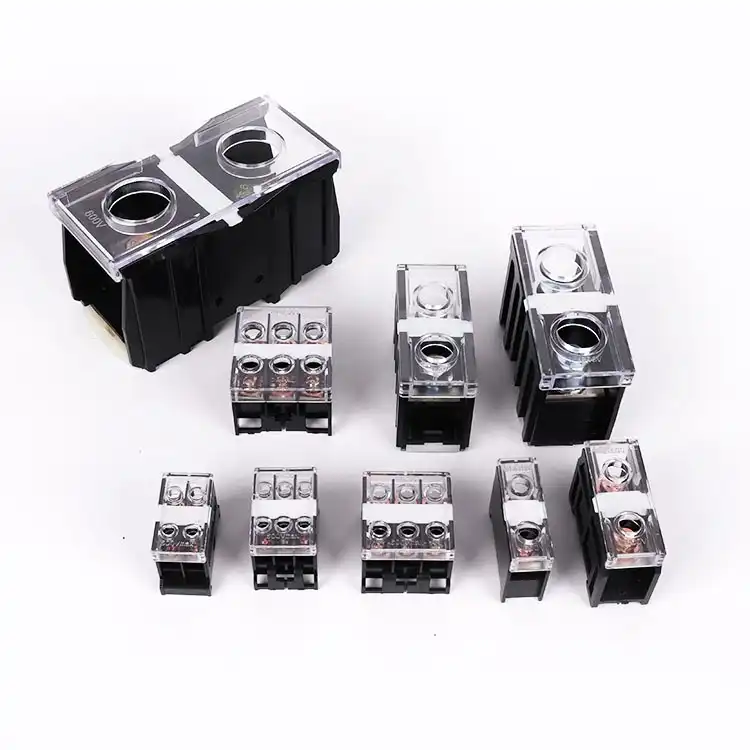

SENTOP IN Series
Professional Combined Terminal Blocks | High-Performance Screw Crimping
Product Overview
The SENTOP TIN Series combined terminal blocks integrate advanced European-style connection technology with industrial-grade screw crimping systems. Engineered for high-load applications, these blocks utilize premium H62 copper conductors with nickel-plating for superior anti-oxidation and conductivity. The housing is crafted from high-gloss, flame-retardant PC material (UL94 V-0), capable of withstanding temperatures up to 120°C. Featuring a transparent protective cover for safe operation and visual inspection, the IN series is the ideal choice for reliable power distribution in control cabinets and heavy machinery.
Technical Specifications
| Model No. | Current (A) | Voltage (V) | Wire Range (mm²) | Conductor Material | Screw Type |
|---|---|---|---|---|---|
| TIN-10 | 20A | 600V | 0.75 – 2.5 mm² | Nickel-Plated Copper | M3.5 |
| TIN-20 | 30A | 600V | 1.5 – 4.0 mm² | Nickel-Plated Copper | M4 |
| TIN-30 | 40A | 600V | 2.5 – 6.0 mm² | Nickel-Plated Copper | M4 |
| TIN-60 | 60A | 600V | 6.0 – 16.0 mm² | Nickel-Plated Copper | M6 |
| TIN-100 | 100A | 600V | 16.0 – 35.0 mm² | Nickel-Plated Copper | M8 |
| TIN-200 | 200A | 600V | 35.0 – 70.0 mm² | Nickel-Plated Copper | M10 |
| TIN-300 | 240A | 600V | 70.0 – 100.0 mm² | Nickel-Plated Copper | M12 |
* Specifications comply with IEC60947 and GB14048 standards. Insulation resistance: ≥2K megohm.
Superior Fastening System
- Anti-Slippage Design: Trivalent zinc electroplating on industrial screws prevents rounding and ensures consistent torque.
- Salt Spray Resistance: Hardware withstands up to 48 hours of salt spray testing for corrosion-prone environments.
- Flat Incisions: Precision high-speed punching ensures zero-tolerance dimensional accuracy.
Premium Safety Cover
- Transparent PC: New high-transparency material allows for safe monitoring without exposure.
- Exceptional Strength: High structural folding resistance prevents cracking during maintenance.
- Finger-Safe: IP20 protection design ensures operator safety during manual operation.
Industry Applications
🏭 Industrial Control
Reliable combined wiring for PLC control cabinets and automation production lines.
⚡ Power Distribution
Main incoming and secondary distribution for low-voltage power units up to 240A.
⚓ Marine & Energy
High temperature and salt spray resistance suitable for maritime and renewable energy stations.
Need Professional Support or Bulk Samples?
SENTOP provides professional technical guidance and competitive wholesale pricing for global distributors.
