SENTOP MRK Series
Universal Screw Terminal Blocks | Heavy-Duty DIN Rail Solutions
✅ Up to 1000V Rated Voltage
✅ UL94 V-0 Flame Retardant
✅ Pure Copper Conductors
✅ NS 35 Rail Compatible
Product Overview

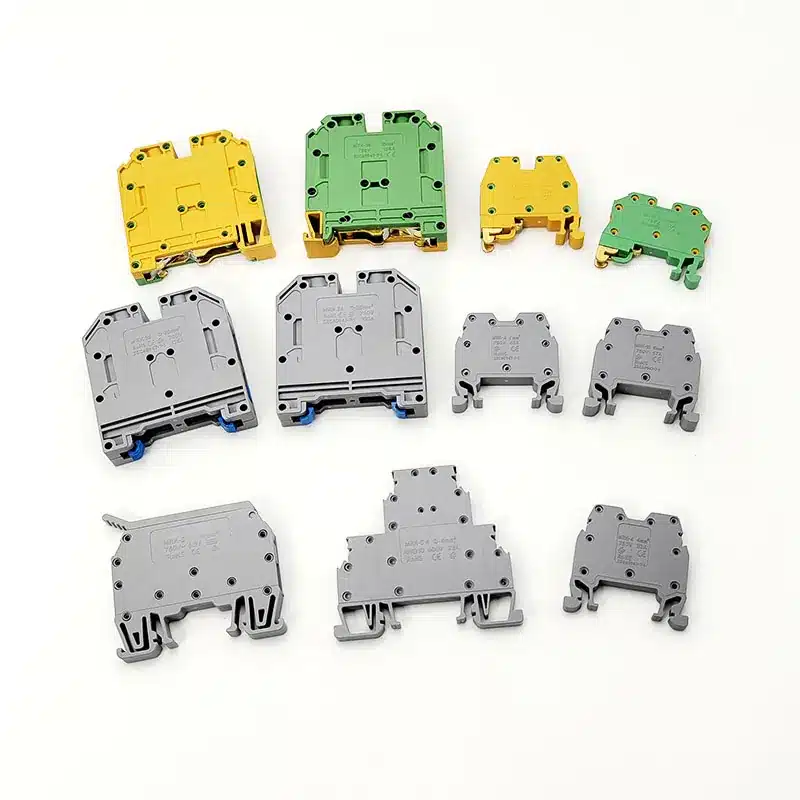

SENTOP MRK series terminal blocks provide a reliable and vibration-proof connection for all industrial electrical applications. From compact signal wiring to heavy-duty power distribution (up to 120mm²), our robust screw clamping system ensures high contact force and long-term stability. The modular design allows for easy expansion on standard DIN rails, making them the preferred choice for professional control cabinets.
Technical Specifications
| Model No. | Cross-Section | Voltage Rating | Current Rating | Material (Housing/Conductor) |
|---|---|---|---|---|
| MRK-2.5 | 2.5 mm² | 750V | 24A | Nylon / Copper |
| MRK-4 | 4.0 mm² | 750V | 32A | Nylon / Copper |
| MRK-6 | 6.0 mm² | 750V | 40A | Nylon / Copper |
| MRK-10 | 10 mm² | 750V | 57A | Nylon / Copper |
| MRK-16 | 16 mm² | 750V | 82A | Nylon / Copper |
| MRK-25 | 25 mm² | 750V | 100A | Nylon / Copper |
| MRK-35 | 35 mm² | 750V | 125A | Nylon / Copper |
| MRK-50 | 50 mm² | 750V | 150A | Nylon / Copper |
| MRK-70 | 70 mm² | 750V | 192A | Nylon / Copper |
| MRK-95 | 95 mm² | 1000V | 232A | Nylon / Copper |
| MRK-120 | 120 mm² | 1000V | 269A | Nylon / Copper |
High-Grade Materials
- Housing: Polyamide 6.6 (PA66), anti-aging and flame retardant (UL94 V-0).
- Conductor: High-purity electrolytic copper with tin plating for optimal conductivity and corrosion resistance.
- Screw: Steel with Zinc plating, offering high torque and anti-corrosion features.
Standard Compliance
Our MRK series is manufactured in accordance with international standards:
IEC 60947-7-1
CE
RoHS
CE
RoHS
Industry Applications
Looking for Bulk Pricing or Samples?
SENTOP provides professional OEM/ODM services for global electrical distributors.
