What should you know about QP circuit breakers

A qp circuit breaker keeps your home safe. It stops electricity when there is a problem. You should know how these devices work. Picking the wrong circuit breaker can be dangerous. Old panels can make wires too hot. This causes about 2,800 fires each year. It also leads to 13 deaths and $40 million in damage every year.

The table below shows common safety problems with compatibility:

Safety Incident Type	Description
Failing to Trip When Needed	Wrong breakers may not stop power during overloads. This can cause fires.
Improper Fit and Connection	Breakers from other brands may not fit right. This can cause sparks or overheating.
Non-Compliance with Codes	Breakers that do not match can break electrical rules. This can hurt property sales.
Safety Hazards	Breakers from other places may not have safety parts. This can put homes and people at risk.

Key Takeaways

QP circuit breakers keep your home safe by cutting off power when there are problems like too much electricity or short circuits. – Always make sure your QP breaker matches your electrical panel to prevent danger. – Siemens QP breakers are simple to put in because they have a plug-in style and Insta-Wire technology, which helps you save time. – Check your QP breakers often for damage so they work well and protect your home. – If your QP breaker turns off a lot, look for too many devices or bad wires before you call an electrician.

QP Circuit Breaker Basics

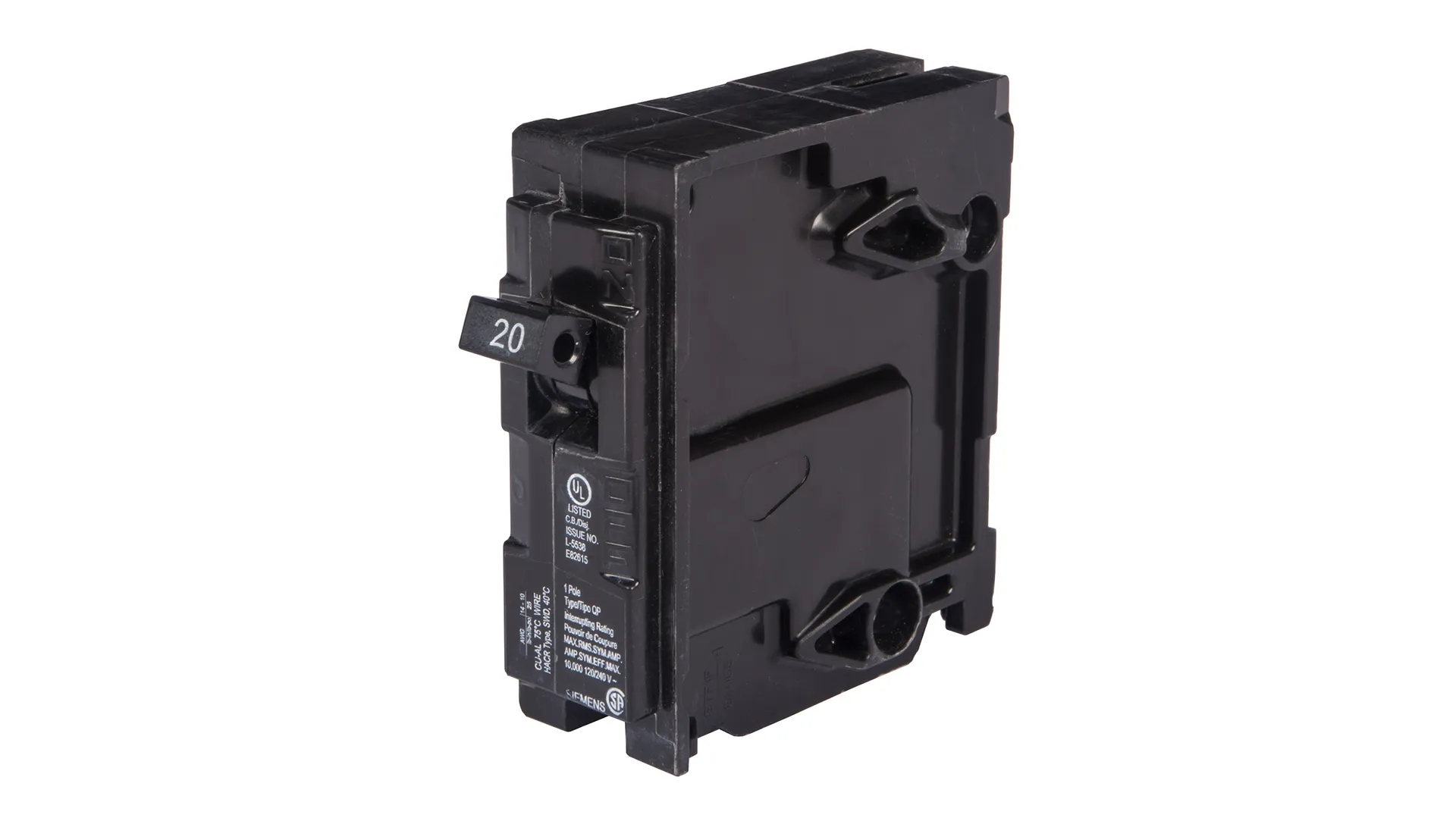

What Is a QP Circuit Breaker

A qp circuit breaker helps keep your electrical system safe. It stops electricity if there is a problem, like a short circuit or too much power. Siemens qp breakers are used in many homes and businesses. They fit certain electrical panels and protect your wires. You can find them in different load centers. They come in many types to match what you need.

Siemens qp breakers have a plug-in design. This makes them easy and quick to install. Some models have Insta-Wire technology. This lets you connect wires fast and safely. These features help your electrical system work well.

How It Works

A qp circuit breaker finds unsafe conditions in your electrical system. If too much current flows, it acts in different ways:

The breaker feels heat or magnetic changes from high current.
When something goes wrong, the breaker uses stored energy, like a spring, to open its contacts and stop electricity.
When the contacts open, an arc appears. The breaker must control and cool this arc to avoid damage.
The contacts are strong enough to handle the heat from the arc. This keeps your system safe.

Tip: The safe stopping power is called the AIC rating. Always check this rating in the specs to make sure the breaker fits your panel.

Key Features

Siemens qp breakers have important features for safety and performance:

Insta-Wire Terminals: You can connect wires quickly. This saves time when installing.
Plug-In Design: You push the breaker into place. This makes it easy to add or change breakers.
AIC Ratings: These ratings show how much fault current the breaker can stop safely. Always check the specs for the right rating.
Pole and Voltage Options: You can pick single-pole or double-pole breakers for your needs.

Here is a simple look at single-pole and double-pole qp circuit breakers:

Type	Voltage Rating	Typical Applications
Single-Pole	120 volts	Lights, sockets, and small appliances
Double-Pole	240 volts	Heavy appliances like dryers, stoves, and air conditioners

Single-pole breakers protect small circuits, like lights and outlets. Double-pole breakers are for big appliances that need more power, like dryers and air conditioners. Always check the specs to pick the right breaker for your job.

Siemens qp breakers cost about the same as other brands. For example:

Circuit Breaker Type	Price Range
Siemens Type QP	$3.15 – $5.85
Eaton BR120	$3.85 – $5.62

You can see Siemens qp breakers are a good deal. They meet safety and performance standards. Always check the specs before you buy to make sure the breaker fits your panel and works for you.

Siemens QP Breakers Overview

Siemens Circuit Breakers Lineup

Siemens makes many kinds of circuit breakers. You can use them for different jobs and panels. The main types are QP, QT, QAF, and QPF. Each one works best in certain places and Siemens load centers.

Here is a table that shows what each type does:

Product Line	Description
QP	These are standard plug-on breakers. You can use them in loadcenters. They come in 1, 2, or 3 Pole. They have different AIC ratings like 10K, 22K, and 65K.
QT	These are duplex, triplex, and quadplex versions of QP. They save space in enclosures.
QAF	These are Arc Fault Circuit Interrupters (AFCI). They help stop high current arcing faults.
QPF	These are Ground Fault Circuit Interrupters (GFCI). They help prevent shocks in wet places.

Siemens QP breakers work in many Siemens panels. Some examples are PL, ES, and G series. You can also use QT, QAF, and QPF breakers in these panels. Always look at the Siemens breaker chart before you pick one.

Tip: Siemens QP circuit breakers fit Type Q panels. Always check if the breaker matches your panel for safety.

Unique Features of Siemens QP Breakers

Siemens QP breakers are special because of their design and how they work. They have a plug-in design. This makes them easy to put in. You can pick single-pole, double-pole, or quad types for different needs. Siemens breakers come in many amperage choices. You can match the breaker to your job.

Here is a table that compares Siemens QP breakers to other Siemens models:

Feature	Siemens QP Breakers	Other Siemens Models
Design	Plug-in design makes installation simple	Design changes with each model
Configuration	You can get single, double, or quad types	Configuration depends on the model
Amperage Availability	Many amperage choices for different loads	Amperage choices change by model
Compatibility	Made for certain Siemens load centers	Compatibility is not always the same
Identification	Has ‘QP’ label on the handle	Other models have different labels

You can tell Siemens QP breakers by the ‘QP’ label on the handle. These breakers work well and fit Siemens panels. They help keep homes and businesses safe. Siemens breakers help you follow safety rules and keep your power working right.

Note: Siemens QP breakers can be used with QT, QAF, and QPF types in many Siemens panels. This makes them a good choice for many jobs.

Circuit Breaker Compatibility

Compatible Panels and Brands

It is important to know which panels work with a qp circuit breaker. Not all panels can use every breaker. Using the right breaker helps you avoid bad connections and safety problems. Siemens panels like PL, ES, and G series use QP breakers. Some GE and Murray panels also let you use QP breakers. Always check the label inside your panel or look at the chart from the maker.

Some panels only use breakers made for them. If you pick the wrong breaker, it might not fit or trip when needed. This can make wires too hot or cause a fire. Always match the breaker type to your panel. Electricians use the right breakers to keep things safe and follow the rules.

Here are some panels and brands that use QP breakers:

Siemens PL, ES, and G series panels
Some GE load centers (check the chart)
Some Murray panels (ask the maker)

Note: Always look at the chart before you buy or put in a breaker. This helps you avoid mistakes and keeps your home safe.

Application Scenarios

QP breakers are found in many places. They work in homes and small businesses. Most people use them in home electrical panels. You can protect lights, outlets, and small appliances with these breakers. In small business buildings, QP breakers help because you can put them in or take them out fast.

The table below shows where QP breakers are used:

Application Scenario	Description
Residential Electrical Panels	Used in home circuits for lights and outlets.
Light Commercial Applications	Good for small businesses because they are easy to install and remove.

Using the right breaker matters everywhere. If you use the wrong one, it can be unsafe. Always check your panel and breaker before you start. You should also look for the right power and size. This helps stop overloads and keeps things safe.

Tip: Always check breaker compatibility before you install. This keeps your home safe and follows the rules. Never guess which breaker to use.

Installation and Safety

Installation Tips

When you put in a qp circuit breaker, you help keep your home’s electricity safe. You need to follow steps to make sure you install it right. Siemens suggests these steps:

Turn off the power by switching the main breaker to “off”.
Use a screwdriver to take off the panel cover.
Find the old breaker. Flip it to “off” and pull it out.
Put in the new Siemens breaker:
- Line up the breaker with the slot.
- Attach the hot wire to the screw terminal. Connect the neutral wire to the neutral bus bar.
- Push the breaker into place.
Put the panel cover back on. Turn the main breaker to “on” to restore power.

Siemens QP breakers have Insta-Wire terminals and a plug-in design. These features make it easier to install and help you follow safety rules.

Tip: Always check your panel and breaker specs before you start. This helps you avoid problems and keeps your home safe.

Safety and Compliance

You should always look at safety rules and certifications before using any circuit breaker. QP circuit breakers have important certifications that show they are safe. Here is what you can check:

Certification Type	Description
UL Listing	Shows the breaker meets safety rules
CSA Certification	Follows safety regulations
NOM Certification	Meets Mexican safety standards

These certifications mean the breaker is safe for your home. You should also check the label for specs. This helps you make sure the breaker fits your panel and follows safety rules.

Note: Using a breaker with the right certifications helps protect your home and keeps you following safety rules.

Common Mistakes

You should know what mistakes to avoid when installing. Many problems happen if you do not follow the specs or ignore what the maker says. Here are some common mistakes:

Mistake Type	Description
Compatibility Issues	QP breakers may not fit if the panel or breaker type is wrong.
Incorrect Breaker Type Selection	Using the wrong breaker causes fit problems; make sure the breaker matches the panel.
Manufacturer Recommendations	Using breakers not suggested by the maker can cancel warranties and cause safety problems.

Always use breakers listed by the maker to keep your warranty and stay safe.
Using breakers from another maker can cause damage or hurt people.

You should always check the specs and safety rules before you start. This helps you avoid mistakes and keeps your home’s electricity safe.

Choosing and Maintaining QP Circuit Breakers

Selecting the Right Breaker

When you choose a QP breaker, you need to make sure it fits your panel and meets your needs. Here is what you should check:

Look at the compatibility chart inside your breaker box. This chart shows which breakers work with your panel.
Follow the guidelines from your panel’s manufacturer. These rules help you pick the correct breaker.
Use trusted online resources. Sites like ControlNexus give you extra information about breaker compatibility.
Ask a licensed electrician if you are not sure. An expert can help you avoid mistakes.

Tip: Picking the right breaker keeps your home safe and helps your electrical system work well.

Troubleshooting

If your QP breaker trips often, you should find out why. Here are common causes:

Circuit overload: Too many devices on one circuit.
Short circuit: Wires touch when they should not.
Ground fault: A hot wire touches a ground wire or metal part.
Faulty appliance or wiring: Broken devices or damaged wires.

To troubleshoot, you can:

Find the breaker that tripped. It will be between “on” and “off.”
Turn off all devices on that circuit.
Reset the breaker by moving it to “off” and then “on.”
Check for loose wires and tighten them if needed.

If the breaker keeps tripping, you may need to replace it or call an electrician.

Maintenance Advice

You should inspect your QP breakers every year. Look for signs of overheating, rust, or loose connections. Clean the area around the breaker and make sure it moves smoothly. Most residential breakers last 15 to 20 years if you take care of them. Siemens breakers often come with a one-year limited warranty. Regular checks help you spot problems early and keep your electrical system safe.

Note: Annual inspections and cleaning help your breakers last longer and prevent failures.

You need to check if your panel works with a QP circuit breaker before you put one in. The table below shows what is most important for compatibility:

Compatibility Consideration	Importance
Safety	Stops electrical problems and keeps you safe.
Efficiency	Helps your electrical system work its best.
Longevity	Makes your electrical parts last longer.

To stay safe, follow these steps:

Switch off the main breaker before you start.
Look at your tools and wires for any damage.
Check that the breaker fits your panel.

If you are not sure, talk to a licensed electrician. You can find more information on Siemens Energy circuit breakers online.

If you need Siemens QP circuit breakers, you can contact us to obtain them, or choose our circuit breakers as an alternative solution.

FAQ

What does a QP circuit breaker do?

A QP circuit breaker keeps your electrical system safe. It shuts off electricity if there is a problem. This can happen if there is too much power or a short circuit. Turning off the power helps stop fires and keeps your home safe.

What panels accept QP circuit breakers?

You can use QP circuit breakers in Siemens PL, ES, and G series panels. Some GE and Murray panels also work with QP breakers. Always look at your panel’s chart before you put one in.

What makes Siemens QP breakers different from other types?

Siemens QP breakers have Insta-Wire terminals and a plug-in design. You can put them in fast and easy. They come in different amperage choices and fit certain Siemens panels. This helps protect your home.

What should you check before installing a QP breaker?

You need to check your panel’s chart, the breaker’s amperage, and safety labels. Make sure the breaker fits your panel and follows all safety rules before you start.

What should you know about QP circuit breakers

Key Takeaways
