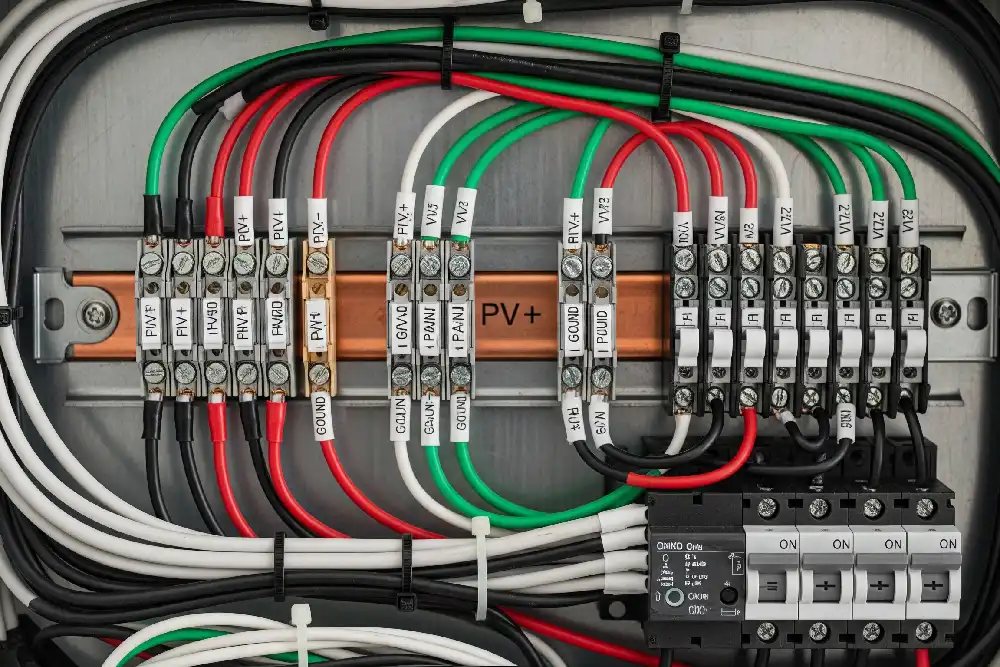

A combiner box is the main point in your solar system. It gathers electricity from many solar panel strings. Then, it sends the power to the inverter. This setup makes wiring easier. It also makes the system safer. It helps your solar system work better. In big solar setups, the combiner box keeps your equipment safe. It uses fuses and surge protection devices. More people are buying these boxes now. This shows they are important in today’s solar projects.
Key Takeaways
- A combiner box makes wiring easier. It gathers electricity from many solar panel strings. It sends the power into one main wire. This helps keep things safe and work better.
- DC combiner boxes help control high voltage from solar panels. They do this before the inverter. AC combiner boxes handle lower voltage from inverters.
- Check your combiner box every six months. This can stop problems like overheating, flooding, and pest damage. It helps keep your solar system safe.
- Pick a combiner box that follows safety rules. It should have surge protection and overcurrent protection. These features protect your equipment.
- Choose a combiner box that can grow with your needs. It should let you add more panels or inverters later. This makes it easier as you need more energy.

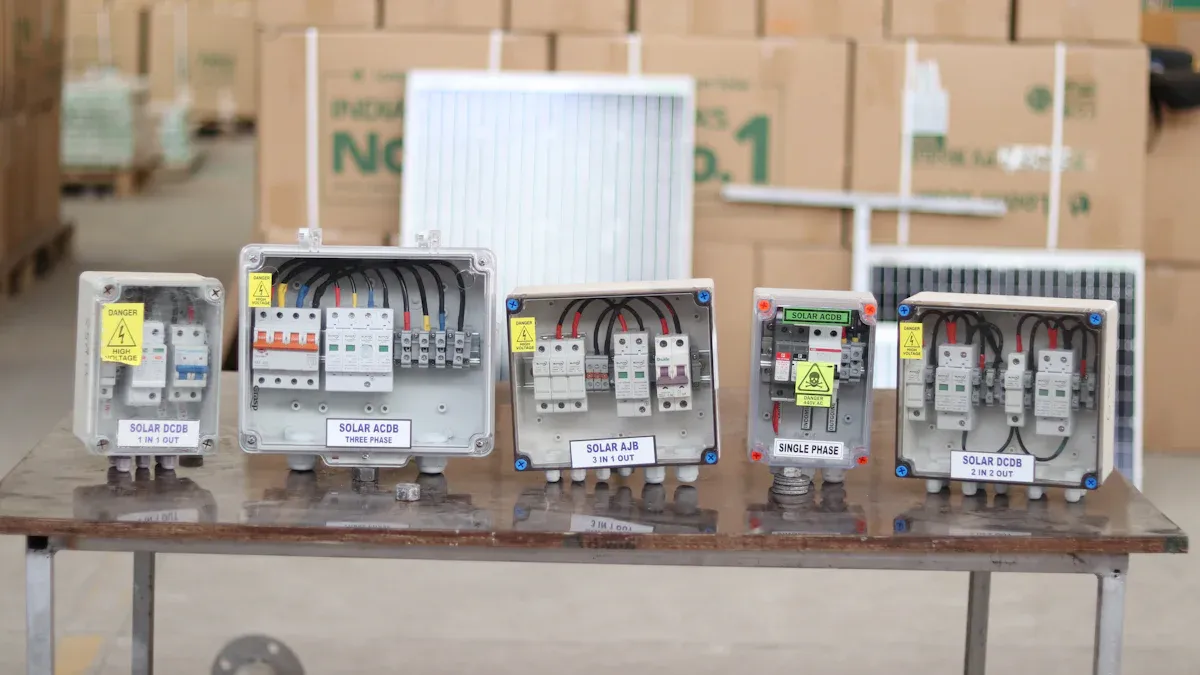

Combiner box overview
Function
A combiner box brings power from many solar panel strings together. It sends all the electricity through one main wire to the inverter. This makes the wiring much easier and helps stop power loss. In big solar systems, this setup keeps things neat and tidy. You can turn off one group of panels for repairs without stopping the whole system. The combiner box lets you add safety devices like fuses and circuit breakers. These help protect your equipment from electrical problems. Some new boxes have smart monitoring. This lets you see how each panel string is working and find problems early.
Tip: Smart combiner boxes now let you track your system in real time. They use wireless communication so you can spot and fix issues fast.
Importance
A combiner box is very important for keeping your solar system safe and working well. It is the first thing that protects your equipment. Inside, there are disconnect switches, fuses, and surge protectors. These parts let you stop the electricity during repairs or emergencies. You also get overcurrent protection to keep your system safe.
Here are some common reasons why combiner boxes might fail in the field:
| Reason | Description |
|---|---|
| Combiner box flooding | Water getting in and causing damage |
| Pest intrusion | Animals or bugs hurting the parts inside |
| Failed internal components | Some parts inside the box stop working |
You might also worry about overheating, rust, or loose wires. Checking your box often and installing it the right way helps stop these problems.
If you pick the right combiner box and take care of it, your solar system will be safer and work better.
DC combiner box
Features
A DC combiner box gathers electricity from many solar panel strings. It sends all the DC power to the inverter. Each solar panel wire connects to a fuse terminal inside. You get one wire coming out, so your system looks neat. This makes it easy to manage.
You find these important features in the box:
- Surge protectors stop damage from sudden voltage jumps.
- Isolator switches let you turn off parts for fixing.
- Circuit breakers and residual current devices stop electrical problems.
- The box gives isolation, leakage, and grounding protection.
A DC combiner box helps you set up your solar system faster. It uses fewer wires and keeps things tidy. You can add more panels later without much trouble.
Note: A simple design makes your solar setup look good. It also helps you find problems quickly.
Applications
DC combiner boxes work in many solar power systems.
Here is a table that shows where you use them:
| Type of Combiner Box | Description |
|---|---|
| String Combiner Boxes | Used in small setups with solar panels in one string. |
| Multi-String Combiner Boxes | Used in big setups with many strings, joining their outputs. |
You pick the right box based on how many solar panels you have. You also think about how you arrange them. This helps you manage your system better and keeps wiring simple.
Protection
DC combiner boxes keep your solar system safe.
Here are some ways the box protects your equipment:
| Protection Mechanism | Description |
|---|---|
| Overcurrent Protection | DC fuses or circuit breakers shut off bad circuits to stop fires. |
| Lightning and Surge Protection | Surge protection devices guard against lightning and voltage jumps. |
| Water and Dust Resistance | IP65 rating keeps the box safe outside in tough places like deserts or near the ocean. |
You feel better knowing your equipment is safe from electrical dangers and bad weather.
AC combiner box
Features
An AC combiner box helps you handle power from many inverters. It joins the AC output before sending it to the main panel. This makes your solar system easier to use and fix. Good AC combiner boxes have these features:
- Internal load center with overcurrent protection devices.
- Circuit breakers protect against voltage surges.
- Communication device lets you watch your system.
Plug-and-play options are easy to set up. You do not need to be an expert to install them. A dustproof design keeps out dirt and bad weather. Strong materials help the box last a long time.
Here is a table with important features to check:
| Feature | Description |
|---|---|
| Protection mechanisms | Overcurrent protection devices like fuses and circuit breakers prevent electrical faults. |
| Ease of installation | Plug-and-play options make setup easy for everyone. |
| Durability | Dustproof design protects the box from harsh environments. |
Tip: Pick a combiner box that works in hot or cold weather. This helps your system run well all year.
Applications
AC combiner boxes are used in solar systems with many inverters. They join the AC output from each inverter together. This setup is good for big solar projects and solar farms. You can also use them in homes with more than one inverter. The box keeps wires neat and lets you add more inverters later.
Protection
Safety is very important in solar systems. An AC combiner box gives you many ways to stay safe. Overcurrent protection stops too much electricity from hurting your equipment. Circuit breakers and fuses help stop fires and other problems. The box also has short-circuit and overvoltage protection. These features keep your system safe from sudden spikes or faults.
Here is a table with common protection devices:
| Protection Device | Description |
|---|---|
| Overcurrent Protection | Standard feature for safety |
| Short-Circuit Protection | Ensures system safety from faults |
| Overvoltage Protection | Extra safety for voltage spikes |
You can trust your solar system is safe with these protections. This helps your equipment last longer and work better.
AC vs DC combiner box
Differences
You may ask how AC and DC combiner boxes are not the same. Each one does a special job in your solar system. The table below shows how they are different in design and use:
| Characteristics | DC Combiner Boxes | AC Combiner Boxes |
|---|---|---|
| Position | Positioned on the input side of solar inverters, handling direct current (DC) from solar panels. | Works on the output side of inverters, combining multiple alternating current (AC) outputs from inverters into a single feed that connects to your electrical panel or grid connection. |
| Operation | Operates before inversion: Handles raw DC power directly from solar panels | Operates after inversion: Handles AC power converted by inverters |
| Voltage Handling | Higher voltage handling: Typically manages voltages between 600V-1500V DC | Standard voltage levels: Typically handles 120V, 208V, 240V, or 480V AC |
| Protection | String protection: Includes fuses or circuit breakers for each string | Inverter protection: Includes circuit breakers for each inverter output |
| Surge Protection | Surge protection: Protects against lightning strikes and voltage spikes | Grid compliance: Ensures synchronization with utility power standards |
| Monitoring | Monitoring capability: Advanced models include string-level monitoring | Disconnect functionality: Provides a central point for system shutdown |
| Applicability | DC combiners are essential for large-scale installations where multiple panel strings need consolidation before reaching the inverter. | AC combiners are particularly valuable in systems with multiple microinverters or when combining outputs from several string inverters. |
A DC combiner box collects power from solar panels before it goes to the inverter. An AC combiner box joins AC power from more than one inverter. DC boxes work with higher voltages and protect each group of panels. AC boxes handle regular voltage levels and protect each inverter’s output. DC boxes often let you watch each panel string. AC boxes give you one place to shut down the system for safety.
Tip: Always check the voltage and current ratings before you pick a box. This helps you choose the right box for your system.
Selection
Picking the best combiner box depends on your system, safety, and budget. You should think about a few things before you decide:
- System Type: If you have lots of solar panel strings, you need a DC combiner box. If you use more than one inverter, an AC combiner box helps you join their outputs.
- Safety Standards: Make sure your box has the right certifications. In North America, look for UL 1741. For other places, check IEC 61439. In Canada, CSA C22.2 No. 14 is important. These rules show the box passed tough safety tests.
| Standard/Certification | Description |
|---|---|
| UL 1741 | Safety standard for inverters and related equipment in North America. |
| IEC 61439 | International standard for low-voltage switchgear and controlgear assemblies. |
| CSA C22.2 No. 14 | Canadian safety standard for industrial control equipment. |
- Cost: AC combiner boxes cost more because they have more parts. DC combiner boxes are usually cheaper, but prices change with features.
| Type of Combiner Box | Cost Comparison |
|---|---|
| AC Combiner Box | Typically more expensive due to complexity and components. |
| DC Combiner Box | Generally less expensive, but costs can vary based on configurations and features. |
- Future Growth: If you want to add more panels or inverters later, pick a box that lets you grow your system.
- Protection Features: Look for boxes with strong surge protection, overcurrent protection, and weather resistance.
Note: Always pick a combiner box that matches your local codes and safety rules. This keeps your system safe and helps it last longer.
Choosing a combiner box
System type
You need to pick a combiner box that fits your system. AC and DC systems need different boxes. DC combiner boxes work with high voltage from solar panels. They do this before the inverter. AC combiner boxes handle lower voltage after the inverter. You should check your system’s voltage and current ratings. If your system is in a high place or a hot area, you need to think about insulation and temperature. The way you connect wires also matters when you choose a box.
| Criteria | Description |
|---|---|
| Rated Voltage and Current | The box must meet or be higher than your system’s voltage and current. |
| Influence of Altitude | High places lower insulation, so you need to lower the box rating. |
| Influence of Temperature | Hot or cold weather changes the current rating, so pick the right box. |
| Wiring Form | How you connect wires changes how you rate the box. |
Tip: Always check your system and location before you buy a combiner box.
Safety
Safety is the most important thing when picking a combiner box. You need features that protect your system and follow the rules. Look for a disconnect switch you can see near the fuses. Arc fault protection helps keep your system safe. Make sure your box has fuses or breakers tested by IEC or UL. Surge protection devices are also needed. The box should have a DC disconnect switch. Grounding and bonding must follow UL and NEC rules. Fire-resistant materials help stop damage.
- Fuses or breakers tested by IEC or UL
- Surge protection devices that follow IEC 61643
- DC disconnect switch that meets NEC 690
- Grounding and bonding as per UL 1741 and NEC 690
- Fire-resistant materials that meet UL94
| Safety Feature | Description |
|---|---|
| Visible Means of Disconnect | Must be easy to see and close to the fuses (NEC 690.16(B)). |
| Arc Fault Protection | Needed by NEC for extra safety. |
Scalability
You want your solar system to grow if you need more power. Pick a combiner box that lets you add more panels later. A modular box makes it easy to add new strings. If you plan to expand, get a box with extra inputs. Modular boxes save money and make upgrades simple. Smart boxes let you watch voltage, current, and temperature. They help you find problems fast and fix them. This keeps your system working well and ready for changes.
Note: A scalable combiner box helps your solar system last longer and lets you change it when you need more energy.
You can make your solar system safer and work better by picking the right combiner box. The table below lists the main benefits:
| Benefit | Description |
|---|---|
| Efficiency and Safety | Cuts down energy loss and keeps your equipment safe. |
| Scalability and Flexibility | Makes it easy to grow your system when you need to. |
| Durability and Reliability | Stays strong outside for many years. |
Before you choose, look for surge protection, overcurrent protection, and a design that keeps out bad weather. Ask a solar expert if you are not sure. This helps your system stay safe and work well.
FAQ
How do you install a combiner box?
You mount the box near your solar panels. You connect each panel string to the box. You run one main wire from the box to the inverter. Always follow the instructions from the manufacturer. Ask a professional if you feel unsure.
Can you use the same combiner box for AC and DC systems?
You cannot use one box for both. AC and DC combiner boxes have different designs and safety features. You must choose the right box for your system type. Mixing them can cause damage or safety risks.
How often should you check your combiner box?
You should inspect your combiner box every six months. Look for water, dust, loose wires, or signs of overheating. Regular checks help you catch problems early and keep your system safe.
What safety features should you look for in a combiner box?
You need fuses, circuit breakers, and surge protection. Look for a disconnect switch and weatherproof housing. Grounding and fire-resistant materials add extra safety.
Tip: Always check for UL or IEC certification before you buy.
