Hazardous-Area Terminal Connection Guide

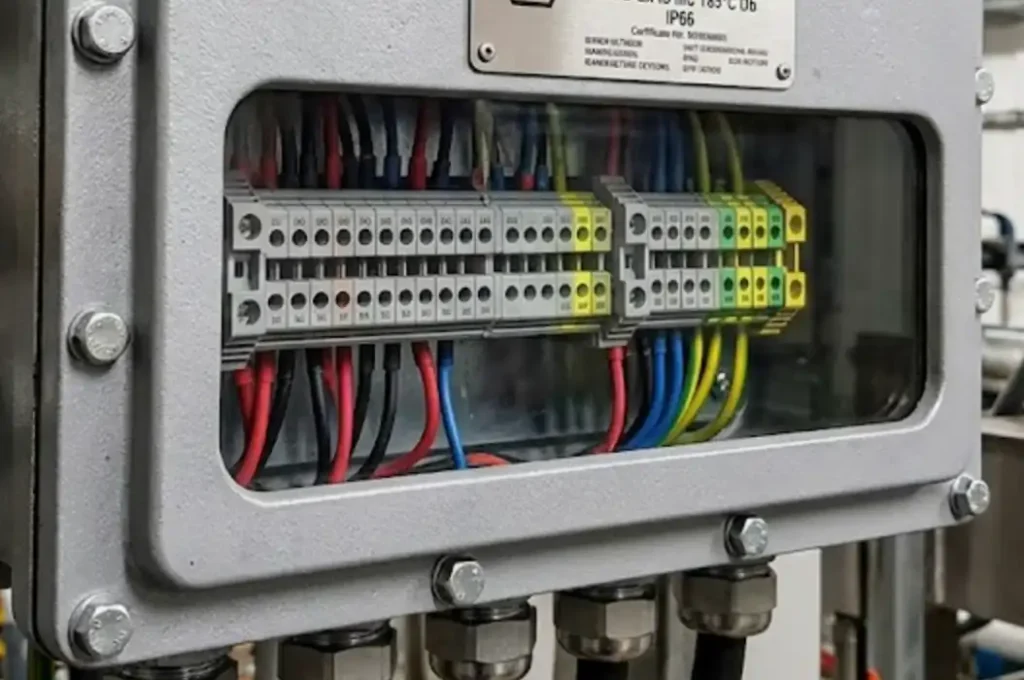

ATEX Certified Explosion Proof Terminal Blocks
Do not approve a terminal block from the words “ATEX certified” alone. Start with the hazardous-area classification, then verify the exact catalog number, its Ex component or equipment marking, certificate schedule, electrical ratings, permitted accessories, enclosure conditions, and installation instructions.
Zone firstArea classification is an input, not a product guess.
Exact partFamily names and colors do not prove certification.
Certificate scopeRead the schedule, suffixes, X/U conditions, and accessories.
Complete assemblyTerminals, enclosure, entries, wiring, spacing, and installation work together.

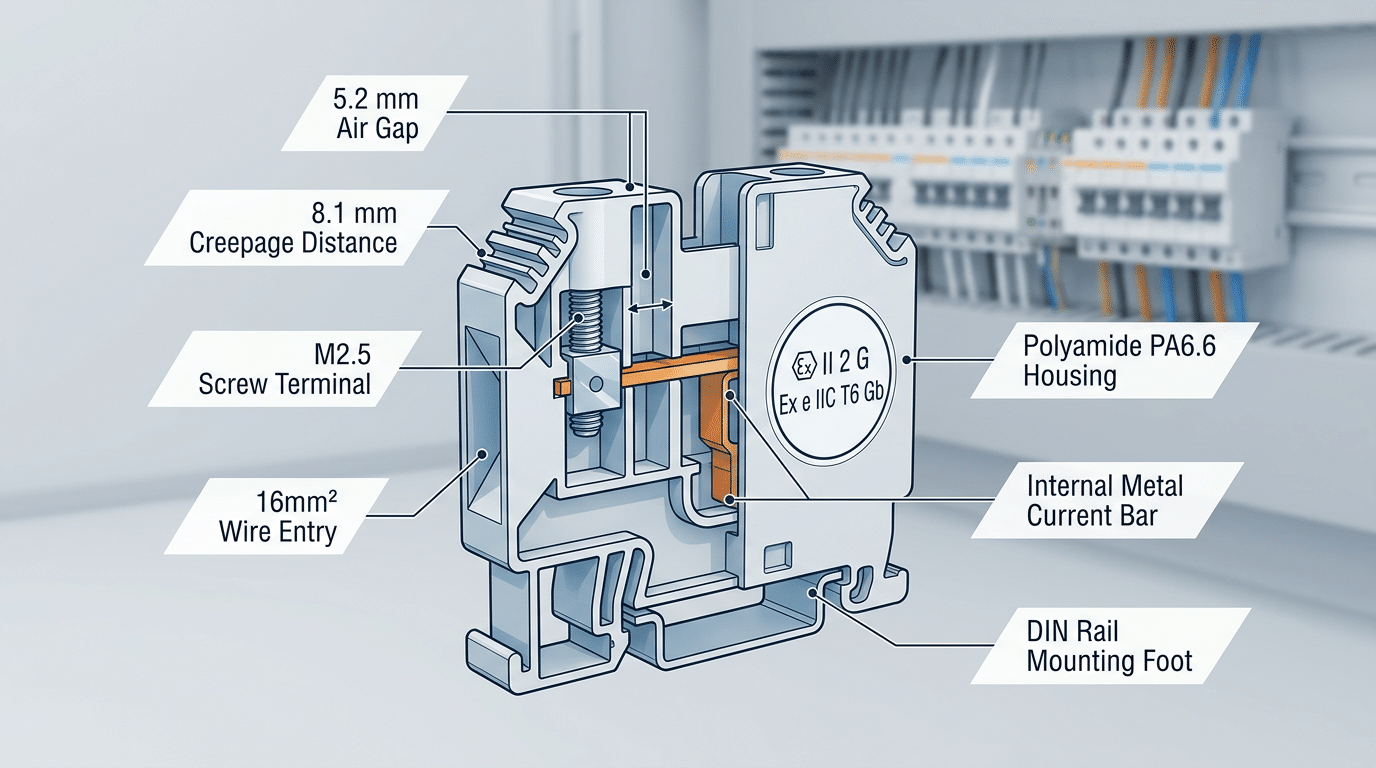

Product-family illustration: user-provided SENTOP terminal-block series image. It does not state or prove ATEX/IECEx certification for every product shown; use only the exact certificate-backed catalog number.
Direct Answer
Is an ATEX terminal block automatically “explosion-proof”?
Not in the broad everyday sense. ATEX is the EU legal framework for equipment and protective systems intended for potentially explosive atmospheres. Most DIN-rail terminals used in hazardous-area terminal boxes are assessed as Ex components, often for increased safety Ex eb. An Ex component is not complete equipment and is not intended for stand-alone use. Its certificate does not make a terminal box or installation automatically suitable for a Zone.[1][6]
The final equipment must be assessed for its enclosure, terminal arrangement, heat rise, wiring, entries, accessories and every condition in the component certificate and instructions. In this guide, “explosion proof terminal block” is treated as a search phrase; it must not be confused with the flameproof enclosure type of protection Ex d.
“Flameproof” or “explosion-proof” is also a specific protection idea associated with an enclosure designed to contain an internal explosion. An ordinary-looking DIN-rail terminal inside an Ex d enclosure is not itself an Ex d flamepath. Use the exact protection marking and certificate wording instead of treating all hazardous-area products as the same type.
Safe buying rule
A datasheet, EU Declaration of Conformity, EU-type examination certificate or component certificate, schedule, and installation instructions must all resolve to the exact ordered part. A logo, blue color, family brochure, or product photo is not enough.
1 / ClassificationGas, vapor, mist, or dustUse the approved area-classification and substance data.
2 / Equipment roleComplete equipment or Ex componentCheck whether conditions of incorporation apply.
3 / Exact markingCategory, EPL, group, Ex type, temperatureMatch every required field and permitted ambient range.
4 / Assembly evidenceEnclosure, entries, terminals, accessoriesConfirm that the certified configuration covers the planned build.
5-Step Selection Path
Move from the classified area to an approved terminal-strip BOM
This order prevents a common sourcing mistake: selecting a familiar terminal first and trying to make its paperwork fit the hazardous-area requirement later.
Choose the protection strategy
Decide whether the circuit and assembly use increased safety, flameproof enclosure, intrinsic safety, protection by enclosure for dust, or another permitted concept.
Do not reduce this to terminal color.Match the electrical interface
Check conductor material and size, connection technology, voltage, current, loaded positions, temperature rise, bridges, PE, fuse or disconnect functions.
Use model-specific ratings and instructions.Read the certificate package
Match catalog number, marking, certificate number, schedule, suffix, “U” or “X” status, ambient range, special conditions, accessories and manufacturing evidence.
Resolve every mismatch before ordering.Validate the complete build
Review enclosure, entries, glands, rail, spacing, segregation, wiring, torque or actuation, thermal duty, inspection plan and final equipment marking.
Release one controlled BOM and drawing set.Zone, Category, and EPL

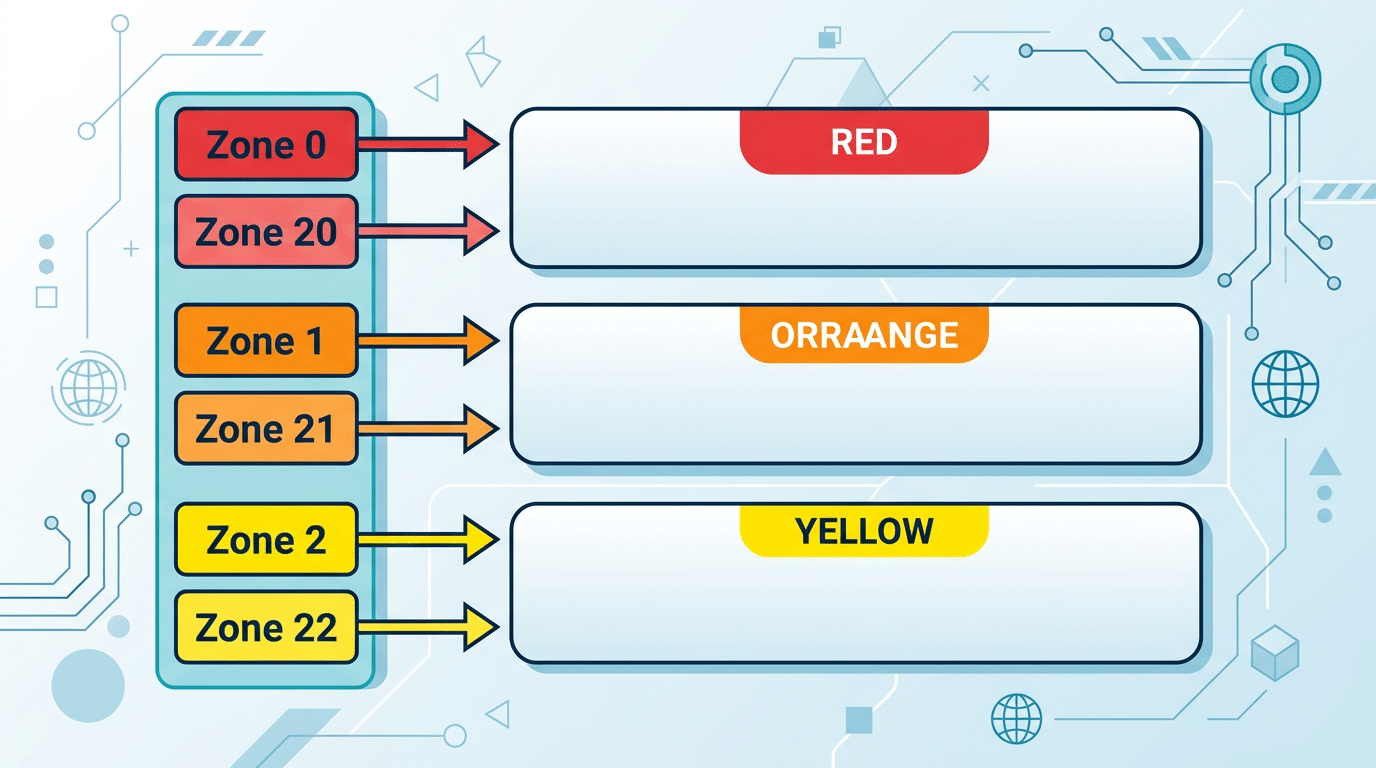

Use the zone as an input—not the whole selection rule
Zones describe how often an explosive atmosphere is present. ATEX equipment categories and IEC equipment protection levels (EPLs) are related selection fields, but the full choice also needs the substance group, temperature, ambient range, protection concept, installation standard and certificate conditions.
| Atmosphere | Zone | Typical presence description | ATEX equipment category normally associated | EPL normally associated | Buyer action |
|---|---|---|---|---|---|
| Gas / vapor / mist | 0 | Present continuously, for long periods, or frequently. | 1G | Ga | Use only a protection concept and complete equipment arrangement permitted for this duty. Do not assume an exposed terminal strip is acceptable. |
| Gas / vapor / mist | 1 | Likely to occur occasionally in normal operation. | 2G (or higher protection) | Gb (or Ga) | Match Ex marking, gas group, temperature class, ambient range, enclosure and installation conditions. |
| Gas / vapor / mist | 2 | Not likely in normal operation; if it occurs, it exists only briefly. | 3G (or higher protection) | Gc (or Gb/Ga) | Do not substitute a general industrial component without checking the certified equipment design and applicable protection concept. |
| Combustible dust | 20 | Present continuously, for long periods, or frequently as a dust cloud. | 1D | Da | Check dust group, maximum surface-temperature marking in °C, dust layers, enclosure protection and cleaning strategy. |
| Combustible dust | 21 | Likely to occur occasionally in normal operation as a dust cloud. | 2D (or higher protection) | Db (or Da) | Verify the complete dust-protected equipment and cable-entry arrangement, not only the internal terminal. |
| Combustible dust | 22 | Not likely in normal operation; if it occurs, it exists only briefly. | 3D (or higher protection) | Dc (or Db/Da) | Confirm dust accumulation, temperature, ingress, material and certificate conditions for the whole assembly. |
Planning map, not a certificate substitute: use the current area classification prepared under the applicable gas or dust classification method. The zone/category/EPL link does not by itself select a terminal, enclosure or wiring method. Gas and dust suitability must be evaluated separately.[2][3]
Protection Concepts
Ex e, Ex d, and Ex i describe different system roles
The protection code belongs to the assessed equipment or component. It is not a general quality tier. The responsible engineer selects the concept for the circuit and location, then verifies how the terminal is used inside that concept.
Ex eb / Ex ec
Increased safety applies added measures to prevent arcs, sparks or excessive temperatures under the conditions covered by the protection level. Ex eb provides EPL Gb; Ex ec provides EPL Gc. Certified terminal blocks are often Ex components for incorporation into assessed equipment.[7]
- Check the exact suffix, EPL and certificate schedule.
- Verify terminal spacing, current, conductor, bridges and enclosure conditions.
- Install an Ex component only inside the assessed enclosure and arrangement required by its documents.
Ex d / Ex db / Ex dc
A flameproof enclosure is designed so an internal explosion does not ignite the surrounding atmosphere through the enclosure joints or openings. Internal terminal blocks remain subject to the approved enclosure design and temperature assessment.[12]
- The enclosure and flamepaths provide the Ex d protection.
- Use approved cable entries, stopping plugs and assembly instructions.
- Do not call the internal terminal block itself a flameproof enclosure.
Ex i / Ex ia / Ex ib / Ex ic
Intrinsic safety controls available electrical and thermal energy in a complete circuit. Terminals can support separation and identification, but a blue terminal is not an energy-limiting barrier and does not make an ordinary circuit intrinsically safe.[13][14]
- Use the approved entity or system parameters and loop calculation.
- Keep IS and non-IS circuits separated as required by the installation design.
- Verify barriers, isolators, cables, terminals and field apparatus together.
Language matters: “ATEX,” “Ex,” “increased safety,” “flameproof,” and “intrinsically safe” are not interchangeable labels. State the exact marking and intended role of the product in the certified equipment.
Certified Configuration
Why an approved terminal does not approve the junction box
A terminal block can be one certified or assessed part inside a larger equipment design. The finished junction box or control station also includes the enclosure, cover, gasket, rail, PE arrangement, terminals, bridges, end parts, cable glands, stopping plugs, conductors, labels and mounting hardware. The equipment certificate and schedule define what is covered.
- Certificate status: identify whether the terminal is complete Ex equipment or an Ex component with conditions of incorporation.
- Permitted variants: match every catalog suffix, color, size, connection technology, accessory and conductor range listed in the documentation.
- Thermal design: evaluate actual current, loaded terminals, conductor size, bridges, internal temperature, ambient range and enclosure heat dissipation.
- Mechanical build: preserve rail mounting, end retention, spacing, entry arrangement, conductor support and access required by the certified design.
- Final marking: the finished equipment maker is responsible for the complete equipment assessment, marking and documents under the applicable conformity route.
Read the Marking Without Guessing
Decode each field—then open the certificate schedule
The string below is illustrative, not a claim for the products in the hero. Actual markings vary for equipment, components, gas, dust, mining, protection concept and conformity route.
Illustrative complete gas-equipment marking
II 2G Ex eb IIC T6 Gb
Read the marking together with the certificate number, ambient range and instructions. An Ex component certificate commonly ends in “U”; “X” indicates specific conditions of use. A terminal component may not carry an independent T-class because the final equipment temperature classification is established in the complete assembly assessment.
II / 2GEquipment group and categoryNon-mining surface-industry group, Category 2 for gas in this illustration. Match the project’s required category.
Ex ebProtection concept and levelIncreased safety “eb” in this example. Use the exact current code shown on the certificate-backed product.
IICGas subgroupThe gas subgroup field must cover the classified substance. Do not infer it from the zone number.
T6 / GbTemperature class and EPLT6 means a maximum surface temperature class of 85°C for gas under the certified conditions; Gb is the EPL in this example.[15]
Certificate numberIssuer + number + suffixSearch the issuing body or IECEx online system and compare the exact number, revision, schedule and product designation.
Ta and conditionsAmbient range and special instructionsTemperature class does not replace the permitted ambient range, conductor table, current limits or installation conditions.
Model-Level Specification Check
Read Terminal SpecificationsEight terminal-block details that still matter after the Ex marking
Certification does not replace circuit matching. Verify the exact terminal and installed configuration against the application, enclosure and certificate conditions. For EU conformity work, check the EN editions cited by the certificate and the current harmonised-standards list instead of assuming the newest IEC edition automatically controls.[17]
Material, class, size, preparation
Check copper or aluminum acceptance, solid or stranded class, bare or ferruled range, strip length, number of conductors and approved ferrule geometry.
Voltage, current, frequency, fault duty
Use the exact certified or declared electrical ratings. Do not add a generic “safety margin” or assume rated current applies at every ambient temperature.
Ambient range and temperature class
Separate the permitted ambient range from the gas temperature class or dust maximum surface-temperature marking. Review enclosure temperature rise and loaded positions. For dust service, confirm the complete equipment assessment and maximum surface-temperature marking.[16]
Screw, spring, push-in, stud
Follow the exact preparation, insertion, tightening or actuation instructions. Thread size is not a torque value, and one product’s torque cannot be copied to another.
Feed-through, PE, fuse, disconnect, distribution
Check whether each function and accessory is included in the Ex documentation. A feed-through approval does not automatically cover a fuse or disconnect variant.
Distances, partitions, bridges, covers
Use the certificate-backed terminal system and equipment design. Do not substitute one generic clearance value or mix unlisted cross-brand accessories.
Gas or dust, corrosion, vibration, ingress
Ingress protection belongs mainly to the complete enclosure. Separately check chemical exposure, salt, condensation, shock, vibration and material suitability.
Full catalog number and revision
Record manufacturer, family, exact suffix, certificate number, drawing, datasheet revision, permitted accessories, lot or batch evidence and approved substitution rule.
Color is not protection
Blue commonly identifies intrinsically safe circuit terminals, but color is only an identification measure. It does not limit energy or prove Ex i certification.
Installation and Inspection Boundary
Use the instructions for the exact certified configuration
An installation that departs from the certificate or instructions may no longer comply, even though the underlying product certificate itself has not disappeared. The current edition adopted by the project and the manufacturer’s instructions control the work; this article is not an installation procedure. The site operator also has separate workplace responsibilities under Directive 1999/92/EC.[8][9][10]
- De-energize, isolate, lock/tag where required, verify absence of voltage, and control adjacent live parts before electrical work.[11]
- Use only the conductor preparation, tool, torque or actuation method stated for the exact terminal.
- Keep intrinsically safe and non-intrinsically-safe wiring separated according to the approved design; “same DIN rail is always forbidden” and “same rail is always allowed” are both unsafe shortcuts.
- Preserve enclosure flamepaths, gasket surfaces, cable-entry certification, PE bonding, unused-entry closures and environmental protection.
- Inspect before initial energization and after changes. Use the project’s competent-person requirements and the applicable installation/inspection standards.
No generic torque, clearance, IP, or re-tightening rule: the correct value and maintenance method belong to the exact terminal, enclosure and certified assembly. Replace damaged or out-of-condition parts according to the equipment instructions.
Certificate and Supplier Audit
Which documents should a buyer verify?
Ask for the current package before approval, not after the enclosure is built. The required route changes by category, product role and market, so document names alone do not prove that the scope fits. Use the European Commission ATEX portal for current guidance and official conformity resources.[5]
IdentityExact product designationManufacturer, model, suffix, size, function, color where relevant, accessories and revision.
EU evidenceEU Declaration and certificateDeclaration of Conformity for complete equipment or applicable component attestation; certificate and schedule for the exact assessed item.
ConditionsInstructions, X/U status, ambient rangeSpecial conditions of use, incorporation conditions, conductor table, ratings, tools and installation limits.
VerificationIssuer and database recordCheck the issuing certification body, current record, supplements, withdrawal status and the EU NANDO role where applicable.
IECExOnline certificate of conformityWhen required by the destination, verify the IECEx CoC and linked ExTR/QAR status in the official online system.
ProductionQuality and traceabilityRequired production-quality evidence, label/marking control, lot traceability, change control and certificate-linked manufacturing sites.
Notified Body number: do not reject a product simply because one four-digit number is not printed where you expected it. Its use with the CE marking depends on the applicable conformity-assessment route and the body’s production-control involvement. Verify the exact directive route and body in the European Commission’s NANDO system.[4]
Six Claims to Challenge
Common shortcuts that can break the certificate-to-BOM link
A credible supplier should narrow the claim to the exact part and conditions. These checks help buyers spot language that sounds confident but is technically incomplete.
“Everything shown is ATEX certified”
Ask for exact catalog numbers and certificate schedules. A family photo or hero banner cannot prove the status of each size, color, function and accessory.
“Zone 1 means Ex e”
The zone establishes a protection level need; the full equipment design determines the permitted protection concept. Do not select from the zone alone.
“Blue means intrinsically safe”
Blue aids identification where used by the design. Intrinsic safety comes from the complete energy-limited circuit, apparatus parameters and installation.
“T6 is best for every project”
T6 is a gas temperature class, not a general quality grade. Match the substance, ambient range, equipment duty and certificate conditions.
“IP66 makes the terminals explosion-proof”
IP addresses enclosure ingress tests. It does not replace Ex protection, temperature assessment, cable-entry control or certification.
“IECEx is the same as ATEX”
They use closely related technical standards, but ATEX is EU legislation and IECEx is an international conformity-assessment system. Verify what the destination requires.
Prepare a Useful Ex Terminal Enquiry
Send the classified-area inputs with the terminal-strip BOM
SENTOP can support product matching, sample coordination and document collection around your panel or equipment project. Final hazardous-area classification, protection concept, conformity route and equipment approval remain with the responsible qualified parties.
HazardZone and substance dataGas/vapor/mist or dust, zone, group, ignition or temperature data, EPL/category, ambient range and area-classification reference.
ProtectionRequired Ex concept and equipment roleEx e/eb/ec, Ex d/db/dc, Ex i/ia/ib/ic, Ex t or other concept; complete equipment or component requirement.
CircuitElectrical and conductor interfaceAC/DC, voltage, design current, fault duty, Cu/Al, solid/stranded, AWG/mm², ferrule, terminals per strip and loaded positions.
AssemblyEnclosure and accessory BOMEnclosure certificate/design, rail, PE, bridges, end plates, partitions, covers, glands, stopping plugs, markers and internal layout drawing.
EvidenceMarket and certificate needsDestination, ATEX/IECEx or other scheme, exact marking, certificate schedule, declaration, instructions, QAN/QAR, traceability and language.
SupplySamples and repeat productionExisting model/photo/BOM, sample quantity, production forecast, approved substitutions, packing by strip or panel, destination and delivery plan.
Frequently Asked Questions
ATEX terminal block FAQ
Short answers for engineers and buyers comparing hazardous-area connection components.
Can a standard terminal block be used inside an ATEX enclosure?
Only when the exact certified equipment design, certificate schedule and installation instructions permit that component and configuration. Some Ex equipment uses separately certified Ex components; other assessments can cover internal parts through the complete equipment design. Do not apply a universal yes or no without reading the certificate-backed documents.
What is the difference between ATEX and IECEx?
ATEX is EU legislation for placing covered equipment and protective systems on the EU market. IECEx is an international conformity-assessment system based on IEC standards. Technical evidence may overlap, but an IECEx certificate does not automatically replace the ATEX conformity route required for EU market access.[1][6]
Does a blue terminal block make a circuit intrinsically safe?
No. Blue is an identification convention used for intrinsically safe circuits in many designs. Intrinsic safety depends on the complete energy-limited circuit, associated apparatus, entity or system parameters, cable characteristics, segregation and installation. Verify the loop design and documentation.
Do all ATEX terminal blocks need an EU-type examination certificate?
No single conformity route applies to every category or product role. The required assessment depends on the equipment group/category, whether the item is equipment or a component, and the applicable modules under Directive 2014/34/EU. Verify the exact declaration, certificate or attestation, production-quality route and marking for the ordered item.
What does a U or X suffix mean on an Ex certificate?
A U suffix commonly identifies an Ex component certificate that requires further assessment when incorporated into equipment. An X suffix indicates specific conditions of use. Always read the certificate and schedule; the suffix alone does not state all incorporation or use conditions.
Is T6 always the safest temperature class?
T6 is the most restrictive standard gas temperature class at 85°C, but it is not a universal quality ranking. Select a temperature class that is suitable for the classified gas and confirm the permitted ambient range, current, enclosure temperature and certificate conditions. Dust equipment normally uses a maximum surface-temperature value in degrees Celsius.
Can ATEX and IECEx certificate numbers be verified online?
IECEx certificates can be checked in the official IECEx online certificate system. For ATEX, verify the certificate with the issuing body, compare the declaration and schedule, and confirm the Notified Body’s role in the European Commission NANDO database. Search by exact manufacturer, model and certificate number.
What should I send when requesting an ATEX terminal block quotation?
Send the zone and substance data, required category or EPL and protection concept, ambient range, circuit voltage/current, conductor details, terminal functions and quantity, enclosure and accessory BOM, destination market, certificate/document requirements, existing model or drawing, sample quantity and delivery plan.
Primary technical references
- Directive 2014/34/EU (ATEX) — EU requirements for equipment and protective systems intended for use in potentially explosive atmospheres.
- IEC 60079-10-1 — Classification of areas: explosive gas atmospheres.
- IEC 60079-10-2:2026 — Classification of areas: explosive dust atmospheres.
- European Commission ATEX portal and NANDO access — official route to ATEX guidance and notified-body designation information.
- European Commission ATEX sector page — legislation, guidance and implementation resources.
- IECEx Certified Equipment Scheme — international equipment certification, Ex component status and online certificate system.
- IEC 60079-7:2015+A1:2017 — equipment protection by increased safety “e.”
- IEC 60079-14:2024 — electrical installation design, selection, erection and initial inspection in explosive atmospheres.
- IEC 60079-17:2023 — inspection and maintenance of electrical installations in explosive atmospheres.
- Directive 1999/92/EC — minimum requirements for worker protection in potentially explosive atmospheres.
- OSHA 29 CFR 1910.333 — electrical safe work practices, included as a general safety reference.
- IEC 60079-1:2014 — equipment protection by flameproof enclosures “d.”
- IEC 60079-11:2023 — equipment protection by intrinsic safety “i.”
- IEC 60079-25 — intrinsically safe electrical systems.
- IEC 60079-0:2026 — general requirements for Ex equipment, including marking and temperature concepts.
- IEC 60079-31:2022 — equipment dust-ignition protection by enclosure “t.”
- European Commission harmonised standards for ATEX — current OJEU references used for presumption of conformity.
Important: standards and certificate editions change. Use the editions, national adoptions and conformity route required by the contract and destination, and verify the current documents for the exact product before approval.
Electrical Components Built Around Your Panel and Project
Discuss Your Ex Terminal BOMNeed a certificate-backed terminal and accessory shortlist for an Ex enclosure?
Share the area-classification inputs, circuit and conductor data, enclosure design, terminal-strip BOM, target conformity documents, quantities and delivery plan. SENTOP can organize candidate parts and documentation for your qualified engineering review.
