GFCI breaker safety guide

How to Test a GFCI Circuit Breaker Safely

Keep the panel trim, deadfront, and barriers installed. Identify the exact breaker, plan the outage, and operate its marked TEST control only as the current manual directs. When the instructions and site plan allow it, one known noncritical load can provide a secondary power-loss observation. Any failed or unclear result is a stop condition.

Barriers stay installedOpen only the normal access door needed to reach marked operating controls.
Follow the exact manualTEST controls, load preparation, indications, and reset sequences can differ.
Use a load only if allowedA known noncritical load is a secondary observation, not a universal step.
Stop on uncertaintyDo not troubleshoot, force a reset, or replace a breaker from a generic guide.
GFCI breaker example. Photo: Bernard Sula, CC BY 4.0. No endorsement or compatibility claim implied.
Direct answer

A safe basic check is external and limited

For an accessible GFCI circuit breaker, the lowest-risk user-level check is to keep the panel trim, deadfront, and barriers installed; identify the circuit and planned interruption; and operate the breaker's marked TEST control exactly as its current instructions direct. If those instructions and the site plan allow a simple known noncritical load to remain connected, its loss of power can be recorded as a secondary observation. Restore service only by the documented reset method.

Observe only what the approved method permits

The breaker should reach the test or trip state described in its manual. If a known load observation is permitted, that point should lose power. These results support a limited functional check; they do not certify the whole installation.

This is not a repair guide. Do not open the panel, remove a cover, touch conductors, use meter probes, move a neutral or ground, defeat an interlock, inject test current, change a setting, or replace a breaker. Those tasks require qualified people, approved equipment, the exact manufacturer instructions, and the site's electrical-safety procedure.
Identify the device first

GFCI devices can look similar but test differently

This article addresses a GFCI function built into a circuit breaker. A wall receptacle, a portable device, and a combination AFCI/GFCI breaker are different products. Use the test and reset method printed on the exact device or in its current instructions.

Breaker

GFCI circuit breaker

Located in a compatible panel and intended to provide overcurrent protection plus a stated ground-fault protective function for the connected circuit.

Use the accessible breaker TEST control and exact breaker reset sequence.
Receptacle

GFCI receptacle

Has TEST and RESET controls at the outlet. It may protect only itself or also correctly connected downstream outlets.

Its buttons do not establish how a panel-mounted GFCI breaker should be tested.
Portable

Portable GFCI

Built into a cord set, adapter, or temporary power device. OSHA and product instructions may require checks tied to temporary-work use.

Follow the portable device and worksite program, not this breaker sequence.
Dual function

Combination AFCI/GFCI

Combines ground-fault and arc-fault functions. Diagnostic indicators and button behavior can be family-specific.

Do not assume a GFCI-only breaker's indicators or reset logic apply.

A GFCI monitors the current balance through all circuit conductors that pass through its sensing system. Current that leaves the intended return path creates an imbalance that can make the device open the circuit. It does not make contact between two circuit conductors safe, provide a general fire-prevention guarantee, or replace overcurrent protection. Arc-fault protection, equipment grounding, bonding, and enclosure safety remain separate parts of the design.

North American tamper-resistant GFCI receptacle with black TEST and red RESET buttons.
Receptacle GFCI example—not a breaker procedureA receptacle-type GFCI has its own TEST and RESET controls. It illustrates the test principle, but it is not the same device or reset method as a panel-mounted GFCI breaker. Photo: Ben Kurtovic, CC BY-SA 4.0, via Wikimedia Commons. Displayed with a layout crop.
Understand the evidence

What the built-in TEST control can—and cannot—tell you

The built-in control creates the device manufacturer's designed test condition. Historical OSHA construction guidance noted the value of an attached-load observation, but current product instructions control the method. Use a downstream observation only when the exact manual and site plan permit it. That result is useful, but still narrow.

  • It can support: the test control initiated a trip and the one observed load lost power at that moment.
  • It cannot map coverage: another outlet or load may be on a different circuit or connected outside the protected path.
  • It cannot inspect workmanship: it does not verify conductor preparation, terminal torque, neutral routing, grounding, bonding, enclosure condition, or panel compatibility.
  • It cannot approve a repair: a pass does not make later nuisance trips, moisture, heating, damage, or abnormal behavior safe to ignore.
  • It cannot replace maintenance: equipment condition, records, qualified inspection, and the applicable facility program remain important.
Evidence boundaries

A pass is useful evidence—not a certificate for the circuit

Read the result at the same level as the test. A simple functional check answers a simple question. Broader conclusions require broader, qualified evaluation.

ObservationWhat it reasonably supportsWhat it does not prove
TEST causes the prescribed trip stateThe breaker's internal test function operated at that moment.Correct installation, correct circuit mapping, full downstream coverage, or future reliability.
Allowed known load turns offWhen the exact procedure permits that secondary observation, the chosen point lost power during this event.Every receptacle, fixed appliance, branch, or downstream connection is on the same protected path.
Breaker restores normallyThe external reset worked under the tested condition.The cause of a previous trip, the condition of internal parts, or permission to keep resetting an immediately retripping device.
No visible warning signNo external problem was noticed from the normal viewing position.Absence of hidden damage, loose connections, overheating, moisture, or an unsafe condition inside the assembly.
Before using TEST

Make a go, plan, or stop decision before the outage

A monthly suggestion never overrides a critical-load plan. First decide what will lose power, who could be affected, and whether the documented result can be observed without creating electrical exposure.

Go

Known, noncritical circuit

The breaker label, current instructions, and expected effect are known. A short interruption is acceptable. Trim, deadfront, and barriers can remain installed.

Proceed only with the load preparation, external controls, and observations described by the exact product.
Plan first

Important but controllable load

The circuit may serve refrigeration, data, security, controls, a pump, or equipment that needs an orderly shutdown and restart.

Coordinate the outage with the owner, operator, or qualified responsible person before testing.
Stop

Unknown or safety-critical effect

The load map is uncertain, a person or property could be harmed, the panel has warning signs, or the test would require internal access or electrical measurements.

Do not improvise. Escalate to a qualified electrical professional and the responsible operator.
Critical-load examplesDo not create an unplanned interruption

Pause if the circuit may serve life-support or medical equipment, a sump or sewage pump, refrigeration or temperature control, alarms, access control, emergency or safety equipment, critical IT, communications, process control, or any load whose shutdown and restart have not been reviewed.

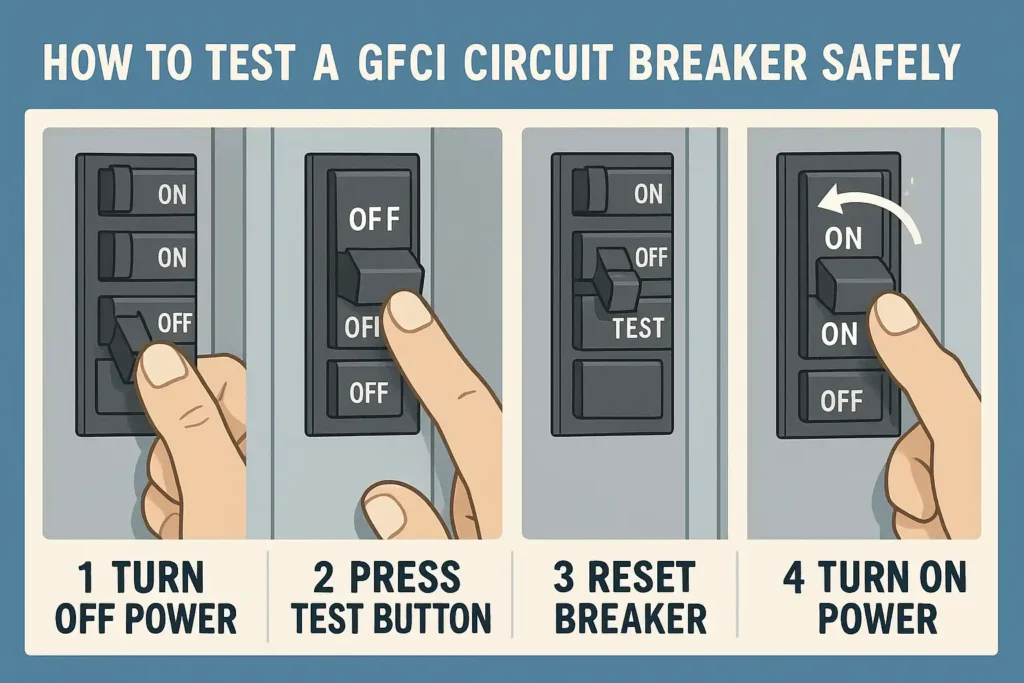

External-only functional check

Five controlled observations—no internal access

This sequence is deliberately limited. If the device label or manufacturer instructions differ, those product instructions control. If any step would require a cover to be opened or a conductor to be tested, stop.

01

Confirm the test is allowed

Identify the breaker, the expected protected load, the acceptable outage, and the person responsible for the circuit. Read the accessible label and current product instructions.

Do not rely on an old panel schedule alone when the circuit identity is uncertain.
02

Prepare loads as directed

Follow the exact load instructions. Some models require all downstream loads to be turned off. Only when the manual and site plan allow it may one known noncritical load remain as a secondary indicator.

Do not build a special test setup, open a box, move wiring, or use damaged equipment.
03

Operate the marked TEST control

From the normal operating position, use the accessible control exactly as the current instructions describe. Open only the normal hinged access door needed to reach marked controls; keep trim, deadfront, and barriers installed.

Do not reach behind a barrier or assume every device uses a momentary push button.
04

Observe the approved result

Check whether the breaker reaches the documented test or trip state. If an allowed secondary load is being observed, confirm whether that point loses power without touching the outlet or panel.

If any required outcome is missing or unclear, stop. Do not repeat the test to force a pass.
05

Restore and record

Use the exact external reset sequence on the product label or manual. Confirm the documented normal indication and restore affected loads under the site plan. Then record the result and any exception.

If it will not reset normally or trips again, leave the situation under the approved safe plan and escalate.

Within this article's scope

  • Identification with trim, deadfront, and barriers installed
  • Planned, brief interruption
  • Marked external TEST control
  • Optional known load only when instructions permit
  • External reset exactly as documented
  • Basic result and exception record

Qualified-person work

  • Deadfront or cover removal
  • Voltage, current, or insulation measurements
  • Neutral, ground, or load-conductor checks
  • Diagnosis of failed trips or immediate retrips
  • Terminal inspection, torque, repair, or replacement
  • Panel compatibility and installation evaluation
Read the result conservatively

The next action depends on what you actually observed

Do not turn one symptom into a wiring diagnosis. Record the external result, protect people and loads, and hand abnormal behavior to a qualified electrical professional.

External observationMeaning at this test levelSafe next actionDo not do
EXPECTED
Prescribed trip; any permitted load observation agrees
The breaker responded to its documented test action. If the approved check included a known load, that observed location also lost power.Restore only by the documented method, confirm normal status, and record the check.Do not treat the result as proof that every downstream point or internal connection is correct.
STOP
No expected trip state
The external functional check did not produce the documented result, or the result is unclear.Keep the situation under the approved outage/recovery plan and arrange qualified assessment.Do not keep pressing TEST, hit the device, remove it, or open the panel to find a cause.
STOP
Breaker trips; selected load stays on
The selected point may not be on the expected protected path, or the circuit map/result may be wrong.Mark the uncertainty and arrange professional circuit identification and evaluation.Do not move line, load, neutral, or ground conductors, and do not test random breakers.
STOP
Will not reset normally
The breaker or circuit has not returned to the documented ready state.Follow the approved safe condition and call qualified service. Protect affected loads from an uncontrolled restart.Do not hold the handle, force it, bypass protection, or substitute a different breaker.
STOP
Resets, then trips again
A fault, load condition, connection issue, or device problem may exist; the external test cannot identify which.Stop repeated operation and escalate with the exact model, indication, load state, and event history.Do not repeatedly unplug equipment or reset the breaker to “find the bad item” from this guide.
URGENT
Heat, smoke, odor, sound, moisture, or damage
The equipment may present an immediate electrical or fire hazard.Keep people away and follow the site's emergency and electrical-safety process. Use emergency support when appropriate.Do not operate TEST or RESET, spray liquid, touch the enclosure, or remove any cover.

Important: Switching a main breaker OFF does not prove that every conductor or terminal inside a panel is de-energized. Service conductors, line-side terminals, generators, PV, batteries, UPS equipment, or other sources can remain energized. This article never uses “main off” as permission to remove a deadfront.

Model-specific controls

TEST, trip indication, and reset can differ by product

A family may use a front button, OFF/TEST control, test switch, or another accessible actuator. A handle may rest in a center or trip position. An LED may show a diagnostic code. Some products include self-test electronics. Never convert one manufacturer's sequence into a universal rule.

Identity

Record the exact breaker

Capture manufacturer, series, catalog number, amperage, poles, panel identification, visible labels, and protective-function markings.

A similar appearance or handle rating is not an exact product match.
Test control

Follow the current manual

Use the marked control, load preparation, duration, sequence, and expected indication stated for that catalog number.

Some instructions turn downstream loads off; others define different test controls and diagnostics.
Reset

Restore only as documented

Many breakers require a complete movement to OFF before ON, but handle position, LEDs, lockout, and reset behavior remain family-specific.

If the normal sequence fails or the device retrips, stop rather than force it.
Replacement

Compatibility is system-level

Panel family, voltage, poles, interrupting rating, neutral arrangement, conductors, protective function, listings, and instructions all matter.

Replacement and internal diagnosis are outside this guide and belong to qualified people.
Three-light plug-in receptacle tester used to check common outlet wiring conditions.
A limited receptacle-checking instrumentA plug-in tester can indicate some common wiring conditions listed by its maker. It does not prove every fault path, replace the breaker's own TEST function, or make panel work safe. Photo: AndrewBuck, CC BY-SA 4.0, via Wikimedia Commons.
Test methods are not interchangeable

Built-in TEST, an allowed load, and a plug-in tester answer different questions

The breaker's own test control is the primary product-level functional check. A simple known noncritical load can be a secondary observation when the exact manufacturer procedure and site plan permit it. A three-light receptacle tester is a separate instrument with defined limits.

  • Built-in TEST: creates the breaker's designed internal test condition. It does not map every protected point or inspect wiring.
  • Allowed known load: can show that one selected point lost power when the product and site procedure permit this observation. It does not explain why another point stayed on.
  • Plug-in tester: may indicate some common receptacle wiring states listed by its maker. It cannot prove ground quality, detect every fault combination, or replace the breaker TEST.
  • Professional instruments: trip-current/time testing, electrical measurements, internal inspection, and acceptance testing require qualified people, rated equipment, and an approved procedure.

A basic plug-in tester may also behave differently on a two-wire or ungrounded receptacle because its test function can depend on a grounding path. Never use an instrument result to override a failed built-in test or to justify opening a panel.

Testing frequency

Use the exact instructions and a planned schedule

Current UL marking guidance says supplied GFCI circuit-breaker instructions call for testing at least monthly. CPSC consumer guidance also recommends testing after installation, at least monthly, and after a power failure. The exact product manual, facility maintenance program, local requirements, and critical-load plan still control the timing and scope.

Product basis

Manual and labels

Record the exact manufacturer, series, catalog number, visible instructions, test control, trip indication, and reset method.

A broad article cannot replace the current instructions supplied for the installed breaker.
Site basis

Outage and ownership

Name who may test, who owns the circuit, which loads are affected, what notice is needed, and how normal service is confirmed.

A calendar reminder is not permission to interrupt a critical or poorly mapped circuit.
Condition basis

Events and exceptions

A power failure, trip, water event, equipment change, failed test, or abnormal indication may trigger review under the approved program.

Do not turn an abnormal event into repeated user testing; escalate and document it.
Simple test record

Record what happened—not what you assume

A short record helps a homeowner, property manager, facility team, or electrician see whether the same breaker, load, or symptom has changed over time. It also stops a passed check from being confused with a full inspection.

IdentityBreaker and circuitManufacturer, series/catalog number if visible, panel/circuit ID, and selected observed load.
ContextDate and tester roleDate/time, person or role, outage approval, relevant load state, and product instructions used.
ResultTrip, permitted load, resetExpected test/trip indication, any allowed secondary load observation, and whether the documented normal status returned.
ExceptionStop and follow-upAny warning sign, failed result, uncertain circuit map, service ticket, responsible person, and retest requirement.
Three practical decisions

The safest choice changes with the load and uncertainty

These examples show decision boundaries, not troubleshooting recipes.

Scenario 01

Known bathroom circuit

The breaker identity, current instructions, circuit purpose, and expected outage are known. The brief interruption is acceptable and no warning signs are present.

Follow the exact external test method. If it allows one known noncritical load to remain, treat that load only as a secondary observation.
Scenario 02

Sump-pump circuit

The breaker may protect a pump that prevents flooding. The weather, pit level, backup system, restart behavior, or actual circuit coverage is uncertain.

Do not test casually. Coordinate the outage, mitigation, observation, and recovery with the responsible operator or qualified professional.
Scenario 03

TEST does not trip

The device does not show the documented state, or the selected protected load stays energized. The external check cannot tell whether the cause is the breaker, wiring, circuit map, or test method.

Stop and document. Do not remove the breaker, alter conductors, press TEST repeatedly, or substitute a plug-in tester verdict.
When the task becomes electrical work

Stop at the closed-panel boundary

OSHA electrical-work rules require appropriate de-energization, verification, safeguards, and qualified-person controls when work may expose someone to live parts. A front TEST control is not an energy-isolation method, and a tripped breaker is not proof that an enclosure is safe to open.

  • Professional diagnosis: circuit mapping, neutral and grounding evaluation, trip measurements, conductor tests, fault isolation, and panel compatibility.
  • Approved energy control: identify every source, establish the required safe work condition, control stored or alternate energy, verify state with suitable equipment, and maintain barriers.
  • Exact product evidence: nameplate, catalog number, panel identification, breaker instructions, certificates/listing records, wiring diagram, event history, and installation requirements.
  • Controlled return to service: confirm covers and barriers, correct circuit state, expected indications, restored loads, cleared temporary controls, and updated records.
Owner-level stop rule: if safe completion requires a panel door or deadfront to be removed, an electrical measurement, a conductor to be moved, or a protective device to be repaired or replaced, the external check is over.
Two electrical professionals reviewing lockout-tagout procedures during a safety stand-down.
Qualified work requires a controlled safety processQualified personnel review lockout/tagout controls before electrical work. Operating an accessible TEST control is not permission to remove a panel cover or approach exposed energized parts. Photo: NAVFAC / U.S. Navy, public domain, via Wikimedia Commons.
For panel builders and equipment OEMs

Specify the protection function at system level

SENTOP supports B2B protection-component and panel BOM discussions. This is separate from diagnosing or repairing an installed residential GFCI circuit. Send the system data so the requested device family, standards evidence, enclosure, and downstream architecture can be reviewed together. You may also review the SENTOP product catalogue before submitting the project inputs.

SystemVoltage, frequency, phase, earthingInclude source arrangement, poles, neutral treatment, enclosure, ambient, moisture, and installation location.
ProtectionRequired functions and coordinationState overcurrent, residual/ground-fault, arc-fault, isolation, surge, selectivity, and available fault-current requirements.
LoadCurrent, conductors, dutyProvide load type, continuous/inrush duty, conductor material/size, terminal requirements, criticality, and restart behavior.
EvidenceMarket, standard, exact modelIdentify destination market, panel/end-product standard, certification need, quantities, drawings, BOM, and required documents.

For product planning, start with the protection selection guide. Review related RCCB, RCD, and MCB product categories by their exact standard and intended market; these labels are related but not automatically interchangeable with a North American GFCI breaker. For a model-matching request, use the project contact form.

Frequently asked questions

GFCI breaker test questions

These answers keep the scope at an external functional check. Product instructions and local electrical-safety rules control the installed equipment.

How often should I test a GFCI circuit breaker?

Current UL marking guidance says the supplied instructions call for at least monthly testing. CPSC guidance also recommends testing after installation, at least monthly, and after a power failure. Follow the exact current product instructions and the facility maintenance program. Plan any outage around critical loads; a calendar date never overrides safety or operational control.

Does a GFCI circuit breaker protect the entire circuit?

It protects the conductors and loads that are correctly connected through its monitored path and within its listed application. One successful test cannot map every downstream point. If a breaker trips but a selected location remains energized, stop and have the circuit identification and protection coverage evaluated by a qualified electrical professional.

Can I test a GFCI breaker with only a plug-in outlet tester?

No. Use the breaker's own built-in TEST function as the primary functional check, following its exact instructions. A plug-in tester can indicate only the wiring conditions and functions described by its manufacturer; it cannot verify every fault, grounding quality, the complete breaker, or the whole branch circuit.

What if the TEST control does not trip the breaker?

Stop. Do not press it repeatedly, force the handle, open the panel, move conductors, or replace the breaker from a generic guide. Record the exact model, accessible indication, selected load state, and what you observed, then arrange qualified electrical evaluation under the approved outage and safety plan.

What if the breaker trips but the selected lamp stays on?

The lamp may not be on the expected protected path, the circuit map may be wrong, or another condition may exist. The external observation cannot tell which. Keep the result marked as failed or uncertain and ask a qualified person to identify and evaluate the circuit. Do not test random breakers or alter line, load, neutral, or ground conductors.

How do I reset a GFCI circuit breaker?

Use the exact reset method printed on the installed product or stated in its current manual. Many breakers require a full movement to OFF before ON, but the trip position, LED behavior, control type, and sequence can differ. If it does not reset normally or trips again, stop and arrange qualified service.

Does a passed TEST mean I am protected from every electrical shock hazard?

No. The check is limited to the device's designed test response and, if used, one observed loss of power. It does not prove protection from every contact path, correct grounding and bonding, correct wiring, absence of damage, or full downstream coverage. Follow ordinary electrical-safety rules even after a pass.

Can I replace a failed GFCI breaker myself?

This article does not provide replacement instructions. Removing a deadfront can expose energized service-side parts even when a main breaker is OFF, and compatibility depends on much more than amperage or physical fit. Use a qualified electrical professional who can identify all sources, confirm the panel-approved breaker, diagnose the circuit, and return it to service safely.

Does a self-test GFCI breaker eliminate manual checks?

Not automatically. Self-monitoring behavior, indications, lockout features, and the required user test are product-specific. Follow the exact manual and the responsible facility program. Treat an abnormal self-test indication as a stop-and-service condition, not as a prompt to open the panel.

Keep user testing external; make system selection evidence-based

For an abnormal installed GFCI circuit, stop and use qualified local electrical service. For an OEM, switchgear, or building-project protection requirement, SENTOP can review the system inputs, product category, documents, and panel-integration needs.

滚动至顶部
