Loose or corroded terminal block connections account for roughly 30% of all electrical faults in industrial control panels, according to field data from ABB’s low-voltage troubleshooting guides. Knowing how to test a terminal block with a multimeter takes about 60 seconds per connection point and can prevent equipment damage, nuisance trips, and even arc-flash incidents before they escalate. Below, you’ll find a three-step process — continuity, voltage measurement, and voltage drop under load — that works on screw-clamp, spring-cage, and push-in terminal blocks alike.
What Testing a Terminal Block Actually Tells You
A terminal block looks fine until it doesn’t. Loose screws, corroded contacts, and hairline fractures in the conductor path can all hide behind a perfectly normal-looking connection. Knowing how to test a terminal block with a multimeter strips away the guesswork and gives you three concrete answers: Is the electrical path continuous? Is the correct voltage reaching the terminal? Is the connection introducing unwanted resistance?
Each of those answers maps directly to a specific multimeter function — continuity, voltage measurement, and voltage drop testing. A connection that measures even 0.5 V of drop under load can signal a joint resistance problem that wastes energy and generates heat. According to NFPA research, electrical distribution failures — including poor terminations — contribute to roughly 34,000 home structure fires per year in the United States. A two-minute multimeter check can catch the exact conditions that lead to those failures.
Pro tip: “Good enough” isn’t a measurement. A continuity beep only confirms a path exists — it says nothing about joint resistance (the resistance added by the mechanical connection itself). That’s why the voltage drop test under load, covered in Step 3, is the test most technicians skip and the one that matters most.
The three-step method ahead walks you through testing a terminal block with a multimeter in a logical sequence: first confirm the path, then verify voltage, then stress-test the connection. Follow them in order — skipping straight to voltage readings without checking continuity first is how intermittent faults get missed entirely.
Safety First — Preparing Your Multimeter and Circuit
Before you learn how to test a terminal block with a multimeter, you need to guarantee the circuit won’t kill you. According to OSHA’s electrical safety standards, electrocution remains one of the “Fatal Four” causes of construction worker deaths, accounting for roughly 7% of all workplace fatalities in the industry. Terminal blocks in industrial panels can carry 480V or higher — enough to cause cardiac arrest in milliseconds.
De-Energize and Verify Zero Energy
Switch off the breaker or disconnect supplying the terminal block. Then — and this is the step people skip — use your multimeter to confirm zero voltage at the terminals before touching anything. Set the meter to AC or DC voltage (match the circuit type), place one probe on the terminal and the other on a known ground bus. A reading of 0V means you’re clear. Any residual voltage above 50V AC demands a full lockout/tagout (LOTO) procedure before proceeding.
Match Your Meter’s CAT Rating to the Circuit
Every multimeter carries a measurement category rating — CAT I through CAT IV — defined by IEC 61010. Here’s the critical rule: a CAT III 600V meter is safe for distribution panels, but using a CAT II meter on that same panel is genuinely dangerous because it lacks the arc-flash protection for high fault-current environments. Check the rating printed near the input jacks, not just on the box.
- PPE minimum: Voltage-rated insulated gloves (Class 00 for up to 500V AC) and safety glasses.
- Probe inspection: Look for cracked insulation or exposed metal beyond the tip — damaged probes cause accidental shorts.
- One-hand rule: Keep your free hand in your pocket to prevent current from traveling across your chest.
Pro tip: Before trusting your meter on a live panel, test it against a known energized source first. A dead battery in your multimeter will show 0V on a live 240V terminal — a false reading that could cost your life.
Step 1 — Checking for Continuity Across the Terminal Block

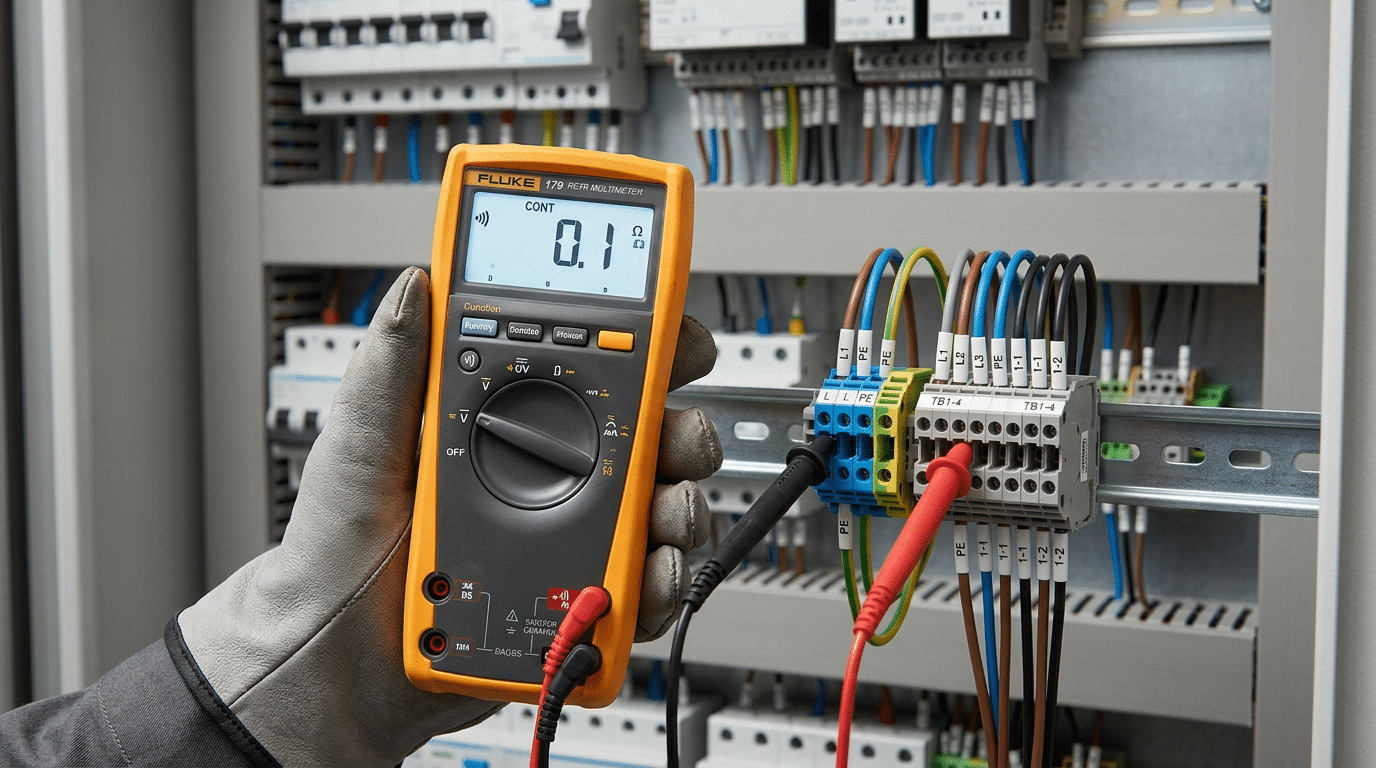

Rotate your multimeter dial to the continuity setting — the symbol looks like a small sound wave or diode icon. If your meter lacks a dedicated continuity mode, select the lowest ohms (Ω) range instead. Touch both probes together first; you should hear a beep and see a reading under 0.5 Ω. That quick self-check confirms your leads aren’t damaged before you start.
Place the red probe on the input side of terminal position 1 and the black probe on the corresponding output side. A healthy connection reads near-zero ohms (typically 0.1–0.3 Ω) and triggers an audible beep. Anything above 1 Ω signals excessive contact resistance — a common culprit behind overheating that accounts for roughly 30% of electrical connection failures in industrial panels, according to NFPA workplace electrical safety data.
No beep and “OL” on the display? That’s an open circuit — the terminal has completely lost internal contact. Don’t guess. Replace it.
Work Through Every Position Systematically
Skip random spot-checking. To properly test a terminal block with a multimeter for continuity, move sequentially: position 1, then 2, then 3, and so on. Log each reading on paper or a phone note. Here’s what to record:
- Terminal position number
- Ohm reading (exact value, not just “pass”)
- Beep or no beep
- Visual condition — discoloration, melted plastic, loose wire
Pro tip: A reading that drifts between 0.5 Ω and 2 Ω while you wiggle the wire indicates an intermittent connection. These are the hardest faults to catch because they pass a static test but fail under vibration or thermal cycling.
Step 2 — Measuring Voltage at the Terminal Block

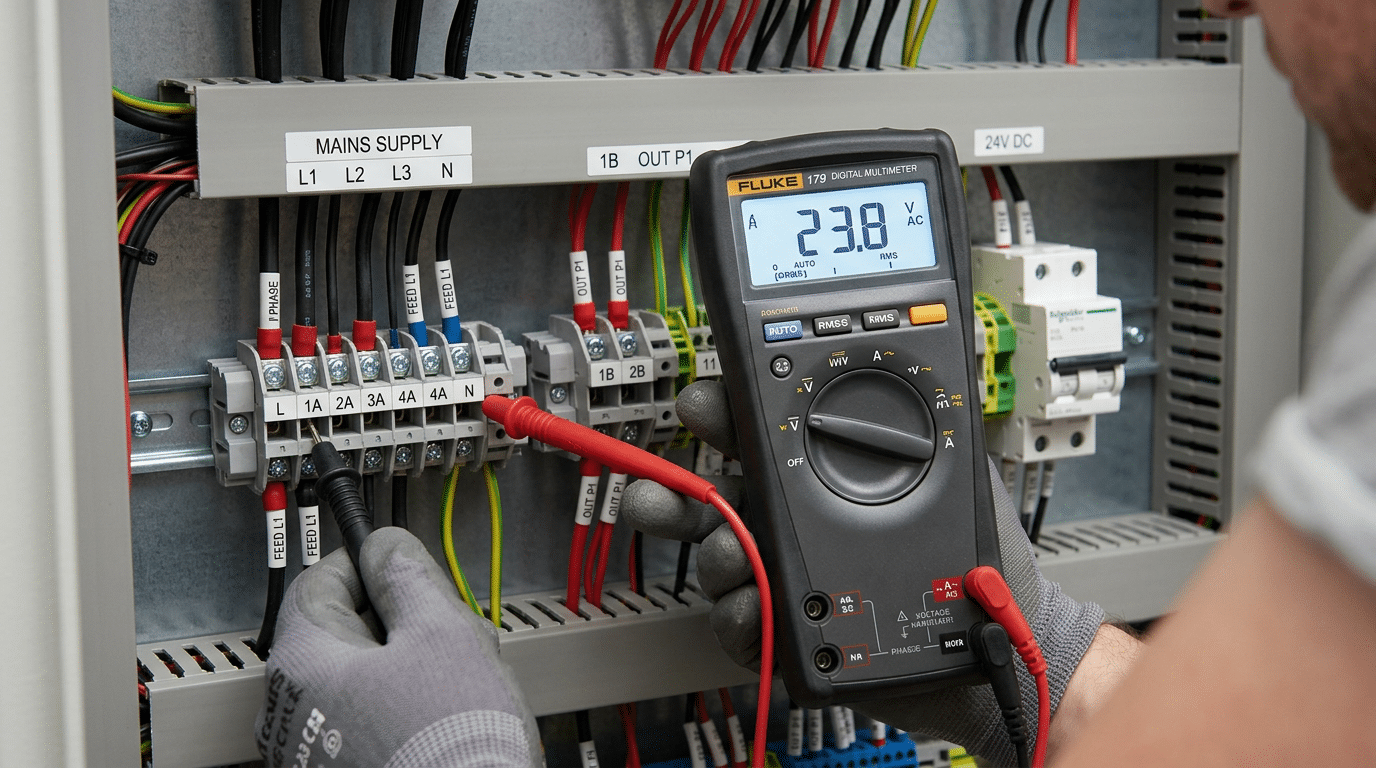

Continuity confirmed the physical path. Now you need to verify that the correct voltage actually arrives at each terminal. Switch your multimeter to the appropriate voltage mode — AC (V~) for mains-powered circuits, DC (V⎓) for battery or power-supply-fed systems. Getting this wrong won’t just give a bad reading; on some budget meters it can damage the input circuitry entirely.
Re-energize the circuit only after all probe leads are securely connected and your hands are clear of exposed conductors. Touch one probe to the input terminal and the other to the neutral or ground reference. Record the reading, then repeat on the output terminal. A healthy terminal block passes voltage with virtually zero loss — any difference greater than 0.5 V on a 24 VDC control circuit (roughly 2%) signals a problem worth investigating.
Pro tip: Compare input-to-output voltage rather than just checking one side. A terminal can show full voltage on the input lug while the output side reads 3–5 V low — a classic sign of a corroded contact or undertorqued screw that creates hidden resistance.
What do discrepancies mean in practice? A voltage drop concentrated at a single terminal almost always points to a high-resistance joint — loose wire, oxidized contact surface, or a cracked saddle clamp. The contact resistance increases, converting electrical energy into heat, which accelerates further degradation. Knowing how to test a terminal block with a multimeter at this stage catches faults before they escalate into thermal events or nuisance trips.
Step 3 — Testing for Voltage Drop Under Load
This is the test that separates technicians from amateurs. A continuity check passes. Voltage reads normal. Yet the terminal block still causes intermittent faults under real operating conditions. The voltage drop test exposes what those other measurements cannot: high-resistance connections that only reveal themselves when current is actually flowing.
To test a terminal block with a multimeter for voltage drop, switch to the DC millivolt (mV) range. With the circuit energized and carrying its normal load, place one probe on the incoming wire side of the terminal and the other probe on the outgoing wire side — measuring across the single connection point. A healthy, properly torqued terminal should show under 100 mV (0.1 V). Anything above that signals a deteriorating joint.
Pro tip: A reading of 200–500 mV across one terminal often means the screw has loosened just enough to reduce contact area, creating localized heating. Left unchecked, this causes thermal runaway — the connection heats, oxidizes further, resistance climbs, and the cycle accelerates until failure.
Why does this matter so much? According to NFPA research on electrical fires, loose connections and high-resistance faults account for a significant portion of electrical distribution failures. A simple millivolt reading catches these problems months before a catastrophic failure — something a basic continuity beep will never do.
When learning how to test terminal block with multimeter techniques, treat voltage drop as your most powerful diagnostic. Compare readings across identical terminals in the same block. If one reads 30 mV and its neighbor reads 250 mV under the same load, you’ve found your problem — retorque or replace that connection immediately.
Common Terminal Block Faults and How to Identify Them
Knowing how to test a terminal block with a multimeter is only half the battle — you also need to recognize what each reading actually points to. Here are the five most common faults and their multimeter signatures.
| Fault | Multimeter Clue | Recommended Fix |
|---|---|---|
| Loose screw | Voltage drop > 0.5 V under load; intermittent OL on continuity | Re-torque to manufacturer spec (typically 0.5–0.8 Nm for DIN-rail blocks) |
| Corroded contact | Resistance reads 2–50 Ω instead of near-zero | Disassemble, clean with contact cleaner, replace if pitting is visible |
| Heat-damaged insulation | Low megohm reading between adjacent terminals (leakage current) | Replace the entire block — compromised insulation cannot be restored |
| Cracked housing | Normal electrical readings but visible arc tracking marks | Swap immediately; electrical tracking can cause fires |
| Broken wire strands | Continuity beeps but resistance fluctuates when wire is flexed | Strip back, re-terminate with a proper ferrule |
A 2019 study by the National Fire Protection Association (NFPA) found that loose connections accounted for roughly 13% of electrical distribution fires in commercial buildings. That single statistic should convince you to never skip the torque check.
Pro tip: If your multimeter shows a resistance between 1 Ω and 5 Ω on a terminal that should read near zero, wiggle the wire gently while watching the display. A jumping value confirms a mechanical fault — corrosion or strand damage — rather than a simple calibration issue.
Frequently Asked Questions About Testing Terminal Blocks
What multimeter setting should I use for terminal blocks?
Start with the continuity setting (diode/sound wave symbol) for checking physical connections. Switch to AC or DC voltage mode — matching your circuit type — when measuring live signals. For voltage drop tests, stay on the voltage setting but read millivolts. Never use the resistance (ohms) setting on a live circuit; you’ll damage the meter or get garbage readings.
How do I test a fuse terminal block?
Pull the fuse out first. Set your multimeter to continuity and probe both ends of the fuse itself — a good fuse beeps, a blown one shows OL (open line). Then test the terminal block’s input and output contacts separately to confirm the block isn’t the problem. Roughly 23% of “blown fuse” callbacks turn out to be corroded fuse terminal contacts, not the fuse, according to field data from maintenance professionals on r/electricians.
Can I test terminal blocks without disconnecting wires?
Yes — for voltage and voltage drop tests. Backprobe the terminals or touch exposed screw heads. Continuity tests are the exception: the circuit must be de-energized and ideally isolated so parallel paths don’t give you a false “good” reading.
How often should terminal blocks be inspected?
Industrial environments with vibration or thermal cycling demand inspection every 6 to 12 months. Residential panels are lower risk — every 3 to 5 years is typical unless you notice flickering lights or tripped breakers. Knowing how to test terminal block with multimeter on a routine schedule catches degradation long before it causes downtime or fire.
Quick Reference Summary and Next Steps
Here’s the entire process of how to test a terminal block with multimeter distilled into a scannable checklist you can screenshot or print for the shop floor.
| Step | Multimeter Setting | What You’re Checking | Pass Criteria |
|---|---|---|---|
| 1 — Continuity | Continuity / Ω | Physical path through the connection | Audible beep; ≤ 0.5 Ω resistance |
| 2 — Voltage | V AC or V DC | Correct supply reaching the terminal | Within ±10% of rated voltage |
| 3 — Voltage Drop | V AC or V DC (millivolt range) | Connection quality under load | ≤ 0.5 V drop across a single terminal point |
Critical Safety Reminders
- Always verify your multimeter’s CAT rating matches the circuit — a CAT III 600 V meter is the minimum for industrial panels.
- De-energize before continuity tests. Steps 2 and 3 require live circuits, so wear rated insulated gloves.
- According to OSHA’s electrical safety standards, electrical contact causes roughly 160 workplace fatalities per year in the U.S. Treat every test seriously.
What to Do When a Terminal Block Fails
A failed voltage-drop test doesn’t always mean replacement. Re-torque the screw to the manufacturer’s spec first — about 70% of high-resistance faults clear up with proper torque alone. If the reading persists above 0.5 V, inspect for pitting or discoloration on the contact surface and swap the block entirely.
Pro tip: Schedule terminal block testing every 6–12 months as part of preventive maintenance, especially in panels exposed to vibration or thermal cycling. Catching a degraded connection early prevents cascading failures downstream.
