Understand the solar combiner box
Table of Contents
In solar photovoltaic power generation systems, although the combiner box is not apparent, it is the core device that connects photovoltaic modules and inverters. Not only is it a “distribution center” of current, but it is also a key unit to guarantee the safety of the system and enhance power generation efficiency.
It is going to conduct a thorough examination of solar combiner boxes’ operations, technical details, points of selection, and maintenance realities so that you can have the full knowledge necessary to understand its important contribution.
What is a solar combiner box
The solar combiner box is an important equipment of photovoltaic systems, mainly for collecting the currents of multiple solar cell modules and protecting them through DC circuit breakers and fuses to ensure the safe operation of the system. Not only can it improve the stability of photovoltaic systems but also simplify wiring and reduce maintenance costs.
Working principle of solar combiner box
The main function of the solar combiner box is to collect the direct current generated by the solar panels and transmit it to the inverter for conversion. It usually includes key components such as lightning protection devices, DC circuit breakers, and fuses inside to ensure the safety and reliability of current transmission.
The workflow of the system is as follows:
1. Solar cell modules generate direct current;
2. The combiner box collects various currents and provides protection;
3. The combiner box outputs stable current to the inverter
4. The inverter converts direct current into alternating current for power supply or grid connection.
Below is a video introducing a solar combiner box, hoping to deepen your understanding

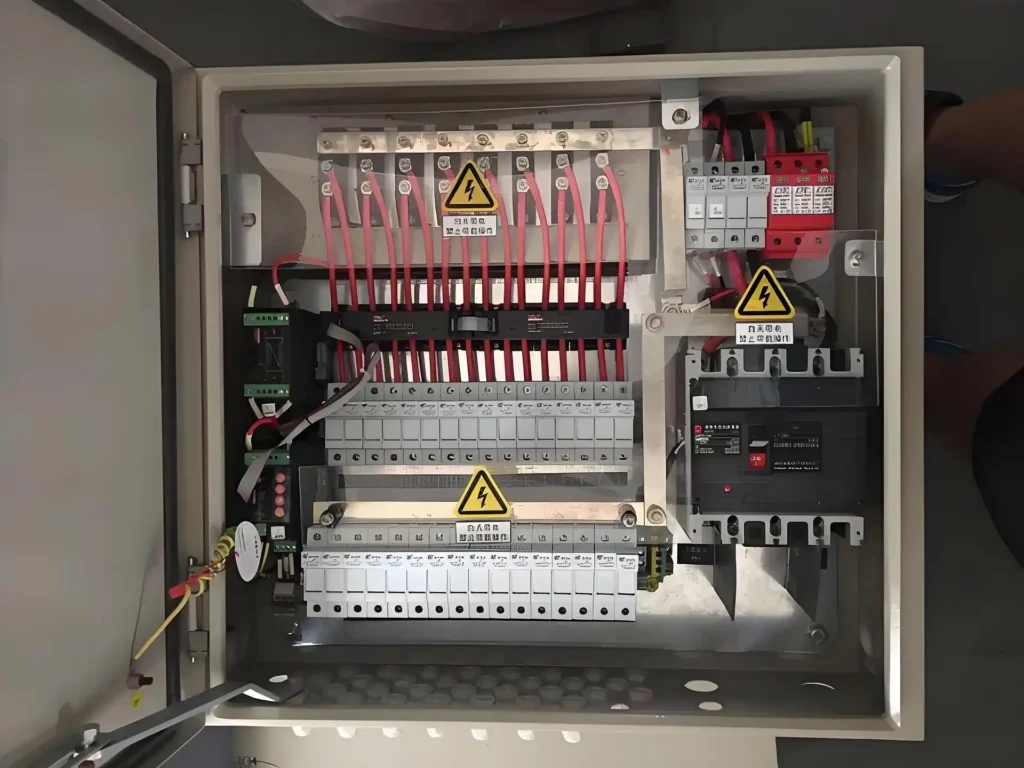

The core components of a solar combiner box
DC circuit breaker: employed to avoid current overload and provide circuit safety
Lightning protection module: protects the system from lightning destruction
Fuse: prevent overcurrent damage to the circuit
Monitoring module (smart combiner box): Current and voltage monitoring in real time as parameters
Wiring terminals: Connect input and output terminals of photovoltaic modules
The core function of solar combiner box
Current convergence and distribution
The combiner box collects the DC wires of multiple photovoltaic strings and outputs them uniformly, reducing line losses and optimizing the system structure. For example, an 8-input combiner box can integrate the current of 8 groups of photovoltaic arrays into 1 output, simplifying the subsequent inverter connection
Multiple security protections
Overload and short circuit protection: Cut off fault current through fuses (10A-15A) and circuit breakers (such as 100A molded case circuit breakers) to prevent equipment damage
Lightning protection: Equipped with photovoltaic specific lightning protection modules (such as Imax 40kA, Up ≤ 2.6kV) to suppress transient overvoltage and avoid lightning damage
Anti reverse current protection: prevents current backflow between strings and avoids damage to the battery board and components
Intelligent monitoring and data collection
Modern combiner box integrates intelligent monitoring module, which can collect real-time data such as current, voltage, temperature, etc. of each string, and remotely transmit it to the monitoring platform through RS485 communication protocol to achieve fault warning and operation optimization
Classification of solar combiner boxes
Ordinary combiner box: only has basic current combiner and protection functions, including fuses, lightning protection modules, circuit breakers (such as 100A plastic shell circuit breakers), etc., without data monitoring capability.
Intelligent combiner box: Integrated with Hall sensors and RS485 communication modules, it can monitor real-time parameters such as current (0.1-15A), voltage (50-1200V), temperature, etc. of each channel, and supports remote data transmission using Modbus RTU protocol. Some models also have arc detection, leakage current monitoring, and fault warning functions,
Waterproof and dustproof type: IP65 or above, made of stainless steel or polycarbonate (PC) material, capable of withstanding extreme temperatures ranging from -25 ℃ to 70 ℃ and 95% humidity. For example, the QJC HT series combiner box is made of ABS+PC material, which has the ability to resist ultraviolet rays and salt spray corrosion
High voltage combiner box: used for large photovoltaic power plants.
How to choose a suitable solar combiner box?
Key performance indicators
Input parameters: Single input current 10A-15A, peak voltage DC1000V-1500V
Output capability: The total output current can be 100A-350A, suitable for inverters of different powers
Protection level: IP65 or above, ensuring outdoor water and dust resistance
Environmental adaptability: operating temperature -25 ℃~+70 ℃, humidity 0%~95%, no condensation
Selection suggestions
Matching inverter parameters: Select the specification of the combiner box based on the input voltage and power of the inverter. For example, a 10kW inverter can choose a combiner box with 8-10 input channels
Intelligent requirements: If remote monitoring is required, choose an intelligent combiner box with built-in data acquisition module (such as supporting Modbus RTU protocol)
Brand and certification: Priority should be given to brands that have passed international standards, such as ONESTO, Deming Power, NSPV, etc

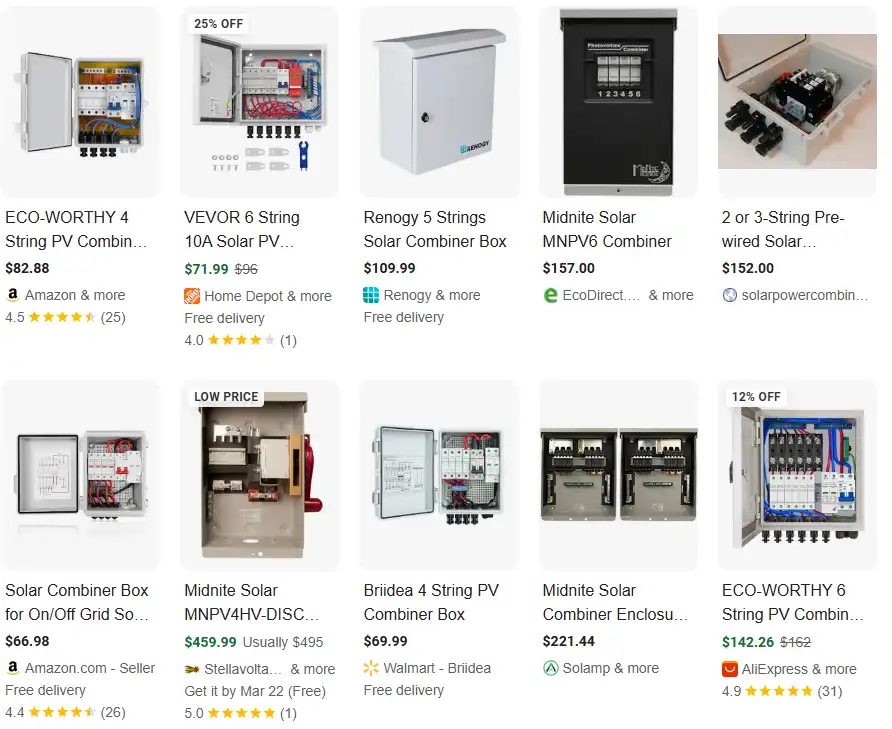

Price analysis of solar combiner box
The price of solar combiner boxes is influenced by factors such as brand, parameters, and functions
The price of a regular combiner box is about 50-100 US dollars
The price of intelligent combiner box is about 150-700 US dollars
The price of a large photovoltaic power station combiner box can reach up to $700
These are the prices of common solar combiner boxes in the market. If you plan to purchase or purchase solar combiner boxes, it is recommended to choose the ONESTO brand. Our combiner box not only has excellent quality, but also provides you with more competitive prices. As a leading manufacturer of combiner boxes, we also provide professional after-sales service to ensure your worry free use.
FAQ
Are solar combiner boxes required to be installed?
Yes, they help improve system efficiency and security.
Will combiner boxes replace inverters?
No, the combiner box only stores current, and the inverter is employed to convert the current.
Will the combiner box need to be maintained?
Regular inspection of wiring, circuit breakers, and lightning protection modules is required.
What is the difference between an intelligent combiner box and a regular combiner box?
The intelligent combiner box has remote monitoring and intelligent protection functions.
How to determine if the combiner box is damaged?
Can check current output, fuse status, and fault indicator lights.
