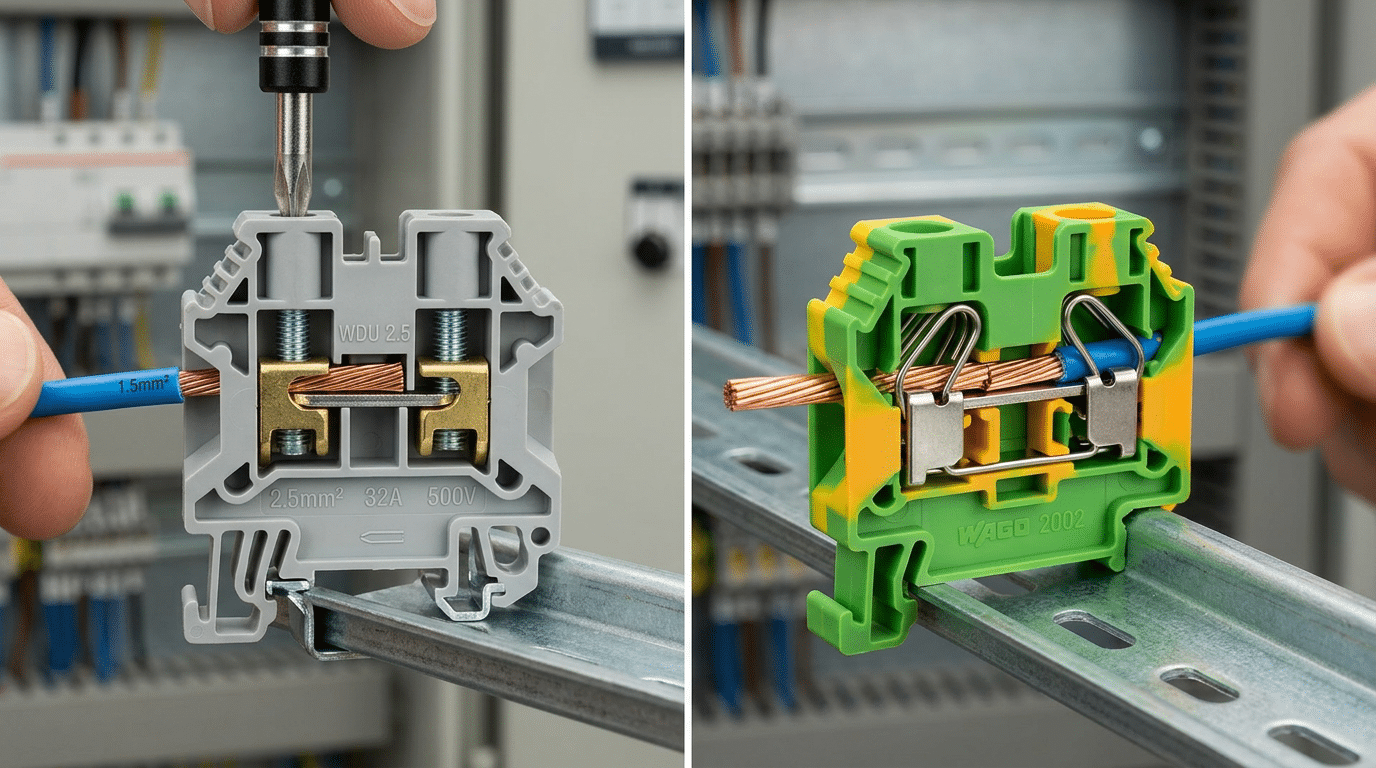

Neither connection technology is always better. A screw terminal uses a manufacturer-specified tightening step to create contact force. A spring terminal uses a spring element, but its wire-entry method may be push-in, tool-opened, lever-operated, or push-button operated. Compare exact models for the conductor, ratings, work process, vibration evidence, space, accessories, service method, and approval—not by a universal rule.
A good comparison starts with the wire, the people doing the work, and the proof your application needs. Current capacity, wire range, and vibration performance belong to the exact order number—not to every screw or spring terminal.
An approved screw-clamp system fits a repeatable process when the correct driver, exact tightening value, conductor preparation, and inspection record are already part of production.
Keep the exact model and torque instruction together.A suitable push-in or actuated spring design can remove the manual torque step. It can simplify repetitive wiring, but wire preparation, full insertion, inspection, and rating checks still remain.
Confirm which conductors insert directly and which need actuation.Ask for model-level test data with the mounting, conductor, frequency range, acceleration, shock pulse, cycle profile, and acceptance criteria that match your equipment.
A technology label is not a vibration qualification.A panel may use one connection system for dense I/O and another for an existing power or service interface. Control rail, accessories, spacing, labels, ratings, and approvals across the mixed BOM.
Choose by circuit function, not by habit.Choose screw or spring by the exact conductor and assembly process. Screw terminals make the tightening step measurable, but only when the correct value and tool are used. Spring terminals remove that manual torque step, but they do not remove conductor, insertion, inspection, rating, or certification checks. Many well-designed panels use both.
Both designs can make a reliable copper-conductor connection when the exact terminal, conductor, preparation, tool, and operating conditions match. The installation risks are different, so the quality checks should also be different.

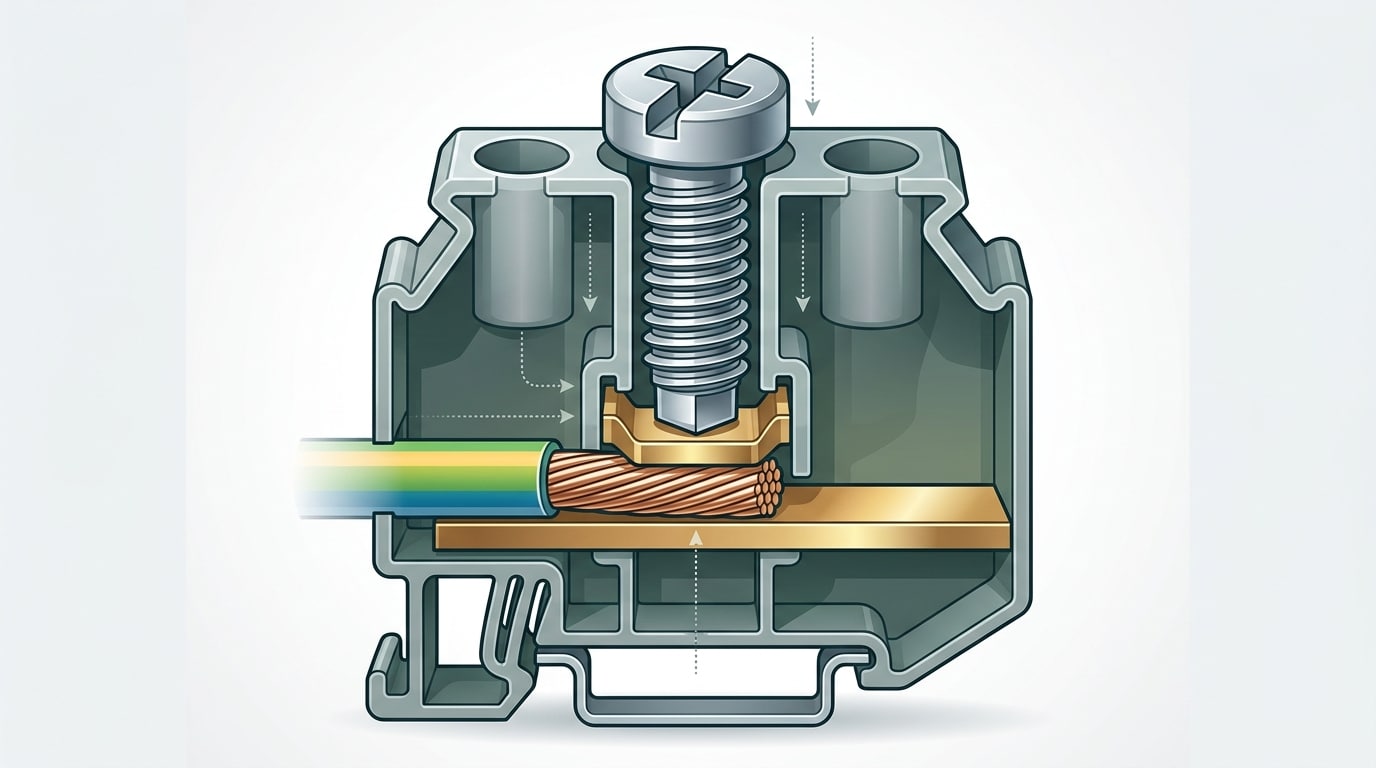

The installer inserts the prepared conductor and turns the screw. Depending on the design, the screw may move a pressure plate, saddle, cage, or other clamp. The manufacturer defines the accepted conductor, strip length, tool, and tightening instruction.
The spring is opened by conductor insertion or by an actuator. The conductor then contacts the current bar while the spring supplies contact force. “Spring terminal” is an umbrella term, so the operating method must be checked.
WAGO describes CAGE CLAMP connections that are opened with a tool and Push-in CAGE CLAMP connections that permit direct insertion for certain rigid conductors. Other conductor types are connected after the clamp is opened.[2] Read the exact product instruction instead of applying one handling rule to every spring terminal.
Product names are not fully standardized across brands. Use this map to understand the operation, then confirm the exact catalog drawing and instructions.
A tool or actuator opens the spring. The conductor enters while the clamp is open, and releasing the actuator closes the contact.
Useful for many conductor types when the model allows them.The rigidity of a solid or suitably prepared conductor can open the spring during insertion. Flexible wire may need a ferrule or an opened clamp.
Direct insertion depends on the conductor and model.A push-button opens or releases the spring. The operating tool and method can be simple, but the button is not the current-carrying contact.
Follow the marked conductor and tool instructions.A lever may give a clear open/closed state and allow tool-free handling for accepted conductors. Lever connectors and DIN-rail terminals remain different product families.
Do not use a splicing connector as a terminal-block substitute.Cage clamp, push-in, PUSH IN, Push-X, SNAP IN, and similar names describe manufacturer technologies with their own rules.
Match the data sheet, not a generic label.Safe-work note: installation and inspection must follow the equipment procedure. Before work on exposed electrical parts, de-energize as required, lock and tag, verify absence of voltage with suitable equipment, and control stored energy.[8]
The tendencies below help you shortlist a connection family. They do not rate a terminal. Exact products overlap in wire range, current, voltage, width, temperature, approvals, and environmental performance.
| Decision point | Screw terminal block | Spring terminal block |
|---|---|---|
| How contact force is set | The installer performs a specified tightening step. The screw moves a clamp or pressure element in the terminal. | The terminal's spring element supplies contact force. The installer inserts the conductor directly or opens the spring first. |
| Main process control | Correct conductor, strip length, entry, driver, tightening value, and any specified sequence. | Correct conductor, strip length, entry, ferrule if required, actuation method, full seating, and release state. |
| Tooling | Normally needs the specified driver or controlled torque tool when a value is given. | May be tool-free for approved direct-insert or lever operation; a tool may still be needed for flexible wires, opening, or removal. |
| Inspection | Can support recorded torque control, plus visual insertion and conductor-preparation checks. | Needs visual and process checks for preparation, full insertion, closed actuator, and correct conductor; no installer-set wire-connection torque is recorded. |
| Conductor flexibility | Wide ranges exist, but accepted solid, stranded, fine-stranded, ferruled, and multi-conductor arrangements are model-specific. | Wide ranges also exist. Direct push-in and ferrule rules depend on conductor rigidity, class, size, ferrule geometry, and model. |
| Repeated production wiring | Can be efficient with pre-set tools, good access, trained operators, and a simple verification plan. | May reduce handling steps when the approved conductor inserts directly. Confirm the saving with a timed trial of your actual work. |
| Vibration and shock | Do not assume failure. Select a model with applicable vibration and shock evidence, correct mounting, and controlled installation. | Do not assume automatic superiority. Select a model tested at the required severity with the real conductor and mounting arrangement. |
| Maintenance | Follow the terminal and equipment instructions. Some screw systems state that no re-tightening is needed; other equipment may define checks. | Often promoted as maintenance-free, but the full equipment still needs the inspection and service plan required by its environment and standard. |
| Electrical ratings | Use the exact rated current, voltage, temperature, conductor, pole arrangement, accessory, and approval conditions. | Use the same model-level checks. Spring technology does not create one universal current or voltage range. |
| Installed cost | Count terminal price, tools, tightening time, quality records, accessories, training, rework, and supply continuity. | Count terminal price, conductor preparation, ferrules if used, actuation tools, training, accessories, inspection, and supply continuity. |
| Best evidence for purchase | Order-number datasheet, drawing, conductor table, tightening instruction, accessory list, test report, and certification file. | Order-number datasheet, drawing, conductor/actuation table, strip and ferrule rules, accessory list, test report, and certification file. |
IEC 60947-7-1:2025 covers industrial terminal blocks with screw-type or screwless-type clamping units within its stated scope. It provides requirements and tests; it does not name one technology as the universal winner.[3]
A connection can look complete and still be wrong. Build the work instruction around the failure modes of the exact terminal instead of using the same checklist for both technologies.
Under-tightening or over-tightening can create a nonconforming joint. The value must come from the exact manufacturer's instruction, not screw diameter or memory.
A worn or incorrect driver can damage the head. Poor driver alignment and crowded wireways make controlled tightening harder.
The screw can feel tight even when strands are beside the pressure element or insulation enters the contact zone. Visual inspection still matters.
A flexible conductor may need the spring opened, while a rigid or ferruled conductor may push in directly. Forcing the wrong wire can damage strands or leave it short of the contact.
Insulation, a short strip length, or an oversized ferrule collar can stop full insertion. Check the specified strip length and any insertion indicator or viewing window.
Lever or push-button designs need the stated final position. Operators must distinguish conductor entry, tool opening, test point, and jumper channel.
Use the manufacturer's inspection method. Do not apply a universal “pull with a certain force” check, because conductor size, terminal design, test standard, and acceptance force vary. If a pull-out test is required, use the specified model-level method and value.
The same cross-sectional area can be sold as solid, stranded, or fine-stranded wire. Those constructions do not behave the same during insertion and clamping. The terminal's conductor table is the controlling source.
| Conductor or preparation | What to check on screw terminals | What to check on spring terminals |
|---|---|---|
| Solid conductor | Confirm the accepted size, material, strip length, conductor count, and clamping method. | Confirm whether it may be pushed in directly, the accepted size, strip length, and removal method. |
| Regular stranded conductor | Confirm that the pressure element accepts the strand class without strand damage or an unapproved end treatment. | Confirm whether direct insertion is allowed or the spring must be opened. Do not force a conductor that lacks enough rigidity. |
| Fine-stranded flexible wire | Check whether bare fine strands or a ferrule are allowed, plus any change to the accepted range and tightening instruction. | Check whether bare wire is accepted with tool opening or whether a specific ferrule is required for direct insertion. Rules differ by family. |
| Wire-end ferrule | Confirm ferrule standard, length, sleeve shape, crimp quality, and terminal range. A ferrule can change fit and current conditions. | Confirm the same details and whether the ferrule creates enough rigidity for push-in. “Ferrule accepted” does not mean every ferrule geometry fits. |
| Two conductors in one point | Only use two conductors or a twin ferrule when the exact terminal instruction permits that arrangement and the sizes match its table. | Do not place two conductors in one spring point unless the product provides and approves that conductor arrangement. |
| Tinned, soldered, or ultrasonically bonded end | Use only an end treatment accepted by both wire and terminal manufacturers. Do not hand-tin a conductor as a shortcut. | Apply the same rule. Product pages may permit specific bonded ends, but that does not approve every tinned or soldered wire. |
| Aluminum conductor | Many industrial terminal blocks in this comparison are intended for copper. Use aluminum only when the exact model, preparation, compound, torque or actuation, and maintenance instruction explicitly cover it. | |
A correctly selected and crimped wire-end ferrule can organize fine strands and provide a repeatable end. The ferrule cross-section, sleeve length, collar, crimp shape, conductor fill, and direct-insertion permission must all match the exact terminal instructions.
Photo: Simon A. Eugster / Wikimedia Commons, CC BY-SA 3.0. Layout crop only; source file unchanged.A ferrule is not universally mandatory for every flexible conductor in every spring terminal, and it is not automatically optional in every screw terminal. WAGO, for example, distinguishes direct insertion from tool-opened insertion by conductor construction in its connection instructions.[2] Use the exact product's conductor and ferrule table.
Spring force can help a connection respond to conductor movement and dimensional change. A well-designed screw clamp can also be qualified for demanding service. The practical question is whether the exact terminal, conductor, mounting, and accessories were tested at conditions that represent your equipment.
IEC 60068-2-6 gives a sinusoidal vibration test method, while IEC 60068-2-27 gives a shock test method. Neither title creates one universal severity or proves that every product using a technology passes your profile.[4][5]
Use the same terminal body, clamp, rail, end clamps, bridges, labels, conductor, preparation, and wire routing planned for production.
Match the machine, vehicle, fan, compressor, transport, or building equipment profile. A test at a different range or axis may not answer your question.
Include ambient temperature, load current, adjacent loaded poles, duty, enclosure ventilation, and thermal cycling. Maximum product temperature and rated current are condition-dependent.
Define allowed voltage drop or temperature rise, conductor movement, mechanical damage, dielectric checks, and inspection after the test.
Rail, marine, machinery, appliance, building, vehicle, and process equipment can have different product and complete-equipment requirements.
Direct insertion can remove several hand movements, but there is no universal number of seconds saved. Wire class, strip and ferrule preparation, terminal access, labels, test steps, operator experience, tooling, and batch size change the result.
Use one repeated panel section, the production conductor set, normal wire lengths, markers, bridges, and the planned terminal models.
Include picking, stripping, ferrule crimping if required, insertion, torque or actuation, labeling, inspection, testing, and correction—not only the final hand motion.
Add terminals, accessories, wire-end parts, tools, calibration, training, labor, inspection, spares, packaging, and supply continuity for your quantity.
Make the result reusable: record the sample size, operator experience, work instruction, exact parts, average time, spread, defects, rework, and assumptions. Then apply the result only to projects with a similar process.
These starting points help panel builders and equipment manufacturers plan samples. Final selection still depends on exact ratings, conductor compatibility, the complete equipment design, and target-market evidence.
| Project scenario | Useful starting point | What must decide the final choice |
|---|---|---|
| Repeated PLC and I/O panels | Sample a suitable push-in or actuated spring system beside the current screw process. | Actual wiring time, conductor mix, ferrules, labels, test access, operator errors, terminal width, bridges, and model approvals. |
| Established screw-terminal production | Keep screw as a valid candidate when controlled tools, instructions, inspection, and supply are already stable. | Whether a technology change gives enough verified benefit to justify retraining, new accessories, new drawings, and approval work. |
| Legacy replacement or retrofit | Start from the old model, rail or mounting, dimensions, bridges, markers, wire entry, and service procedure. | Do not switch technology until fit, ratings, accessories, conductor preparation, documentation, and complete-equipment impact are reviewed. |
| Vibrating machinery or transport | Shortlist only models with applicable vibration and shock evidence. | Test profile, mounting, end clamps, conductor, wire support, temperature, current, equipment standard, and acceptance criteria. |
| Power-feed or larger-conductor circuits | Search both technologies within the required conductor and current class; add bolt or distribution products when appropriate. | Exact current/temperature conditions, conductor bending space, short-circuit duty, pull-out evidence, terminal width, guarding, and service access. |
| Field-installed or frequently changed wiring | Compare the tools and steps the field team can execute correctly under the real access conditions. | Training, approved conductor preparation, clear actuation, replacement stock, safe isolation, inspection, and change frequency. |
| Hybrid control cabinet | Use screw and spring where each creates the better controlled process. | Separate circuit functions clearly; control rail compatibility, end plates, bridges, markers, spare parts, ratings, spacing, and documents. |
This can be a sensible architecture, but it is not a fixed recipe. A spring terminal can also serve suitable power circuits, and a screw terminal can also serve dense controls. The exact product and production process decide. See the control cabinet wiring components page for SENTOP's wider project scope.
Use this checklist for both technologies. It prevents a fast decision from becoming a slow redesign later.
Identify feed-through, distribution, PE, neutral, disconnect, fuse, test, sensor, actuator, power, or signal duties. Choose the terminal function before the clamp technology.
List copper or aluminum, AWG or mm², solid or stranded class, insulation diameter, strip length, ferrule or lug, and conductors per point.
Confirm voltage, current, AC or DC, frequency, ambient, loaded adjacent poles, enclosure, duty, conductor, temperature-rise conditions, and short-circuit needs.
Define preparation, insertion, tool or actuation, exact tightening instruction, inspection, test, removal, and correction. Avoid generic torque or pull values.
Match vibration, shock, thermal cycle, humidity, condensation, pollution, corrosion, altitude, and ingress conditions to model and equipment evidence.
Check rail or mounting, width, height, wire-entry direction, bend space, end plates, end clamps, bridges, markers, covers, test plugs, and spare positions.
Plan safe access, identification, electrical test points, change method, spare stock, maintenance instructions, and who is qualified to perform each step.
Verify the order number, UL file or IEC/EN evidence, conductor and rating conditions, accessories, target market, and any conditions of acceptability.
Confirm model code, sample approval, drawing revision, batch traceability, package labels, quantity, delivery, alternates, and mixed-BOM control.
IEC 60947-7-1:2025 expressly includes terminal blocks with screw-type and screwless-type clamping units for industrial or similar use within its scope. UL 1059 covers terminal-block assemblies within its scope and states that compliance does not by itself prove suitability in a particular end product.[3][6]
Start with the finished equipment's standard and risk assessment. Then verify the exact terminal's certification, ratings, conductor conditions, accessories, mounting, instructions, and any restrictions.
Current industrial terminal-block standard for copper conductors within its stated voltage and conductor scope. It covers screw-type and screwless clamping units.
Official IEC scopeTerminal-block assembly requirements within the standard's scope. Verify the exact certification file and end-use conditions; a family logo is not enough.
Official UL scopeStandard method for sinusoidal vibration testing of a specified specimen at selected severities. Ask for the actual test profile and result.
Official vibration-test scopeStandard method for non-repetitive or repetitive shock testing. The pulse, severity, mounting, specimen, and acceptance criteria must match the application need.
Official shock-test scopeA model, photo, drawing, sample, or BOM helps SENTOP compare screw and spring options without guessing. Include the information below so the shortlist covers the connection, panel layout, documents, and supply plan.
This article owns the screw versus spring comparison. Use the pages below for model selection, product ranges, panel wiring, or procurement documents.
Use these answers to frame the comparison. The exact model, conductor, equipment, and evidence still decide suitability.
Neither is always better. Screw terminals fit processes that control the exact tool, tightening value, conductor preparation, and inspection. Spring terminals can remove the manual torque step and may simplify repeated wiring for compatible conductors. Compare exact models for ratings, conductor class, operation, vibration evidence, space, accessories, service, certification, and installed cost.
Both can be reliable within their documented conditions. Reliability depends on the complete connection: terminal model, conductor, preparation, insertion, mounting, load, temperature, vibration, contamination, and equipment design. Do not treat connection technology alone as proof; ask for test data and certification for the exact model.
Not as a universal rule. Some screw-clamp systems are documented as maintenance-free and state that the screws do not need re-tightening. Other equipment may specify inspection or service actions. Follow the exact terminal and equipment instructions; an invented re-torque schedule can damage a correctly installed connection.
No. Some solid or ferruled conductors can push directly into certain spring terminals. Other conductors require an operating tool to open the clamp, and a tool may be required for removal. Lever designs may allow hand operation. Check the exact terminal's conductor and actuation table.
No universal rule applies. Some products accept bare fine-stranded wire after the spring is opened; others call for a ferrule for direct insertion or for specific conductor sizes. Ferrule length, cross-section, collar, crimp, and accepted range also matter. Follow the exact product table.
No. Spring designs can perform well under vibration, but the choice still needs model-level evidence. Compare the frequency range, severity, axes, duration, shock pulse, mounting, conductor, accessories, temperature, electrical load, and acceptance criteria with your equipment profile.
Yes, when the panel design controls each circuit's function, ratings, conductor, spacing, rail or mounting, end plates, bridges, markers, test access, spare parts, work instructions, and certification. Do not assume two models are compatible only because both mount on a DIN rail.
Send the model, photo, drawing, sample, or BOM; circuit function; voltage and current; conductor material, size, class, insulation, and end preparation; poles; dimensions; mounting; environment; assembly process; target market; required documents; quantity; destination; and delivery plan.
Send the conductor schedule, circuit ratings, mounting, environment, work process, target market, quantity, destination, and document needs. SENTOP can help compare screw and spring terminal options for your next cabinet or equipment project.
