System
Record line-to-line and line-to-neutral voltage, AC frequency, wye or delta, neutral use, grounding method and phase sequence.
Engineer-ready selection guide

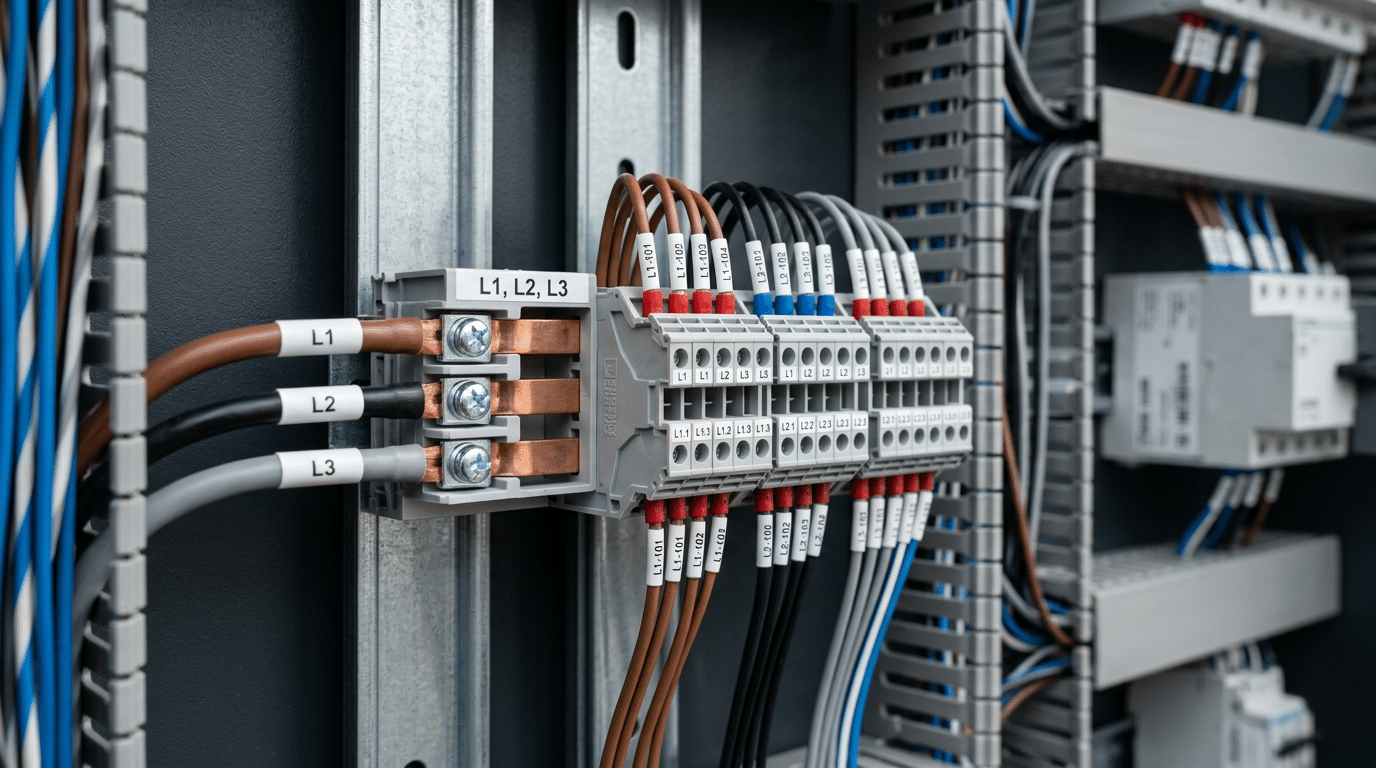

How to Choose 3-Phase Power Distribution Terminal Blocks
Start with the power system, not a product label. Confirm line-to-line voltage, wye or delta, current on each phase, incoming and outgoing wires, branch count, available fault current, mounting space, environment, and target approval. Then verify every item on the exact catalog number. A block marked “3-phase” is not automatically right for the panel.
System firstL1/L2/L3, neutral need, grounding and phase sequence
Ratings stay separateVoltage, current, temperature and wire range answer different questions
SCCR needs contextAvailable fault current, protection and panel method belong together
Exact model winsPort layout, torque, approvals and accessories are order-number specific
Three-pole DIN-rail distribution block. Photo: Dmitry G, via Wikimedia Commons, CC BY-SA 3.0. Layout crop only.
Quick decision
Seven checks before a model number
This block can stand alone as a buyer's first-pass review.
The selection rule
Choose a connection architecture that matches the schematic. Then prove the exact part can accept the real wires, carry the design current, fit the enclosure, and take part in the required fault-current and approval strategy.
Load
Use the design or nameplate current for each phase. Note continuous duty, motor starting, imbalance, harmonics and future branches.
Ports
Draw each incoming and outgoing path. Count ports by pole; do not put two wires in one clamp unless that exact port allows it.
Wires
List copper or aluminum, AWG or mm², strand class, insulation rating, ferrule or lug, and the number of wires per port.
Fault duty
State available fault current, panel SCCR target, upstream protective device and every condition needed for a combination rating.
Installation
Confirm DIN rail or panel mounting, wire-bend space, covers, barriers, touch protection, temperature, altitude and contamination.
Market evidence
Ask for the datasheet, drawing, current approval record, UL file or IEC/CB evidence where required, and the conditions tied to the exact order number. A family logo or a standard's maximum scope is not a product rating.
Stop if any input is unknown. Guessing at voltage, conductor type, fault current or terminal use can change the safe product category. Ask the panel designer, end user or authority responsible for the installation before releasing the BOM.
Architecture before amperes
What are you actually selecting?
People often use “terminal block” for several different devices. The correct form depends on whether the circuit passes through, splits into branches, or needs protection. Similar-looking parts may have different product standards and conditions of use.
Feed-through terminal row
Each terminal usually joins one incoming wire to one outgoing wire at the same electrical potential. Three phases use three isolated paths. Add a neutral terminal only when the system needs neutral. Keep protective earth in its approved PE path.
Use bridges or jumpers only when the exact terminal series, current path and approval permit them. A row of ordinary terminals does not become a high-current distribution block because several clamps are linked.
Power distribution block
A power distribution block provides defined line and load ports. It can split one feeder into several branch conductors without crowding unapproved wire bundles into one clamp. Input and output ports often accept different wire ranges and use different tightening values.
Select the port map from the schematic, not from the outside dimensions. Review terminal blocks versus busbars when the distribution backbone itself is still undecided.
Integrated 3-pole distribution block
An integrated unit keeps L1, L2 and L3 in one housing while maintaining isolation between poles. It can simplify mounting and BOM control. However, “3-pole” does not state voltage, current, wire acceptance, SCCR or neutral support.
Three approved single-pole units may also form a valid three-phase layout when installed exactly as specified. Compare total width, barriers, covers, end stops, accessories and approval evidence for the complete arrangement.
Fused or protected assembly
A plain terminal or distribution block provides a connection. It does not provide overcurrent protection unless the exact product is designed and evaluated with that function.
If every branch needs a fuse or circuit breaker, draw the protective devices in the architecture. Coordinate conductor protection, interrupting rating, selective behavior where needed, and the finished assembly SCCR. SENTOP's protection selection guide can support the wider BOM discussion.
| Connection need | Likely starting form | What to verify | Common mistake |
|---|---|---|---|
| One feeder in, one wire out per phase | Three isolated feed-through terminals or a 3-pole assembly | Wire range, current, voltage, rail/accessories and spacing | Bridging phases together or assuming every terminal accepts a jumper |
| One feeder per phase, several branch wires | Single-pole PDBs or an integrated 3-pole PDB | Input/output map, branch protection, port ratings, SCCR and covers | Putting several wires in one port without a listed combination |
| Many repeated low-current circuits | DIN-rail terminal system with approved bridges and markers | Bridge current, loaded-pole effects, end plates and test functions | Using the bridge as a substitute for a distribution device without evidence |
| Field-installed building feeder split | A product approved for that field-wiring use | Local code, enclosure and the exact product category, such as UL 1953 where applicable | Substituting a UL 1059 recognized component solely because it looks similar |
Read the shape as a clue, not a rating
Similar rail products can hide different connection paths
The photo compares two power-terminal forms. Conductor entry, clamping layout and space demand differ even before current or voltage is considered. For three phases, each electrical path must remain isolated in the approved arrangement.
Do not copy a pictured product's value into another design. Current, voltage, wire range, tightening method, SCCR and approvals belong to the exact part number and its documented conditions.
For the wider rail layout, review SENTOP's DIN-rail terminal block range and the guide to common DIN-rail terminal types.
Power terminals for large conductors. Photo: Dmitry G, via Wikimedia Commons, CC BY-SA 3.0. Layout crop only; the image illustrates form, not a product recommendation.
Step 1 — map the circuit
Three phase does not always mean three, four or five poles
The schematic decides which current-carrying paths are needed. Neutral and protective earth have different jobs. Do not treat either one as an extra phase conductor.
Describe the source
Line-to-line voltage, line-to-neutral voltage if present, frequency, wye or delta, grounding method and available fault current.
Describe every branch
3-phase loads, line-to-neutral loads, design current by phase, phase sequence needs and branch protective devices.
Assign one approved path per function
A common 3-wire delta feeder may use L1/L2/L3 plus a separate PE path. A 4-wire wye feeder may also need N. Other systems exist, so follow the project drawing and local rules.
L1L2L3NPE
Neutral depends on the loads
A wye source can provide line-to-neutral voltage, but a neutral terminal is only useful when the downstream circuit needs that conductor. Size and verify the neutral for the real load and harmonic conditions; do not assume it always carries little current.
Do not invent a neutral
A common 3-wire delta system has L1, L2 and L3 without a neutral. Some delta systems have special grounding or center-tap arrangements. The single-line diagram and local design rules control the terminal plan.
PE is a safety path
Protective-earth terminals need the required bonding function, markings, support and test evidence. Do not route PE through an ordinary insulated phase pole merely because the conductor fits. IEC 60947-7-2 covers protective-conductor terminal blocks within its stated scope.[9]
Phase identification: label L1, L2, L3, N and PE on the drawing and at the terminals. Conductor colors vary by country, installation standard and existing system. Follow the applicable rules and approved project drawing. For motors and other rotation-sensitive loads, verify phase sequence before energizing.
Steps 2–4 — turn the drawing into data
Build a selection worksheet before comparing products
This worksheet replaces generic “208 V,” “480 V” and “600 V” product tables. Those tables hide the system, current, temperature, conductor and approval conditions that make a rating useful.
State both useful voltages
Record maximum line-to-line voltage and line-to-neutral voltage when neutral is used. Add AC frequency, grounding arrangement, transient/insulation context and destination standard. Select an exact product rating that covers the circuit under its stated conditions; do not apply a universal 20% shortcut.
Record current on each phase
Start with approved load calculations or equipment nameplates. Note continuous duty, duty cycle, motor starting, load imbalance, nonlinear loads, enclosure temperature and simultaneous loading. The terminal's published current is not a substitute for conductor and protective-device sizing.
Describe the incoming conductor
List material, size, strand class, insulation temperature, preparation, number of wires and any lug or ferrule. Large flexible conductors may need a specific clamp or ferrule. “Fits in the hole” is not proof of acceptance.
Map every outgoing port
List every branch size and wire type. Input and output ports may have different ranges, strip lengths and tightening values. If two conductors share a port, the datasheet or certification must allow that exact combination.
Check the installed assembly
Record DIN rail or panel mounting, total width and height, end stops, covers, barriers, wire-entry direction, bend radius, pulling forces, tool access and service clearance. Check the enclosure, not only the loose component.
Define where it will work
State ambient and enclosure temperature, altitude, pollution, condensation, dust, chemicals, vibration and touch-protection need. Add target market, component category, certificate/file, drawing revision and traceability requirements.
Balanced-load estimate
I = P ÷ (√3 × VLL × PF)
This equation estimates line current when P is real electrical input power for a balanced 3-phase load. VLL is line-to-line voltage and PF is power factor.
If the known value is motor shaft output, efficiency must also be included. Starting current, harmonics, imbalance and code rules are not solved by this one equation.
Use the approved nameplate or design current for selection. Apply the rules for the actual load, conductors and protective devices. A universal “125% terminal rule” is not a safe substitute.
Current rating
Normal-load thermal capability under stated wire, ambient, mounting and test conditions.
Voltage rating
Insulation use within a defined standard, spacing, pollution and equipment context.
SCCR
Fault-current performance under stated conditions. It is not the same as current rating.
Never copy a torque or strip length from another model. Thread size alone does not set torque. The port, clamp, wire material, conductor size, plating and product design all matter. Use the exact manufacturer's value and specified tool. Do not add lubricant, ferrules or a re-tightening schedule unless the instructions allow them.
Step 5 — fit the whole panel
DIN rail or panel mount is a layout decision
There is no universal current line where DIN rail ends and panel mounting begins. Both forms cover wide ranges. Compare the exact product and the mechanical loads created by its conductors.
| Question | DIN-rail system | Panel-mount block | Evidence to request |
|---|---|---|---|
| How will it be fixed? | Compatible rail profile, approved end stops and required spacing/accessories | Hole pattern, fasteners, support surface and installation torque | Assembly drawing and mounting instructions |
| How do wires enter? | Often supports organized rows and repeatable markers; bend space may limit dense layouts | May suit large line/load ports or direct panel routing; tool access still matters | Wire-entry direction, bend-space check and enclosure drawing |
| How is touch protection added? | End plates, partition plates and covers must match the terminal family | Some blocks are finger-safe; others need a cover or guarded enclosure | IP/touch-protection claim for the assembled configuration |
| How are mechanical forces controlled? | Rail, end stops and support must resist conductor and service forces | Panel and fasteners must support the block and cable forces | Mechanical limits, mounting details and application-specific vibration evidence |
| Which carries more current? | Neither form wins by default. Current belongs to the exact model, wire, ambient, pole loading and installation conditions. | Order-number datasheet and applicable temperature-rise/derating information | |
Installation proof

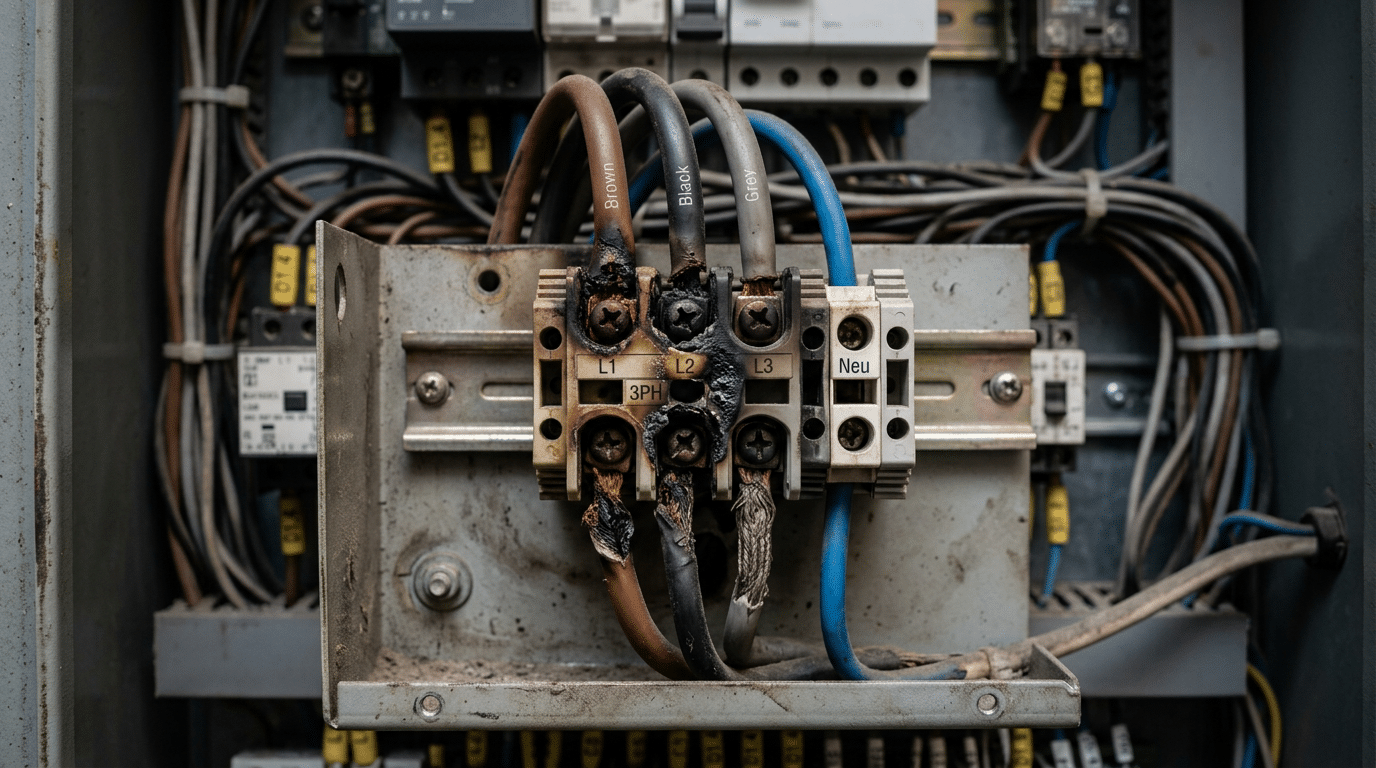

Large conductors turn space into a rating input
Wire bend, pulling force, cover clearance and tool access can rule out a part that appears correct on paper. Review the terminal inside the real enclosure with the real line and load wires.
- Check cable route and minimum bend space from the applicable design rules.
- Keep the conductor inside the approved port range and preparation method.
- Make room for a controlled tightening tool and later inspection.
- Confirm covers, barriers and spacing after every accessory is installed.
Power-feed terminal blocks in a substation pull box. Photo: MTA Capital Construction Mega Projects, via Wikimedia Commons, CC BY 2.0.
Step 6 — verify fault duty
SCCR is a panel-level question, not a current-rating bonus
Available fault current is what the supply can deliver at the installation point. SCCR states the fault-current level a component or assembly can withstand under defined conditions. Interrupting rating belongs to a protective device that opens a fault. Keep all three terms separate.
Available fault current
Obtain the value at the planned installation, at the relevant voltage. Do not guess from transformer size alone when the project requires a formal calculation.
Marked or conditional SCCR
Record the exact block, conductor sizes, upstream protective device, voltage and every condition used for a higher combination rating.
Finished panel SCCR
Determine the panel value by the accepted method, such as the applicable UL 508A procedure in North America. Then compare it with available fault current.
North American panel note: UL Solutions explains that terminal blocks have a default 10 kA SCCR under UL 508A Table SB4.1, while higher values may depend on documented component or combination conditions.[3] This is not permission to label every block 10 kA in every product category or installation. Apply the current panel standard and the exact component evidence.
Industrial terminal blocks
The current edition covers specified copper-conductor terminal blocks fixed to a support within its scope, up to 1000 V AC or 1500 V DC. Those scope limits are not the rating of every product.[1]
Terminal-block assemblies
UL 1059 covers terminal blocks within its stated scope. It also says compliance alone does not prove suitability in a particular end product. Verify the UL file and Conditions of Acceptability for the ordered part.[2]
Power distribution blocks
Field-installed power distribution blocks for building wiring are a separate product use. Do not substitute a similar UL 1059 component unless the end-use rules permit it.[4]
Name the evidence precisely
CE marking is a manufacturer's EU conformity declaration, not an EU agency approval.[10] A CB report or third-party certificate has its own scope. Ask for the exact model, standard edition and current document.
Category check: UL warns that terminal blocks can be misapplied as power distribution blocks in industrial control panels.[5] Tell the supplier whether the device is factory wiring inside equipment, a panel component, or a field-installed building-wiring distribution point. That one detail can change the correct product route.
Step 7 — build and validate safely
Use the exact instructions, then inspect the complete connection
Installation is work for qualified people under the rules that apply to the site. The steps below are a release checklist, not a substitute for training, the wiring diagram or the product manual.
Make the work electrically safe
De-energize, lock out/tag out where required, and verify absence of voltage with appropriate test equipment before touching conductors. Allow hot parts to cool. OSHA gives these rules for covered U.S. workplaces; follow the law and procedure for your location.[6]
Confirm model and accessories
Match the order number, pole count, line/load map, rail or panel hardware, end plates, covers, barriers, markers, jumpers and protective devices to the released BOM and drawing.
Prepare each wire as specified
Use the approved conductor material, size and strand class. Strip only to the model's value. Fit a ferrule or lug only when the wire and terminal instructions allow that preparation.
Terminate with controlled tools
Insert the wire fully, keep insulation out of the contact area, and tighten or operate the clamp exactly as instructed. A generic torque chart cannot replace the product value.
Inspect the assembled panel
Check seating, exposed copper, wire strain, labels, covers, barriers, spacing and tool clearance. Perform the approved pull, continuity, insulation and protective-bond checks for the equipment.
Release and maintain by evidence
Record the model, lot, tool and inspection result when the quality plan requires it. Verify phase sequence before energizing rotation-sensitive loads. Inspect or re-tighten only at intervals the equipment or terminal manufacturer specifies; replace damaged or overheated parts.
Readable panels are easier to verify
Make the connection traceable
Clear circuit labels link the physical wire to the schematic, inspection record and future replacement part. Mark both ends of conductors and use terminal references that remain visible after covers are fitted.
For a larger panel BOM, SENTOP groups control cabinet wiring components and supports panel builders and switchgear teams.
Photo: MTA Capital Construction Mega Projects, via Wikimedia Commons, CC BY 2.0.
Buyer-ready specification
Send one RFQ that can be answered with an exact model
Good input shortens the matching loop and makes supplier answers easier to compare. Include the single-line diagram or a clear port sketch whenever possible.
SystemAC frequency, wye/delta, line-line and line-neutral voltage, neutral and PE arrangement
LoadDesign current for each phase, duty, imbalance, starting or harmonic notes, branch protection
Line wiresMaterial, AWG/mm², strand class, insulation, number of conductors and preparation
Load wiresBranch count, each wire size/type, number per port and preferred wire-entry direction
Fault dataAvailable fault current, panel SCCR target, upstream device, voltage and combination conditions
InstallationDIN rail or panel mount, available dimensions, covers, barriers, touch protection and enclosure
Market evidenceDestination country, required standard, UL file/CB/certificate need, drawings, CoC and traceability
SupplyAnnual quantity, sample need, target schedule, OEM label, packaging and approved alternates
Exact order number
Ask for a proposed model and every required accessory, not only a family name or a photo.
Requirement-by-requirement proof
Map voltage, current, each port, wire type, temperature, SCCR and mounting back to a datasheet, drawing or approval record.
Controlled sample and change path
Agree sample inspection, drawing revision, alternate materials, label/packaging needs and change notification before volume release.
Continue the decision
Related SENTOP selection resources
Use the topic that matches the next open question in your project. These links go to current, direct SENTOP pages.
Common buyer questions
3-phase distribution block FAQ
Short answers for engineering, purchasing and panel-build review.
What is a 3-phase power distribution terminal block?
It is a mounted connection device used to route or split three isolated phase conductors inside an approved assembly. It may be one integrated 3-pole unit or three approved single-pole devices. The exact model must still match system voltage, current, conductor ports, mounting, fault-current conditions and end-use approval.
Do I need three, four or five poles?
The schematic decides. L1, L2 and L3 need isolated paths. Add neutral only when the system and loads need it. Protective earth is a separate safety function and must use the approved PE/bonding arrangement. Do not select pole count from “three phase” alone.
Can I use three single-pole blocks for a 3-phase circuit?
Yes, when each exact block and the assembled arrangement are approved for the voltage, current, wires, spacing, mounting and end use. An integrated 3-pole block may reduce parts and space, but it is not automatically safer or higher rated.
How do I calculate the current for a 3-phase terminal block?
Use approved load calculations or the equipment nameplate. For a balanced load with known real electrical input power, line current can be estimated as P divided by square root of 3, line-to-line voltage and power factor. Add efficiency when starting from mechanical output. Then account for duty, starting, imbalance, harmonics and applicable code rules.
Should I add 20% or use 125% of current?
Do not apply a universal terminal-block percentage. Some load and conductor rules use 125% in specific conditions, but that does not create one rule for every terminal. Determine design current under the applicable equipment and wiring rules, then verify the exact block at the real ambient, wire and pole-loading conditions.
What SCCR should the distribution block have?
Start with available fault current at the installation and the required SCCR of the finished panel or equipment. Then apply the accepted assembly method and the exact block's marked or conditional data, including the upstream protective device and conductor conditions. Continuous current rating is not SCCR.
Is DIN rail or panel mounting better?
Neither is always better. DIN rail can help organize modular rows and accessories. Panel mounting may suit another cable route or block form. Compare current and wire conditions, rail/end-stop or fastener support, bend space, covers, tool access, vibration evidence and total installed size.
Can I put two conductors in one terminal port?
Only when the exact port is documented for that number, material, size, strand class and preparation of conductors. Many ports accept one conductor only. A larger opening does not prove that two wires will clamp correctly. Use a distribution block with dedicated outputs when the combination is not approved.
Source trail
Official references used for technical boundaries
Standards define scopes and test routes. Product pages show model-specific examples. Neither replaces the equipment designer's review.
- IEC 60947-7-1:2025 — current scope for industrial terminal blocks fixed to a support, including stated conductor and voltage limits.
- ANSI/UL 1059, Sixth Edition — terminal-block scope, end-product limitation and product-category exclusions.
- UL Solutions: Determining SCCR for Machinery — available fault current, panel SCCR and UL 508A terminal-block default context.
- ANSI/UL 1953 — official scope for power distribution blocks, including stated voltage and field-wiring use boundaries.
- UL Solutions: Avoiding Common Misapplications — includes the terminal-block versus power-distribution-block category warning.
- OSHA 29 CFR 1910.333 — de-energization, lockout/tagout and verification requirements for covered U.S. workplaces.
- Weidmüller WPD 304 product downloads — an official example of order-number-specific wire, torque, rating and document data for a 3-phase distribution product.
- Eaton PDBFS220 product page — an official example showing model-specific line/load ports, conductor conditions, mounting and conditional SCCR.
- IEC 60947-7-2:2009 — official scope for protective-conductor terminal blocks for copper conductors.
- European Commission: CE Marking — official explanation of manufacturer responsibility and the meaning of CE marking.
From schematic to exact order number
Send the system, wire map and fault-current target—not just “3-phase.”
SENTOP can review the connection architecture, match relevant terminal or distribution options, list required accessories, and align samples and documentation with your panel or equipment BOM.
