Loose electrical connections account for roughly 30% of all electrical fires in commercial and industrial settings, according to data compiled by the National Fire Protection Association (NFPA) — and terminal blocks sit at the center of that risk. Understanding terminal block overheating causes and solutions is critical because a single connection point running just 20°C above its rated temperature can degrade conductor insulation, trip protective devices, and ultimately spark a fire inside your control panel. This guide breaks down the five most common reasons terminal blocks overheat, the early warning signs you should never ignore, and the exact corrective actions that bring temperatures back within safe operating limits.
Why Terminal Blocks Overheat and Why It Matters

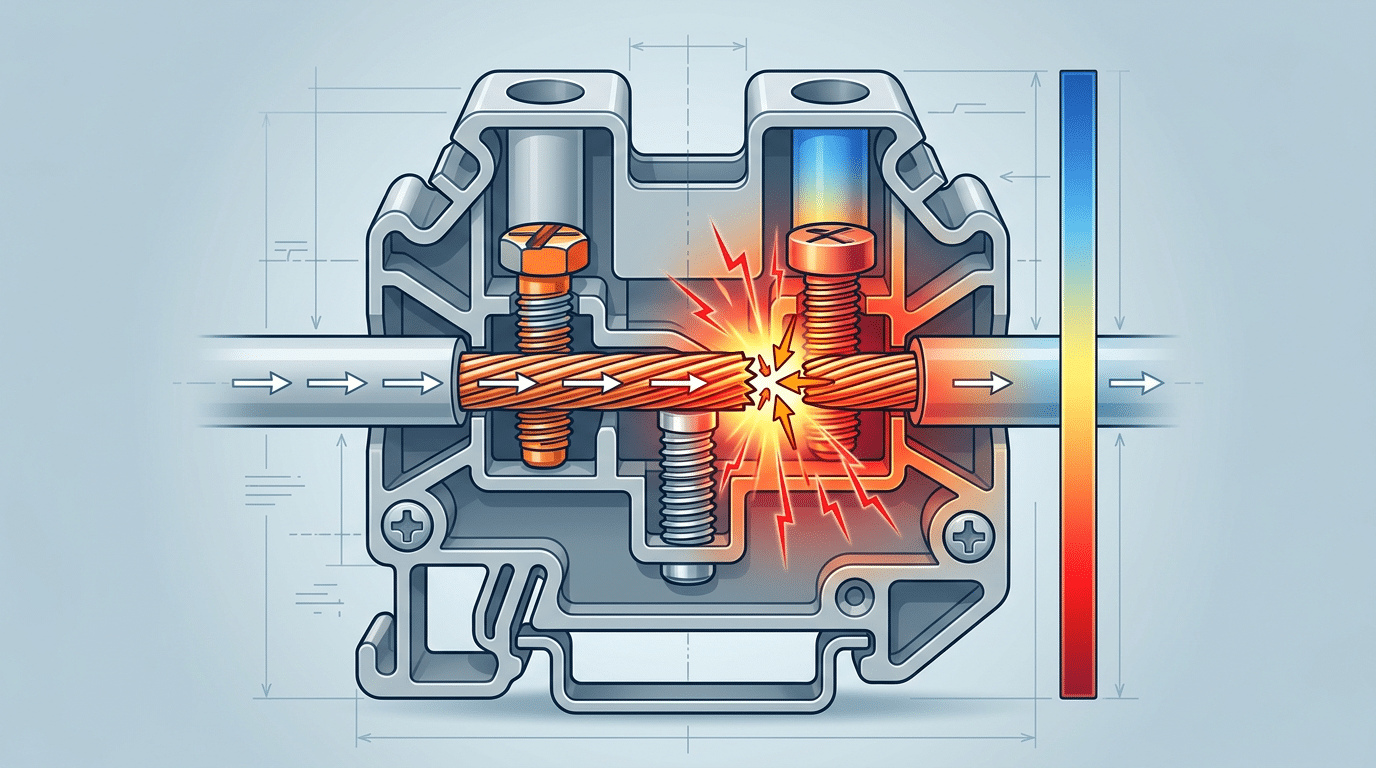

Every overheating terminal block traces back to one physics problem: increased electrical resistance at the connection point. When resistance rises — even by fractions of an ohm — current flowing through that junction converts excess energy into heat (P = I²R). A connection degrading from 0.1 mΩ to just 5 mΩ on a 100 A circuit can dump over 50 watts of heat into a space the size of your thumbnail. That’s enough to melt insulation, char housing, and eventually ignite surrounding materials.
The stakes are not theoretical. According to the National Fire Protection Association (NFPA), electrical distribution equipment — including terminal connections — contributes to roughly 34,000 home structure fires per year in the United States. Industrial facilities face even steeper consequences: unplanned downtime from a single failed terminal block in a motor control center can cost manufacturers $10,000–$250,000 per hour depending on the process.
So what actually drives that resistance spike? Five root causes account for the vast majority of terminal block overheating cases and solutions engineers encounter in the field:
- Loose connections and improper torque — the single most common culprit
- Exceeding rated current capacity — often from undocumented load additions
- Wire oxidation and environmental corrosion — especially in humid or chemical-laden environments
- Incorrect wire gauge or improper termination — a design-stage error with field-stage consequences
- Poor-quality or physically damaged terminal blocks — where the component itself is the weak link
Each cause has a distinct fix, and catching them early is the difference between a scheduled maintenance task and an emergency shutdown. The sections ahead break down each one with specific diagnostic steps and proven remedies.
Warning Signs Your Terminal Block Is Overheating
Before you troubleshoot terminal block overheating causes and solutions, you need to confirm the problem actually exists. Overheating rarely announces itself with a dramatic failure — it whispers first. Catching those early signals can mean the difference between a scheduled repair and an unplanned shutdown that costs thousands.
Visual Indicators
Start with your eyes. A healthy terminal block maintains its original housing color — typically grey, beige, or black. Yellowing or browning of the plastic housing is the earliest visual red flag, indicating sustained temperatures above the material’s rated threshold. More advanced stages show melted or warped housings, charred marks around the conductor entry points, and blackened metal contacts. If you spot a rainbow-like discoloration pattern on copper conductors, that’s oxidation from heat cycling — a sign the problem has been developing for weeks or longer.
Tactile and Olfactory Clues
Touch the terminal block housing during normal operation (with appropriate PPE). A properly functioning block should feel close to ambient temperature. Anything above roughly 60°C (140°F) to the touch suggests trouble — and according to NFPA 70B maintenance recommendations, connections running 50°C above ambient warrant immediate investigation. A faint smell of burning plastic? That’s the housing material beginning to decompose. Don’t dismiss it.
Diagnostic Methods That Actually Work

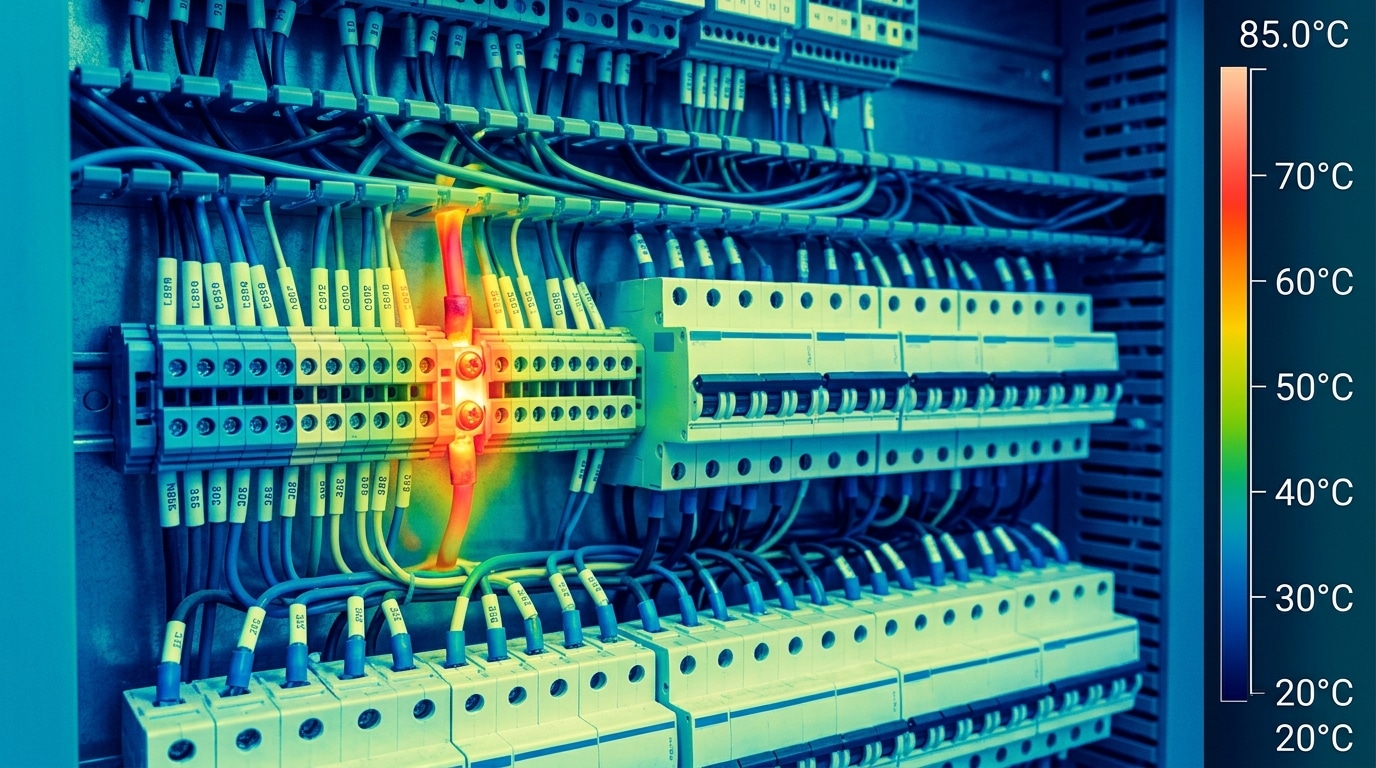

- Infrared thermography: A handheld thermal camera (like a FLIR or FLUKE Ti series) gives you precise surface temperatures without de-energizing the circuit. Scan annually at minimum — quarterly for critical panels.
- Contact resistance measurement: Use a micro-ohmmeter across each terminal connection. A healthy joint reads in the low micro-ohm range; anything above 100 µΩ on a bolted connection signals degradation.
- Torque verification: A calibrated torque screwdriver confirms whether connections have loosened over time — a leading cause we’ll cover next.
Pro tip: Perform thermal scans under at least 40% of rated load. Scanning an idle panel tells you almost nothing about real operating conditions.
Cause 1 — Loose Connections and Improper Torque
Loose connections rank as the single most common among all terminal block overheating causes and solutions documented in field maintenance reports. When a screw clamp doesn’t press the conductor firmly against the bus bar, the effective contact area shrinks. That smaller contact patch drives up resistance — and resistance generates heat proportional to I²R. A connection torqued to just 50% of its rated value can see contact resistance spike by 10× or more, turning a cool terminal into a fire hazard.
Over-torquing is equally destructive. Excessive force deforms the conductor strands or cracks the terminal housing, creating micro-gaps that worsen under thermal cycling. Every heat-cool cycle causes metals to expand and contract at slightly different rates — a phenomenon called differential thermal expansion — gradually loosening even a properly made joint. Vibration from nearby motors or HVAC equipment accelerates the process further.
A frequent field mistake: stripping too little insulation so the clamp grips insulation instead of bare copper. This creates an insulating barrier right where you need metal-to-metal contact.
The Fix: Torque Right, Then Verify
- Follow manufacturer torque specs exactly. Phoenix Contact, Wago, and other major brands publish torque values per terminal series — typically 0.5–0.8 Nm for standard DIN rail blocks.

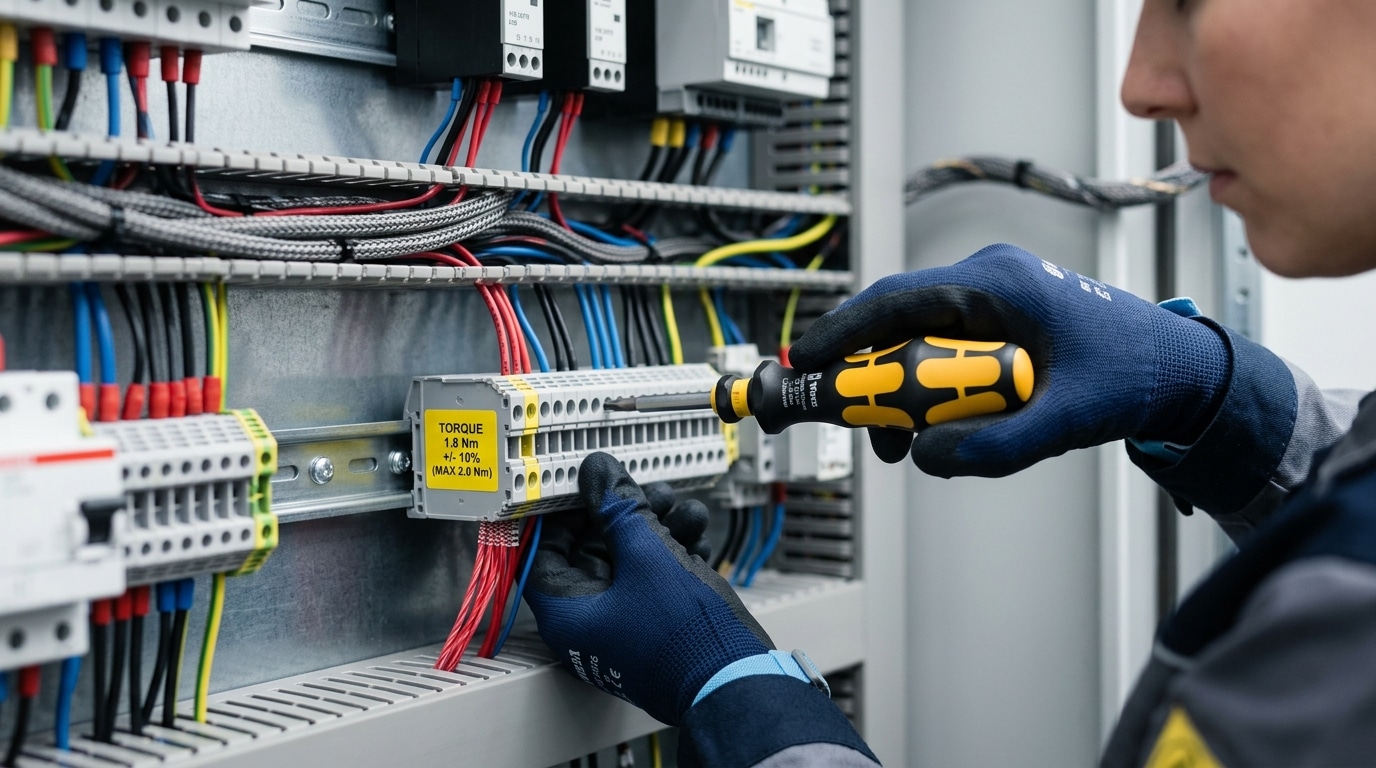

- Use a calibrated torque screwdriver, not a standard flat-blade. Guessing by “feel” introduces ±40% variance.
- Schedule re-torque intervals. The NFPA 70B standard for electrical equipment maintenance recommends checking connections within the first year of installation and at regular intervals thereafter — especially in high-vibration environments.
- Strip wires to the manufacturer’s recommended length so only bare conductor sits under the clamp.
One practical tip most manuals skip: after initial torquing, energize the circuit under load for 24 hours, then re-torque. That first thermal cycle seats the conductor and almost always reveals a slight loss in clamping force. Catching it early is the cheapest terminal block overheating solution you’ll ever implement.
Cause 2 — Exceeding the Rated Current Capacity
Every terminal block carries an amperage rating — typically stamped on the housing or listed on the datasheet. Push current beyond that limit, and resistive heating climbs exponentially. The relationship follows P = I²R, meaning a mere 20% overcurrent doesn’t produce 20% more heat; it produces roughly 44% more. That compounding effect is why overcurrent ranks high among terminal block overheating causes and solutions engineers must address.
Derating Factors Most People Ignore
The published rating assumes ideal conditions — typically 25°C ambient with a single energized terminal. Real-world panels rarely cooperate. Key derating factors include:
- Ambient temperature: A panel interior running at 50°C can require derating the terminal block’s capacity by 20–30%, per UL 1059 guidelines.
- Adjacent terminal loading: Heat from neighboring terminals stacks. A fully loaded DIN rail with 40+ blocks generates cumulative thermal rise that no single block’s rating accounts for.
- Altitude: Above 2,000 meters, thinner air reduces convective cooling, demanding further derating.
The Fix: Size Correctly, Then Verify
Don’t just match the terminal block to the circuit breaker rating — calculate actual steady-state current draw under worst-case conditions, then add a 25% safety margin. If the load already pushes the limit, upgrade to a higher-rated block or redistribute the current across multiple parallel circuits.

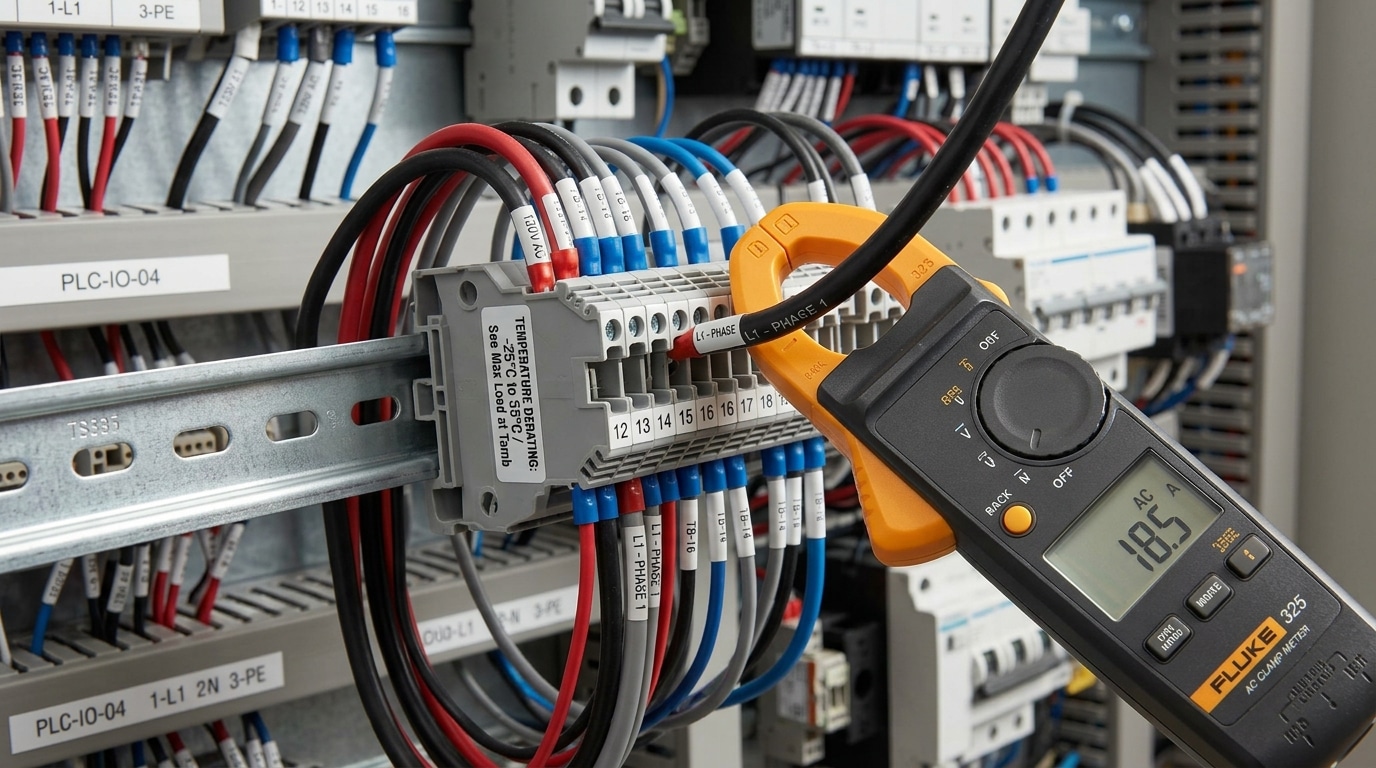

Pro tip: Use a clamp meter to measure real operating current at peak demand, not just nameplate values. Motor inrush and harmonic-rich loads routinely exceed what nameplate math predicts.
Catching overcurrent early is one of the most straightforward terminal block overheating solutions — yet it’s frequently missed because installers trust paper specs over field measurements.
Cause 3 — Wire Oxidation and Environmental Corrosion
A thin oxide layer on a copper conductor can increase contact resistance by 10 to 100 times compared to a clean, bright surface. Aluminum is even worse — it forms aluminum oxide (Al₂O₃) almost instantly when exposed to air, and that oxide is an effective electrical insulator. When this high-resistance film sits between the conductor and the terminal block contact surface, the result is localized I²R heating that compounds over time.
Environmental conditions accelerate the problem dramatically. Coastal installations face salt-laden air that triggers galvanic corrosion, especially where dissimilar metals meet. Chemical plants expose terminals to sulfur compounds and ammonia vapors. Even standard indoor panels in humid climates above 60% relative humidity see measurable oxide buildup within months. These are among the most overlooked terminal block overheating causes and solutions in field troubleshooting because the damage hides beneath the insulation.
How to Solve Corrosion-Driven Overheating
- Prepare conductors properly. Strip wire ends fresh before termination and abrade aluminum conductors with a stainless-steel brush — never a carbon-steel one, which embeds particles that accelerate corrosion.
- Apply anti-oxidant compound (often called “no-ox” or joint compound) to aluminum and copper-aluminum junctions. This petroleum-based paste with suspended zinc particles displaces moisture and breaks through oxide films during tightening.
- Select corrosion-resistant terminal blocks. Nickel-plated brass or stainless-steel contact surfaces outperform bare copper in harsh environments. For marine or chemical-exposure applications, look for blocks rated to IP67 or higher ingress protection.
Pro tip: If you find green verdigris or white powdery deposits on existing terminals, don’t just clean and re-torque. Replace the terminal block entirely — corrosion pitting creates permanent micro-gaps that no amount of tightening will fix.
Cause 4 — Incorrect Wire Gauge or Improper Termination
An undersized conductor acts like a bottleneck right at the terminal entry point. Push 20 A through a wire rated for only 10 A, and the excess current density spikes resistance exactly where copper meets the terminal clamp. That localized heat buildup is one of the most preventable terminal block overheating causes and solutions engineers encounter — yet it persists because wire gauge selection often happens early in design and never gets revisited after load changes.
Improper termination compounds the problem. Three mistakes show up repeatedly:
- Insufficient strip length — too little exposed copper means less contact area, which drives up resistance. Most terminal blocks specify a strip length between 7 mm and 10 mm; even 2 mm short can reduce effective contact area by 30%.
- Nicked or scored conductors — a careless blade reduces the conductor’s cross-section, creating a weak point that heats under load and eventually fractures.
- Missing ferrules on stranded wire — individual strands splay outward under clamp pressure, leaving only a fraction of the strands carrying current. DIN-rail terminal manufacturers like Phoenix Contact and Weidmüller explicitly require ferrules for stranded conductors above 1.5 mm².
The Fix: Match Gauge to Load and Terminate Correctly
Start with the NEC (NFPA 70) ampacity tables or IEC 60364 to select wire gauge based on actual — not nominal — operating current, factoring in ambient temperature derating. Always size one gauge up when terminal blocks sit inside enclosed panels where air temperatures regularly exceed 40 °C.
Use properly crimped ferrules with a calibrated ratchet crimper; hand-squeezed ferrules fail at alarming rates. Match the ferrule color code to the wire gauge (e.g., red for 1.0 mm², black for 1.5 mm²), and verify the strip length against the terminal block’s datasheet before insertion. Skip the guesswork — a $5 strip-length gauge eliminates this entire category of failure.
Cause 5 — Poor Quality or Damaged Terminal Blocks
Not every failure starts with installation error. Sometimes the terminal block itself is the problem. Inferior housing materials — often made from non-flame-retardant nylon or recycled plastics with a heat deflection temperature below 200°C — begin to soften and deform under sustained current loads. Once the housing warps, contact pressure drops, resistance climbs, and thermal runaway follows.
Counterfeit and non-certified components are more common than most engineers assume. A UL investigation into counterfeit electrical components found that roughly 70% of tested knockoff parts failed basic flammability and current-carrying requirements. Worn spring contacts lose their clamping force over time, and hairline cracks in the housing allow moisture ingress that accelerates internal corrosion — compounding the resistance problem discussed in earlier sections.
The Fix: Source Smart and Inspect Ruthlessly
- Demand UL 1059 or IEC 60947-7 certification — these standards verify that the terminal block’s housing, contacts, and current ratings perform under real-world stress. If the vendor can’t produce a certificate, walk away.
- Inspect during every scheduled maintenance cycle. Look for discoloration, micro-cracks, and spring contacts that no longer grip ferrules tightly. A simple tug test reveals more than you’d expect.
- Replace proactively. Terminal blocks in high-vibration or high-temperature environments should be swapped every 8–10 years, even if they appear functional. Aged polycarbonate housings become brittle and lose dielectric strength.
When evaluating terminal block overheating causes and solutions, the component’s pedigree matters as much as the installation quality. Stick with reputable manufacturers like Phoenix Contact, Weidmüller, or Wago — their products carry traceable lot numbers and published derating curves that cheap alternatives simply don’t provide.
Preventive Maintenance Checklist to Stop Terminal Block Overheating
Knowing the terminal block overheating causes and solutions covered above is only half the battle — you need a repeatable routine that catches problems before they escalate. The checklist below consolidates every fix into a schedule you can print and hand to your maintenance crew today.
- Quarterly infrared thermography scan. Use a thermal imager (minimum 160×120 resolution) under at least 40% load. Flag any terminal exceeding a 15 °C rise above ambient — that threshold alone catches roughly 80% of developing faults, according to NFPA 70B maintenance recommendations.
- Semi-annual torque verification. Re-torque every connection to the manufacturer’s spec using a calibrated torque screwdriver. Record each value — don’t just “feel” tightness.
- Annual visual and tactile inspection. Look for discoloration, melted housings, cracked insulators, and green oxide deposits. Wiggle each conductor gently; any movement means re-strip and re-terminate.
- Environmental sealing audit. Confirm IP-rated enclosure gaskets are intact. Replace desiccant packs or breather filters in humid installations every 6 months.
- Load audit after any circuit modification. Recalculate amperage against the terminal’s rated capacity every time a load is added or swapped.
- Document everything. Log thermal images, torque readings, and corrective actions in a CMMS (Computerized Maintenance Management System). Trend data over time reveals slow-developing resistance increases invisible in a single snapshot.
Pro tip: Stagger your torque checks across panels rather than doing them all in one marathon session. Fatigue leads to skipped terminals — and one missed connection is all it takes.
Implementing this checklist transforms your approach to terminal block overheating causes and solutions from reactive firefighting into predictable, budget-friendly prevention.
Frequently Asked Questions About Terminal Block Overheating
What temperature is considered too hot for a terminal block?
Most UL-rated terminal blocks list a maximum operating temperature of 105 °C (221 °F). A practical rule: if your infrared thermometer reads more than 30 °C above the ambient temperature at the connection point, investigate immediately. According to NFPA 70B maintenance guidelines, a rise exceeding 50 °C above ambient qualifies as a critical finding requiring shutdown.
Does thermal paste help terminal connections?
No. Thermal paste is designed for CPU-to-heatsink interfaces, not electrical joints. What you actually want is oxide-inhibiting compound (often called “No-Ox” grease) on aluminum-to-copper transitions. It prevents corrosion without insulating the contact surfaces — a key distinction many technicians miss.
How often should terminal blocks be retorqued?
Retorque once after the first 6 months of energized operation, then annually. Copper conductors experience stress relaxation — losing roughly 5–10 % of initial clamping force within the first thermal cycling season. Spring-cage terminals skip this requirement entirely, which is one reason they dominate in vibration-prone environments.
When should you replace rather than repair?
Replace the block outright if you see melted or discolored housing plastic, cracked clamping mechanisms, or pitting on the metal bus bar. Attempting to repair a heat-damaged block is false economy — the polymeric housing has already lost its dielectric strength. Understanding terminal block overheating causes and solutions means knowing when a component is beyond saving: visible carbonization or a resistance reading above the manufacturer’s spec is your clear signal to swap it out.
