To determine the short circuit current of a miniature circuit breaker, apply Ohm’s Law by dividing the system voltage by the total circuit impedance, expressed as I = V/Z. Understanding the short circuit current of miniature circuit breaker is essential for maintaining electrical system safety and selecting the appropriate MCB.
- Accurate calculation of the short circuit current of miniature circuit breaker ensures you choose the right size for devices, allowing breakers and cables to safely handle faults.
- Identifying the short circuit current of miniature circuit breaker helps locate weak spots in your system, preventing damage to your equipment.
- Quick fault isolation based on the short circuit current of miniature circuit breaker keeps power running and prevents large outages.
- Complying with safety standards by knowing the short circuit current of miniature circuit breaker keeps your system reliable and secure.
Key Takeaways
- Find short circuit current by dividing voltage by total impedance. This helps you pick the right MCB size. Pick an MCB with a breaking capacity higher than the fault current. This keeps things safe and stops damage. Pick the right MCB type (A, B, C, or D) for your load. This stops false trips and protects your equipment. Always use all circuit impedances in your calculation. This gives you the right fault current and keeps things safe. Follow safety steps and rules to keep your system working well. This also keeps people safe from harm.
Key Concepts

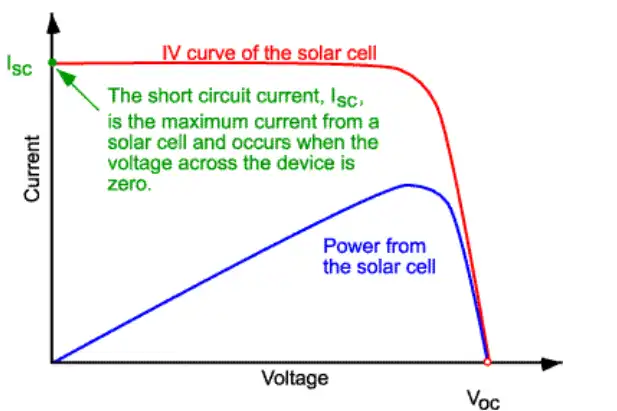

Short Circuit Current
It is important to know what happens in a short circuit. A short circuit happens when electricity takes a shortcut. This shortcut is a path with very low resistance. Damaged wires or broken insulation can cause this. When this happens, a lot of current flows very fast. This is called fault current or short circuit current. The short circuit current of miniature circuit breaker can be very high. It can reach thousands of amps in less than one second. If you do not stop this current, wires can get too hot. This can also break your equipment. Circuit breakers and fuses help by stopping this dangerous current. They sense the problem and turn off the flow. Knowing the short circuit current helps you pick the right protection. This keeps your electrical system safe.
Tip: Always check the possible fault current at each place before you pick protection devices.
Miniature Circuit Breaker Types
There are different types of miniature circuit breakers (MCBs). Each type is made for a special job. The main types are A, B, C, and D. Each type trips at a different level of current. Type A trips at about 2 times its rated current. It is used for sensitive electronics. Type B trips at 2-3 times rated current. It is good for homes and lights. Type C trips at 5-10 times rated current. It works for lines and circuits with some inrush current. Type D trips at 10-20 times rated current. It is best for big motors or machines that need a lot of power to start.

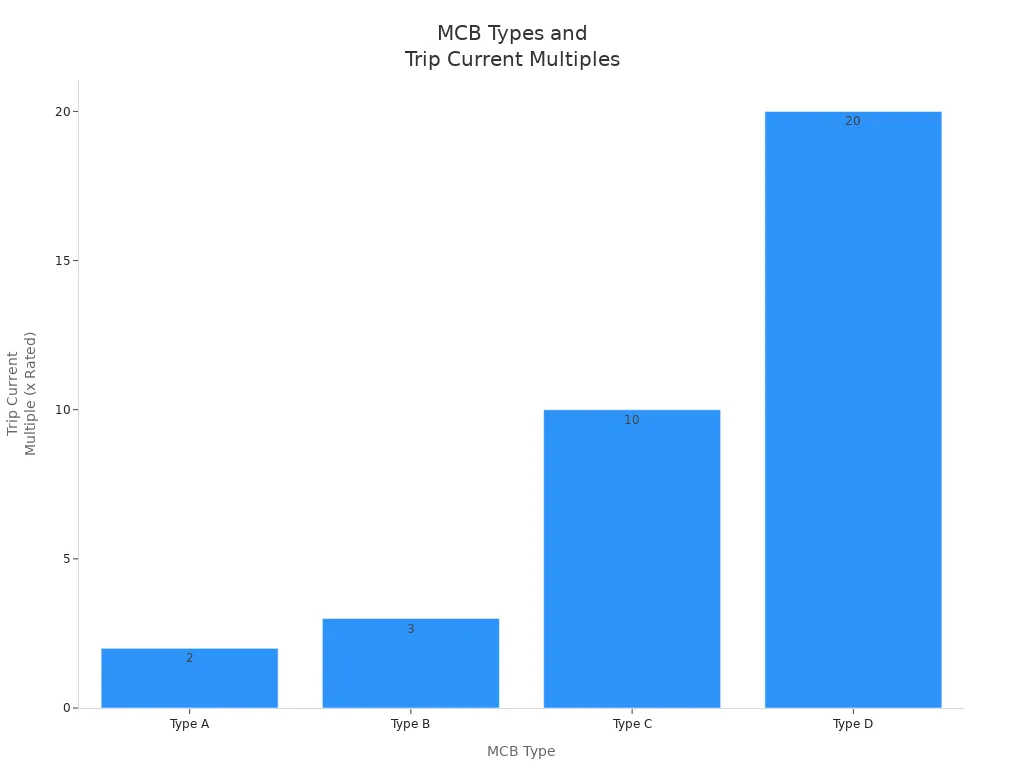

| MCB Type | Trip Current Multiple | Typical Applications | Tripping Characteristics |
|---|---|---|---|
| Type A | ~2 | Semiconductor protection | Trips quickly for sensitive loads |
| Type B | 2-3 | Household, lighting | Fast tripping for resistive loads |
| Type C | 5-10 | Motors, distribution | Medium tripping, common use |
| Type D | 10-20 | Large motors, industrial | Slow tripping for high inrush |
Note: Type C is used most often for general jobs. Type D is picked for heavy-duty machines.

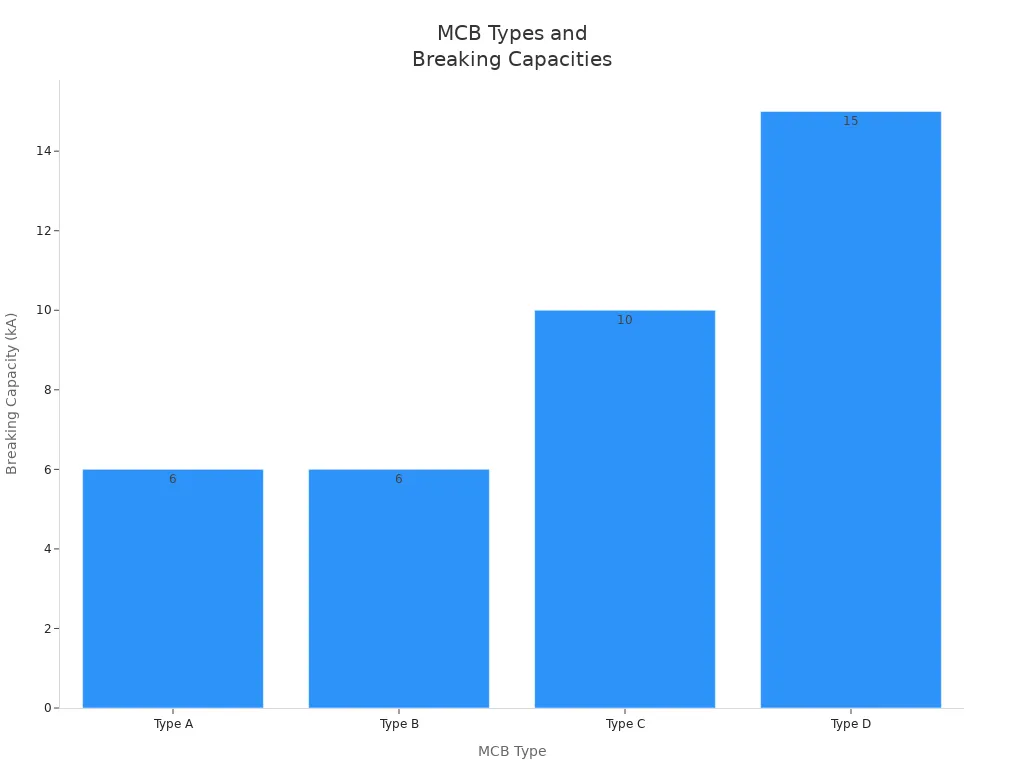

Breaking Capacity
You need to pick an MCB with a breaking capacity that is as high as or higher than the short circuit current at your place. Breaking capacity is the biggest fault current the breaker can safely stop. It is measured in kiloamperes (kA). Most homes and small offices use breakers with 6kA to 16kA breaking capacity. There are two main ratings: Icu and Ics. Icu is the most current the breaker can stop one time. Ics is the current it can stop many times. Rules like IEC 60898-1 and UL1077 tell how to test and rate these.
- Breaking capacity makes sure your MCB will work during a fault.
- Always make sure the breaking capacity is more than the fault current you expect.
- For industrial panels, SCCR (Short Circuit Current Rating) must be shown and meet UL rules.
| Breaker Model | SCCR | Voltage Range | Approval Standard | Typical Application |
|---|---|---|---|---|
| TMC 7 | 7.5 kA | Up to 277/480 V AC | UL1077 | Residential, industrial supplementary |
| TMC 8 | 10 kA | Up to 277/480 V AC | UL489 | Industrial branch circuit |
Alert: If you pick an MCB with a breaking capacity lower than the short circuit current, the breaker might not work and could be unsafe.
Short Circuit Current of Miniature Circuit Breaker
Calculation Steps
You can figure out the short circuit current of miniature circuit breaker by using a simple step-by-step method. This way uses Ohm’s Law and helps keep your electrical system safe.
- Find the System Voltage
First, check the voltage where you want to put the MCB. Most homes in the US use 120 volts AC. - Calculate Total Circuit Impedance
Add up all resistance and reactance in the circuit. This means the source, transformer, cables, and connections. Use real measurements or data from the manufacturer for better results. - Apply Ohm’s Law
Use this formula:Isc = V / Z_totalIsc is the short circuit current. V is the system voltage. Z_total is the total impedance.
- Adjust for AC Systems
For AC circuits, multiply the answer by 0.707. This gives you the RMS value. - Check Fault Location and Scenarios
Think about where a fault could happen. Use the worst-case spot to make sure your calculation is safe. - Compare with MCB Breaking Capacity
Make sure the MCB’s breaking capacity is at least 25% more than the short circuit current of miniature circuit breaker.
Tip: Always count every source of impedance. If you forget the source impedance, you might guess the short circuit current of miniature circuit breaker too high and pick the wrong protection.
Required Data
To get a good calculation, you need to gather certain information about your electrical system. The table below shows what you need and why it matters:
| Data Required | Description / Role |
|---|---|
| Instantaneous trip setting current (Im) | The trip current setting of the MCB, including tolerance (±20%), helps you know when it will trip. |
| Cross-sectional area of conductors | The size of the cable wires changes resistance and the longest safe length. |
| Conductor material and resistivity (ρ) | The kind of wire (copper or aluminum) and its resistivity at working temperature changes impedance. |
| Nominal voltage (U) | The system voltage (like 120 V or 400 V) is used in the math. |
| Circuit length (L) | The cable length changes impedance and the short circuit current of miniature circuit breaker. |
| Type of circuit | The setup (single-phase, three-phase) changes correction factors. |
| Correction factors | These are changes for wire type and trip current tolerance. |
| Thermal constraints of conductors | Limits on current and time to stop damage, used to check if the MCB will trip fast enough. |
Note: Always use real numbers for voltage and impedance. If you only use transformer data and skip the source impedance, you might get the wrong short circuit current of miniature circuit breaker.
Example Formula

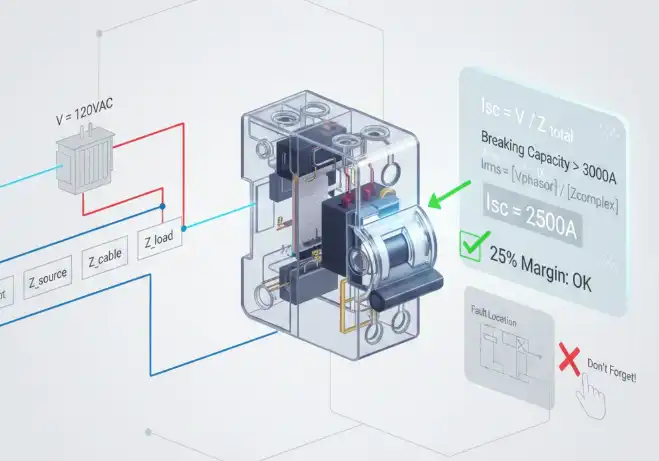

You can use Ohm’s Law to find the short circuit current of miniature circuit breaker. The main formula is:
Isc = V / Z
Where:
- Isc = Short circuit current (in amperes)
- V = System voltage before the fault (in volts)
- Z = Total circuit impedance (in ohms)
Let’s see a simple example for a home circuit:
Say your system voltage is 120 V and the total impedance is 0.5 Ω. Put these numbers in the formula:
Isc = 120 V / 0.5 Ω = 240 A
This means the short circuit current of miniature circuit breaker here is 240 amperes. You need to pick an MCB with a breaking capacity higher than this number.
Alert: If you forget the X/R ratio or motor help, your answer might not be safe. Motors can add more current during a fault, and the X/R ratio changes the peak current. For hard systems, ask an expert for help.
MCB Selection
Picking the right miniature circuit breaker (MCB) is very important. It helps keep your electrical system safe. Use the short circuit current of miniature circuit breaker you found to help you choose. Follow these steps to get the best MCB for your needs.
Matching Breaking Capacity
The MCB’s breaking capacity must match the short circuit current you calculated. If you pick a breaker with less breaking capacity, it might not stop a fault safely. This can cause big problems.
- The breaker could blow up during a fault.
- You might get arc flash burns.
- Electrical fires and damage can happen.
- Repairs may take longer and cost more.
To stay safe, always pick an MCB with breaking capacity equal to or higher than the short circuit current of miniature circuit breaker. Here is what you should do:
- Figure out the lowest fault current at the spot.
- Make sure the MCB’s breaking capacity is at least this number.
- Check the trip current of the MCB. It should be less than half of the lowest fault current. This helps the breaker work fast and safely.
- Pick the right MCB type for your load. Type B is good for homes. Type C works for small motors. Type D is best for big machines.
Tip: Test the MCB with real short circuit faults if you can. This shows your choice works in real life.
Safety Margins
Adding a safety margin helps stop false trips and keeps your system working well. Do not pick an MCB that matches the load current exactly. Use these tips:
- Add a safety margin of 20-25% above the load current you calculated. This helps the breaker handle small spikes or changes.
- Always make sure the MCB’s breaking capacity is at least as much as the fault current you calculated. For example, if your fault current is 6kA, pick an MCB rated for at least 6kA.
Alert: Never use a breaker with less breaking capacity than your fault current. This can make things unsafe.
Compliance
You also need to check that your MCB meets the right standards for your area and use. Different rules are used for homes, businesses, and factories. The table below shows common standards and where they are used:
| Standard | Scope | Region | Fault Current Rating | Voltage Ratings | Certification Mark |
|---|---|---|---|---|---|
| UL 489 | Branch circuit protection | North America | 10kA–100kA | 120/240V, 277/480V | UL Listed |
| IEC 60947-2 | Industrial breakers | Global | 10kA–100kA | 230/400V, up to 690V | CE or CB Scheme |
| UL 1077 | Supplementary protection | North America | <5kA | 120/240V | UL Recognized |
| IEC 60898 | Household use | Global | 6kA–10kA | 230/400V | CE or CB Scheme |
Always check the label and papers for your MCB. Make sure it matches the standard for your country and your job.
Note: Type B and C MCBs are used in homes and small businesses. Type D is for big machines and high starting currents.
By following these steps, your MCB will protect your system during a fault. You will also meet safety rules and avoid expensive mistakes.
Mistakes to Avoid
When you figure out short circuit current and pick an MCB, you need to watch out for common mistakes. These mistakes can make your system unsafe. They can also break equipment or even start a fire. Let’s see the most common problems and how you can stop them.
Overlooking Impedance
A lot of people forget to count all the impedance in their math. If you leave out things like cable resistance or reactor impedance, your short circuit current number will be wrong.
- You could forget parts like bridge arm reactors. This can make your answer off by up to 4.53%.
- The mistake can get bigger over time, especially after a fault.
- Bad math can make you pick the wrong MCB. This puts safety at risk.
Tip: Always add every part of the circuit to your impedance total. This helps you get a true short circuit current value.
Ignoring Ratings
If you do not check the rated breaking capacity of an MCB, your system could be in danger. The breaker might not stop the fault current safely.
- A breaker with a 3kA rating can only stop up to 3000A. If the fault current is more, the breaker might not work.
- If it fails, the breaker could break, weld shut, or even blow up with fire and melted metal.
- Not enough breaking capacity can burn cables, break switchgear, or make equipment explode.
- Always check the biggest short circuit current at your spot. Pick an MCB with a higher rating.
| Mistake | Possible Consequence |
|---|---|
| Using underrated MCB | Fire, explosion, system loss |
| Ignoring PSCC | Breaker failure, safety risk |
Alert: Never use an MCB with a breaking capacity lower than your system’s fault current.
Skipping Safety Checks
You must follow safety steps before you put in or pick an MCB. If you skip these checks, you could have accidents or the breaker might not work right.
- Turn off all power and check with a tester.
- Put on rubber gloves and goggles.
- Look at the panel for the right slots and wires.
- Make sure the MCB matches your system’s voltage, current, and where it will be used.
- Test the breaker handle and use a multimeter to check for a good connection before turning power back on.
Note: Always read the manufacturer’s rules and use derating factors for real-life use. This makes sure your MCB works safely and does not fail.
If you avoid these mistakes, your electrical system will be safer. You will also keep people safe. Going over current ratings can break things, cancel warranties, and start fires. Always check every detail before you make your final choice.
Quick Checklist
Data Collection
Before you start, you need the right information. Getting all the data helps you avoid mistakes. It also keeps your system safe.
- Rated voltage of your electrical system
- Rated power and impedance voltage of the transformer
- Cable cross-section and length
- Cable and transformer resistance (use technical books or manufacturer data)
- Short-circuit capacity ratings of your circuit breakers (Icu, Icn, Icw, Ics)
- Standards for your MCBs (like IEC/EN 60898-1)
- Characteristics of the short-circuit current, including peak and RMS values
Tip: Write down every detail before you go to the next step. If you miss something, your calculations might be wrong.
Calculation
Now, use your data to find the short circuit current. Follow these steps to get the right answer:
- Find the short circuit current rating (SCCR) for each part. Use labels, manuals, and manufacturer data.
- See if fuses or breakers limit the fault current. Check their let-through current and interrupt capacity.
- Add up the total impedance in your circuit.
- Use Ohm’s Law:
Isc = V / ZIsc is the short circuit current. V is the system voltage. Z is the total impedance.
- Compare SCCR values for all parts. The lowest value is your panel’s SCCR.
- Write the SCCR on your panel nameplate.
Note: Always check your math twice. Make sure no device has a lower SCCR than your panel.
Selection
After you finish, pick the right MCB. Use these tips:
- Make sure the MCB’s breaking capacity is at least as much as your short circuit current.
- Choose a setting current less than 80% of the short circuit current at the end of the line.
- Pick an amperage rating higher than the device and the line’s maximum rating.
- Select the right trip curve (B, C, or D) for your load type.
- For motor circuits, set the long-delay current to the motor’s rated current. Set the instantaneous trip current to 8–15 times that value.
- Follow installation rules and check connections for safety.
Tip: Check your system often to find loose connections or worn parts before they cause trouble.
Now you understand how to find short circuit current and choose the right MCB. Getting the numbers right helps stop damage and keeps people safe. Always follow safety rules and make sure your MCB meets the needed standards. If your system is tricky, ask an expert for help.
- Check the checklist before you start any project.
- Stay away from common mistakes to keep your equipment safe.
Remember: Good planning and the right MCB help your electrical system stay safe and work well.
FAQ
What is the main purpose of calculating short circuit current for MCBs?
You calculate short circuit current to make sure your MCB can safely stop a fault. This helps you protect your wires, devices, and people from damage or injury.
How do you find the total impedance in a circuit?
You add up the resistance and reactance from all parts of your circuit. This includes wires, transformers, and connections. Use data from labels, manuals, or a multimeter for better accuracy.
Can you use any MCB if the breaking capacity looks close to your fault current?
Alert: Never use an MCB with a breaking capacity lower than your calculated fault current. Always pick one with a higher rating to keep your system safe.
Why do you need to check the MCB’s trip curve?
The trip curve shows how fast the MCB reacts to different fault currents. You pick the right curve (B, C, or D) based on your load type. This helps prevent false trips or slow reactions.
What should you do if you are unsure about your calculation?
You should ask a licensed electrician or use special software. This helps you avoid mistakes and keeps your system safe.
