Choose the connection for its installed zone and circuit duty. Then verify the conductor, enclosure, environmental tests, ignition risk, and vessel approval. “Marine-grade,” stainless hardware, or an IP number alone is not enough.
A suitable terminal is one whose exact order number and installation match the vessel's real conditions. Confirm the circuit voltage and current, conductor type and size, fault and protection duty, temperature, moisture and contamination, vibration and shock, corrosion compatibility, enclosure, wire-entry method, and required certification.
A DIN-rail terminal inside a dry, protected bridge console may be valid even if the terminal itself is IP20. The same part may be wrong on an exposed deck or in a wet bilge. In those zones, the enclosure, cable glands, seals, drain or anti-condensation design, and mounting position form the protection boundary.
Do not buy from a generic “marine-grade” label. Ask for the exact model's datasheet, material and conductor conditions, environmental tests, ship-class certificate when required, and installation instructions.
Check certificate number, approved series, ratings, environmental category, and any conditions of use.
Terminal, wire, ferrule or lug, bridge, enclosure, gland, support, protection, and documentation must agree.
“On a boat” does not define the environment. A cabin panel, machinery space, deck box, and gasoline-fuel space create different risks and evidence needs.

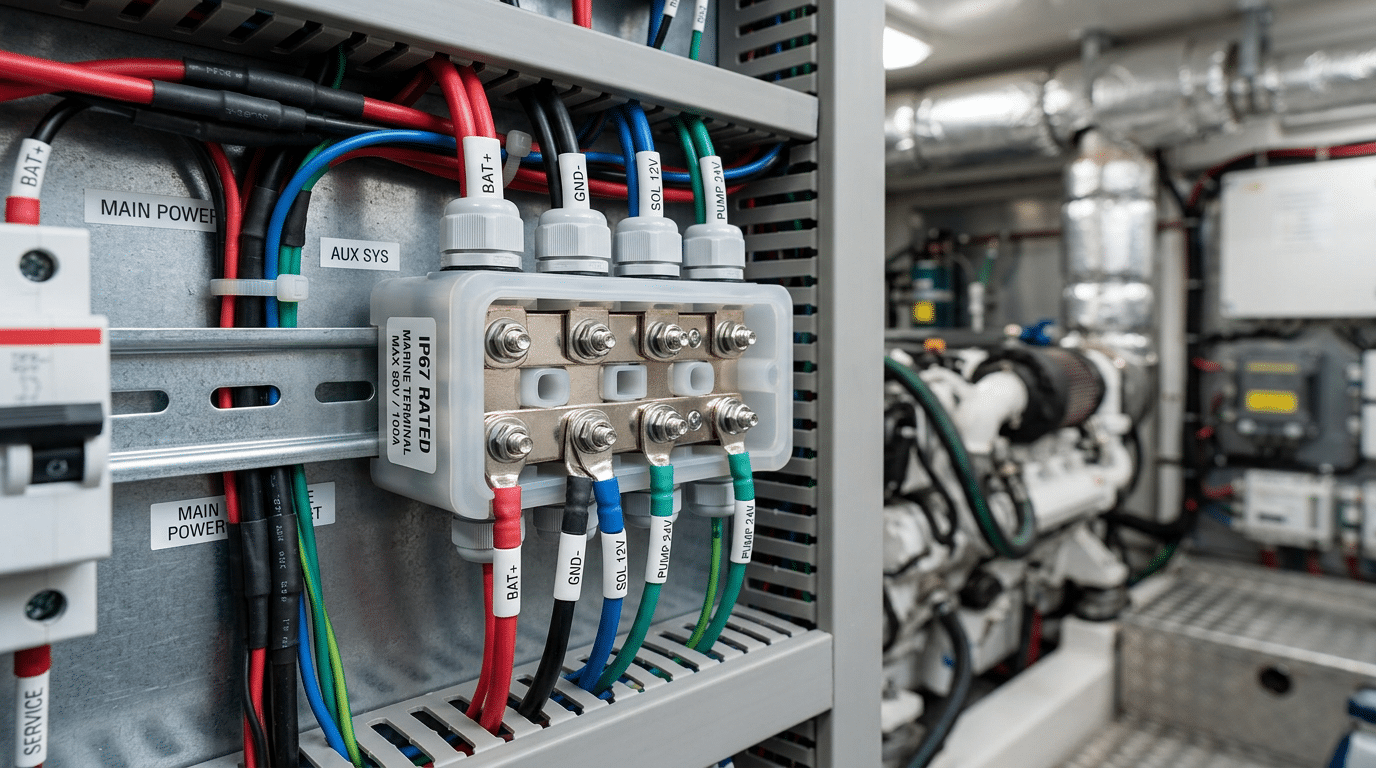

Located inside a controlled or well-protected enclosure, away from direct spray and standing water.
May see heat, oil mist, vibration, salt-laden air, and intermittent condensation.
Direct spray, washdown, deck exposure, bilge water, or flammable-vapor risk needs a purpose-built system.

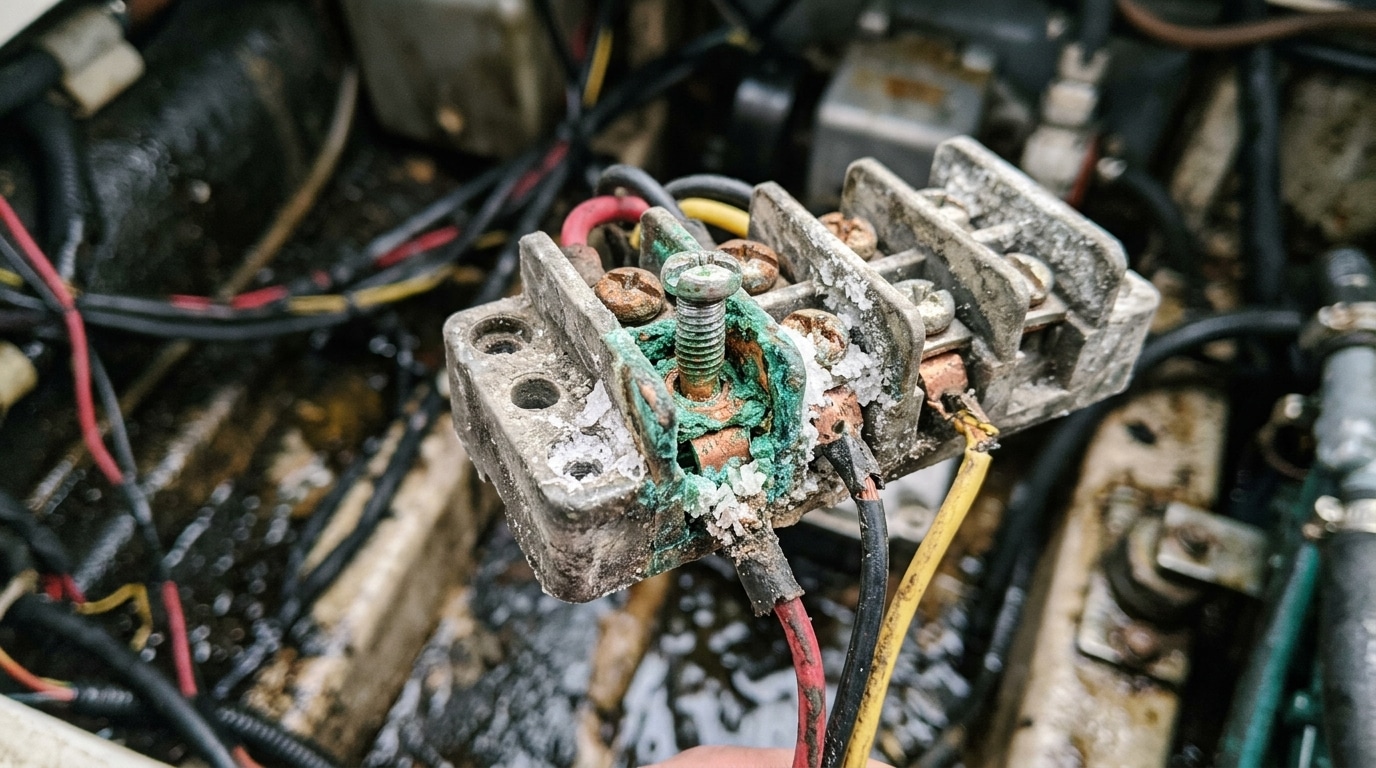

Contamination can lower surface insulation, support corrosion, and increase leakage or tracking risk. Control the entry path, condensation, and cleaning method.
Motion can load a termination through the conductor. Use support and strain relief, then require shock and vibration evidence that matches the project.
Conductor, plating, clamp, screw, rail, and enclosure materials interact. Do not choose one metal in isolation or add a compound the OEM has not approved.
Engine-room temperature and grouped conductors affect thermal performance. Use the model's current-versus-ambient data and the applicable system rules.
A normal current rating does not establish short-circuit suitability. Coordinate the terminal, bridge, conductor, fuse or breaker, and assembly rating.
Gasoline-fuel spaces can require ignition protection. A sealed-looking box or “marine” label does not prove that duty.
Terminal blocks, barrier strips, distribution blocks, busbars, and fuse blocks do different jobs. Choose from the drawing and fault duty. Then match the exact product.
| Option | Useful when | Main limits | Evidence to request |
|---|---|---|---|

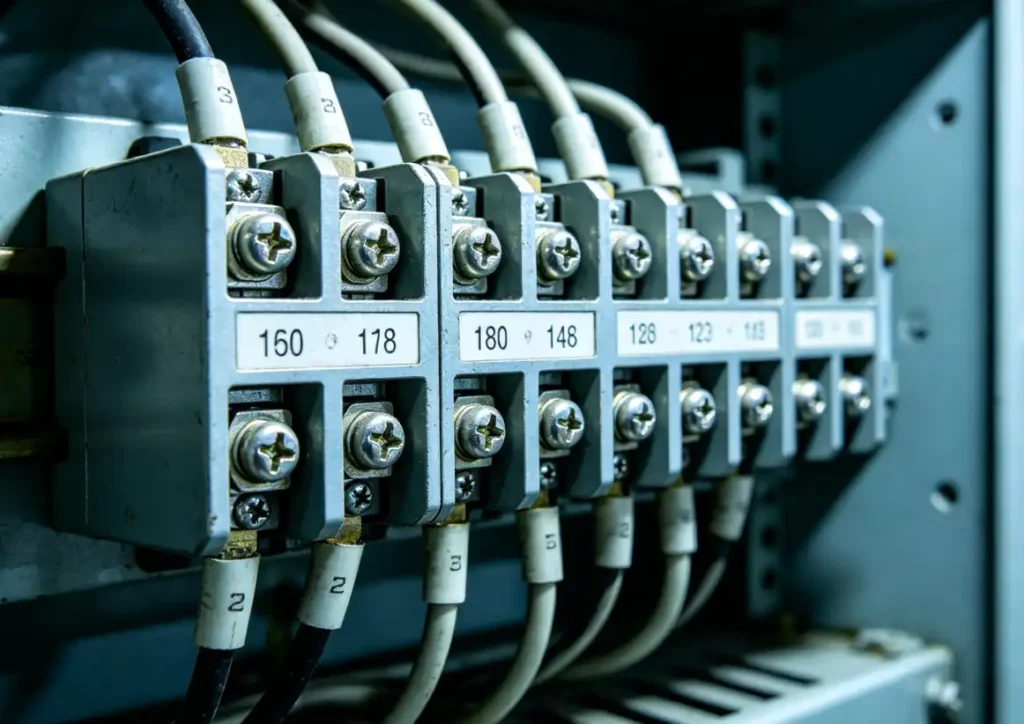

| DIN-rail terminal blocks | A protected cabinet needs organized feed-through, PE, fuse, disconnect, test, or signal wiring. | The terminal may be open-style. The cabinet and cable entries must provide the environmental boundary. | Exact function and ratings, conductor data, accessories, environmental category, and ship/class approval where required. |
| Barrier or fixed terminal blocks | A covered screw-terminal strip fits the equipment layout and ring/fork termination plan. | Exposure, touch protection, conductor terminal compatibility, cover, torque, and maintenance vary by product. | Wire-terminal type, hardware/plating, cover, rated conditions, mounting, corrosion evidence, and approval. |
| Distribution blocks and busbars | One or more incoming conductors feed several outgoing circuits or a higher-current common point. | A distribution point does not automatically protect each outgoing circuit. Exposed studs can create short-circuit and touch risks. | Conductor combinations, current path, short-circuit current rating (SCCR), cover, mounting, protection coordination, and terminal hardware. |
| Fuse blocks with terminals | Selected branch or equipment circuits need accessible overcurrent protection and organized distribution. | Fuse format, utilization, breaking capacity, ambient temperature, and ignition-protected duty cannot be assumed. | Fuse/holder coordination, interrupt rating, terminal conditions, environmental rating, and exact listing/approval. |
| Sealed connectors or junction assemblies | The connection must disconnect or remain in a wet/exposed zone that cannot be protected by a normal cabinet. | The seal depends on the complete mated or closed condition, cable range, gland/seal, assembly, and service practice. | Complete-assembly IP test, mating cycles, conductor/contact data, sealing instructions, and marine/hazardous approval. |
No universal amp threshold separates these options. Voltage, current, conductor size, fault energy, number of circuits, service access, enclosure, and available qualified products decide the architecture. Use the terminal block selection guide for the general specification workflow.
A terminal assembly can contain a current bar, clamp, screw, spring, plating, polymer housing, rail contact, and accessories. The weakest unsuitable part can limit the installation.
Request the base material and finish for the exact model. Tin-plated copper is common in marine wiring products, but it is not the only valid construction and it does not prove approval by itself.
Check the complete clamp system, not only whether a screw is called stainless steel. Alloy, plating, contact pressure, lubrication state, torque, and mating materials all affect performance.
Confirm copper or aluminum, solid or stranded wire, size range, ferrule or lug, strand class, and the number of conductors allowed in each clamping point.
Verify rated temperature, flammability data where relevant, tracking behavior, chemical resistance, and the product's creepage and clearance conditions. “Nylon” alone is not a specification.
The rail, mounting hardware, grounding/bonding arrangement, enclosure coating, gland, and nearby metals must suit the corrosion environment and electrical function.
Salt-mist, damp-heat, corrosive-gas, temperature-cycle, shock, and vibration tests answer different questions. Ask for the test, severity, result, and product configuration.
Do not use ASTM B117 hours as a universal service-life clock. Salt-spray testing is a controlled comparative method. Field life also depends on design, coating defects, temperature, wet/dry cycles, chemicals, galvanic couples, installation, and maintenance.
Marine wiring commonly uses flexible stranded copper, but the applicable boat or vessel rules and product instructions control the final choice. For boats covered by 33 CFR 183 Subpart I, Section 183.425 specifies insulated stranded copper within its stated exceptions.
Some terminal blocks accept a prepared flexible conductor directly. Others require a ferrule, ring terminal, fork terminal, or lug. Do not add a crimp terminal merely because the installation is marine. Use a compatible termination, crimp profile, tool, strip length, and inspection method.
Connect only the conductor count and combination listed for that exact clamping point. A terminal designed and documented for two conductors is different from placing two wires under a terminal that allows one.
Use this sequence for new designs, replacement reviews, and supplier RFQs. Each step narrows the model without hiding an important installation condition.
Small recreational craft, commercial vessel, classed ship, machinery space, deck, bilge, or protected panel?
Output: applicable rules and environmental categoryRecord AC/DC, voltage, load, fault duty, protection, function, criticality, and required separation.
Output: circuit and protection dataState material, size, strand class, insulation, ferrule or lug, and conductors per clamp.
Output: an allowed termination combinationChoose rail, cover, box, glands, strain relief, condensation control, bridges, markers, and access.
Output: the full installed assemblyMatch datasheet revision, certificate scope, environmental tests, installation instructions, and project documents.
Output: exact order numbers ready for approvalDe-energize the circuit, isolate every energy source, verify absence of voltage, and follow the vessel and employer's electrical-safety procedure before installation or inspection. Battery banks and shore-power systems can deliver dangerous energy even at familiar nominal voltages.
Mount the terminal and rail as the manufacturer instructs. Support conductors so vessel movement is not carried by the clamp. Keep water paths and drip points away from live parts. Maintain service access for a controlled tool, labels, test points, and replacement.
Use the exact terminal and lug manufacturer's torque and lubrication condition. A compound can alter clamp force or contaminate a contact. Inspect or re-tighten only when the product and maintenance instructions require it.
There is no single worldwide “marine terminal block certification.” Start with the vessel type, flag, jurisdiction, class notation, equipment standard, hazardous zone, and owner's specification.
ABYC writes consensus standards for small craft, including E-11 for AC and DC electrical systems. ABYC does not certify each terminal block to E-11. For an exact product, ask for the relevant third-party listing or marine class certificate and its scope.
Apply within their stated small-craft design, construction, repair, and maintenance context. Use the current paid standard or qualified reviewer for project requirements; do not treat “ABYC-compliant” as a product certificate. ABYC electrical standards overview
Section 183.401 limits this subpart to boats with gasoline engines, other than outboards, used for generation, mechanical power, or propulsion. Section 183.410 addresses ignition protection around gasoline fuel sources; other sections address conductors, batteries, and protection. USCG compliance guide
Covers specified small-craft systems up to 50 V DC and single-phase systems up to 250 V AC. Electrical propulsion and some three-phase installations fall outside its scope. The ISO page notes a replacement draft is under development, so verify the required edition. Official ISO page
Applies to electrical installations in ships and offshore units through its relevant parts. IEC 60092-302-2:2025 covers low-voltage marine power switchgear and controlgear assemblies—not each component in isolation. Official IEC page
IACS UR E10 defines environmental type-approval test specifications used in class practice. A valid DNV, ABS, LR, BV, or other certificate must still cover the exact product and intended use. IACS UR E10
Ignition protection is not a synonym for corrosion resistance or ingress protection. It addresses whether an electrical device can ignite a surrounding flammable mixture under defined conditions.
Under 33 CFR 183.410, electrical components within its scope must meet ignition-protection requirements unless they are isolated from gasoline fuel sources as defined by the rule. ABYC also points to recognized markings and test standards such as ABYC C-1500, UL 1500, SAE J1171, and ISO 8846.
Verify the exact component or evaluated assembly marking and the installation location. Cable glands, plugs, unused openings, heat sources, and service conditions remain part of the review.
Identify gasoline engines, tanks, fuel-system fittings, LPG/CNG equipment, and vapor migration paths.
Review arcing contacts, disconnects, fuse replacement, hot parts, and fault behavior.
Use the applicable legal and vessel-standard definition; do not invent a distance or barrier rule.
Match the standard, model, rating, certificate, and intended vapor environment.
Coordinate the device with the enclosure, cable entries, protection, temperature, and vessel authority.
A photo and family brochure are not enough. Build a short evidence pack that engineering, purchasing, the panel shop, and the vessel authority can trace.
Match function, voltage, current, conductor range, strip length, torque or operating method, dimensions, temperature, and accessories.
Confirm commoned or isolated paths, PE function, fuse or disconnect behavior, base materials, plating, and contact stack.
Request the named test method, severity, mounting, acceptance criteria, and tested product configuration for vibration, shock, salt mist, and damp heat.
Check the classification society, certificate number, covered series and options, environmental category, validity date, and restrictions.
For UL component use, review the exact recognition and Conditions of Acceptability. For classed ships, follow the approved panel drawing and class requirements.
Verify rails, end clamps, end plates, jumpers, partitions, markers, covers, test plugs, fuse carriers, and replacement parts as one system.
Match the box, glands, seals, plugs, drains or breathers, cable diameter, mounting, and closing torque to the required protection boundary.
Ask for lot traceability, certificate of conformity when required, approved substitutions, inspection records, labels, and packaging controls.
Record drawing, datasheet, certificate, and BOM revisions. Recheck approval when material, plating, supplier, accessory, or model changes.
A classification certificate can reduce repeated review, but it does not approve every installation. ABS, for example, describes type approval as product design assessment plus manufacturing assessment; the intended service and vessel acceptance still matter. See SENTOP's standards and certificates page for documents available from our side.
Most failures in the specification process come from missing conditions, not from a lack of product labels.
Replace the label with vessel, location, circuit, conductor, environmental test, certificate, and enclosure requirements.
Use the protection required at the installed boundary. A marine-approved open terminal can sit inside a qualified cabinet.
E-11 is an installation standard for boats. Use precise “meets” or “complies with” wording and retain the supporting evidence.
Marine type approval applies only to the series, options, ratings, categories, and validity shown on the certificate.
Calculate load, temperature, grouping, voltage drop, fault current, and protection. Then use the model's actual rating and derating data.
Compounds can change friction and clamp force or contaminate a contact. Apply only an exact product and method approved by the terminal or lug maker.
An unapproved hole can break the enclosure rating. Use listed glands, plugs, drains, and breathers in the permitted locations.
Follow the terminal and vessel maintenance instructions. Do not disturb maintenance-free spring connections or sound joints without a defined procedure.
These examples show which questions change. They are not universal product rules. The project authority and circuit design control the final answer.
Priorities may include compact DIN-rail layout, clear marking, test access, shield/PE planning, approved jumpers, and shipboard vibration evidence inside a protected panel.
Review DIN rail terminal blocks →Check the actual panel ambient, conductor temperature, vibration category, corrosion tests, enclosure entry, strain relief, and service access. Gasoline spaces need a separate ignition-risk review.
Often the complete sealed junction or connector assembly matters more than an open terminal. Verify water entry, cable range, UV, corrosion, drainage, and the closed or mated test condition.
Coordinate conductor lugs, covered busbars or distribution blocks, fuses/breakers, available fault current, support, clearances, and accidental-short protection.
Map each signal and supply path. Verify test plugs, disconnect sequence, component polarity, screen connection, and the effect of leakage or indication circuits.
Match the flag and class rules, approved drawings, environmental category, certificate scope, and panel verification. Do not substitute a recreational-boat guide for class review.
SENTOP can review a model, photo, drawing, sample, or bill of materials (BOM) and help match terminal-block options. Final vessel design, authority approval, protection coordination, and installation remain with the responsible project team.
Short answers for marine panel, vessel, and purchasing teams.
No. An IP code describes enclosure protection under stated test conditions. Many marine-approved rail terminals are open components intended for a protected cabinet. Match the complete enclosure, glands, seals, mounting, and terminal set to the installed zone.
ABYC E-11 is an installation standard for AC and DC electrical systems on boats, not a blanket product certificate. Do not write “ABYC certified” without exact evidence that supports that claim. State that a design or product meets a named requirement only when documentation proves it.
Do not decide from the automotive or marine label alone. Use it only if the exact model, conductor, enclosure, environmental evidence, ignition duty, certification, and installation meet the governing vessel requirements. Many automotive parts will not provide that evidence.
No universal rule makes one internal contact material mandatory for every terminal. Tinned stranded marine cable may be required by the vessel specification, but the terminal can use several qualified material and plating systems. Verify the complete contact interface and exact approval.
Neither technology wins every application. Compare the exact model's conductor range, connection method, shock and vibration tests, corrosion evidence, maintenance instructions, accessories, and marine certificate. Install it with the stated preparation and tool.
Not unless the terminal or lug manufacturer approves the exact compound, location, amount, and assembly method. A compound can change torque-to-clamp force, trap contamination, or interfere with the contact. Never apply a blanket grease rule.
It depends on the vessel rules and location. For U.S. recreational boats within 33 CFR 183 Subpart I, Section 183.410 addresses components near specified gasoline fuel sources unless an allowed isolation arrangement applies. Verify an accepted exact-model marking or certificate.
Send the vessel type and authority, installation zone, drawing or BOM, circuit voltage/current/fault data, conductor and termination, poles and rail space, enclosure and glands, accessories, approvals, quantity, packaging, and destination.
