A single terminal block can carry a 600V UL rating and a 1000V IEC rating — same physical part, two completely different numbers on the datasheet. That discrepancy confuses engineers every day, leads to rejected panel designs, and sometimes creates genuine safety hazards. This guide gets the terminal block voltage rating explained clearly: what the numbers actually mean, how UL 1059 and IEC 60947-7-1 arrive at different values, and how to pick the correct rating for your specific application without over-engineering or under-specifying. According to a UL 1059 overview from UL Solutions, voltage ratings are determined by minimum creepage and clearance distances tested under specific pollution degree and overvoltage category conditions — not simply by the wire gauge or current capacity of the block.
What Is a Terminal Block Voltage Rating and Why It Matters

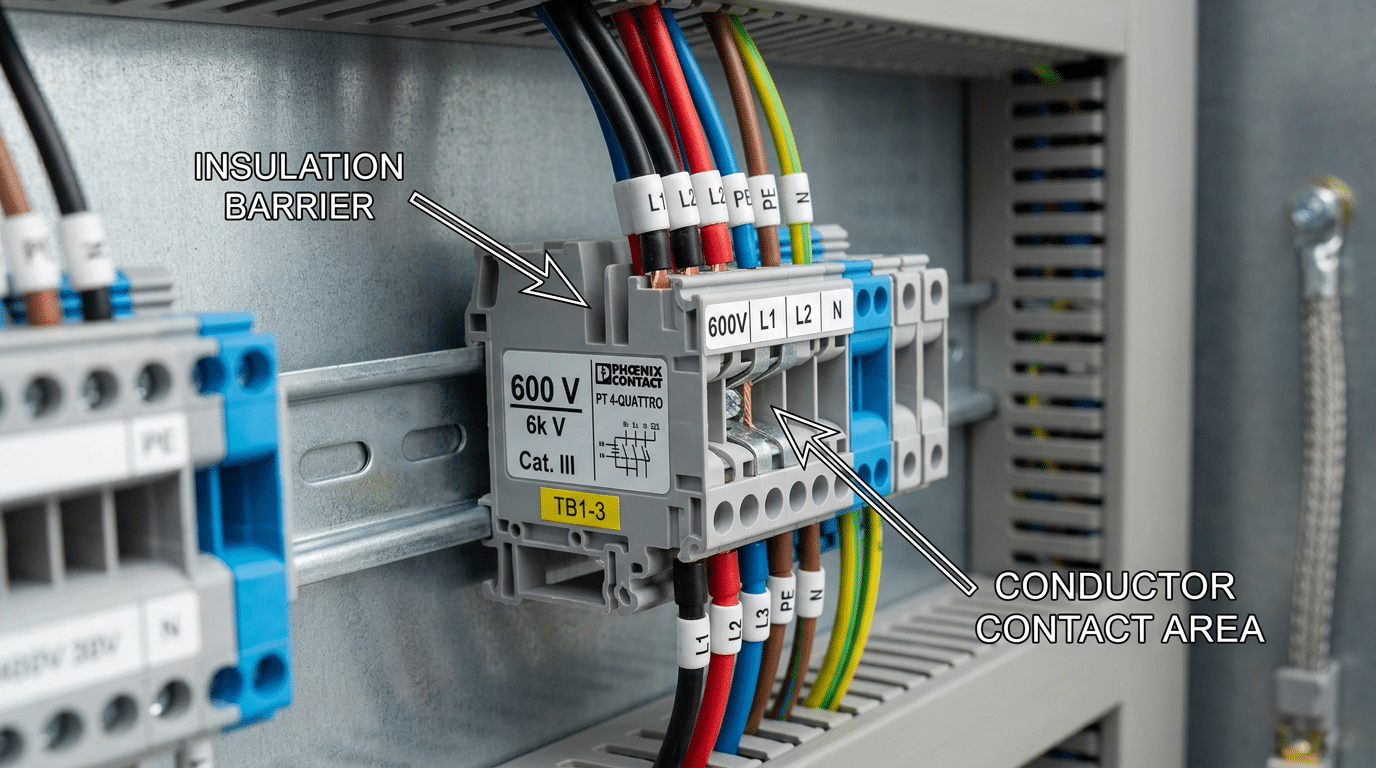

A terminal block voltage rating is the maximum voltage the device can continuously withstand without insulation breakdown, tracking, or electrical arcing between adjacent conductors. Think of it as the hard ceiling — exceed it, and you risk flashover that can destroy equipment, ignite enclosures, or injure personnel.
This rating isn’t a single number pulled from thin air. It’s determined through rigorous dielectric testing, where the terminal block must survive a test voltage typically 2× its rated voltage plus 1,000 V for at least one minute without breakdown. A terminal block rated at 600 V, for example, must endure a 2,200 V dielectric withstand test per UL 1059 requirements.
Why does this matter beyond the obvious safety concern? Three reasons:
- Code compliance — NEC Article 110.3(B) requires equipment to be used within its listed ratings. Installing a 300 V-rated terminal block on a 480 V circuit is a code violation that can void insurance and halt inspections.
- System reliability — Partial discharge begins well before full breakdown. Operating near the voltage ceiling accelerates insulation degradation, leading to intermittent faults that are notoriously difficult to diagnose.
- Liability protection — Roughly 28,000 electrical fires occur annually in U.S. commercial and industrial settings, according to NFPA data. Mismatched voltage ratings are a contributing factor inspectors specifically flag.
With the terminal block voltage rating explained at this foundational level, the critical nuance becomes clear: the number stamped on the housing depends entirely on which standard — UL or IEC — was used during certification. Those two frameworks produce dramatically different ratings for physically identical parts, a distinction covered in the next section.
UL vs IEC Voltage Rating Standards and Why They Differ

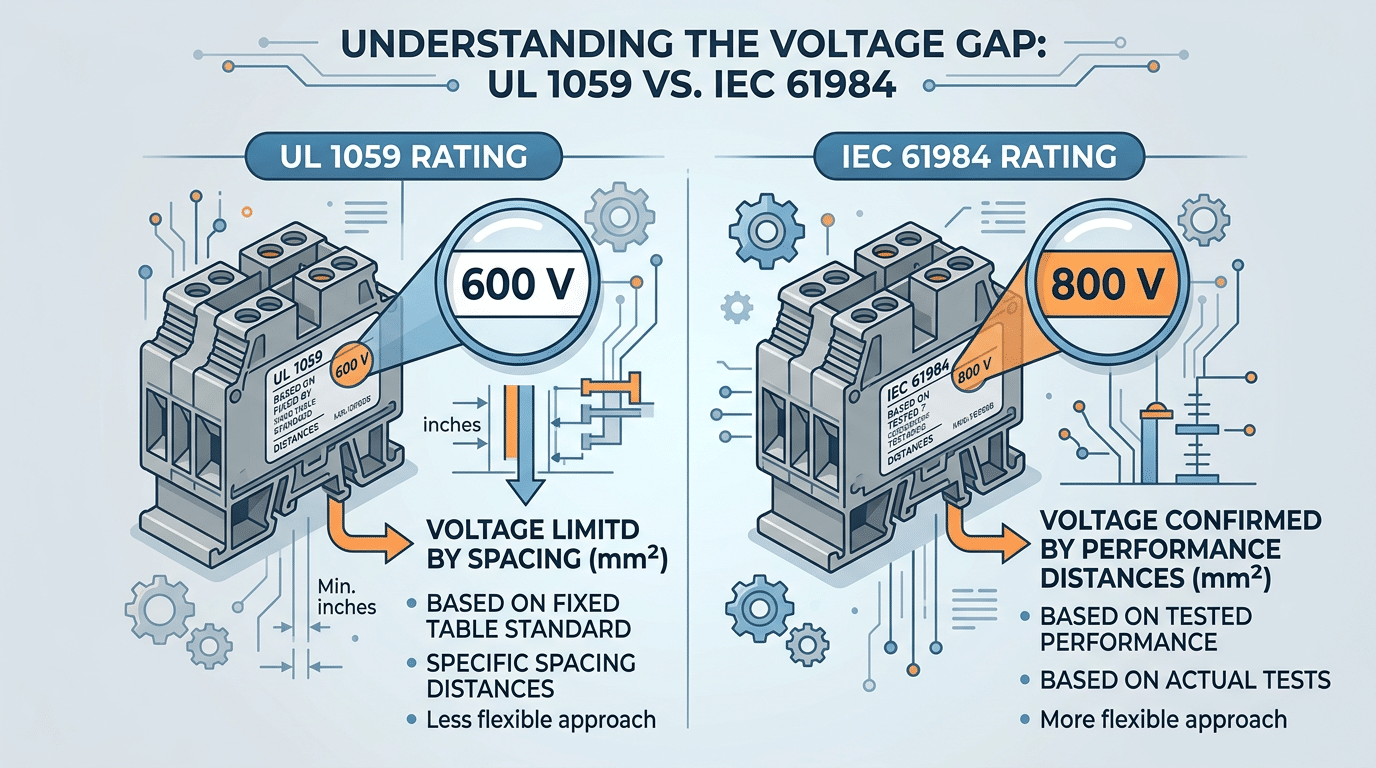

A single terminal block can legally carry two different voltage ratings — say, 600V per UL 1059 and 800V per IEC 61984 — and neither number is wrong. The gap exists because UL and IEC use fundamentally different testing philosophies to arrive at their ratings.
UL’s approach is prescriptive. It assigns voltage based on fixed creepage and clearance tables tied to the component’s insulation class, often without factoring in the specific pollution degree of the installation environment. IEC, by contrast, uses a performance-based method: it tests the terminal block under defined overvoltage categories (I–IV) and pollution degrees (1–4), then derives the rated voltage from actual impulse withstand test results. This means IEC ratings can be higher for the same physical geometry because the standard accounts for real operating conditions.
Here’s the practical impact: UL-rated 600V terminal blocks are common in North American panels, while the identical part might be rated 800V or even 1000V under IEC — roughly 30–65% higher. Engineers designing equipment for global export must list both ratings on documentation. When terminal block voltage rating standards are explained this way, the dual-rating system stops looking contradictory and starts looking like two answers to different regulatory questions.
Pro tip: Always design to the lower of the two ratings if your equipment ships to both UL and IEC markets. Choosing the higher IEC number for a UL-jurisdiction installation is a compliance violation that auditors catch regularly.
For a detailed comparison of these certification frameworks, see IEC 61984 on Wikipedia, which outlines the international standard governing connectors and terminal blocks.
How Creepage and Clearance Distances Determine Voltage Limits

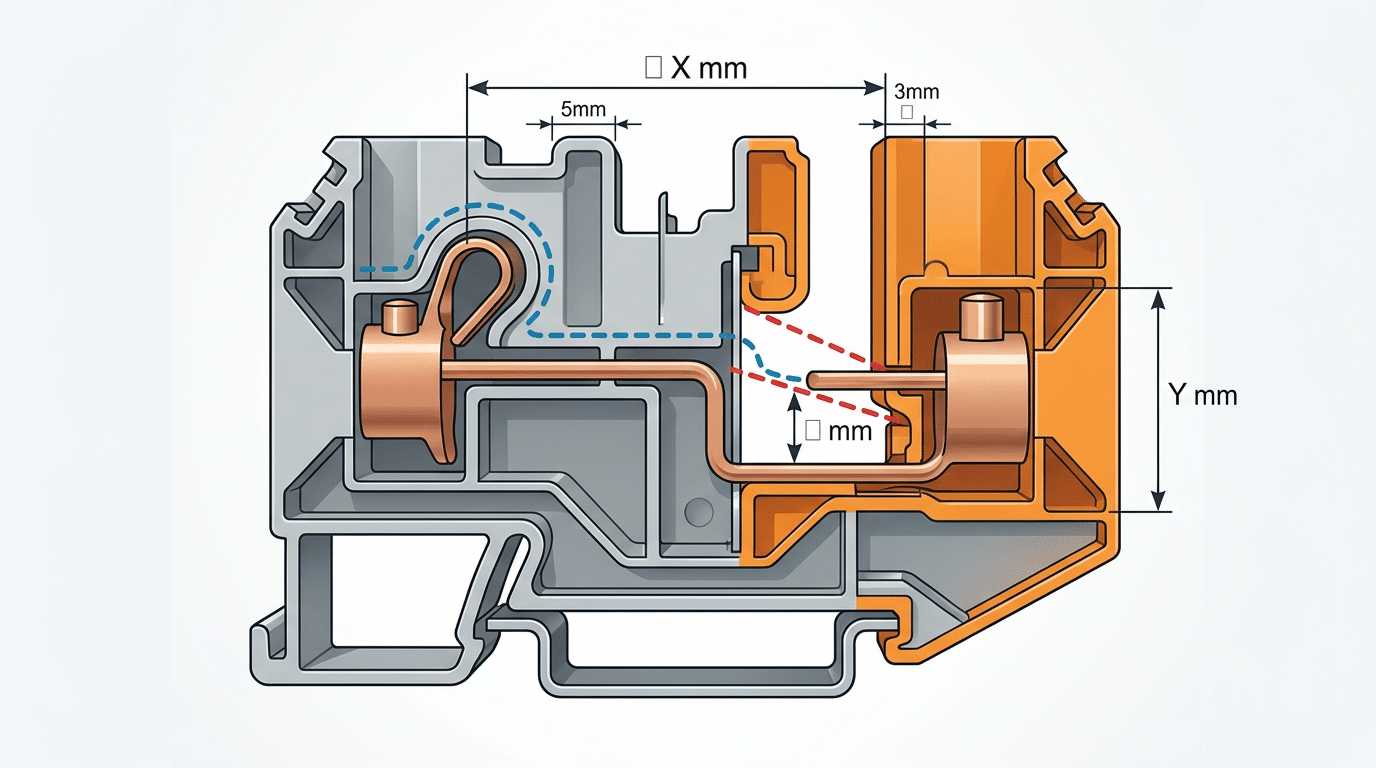

Two physical measurements inside a terminal block dictate its voltage ceiling: clearance — the shortest distance through air between two conductive parts — and creepage — the shortest path along the surface of insulating material between those same conductors. Think of clearance as the crow-flies gap and creepage as the ant-walks-along-the-housing gap. Both must meet minimum thresholds before a manufacturer can stamp a voltage rating on the product.
Why does creepage matter so much? Contamination. IEC 60664-1 defines four pollution degrees (PD1–PD4), and most industrial environments fall under PD3 — meaning conductive dust or moisture is expected. A terminal block rated 300V at PD2 might need a creepage distance of 3.2 mm, but bump that to PD3 and the required creepage jumps to roughly 5.0 mm for the same voltage, per IEC 60664-1 coordination tables. The insulation material’s Comparative Tracking Index (CTI) also shifts the requirement — a CTI Group IIIb material (100 ≤ CTI < 175) demands longer creepage paths than a Group I material (CTI ≥ 600).
Altitude is another factor engineers overlook. Above 2,000 meters, air density drops enough to reduce its dielectric strength, so clearance distances must increase by correction factors — roughly 1.14× at 3,000 m. This directly lowers the effective terminal block voltage rating explained on the datasheet unless the manufacturer already tested at altitude or provides derating guidance.
Pro tip: When comparing terminal blocks, always check whether the datasheet specifies creepage and clearance for the rated voltage or only for the impulse withstand voltage. They’re different values, and confusing them is a common source of under-spec’d designs.
Surge Voltage vs Nominal Voltage and Impulse Withstand Ratings
A terminal block’s nominal voltage rating — sometimes called the rated working voltage — tells you the maximum continuous voltage the device handles safely under normal conditions. But normal conditions aren’t the whole story. Transient spikes from lightning strikes, motor switching, or capacitor bank energization can momentarily push voltage far beyond that nominal figure. That’s where the impulse withstand voltage (Uimp) comes in.
IEC 61010-1 and IEC 60947-7-1 define four overvoltage categories (OVC I–IV) based on a component’s proximity to the utility supply:
| Category | Location Example | Typical Uimp (600V nominal) |
|---|---|---|
| OVC I | Protected electronics | 1,500 V |
| OVC II | Appliance circuits | 2,500 V |
| OVC III | Distribution panels | 4,000 V |
| OVC IV | Utility entrance | 6,000 V |
Why does a panel-level terminal block rated at 600V nominal need to survive a 4kV impulse? Because OVC III assumes the block sits downstream of the main breaker but upstream of final load protection — exactly where transient energy is highest inside a cabinet. Specifying OVC II here is a common and dangerous shortcut.
When the terminal block voltage rating is explained on a datasheet, always check both the Uimp value and the overvoltage category. A block rated 600V / OVC II is not interchangeable with a 600V / OVC III block, even though the nominal numbers match. The IEC’s impulse voltage testing methodology applies a 1.2/50 µs waveform — a spike that peaks in 1.2 microseconds and decays to half-value in 50 µs — to verify the insulation won’t flash over during real-world transients.
Pro tip: If your panel includes VFDs or contactors, treat the terminal blocks on those circuits as OVC III minimum, regardless of what the rest of the panel requires.
Real-World Examples of Terminal Block Voltage Rating Selection
Scenario 1: 480V Industrial Motor Circuit
Your motor runs at 480V AC, three-phase. The datasheet for a Phoenix Contact UTTB 2.5 lists 600V (UL) and 800V (IEC). Under UL 1059, that 600V rating already accounts for worst-case North American conditions — so 480V sits comfortably within limits. No derating needed at sea level.
Scenario 2: 24V DC Control Panel
Seems trivial, right? Not always. Cheap, unrated terminal blocks from offshore suppliers sometimes lack any UL listing. A 24V DC SELV circuit still requires proper insulation coordination if it shares a DIN rail with 120V AC power terminals. Pick a block rated at least 300V even for low-voltage signal wiring — the spacing protects against accidental cross-contact.
Scenario 3: 1,000V DC Solar Combiner Box
This is where engineers stumble most. A terminal block rated 600V UL / 1000V IEC does not qualify for a 1,000V DC string in a UL-listed combiner. You need the UL rating to match. Altitude matters too: above 2,000 meters, air’s dielectric strength drops roughly 1% per 100 meters of additional elevation. A combiner box installed at 3,000 meters requires derating the voltage capability by approximately 10%, meaning that “1,000V” block effectively handles only 900V. With terminal block voltage rating explained through these scenarios, the pattern is clear — always match the rating to the specific standard your jurisdiction enforces, not the higher number on a dual-rated label.
How to Select the Right Terminal Block Voltage Rating for Your Circuit
Getting the terminal block voltage rating explained in a datasheet is one thing — translating that into a correct purchase decision is another. Follow this sequence during the design phase and you’ll avoid costly field failures.
Step-by-Step Selection Process
- Identify your system’s maximum operating voltage. Not the nominal — the worst-case steady-state value. On a “480V” system, actual line voltage can sit at 504V (105% per ANSI C84.1).
- Determine the applicable standard. North American panels typically require UL 1059 listings. European or IEC-based designs need compliance with IEC 60947-7-1. Pick the terminal block rated under the standard your AHJ (Authority Having Jurisdiction) enforces.
- Apply a voltage safety margin. A 20% margin above your worst-case operating voltage is a reliable rule of thumb. For that 504V peak, target a block rated at least 600V.
- Factor in the environment. Altitude above 2,000 m reduces dielectric strength of air — derate by roughly 1% per 100 m beyond that threshold. High humidity or conductive dust demands larger creepage distances, pushing you toward a higher-rated block.
- Verify impulse withstand capability. Match the block’s Uimp to your installation’s overvoltage category (I through IV) per IEC 60664-1.
Quick-Reference Design Checklist
| Checkpoint | Action |
|---|---|
| Max system voltage confirmed? | Use measured or calculated worst-case, not nameplate |
| Standard identified (UL / IEC)? | Match to panel certification and export market |
| 20% margin met? | Rated voltage ≥ 1.2 × max operating voltage |
| Altitude / pollution degree checked? | Derate or upsize if outside standard conditions |
| Impulse rating verified? | Uimp ≥ overvoltage category requirement |
Pro tip: When a project spans both UL and IEC jurisdictions, select a dual-rated terminal block. It eliminates the need for two separate BOMs and cuts procurement lead time significantly.
Common Mistakes When Interpreting Terminal Block Voltage Ratings
Even experienced engineers trip over these errors. Once you have the terminal block voltage rating explained on paper, misreading the fine print can still land you with a failed inspection — or worse, an arc-flash incident.
Swapping UL and IEC Numbers as If They’re Equal
A block rated 600V under UL 1059 might only carry 400V under IEC 61984 for the same creepage distance. These standards use different test methods, pollution degree assumptions, and overvoltage categories. Always match the rating to the standard your jurisdiction enforces — never cherry-pick the higher number.
Ignoring Pollution Degree in Harsh Environments
Most catalog ratings assume Pollution Degree 2 (non-conductive contamination only). Install that same block in a cement plant or outdoor marine panel — Pollution Degree 3 territory — and the required creepage distance jumps roughly 40–60%, effectively slashing the usable voltage. Check IEC creepage requirements by pollution degree before finalizing your spec.
Forgetting Altitude Derating Above 2,000 m
Thinner air reduces dielectric strength. Above 2,000 meters, IEC 60664-1 mandates derating clearance distances — about 1% per 100 m of additional elevation. A terminal block rated 1,000V at sea level may need re-evaluation for a solar installation at 3,500 m in Colorado or the Andes.
Confusing Per-Pole Ratings with System Voltage
A “600V per pole” rating does not mean the block handles 600V line-to-line across adjacent poles. Pole-to-pole spacing is often tighter than pole-to-ground clearance. Verify the rated system voltage separately — it’s frequently 20–30% lower than the per-pole figure.
Quick rule: treat every voltage figure as context-dependent. Standard, altitude, pollution, and measurement point all change the answer.
Frequently Asked Questions About Terminal Block Voltage Ratings
Can I use a 300V-rated terminal block on a 480V circuit?
No. Operating above the rated voltage risks dielectric breakdown between conductors, which can cause arcing, fire, or equipment failure. Even if the block “seems fine” initially, partial discharge erodes insulation over time. Choose a block rated at or above 600V for a 480V circuit — that margin accounts for transient spikes and altitude derating.
What happens if I exceed the voltage rating?
The insulation between poles can flash over. At 1.5× the rated voltage, electrical breakdown becomes likely, especially in contaminated or humid environments where effective creepage shrinks. The result ranges from nuisance tripping to catastrophic arc flash — a leading cause of electrical workplace injuries.
How does temperature affect voltage ratings?
Most terminal blocks are rated at a reference ambient of 40 °C. Above that threshold, polymers like polyamide 6.6 (PA66) lose dielectric strength — roughly 10–15% reduction per 25 °C increase. Always check the manufacturer’s derating curve before installing blocks near heat-generating equipment.
Are voltage and current ratings independent?
Electrically, yes — voltage rating depends on insulation geometry, while current rating depends on conductor cross-section and heat dissipation. Practically, they interact: high current raises internal temperature, which degrades insulation performance and effectively lowers the safe operating voltage. Having the terminal block voltage rating explained in isolation isn’t enough; consider both specs together during selection.
