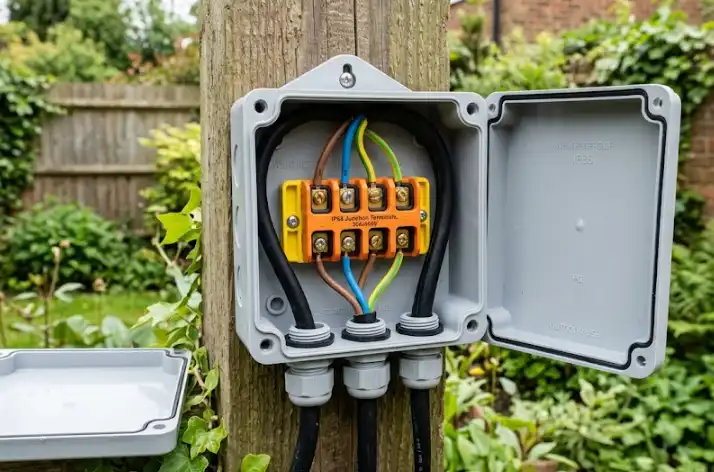

The enclosure stays dry inside
Use correctly rated terminal blocks inside an outdoor enclosure. Verify the finished box, lid, glands, plugs, vents, and mounting.
Outdoor connection selection · Updated 2026
How to Choose Waterproof Terminal Blocks for Outdoor Junction Boxes
Choosing waterproof terminal blocks for outdoor use starts with the protection boundary, not the terminal photo. In many outdoor panels, a standard terminal block sits inside a suitably rated enclosure. If the connection itself is exposed, specify a sealed connector or a tested sealed-junction system. The IP claim must cover the exact, fully assembled installation.
1 protection boundaryEnclosure, connector, gel box, or potted assembly
2 IP digitsSolids first; water second
3 solution routesProtected block, sealed connector, or sealed junction
Exact assembly onlyEntries, seals, plugs, cable, and mounting all matter
Quick decision
How do you choose waterproof terminal blocks for outdoor use?
“Waterproof terminal block” is a broad search term. A useful specification says which complete part keeps water away from the live connection and under which test conditions.
Direct answer
Choose the protection architecture before you choose the terminal. Apply an IP or NEMA enclosure Type claim only to the exact assembly and installed condition covered by the manufacturer.
A bare DIN-rail or fixed terminal block is often an internal connection component. It can work outdoors when it sits inside a correctly selected enclosure and the internal temperature, condensation, pollution, voltage, current, and conductor conditions are acceptable.
If the connection is outside that enclosure, use a product designed and documented as a sealed connection. That may be a mated connector, a panel feed-through, a compatible gel box plus connector, or a potted junction. Do not create a rating by adding generic sealant to an indoor part.
Use SENTOP’s terminal block selection guide →The connection is directly exposed
Use a sealed connector or feed-through with a documented rating in its fully mated and locked condition.
Water can reach the splice

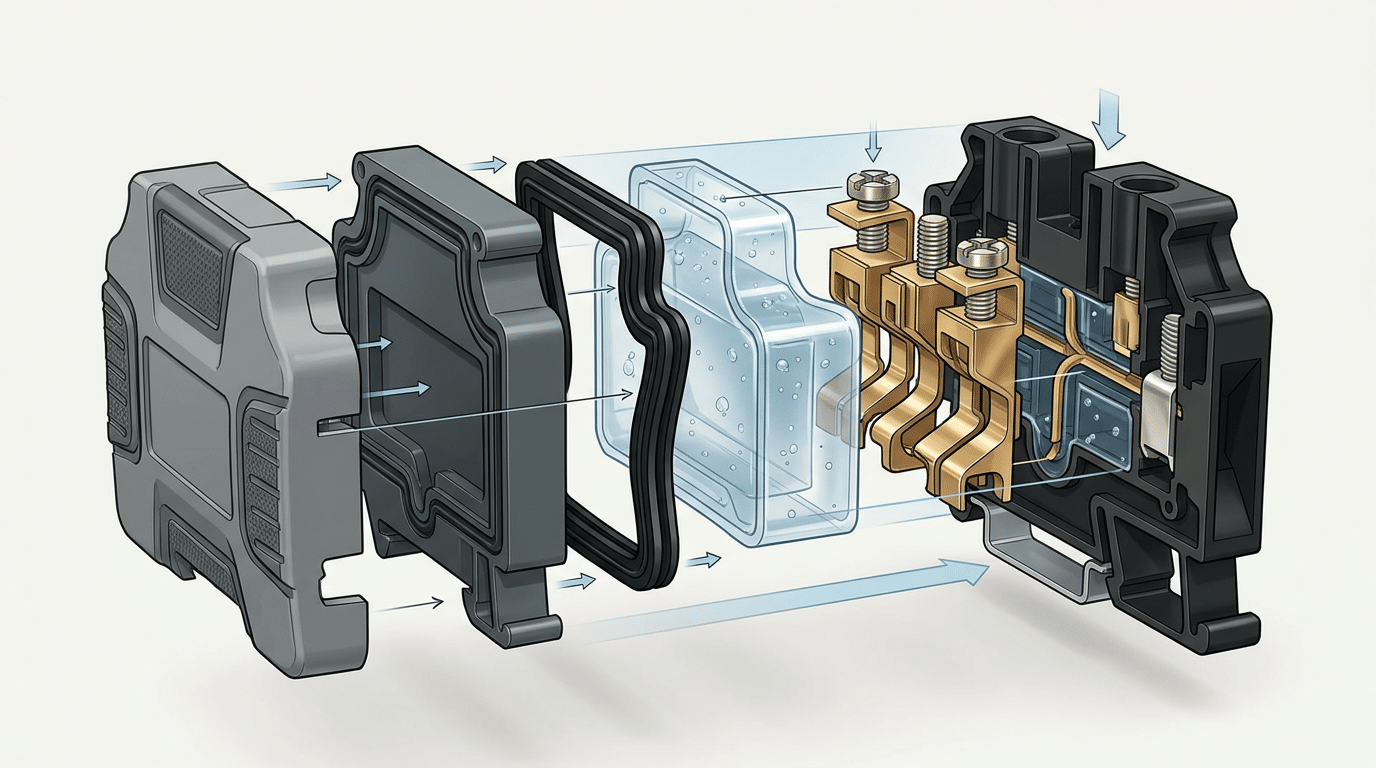

Use an approved gel-filled or potted system for the exact connector, cable, voltage range, depth, and service condition.
Salt, UV, chemicals, or frost are present
IP does not cover every outdoor stress. Request material, corrosion, UV, temperature, and project-market evidence as separate items.
Decision sequence
Choose from the site inward, in five steps
This order prevents a common mistake: buying a high-looking IP number before defining the water exposure, connection boundary, and electrical duty.
Describe the worst credible event
Record sheltered rain, wind-driven rain, hose-down, powerful jets, temporary flooding, intended immersion, condensation, salt, chemicals, dust, icing, impact, and UV.
“Outdoor” is not one test condition.Decide what must keep water out
Mark the boundary on the drawing: enclosure, cable entry, connector interface, gel box, or potted joint. Include every opening and mating part.
The seal is a system, not a label.Match the relevant test
Check both IP digits, the tested assembly state, orientation, depth, duration, liquid, jet exposure, temperature, and any North American enclosure Type requirement.
IP68 is not automatically IP66.Size the actual connection
Verify voltage, current, conductor material and class, AWG or mm², poles, ambient temperature, loaded contacts, strip length, ferrule policy, and tightening method.
Ingress rating does not set current capacity.Build it as tested
Use the specified glands, seals, plugs, cable diameters, tools, torque values, closing method, and mounting position. Record model-level documents and field changes.
One changed opening can change the result.

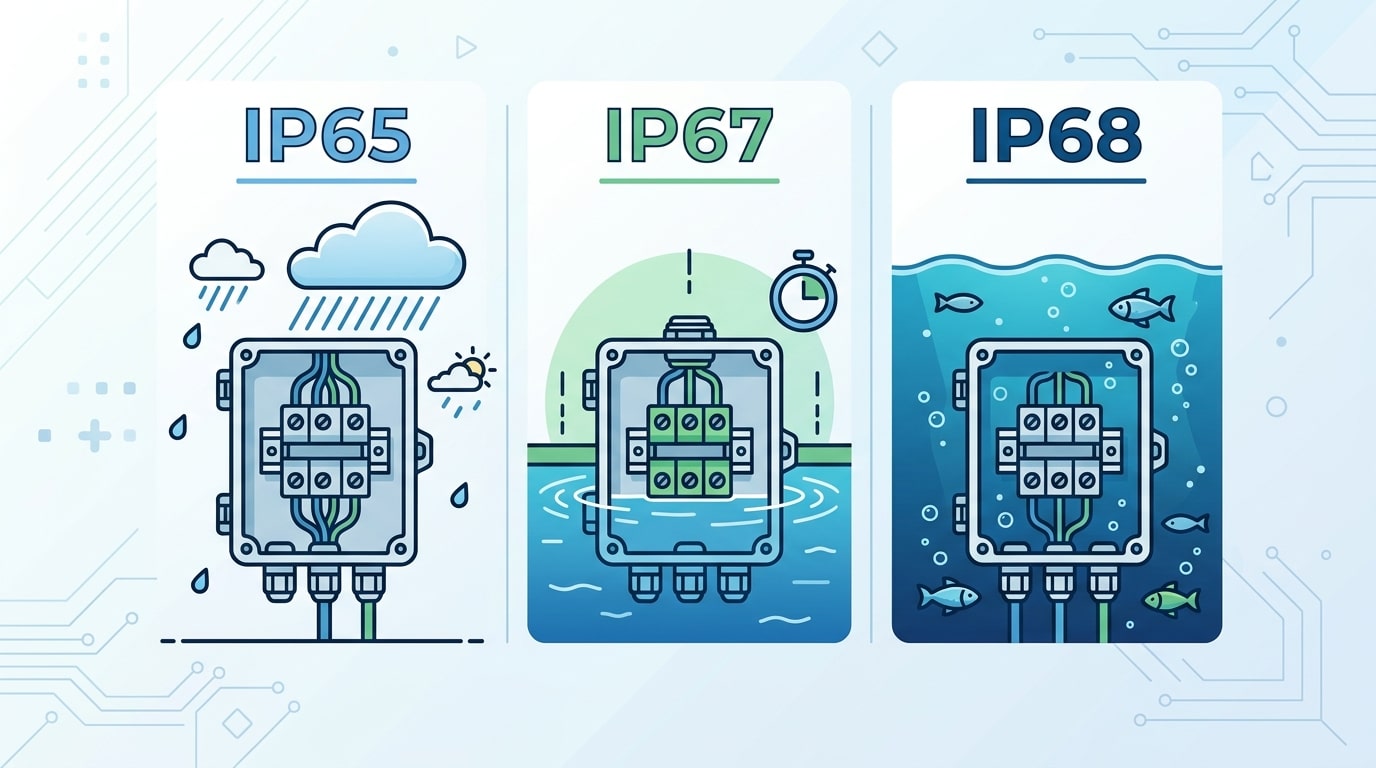

IP code in plain English
Review My Outdoor Requirement
Use the IP code as test evidence, not a shortcut
IEC 60529 classifies protection provided by enclosures. The first digit covers access and solid objects. The second covers water. An X means that characteristic is not specified.
| Rating | Solid protection | Water protection | What it does not prove | What to ask for |
|---|---|---|---|---|
| IP54 | Dust-protected | Splashing water | Dust-tightness, water jets, or immersion | Installed orientation and the actual rain/splash exposure |
| IP55 | Dust-protected | Water jets | Dust-tightness, powerful jets, or immersion | Jet direction plus every entry and cover condition |
| IP56 | Dust-protected | Powerful water jets | Dust-tightness or immersion | Whether the real washdown pressure, liquid, and temperature fit |
| IP66 | Dust-tight | Powerful water jets | Temporary or longer immersion | Complete assembly evidence for jet exposure |
| IP67 | Dust-tight | IPX7 temporary-immersion test | Jet resistance, a working depth, or continuous immersion | Test report, installed state, and whether jets are also required |
| IP68 | Dust-tight | Immersion under stated conditions | Unlimited depth, every liquid, operation underwater, or powerful jets | Manufacturer-stated depth, duration, liquid, temperature, assembly, and operating state |
Important: water digits 5 and 6 are jet tests; 7 and 8 are immersion tests. Do not treat them as one simple ladder. If a site faces both hose-down and flooding, require evidence for both exposures, such as dual marking plus supporting documents. See the IEC 60529 scope and Phoenix Contact’s explanation of separate jet and immersion ratings.
Solids and access
A first digit of 5 means dust-protected. A first digit of 6 means dust-tight. This says nothing about UV stability, corrosion, or chemical resistance.
Water test
The second digit identifies a defined water exposure. Match it to splashing, jets, powerful jets, temporary immersion, or the stated IPX8 conditions.
Not specified
IPX8 states water protection but does not state a solid-particle rating. Never fill in the missing digit from appearance or from another product in the family.
Three protection architectures
Choose the route that matches where water stops
Connection technology—screw, spring, push-in, or stud—is a separate choice. First decide whether the outdoor barrier is the enclosure, the connector, or a sealed junction system.
Rated enclosure + internal terminal blocks
Best when several circuits need organized access, marking, bridging, testing, and service. The enclosure, lid gasket, glands, plugs, vents, and mounting create the ingress boundary.
Explore DIN rail terminal blocks →Mated connector or panel feed-through
Useful when a cable must disconnect at the enclosure wall or in the field. Verify both halves, seals, backshells, caps, locking state, cable, and unmated protection.
Review cabinet wiring components →Approved gel-filled or potted system
Useful where water may reach a splice and access is limited. The rating belongs to the named gel or resin system, compatible connector, conductor, cable, fill, cure, and enclosure condition.
Review the accessories guide →Serviceable or permanent?
A serviceable enclosure gives inspection and rewiring access. Some potted joints are difficult or impossible to rework. Define maintenance, fault finding, and replacement before sealing.
One connection or many?
A sealed inline connector may suit one cable interface. A junction box with terminal blocks often organizes multiple circuits, protective earth, markers, spares, and branch connections.
Low voltage or extra-low voltage?
Product instructions can change by voltage range. For example, WAGO states that its tested Gelbox combinations need an additional junction box in low-voltage use for double insulation.
| Compare | Enclosure + internal blocks | Sealed connector/feed-through | Gel-filled or potted junction |
|---|---|---|---|
| Protection boundary | Box, lid, entries, plugs, vents, and interfaces | Fully assembled connector and its cable/interface seals | Exact sealed system around the completed joint |
| Service access | Usually easiest | Disconnectable if designed for repeated mating | Ranges from re-enterable gel to permanent potting |
| Best evidence | Enclosure/assembly rating plus component instructions | Mated and unmated ratings, product drawing, and installation sheet | Named system test, compatibility chart, and application instructions |
| Main failure point | Entries, modified openings, lid seal, condensation, or wrong orientation | Incomplete locking, missing cap, damaged seal, or wrong cable | Unapproved connector, incomplete fill/cure, voids, or rework outside instructions |
Environment matrix
“Outdoor” is seven different selection questions
Do not assign one universal IP number to every outdoor site. Describe the actual exposure, then request evidence for that exposure.
Sheltered or wind-driven?
Record the direction, overhang, splash path, pooling risk, mounting height, and whether roof runoff can hit the box. Confirm the enclosure in its installed orientation.
What jet, liquid, and temperature?
Define hose or cleaning pressure, nozzle distance, direction, duration, water temperature, detergent, and frequency. An immersion rating alone is not jet evidence.
How deep and for how long?
State the water depth, time, liquid type, pressure, operating state, and recovery plan. For IP68, obtain the exact manufacturer conditions rather than assuming unlimited immersion.
Can moisture form inside?
Sealing out rain does not guarantee a dry interior. Review dew point, daily temperature swing, internal heat, pressure equalization, climate control, drainage, and approved orientation.
Are exposed parts UV-qualified?
Check the enclosure, gland, cable sheath, label, connector, and seal materials. “Plastic” or “outdoor color” is not a UV-aging result.
Salt, fertilizer, oil, or chemicals?
IP does not establish corrosion or chemical resistance. Specify the agents, concentration, exposure method, cleaning process, metals, coatings, and required enclosure Type or test.
What happens outside and inside?
Use minimum and maximum ambient, sun loading, internal losses, freeze-thaw, conductor heating, and seal temperature. A closed outdoor box can be hotter than the surrounding air.
Impact, vibration, burial, or hazardous area?
Check mechanical protection, cable pull, soil/direct-burial approval, shock, vibration, vermin, icing, and any hazardous-location certification separately from IP.
How will it be inspected?
Define safe access, isolation, opening frequency, replacement parts, gasket inspection, moisture checks, and recordkeeping. Avoid a sealed design that defeats the required service plan.
North American boundary: IP and NEMA enclosure Type ratings are independent systems. NEMA requirements may also cover conditions such as corrosion, icing, oil, or coolant exposure. Do not convert an IP code into a NEMA Type rating. Use the project-required system and verify the finished installation.
Electrical and mechanical fit
Request Product Matching
After the seal, select the actual terminal duty
Ingress protection and electrical capacity are separate checks. A sealed part can still be wrong for the circuit, conductor, temperature, or installation method.
What must the point do?
State feed-through, distribution, protective earth, sensor, actuator, lighting branch, motor, heating, or another circuit job. A sealed splice is not automatically a terminal strip.
Which rating set applies?
Record AC or DC operating voltage, system arrangement, impulse needs, and target market. Check rated voltage, creepage, clearance, pollution, and altitude under the applicable equipment rules.
At what ambient and conductor?
Use the manufacturer’s rating and any current-versus-ambient data for the exact pole count, conductor size, and mounting. Do not add a universal percentage margin or assume a sealed box prevents overheating.
What wire enters each point?
Give copper or approved aluminum, solid or stranded class, AWG or mm², insulation type, cable outside diameter, ferrule or lug, and the number of conductors per clamp.
Which termination method fits?
Screw, spring, push-in, stud, or pluggable designs can all work when the exact model suits the conductor, production method, vibration, inspection, and service plan.
How many separate potentials?
Count every line, neutral, protective earth, signal, spare, and bridge. Confirm the drawing and do not assume a spare pole may be used for any voltage or function.
Will the complete system stay within limits?
Check the terminal, enclosure, connector, gland, seal, cable, wire insulation, label, and any gel or resin. Use both cold-start and hot-sun conditions.
Can it be built and serviced?
Confirm rail or panel space, bend radius, gland spacing, entry direction, tool access, lid clearance, markers, end stops, separators, and safe replacement space.
Does the document match the model?
Request the datasheet, drawing, installation sheet, IP or Type evidence, terminal approval file, material data, accessory list, and conditions that apply to the ordered catalog number.
Useful rule: size from the circuit and environment outward. Do not use the largest conductor that physically fits, copy a torque value from a similar terminal, or assume that a higher IP code increases voltage or current capacity.
The sealing chain
Every opening is part of the outdoor rating
A junction box is not protected by its lid alone. Cable glands, conduit hubs, connector cut-outs, pressure-equalization devices, drains, windows, unused openings, and mounting penetrations can all change the finished result.
Match a cable gland to the enclosure wall, entry thread, hole, cable sheath, cable outside diameter, sealing parts, locknut, and installation method. An IP68 gland does not automatically make a finished enclosure IP68.
Do not improvise the sealing parts.
Use a washer, O-ring, thread sealant, blanking plug, lubricant, drain, or pressure-equalization device only when the equipment instructions specify it. A field modification may invalidate the declared protection.
Enclosure body and lid
Check the material, gasket, hinge/latch or screw system, mounting position, closing torque, and whether the rating applies with the door or cover closed.
Cable and conduit entries
Verify entry thread or knockout, wall thickness, cable range, sheath condition, strain relief, seal type, and installation torque from the exact instructions.
Unused openings
Close every unused entry with an approved plug or cap for the same assembly. Tape, a loose knockout disc, or generic sealant is not model-level evidence.
Mated interfaces
Some connector ratings apply only when both halves are fully mated and locked. Ask what protection applies when disconnected and whether a sealing cap is required.
Pressure and condensation controls
Use only approved devices and positions. They can help reduce pressure differences or condensation but do not create a universal guarantee of a dry interior.
Mounting holes and field changes
Follow the enclosure’s permitted drilling, punching, bracket, pole-mount, wall-mount, and drainage instructions. Record every field change for review.
Installation sequence
How do you preserve the tested protection after assembly?
The rating shown on a catalog page assumes a defined product state. Field work must reproduce that state as closely as the manufacturer requires.
Electrical safety comes first.
Installation and service should be performed by qualified people. De-energize, lock or tag as required, verify absence of voltage with appropriate test equipment, and follow the equipment manufacturer and local rules before touching conductors or opening an enclosure.
Use controlled tools where a torque is stated. A thread size, terminal size, or cable-gland size is not a torque value. Do not create a blanket re-tightening schedule; inspect and maintain only as the exact product and equipment instructions require.
Review the control panel wiring guide →Confirm the exact approved combination
Match enclosure, cover, gland plate, connector halves, glands, plugs, seals, terminal blocks, accessories, cable, conductor, and mounting parts to the drawing and instructions.
Inspect every sealing surface
Look for dirt, chips, paint, scratches, twisted gaskets, cracked parts, damaged cable jackets, or foreign material that can stop even compression.
Prepare entries only as permitted
Use the stated hole size, thread, wall interface, washer or O-ring, locknut, and tool. Remove debris without damaging the seal surface or electrical parts.
Match the gland to the real cable
Measure cable outside diameter and confirm the sheath type and clamping range. Do not select a gland only from “M20” or another thread label.
Prepare and terminate conductors correctly
Use the specified strip length, ferrule or lug policy, conductor count, tool, and terminal torque. Keep bare copper and loose strands inside the designed contact area.
Control cable load and routing
Provide the approved strain relief and bend radius so cable pull does not load the terminal or seal. Follow the tested entry direction and any permitted drip-loop guidance.
Close, lock, and inspect the assembly
Fit approved plugs and caps, close the lid in the stated sequence, fully mate and lock connectors, and use the manufacturer’s torque where specified.
Document and maintain the installed state
Record catalog numbers, cable sizes, torque settings, photos, test evidence, and field changes. Inspect seals, corrosion, moisture, locks, and entries at the OEM-defined interval.
Failure prevention
Eight shortcuts that break the protection boundary
Most of these errors begin with a correct product used outside its documented combination or installation condition.
Calling an open terminal strip waterproof
Ask which enclosure or sealed assembly protects the live connection. A plastic terminal body is not an outdoor ingress rating.
Buying the “highest” IP number
Match the water test to the real exposure. Powerful jets and immersion are different tests; one is not a substitute for the other.
Assuming IP67 or IP68 includes hose-down
Require separate jet evidence when cleaning or wind-driven spray matters. Look for the relevant dual marking and documentation.
Ignoring cable diameter and unmated state
A seal can fail around the wrong cable, a damaged sheath, or an open connector. Confirm cable range, locking, and sealing caps.
Copying torque or sealant from another model
Use the exact gland, terminal, cover, and enclosure instructions. Similar threads and sizes can have different materials and interfaces.

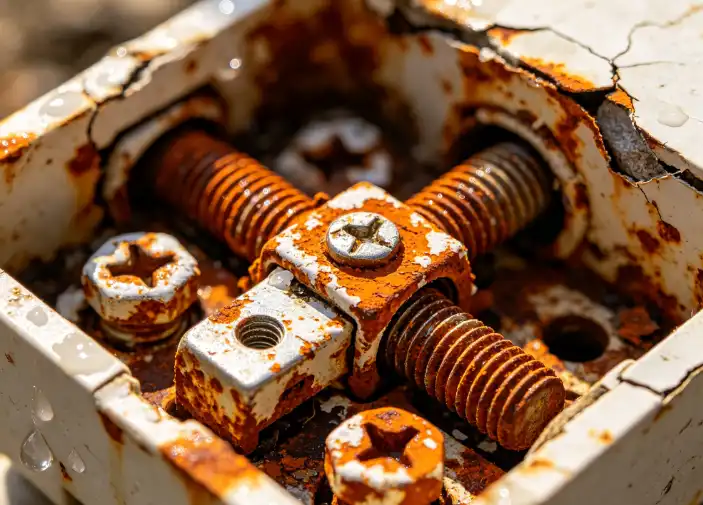

Sealing condensation inside
Review dew point, pressure changes, internal heat, and approved climate controls. A tightly closed box can still contain moisture.
Treating IP as every outdoor approval
Check UV, corrosion, chemicals, temperature, impact, icing, burial, and hazardous-location requirements separately.
Adding unverified accessories or holes
A generic plug, vent, drain, bracket, or gland can change the finished result. Use approved combinations and record modifications.
Application questions
Use the same method in different outdoor systems
The product route can change because the exposure, circuit, service access, and market documents change.
Rooftop HVAC and pump controls
Check sun loading, rain path, vibration, maintenance opening, cable entries, condensation, and safe service access around fans, pumps, and controls.
Buildings and infrastructure →Combiner, monitoring, and field boxes
Define DC voltage, conductor and connector system, UV, heat, roof or ground exposure, cable routing, polarity marking, corrosion, and applicable solar equipment rules.
Solar and energy systems →Outdoor control cabinets
Coordinate the enclosure, DIN-rail layout, gland plate, terminal schedule, heat load, pressure equalization, documentation, labels, and approved accessories.
Support for panel builders →Street, garden, and façade circuits
Check accessible location, branch conductor, protective earth, flooding at ground level, cable pull, buried sections, condensation, and how a failed connection will be replaced.
Irrigation and pump connections
Separate splash, powerful jets, temporary flooding, and intended immersion. Confirm the exact liquid, cable, sealed-junction combination, voltage range, and service method.
Repeatable outdoor assemblies
Freeze the approved enclosure, entries, terminals, seals, cable ranges, drawings, tools, inspection points, labels, and documents into the production BOM.
Support for equipment manufacturers →
Standards boundary
Which documents answer which question?
No single mark proves that a connection fits every outdoor installation. Use each standard and file only for the scope it actually covers.
Model-level evidence wins. A family brochure, logo, material statement, or marketing word does not replace the exact catalog-number drawing, rating conditions, installation instructions, and approval coverage.
Review SENTOP standards and certificates →
Defines the IP Code for protection provided by enclosures. Use it to read solids/access and water protection—not as a universal outdoor-life, corrosion, chemical, or hazardous-location rating. Official IEC scope →
Uses a separate North American enclosure Type system that may address additional conditions. NEMA states that an IP code cannot simply be converted into a NEMA Type. Official NEMA FAQ →
Covers specified industrial terminal blocks for copper conductors within its scope. It does not turn an open terminal into a weatherproof enclosure. Official IEC page →
Addresses terminal-block assemblies within its scope. UL notes that component compliance alone does not assure suitability in a particular end product. Verify the exact file and Conditions of Acceptability. Official UL standard page →
Add required UV, corrosion, chemical, temperature, vibration, impact, burial, wet-location, or hazardous-location evidence. IP alone does not cover these conditions.
RFQ checklist
Send the site conditions, boundary, and circuit—not only “IP68 terminal block”
A clear request lets a supplier compare a real enclosure, connector, terminal, and accessory combination. Send a model, photo, drawing, sample, or BOM when available.
Continue the decision
Use the next guide for the next question
Frequently asked questions
Short answers for outdoor connection buyers
These answers define the selection boundary. The exact product instructions and applicable equipment rules still control the final installation.
Are terminal blocks themselves waterproof?
Many standard DIN-rail and fixed terminal blocks are open connection components, not waterproof enclosures. They can be used in an outdoor system when a suitable enclosure protects them and all electrical and environmental conditions are met. If the connection itself is exposed, select a documented sealed connector or sealed-junction system.
Is IP65 always enough for an outdoor junction box?
No universal IP code fits every outdoor location. Define rain, jets, washdown, flood, condensation, dust, orientation, UV, corrosion, temperature, and the applicable equipment rules. Then choose an enclosure or assembly with evidence for those conditions.
Does IP67 or IP68 automatically include IP65 or IP66?
No. IPX5 and IPX6 are jet tests, while IPX7 and IPX8 are immersion tests. If the site has both washdown and immersion exposure, require evidence for both, such as the relevant dual marking and supporting documents.
What does IP68 mean for a connection?
It means dust-tightness plus immersion protection under conditions stated by the manufacturer. Ask for depth, duration, liquid, temperature, assembly state, cable, mating condition, and whether operation while submerged is allowed. It does not mean unlimited depth or every underwater use.
Can standard DIN-rail terminal blocks be used outdoors?
Yes, when they are inside a suitably rated and correctly installed enclosure and the internal temperature, humidity, condensation, pollution, conductor, voltage, current, mounting, and approval conditions fit. The enclosure—not the open terminal—normally provides the ingress boundary.
Should I add gel or potting compound to make a terminal waterproof?
Only use a tested, compatible system and follow its exact instructions. Generic gel, resin, silicone, or heat-shrink does not create a certified IP rating. Check connector compatibility, conductor and cable range, fill or cure method, voltage range, enclosure need, re-entry, and replacement rules.
Is NEMA Type 4X the same as IP66?
No. IP and NEMA enclosure Type ratings are independent systems. NEMA Type requirements can include additional conditions such as corrosion. An IP code cannot be converted into a NEMA Type claim. Confirm the project-required rating and certification separately.
How can I reduce condensation inside a sealed box?
Review dew point, temperature swing, internal heat, mounting, and pressure differences. Where the manufacturer permits it, a tested pressure-equalization device, enclosure heater, climate-control method, or rain hood may help. Do not drill an unapproved vent or drain hole, because it can invalidate the rating.
Technical sources used for this guide
- IEC 60529: Degrees of protection provided by enclosures (IP Code)
- NEMA Enclosure FAQ and NEMA Enclosure Types
- UL: Environmental-Rated Accessories for Enclosures
- WAGO Gelbox: tested complete-system scope and IPX8 conditions
- Weidmüller E1W Cable Gland Installation Instructions
- Weidmüller Enclosure Inspection and Maintenance Instructions
- Rittal: Moisture in enclosures
- Phoenix Contact: IP jet and immersion test boundaries
- IEC 60947-7-1:2025 industrial terminal-block scope and UL 1059 terminal-block assemblies
- OSHA 1910.333: Selection and use of work practices
Standards and product documentation are cited for scope and selection boundaries. Final compliance depends on the exact product, assembly, equipment standard, target market, installation, and authority having jurisdiction.
SENTOP product matching
Start an Outdoor Connection Enquiry
Have an outdoor box drawing, cable schedule, photo, sample, or BOM?
Send the exposure, protection boundary, voltage, current, conductor, cable diameter, entries, mounting, quantity, destination, and required documents. We can help compare a practical terminal and accessory route.
