How to Replace a Home Electrical Panel and Wiring Safely
Do not begin by removing the cover. Begin with a qualified electrical contractor, a defined project scope, the adopted local rules, utility coordination, and model-specific equipment evidence. A panel-only replacement may be enough, but it does not automatically correct old branch wiring, increase service capacity, or justify a whole-home rewire.

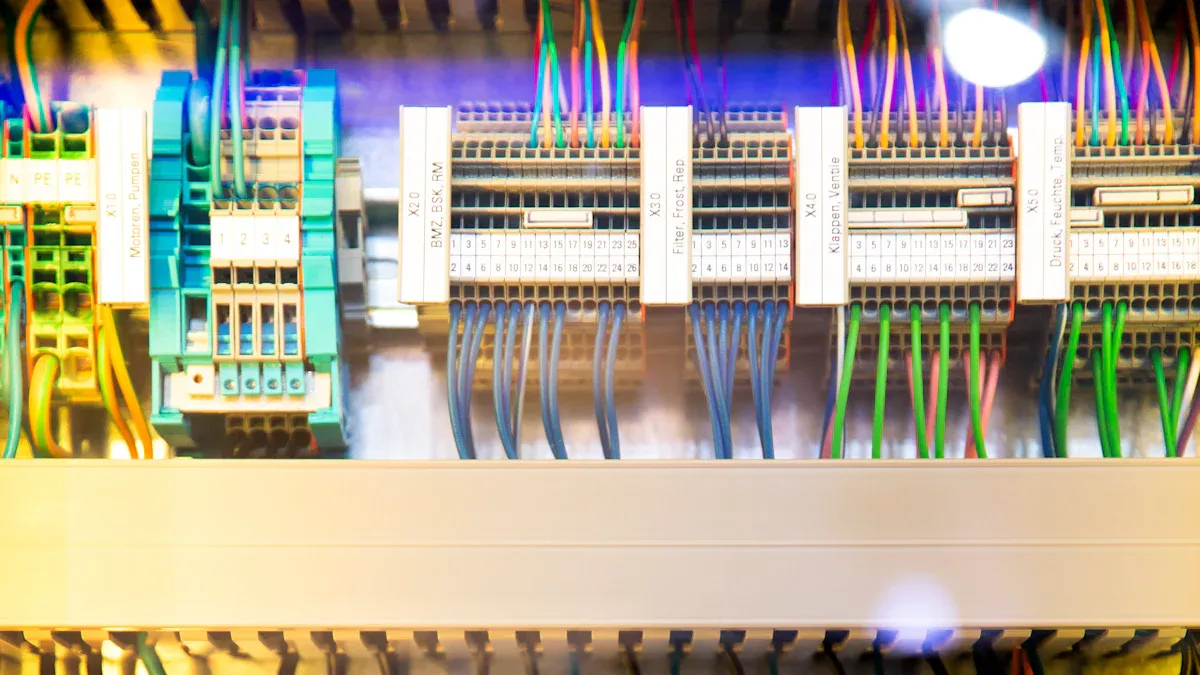

SENTOP editorial image. It illustrates project context and is not evidence of a SENTOP field installation.
Which project do you actually need?
Age alone does not decide the answer. The contractor should compare the existing service, panel, branch circuits, load plan, fault-current conditions, physical condition, and local requirements. Use these four scopes to make quotes comparable.
Panel-only replacement
Fits when the service capacity and branch circuits remain suitable, but the enclosure, bus, breaker system, space, damage, or documentation justifies replacing the load center.
Does not automatically increase service capacity or repair hidden wiring.Targeted circuit correction
Fits when specific circuits have damaged insulation, poor splices, wrong protection, missing grounding, shared-neutral issues, or load problems while the rest can remain.
Define every affected circuit and the required verification.Service upgrade plus panel
Fits only after a load calculation or documented demand review shows that new electrification loads cannot be served by the existing system or approved load management.
May involve the meter, service conductors, utility equipment, grounding, and permits.Whole-home rewiring
Fits when the installed wiring cannot be made suitable through focused correction, or a major renovation exposes and changes a large part of the system.
Do not recommend it from age or appearance alone; document why circuits cannot remain.Adding more breaker spaces changes distribution options. It does not prove that the service conductors, meter equipment, transformer, or utility connection can supply more load. Breaker handle ratings also cannot simply be added to calculate service demand. Ask for the adopted calculation method and the assumptions behind it.
Main breaker OFF does not mean the panel is dead
In many installations, conductors on the supply side remain energized. Solar, batteries, generators, UPS systems, control power, or incorrect backfeeds can create additional sources. The U.S. Consumer Product Safety Commission warns that panel boxes are usually electrically live even when the main breaker is off.
Do not remove a meter or utility seal
The contractor should arrange the authorized disconnect and reconnect method with the utility and authority having jurisdiction. A homeowner should not improvise service isolation.
Identify every source
The work plan must cover normal supply, standby generator, photovoltaic, battery, alternate feeders, and stored energy before any exposed conductor is contacted.
Establish an electrically safe condition
For contractor workplace safety, de-energization, lockout/tagout where applicable, and verification with suitable test equipment are core controls. Local law and the employer's written program govern the exact process.
Treat anything unverified as energized
If supply-side parts cannot be isolated, the project needs a different authorized work plan, qualified personnel, risk controls, and appropriate equipment. This article is not an energized-work procedure.
Gather information without opening the panel
Useful preparation does not require touching exposed parts. Photograph the closed enclosure and labels that are accessible without removing covers, collect utility bills, list planned appliances, record known trouble, and locate previous permits or drawings.
- List EV charging, electric cooking, heat pumps, water heating, solar, battery, generator, workshop, and future loads.
- Record repeated trips, flicker, buzzing, odor, heat, staining, shocks, water entry, or recent storm and renovation events.
- Do not touch the cabinet to judge temperature and do not repeatedly reset a breaker that trips.
- For smoke, active arcing, or fire, move away, call emergency services, and follow local emergency guidance.
Six terms that prevent a vague quote
The service disconnect, distribution panel, and bonding point may be in one enclosure or in different locations. The actual topology and product labels control the design.
Service equipment
Equipment at the point where the service conductors enter the premises wiring system. It may include the service disconnect and the permitted neutral-to-ground connection.
Main disconnect
The disconnecting means for the supplied system. It is not proof that conductors on its supply side, alternate sources, or utility equipment are de-energized.
Distribution panel
The enclosure, bus, breakers, neutral and equipment-grounding provisions that distribute circuits. In North America it may also be called a panelboard, load center, or breaker panel.
Downstream panel
A panel supplied from upstream equipment. Its neutral is commonly isolated from the enclosure and equipment-grounding system, subject to the actual design and adopted rules.
Branch circuit
The conductors and protection supplying outlets or equipment. A new panel cannot repair damage, missing grounding, poor splices, or unsuitable conductors elsewhere on the circuit.
Grounding vs bonding
Grounding connects the system to earth; bonding creates an effective fault-current path between conductive parts. They have related but different functions.
What the symptom may change in the project scope
A warning sign points to an investigation, not one automatic repair. The contractor should document the cause, affected area, corrective action, and post-repair verification.
Smoke, active arcing, or fire
Leave the area, call emergency services, and do not approach or operate the equipment. Fire or heat exposure can require replacement of more than the visibly damaged part.
Scope question: what equipment and wiring were heat-affected?Burning odor, melting, severe discoloration
These conditions are not cosmetic. Overload, poor contact, wrong conductor preparation, contamination, or equipment damage may be involved.
Scope question: can affected conductors and devices be safely retained?Shock, tingling, or damaged enclosure
Possible fault, bonding, grounding, insulation, or enclosure problems require qualified evaluation. Do not use color, labels, or breaker position as proof of safety.
Scope question: is the fault local or system-wide?Repeated trips or flickering
A breaker may be responding correctly to overload or a fault. The cause might be at the appliance, circuit, splice, panel, or supply. Never install a larger breaker simply to stop trips.
Scope question: what current and fault condition was measured?Corrosion, water entry, or contamination
Source control, enclosure suitability, conductor condition, insulation, terminals, and adjacent equipment all need review. Cleaning alone may be inadequate.
Scope question: what prevents the environment from recurring?No space for new loads
Lack of spaces can justify a larger distribution arrangement, but the service may or may not need upgrading. Load management can be an option in some approved designs.
Scope question: what does the documented load review show?
Replace damage and correct the cause
A burnt terminal, brittle insulation, pitted bus, cracked case, or melted conductor is not restored by cleaning or tightening. The contractor should isolate the system, assess the complete current path, replace affected parts as directed, and confirm the protective device, conductor, connection, load, environment, and installation method.
A higher-rated breaker can expose existing conductors and equipment to current they were not designed to carry. Protection changes require a complete design check, not trial and error.
Eight decisions before the outage is booked
This is a planning sequence, not a wiring tutorial. The contractor, utility, inspector, designer, and equipment supplier each control different parts of the job.
Define present and future loads
List major loads, simultaneous use, planned electrification, alternate sources, and critical circuits. Record actual demand data when it is part of the approved method.
Output: load and expansion brief.Assess the existing system
Identify service arrangement, panel labels, conductors, breakers, grounding and bonding, branch-circuit condition, shared neutrals, environment, and known defects.
Output: as-found condition report.Choose the project scope
Separate panel replacement, circuit correction, service work, and rewiring. State what remains, what changes, and what evidence supports the decision.
Output: priced scope with exclusions.Confirm AHJ and utility path
Determine permit, inspection, service application, meter, disconnect/reconnect, working-space, placement, and local adopted-code requirements before ordering.
Output: permit and utility plan.Lock the equipment schedule
Specify exact panel, breakers, accessories, conductor ranges, service suitability, SCCR strategy, protective devices, and enclosure configuration.
Output: model-level BOM.Plan isolation and continuity
Identify every source, authorized isolation point, temporary-power need, critical loads, outage duration, safe shutdown, and reconnection responsibility.
Output: outage and safety plan.Install under controlled work
Authorized personnel follow the approved drawings, product instructions, conductor preparation, torque data, routing, phase relationships, bonding, and labeling.
Output: installed and inspected assembly.Test, inspect, and hand over
Complete required verification, correct deficiencies, obtain inspection sign-off, update the directory, and deliver product, permit, test, and warranty records.
Output: auditable closeout pack.Specify a listed system, not a box full of parts that fit
Physical fit is not compatibility. The panel label, certification record, and manufacturer instructions identify permitted breakers, terminals, accessories, conductors, ratings, and installation conditions.
| Selection item | What the contractor should verify | Common wrong shortcut |
|---|---|---|
| Service and bus ratings | System voltage, phase, service suitability, bus rating, main rating, load calculation or approved demand method, and the exact service topology. | Do not assume more breaker spaces or a larger enclosure increases supply capacity. |
| Breakers and accessories | Exact breaker families, poles, interrupting ratings, tandem/quad permission, retainers, fillers, surge devices, interlocks, and other field-installed units named by the panel labeling. | Do not install a breaker because it clicks onto the bus. |
| SCCR and available fault current | Available fault current at the installation, breaker interrupting rating, panel SCCR, series-combination conditions, upstream protection, and utility data where required. | Do not use voltage and ampere rating alone as short-circuit evidence. |
| Conductors and terminals | Permitted copper/aluminum material, size, number per terminal, insulation temperature basis, strip length, connector preparation, and exact labeled torque using the specified tool. | Do not place two neutrals under one terminal unless the exact labeling permits that combination. |
| Shared-neutral circuits | Identify every multiwire branch circuit or other shared-neutral arrangement. Preserve the required source relationship and neutral continuity, provide the required simultaneous disconnect, and verify AFCI/GFCI compatibility. | Do not treat two breakers that share a neutral as unrelated circuits. |
| Neutral and equipment ground | Where the system bonding point is permitted, whether the panel is service equipment or downstream, required bars and bonding parts, feeder conductors, and continuity of the fault-current path. | Do not assume every panel with a main breaker is the neutral bonding point. |
| AFCI and GFCI protection | The local adopted requirements, circuit use, alteration scope, existing wiring, shared-neutral arrangement, listed device combination, and compatibility with the selected panel. | Do not treat AFCI and GFCI as interchangeable; they address different hazards. |
| Surge protection | Whether the adopted rules require an SPD for the service or service-equipment replacement, plus type, ratings, location, lead length, bonding, and coordination. | Do not use an SPD as a substitute for correcting grounding, bonding, or wiring faults. |
| Future loads and load management | EV, heat pump, water heating, cooking, solar, storage, generator, transfer equipment, critical loads, managed-load controls, and reserved spaces supported by a documented design. | Do not buy maximum capacity without checking the utility and project constraints. |
| Location and enclosure | Indoor/outdoor rating, moisture, condensation, corrosion, temperature, working clearances, accessibility, cable entries, physical protection, and local placement rules. | Do not transfer one component's rating to the complete installed assembly. |
Do not treat all aluminum wiring as one category. Modern large aluminum service and feeder conductors can be suitable when used with equipment listed for them and prepared as directed. Small solid aluminum branch-circuit wiring used in some older homes presents a different evaluation problem. The contractor should identify the conductor type, size, age, condition, terminations, and approved corrective method.
A new panel does not make old wiring safe
Each circuit needs a documented disposition. Suitable circuits can remain; damaged or incompatible circuits need correction; a whole-home rewire needs evidence that targeted repair cannot achieve the required result.
Panel replacement, circuits retained
The existing service capacity is adequate, branch conductors test and inspect acceptably, the panel needs more reliable equipment or space, and no major load is added. The scope transfers and identifies circuits, corrects local defects, and verifies the new assembly.
Evidence: circuit schedule, conductor acceptance, load review, equipment schedule, test and inspection records.Panel plus targeted remediation
Most circuits can remain, but selected circuits have damaged insulation, unsuitable splices, missing equipment grounding, shared-neutral problems, or new use requirements. The quote names each affected circuit instead of hiding it under "rewire as needed."
Evidence: circuit-by-circuit defect list, correction method, protection choice, test criteria, and closeout marking.Service upgrade and broader rewiring
The approved load review supports more capacity, service equipment changes are needed, and a renovation or widespread wiring condition justifies broader work. Utility, meter, service, grounding, panel, feeders, branch circuits, and finishes are coordinated as one project.
Evidence: calculation, utility approval, permits, drawings, BOM, outage plan, test record, and inspection sign-off.
Make the contractor quote testable
A good proposal separates assumptions, included work, excluded work, allowances, and corrective options. It identifies who obtains permits, coordinates the utility, provides temporary power, repairs finishes, completes testing, and answers inspection comments.
- Exact panel, breaker, SPD, accessory, conductor, and enclosure schedule - or a clear submittal/approval process.
- Which existing circuits are retained, repaired, abandoned, extended, or replaced.
- How shared-neutral circuits, grounding, bonding, alternate sources, and old aluminum branch wiring will be evaluated.
- What happens if hidden damage or noncompliant work is found after access is opened.
- Required inspection, testing, labeling, product documentation, warranty, and final records.
The job is not finished when the lights come back on
Energization is one milestone. A useful handover proves that the installed system matches the approved scope, required inspection, product instructions, drawings, and circuit information.
Permit and inspection status
Provide the permit number, approved scope, inspection results, correction notices, final sign-off, and any utility release required locally.
Accurate circuit directory
Use durable, specific descriptions that identify the area and function. "Lights" or "plugs" alone is often not enough to find the correct circuit safely.
Product and configuration record
Keep panel and breaker model data, labels, accessory schedule, SPD information, service ratings, approved substitutions, and controlled instructions.
Installation verification
Record the inspections and tests required by the design, equipment instructions, adopted rules, and authority. Correct deficiencies before final acceptance.
As-built changes
Mark retained, rerouted, repaired, abandoned, or new circuits, alternate sources, disconnects, managed loads, and any future reserved capacity.
Owner operating information
Explain normal controls, disconnect locations, warning labels, generator/solar/battery interfaces, reset limits, maintenance path, and emergency contact route.
Warranty and service responsibility
State warranty periods, exclusions, who returns for defects, and who holds product, contractor, inspection, and utility records.
Baseline for future changes
Keep the load assumptions and space plan so a future EV, heat pump, solar, battery, or remodel can be evaluated without starting from guesswork.
Could another qualified person understand the system?
A closeout pack should let a future contractor identify the supply arrangement, panel model, breaker system, alternate sources, circuit purpose, retained wiring, major load assumptions, and unresolved limitations. Clear records reduce unsafe guessing during maintenance and future upgrades.
When a circuit use changes, update both the drawing and the directory through the project's controlled process. A handwritten note that conflicts with the actual installation is a hazard, not documentation.
Send the project conditions, not just "need a panel"
SENTOP supplies low-voltage distribution and protection components for B2B projects. We do not replace a local contractor, utility, engineer, or authority having jurisdiction. A useful BOM review starts with the destination market, system, loads, enclosure, protection strategy, certifications, and required documentation.
Related distribution and protection resources
Use these pages to move from a planning brief to a component-level BOM and evidence request.
Distribution Boxes
Review enclosure and distribution options for project-level low-voltage assemblies.
Branch protectionMiniature Circuit Breakers
Compare product families only after system, circuit, interrupting, and certification requirements are defined.
Residual-current protectionRCCB Options
Match residual-current protection to the destination market, circuit, system, and coordinated design.
Surge protectionSurge Protective Devices
Specify the SPD as part of the complete service or distribution design, not as a stand-alone cure.
Decision guideProtection Selection Guide
Continue from load and fault conditions to a structured protection-component review.
Industry solutionBuildings & Infrastructure
See the wider B2B product and coordination path for building electrical projects.
Target audiencePanel Builders & Switchgear
Follow SENTOP's B2B component and documentation path for panel manufacturing projects.
Project reviewContact SENTOP
Send the destination market, circuit schedule, system data, enclosure, quantities, and evidence needs.
Home panel and wiring replacement FAQ
These answers are U.S.-oriented planning guidance. The adopted local rules, utility, authority having jurisdiction, equipment instructions, and authorized contractor control the actual project.
Can a homeowner replace an electrical panel?
Do not treat panel replacement as a normal DIY project. It can expose energized service conductors, high fault current, and multiple sources. Use an electrical contractor qualified for this work and licensed where local law requires. Permit and owner-builder rules vary by jurisdiction, but authorization does not remove the electrical hazards or utility requirements.
Is the panel safe to work on when the main breaker is off?
No. Supply-side conductors may remain energized, and solar, batteries, generators, or incorrect backfeeds may introduce other sources. The authorized contractor must arrange isolation, control re-energization, and verify the work area according to the applicable procedure.
Does replacing an electrical panel require rewiring the whole home?
Not automatically. Suitable branch circuits may remain after inspection and required verification. Targeted correction may be enough for specific defects. A whole-home rewire should be supported by documented circuit condition, project scope, and applicable requirements rather than age alone.
Does a new panel increase the home's electrical capacity?
Not by itself. Capacity also depends on the service conductors, meter equipment, utility system, transformer, service disconnect, load calculation or approved demand method, and local rules. A larger distribution panel may add spaces without increasing available service capacity.
Can I use any breaker that fits the panel?
No. Use only the breaker types and configurations identified by the exact panel labeling, certification record, and manufacturer instructions. Physical fit does not prove electrical or certification compatibility.
Should neutral and ground be bonded in the main panel?
Bonding depends on the actual service-equipment topology, not the informal name "main panel." The permitted neutral-to-ground connection is normally at the service equipment, while a downstream panel commonly keeps neutral isolated from the enclosure and equipment-grounding system. The exact installed design and local rules control.
When is a service upgrade needed?
Use the method accepted by the local authority to evaluate existing and planned loads, service capacity, equipment, and utility constraints. In some projects, approved load management can avoid or defer a service upgrade; in others, service, meter, conductor, or utility changes are necessary.
Are AFCI, GFCI, and surge protection the same?
No. AFCI protection addresses hazardous arcing, GFCI protection addresses ground-fault shock risk, and an SPD limits certain transient overvoltages. Requirements and retrofit triggers depend on the adopted local rules, circuit use, alteration scope, and equipment compatibility.
What should be included in the final handover?
Keep permit and inspection records, an accurate circuit directory, exact product and breaker data, as-built changes, required test results, utility documents, warranty details, and operating information for alternate sources and major controls.
Safety and equipment evidence used
Standards and local adoption change. Confirm the currently adopted requirements and controlled instructions for the exact project and model.
Define the scope, system, evidence, and handover before the outage
For a B2B component discussion, send SENTOP the destination market, single-line or circuit schedule, system ratings, available fault-current target, enclosure, protection strategy, quantities, and document requirements.
