You use 2-pole and 3-pole circuit breakers to protect different electrical systems. A 2-pole breaker guards two wires or phases, while a 3-pole breaker covers three. You often find 2-pole breakers in homes for devices like water heaters. In contrast, 3-pole breakers serve commercial or industrial equipment that needs three-phase power. Picking the right breaker matters for safety and code compliance. Some brands of breakers fail to trip up to 50% of the time, but most major brands stay below 1%. You should know that even a 4% failure rate can cause real problems in places with many breakers.
- Some breaker brands have failure rates as high as 50% to 60%.
- Major manufacturers usually have failure rates well under 1%.
- Data center testing has shown about a 4% failure rate.
- Some breakers fail at or below 135% of rated current, violating standards.
Key Takeaways
- 2-pole circuit breakers protect two wires. People use them at home for big appliances like water heaters and dryers.
- 3-pole circuit breakers protect three wires in three-phase systems. Factories and large buildings use them for heavy machines.
- Picking the right breaker type and rating is very important for safety. It helps stop fires, shocks, and damage to equipment.
- Always follow safety codes. Have qualified electricians install and test breakers to make sure they work right.
- Check breakers often for signs of problems, like tripping a lot or burning smells. Replace them quickly if you see these signs.
2-Pole Circuit Breakers
What They Are
A 2-pole circuit breaker protects circuits that use 240 volts. It connects to two wires in the electrical panel. This breaker can handle more voltage and current than a single-pole breaker. You see 2-pole and 3-pole circuit breakers where big appliances need power. The 2-pole breaker is special because it can turn off both wires at once. This helps keep people safe during repairs or emergencies.
Here is a table that shows how 2-pole circuit breakers compare to other types:
| Characteristic | 2-Pole Circuit Breaker | Other Types (Single Pole, Tandem) |
|---|---|---|
| Voltage Rating | Designed for 240 volts | Single Pole: 120 volts; Tandem: 120 volts |
| Application | Protects 240V equipment | Protects 120V lighting and receptacle circuits |
| Number of Poles | Two poles, can isolate loads | Single pole: one; Tandem: two singles in one slot |
| Performance | Handles higher voltage and current loads | Lower voltage and current |
| Usage in Energy Storage | Common between inverters and batteries | N/A |
| Trip Function | Trips on overcurrent, short circuit, ground faults | Similar, but lower capacity |
| Positions | On, Trip, Off | Same |
How They Work
A 2-pole circuit breaker has a special way to keep things safe. When you use a big appliance, the breaker lets power flow through both wires. If too much current goes through, the breaker uses a thermal-magnetic trip system. The thermal part has a metal strip that bends when it gets hot. The magnetic part acts fast if there is a short circuit. If either part finds a problem, the breaker shuts off both wires at once. This stops power from reaching the appliance and helps prevent fires or damage.
Tip: A 2-pole breaker always turns off both wires together. This means you will not have one wire still live when the breaker is off.
Common Uses
You find 2-pole circuit breakers in homes and small businesses. They protect circuits for big appliances that need more power. Here are some common uses:
- Electric ranges, ovens, and dryers
- Water heaters
- Central air conditioning units and heat pumps
- Electric furnaces
- Subpanels that send power to other parts of a building
Most of these devices use 240 volts and need more current than lights or small outlets. You also see 2-pole breakers in energy storage systems, like between inverters and batteries. These breakers help you follow safety rules and lower the risk of shock or fire.
3-Pole Circuit Breakers
What They Are
A 3-pole circuit breaker protects three-phase electrical systems. It connects to three wires, and each wire carries a phase. You see these breakers in places that use lots of power. Factories and big buildings often use them. These breakers are made for tough jobs and keep things safe.
- You can use them for both AC and DC power.
- They adjust to temperature changes to work better.
- You can test and check the breaker’s health easily.
- They have safety features to find ground faults and arc faults.
- You can watch them from far away, and they have extra safety locks.
Here is a table with important details:
| Feature | Specification / Description |
|---|---|
| Poles | 3 poles for three-phase electrical systems |

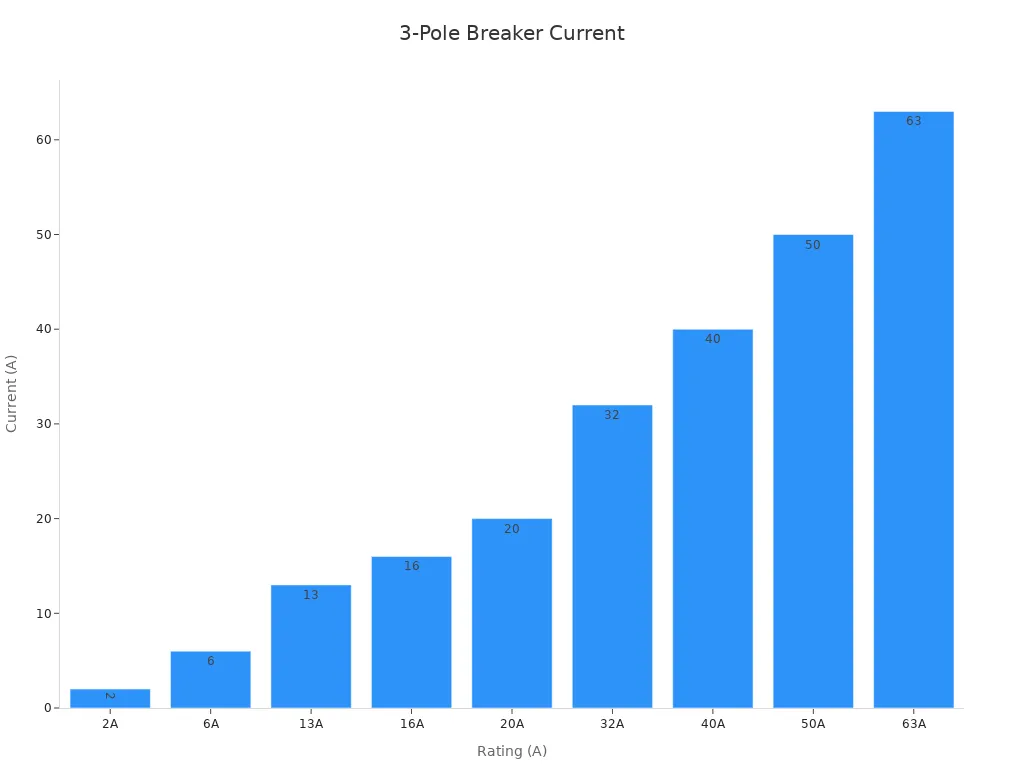

| Current Ratings | 2A, 6A, 13A, 16A, 20A, 32A, 40A, 50A, 63A |
| Short-Circuit Breaking Capacity | 6kA (lower ratings), up to 10kA (63A breakers) |
| Rated Operational Voltage | 230/400V AC |
| Trip Units | Thermal and magnetic trip units per pole |
| Trip Characteristic Curve | C curve (common for many uses) |
| Standards Compliance | Meets IEC standards |
| Mounting | Standard rail mounting |
| Applications | Industrial, commercial, residential three-phase systems |
How They Work
A 3-pole circuit breaker keeps each phase safe in a system. When you turn on a machine, power goes through all three wires. If too much current flows, the breaker senses it. The thermal part reacts to slow overloads. The magnetic part acts fast if there is a short circuit. If either part finds a problem, the breaker shuts off all three wires. This keeps your equipment and wires safe from harm.
Modern 3-pole breakers can check themselves for problems. They warn you before something goes wrong. Some breakers let you watch them from a control room. Monitors show how fast the breaker trips and if it needs fixing. This helps your system work well, even when it is busy.
Note: You should test your breaker and set it up right. Many breakers stay at factory settings, which can be unsafe. Always make sure your breaker fits your system.
Common Uses
You see 3-pole circuit breakers where three-phase power is needed. They are used most in factories and big businesses. They control large motors and heavy machines. You also find them in big offices, hospitals, and data centers.
- Power panels in factories
- Big air conditioning and heating systems
- Elevators and escalators
- Pumps and compressors
- Backup generators and transfer switches
Most factories use 3-pole breakers more than 4-pole ones. They work well for most power needs. Their strong safety features make them important in modern electrical systems. When you look at 2-pole and 3-pole breakers, you see 3-pole ones are needed for big jobs and three-phase power.
2-Pole and 3-Pole Circuit Breakers: Key Differences
Function and Application
You use 2-pole and 3-pole circuit breakers in different types of electrical systems. A 2-pole breaker works best in single-phase systems, like those found in most homes. It connects to two hot wires and a neutral, giving you 240 volts for large appliances. For example, you might see a 2-pole 125A breaker used for a 29 kW tankless water heater. Sometimes, a similar device may use three smaller 40A breakers, depending on the manufacturer and the space in your panel. This shows how the number of poles and the breaker size can change based on your needs and the equipment you install.
A 3-pole breaker is made for three-phase systems. You find these in factories, big offices, and commercial buildings. It connects to three hot wires and a neutral. This setup gives you balanced power for heavy machines and large motors. When you use a 3-pole breaker, you protect all three lines at once. This is important for equipment that needs steady, reliable power.
Here is a quick comparison:
| Feature | 2-Pole Circuit Breaker | 3-Pole Circuit Breaker |
|---|---|---|
| System Type | Single-phase (120/240V) | Three-phase (208/240/480V) |
| Typical Use | Homes, small businesses | Factories, large buildings |
| Wires Protected | Two hot wires + neutral | Three hot wires + neutral |
| Common Loads | Water heaters, ovens, dryers | Motors, pumps, HVAC, elevators |
| Panel Space | Uses two slots | Uses three slots |
- 2-pole breakers control two circuits at once and are common for home appliances.
- 3-pole breakers manage three-phase power, which is needed for big machines and balanced loads.
Tip: Always check your system type before choosing between 2-pole and 3-pole circuit breakers. Using the wrong type can lead to poor performance or even damage your equipment.
Safety and Compliance
You must follow strict rules when you install 2-pole and 3-pole circuit breakers. Each breaker has a voltage rating. You need to match this rating to your system. For example, a 2-pole breaker usually has a 240V rating, while a 3-pole breaker can handle higher voltages, like 480V. If you use a breaker with the wrong rating, you risk fires, shocks, or equipment failure.
Here are some key safety and compliance points:
- Circuit breakers come in low, medium, and high-voltage types. You must pick the right one for your system.
- The breaker’s current rating must match your equipment. If it is too high, it may not trip when needed. If it is too low, it may trip too often.
- The breaker’s interrupting capacity must be equal to or greater than the highest fault current in your system. This keeps your system safe during a short circuit.
- All breakers should meet standards like IEC 60947-2 or UL. These standards make sure the breaker is safe and reliable.
- Breakers must have clear markings for voltage, amperage, and wiring instructions. This helps you install them correctly and avoid mistakes.
- Some breakers have extra features, like remote monitoring or predictive maintenance. These features help you spot problems early and keep your system running safely.
Note: A real-world safety incident showed how a loose terminal on a new 800-amp breaker almost caused a $2.3 million loss. Proper installation and testing can prevent disasters like this.
You also need to know about pole operation. Some 2-pole breakers have separate mechanisms for each pole. If one pole fails to trip, you can get unbalanced currents and system problems. In contrast, 3-pole breakers use a single mechanism for all three poles. This design makes sure all lines disconnect at the same time, which keeps your system balanced and safe.
When you follow the right codes and use the correct breaker, you protect your property and everyone who uses the electrical system. The National Electrical Code (NEC) sets the rules for safe installation. Always follow these rules and have a qualified electrician check your work.
Choosing the Right Breaker
Assessing Your Needs
You should first learn about your electrical system. The best circuit breaker depends on where you use it. Homes, offices, and factories all need different things. Here is a simple guide to help you pick:
- Find out if your system is for a home, business, or factory.
- Look at the voltage and current your equipment needs.
- Add up the power used by all devices on the circuit.
- Divide the total power by the voltage to get the current.
- Remember that devices use more power when they start.
- Pick the right breaker type, like miniature or molded case.
- Choose the right trip curve. Type B is for homes, Type C is for businesses, and Type D is for big machines.
- Think about the environment. High heat or wet air can change how breakers work.
- Make sure the breaker follows rules like NEC, UL, or IEC.
- Add a little extra to stop the breaker from tripping too soon.
- Check the size and how the breaker fits in your panel.
- Plan for more devices in the future.
- Ask an expert if you do not know what to do.
- Test the breaker after you put it in.
Tip: Always make sure the breaker can handle the biggest fault current in your system. This keeps your system safe if there is a short circuit.
Safety and Code Tips
You must follow safety rules and local codes when you put in 2-pole and 3-pole circuit breakers. Breakers with UL 489 certification meet tough safety and performance rules. This means the breaker can handle the loads and problems it might face. The National Electrical Code (NEC) gives the main rules, and many places use these rules too.
- Never use a breaker with a lower voltage or current rating than your system needs.
- Always use breakers that fit your panel and have the right number of poles.
- Check your system often and upgrade it to keep it safe.
- Do not skip breakers or fuses. This can cause fires or shocks.
- Teach anyone working with breakers about safety and code rules.
- Use lockout/tagout steps before working on any circuit.
| Breaker Type | Voltage Rating | Typical Use |
|---|---|---|
| MCB | Up to 500V | Homes, small offices |
| MCCB | Up to 1kV | Businesses, factories |
| ACB | Up to 1kV | Large buildings |
Note: Hiring a licensed electrician makes sure your work follows all local codes and passes inspection. This keeps your property and everyone using the system safe.
You have learned that 2-pole and 3-pole circuit breakers protect different places. 2-pole breakers are good for homes and small shops. 3-pole breakers are used in big buildings and factories. Picking the right breaker keeps your system safe and working well.
- Selective coordination means only the closest breaker trips. This helps stop big outages and makes repairs faster.
- Choosing the right breaker lowers the chance of blackouts and arc-flash dangers.
| Consideration | Description |
|---|---|
| Current Rating | Must be as high or higher than the biggest load |
| Breaking Capacity | Must stop the largest fault current |
| Operating Voltage | Must match your system’s voltage |
| Environment | Must work with the temperature and humidity |
Tip: Always look at your system’s needs before you pick a 2-pole or 3-pole circuit breaker. Careful picking and checking often help stop problems and keep everyone safe.
FAQ
What does a 2-pole circuit breaker protect?
You use a 2-pole circuit breaker to protect circuits that need 240 volts. It guards two hot wires at the same time. This breaker keeps large appliances, like water heaters and dryers, safe from overloads and short circuits.
What makes a 3-pole circuit breaker different from a 2-pole?
A 3-pole circuit breaker protects three-phase systems. You use it for heavy equipment and large motors. It connects to three wires and trips all at once if there is a problem. This keeps your machines and wiring safe.
What happens if you use the wrong type of breaker?
If you use the wrong breaker, you risk fires, shocks, or equipment damage. The breaker may not trip when needed. Always match the breaker type to your system and follow safety codes.
What should you check before choosing a circuit breaker?
You should check your system’s voltage, current needs, and the number of phases. Make sure the breaker fits your panel and meets local codes. Ask an electrician if you are unsure.
What are the signs that a circuit breaker needs replacing?
- The breaker trips often.
- You see burn marks or smell burning.
- The breaker feels hot.
- You hear buzzing sounds.
If you notice these signs, replace the breaker right away.
