How to Select High Current Terminal Blocks: 9 Checks
Do not select a high current terminal block by its headline ampere value alone. Approve the exact part with the real load, conductor, ambient temperature, voltage and insulation conditions, fault duty, mounting, installation process, and approval or conformity evidence. There is no universal 125% or 150% terminal-block rule.
Current needs conditionsConductor, ambient, grouping, enclosure, and duty affect the result.
Voltage is more than one numberCheck working voltage, impulse, pollution, creepage, and clearance.
Fit is not approvalA cable that enters the opening may still be the wrong class or preparation.
Fault evidence must match the systemUL SCCR and IEC short-time withstand are not interchangeable labels.

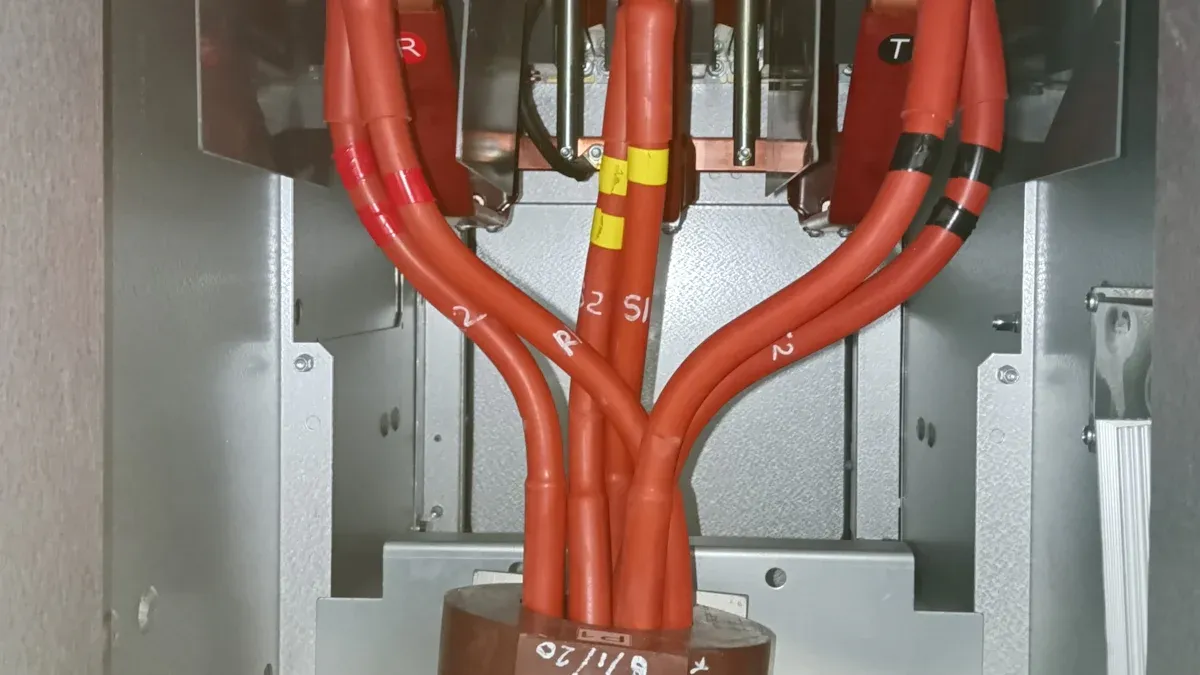

Background photo, cropped and darkened: ToT89 / Wikimedia Commons, CC BY-SA 4.0. The image shows a high-current busbar path, not a terminal-block rating.
Quick decision
Pass all six gates before comparing price
This block is self-contained and stays in normal page flow. It does not overlap the hero or the article navigation.
Confirm the thermal path
Check the exact rated-current conditions, conductor size, enclosure temperature, adjacent heat, and any curve or test.
Match the complete conductor
Confirm metal, class, cross-section, number per clamp, and bare, ferruled, or lugged preparation.
Coordinate voltage and spacing
Review working and impulse voltage, overvoltage category, pollution degree, altitude, creepage, and clearance.
Verify short-circuit duty
Match documented SCCR or short-time withstand evidence to the end equipment and available fault current.
Approve exact-part documents
Use a current datasheet, drawing, approval record, installation instruction, accessories, and change-control plan.
Direct answer
High current is a complete connection problem
The rated current on a datasheet belongs to a tested component under stated conditions. Your installed connection also includes the conductor, preparation, clamp or lug, bridge, mounting rail or plate, neighboring devices, enclosure, protection, and workmanship.
This high current terminal block selection method uses manufacturer derating data, such as current-versus-ambient curves, instead of a fixed percentage. Start with the circuit design current. Then check that the terminal's applicable documented rating is not exceeded under the actual conductor and thermal conditions. If the maker does not provide enough data for the hot enclosure, pole loading, or conductor arrangement, request written confirmation or choose a better-documented part.
Confirm the product category first: UL 1059 covers terminal-block assemblies but excludes certain field-installed power distribution blocks, which UL evaluates under Subject 1953. Mechanical wire connectors may instead be evaluated under UL 486A-486B. Do not transfer ratings, conductor rules, or SCCR assumptions from one product category to another.
Never create a universal safety margin.
Apply a 125% or other factor only when the governing code, end-equipment rule, or exact manufacturer instruction requires it. The source draft's 150% rule has been removed.
Selection map
Nine checks for an auditable decision
Use the sequence below for every candidate part. A failure at one gate means the product is not yet approved.
Load profile
Define continuous load, normal peaks, startup or inrush, phase balance, harmonics, and future design changes.
Output: documented design currentThermal conditions
Combine ambient, current heating, wire size, enclosure, grouping, nearby devices, ventilation, and duty.
Output: acceptable installed temperatureConductor matrix
Match copper or approved aluminum, rigid or flexible class, AWG/mm², preparation, and conductors per point.
Output: exact accepted conductorVoltage and spacing
Check operating and impulse voltage, overvoltage category, pollution degree, altitude, creepage, and clearance.
Output: coordinated insulation designConnection method
Compare screw, bolt, spring, or direct insertion by exact test data, work steps, wire access, and tooling.
Output: controlled termination processMounting and layout
Confirm rail or plate load, end supports, cable bend radius, wiring duct, finger and tool access, and covers.
Output: usable installed envelopeFault duty
Separate UL SCCR from IEC short-time withstand. Coordinate the correct evidence with protection and fault current.
Output: end-equipment fault reviewEnvironment
Check enclosure IP, temperature, humidity, condensation, chemicals, corrosion, vibration, shock, and altitude.
Output: qualified service conditionsDocuments and supply
Verify exact-SKU approval, instructions, accessories, inspection, traceability, lifecycle, and change notice.
Output: controlled BOM evidence packChecks 01–02 · current and heat
The ampere value is not a free-standing limit
A terminal block heats through electrical resistance. The conductor, clamp, bridge, and contact transitions all contribute. Higher enclosure temperature leaves less thermal margin. Smaller conductors, loaded adjacent poles, nearby breakers or drives, and poor airflow can also change the installed result.
IEC 60947-7-1 and UL 1059 use different temperature-rise test arrangements. Manufacturer summaries describe a 45 K limit under the IEC terminal-block test and a 30 K limit under the UL 1059 test. These are controlled test limits. They are not permission to add 45°C or 30°C to any field temperature.
- Record the actual enclosure temperature near the connection, not only the room temperature.
- Use the exact manufacturer's current-versus-temperature data when it exists, especially for pluggable products.
- Check bridge or jumper current separately. A base block rating does not automatically rate every accessory.
- Plan a documented engineering temperature-rise validation under the applicable end-equipment standard when the cabinet is dense, the duty is unusual, or supplier data are incomplete. This validation does not replace required component or panel certification.
Technical background: Weidmüller electrical testing and Phoenix Contact terminal-block tests.
Check 03 · conductor fit
“It fits in the opening” is not an acceptance rule
A high-current block may list different ranges for rigid copper, flexible copper, fine-stranded conductor, ferrules with or without collars, and cable lugs. The maximum accepted size can fall when a ferrule is added. The strip length, crimp barrel, lug palm, stud size, and conductor class must all match the exact connection.
Copper and aluminum are not interchangeable by default. IEC 60947-7-1:2025 primarily covers copper conductors. Use aluminum only when the exact product is marked and documented for AL/CU use, with the required preparation, torque, and conditions.
- Do not place two conductors in one clamp unless the data and approval state the number, type, size, and preparation.
- A terminal that accepts two conductors does not by itself approve parallel operation. Separately verify the wiring rules for size, length, material, insulation, termination, ampacity, and protection.
- Do not put dissimilar conductor metals in physical contact within one clamp unless the exact device is identified for that combination and its stated conditions.
- Do not assume a ferrule is required for every flexible conductor. Follow the product's conductor table.
- For stud or bolt connections, approve the cable, lug, die, crimp profile, stud, washers, and tightening method as one system.
- Choose the cable first under the applicable wiring rules. Then confirm that the terminal accepts it and carries the required current.
For general conversion help, use the AWG and mm² wire sizing guide. Do not use conversion alone as proof of fit.

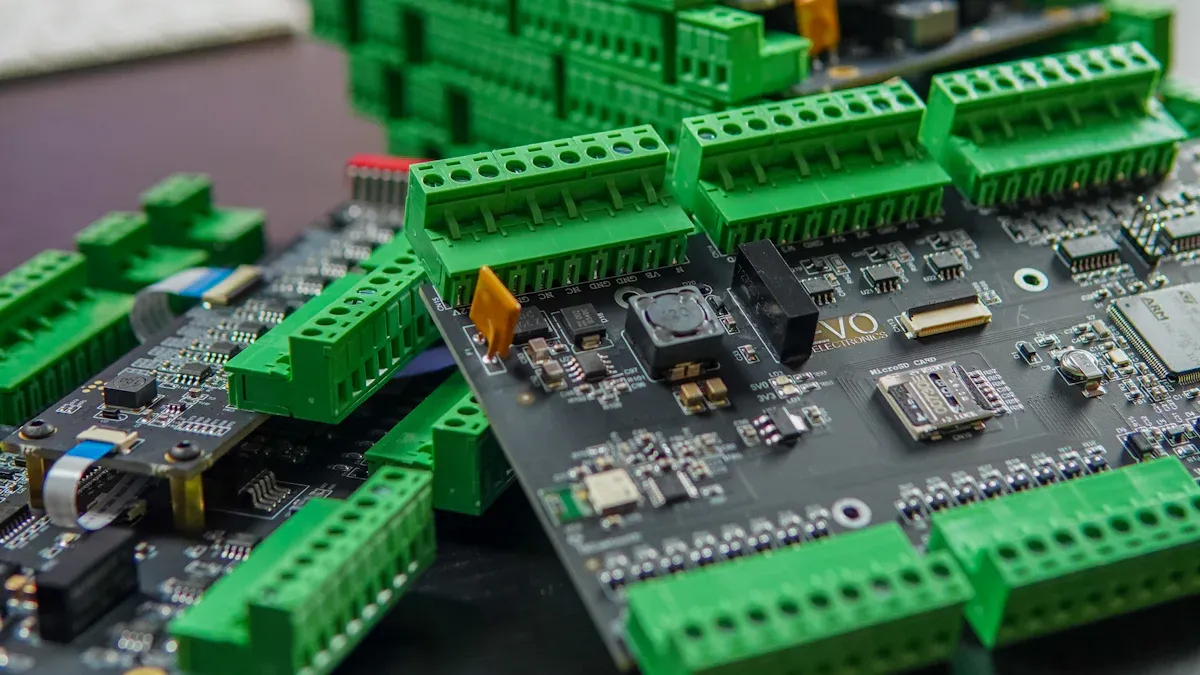

Checks 04–06 · insulation and mechanics
Coordinate the voltage, termination, and installed geometry
High current does not automatically mean high voltage. Each part of the decision needs its own evidence.
Look beyond “1000 V”
Review rated operating or insulation voltage, impulse withstand, overvoltage category, pollution degree, altitude, creepage, clearance, and the end-equipment standard.
- Do not blame a low voltage rating for creating a surge.
- Use insulation coordination for the real micro-environment.
- Check covers and barriers in the tested arrangement.
Control torque and interfaces
These methods can handle large conductors when the exact product is designed and tested for them. Torque, strip length or lug stack, tool access, and washer instructions are part-specific.
- Use a specified, controlled torque tool.
- Do not invent a universal re-tightening schedule.
- Do not add lubricant unless instructed.
Do not assume “small wire only”
Official high-current spring and direct-insertion families reach large conductor sizes. Suitability still depends on the exact wire class, preparation, actuation method, and test evidence.
- Check insertion and removal access.
- Validate difficult-to-bend cables.
- Review vibration evidence for the exact assembly.
Support the mass and cable force
Large cables place force on terminals, rails, end brackets, and mounting plates. The complete layout must support weight, bend radius, pull, fault forces, cooling, covers, and service work.
- Use the specified rail and end supports.
- Provide strain relief and cable support.
- Leave safe finger and tool clearance.
Insulation coordination reference: IEC 60664-1:2020. High-current connection examples: WAGO POWER CAGE CLAMP and Phoenix Contact PTPOWER 185. These examples are not SENTOP ratings.
Checks 07–08 · fault and environment
Separate five different safety questions
UL 508A panel SCCR: For a UL 508A industrial control panel, use the terminal block's marked or documented SCCR, or the applicable default value permitted by Supplement SB, in the panel SCCR determination. The completed panel SCCR must be equal to or greater than the available fault current at the installation point. Do not apply a UL 508A default outside that method.
IEC short-time withstand: A tested short-time current value is not automatically the same as a UL SCCR. Keep the standard, duration, conductor, protection, and assembly conditions with the value.
Ingress protection: IEC 60529 IP ratings describe protection provided by enclosures. An open DIN-rail terminal usually relies on its cabinet or junction box for dust and water protection.
Touch and fire behavior: Finger protection, UL 94 classification, glow-wire results, and enclosure fire performance answer different questions. Do not call a terminal block fireproof.
Compliance terms: IEC 60947-7-1 is a product standard, not a certification mark. UL Listed and UL Recognized are different certification statuses. For a Recognized Component, review the certification record and Conditions of Acceptability. CE marking is an EU conformity marking, not a UL Listing. Verify the exact catalog number, ratings, use group, and destination-market evidence.
Environment input sheet
Conditions to put in the RFQ
Thermal
Minimum/maximum ambient, enclosure hot spot, duty, neighboring heat, ventilation, and altitude.
Mechanical
Vibration/shock profile, conductor support, bend radius, rail/plate, pull, and service access.
Contamination
Pollution degree, condensation, dust, salt, sulfur, oil, cleaning chemicals, and UV where relevant.
Market
Destination, end-product standard, exact approval, touch protection, material declarations, and file numbers.
Engineering selection table
What to calculate, confirm, and request as proof
Use the same sheet for every candidate. This prevents a headline rating from hiding missing evidence.
| Check | Your project input | Terminal-block requirement | Evidence to keep |
|---|---|---|---|
| 1. Load | Normal, continuous, peak, inrush, phase balance, harmonics, duty. | Applicable documented rating not exceeded under the actual use conditions. | Load calculation and protection basis. |
| 2. Heat | Cabinet ambient, nearby losses, grouping, ventilation, conductor. | Acceptable temperature rise and total part temperature. | Curve, test report, or written maker confirmation. |
| 3. Conductor | Cu/Al, class, AWG/mm², insulation, ferrule/lug, quantity. | Exact accepted conductor matrix and preparation. | Datasheet plus application instruction. |
| 4. Voltage | AC/DC, working and impulse voltage, category, pollution, altitude. | Correct ratings, creepage, clearance, and tested arrangement. | Drawing and approval data for the use group. |
| 5. Connection | Screw, bolt, spring, direct insertion; access and production method. | Repeatable process for the exact wire and operator/tooling plan. | Strip/torque/actuation instruction and sample record. |
| 6. Mounting | Rail/plate, end support, cable mass, bend radius, covers, duct. | Stable assembly with space to wire, inspect, cool, and service. | Dimensioned layout, CAD, accessory BOM, and sample. |
| 7. Fault duty | Available fault current, protection, end-equipment method. | Correct SCCR or short-time withstand within its own standard. | File, test data, protection details, and panel calculation. |
| 8. Environment | Temperature, moisture, chemicals, dust, vibration, shock, altitude. | Qualified product plus suitable enclosure and accessories. | Environmental tests and enclosure evidence. |
| 9. Supply proof | Market, volume, packaging, marking, traceability, PCN needs. | Exact model, revisions, approvals, stable accessories and lifecycle. | Controlled BOM, CoC, declarations, inspection, and change terms. |
Installation safety boundary
Qualified personnel, de-energized work, exact instructions
High-current work can expose personnel to shock, arc-flash, stored-energy, and mechanical hazards. Follow the employer's electrical safety program and applicable rules. Before exposed work, disconnect all sources, lock and tag as required, release stored energy, and use suitable test equipment to verify absence of voltage.
Do not tighten or clean an exposed energized connection. Energized diagnostic work is permitted only when the governing rules and the employer's authorized electrical-safety procedure allow it, and only by qualified persons using the required shock and arc-flash controls.
01 · PREPAREVerify the exact wire, strip length, lug or ferrule, crimp tool, die, and connection point.
02 · TERMINATEInsert or assemble exactly as instructed. Use the specified torque or actuation method.
03 · INSPECTCheck full insertion, strand damage, lug orientation, clearance, covers, labels, and cable support.
04 · RECORDKeep tool status, torque or crimp checks, inspector, lot, part revision, and deviations.
05 · COMMISSIONConfirm phase/circuit identity, protection, resistance or thermal checks in the approved test plan.
06 · MAINTAINFollow the product and equipment plan. Do not invent routine re-torque or compressed-air cleaning.
Work-practice reference: OSHA 29 CFR 1910.333. Apply the rules that govern the actual jurisdiction and workplace.
If a connection runs hot
Stop, make safe, then find the cause
A hot terminal does not prove that the block's ampere rating is too low. The cause may be overload, unequal phase loading, an undersized conductor, poor insertion, wrong preparation, damaged strands, incorrect torque or crimp, corrosion, a loose accessory, nearby heat, or inadequate cooling.
If abnormal heating is suspected, stop the equipment under the site procedure. Before any exposed inspection, disconnect all sources, lock and tag as required, release stored energy, verify absence of voltage with suitable test equipment, and allow the assembly to cool. Any energized load measurement or thermographic survey must be covered by the employer's authorized electrical-safety procedure. Only qualified persons using the required shock and arc-flash controls may perform it. Review the measured load, conductor, installation record, protection, product data, and comparable phases or connections before assigning a cause. Replace damaged parts as the manufacturer directs.
- Do not solve overheating by tightening beyond the specified torque.
- Do not reuse a heat-damaged block, lug, ferrule, or conductor end without approval.
- Do not use thermal imaging alone to name the cause.
- Escalate repeated heating to an engineering review of the complete current path.
For deeper diagnosis, see terminal-block overheating causes and terminal-block fault diagnosis.
High-current RFQ checklist
Send the full connection requirement
A useful quote needs more than amperes. Send the drawing, one-line diagram, conductor and application conditions. SENTOP can review the product family, mounting, accessories, documents, quantity, and packaging for a project match. For repeat or custom programs, include your OEM/ODM and project support needs.
01 · CircuitDesign current, duty, peaks/inrush, AC/DC, voltage, frequency, phases, protection, and available fault current.
02 · ConductorCu/Al, AWG/mm², class, insulation, bare/ferrule/lug, number per point, and cable outside diameter.
03 · LayoutRail or panel, pole count, dimensions, cable direction, bend space, supports, covers, bridges, markers, and duct.
04 · EnvironmentAmbient, enclosure, altitude, pollution, condensation, dust, chemicals, corrosion, vibration, shock, and IP need.
05 · ComplianceDestination market, end-equipment standard, exact approval, SCCR/withstand evidence, RoHS/REACH, CoC, and traceability.
06 · SupplyQuantity, annual demand, samples, delivery window, labeling, packaging, spare parts, alternates, and PCN terms.
Selection FAQ
High current terminal block questions
Short answers for engineers and buyers preparing a model review.
One rule covers every answer
Use the exact product's data under the real project conditions. Category names and opening size are not enough.
Should a terminal block be rated at 150% of the load?
No universal 150% terminal-block rule exists. Calculate the design current under the applicable code and equipment rules. Then confirm that the exact terminal block rating is not exceeded under the actual conductor, ambient, grouping, enclosure, and duty conditions. Apply a separate factor only when the governing requirement says to do so.
What makes a terminal block “high current”?
“High current” is a product-category description, not one standard threshold. The exact current depends on the connection design, conductor, test standard, thermal conditions, accessories, and mounting. Compare complete ratings and conditions rather than the category name.
Can I use a smaller wire if the terminal block has a high ampere rating?
Not automatically. The wire must be sized under the applicable wiring rules, and the terminal must accept that exact conductor type and size. The usable current is limited by the wire, terminal, environment, protection, and end equipment—not by the largest number on one component.
Can one high current terminal accept two conductors?
Only when the exact datasheet and approval permit that conductor count, material, class, size, and preparation in the same clamping point. Do not double-lug or force two conductors into a point based on physical fit.
Can I connect aluminum cable to any high current block?
No. Use aluminum only with a terminal clearly marked and documented for AL/CU or aluminum use. Follow its conductor class, preparation, inhibitor if specified, strip length, torque, and inspection instructions. IEC 60947-7-1's main scope is copper conductors.
Are spring terminal blocks better for vibration?
Some spring systems have strong vibration evidence, but the category name is not proof for every product. Screw and bolt systems can also be qualified for demanding vibration. Compare the exact assembled connection under the required vibration and shock profile.
Is SCCR the same as IEC short-time withstand current?
No. SCCR and IEC short-time withstand belong to different rating and test frameworks. For a UL 508A industrial control panel, use the terminal block value permitted by Supplement SB in the panel SCCR determination, and ensure the completed panel SCCR is at least the available fault current at the installation point. Keep IEC withstand data with its standard, duration, conductor, protection, and assembly conditions; do not substitute it for UL SCCR without an accepted method.
What should I do when a high current terminal overheats?
Follow the electrical safety procedure: de-energize, lock/tag as required, verify absence of voltage, and allow cooling before exposed inspection. Check the measured load, conductor, preparation, torque or crimp record, corrosion, accessories, nearby heat, and cooling. Replace damaged parts as the manufacturer directs.
Technical sources
Standards and official product evidence
Standard scopes and named products illustrate the selection method. A value for one product must not be copied to another.
IEC 60947-7-1:2025Industrial terminal blocks for round copper conductors within its stated scope.
UL 1059, Edition 6Terminal-block assemblies up to 1500 V; end-product suitability still requires evaluation.
UL · Determining machinery SCCRUL 508A Supplement SB component values and comparison with available fault current.
UL connector certification servicesEvaluation routes and standard families for terminal blocks and wire connectors.
IEC 60664-1:2020Low-voltage insulation-coordination principles, creepage, clearance, altitude, and tests.
IEC 60529 IP CodeDegrees of protection provided by electrical enclosures.
Phoenix Contact electrical testsManufacturer summary of IEC and UL temperature-rise test arrangements.
Weidmüller electrical testingVoltage drop, temperature rise, and current-versus-ambient curve context.
Phoenix Contact UBAL 95Exact AL/CU example showing different conductor conditions and rating bases.
Phoenix Contact UKH 70Exact example showing torque, strip length, and separate one- and two-conductor ranges.
WAGO high-current terminal blocksOfficial spring-pressure examples for large conductors and two mounting approaches.
OSHA 29 CFR 1910.333Electrical work practices, lockout/tagout, and verification of de-energized condition.
Match the complete high-current connection, not one ampere number
Share the circuit, conductor, environment, drawing, protection, destination market, quantity, and document needs. SENTOP can review a suitable terminal-block family and project supply path.
