What Is a Cold Press Terminal and How Does It Work?
A cold press terminal is a solderless electrical terminal attached to a conductor by controlled mechanical crimping. The tool permanently forms the terminal barrel around the wire so the connection can provide a stable electrical path and mechanical retention—without melting solder.
Reliable does not mean universal. The terminal, wire, tool, die and acceptance criteria must belong to one documented application system. Color, barrel fit or tool tonnage alone cannot prove a good crimp.
What is a cold press terminal in plain language?
“Cold press terminal” is a common commercial term, especially in international product catalogs. Standards and manufacturer documents more often say crimp terminal, solderless terminal, terminal lug, crimp contact or splice. Those terms overlap, but they are not automatically interchangeable: the products in a cold pressed terminal range can include pre-insulated ring terminals, open-barrel contacts, wire-end ferrules and splices that require different tools, crimp profiles and standards.
The word cold means the joint is formed at approximately ambient temperature rather than by melting a filler metal. High local pressure and controlled deformation bring conductor strands and the barrel into intimate contact. Some manufacturer literature describes a properly made connection as gas-tight or as having cold-welded contact regions, but that description applies to a qualified crimp geometry—not to every squeezed barrel.
IEC 60352-2:2024 covers general requirements, test methods and practical guidance for specified solderless crimped connections used in electrical and electronic equipment. Its scope and test framework do not turn unrelated terminals, wires and tools into an approved combination. The product drawing and application specification remain the working instructions.
- A terminal that accepts the stripped wire is not necessarily the correct terminal for that conductor.
- A ratchet or hydraulic tool is not sufficient evidence unless its die, cavity and setup are specified for the terminal.
- A visually neat crimp can still have the wrong compression, wire position or material combination.

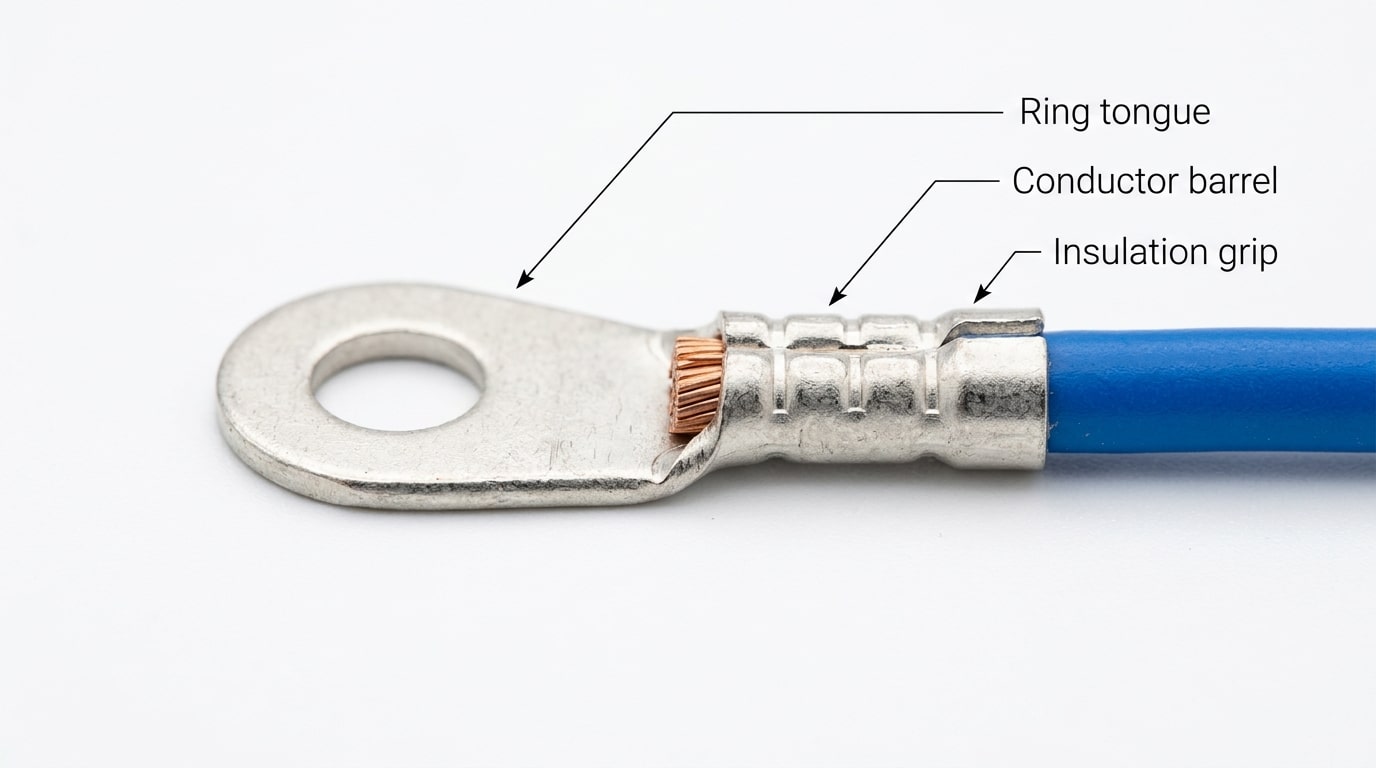

Three zones do three different jobs
Learning the zones prevents the two most common placement errors: insulation inside the conductor crimp and bare strands in the insulation support.
Contact interface
The ring, fork, blade, receptacle, pin or other mating feature connects the terminated wire to a stud, screw, tab, housing or equipment interface. Its geometry and rating must match that interface.
Conductor barrel
This is the electrical and primary mechanical crimp zone. The bare conductor must occupy the position defined by the drawing, and the die must form the specified crimp profile and dimensions.
Insulation support
Where present, a second barrel or sleeve grips the insulation to provide strain relief. TE notes that this zone is not the electrical connection and requires a less aggressive crimp than the conductor barrel.
During crimping, the die changes the cross-section of the barrel and conductor bundle. The strands compact and deform, surface films are disrupted at many contact points, and the barrel maintains pressure around the conductor. The resulting geometry can provide stable electrical and mechanical performance when the correct materials and compression are used.
Too little compression can leave voids, movement and high resistance. Too much compression can cause excessive flash, cracks, damaged strands or loss of conductor area. This is why “crimp as hard as possible” is not a process specification. Crimp height, width, profile, wire position and tool condition are controlled attributes.
Molex describes conductor crimp height as a non-destructive process-control measurement that balances electrical and mechanical performance across the intended wire and terminal range. TE’s crimp-quality guidance likewise shows that wire size, terminal choice, applicator adjustment and tool wear change the finished cross-section.

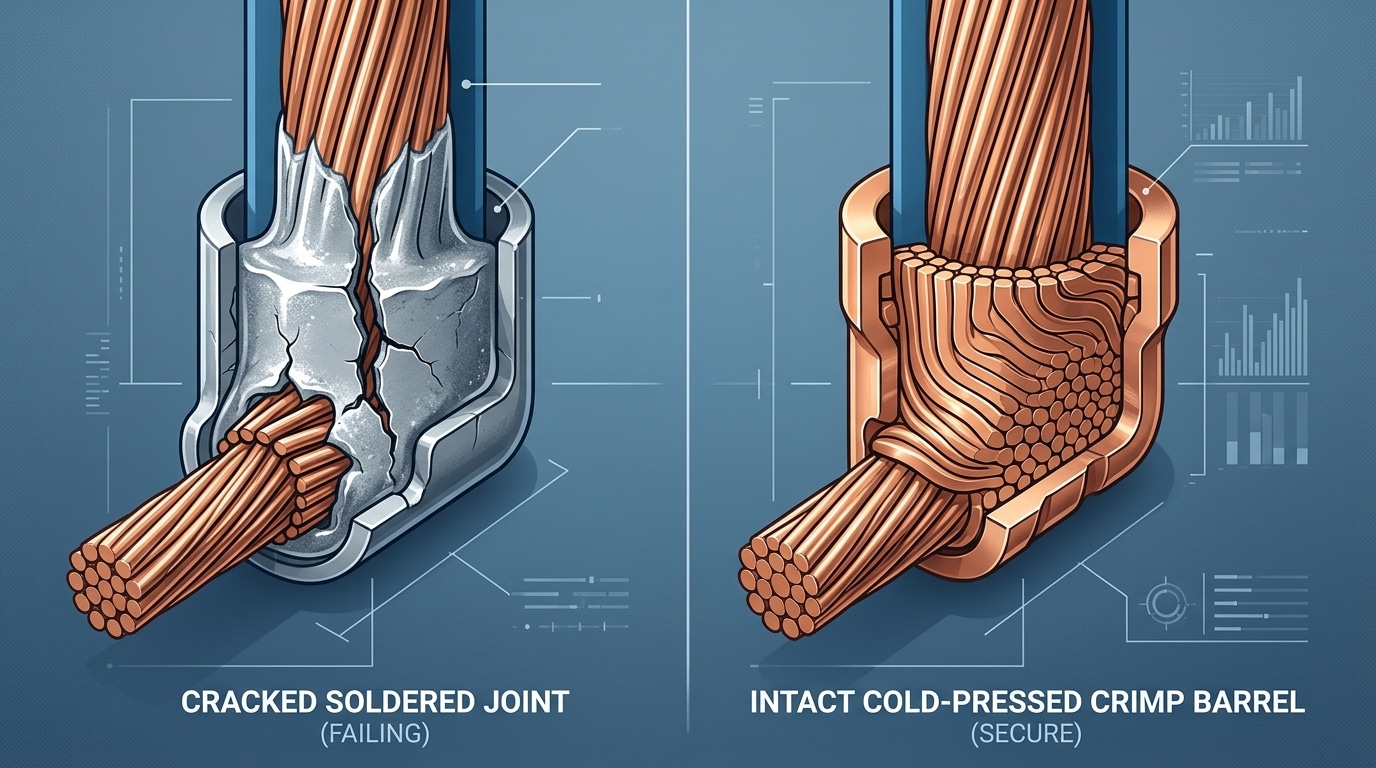

Cold press, solder and screw connections solve different problems
There is no universal winner. Select the connection system specified for the equipment, environment, service model and applicable standard.
| Method | How the connection is formed | Main strengths | Main controls and limits |
|---|---|---|---|
| Cold press / crimp | A terminal barrel is permanently formed around the conductor with specified tooling. | Fast, repeatable and suitable for high-volume harness work; no soldering heat or flux is introduced. | Requires a matched terminal-wire-tool system, controlled setup and inspection. Repair normally means cutting off and replacing the terminal. |
| Soldered connection | Molten solder wets approved surfaces and solidifies to form the joint. | Useful in many electronic assemblies and component terminations when the design and workmanship standard call for soldering. | Heat, cleanliness, wetting and strain relief must be controlled. Solder wicking can stiffen stranded wire, so flexing and support need careful design. |
| Screw or clamp terminal | A screw, spring or pressure plate clamps a prepared conductor or compatible ferrule. | Often field-serviceable and requires no terminal on wire types the device accepts directly. | Follow the device’s conductor, preparation and torque instructions. Ferrules are not automatically required or permitted for every clamp design. |
Do not use generic installation-time, current or service-life numbers to compare these methods. The rating and durability come from the specific connection design and its verified conditions.

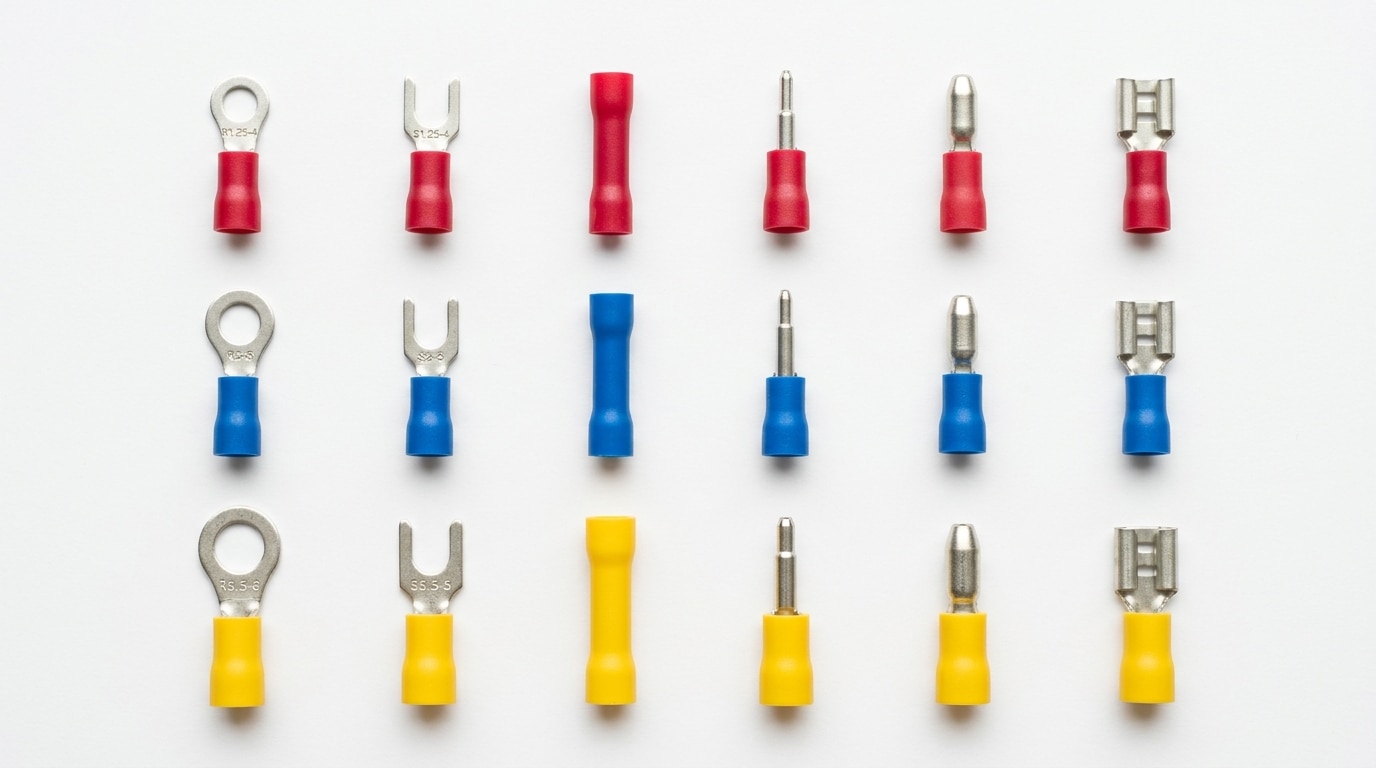

Choose the terminal type from the mating interface
Start with what the wire must connect to, then verify conductor range, dimensions, material, insulation, rating and tooling on the exact part.
Ring terminal
A closed tongue for a compatible screw or stud. Verify hole diameter, tongue width, washer footprint, material stack and the equipment’s tightening instructions.
Fork / spade terminal
An open tongue that can simplify servicing where the equipment permits it. Check retention, fork width, hardware and vibration requirements.
Quick disconnect
A receptacle and tab or male/female pair for detachable wiring. Match width, thickness, locking feature, plating, housing and mating-cycle requirements.
Butt splice
An inline connector for joining conductors end to end. Each side needs the approved wire, preparation, crimp location and—where required—sealing system.
Pin or blade terminal
A formed end for a compatible equipment interface. Do not assume a pin terminal and a ferrule can be substituted for one another.
Wire-end ferrule
A sleeve crimped around fine-stranded wire for compatible terminal blocks. Select ferrule length, cross-section, collar and crimp shape for the clamp system.
Bullet connector
A compact detachable pair used in some harnesses and equipment. Confirm male/female compatibility, retention, housing and environmental protection.
Compression cable lug
A power-cable lug may use a hex, indent or other controlled profile with manual, hydraulic or powered tooling. Die code, conductor class and material, number and position of crimps, compound, stud interface and installation instructions are product-specific. Do not extend small-terminal color or hand-tool rules to these lugs.

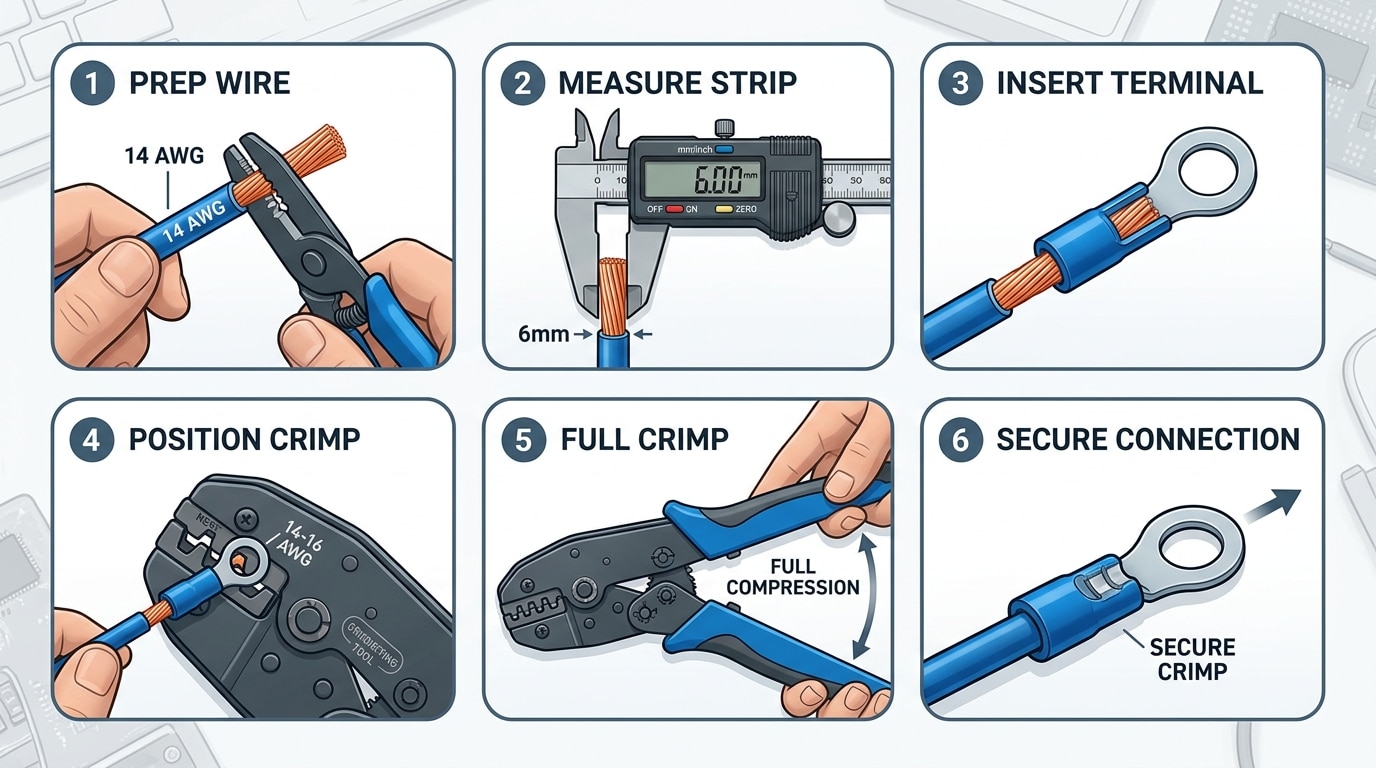

How is a cold press terminal crimped correctly?
Before working on installed wiring, follow the site’s energy-control procedure: de-energize, lock out or tag as required, release stored energy and have a qualified person verify the de-energized condition with suitable test equipment. Never crimp a live conductor.
Confirm the approved combination
Check the terminal part, conductor gauge or area, material, stranding, insulation diameter, tool, die, locator and application specification.
Cut and strip to the drawing
Make a square cut and use the specified strip length. Reject nicked, cut, missing, folded or excessively disturbed strands. Do not pre-tin or reshape the bundle unless the instructions explicitly require it.
Load the terminal in the correct cavity
Orient the barrel, seam, tongue and insulation support exactly as the tool instructions show. Use the locator or wire stop where supplied.
Insert the conductor fully
Place bare strands in the conductor crimp and insulation in the support zone. Keep strands out of the contact area and insulation out of the conductor barrel.
Complete the specified crimp cycle
Close a full-cycle hand tool completely or run the approved press program. Do not add an improvised second squeeze over the same crimp.
Inspect and release to the quality plan
Check placement and damage, measure the controlled dimensions, and perform pull, section or electrical tests when the applicable specification and sampling plan require them.
Specify one terminal-wire-tool-process system
A reliable crimp is the output of a documented combination, not a feature of the terminal by itself.
Exact part
Type, barrel design, material, plating, insulation, dimensions, ratings, approvals and application specification.
Actual conductor
AWG or mm², copper or aluminum, solid or stranded, strand class or count, plating, insulation material and outside diameter.
Specified geometry
Tool and die part numbers, cavity, locator, wire stop, adjustment, closure, maintenance and calibration status where applicable.
Acceptance evidence
Strip length, orientation, crimp location, dimensions, visual criteria, sample plan, test method, traceability and change control.
The correct answer is a tool part number—not a universal tonnage.
Small pre-insulated terminals, open-barrel contacts, ferrules and compression lugs use different crimp profiles. A red-blue-yellow hand crimper, a four-mandrel ferrule tool and a hydraulic hex tool are not interchangeable simply because each can close around metal.
- Use the terminal maker’s tool cross-reference or application specification.
- Confirm die cavity, locator, wire stop and any insulation adjustment.
- Inspect wear, alignment and closure with the prescribed method.
- Revalidate after changes to wire construction, terminal lot, tooling or setup when the quality plan requires it.
How do you know whether the crimp is good?
A finished crimp is accepted against the terminal maker’s drawing, application specification and the governing quality standard. Visual inspection is essential, but it cannot replace a required crimp-height measurement, tensile test or cross-section review.
- Wire preparationCorrect strip length; no cut, nicked, missing or folded strands; no unauthorized pre-tinning.
- Wire positionConductor fills the intended barrel and inspection/brush zone without entering the contact area; insulation is correctly located.
- Crimp formRequired bellmouth or flare, closed barrel geometry, acceptable seam and extrusion, and no cracks, splits or terminal distortion.
- Insulation supportInsulation is retained without being pierced or crushed into the conductor strands; the support does not substitute for the conductor crimp.
- DimensionsCrimp height, width or other characteristics are measured with the specified method and compared with the exact tolerance.
- Mechanical testPull testing is performed with the defined specimen preparation and rate, then compared with the product or governing minimum—not a universal online value.
- Process controlFirst-off checks, sample frequency, tool maintenance, records and reaction plans are defined for the production risk.
A hand tug can reveal an obviously loose wire, but it is not a calibrated pull test. Likewise, a single millivolt reading in the field is not a universal UL pass/fail criterion.
Eight shortcuts create most uncontrolled crimps
Reject the symptom, correct the cause and evaluate the affected lot under the quality plan. Do not “repair” a doubtful terminal with solder or another squeeze.
| Shortcut or defect | Why it is risky | Controlled response |
|---|---|---|
| Wrong conductor range | An oversize wire can lose strands or fail insertion; an undersize wire may not reach the required compression. | Select the exact approved terminal for the conductor material, size and construction. Never trim strands or add scrap strands as filler. |
| Color used as the specification | Red, blue and yellow ranges vary by product family, region and manufacturer; similar sleeves can hide different barrels. | Trace the maker and part number, then check the drawing and tool cross-reference. |
| Wrong strip length or damaged strands | Insulation can enter the conductor crimp, or the conductor can miss the full crimp zone; nicked strands reduce mechanical and electrical margin. | Adjust stripping equipment to the terminal specification and reject damaged conductors. |
| Wrong die, cavity or orientation | The profile, width or location may leave voids, split a seam or distort the terminal body. | Use the approved die and locator in the documented orientation; verify setup before production. |
| Under- or over-crimping | Too loose can permit movement and poor contact; too tight can damage strands, barrel or insulation. | Measure the controlled crimp characteristic and correct tool setup or wear—not the finished part. |
| Unauthorized second crimp or solder | Reworking the same zone changes material and geometry outside the validated process; solder can wick beyond the intended support. | Cut off the terminal, assess whether conductor length and condition remain acceptable, and install a new terminal by the approved process. |
| Two wires in a single-wire barrel | The strands may distribute unevenly and one conductor can have much lower retention. | Use multiple conductors only when that exact terminal, wire combination and test method are approved. |
| Correct crimp, wrong final installation | An oversized stud hole, poor mating tab, incorrect torque, missing strain relief or unsuitable environment can still overheat or loosen the assembly. | Verify the complete bolted, plugged or clamped interface and its environmental protection. |
Cold press terminals support both signal and power wiring
The terminal family and qualification route change with the equipment. An appliance quick disconnect is not specified like an automotive sealed contact or a large battery lug.
Cabinet wiring
Ring, fork, pin and ferrule terminations can connect relays, contactors and compatible terminal blocks for control panels. Follow panel, device and conductor requirements.
Machine and vehicle systems
Open-barrel contacts, splices and quick disconnects support repeatable production where tooling, sealing and retention are qualified as a system.
Serviceable device leads
Tabs and receptacles can provide compact detachable connections, but tab thickness, width, temperature, housing and mating force must match.
Lugs and battery cables
Compression lugs connect conductors to studs and busbars. Conductor material, die, crimp sequence, tongue, hardware and equipment rating control the installation.
Application context changes the specification.
Control cabinets, vehicles, appliances, renewable-energy equipment and critical harnesses impose different temperature, vibration, sealing, flammability, spacing, maintenance and approval requirements. Start with the equipment’s governing documents before selecting a terminal from its appearance.
Which standard applies to a cold press terminal?
There is no single certification that covers every product sold under this name. Match the standard to the component type, conductor, equipment and market.
Put these details on the inquiry or purchase order
- Conductor: AWG or mm², copper/aluminum, strand construction, plating, insulation type and outside diameter.
- Connection: ring, fork, blade, receptacle, pin, ferrule, splice or lug, plus mating dimensions and retention needs.
- Environment: operating temperature, vibration, moisture, chemicals, UV, sealing and enclosure conditions.
- Electrical duty: circuit voltage/current and the equipment or system rating that governs the connection.
- Compliance: target market, component certification, equipment standard and required documents for the exact part.
- Tooling: approved tool, die, locator, setting and maintenance or calibration requirements.
- Quality plan: drawing revision, visual criteria, crimp dimensions, tensile or section tests, sample frequency and traceability.
- Commercial details: sample quantity, annual volume, mixed models, labeling, packaging and requested inspection records.
Need a cold press terminal matched to your wire and connection point?
Send SENTOP the conductor, terminal style, mating dimensions, environment, certification target, quantity and any existing sample, drawing or BOM. The more complete the connection data, the faster the model review.
- Wire size, material and strand construction
- Ring hole, fork, blade, pin or ferrule dimensions
- Insulated or non-insulated construction
- Tooling or existing process information
- Application, approvals, quantity and packaging
Related SENTOP resources
Move from the definition to the exact terminal family, wire size and mating interface required by the project.
Cold press terminal FAQ
Short answers to the terminology, tool and inspection questions that cause the most specification errors.
Is a cold press terminal the same as a crimp terminal?
Usually, yes. “Cold press terminal” is a common market term for a terminal installed by crimping without solder or applied heat. Technical documents may instead use crimp terminal, solderless terminal, terminal lug, crimp contact or splice. Always identify the exact terminal family because tooling and acceptance rules differ.
Does crimping create a cold weld?
A qualified crimp can create intense metal-to-metal contact and may form cold-welded regions at microscopic contact points. Manufacturers also describe some properly formed crimps as gas-tight. However, it is safer to describe the joint as a controlled crimped connection: not every barrel is fully gas-tight, and simply squeezing a terminal does not prove a cold weld.
Can I solder a cold press terminal after crimping?
Do not add solder unless the terminal manufacturer and governing workmanship specification explicitly approve that combined process. Solder can wick beyond the barrel, change flexibility and make the joint different from the qualified crimp. If the crimp is doubtful, replace the terminal instead of using solder as a repair.
Are cold press terminals reusable?
No. The barrel is permanently deformed during crimping, so a removed or questionable terminal should not be opened and crimped again. Cut it off, confirm the remaining conductor is long and undamaged enough for the approved preparation, and install a new terminal.
Can a cold press terminal be crimped onto solid wire?
Only when the exact terminal, tool and application specification identify that solid conductor as acceptable. IEC 60352-2 includes defined solid-wire connections within its scope, but many common terminals are designed for particular stranded conductors. Never generalize from the standard’s scope to an unlisted product combination.
How strong should a finished crimp be?
Strong enough to meet the minimum and test method stated for the exact terminal, wire and governing specification. Pull-force values change with conductor size, material, terminal category and specimen preparation. A hand tug is only a screening check and cannot replace a calibrated tensile test when one is required.
Are red, blue and yellow crimp-terminal colors universal?
No. Those colors often indicate conductor ranges within a manufacturer’s pre-insulated terminal family, but the boundaries and color systems are not globally universal. Use color to locate the product data, then verify the part number, conductor range and approved die.
What crimp-tool tonnage do I need?
Tool tonnage is not a universal selector. Choose the tool and die part numbers specified for the terminal and conductor, whether that is a controlled-cycle hand tool, applicator, ferrule crimper or hydraulic system. The required profile, closure, locator and crimp sequence matter as much as available force.
