Panel metering + retrofit decision guide
Do not choose by age, appearance or digit count. Choose the display that helps the operator make the required decision, then verify the complete measurement chain, input method, accuracy statement, supply, environment, outputs and retrofit consequences.
Analog panel meters are not obsolete, but they should no longer be the automatic choice. Keep or specify one when a pointer on a fixed scale gives a fast, useful local view of level, direction or drift; the exact scale and accuracy are adequate; and alarms, communications, logging or multiple quantities are unnecessary. Select digital when users need a documented numeric value, flexible scaling, outputs, diagnostics or connected data. Select a hybrid display when both visual scanning and an exact number matter.
First define the decision. Second define the quantity and input chain. Third calculate the allowable error at the real operating points. Fourth verify the installed environment and interfaces. Choose the display only after those four questions are settled.
The front face is a human interface. The electrical input and sensor chain determine what the instrument is actually measuring.
A pointer is effective when an operator needs to see “low, normal, high or moving” at a glance. Its value depends on scale selection, divisions, contrast, illumination, viewing angle, damping and the installed operating band.

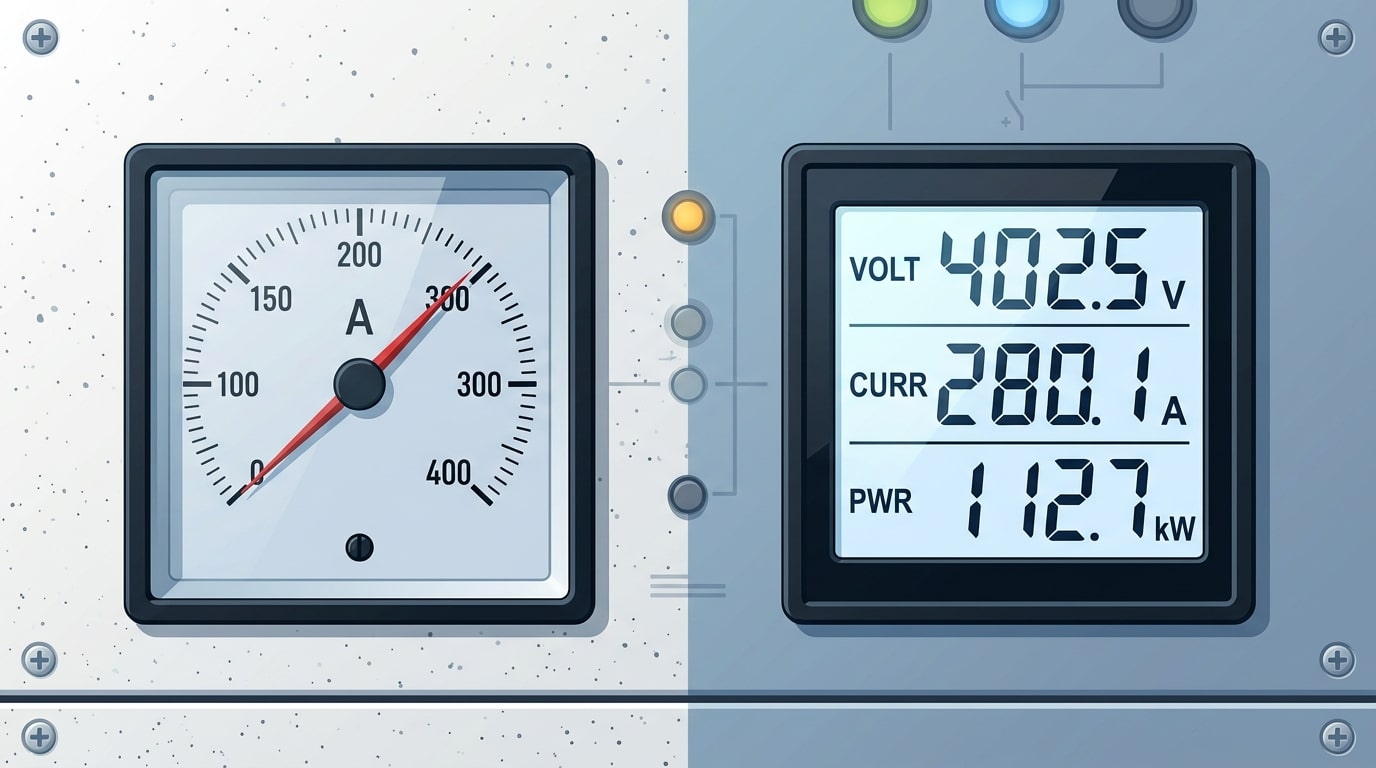

A numeric display is stronger when the task needs a repeatable value, decimal resolution, alarm threshold, analog/pulse output, communications or multiple quantities. Each feature must exist on the exact order code.
A digital bar or arc can recreate part of the pointer advantage while retaining a number. Confirm update rate, scaling, color meaning, viewing distance and power-loss behavior; a graphic is not measurement evidence.
A stable feeder current, DC supply voltage or process value may not need menus, networking or high-resolution digits. When operators make routine walk-by checks, a well-chosen scale can show deviation from a familiar normal band immediately.
The case for analog is operational, not nostalgic. Normal operation should occupy a useful portion of the scale. The scale, ratio and units must match the actual CT, shunt, transducer or direct input. The exact accuracy class, temperature, vibration, shock and panel conditions still require evidence.
A starting choice is not a product approval. Verify the exact model, input and installed conditions after choosing the direction.
| Required outcome | Often suitable starting point | Why | What still controls approval |
|---|---|---|---|
| One local quantity, judged by normal-band position | Analog or hybrid | A pointer or bar can show relative position and direction quickly. | Scale, accuracy at the operating point, viewing conditions, response, input method and environment. |
| Exact numeric value for operations or maintenance | Digital or hybrid | Digits support consistent reporting and easier comparison with a setpoint. | Accuracy formula, range, resolution, update/filtering, input chain and configuration control. |
| Alarms, relay/analog outputs or PLC/SCADA value | Digital with the required exact option | The meter can become an instrument interface instead of a display only. | Output rating, isolation, scaling, protocol/register map, fail state, ownership and test plan. |
| Voltage, current, power, energy and demand together | Multifunction digital power meter | The scope is now multi-quantity metering rather than a simple ammeter or voltmeter. | System topology, CT/VT data, phase mapping, PMD function, accuracy per quantity and data use. |
| Legacy replacement where operators rely on the dial | Retain analog or use a controlled hybrid retrofit | Familiar visual cues can remain useful when technically correct. | Existing measurement chain, scale correctness, spares, panel modifications and operating procedure. |
| Billing, settlement or regulated allocation | Purpose-approved metering route | This is a metrology and jurisdiction question, not a display-style preference. | Applicable meter standard, class, approval, installation, CT/VT chain and responsible authority. |
Accuracy is an allowable error under stated conditions. Resolution is the smallest displayed or readable increment. A digital meter with more counts can show smaller changes without being closer to the true value. A readable analog scale can be adequate without delivering the numeric resolution of a digital display.
Compare complete data-sheet statements at the real operating values. Analog instruments may express class or error relative to full scale. Digital products often use a percentage of reading plus counts, but the formula, range, temperature and waveform limits vary. Do not compare only the percentage printed in a headline.
For a hypothetical 0–100 A analog scale stated as ±1.5% of full scale, the indicated contribution is ±1.5 A. That is ±15% of a 10 A reading but about ±1.9% of an 80 A reading. For a hypothetical digital meter stated as ±(0.5% of reading + 2 counts), a 0.1 A count contributes 0.2 A. At 10 A the illustrative total is ±0.25 A; at 80 A it is ±0.60 A. The actual system also includes CT, shunt, transducer, wiring, configuration and environmental contributions.
Use DC meter range and accuracy comparisons only as a selection prompt. The exact meter data controls. For fundamentals, separate voltage, current and power before comparing displays.
At minimum, normal and maximum values, calculate what the published statement allows and whether that supports the decision.
Capture the full formula, reference value, stated conditions and calibration interval where applicable.
Place normal operation where the pointer or numeric range provides useful readability and margin.

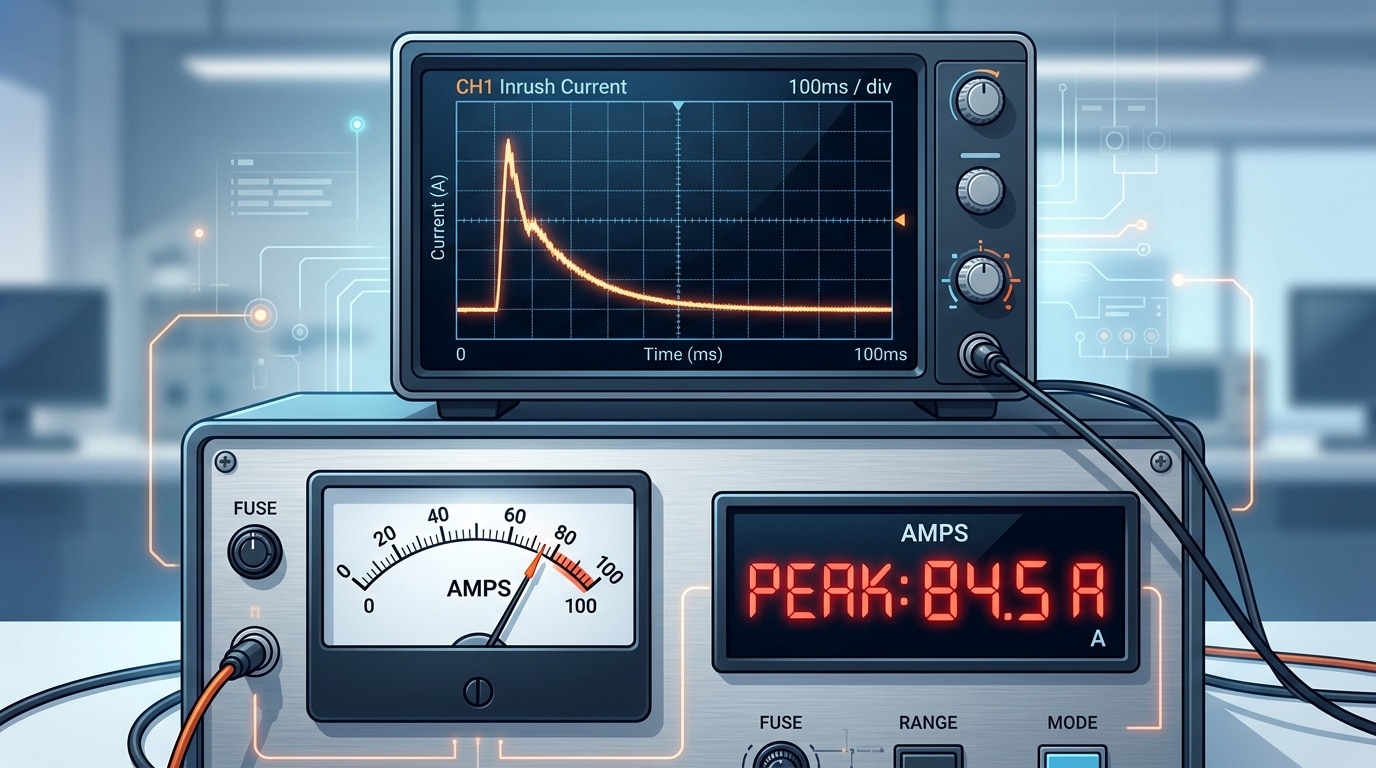

Document update rate, filtering, averaging, peak hold and whether short events must be visible.
Include sensors, CT/VT/shunt, wiring, burden, waveform, temperature, configuration and data processing.
A meter can receive a direct voltage or current, a current-transformer secondary, a shunt millivolt signal, a voltage-transformer secondary or a process-transducer output. Each route changes range, burden, isolation, polarity, scaling, accuracy and safety requirements.
A 96 × 96 mm digital ammeter is not a drop-in replacement for an analog ammeter merely because both show amperes. Confirm the old meter’s input marking, scale, CT ratio or shunt value, and any transducer. Then select the new meter by the same measurement definition.
The panel meter wiring guide maps these interfaces at a high level; use the exact product schematic for execution.
A conventional current-transformer secondary may develop hazardous voltage if it is opened while primary current flows.
Qualified personnel must follow the exact CT, meter, switchgear and site procedures. This article intentionally does not provide a CT disconnection or live-test sequence. An installed panel indication does not prove absence of voltage and is not a substitute for an approved test instrument.
The photograph, a normal reading or an OFF display cannot establish isolation, CT shorting, deenergization or a safe work state. Identify every source, apply the required energy-control process and verify the condition using the applicable qualified-person procedure.
A digital meter can add numeric clarity, configurable ratios, alarm setpoints, analog or pulse outputs, RS485/Modbus data, multiple quantities or calculated power and energy. None of these functions is universal. Quote and approve the exact model code, supply option, input and firmware/configuration.
If the requirement expands from one local indication to voltage, current, power, energy, demand or connected monitoring, treat it as an instrumentation-system change. IEC 61557-12 power metering and monitoring devices occupy a different scope from direct-acting analogue instruments under IEC 60051. State which PMD functions, quantities and accuracy classes are actually required.
Review the digital panel meter range, the electrical panel monitoring architecture and the explainer on how a digital panel meter works without assuming every model includes every feature.
Temperature, humidity, condensation, vibration, shock, dust, washdown, EMC, auxiliary-power quality, cable routing and service access can affect either meter type. Compare actual conditions with the exact published limits; do not rely on “analog is rugged” or “digital is sealed.”
A front IP marking may differ from the body or terminals and does not establish the finished enclosure performance. Coordinate the meter, gasket, panel cutout, mounting instructions, enclosure, cable entries and rear environment. Use the IP-rated panel meter guide for that boundary.
Compare bezel, cutout, panel thickness, mounting clips, body depth, terminal location, cable bend, door travel and maintenance access. The 96 × 96 mm cutout guide helps with form factor, but equal front dimensions never prove electrical equivalence.
For repeat panel designs, coordinate the meter with control-cabinet wiring components and the assembly review used by panel builders and switchgear teams.
An old face marked 0–100 A may represent a direct input, CT secondary, shunt millivolt signal or transducer. Identify the chain before selecting a new display.
Name the quantity, unit, direction, normal range, users and decision. Separate local display from alarm, data or control scope.
Capture old meter code, scale, input, CT/VT/shunt/transducer, ratios, supply, outputs, drawing and environment.
State range, accuracy, resolution, response, supply, dimensions, IP/EMC, outputs, protocol and evidence.
Assess alarm, PLC/SCADA, cybersecurity, procedures, safety, rollback and documentation responsibilities.
Commission under approved procedures; retain settings, ratios, phase/polarity, test evidence and as-built drawings.
These examples guide the discussion; they are not wiring instructions or universal product recommendations.
| Application | Starting direction | Reason | Critical checks |
|---|---|---|---|
| Local motor-feeder current normal-band check | Analog or hybrid | Operators can identify relative loading rapidly. | CT/direct-input compatibility, range, full-scale error at normal load, response, vibration and whether an alarm/data requirement exists. |
| 24 VDC control-supply troubleshooting aid | Digital or hybrid; analog may suit a band-only display | A numeric voltage supports diagnosis while a bar can support scanning. | DC input, isolation, auxiliary supply, burden, update, out-of-range behavior and diagnostic-only role. |
| 4–20 mA process indication | Digital for engineering units/alarms; analog for a simple target band | Both can display a scaled process value, but digital can add controlled outputs. | Loop power, input type, scaling, decimal point, sensor-fault behavior, output fail state and calibration ownership. |

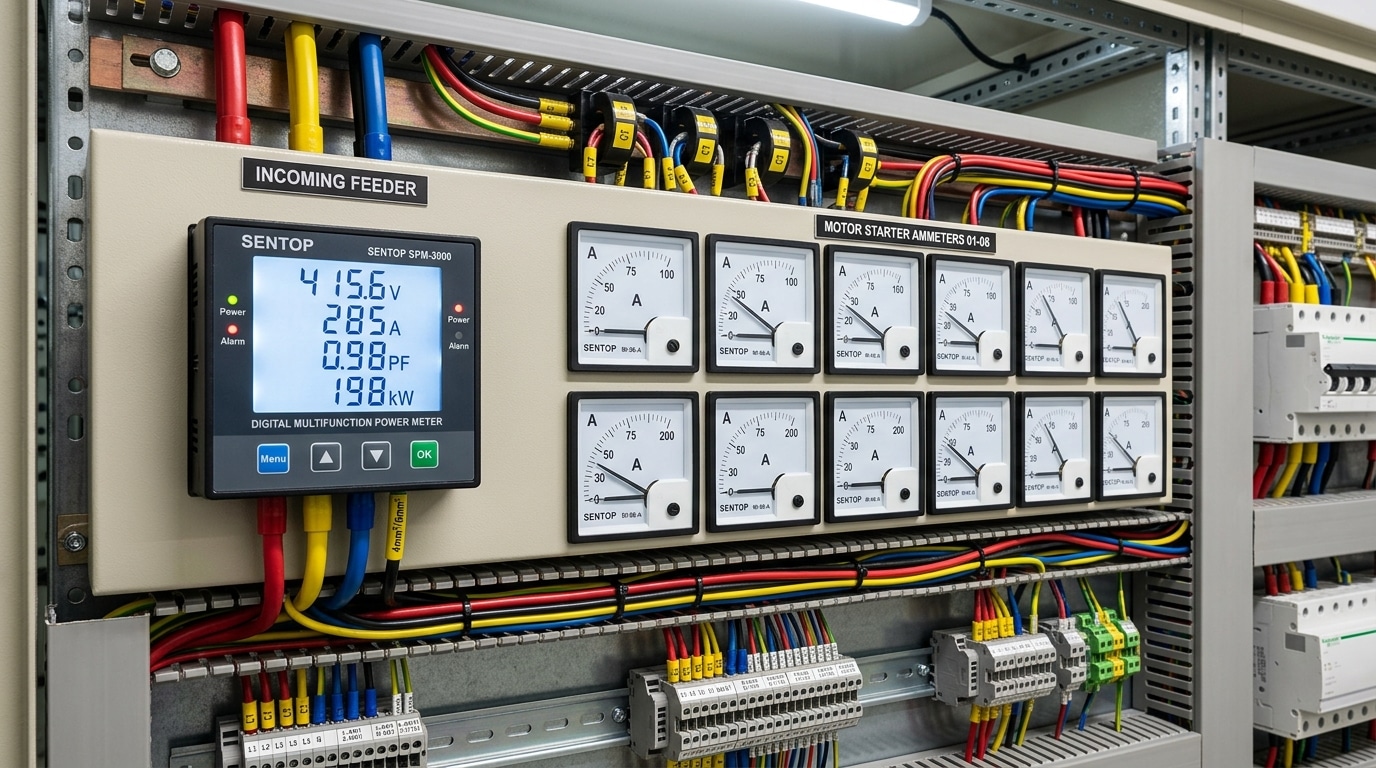

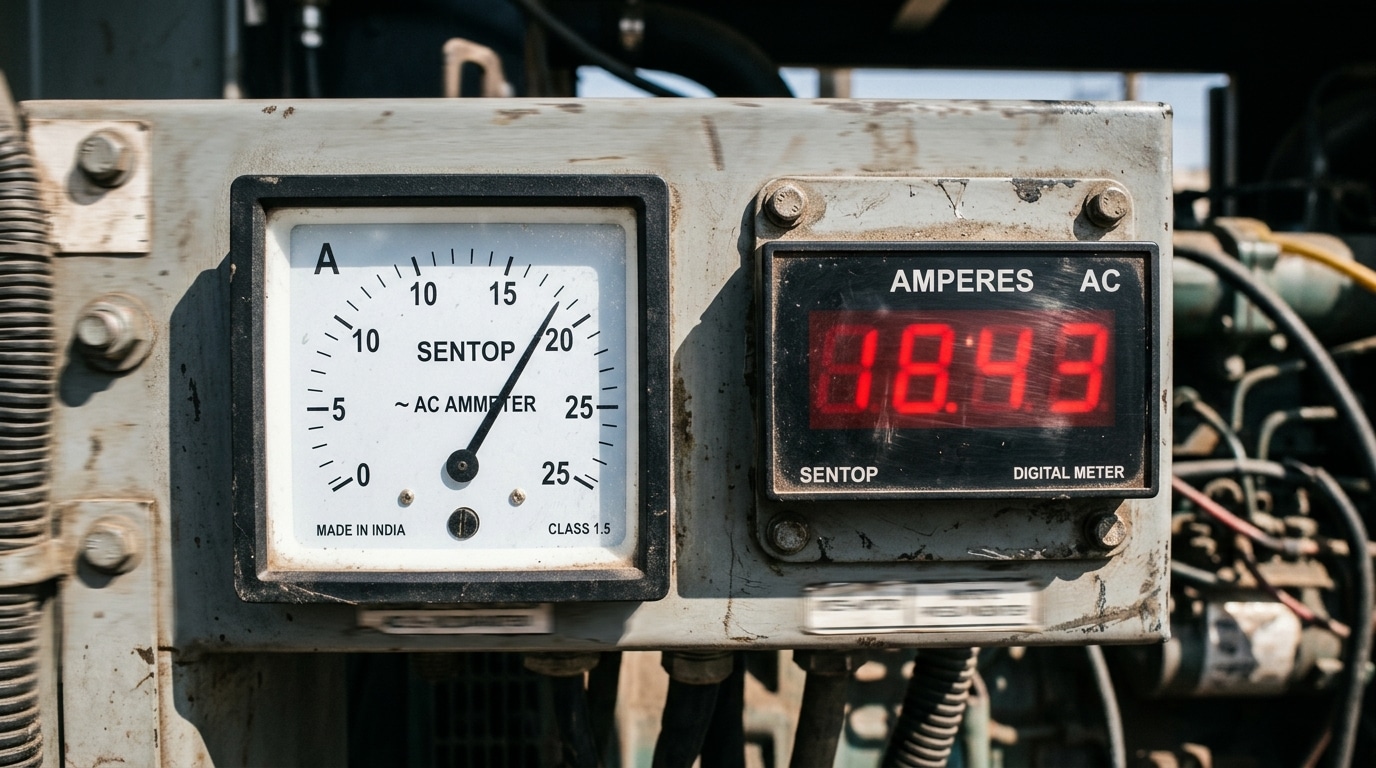

| Generator or switchboard local indication | Hybrid or multifunction digital where several values/data are needed; analog remains valid for dedicated indication | Local situational awareness and exact operating data may both matter. | CT/VT topology, AC waveform, supply, interface, approvals and separation from protection. |
| Battery-system voltage/current display | Digital or hybrid according to the actual sensing method | Numeric values are useful, but system meaning depends on direct, shunt or sensor input. | Use the dedicated battery-system panel-meter guide; confirm isolation, polarity, range and source architecture. |
| Energy, demand or power monitoring | Multifunction digital PMD | The required result is calculated quantities and/or data, not one local pointer. | PMD category/function, CT/VT chain, energy direction, accuracy, communications, time/data behavior and permitted use. |
A complete RFQ makes analog, digital and hybrid bids comparable and exposes unknown engineering actions before purchase.
Local indication, trend band, numeric reporting, alarm, control interface, energy/power monitoring or connected data; named users and required decision.
V, A, Hz, W/kW, kWh, power factor or process units; AC/DC, minimum/normal/maximum, overload, waveform/frequency and desired scale behavior.
Direct input or exact CT, VT, shunt or transducer model, ratings, ratios, output, burden, polarity, phase mapping and existing supporting hardware.
Required error at the operating points, complete proposed formula, resolution, update rate, filtering/averaging, peak behavior and calibration evidence.
Auxiliary supply range/source, burden, isolation, retained settings, restart, blanking and output/data state after input, supply or communications loss.
Relay, analog, pulse or network; contact rating, alarm behavior, protocol, serial settings, register map, units, interval, quality and cybersecurity boundary.
Bezel/cutout, depth, panel thickness, terminal clearance, mounting, front/body protection, gasket, temperature, humidity, vibration, EMC and viewing distance.
Exact order code, drawings, manual, standards/approval route, sample plan, configuration export, labels, quantity, destination, lifecycle, spares and change notice.
This article supports selection and documentation. It does not authorize energized adjustment, meter removal, CT disconnection, shunt work or terminal-by-terminal testing. In U.S. general industry, OSHA 1910.333 generally requires exposed live parts to be deenergized before work unless a stated exception applies; fixed equipment must be controlled through the applicable lockout/tagout process and verified by a qualified person.
A blank display, zero indication, stationary pointer or open upstream device does not prove that conductors are deenergized. Alternate sources, backfeed, induced voltage, stored energy or a failed instrument may exist. Use the site procedure and suitable test equipment.
Do not let a meter output quietly become a protective or safety function. Coordinate circuit protection through the protection selection guide and verify any alarm/control function through the approved system architecture.
For product evidence, request exact model documents through Standards & Certificates and define branding, configuration and repeat-order controls through OEM/ODM support.
This page owns the analog/digital/hybrid decision. The linked pages cover model behavior, symbols, failure symptoms and specific digital applications.
Confirm quantity, unit, status and display meaning before interpreting a number.
Use documented diagnosis boundaries; do not improvise live checks.
Separate range, sensing method, supply and published accuracy.
Request the exact model family, data and evidence needed for the project.
Concise answers to the selection and retrofit questions most likely to cause an incorrect purchase.
No. Analog panel meters remain a valid choice for well-defined local indication when pointer position communicates the operating condition efficiently, the scale and measurement chain are correct, and no digital-system function is required. They should be selected deliberately rather than retained by habit.
No. Accuracy depends on the exact published formula, range, input method, sensor chain, configuration, waveform, environment and installation. More digits provide resolution, not automatic accuracy. Compare the complete specifications at the real operating points.
No. A bar or arc can provide a similar visual scanning cue, but the device remains a digital instrument with its own supply, input, configuration, update and failure behavior. The graphic is a user-interface feature, not proof of measurement equivalence.
No. Confirm the existing and proposed input methods, range, CT ratio or shunt value, AC/DC and waveform conditions, auxiliary supply, depth, terminals, environmental ratings, safety documentation and any output or control function. Equal bezel dimensions prove only part of the mechanical fit.
Do not assume so. Some direct-acting instruments indicate from the measured quantity, but analog applications may include electronic measuring circuits, transducers or powered accessories. The exact instrument and complete measurement arrangement determine the behavior.
It depends on the waveform, frequency, crest factor, bandwidth, input range and decision being made. Do not assume every digital AC meter is true-RMS or suitable for a distorted waveform. Verify the exact model’s published method and limits.
Only when the exact meter, sensor chain, installation, accuracy class, approval and jurisdictional requirements support that use. A general panel indication or energy register is not automatically suitable for revenue, tenant allocation, custody transfer or utility settlement.
No, unless the complete approved system explicitly assigns and validates that function. A meter reading or ordinary output is not automatically an overcurrent protective device, protective relay, safety function, isolation indicator or absence-of-voltage test.
Choose analog for verified local visual indication, digital for verified numeric, data or interface needs, and hybrid when both matter. Then prove the exact input chain, accuracy, supply, response, environment, physical fit, approvals and lifecycle controls.
A current publication does not replace the locally adopted code, exact product manual, certification scope or responsible engineering decision.
Send the old meter identity, one-line diagram, CT/VT/shunt or transducer data, normal range, required accuracy, cutout/depth, environment, outputs, communications, quantity and destination. SENTOP can organize a model-specific comparison without treating a matching face size as technical equivalence.
