To calculate the size of small circuit breakers, start by determining the total load in amps. Next, multiply that value by 1.25 to ensure the breaker can safely handle continuous loads. When you calculate the size of small circuit breakers, it’s also important to verify the voltage and breaker type, as different breakers have specific limits. For instance, insulation resistance must exceed 50 MΩ, and contact resistance should be under 50 μΩ. Skipping these checks can lead to poor connections or overheating. Always round up to the nearest standard breaker size when you calculate the size of small circuit breakers.
Key Takeaways
- List all devices on the circuit and find their amp ratings to know the total load.
- Multiply the total load by 1.25 for devices running three hours or more to follow the 125% rule.
- Always round up to the next standard breaker size to keep your wiring safe.
- Match the breaker voltage and type to your circuit to prevent damage and hazards.
- Double-check your calculations, wire size, and local codes to avoid mistakes and stay safe.
Identify Load
Before you calculate the size of small circuit breakers, you need to know the total electrical load on the circuit. This step helps you avoid overloading and keeps your wiring safe.
List Devices
Start by making a list of every device or appliance that will run on the circuit. Common items include:
- Lights
- Outlets for small appliances
- Power tools (like drills or saws)
- Kitchen equipment (microwaves, toasters)
- Bathroom devices (hairdryers, vent fans)
Tip: The National Electrical Code (NEC) and resources like The Spruce recommend listing all devices, especially those with motors or heating elements, since they often need dedicated circuits.
Find Ratings
Next, check the power rating for each device. You can find this information on the product label or in the instruction manual. Look for the number of amps (A) or watts (W). If you see only watts, use the formula:
Amps (A) = Watts (W) ÷ Volts (V)
Here is a quick reference for typical running wattages:
| Device | Running Watts |
|---|---|
| Circular Saw | 1200 |
| Drill | 720 |
| Electric Lawn Mower | 1440 |
| Water Pump | 1000 |
| Central Air Conditioner | 1500–6000 |
| Wet/Dry Vacuum | 888 |
Note: Always use the running wattage for regular use. Starting wattage is higher but only lasts a short time.
Add Up Amps
Add the amp ratings for all devices on the list. If you have wattage, convert it to amps first. For example, a 1200-watt circular saw on a 120-volt circuit uses 10 amps (1200 ÷ 120 = 10). Repeat this for each device, then add the numbers together. This total is your circuit load in amps.
When you calculate the size of small circuit breakers, this total load is the starting point for the next steps.
Calculate the Size of Small Circuit Breakers
Apply 125% Rule
When you calculate the size of small circuit breakers, you need to use a special rule for safety. The National Electrical Code (NEC) says you must multiply the total load by 1.25 if the devices will run for three hours or more. This is called the 125% rule. It helps prevent the breaker from tripping during long use.
To use this rule, follow these steps:
- Find your total load in amps from the previous step.
- Multiply that number by 1.25.
For example, if your total load is 12 amps, you multiply:
12 amps × 1.25 = 15 amps
This means you need a breaker that can handle at least 15 amps. You use this method every time you calculate the size of small circuit breakers for continuous loads.
Tip: Always round up to the next standard breaker size after you finish your calculation.
Continuous vs. Non-Continuous
You must know the difference between continuous and non-continuous loads. This helps you decide if you need to use the 125% rule or not.
- Continuous Load: A device or group of devices that run for three hours or more without stopping. Examples include lights in a store or office, or a heater that stays on all day.
- Non-Continuous Load: Devices that run for short periods, like a power tool you use for a few minutes.
When you calculate the size of small circuit breakers for continuous loads, always use the 125% rule. For non-continuous loads, you only use the total load (100%). You do not multiply by 1.25.
Here is a quick guide:
| Load Type | Calculation |
|---|---|
| Continuous | Total Amps × 1.25 |
| Non-Continuous | Total Amps (no multiplier) |
Example Calculation
Let’s walk through a simple example. Imagine you have a circuit with these devices:
- Three lights, each using 2 amps
- One fan, using 4 amps
First, add up the amps:
(3 × 2) + 4 = 6 + 4 = 10 amps
If these devices run for more than three hours (continuous load):
10 amps × 1.25 = 12.5 amps
You round up to the next standard breaker size, which is 15 amps.
If these devices run for less than three hours (non-continuous load):
Total load = 10 amps
You can use a 15-amp breaker, since you always round up to the next standard size.
Note: When you calculate the size of small circuit breakers, always check if your load is continuous or not. This step keeps your wiring safe and helps you follow the code.
Confirm Voltage & Breaker Type
Match Circuit Voltage
You need to make sure the circuit voltage matches the breaker’s rating. First, check what voltage your devices and wires need. Most homes use 120V or 240V circuits. Factories and big buildings may use higher voltages. If you pick a breaker with the wrong voltage, it might not trip when it should. This could leave your wiring unprotected.
Here is a table that shows common standards for breakers in homes and factories:
| Aspect | IEC 60898-1 (Residential) | IEC 60947-2 (Industrial) |
|---|---|---|
| Application | Household circuits | Industrial switchgear |
| Rated Voltage | 230V/400V | 400V, 440V, 690V, up to 1000V |
| Rated Current Range | Up to 125A | Up to 6300A and higher |
| Impulse Withstand Voltage | 4 kV | 6 or 8 kV |
| Intended User Expertise | Ordinary persons | Skilled persons |
| Short-circuit Capacity (Icn) | Up to 25 kA | Higher values |
You also need to check if the breaker passes important tests. These tests include insulation resistance, dielectric withstand, and contact resistance. ANSI/NETA Section 7 lists these tests to make sure breakers work safely at the right voltage. Testing also checks if breakers work at low voltage levels. This helps stop failures when power drops.
Tip: Always check the voltage on both the breaker and the circuit label. This step helps stop mistakes that could damage equipment or start a fire.
Select Breaker Type

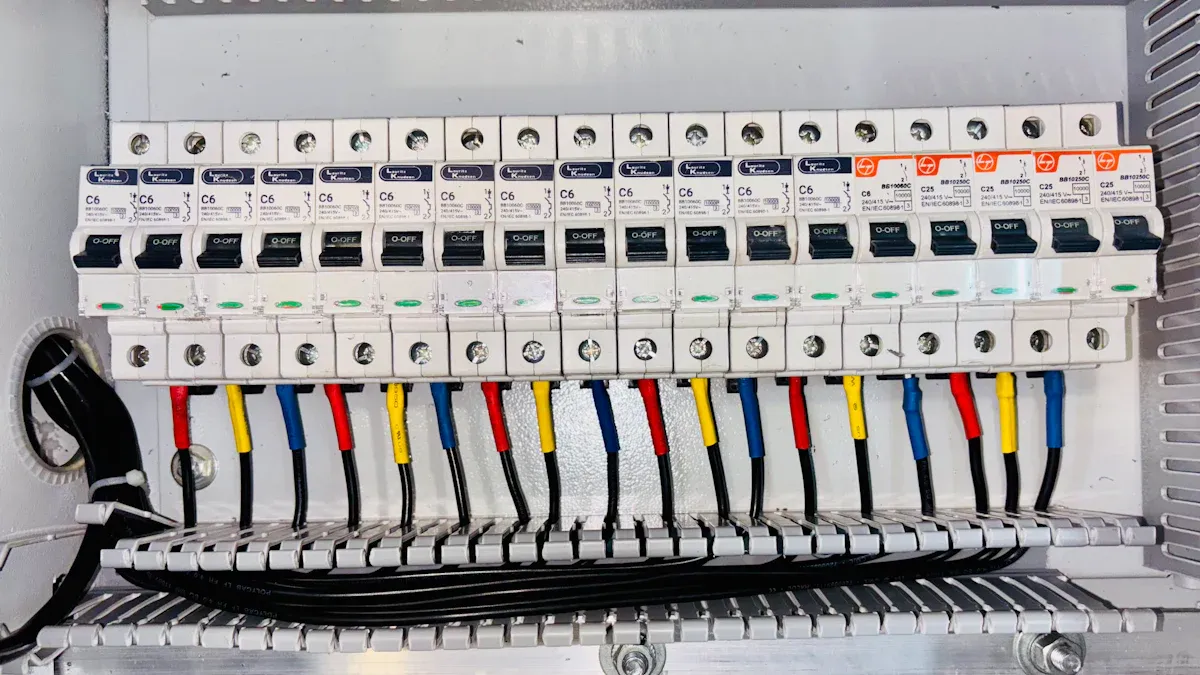

Picking the right breaker type keeps your circuit safe from overloads and short circuits. Miniature Circuit Breakers are good for homes and small offices. Molded Case Circuit Breakers are better for bigger loads and factories. High-voltage breakers protect large machines and power systems.
Each breaker type is made for certain problems. For example, Miniature Circuit Breakers shut off circuits during over-current events. This stops overheating and fire risks. Molded Case Circuit Breakers handle bigger loads and give more protection for branch circuits. Studies show that using the right breaker type lowers the risk of overload. It also stops nuisance trips and keeps your system working well.
Note: Always pick a breaker type that fits your load and where you use it. This keeps your wiring safe and follows safety codes.
Choose Standard Breaker Size
After you calculate the size of small circuit breakers, you need to pick a breaker that matches a standard size. Electrical codes require you to use only standard breaker sizes. This step helps you avoid using a breaker that is too small or too large for your needs.
Reference Chart
You should always round up your calculated value to the next standard breaker size. For example, if your calculation gives you 12.5 amps, you cannot use a 12-amp breaker because it does not exist. You must use a 15-amp breaker instead.
Tip: Never round down. Rounding up keeps your wiring and devices safe from overload.
Here is a quick reference chart for common standard breaker sizes in residential and light commercial settings:
| Calculated Amps | Use This Breaker Size (Amps) |
|---|---|
| Up to 15 | 15 |
| 16–20 | 20 |
| 21–25 | 25 |
| 26–30 | 30 |
| 31–40 | 40 |
| 41–50 | 50 |
How to use the chart:
- Find your calculated amp value.
- Look for the next highest breaker size in the chart.
- Select that breaker for your circuit.
For example, if you calculate the size of small circuit breakers and get 18 amps, you should use a 20-amp breaker. If your total is 27 amps, choose a 30-amp breaker.
Note: Always check the breaker size against your wire size. The wire must also handle the breaker’s current rating.
Choosing the right breaker size protects your home and equipment. It also helps you follow electrical codes and avoid safety risks.
Mistakes & Safety
Double-Check Work
When you size a circuit breaker, you need to avoid mistakes. These mistakes can be dangerous or damage your electrical system. Always check your work before you finish.
Common mistakes include:
- Picking a breaker that is too small for the load. This can make the breaker trip a lot and might hurt your devices.
- Using a breaker that is too big. This can let too much current go through. Wires can get too hot and cause a fire.
- Not checking the wire size. For example, using 14-gauge wire on a 20-amp circuit is not safe and breaks the rules.
- Forgetting to look at local electrical codes. Some codes need different breaker sizes or special types in some rooms.
- Not labeling wires or circuits. This makes repairs or upgrades confusing.
- Not checking if wires are live before working. This can lead to electric shock.
Tip: Always use a good tester to see if wires are live. Cover any bare wires so no one touches them by accident.
You should also take out wires that do not match the breaker size. Leaving wrong wires can make bad connections. For example, connecting a ground wire to a live wire is very risky. Always remove wires carefully and follow safe steps.
Safety experts say to check your math at least two times. Label every wire and breaker clearly. This helps you avoid mistakes when you add or change things later.
Note: Local codes are there to keep you safe. Always check them before you start. If you are not sure, ask a licensed electrician for help.
By following these steps, you keep your home and everyone safe. Checking your work and following safety rules helps you avoid costly and dangerous mistakes.
You figure out the size of small circuit breakers by making a list of your devices. Next, check each device’s rating. Use the 125% rule if the devices run for a long time. Always pick the next bigger standard breaker size. Experts say the breaker should be rated higher than the devices and wires. Good models and data help you do this right and avoid errors. Always follow local rules and check your work twice. If you are not sure, ask a licensed electrician for help.
FAQ
What happens if I use a breaker that is too big?
A breaker that is too big will not trip when wires get overloaded. This can cause wires to overheat and may start a fire. Always match the breaker size to the wire and load.
Can I use a 20-amp breaker on 14-gauge wire?
No, you cannot. You must use a 15-amp breaker with 14-gauge wire. Using a larger breaker can overheat the wire and create a safety hazard.
How do I know if my load is continuous?
A continuous load runs for three hours or more without stopping. For example, store lights or heaters often count as continuous loads. You must use the 125% rule for these loads.
Do I need to replace the breaker if I add more devices?
- Yes, you may need a bigger breaker if you add more devices.
- First, recalculate the total load.
- Then, check if your current breaker can handle it.
- Always check the wire size before changing the breaker.
