Breaking capacity refers to the maximum fault current a circuit breaker can safely interrupt without causing harm or danger. An explanation of breaking capacity of circuit breaker is essential because electrical systems require circuit breakers with the appropriate breaking capacity to prevent fires, equipment damage, and electric shocks. Industry standards mandate that circuit breakers must handle fault currents exceeding what the system can generate to ensure the safety of people and property. Choosing a circuit breaker with the wrong breaking capacity increases the risk of serious accidents. Understanding the explanation of breaking capacity of circuit breaker helps individuals make safe and accurate selections.
Key Takeaways
- Breaking capacity means the biggest fault current a circuit breaker can safely stop without getting hurt. Choosing a breaker with the right breaking capacity helps stop fires, keeps equipment safe, and stops electric shocks. Engineers pick breakers by matching breaking capacity to the highest fault current in the system for safety. Breakers with higher service breaking capacity can handle faults many times and keep working. Always check both breaking and making capacities so the breaker can handle fault surges safely.

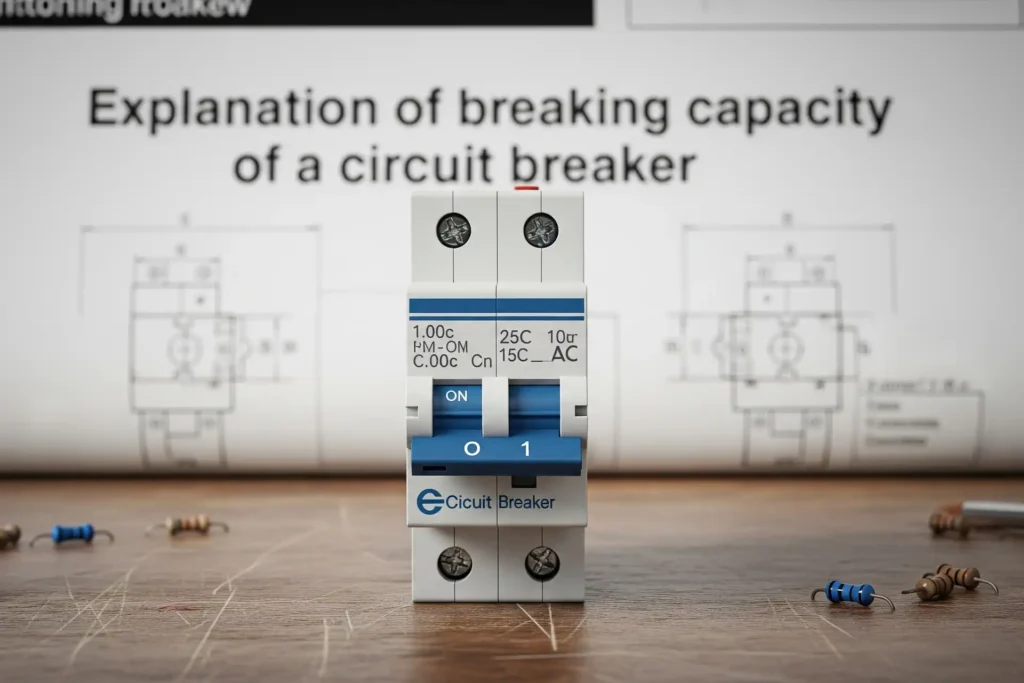

Explanation of breaking capacity of circuit breaker

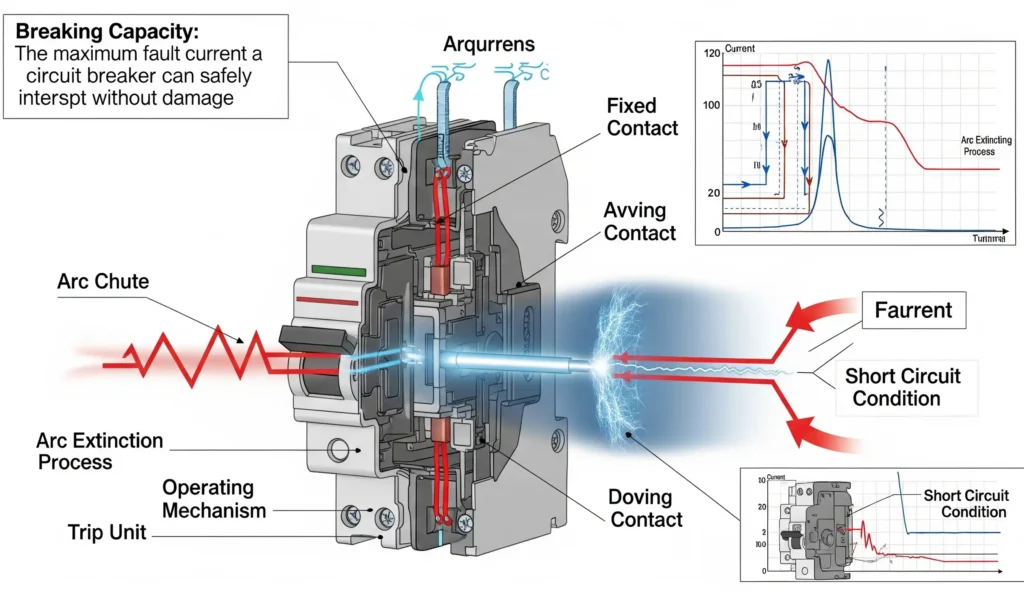

What Is Breaking Capacity?
Breaking capacity means the highest fault current a circuit breaker can safely stop. This number shows how strong the breaker is during short circuits. The explanation of breaking capacity of circuit breaker helps people know how much current the device can handle before it breaks. Engineers and electricians use this to pick the right breaker for each job.
Industry standards set rules for breaking capacity. These standards include IEC 60947-2 and ANSI. The table below lists the main parameters and what they mean:
| Parameter | Formal Definition | Standard Reference | Engineering Significance |
|---|---|---|---|
| Ultimate Breaking Capacity (Icu) | Maximum short-circuit current a breaker can interrupt, even if it cannot be used again | IEC 60947-2, NEMA AB1/ANSI | Shows the highest breaking power of the device |
| Service Breaking Capacity (Ics) | Current the breaker can interrupt many times and still work | IEC 60947-2 | Shows how tough and useful the breaker is |
| Short-Time Withstand Current (Icw) | RMS current the device can take for a short time without tripping | IEC 60947-2, 60947-1 | Important for planning and busbar design |
| Peak Withstand Current (Ipk) | Highest instant peak current the device can handle | IEC 60947-2 | Shows how strong the device is against big forces |
The explanation of breaking capacity of circuit breaker also tells how it is measured. The main unit is kiloamperes (kA). One kA is 1,000 amperes. For example, a breaker with a 10 kA rating can stop up to 10,000 amperes of fault current. Different places need different breaking capacities. Small homes may use breakers rated at 6-10 kA. Big factories may need breakers rated up to 200 kA. Standards like BS EN60947-2 help set these ratings.
Why It Matters
The explanation of breaking capacity of circuit breaker is important for safety and protecting systems. If a breaker cannot handle the fault current, it may break in a dangerous way. If the breaking capacity is too low, the breaker can get too hot, melt, or even explode. This can cause fires, damage, or electric shocks.
⚠️ Picking the right breaking capacity keeps people and property safe.
Some problems happen when the breaking capacity is not high enough:
- The breaker may break and act like a “bomb” during a fault.
- Getting too hot can cause burning smells, melted plastic, or black wires.
- Arc flashes may happen, which are very dangerous.
- The breaker may trip too much or not protect the system.
- Fires, damage, and expensive repairs can happen.
The explanation of breaking capacity of circuit breaker also helps stop problems when new equipment is added. For example, if a new transformer makes the fault current higher, the breakers must be checked and changed if needed. If not, the system may get too hot or break.
In homes and factories, the explanation of breaking capacity of circuit breaker helps people pick the right device. This keeps electrical systems safe and working well.
Types and Ratings
Ultimate Breaking Capacity (Icu)
Ultimate Breaking Capacity, called Icu, shows the highest fault current a circuit breaker can stop without being ruined. Engineers use kiloamperes (kA) to measure Icu. In tests, the breaker faces a fault current one time. The test, named O – t – CO, checks if the breaker can open, wait, then close and open again during a fault. If the breaker stops the fault at Icu, it cannot be used again. Icu is the top limit for the breaker’s strength. For example, a breaker with Icu of 25 kA can stop a 25 kA fault once, but then it must be replaced.
Note: Icu helps engineers pick a breaker that matches the highest fault current in a system.
Service Breaking Capacity (Ics)
Service Breaking Capacity, or Ics, shows how much fault current a breaker can stop and still work after. Ics is always part of Icu, like 50%, 75%, or 100%. If a breaker has Icu of 50 kA and Ics of 50%, it can safely stop up to 25 kA and keep working. Ics shows if the breaker can return to service after a fault. Breakers with Ics equal to Icu are most reliable because they can handle the biggest fault and still work.
| Rating | What It Means | Can Be Reused? |
|---|---|---|
| Icu | Maximum fault current stopped | No |
| Ics | Fault current stopped and breaker still works | Yes |
Making Capacity
Making capacity means the peak current a breaker can safely close onto during a fault. This value is higher than breaking capacity because fault currents jump when the breaker closes. Engineers find making capacity by multiplying the symmetrical breaking current by about 2.55. For example, if a breaker has a breaking capacity of 50 kA, its making capacity is about 127.5 kA. Making capacity makes sure the breaker can handle the first surge without damage.
- Key ratings in standards:
- Rated short-time withstand current (Ik)
- Rated peak withstand current (Ip)
- Rated short-circuit breaking capacity (Isc)
- Rated capacitive switching currents
⚡ Making capacity protects the breaker during the hardest moment—when closing onto a fault.
Breaking capacity uses kA as the main unit. Voltage rating matters too because the breaker must stop faults at the system’s voltage. Rupturing capacity means the same as breaking capacity; it shows the highest current the breaker can safely stop. These ratings help engineers choose the right breaker for every job.
Safety and Selection
System Protection
It is very important to match the ultimate breaking capacity (Icu) of a circuit breaker to the short-circuit current. Engineers pick a breaker with a breaking capacity just above the highest fault current at the spot. This lets the breaker stop dangerous currents without getting hurt. It keeps the electrical system safe and stops fires or broken equipment. If the breaker cannot handle the fault current, it might break and put people and things in danger.
⚠️ Picking and matching circuit breakers the right way stops damage to the breaker and other equipment. This makes sure faults are stopped safely and keeps the system working.
Engineers use a method called cascading. They use a breaker downstream with a device upstream, like a fuse or a current-limiting breaker. This helps the downstream breaker handle bigger fault currents, even if its breaking capacity is lower. Selective coordination means only the breaker closest to the fault will trip. The rest of the system keeps running.
Choosing the Right Rating
Picking the right breaking capacity takes a few easy steps:
- Find out the short-circuit current at the spot.
- Pick a breaker with a breaking capacity (Icu) that is the same or higher.
- If the breaker cannot do the job alone, use an upstream device that can lower the fault current.
- Use tables from the maker or software to check if the devices work together.
- Make sure all devices are tested and allowed to be used together.
For example, if a panel expects a fault current of 12 kA, the engineer picks a breaker rated at least 12 kA. If only a 10 kA breaker is there, pairing it with an upstream current-limiting breaker can keep things safe.
💡 Always check that changes to upstream devices do not make downstream breakers unsafe.
Consequences of Insufficient Breaking Capacity
If a breaker has too low a breaking capacity, it can fail badly. The breaker may weld its contacts, split open, or even shoot out fire and melted metal. This can hurt people, damage things, or stop the system from working. Upstream devices help lower fault current and keep the system safe. Without good coordination, the chance of unsafe breaks and lost equipment goes up.
Safety depends on picking and matching all protective devices in the system carefully.
Breaking Capacity vs. Other Ratings
Rated Current
Rated current and breaking capacity are not the same thing. Rated current tells how much electricity a breaker can handle all the time. Breaking capacity shows the biggest fault current the breaker can safely stop. Both ratings help keep people and equipment safe.
| Parameter | Definition and Role | Selection Criteria and Notes |
|---|---|---|
| Rated Current (In) | Maximum continuous current the breaker can carry without tripping. | Must be at least equal to the line’s rated current to ensure normal operation under load. |
| Ultimate Breaking Capacity (Icu) | Maximum short-circuit current the breaker can interrupt once without damage. | Must be greater than or equal to the expected short-circuit current to ensure safety during faults. |
| Service Breaking Capacity (Ics) | Maximum short-circuit current the breaker can interrupt repeatedly while still carrying rated current. | Usually a percentage of Icu (e.g., 50%-75%), indicating durability under repeated fault interruptions. |
A breaker with the right rated current lets things run normally. A breaker with the right breaking capacity stops dangerous faults. Both ratings must fit what the system needs.
Making Capacity vs. Breaking Capacity
Making capacity is the highest current a breaker can close onto during a fault. Breaking capacity is the highest current it can stop. Sometimes, a breaker must close when there is a fault. This can cause a big surge of current. For example, a breaker with 25 kA breaking capacity and 63 kA making capacity must keep both numbers below their limits. Current-limiting breakers help lower the peak fault current. This makes things safer for the breaker and other equipment.
⚡ Always check both making and breaking capacities to keep things safe during faults.
Common Misconceptions
Some people think all circuit breakers work the same way. They also think breakers always trip during faults. But breakers can fail quietly. Not every breaker fits every job. Some people think tripping means the breaker is broken. Often, the real problem is somewhere else in the system. Others mix up breaking capacity and rated current. This can lead to using a breaker that is too small. For example, using a 10 kA breaker in a system with 18 kA fault current is very risky.
- Common mistakes include:
- Mixing up breaking capacity and rated current.
- Thinking all breakers are the same.
- Forgetting that factories need higher breaking capacity.
- Not checking trip settings and breaker types.
🛠️ Checking breakers often, picking the right one, and knowing the ratings help keep everyone safe and the system working well.
Knowing the explanation of breaking capacity of circuit breaker helps stop fires and damage. It also keeps people safe from harm. Experts say to follow these steps for safety:
- Pick the right breaker size and type for the job.
- Make sure the breaker fits the panel and meets all rules.
- Check breakers often and change any that are broken.
- Get licensed electricians to put in and fix breakers.
- Check and clean breakers often to keep them working well.
- If you want to learn more, read guides from IEEE or IEC and check for new rules.
Safety is most important—ask experts for help with hard systems.
FAQ
What happens if someone uses a circuit breaker with too low breaking capacity?
If the breaking capacity is too low, the breaker can fail. This might happen when there is a fault. The breaker could catch fire or get damaged. People might get hurt. Sometimes, the breaker can explode or melt.
How can someone find the right breaking capacity for their system?
An electrician checks the highest fault current at the spot. They pick a breaker with breaking capacity that matches or is higher. This keeps the system safe.
Is breaking capacity the same as rated current?
No, breaking capacity is not rated current. Breaking capacity shows the biggest fault current the breaker can stop. Rated current tells how much current the breaker can handle every day.
Can a breaker be reused after stopping a big fault?
Most breakers cannot be used again after stopping a fault at their ultimate breaking capacity (Icu). They must be replaced to keep everything safe.
