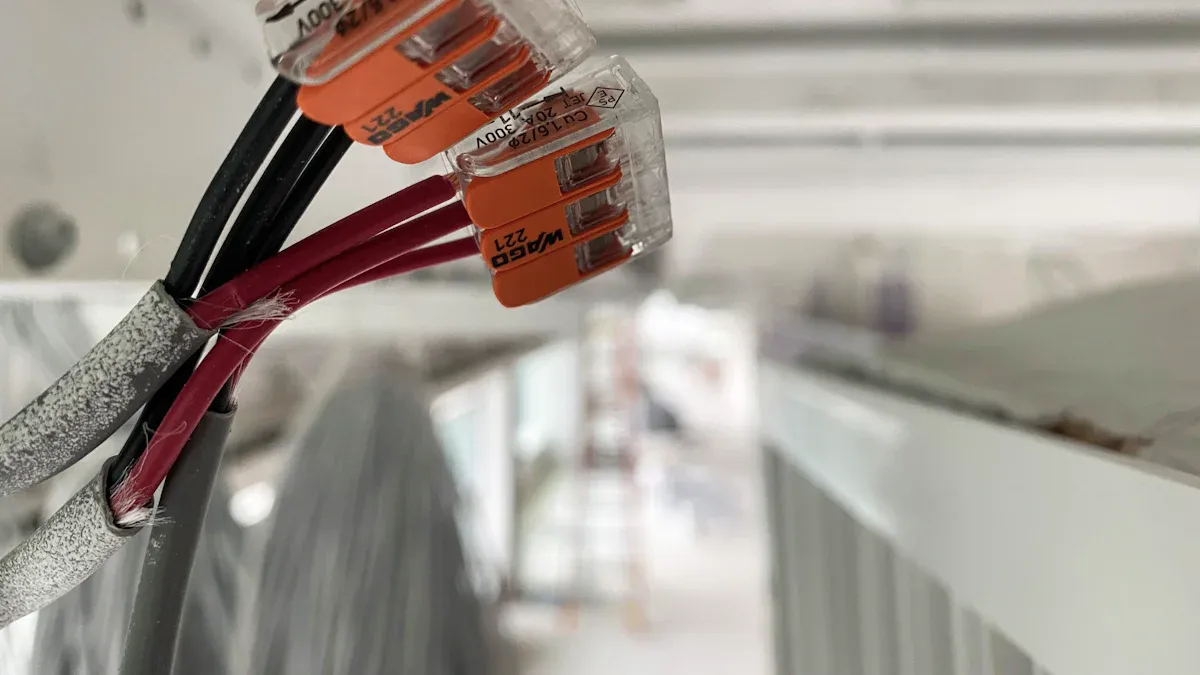

When selecting parts for electrical projects, it’s important to understand the common specifications of terminal blocks.
- The current rating indicates the maximum current a terminal block can handle.
- The voltage rating reveals the highest voltage the block can safely accommodate.
- The pole count refers to the number of circuits or connections available in the block.
- Pitch denotes the distance between each terminal in the block.
- Wire size compatibility specifies which wire sizes are suitable for the block.
- Mounting options detail how to attach the block to a panel or board.
- Securing methods explain how wires are kept tight within the block.
- Safety ratings indicate whether the block complies with safety standards.
- Accessories include items like markers or jumpers that assist in the installation of the block.
Understanding these common specifications of terminal blocks will help you select the right one for your project.
Key Takeaways
- Know the current and voltage ratings for terminal blocks. Pick blocks with ratings above your project’s needs to stay safe.
- Choose the right pole count for your wiring job. More poles let you make complex connections. Fewer poles work for simple tasks.
- Make sure the wire size matches the terminal block. Using the right wire size keeps things safe and stops overheating. It also helps everything work well.
- Think about how you will mount and secure the terminal block. Good mounting makes things safer and easier to fix.
- Check for safety certifications and flammability ratings. These show the terminal block meets safety rules and keeps your system safe from harm.
Types
PCB Mount
PCB mount terminal blocks are found in many electronics. They connect right to printed circuit boards. This saves space and makes wiring simple. You can use them for wiring in control circuits. The modular design lets you change your setup. The insulated body stops electrical shorts. Clamping devices hold wires tight.
| Feature/Use Case | Description |
|---|---|
| Modular Design | You can put these blocks together easily. |
| Insulated Blocks | The body keeps the connections safe. |
| Clamping Device | Wires stay tight with a clamp. |
| Space-Saving | Soldering to boards saves space. |
| Centralized Wiring | It is easier to do maintenance. |
Barrier Strip
Barrier strip terminal blocks are safe and reliable. They are used for high-voltage and high-current jobs. You see them in power systems and control panels. They are strong and can handle tough places. Their modular design lets you add more blocks.
Tip: Barrier strips are good for testing, grounding, and keeping wires neat in cabinets.
| Advantages | Limitations |
|---|---|
| Can handle tough places | Cost more than basic terminal strips |
| Keep wires safe and organized | Harder to install |
| Easy to add more blocks |
Feed-Through
Feed-through terminal blocks connect wires on both sides. They are used in control cabinets and small spaces. SNAP IN technology lets you connect wires fast. You do not need extra steps. Tension clamp technology gives strong connections. It works for both solid and flexible wires. These blocks save space and are easy to check with test taps.
Pluggable
Pluggable terminal blocks are quick and flexible. You can wire modules first and plug them in later. This saves time and work. The modular design lets you change parts easily. Good materials stop vibration and shock. This keeps your wires safe.
| Benefit | Description |
|---|---|
| Convenience | Pre-wiring and plug-in features make setup fast. |
| Reliability | Connections stay safe from vibration and shock. |
| Flexibility | You can change your system easily. |
| Safety | Insulation keeps you safe from shorts and shocks. |
Screw-Type
Screw-type terminal blocks use screws to hold wires. You need a screwdriver to use them. Wiring takes longer and wires can get damaged if you are not careful. They are best for places that are not too harsh. They may not work well in tough conditions.
| Screw Terminal Block | Spring Terminal Block |
|---|---|
| Needs screwdriver | No tool needed |
| Wiring is slower | Wiring is faster |
| Wires can get damaged | Wires do not get damaged |
| Not good in tough places | Good in tough places |
Spring-Clamp
Spring-clamp terminal blocks use springs to hold wires. You do not need special tools. Wiring is much faster than with screw types. The self-clamping feature helps people make good connections. These blocks last longer and need less care. They hold wires tight and meet national standards.
Note: Spring-clamp terminals save time and lower maintenance from bad contacts.
Common Specifications of Terminal Blocks
Current Rating
Current rating tells you how much electrical current a terminal block can safely carry. You must check this rating before you choose a terminal block for your project. If you use a block with a low current rating for a high-power job, the block can overheat or fail.
- The current rating depends on the contact spring, wire size, and how well the block can get rid of heat.
- Larger wires let you use higher currents.
- If you put many contacts close together, heat can build up, so you may need to lower the current for each contact.
- Over time, the contacts can wear out, which lowers the current rating.
- Some terminal blocks use gold plating to reduce resistance and wear.
Tip: Always pick a terminal block with a current rating higher than your maximum expected current. For safety, many experts suggest using blocks rated for at least 150% of your maximum current.
Standard short-circuit current ratings (SCCR) help you know how much fault current a block can handle. Most blocks have an SCCR of 10 kA, but some advanced models can handle up to 100 kA.
Voltage Rating
Voltage rating shows the highest voltage the terminal block can handle without breaking down. You need to match the voltage rating to your system.
- The insulation on terminal blocks works for both AC and DC systems.
- Most blocks rated for 600V AC must also handle 850V instant surges.
- If you use non-adjacent terminals, you can sometimes use higher voltages within the same block.
- For DC systems, you must be careful because there are no zero crossings, which can make switching harder.
Note: Always check the voltage rating for both AC and DC. Using a block above its rated voltage can cause electrical arcs or damage.
Pole Count
Pole count means the number of separate circuits or connections in one terminal block. You must choose the right pole count for your wiring needs.
Here is a table to help you decide:
| Pole Count | Application Description |
|---|---|
| 2-4 | Simple circuit branching needs |
| 5-10 | Modular control assemblies |
| >10 | Dense I/O rack assemblies for complex applications |
If you need to connect many wires, pick a block with a higher pole count. For small jobs, a block with two or four poles is enough. Modular blocks let you add more poles if your system grows.
Pitch
Pitch is the distance from the center of one terminal to the center of the next. This measurement is important when you mount terminal blocks on printed circuit boards (PCBs).
The pitch affects how much space you need and how well the block fits with other parts.
- A smaller pitch saves space but may limit the voltage and current ratings.
- A larger pitch gives more room for insulation and higher ratings.
- Pitch also affects creepage and clearance, which are important for safety.
Tip: Always check the pitch to make sure your terminal block fits your PCB and meets your voltage and current needs.
Wire Size Compatibility
Wire size compatibility tells you what wire sizes you can use with a terminal block. You must match the wire size to the block for safe and reliable connections.
Here is a table to guide you:
| Aspect | Details |
|---|---|
| Wire Size Compatibility | Minimum and maximum wire size is determined by voltage/current rating. |
| Safety Consideration | Terminal blocks should be rated for at least 150% of the maximum current to prevent overheating. |
| Wire Type | Stranded or multi-core wire is used for screw terminals; single-core for push-in terminals. |
| Measurement Units | Wire size is specified in American wire gauge (AWG) or mm² in North America. |
If you use a wire that is too small, it can overheat. If you use a wire that is too large, it may not fit or make a good connection. Always check the datasheet for wire size ranges.
Remember: Choosing the right wire size and type helps you get the best performance and safety from your terminal block.
You must understand the common specifications of terminal blocks before you select one for your project. Each specification affects how well the block works and how safe your system is. When you know the current rating, voltage rating, pole count, pitch, and wire size compatibility, you can make better choices for your electrical setup. The common specifications of terminal blocks help you avoid problems and keep your system running smoothly.
Mechanical Features
Mounting Options
When you pick a terminal block, think about how to mount it. The way you mount it affects how safe and easy your connections are. There are different mounting styles you can choose from. Here is a table that shows the main types and their good points:
| Terminal Block Type | Description | Advantages |
|---|---|---|
| PCB Mount | Wire-to-board terminal blocks that hold wires with clamps and solder to PCB. | Common shapes, come in single, dual, or multi-level modules. |
| Barrier Strips | Screw down terminals for ring or spade terminals on wires. | Great for places where things shake or vibrate. |
| Feed-Through/DIN Rail | Connects two wires for wire-to-wire connections, usually found in DIN rail. | Comes in single, dual, or multi-level modules, can also ground wires to the DIN rail. |
Pick a mounting style that fits your setup and where you use it. PCB mount blocks are good for small electronics. Barrier strips help keep wires safe in places that shake. DIN rail types make wiring in control panels quick and easy.
Wire-Entry Orientation
Wire-entry orientation means the way you put the wire into the terminal block. You can pick horizontal, vertical, or angled entry points. This helps you fit terminal blocks in tight spaces and makes wiring easier. If you do not have much room, vertical or 45° angle entry saves space and helps you reach wires fast. Picking the right orientation makes installation easier for your project.
Tip: Change wire-entry orientation to make fixing and wiring easier in your system.
Securing Methods
Securing methods keep wires tight and safe inside the terminal block. There are three main types you will see: screw terminals, spring-cage terminals, and push-in terminals.
- Screw terminals use a screw to hold the wire. They grip well but need to be checked often.
- Spring-cage terminals use a spring to hold the wire. They are fast to install and work well when things shake.
- Push-in terminals let you connect wires without tools. You save time and work.
| Securing Method | Advantages |
|---|---|
| Screw Terminals | Strong grip, needs regular checks |
| Spring-Cage Terminals | Quick to install, works well with vibration |
| Push-In Terminals | Easy, no tools needed |
Pick a securing method that matches how reliable you want your system to be and how often you will check it.
Construction Materials
The materials in terminal blocks affect how strong and good they are at carrying electricity. There are several common choices you can find:
| Material | Properties |
|---|---|
| Epoxy Resin | Sticks well, resists chemicals, and insulates electricity; protects the block. |
| Electrolytic Copper | Very pure and carries electricity well; used for pins and conductors. |
| Tinned Copper | Covered with tin to stop rust; makes soldering easier. |
| Brass | Carries electricity and is strong; used for screw terminals. |
| Nickel Plating | Stops rust and makes parts harder; good for places with some corrosion. |
| Gold Plating | Carries electricity very well and does not rust; used for high-performance jobs. |
| Stainless Steel | Very strong and does not rust; used for screws and washers. |
Look for materials that give you good conductivity, strength, and stop rust. Good materials help your terminal blocks last longer and work better in tough places. When you check terminal block specifications, always look at what materials are used.
Safety and Compliance
When you pick terminal blocks, you need to check safety features. These features help you follow laws and keep your system safe. Look for certifications, flammability ratings, and environmental ratings. These are important parts of terminal block specifications.
Certifications (UL, IEC, CSA, ATEX)
Certifications show that terminal blocks meet safety rules. You should look for these marks when buying parts for factories or risky places.
- The National Electrical Code (NEC) gives rules for wiring in the USA.
- The International Electrotechnical Commission (IEC) sets world rules for electrical gear.
- IECEx certification proves products follow global safety rules.
Here is a table with key certification standards:
| Certification Standard | Description |
|---|---|
| IEC 60079 series | World rules for explosion protection |
| National Electrical Code (NEC) | Rules for risky places in the USA |
| Canadian Electrical Code (CEC) | Rules for risky places in Canada |
| Directive 2014/34/EU | European rules for explosive air |
| IECEx certification | Shows safety for risky places |
Tip: Always check for these certifications if you work where there is dust, gas, or risk of explosion.
Flammability Ratings
Flammability ratings tell you how well a terminal block fights fire. You need to know this if you use blocks in hot or spark-filled places. The UL 94 standard is used most. V0 is the best rating and means the block stops burning quickly.
- Polyamide 6.6 is a common material for terminal blocks. It burns at about 30 MJ/kg.
- EN 45545-2 sets fire rules for trains.
Here is a table that compares flammability ratings:
| Material classification | V0 | V1 | V2 |
|---|---|---|---|
| Afterburning time | ≤10s | ≤30s | ≤30s |
| Total afterburning | ≤50s | ≤250s | ≤250s |
| Afterburn + afterglow | ≤30s | ≤60s | ≤60s |
| Holder ignition | No | No | No |
| Cotton pad ignition | No | No | Yes |
Note: Pick terminal blocks with V0 rating for the best fire safety.
Environmental Ratings (IP, Temperature Range)
Environmental ratings show how well terminal blocks work in tough places. You need to check IP ratings and temperature ranges if you use blocks outside or in rough spots.
| IP Rating | Description |
|---|---|
| IP68 | Keeps out dust, resists strong water jets and heavy seas |
| IP67 | Safe in water up to 1 meter for 30 minutes |
| IP65 | Keeps out dust, resists water jets from any direction |
Most terminal blocks work from -40°C to +105°C. Some special blocks can handle even wider ranges.
If you put terminal blocks outside or in wet places, pick ones with high IP ratings and wide temperature ranges.
Safety and compliance are important for terminal blocks. You keep your system safe and follow laws when you check these ratings.
Accessories and Extras
Marking and Labeling
Marking and labeling accessories make wiring safer and easier. Terminal markers and warning labels help you know each connection. When you label terminal blocks, you avoid mistakes and confusion. This keeps your control cabinet neat and helps you follow safety rules. Clear labels save time when you fix or check things. Labels help you tell cables apart, even if they look the same. Marking systems use big or small letters so you can see them better. Plastic sleeves cover your labels and keep them safe in rough places.
- You can find each terminal fast during repairs.
- Labels help you know which cable goes where.
- Different letter sizes make labels easy to read.
- Plastic covers protect labels from damage.
Tip: Good marking is not just useful. It is needed for safety rules.
Test Points
Test points let you check circuits safely and easily. You can measure voltage or current without taking wires out. This makes fixing problems much faster. Test points help you find trouble before it gets worse. Many terminal blocks have test points built in. You can use test probes quickly. You do not need to remove any wires. This saves time and keeps your system working well.
End Plates and Jumpers
End plates and jumpers help you set up terminal blocks your way. End plates close the sides and keep wires safe and tidy. Jumpers connect many terminals together. You can share signals or power with jumpers.
Here is a table that shows common terminal block accessories and what they do:
| Accessory Type | Functionality Description |
|---|---|
| Terminal block accessories | Needed for wiring control cabinets and switching devices, lets you set up and change things how you want. |
| Marking material for terminal blocks | Has markers and warning labels, helps you assign wires clearly and stop mistakes. |
| LPO pick-off plugs | Lets you add more load contacts, made to handle strong pulling forces. |
| Function plugs for basic disconnects | Lets you use different connector types like isolating plugs and fuse plugs. |
| Safety accessories, partition plates | Has filler plugs, warning labels, and sleeves to make things safer and more organized. |
Note: Using the right accessories makes your terminal block system safer and easier to change.
Knowing terminal block specifications helps you make safer systems. Picking the right one stops short circuits and keeps wires tight. These benefits are important for your project:
| Benefit | Explanation |
|---|---|
| Enhanced Safety | Terminal blocks lower the chance of touching live wires. This helps stop short circuits and shocks. |
| Increased Durability and Reliability | Good materials make them last longer and keep wires safe. |
| Ease of Troubleshooting and Maintenance | Neat blocks help you find and fix problems faster. |
Every specification, like current rating or mounting style, works for different jobs. Spring-type blocks are good for lights and robots. Rail-mounted types are better for power electronics.
If you want to compare products, follow these steps:
- Look at what you bought before and read reports.
- Try online tools like AlphaSense.
- Ask for samples before you buy a lot.
Always read datasheets and talk to experts to get the best results.
FAQ
What is the main purpose of a terminal block?
You use a terminal block to connect two or more wires together. It helps you organize wiring and makes electrical connections safe and easy to manage.
How do you choose the right terminal block for your project?
Check the current and voltage ratings. Make sure the block fits your wire size. Look for the right mounting style. Always read the datasheet before you buy.
Can you reuse terminal blocks after removing wires?
You can reuse most terminal blocks if they are not damaged. Always check for wear or loose parts before using them again. Replace any block that looks worn out.
What does the IP rating on a terminal block mean?
The IP rating tells you how well the block keeps out dust and water. Higher numbers mean better protection. For outdoor use, pick a block with a high IP rating.
See also
5 Most Easily Overlooked Issues When Purchasing Terminal Blocks
Top 7 Terminal Block Brands Every Engineer Should Consider
Quick Guide to Common Terminal Blocks in Industrial Automation
How to Pick the Ideal Terminal Block for Your Project
