MCB Circuit Breaker Procurement List

Here is a simple MCB Circuit Breaker Procurement List to help you begin:

Part Number	Type	Qty	Unit Price	Supplier
S203-C16	C	10	$18.50	ABB
QO120	B	5	$8.00	SENTOP

Always write down important things like part numbers, how many you need, and who sells them. Picking well-known brands keeps you safe and makes your work simpler.

Key Takeaways

Find out how many circuit breakers you need by looking at your project’s load type and current ratings.
Pick the right MCB type for your equipment. Use Type B for lights. Use Type C for motors. Use Type D for heavy machines.
Make sure the breaker’s rated current matches your circuit’s needs. Think about heat and load when you choose.
Pick trusted brands like Schneider Electric or ABB. This helps keep your project safe and reliable.
Always check if your breakers meet safety rules. This keeps your project safe and follows the law.

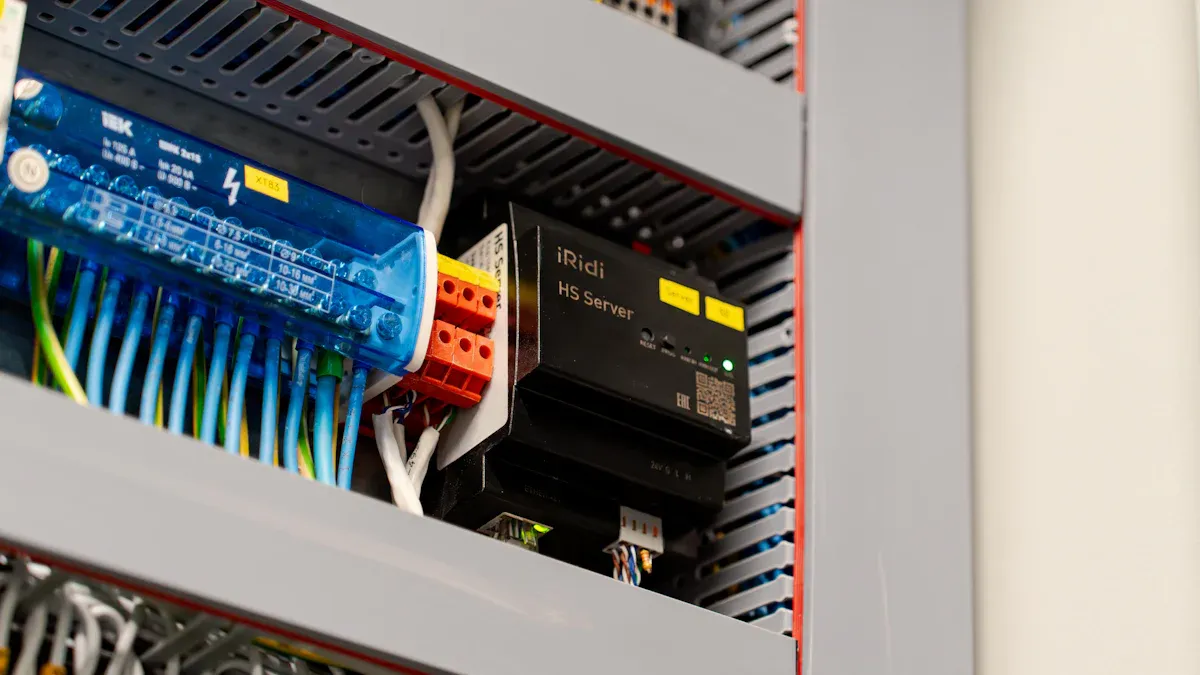

MCB Circuit Breaker Procurement List Essentials

When you start building your MCB Circuit Breaker Procurement List, you want to make sure you include all the important details. Let’s break down each part so you know exactly what to look for.

Quantity

You need to figure out how many circuit breakers your project requires. Here’s a simple way to do it:

Understand your load type. Are you protecting lights, motors, or heaters? For example, Type B MCBs work well for lighting, while Type C and D are better for motors.
Check the current rating for each circuit. If your lighting circuit uses 12 amps, you might choose a 16A MCB.
Make sure the breaking capacity matches your needs. For homes, 6kA is common. For commercial projects, you might need 10kA or more.
Decide how many poles you need. Single-phase systems usually need 1P or 2P. Three-phase systems need 3P or 4P.
Choose trusted brands. This helps keep your project safe and reliable.

If you follow these steps, you’ll avoid ordering too many or too few breakers.

Type

MCBs come in different types, and each one has a special job:

Type B: Good for lighting and small appliances. Trips easily with small surges.
Type C: Handles bigger surges, like those from motors or air conditioners.
Type D: Best for heavy industrial machines that have high inrush currents.

You want to match the type to your equipment. For example, use Type B for home lights and Type C or D for machines in a workshop.

Tip: Picking the right type keeps your circuits safe and helps prevent nuisance tripping.

Rated Current

The rated current tells you how much electricity the breaker can handle before it trips. You need to match this to your circuit’s needs. For example, if your circuit uses 34 amps and the room is hot, you might need a breaker rated higher than 34A because heat can lower its performance. Sometimes, you need to pick a 50A breaker to make sure it works safely in tough conditions.

Here’s a quick look at what affects your choice:

Factor	Description
Electrical Characteristics	AC or DC, voltage of your system
Environment	Temperature, location, and climate
Load Characteristics	What you’re powering (motors, lights, etc.)
Short-Circuit Current	How much current could flow in a fault
Coordination	How the breaker works with other devices
Operational Specs	Do you need remote control or extra contacts?
Installation Regulations	Must meet safety rules for shock and heat

Breaking Capacity

Breaking capacity is how much fault current the breaker can safely stop. This is super important for safety. You want to make sure the breaker’s breaking capacity is at least as high as the biggest short-circuit current you might see.

Icu (Ultimate Breaking Capacity): The most current the breaker can stop once.
Ics (Service Breaking Capacity): How much current it can stop several times without wearing out.
Different levels: F (36 kA), N (50 kA), H (70 kA), S (100 kA), L (150 kA).

To stay safe:

Make sure the breaker’s breaking capacity is higher than your system’s possible fault current.
Know your system voltage and setup.
Compare your numbers to the breaker’s ratings.

Poles

Poles tell you how many wires the breaker can control. Here’s what you need to know:

1P (Single-Pole): Controls one wire. Great for lights and outlets at home.
2P (Double-Pole): Cuts off both live and neutral. Good for things like water heaters.
3P (Three-Pole): Used in three-phase systems, like big machines.
4P (Four-Pole): Also disconnects the neutral. Needed in places like data centers.

Pick the right number of poles for your system to keep everything safe and working right.

Brand

Choosing a trusted brand makes a big difference. Top suppliers in the USA for 2025 include:

Schneider Electric
Eaton Corporation
ABB Electrification (USA)
SENTOP Electrical

You might also see HIITIO, SENTOP, Leviton, and Milbank on your MCB Circuit Breaker Procurement List. Sticking with these brands means you get reliable products that meet safety standards.

Standards

You want every breaker on your MCB Circuit Breaker Procurement List to meet the right standards. Here are the main ones:

Standard	Description
IEC 60947-2	International standard for low-voltage switchgear and controlgear
UL 489	US standard for molded case circuit breakers
CSA C22.2 No. 5-14	Canadian standard for safety and performance

Always check that your breakers are certified to these standards. This keeps your project safe and legal.

Accessories

Sometimes you need extra parts to make your breakers work just right. Common accessories include:

Mini circuit breaker accessory
QOU mounting foot

Adding the right accessories to your MCB Circuit Breaker Procurement List helps with installation and future upgrades.

Delivery

Don’t forget to check delivery times. For most major suppliers in the US, you can expect lead times of 2–4 weeks for special orders like shunt trip breakers. Planning ahead helps you avoid project delays.

Notes

It’s smart to add special instructions or reminders to your MCB Circuit Breaker Procurement List. Here are some common notes:

Always check and set adjustable breakers before turning on the power.
The panel builder or contractor should verify all settings early.
Test the breakers to make sure they work as planned.
Record all settings in a digital logbook for future reference.
Ask for a test report from whoever sets up the breakers, so you know everything is correct.

Note: Adding these details helps you stay organized and ensures your installation meets all safety rules.

By including all these essentials in your MCB Circuit Breaker Procurement List, you make sure your project runs smoothly, stays safe, and meets every requirement.

How to Build Your Procurement List

Assess Needs

Begin by looking at your project. Figure out what needs protection. Write down every circuit and device you have. Think about things like lights, outlets, motors, and machines. Know what each breaker will do for your project. This step helps you remember everything important.

Gather Specs

Next, collect all the technical details you need. Use this table to organize the main specs:

Specification	Description
Amperage and Voltage Ratings	What your panel and circuits need
Short Circuit Current Ratings	The kA rating needed for safety
Trip Curve	Helps stop nuisance tripping

Find out the normal current and inrush current for each load. This helps you choose the right breaker for every job.

Consult Stakeholders

Talk to everyone who is involved. This means electricians, engineers, and people who use the equipment. Ask them questions about what they need. Find out what worries them. Getting their ideas now saves time later.

Check Standards

You have to follow the correct rules. Different places use different standards. Here is a quick guide:

Region	Standards
North America	UL 489, CSA C22.2 No. 5
Europe	EN 60898-1, EN 60947-2
Asia-Pacific	National IEC versions
Emerging Markets	Local IEC modifications

Always make sure your breakers meet these standards. This keeps your project safe and legal.

Create Checklist

Make a checklist for your MCB Circuit Breaker Procurement List. Add part numbers, specs, quantities, and supplier names. Use directories like EC21 to find trusted suppliers. These tools help you compare choices and prices.

Final Review

Look over your list one last time. Double-check specs, certifications, and delivery dates. Make sure every detail is right. Careful review helps you avoid mistakes and keeps your project on track.

Mistakes to Avoid

Missing Specs

It is easy to rush and forget important specs. If you skip things like rated current or breaking capacity, you might buy the wrong breakers. This mistake can slow your project and cost more money. Always check your specs before ordering. Write them down so your team knows what to expect.

Ignoring Certifications

Certifications are very important for safety and quality. If you skip checking them, your breakers might not work right during a fault. Here’s why you should always check certifications:

Certifications keep your project safe and reliable.
Certified products pass tough tests for electrical faults.
The main certifications are IEC 60947-2, IEC 60898, and UL standards. These cover things like tripping speed and insulation strength.

Tip: Ask your supplier for proof of certification before buying.

Overlooking Delivery

You need your breakers to arrive on time. If you forget to check delivery dates, your project can get delayed. Some special breakers take weeks to ship. Always ask about lead times. Mark delivery dates on your calendar. This helps you plan and avoid last-minute problems.

Compatibility Issues

Not every breaker fits every panel or system. Picking the wrong one can cause big problems. Here are some risks:

Risk Type	Description
Fire Hazards	Wrong breakers can cause bad connections, overheating, and fires.
Failed Inspections	The wrong breakers might not pass code checks and delay your project.
Voided Warranties	Using unapproved breakers can cancel your warranty and cost more to fix.

Always make sure your breakers match your panel and system.

Not Consulting Users

You may know the technical details, but users have good ideas too. If you don’t ask them, you might miss something important. Talk to users about their needs and worries. Their feedback helps you pick the right breakers and avoid problems.

Remember: A little extra work now saves time, money, and trouble later.

MCB Circuit Breaker Procurement List Template

Template Overview

You want a procurement list that’s easy to read and quick to fill out. Here’s a simple template you can use for your next MCB circuit breaker order:

Item No.	Part Number	Type	Qty	Rated Current	Breaking Capacity	Poles	Brand	Unit Price	Supplier	Delivery Date	Notes
1
2

You can copy this table into a spreadsheet or print it out for your team. It helps you keep all your important details in one place.

How to Use

Start by filling in each column with the right information. Write the part number from the manufacturer’s catalog. Add the type (B, C, or D), the number you need, and the rated current. Don’t forget to include the breaking capacity and how many poles you want. Pick a trusted brand, then write down the unit price and supplier name. Mark the delivery date so you know when to expect your order. Use the notes column for any special instructions, like “rush order” or “needs shunt trip accessory.”

Tip: Always double-check your part numbers and supplier info before you send your list. This step saves you from costly mistakes.

Customization

Every project is different, so you might need to tweak your template. Here are some ways you can make it fit your needs:

Step	Customization Options
1	Change labels to show room names or appliances.
2	Update schedules to match breaker positions and circuits.
3	Add fields for things like amperage or voltage.
4	Make sure labels match each breaker.
5	Revise labels if you change circuit assignments.
6	Check if your template is easy to use and clear for everyone.

You can add extra columns for things like installation location or inspection status. If your project grows, just update your template. This way, your procurement list always matches your real needs.

A good MCB Circuit Breaker Procurement List helps you get the right parts quickly and keeps your project safe. When you keep track of things like:

Tripping characteristics for each breaker
Current ratings that fit your circuits
Breaking capacity for your area

you can stop mistakes and protect your equipment. Use the template and tips from this guide. Update your list when your project changes or gets bigger. Being organized makes your work easier and safer every time.

FAQ

What does MCB stand for?

MCB stands for Miniature Circuit Breaker. You use it to protect electrical circuits from too much current. It trips and stops the flow if there is a problem.

How do I choose the right MCB type?

You pick the type based on what you want to protect. Type B works for lights and outlets. Type C fits motors. Type D handles heavy machines. Always match the type to your equipment.

Can I mix brands of MCBs in one panel?

You should not mix brands. Different brands may not fit or work together. Sticking with one brand helps you avoid problems and keeps your panel safe.

What is breaking capacity, and why does it matter?

Breaking capacity shows how much fault current the MCB can safely stop. If you pick a breaker with too low a rating, it may fail during a short circuit. Always check this number before you buy.
