Working with circuit breaker panel wiring at home is risky. You must follow safety rules to stay safe. Always turn off all power before you start. Use the right tools for the job. Wear safety gear to protect yourself from getting hurt by electricity. Risk assessments help you see what dangers are there, like arc flash and shock. The table below shows when you need personal protective equipment (PPE) for electrical work:
| Task | Equipment Condition | Arc Flash PPE Required |
|---|---|---|
| Reading a panel meter | Any condition | No |
| Switching breakers (normal) | Properly installed, covers secured | No |
| Working on open or unsafe equipment | Doors/covers open, not maintained | Yes |
| Work on energized parts | Any condition | Yes |
Safety barriers and clear signs help keep others safe while you work.
Key Takeaways
- Always switch off the main power first and check wires before you start. This helps you avoid getting shocked. Use the correct tools and wear safety gear like insulated gloves and safety glasses. This keeps you safe. Plan your circuits well and follow color codes. Connect wires to the right terminals to stop fires and problems. Keep wires tidy and label each breaker clearly. This makes repairs easier and safer later. Call a licensed electrician if you see damage, feel unsure, or need to do hard jobs like putting in AFCI breakers.
Safety and Code Basics
Electrical Hazards
Working on circuit breaker panel wiring can be dangerous. You might get shocked or burned if you touch live wires. Using the wrong tools can also hurt you. Old panels from the 1950s to 1970s might not shut off when too much power flows. This can start a fire. Never work on circuits that have power. Always use lockout/tagout steps to keep power off. Take off jewelry and keep your area tidy. This helps stop trips or touching things by mistake. Broken cords and too many things on one breaker are common dangers. Wet spots make shock more likely, especially without GFCI protection. Only people who know about electrical safety should do this work.
NEC and Local Codes
You have to follow the National Electrical Code (NEC) and local rules. The NEC, called NFPA 70, gives the basic safety rules for wiring and grounding. Local codes might add more rules or change some NEC parts. For example, California uses the NEC but adds its own rules. The NEC changes every three years to fix new safety problems. GFCI and AFCI protection, tamper-resistant outlets, and right circuit sizes come from these codes. These rules help stop fires and injuries. Always ask your local building office before you start any electrical job.
Tip: Most electrical jobs need permits and inspections. This keeps your house safe and helps with insurance.
PPE and Tools
You need the right personal protective equipment (PPE) and tools for safe circuit breaker panel wiring. Insulated gloves, safety glasses, and flame-resistant clothes protect you from shock and burns. Use tools made for high voltage and ladders that do not conduct electricity. Arc flash suits and face shields give more safety for risky jobs. People who build or fix things have the highest chance of getting hurt by electricity, so PPE is very important. National rules like NFPA 70E and CSA Z462 say you must use the right PPE and tools. Always check your gear before you begin.
Circuit Breaker Panel Wiring Prep
Tools and Materials List
You need the right tools and materials before you begin. Gather everything you need first. This helps you avoid mistakes and saves time. Here is a checklist to help you get ready:
- Insulated screwdrivers and pliers
- Voltage tester or multimeter
- Wire strippers and cutters
- Fish tape or wire puller
- Hammer and drill
- Level and tape measure
- Electrical tape and wire nuts
- Circuit breakers (right type and size)
- Electrical panel with cover
- Grounding rods and clamps
- Label maker or permanent marker
- Safety gear (gloves, glasses, flame-resistant clothing)
Tip: Always look at your tools for damage before you use them. Broken tools can make accidents happen.
Panel Location and Mounting
Choose a place for your panel that is dry and bright. Make sure you can reach it easily. The National Electrical Code says the top breaker cannot be higher than 6 feet 7 inches from the floor. You need at least 30 inches of width and 36 inches of clear space in front. Do not put the panel in closets, bathrooms, or tight spots. Use a level to check if the panel is straight. Attach it to a wall stud or strong surface with sturdy screws. This keeps the panel safe and steady.
Planning Circuits
Plan your circuits before you start wiring anything. Draw a simple map of your house. Mark where each outlet, light, and appliance will go. Give each area or big appliance its own circuit. This stops overloads and keeps your home safe. Check the panel’s capacity so you do not use too many breakers. Make sure someone is in charge of circuit breaker setup. Check breaker settings with your plan before turning on power. Write down all settings and changes, using digital tools if you can. Give test reports to the building owner before you finish. Test your circuits often to make sure they work right. Automated software tools can help you set up and test breakers. This lowers mistakes. Keep digital logs for easy record-keeping and future checks.
Wiring Steps
Power Off and Test
Start by shutting off the main power. This is the most important step in circuit breaker panel wiring. You must use the main disconnect or main breaker to cut all electricity to the panel. Lockout/tagout devices help keep the power off while you work. Always use a voltage tester or multimeter to check that no wires are live before you touch anything. The Electrical Safety Foundation International reports that many injuries happen when people skip this step or do not verify the power is off. De-energizing circuits is the standard way to prevent electric shock and injuries. Only work on live circuits if you have special training and equipment.
Tip: Never trust a breaker label alone. Always test every wire before you begin.
Main Service Wires
After you confirm the power is off, remove the panel cover. You will see the main service wires: two hot wires (usually black or red), one neutral (white), and one ground (bare copper or green). Use wire strippers to prepare the ends. Insert each wire into its correct terminal and tighten the screws firmly. Make sure the hot wires connect to the main lugs, the neutral to the neutral bus bar, and the ground to the ground bus bar. Poor installation methods, like loose connections or improper sealing, can cause high failure rates and outages. States that use careful installation and inspection report far fewer failures. Always double-check your connections for a secure fit.
| Wire Color | Function | Where to Connect |
|---|---|---|
| Black/Red | Hot (Live) | Main lugs/bus bar |
| White | Neutral | Neutral bus bar |
| Bare/Green | Ground | Ground bus bar |
Ground and Neutral Bus Bars
You must connect the ground and neutral wires to their correct bus bars. In the main panel, the neutral and ground bars are bonded together. In subpanels, keep them separate. Proper grounding means the neutral is grounded at only one spot. This helps ground fault protection work right. If you connect these wrong, you can cause undetected faults or even fires. Research shows that ground faults often happen when the ground and neutral are not connected correctly. Always tighten the screws on the bus bars and check for any loose wires.
Note: Never mix ground and neutral wires on the same bar in a subpanel.
Branch Circuits
Plan and pull each branch circuit wire into the panel. Use wire strippers to remove just enough insulation to make a clean connection. Each branch circuit has a hot, neutral, and ground wire. Connect the neutral and ground to their bus bars. Leave enough slack for future work, but avoid messy loops. Insert the hot wire into the correct breaker terminal. Make sure the breaker matches the wire size and the load. The NEC says you should not load a circuit more than 80% of its rated capacity. For example, use a 20-amp breaker for a circuit that draws up to 16 amps.
Callout: Always follow color codes: black/red for hot, white for neutral, green/bare for ground.
Breaker Installation
Now, install the breakers. Check that each breaker fits your panel and matches the needed amperage. Align the breaker with the slot and snap it firmly onto the bus bar. Securely attach the hot wire to the breaker terminal and tighten the screw. Replace the panel cover when all breakers are in place. Turn the main power back on and test each breaker with a voltage tester. This step-by-step process helps prevent overloads and faults. Always wear insulated gloves and safety glasses during this step.
- Turn off main power and remove the panel cover.
- Securely connect hot, neutral, and ground wires.
- Snap the breaker into the correct slot.
- Tighten all terminal screws.
- Replace the panel cover.
- Turn the main power back on.
- Test each breaker for correct operation.
AFCI and Plug-On Neutral
Modern homes use AFCI (Arc Fault Circuit Interrupter) breakers for extra safety. AFCIs detect dangerous arcs that can start fires. The NEC now requires AFCIs in almost all living spaces. These breakers help prevent about one-third of all home electrical fires in the U.S. Plug-on neutral breakers make installation easier and neater. They snap directly onto the neutral bar, so you do not need a pigtail wire. Always check your panel’s instructions for AFCI and plug-on neutral compatibility.
Safety Alert: AFCIs save lives by shutting off power before an arc can start a fire.

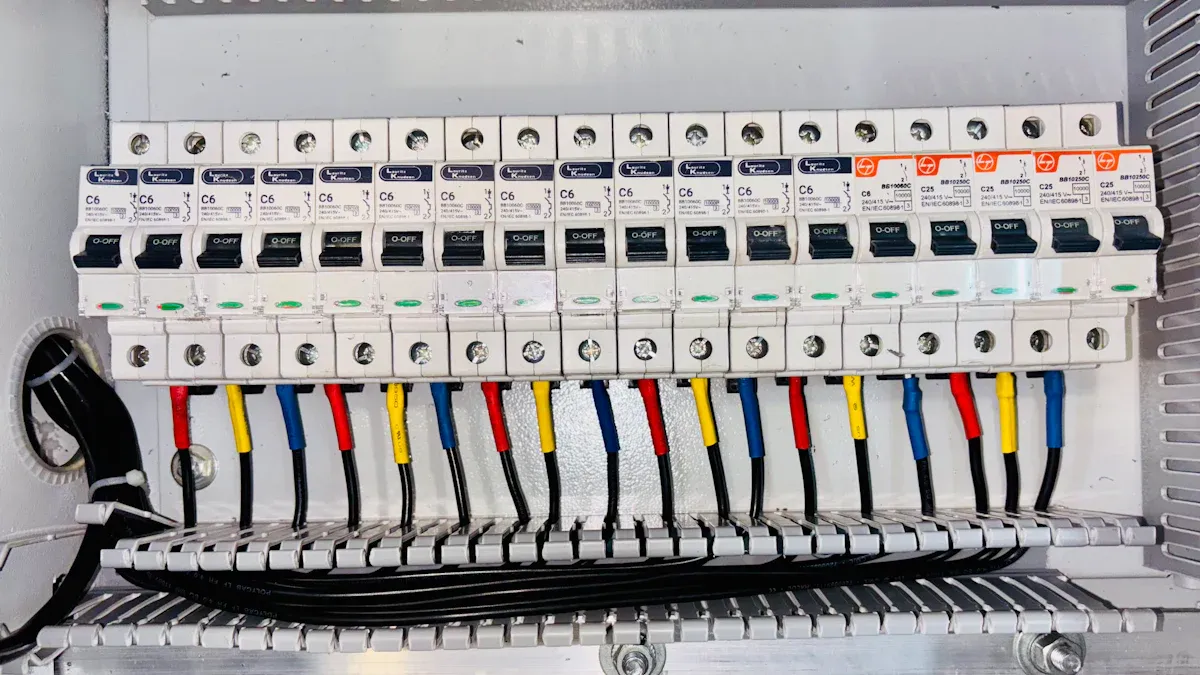

Neatness and Labeling
Keep your wiring neat and organized. Use wire ties to bundle wires and keep them away from the panel door. Neat wiring makes it easier to spot problems and reduces the risk of shorts. Label each breaker with the area or appliance it controls. Good labeling helps you find circuits fast during repairs or emergencies. Studies show that clear labeling and neat wiring save time, reduce errors, and make maintenance safer. Use a label maker or permanent marker for best results.
- Neat wiring helps you spot issues early.
- Clear labels make future repairs faster and safer.
- Maintenance checklists and regular inspections keep your system reliable.
Tip: Take a photo of your finished panel and keep it with your home records.
Circuit Breaker Panel Wiring: Mistakes and Fixes
Common Errors
You can avoid many problems by knowing the most common mistakes in circuit breaker panel wiring. Many DIYers make poor wire connections. If you leave copper wire exposed or do not twist wires tightly with a wirenut, the connection can fail over time. This can cause heat buildup and even fires. Always use the right wire nuts and twist wires together before securing them.
Another frequent mistake is using the wrong wire size. If you use a wire that is too thin for the circuit, it can overheat. You must match the wire gauge to the breaker size. For example, use 12-gauge wire for a 20-amp breaker. Many people also mix up wire colors. Remember: black or red is hot, white is neutral, and green or bare is ground.
Improper grounding is another risk. If you do not connect the ground wire securely, you increase the chance of electric shock. Overcrowding the panel or running wires through unsafe places can also lead to trouble. According to the Electrical Safety Foundation International, wiring hazards cause nearly 14% of electrocutions related to consumer products.
| Error Type | What Can Happen | Why It Happens |
|---|---|---|
| Wrong wire size | Overheating, fire | Using wrong gauge wire |
| Loose connections | Arcing, heat, fire | Poor wirenut use, not tight enough |
| Mixed-up wire colors | Shocks, code violations | Not following color codes |
| Bad grounding | Shock, unsafe system | Ground wire not connected properly |
Troubleshooting
If you have a problem, start with a visual check. Look for burnt wires, loose screws, or damaged insulation. Use a multimeter to test for voltage and continuity. Always turn off the power before you touch any wires. Set your multimeter to the right setting. Test each wire to make sure it is not live. Check that each breaker has the correct voltage. If you find a loose or burnt wire, fix it right away.
Follow these steps to troubleshoot safely:
- Turn off the main power.
- Inspect all wires and connections.
- Use a multimeter to check voltage and continuity.
- Make sure all wires are tight and in the right place.
- Replace any damaged parts.
Tip: Write down your test results. This helps you spot patterns and fix problems faster.
When to Call a Pro
You should call a licensed electrician if you see any of these signs:
- You smell burning or see smoke from the panel.
- Breakers trip often or will not reset.
- You find melted wires or scorched insulation.
- You feel unsure about any step or code rule.
- You need to install AFCI breakers or wire a subpanel.
Some jobs, like fixing main service wires or correcting major code violations, require special training. If you are not sure, always ask a professional. Your safety comes first.
You help keep your home safe when you wire a circuit breaker panel. Always follow safety rules and local codes. Careful work stops accidents and saves money. If you feel unsure, call a licensed electrician for help. Check every connection two times and label each breaker clearly. This makes repairs easier and safer later.
Remember: Safety is most important. Go slow and never hurry electrical work.
FAQ
How do you know if your panel needs an upgrade?
You should check the age of your panel. If it is over 30 years old or you see rust, call a pro. New appliances or frequent breaker trips also mean you may need an upgrade.
Can you add more breakers to a full panel?
No, you cannot add more breakers if your panel is full. You must install a subpanel or upgrade to a larger panel. Overloading a panel is unsafe and breaks code rules.
What is the difference between a main panel and a subpanel?
A main panel connects directly to the utility service. It bonds ground and neutral. A subpanel gets power from the main panel. You must keep ground and neutral separate in a subpanel.
Why do breakers keep tripping?
Breakers trip when circuits overload, wires short, or a ground fault happens. You should unplug some devices and reset the breaker. If it trips again, you need to check for wiring problems or call an electrician.
Do you need a permit to wire a panel?
Yes, you need a permit in most places. Permits make sure your work meets safety codes. Always check with your local building office before you start any electrical job.
