How to Select RCCB Sensitivity for Your Home

When keeping your home safe, it is crucial to select RCCB sensitivity carefully. RCCBs, or Residual Current Circuit Breakers, are essential for protecting your electrical system. They detect current leaks and shut off power to prevent accidents. Selecting the right RCCB sensitivity is vital for keeping your family safe from shocks and fires.

Areas such as kitchens and bathrooms present greater electrical hazards. These spaces require RCCBs with higher sensitivity to minimize the risk of accidents. Be sure to select RCCB sensitivity based on the specific needs of each room. It’s important to balance safety and cost when making your decision.

Key Takeaways

• Pick a 30mA RCCB for risky spots like bathrooms or kitchens. This type quickly finds small leaks to stop electric shocks.
• Think about each room’s needs when choosing RCCB sensitivity. Match the sensitivity to the danger level to stay safe without losing power often.
• Make sure your RCCB follows safety rules like IEC 61008. This keeps your home safe and meets important safety laws.
• Don’t make mistakes like picking sensitivity that’s too high or too low. Too high can cause annoying power cuts, while too low can be unsafe.
• Ask a trained electrician if you’re unsure about your home’s needs. They can help you choose the best RCCB sensitivity for safety.

Understanding RCCB Sensitivity

What is RCCB sensitivity?

RCCB sensitivity shows how well it detects current leaks. If a small current escapes, the RCCB notices and cuts power. This quick action stops shocks and lowers fire risks. RCCBs are very important, especially in wet areas like kitchens and bathrooms.

Sensitivity means how small a leak the RCCB can find. For instance, a 30mA RCCB trips when it senses 30 milliamperes or more. Picking the right sensitivity keeps your home safe and working properly.

How RCCBs detect electrical faults

RCCBs use a rule called Kirchoff’s current law. This rule says current entering equals current leaving a circuit. If there’s a difference, some current is leaking. It could be through a person or bad wiring. The RCCB spots this and shuts off power fast.

Here’s how they work:

• They check current going in and out of the circuit.
• If they find a leak, they stop the current flow.
• They protect you from shocks and stop fires or overheating.

Why sensitivity is crucial for home safety

Choosing the right RCCB sensitivity keeps your family and home safe. A 30mA RCCB is very sensitive and finds small leaks. It’s great for places with water, like bathrooms or kitchens. Less sensitive ones, like 100mA or 300mA, work better in low-risk areas.

RCCBs give peace of mind. They act like a safety guard, cutting power when needed. This is extra helpful for homes with kids or older people, who are more at risk. Picking the right sensitivity makes your home safe and follows safety rules.

Tip: Match RCCB sensitivity to each room’s needs. This avoids unnecessary power cuts while keeping you safe.

Standard Sensitivity Levels and Their Applications

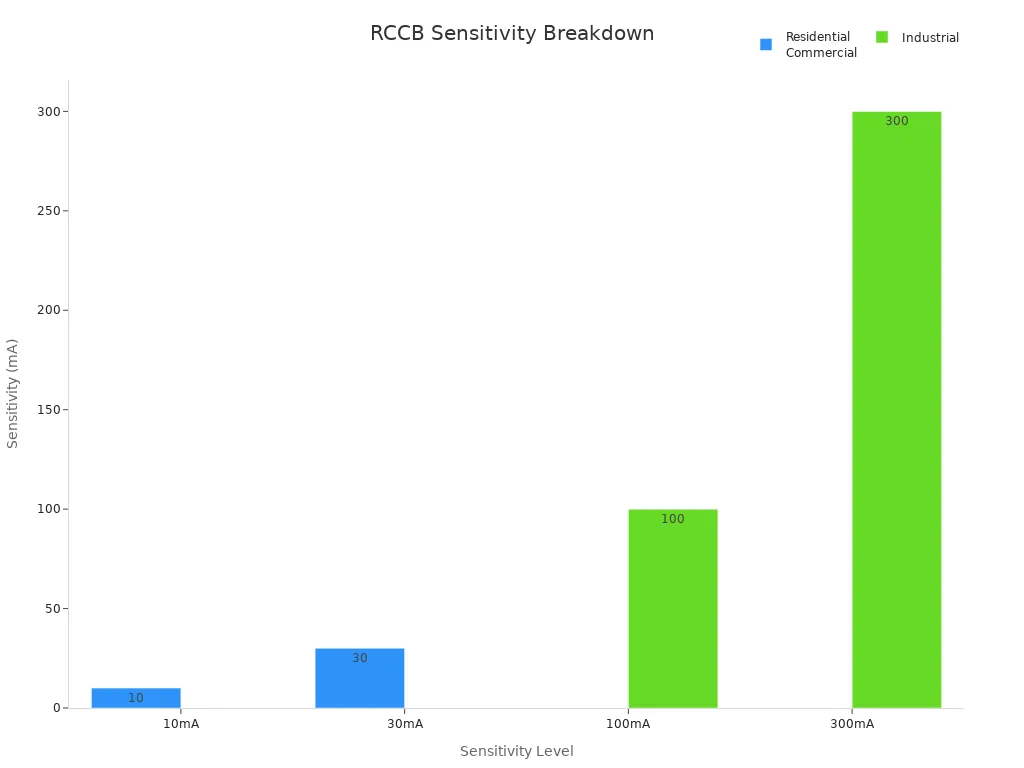

Overview of common sensitivity levels (e.g., 30mA, 100mA)

RCCBs have different sensitivity levels for various uses. Common levels include 10mA, 30mA, 100mA, and 300mA. These levels show how much current leakage the RCCB detects before shutting off power. Below is a simple guide:

For homes, 30mA is the most popular choice. It protects against shocks and works well in places like kitchens and bathrooms. Higher levels, like 100mA or 300mA, are mostly used in factories. These focus on stopping fires instead of personal safety.

When to use 30mA sensitivity

Use 30mA sensitivity where safety matters most. This level is perfect for areas with water, like bathrooms, kitchens, and outdoor plugs. It’s also great for homes with kids or older people, who are more at risk. A 30mA RCCB acts fast to prevent injuries or fires.

Tip: Place 30mA RCCBs in risky areas to keep your family safe.

When to use 100mA or higher sensitivity

Higher sensitivity levels, like 100mA or 300mA, work better in factories or offices. These RCCBs focus on stopping fires instead of protecting people. For example, a 100mA RCCB finds bigger leaks that could cause overheating or fires. Standards like IEC 61008-1 ensure these devices meet global safety rules.

If your home has heavy electrical use or fewer shock risks, a 100mA RCCB might work well. Always ask an expert to pick the right sensitivity for your needs.

How to Select RCCB Sensitivity for Your Home

Checking your home’s electrical needs and risks

Picking the right RCCB sensitivity starts with knowing your home’s setup. Each home has different needs based on its electrical use and risks. Here’s how to figure it out:

1. Current Rating and Sensitivity: Check the devices in your home. For safety, use a 30mA RCCB. If fire risks are a concern, like in high-load areas, a 300mA RCCB is better.
2. Installation Location: Think about where you’ll place the RCCB. Indoor spaces like living rooms need different RCCBs than outdoor areas. Outdoor RCCBs should handle moisture and dust with higher IP ratings.
3. Device Type: Look at the appliances you use. Home devices like fridges and washers need simpler RCCBs than factory machines.
4. Safety Standards: Ensure the RCCB follows rules like IEC 61008 or IEC 61009. These standards guarantee the RCCB works well and keeps your home safe.
5. Cost and Maintenance: Consider both the price and upkeep of the RCCB. A good RCCB may cost more but saves money by preventing accidents.

By reviewing these points, you can choose an RCCB that balances safety and cost.

Tip: Not sure about your home’s electrical needs? Ask a licensed electrician for advice. They can help you pick the right RCCB sensitivity.

Choosing sensitivity for specific rooms (e.g., bathrooms, kitchens)

Different rooms in your home need different safety levels. Wet places like bathrooms and kitchens are riskier and need extra care. Here’s how to match RCCB sensitivity to each area:

• Bathrooms: Bathrooms are risky because of water. Use a 30mA RCCB here. It quickly stops small leaks to prevent shocks.
• Kitchens: Kitchens have water and heavy appliances like dishwashers. A 30mA RCCB is a good choice for safety.
• Living Rooms and Bedrooms: These areas are safer. A 100mA RCCB is usually enough unless water is nearby.
• Outdoor Areas: Outdoor plugs and lights face rain and moisture. Use a 30mA RCCB with a strong IP rating for protection.

Matching RCCB sensitivity to each room avoids overprotection or underprotection. This keeps your family safe and prevents unnecessary power cuts.

Note: Focus on areas with water or heavy electrical use when choosing RCCB sensitivity.

Following safety standards like IEC 61008

Safety rules make sure RCCBs work properly and protect you. When buying an RCCB, check if it meets standards like IEC 61008. Here’s why this is important:

• Worldwide Approval: IEC 61008 is a global rule that ensures RCCBs are safe and reliable.
• Trustworthy Protection: Standards mean the RCCB has been tested and will work when needed.
• System Fit: Certified RCCBs work well with your home’s electrical system.

Look for labels like the CE mark or CB mark when buying an RCCB. These show the device meets global safety rules.

Pro Tip: Check the product label or manual for safety details. If unsure, ask the seller or manufacturer for help.

By following these steps, you can pick an RCCB that fits your home’s needs and meets safety rules.

Avoiding Common Mistakes When Choosing RCCB Sensitivity

Picking the wrong RCCB sensitivity can cause problems. Let’s look at common mistakes and how to avoid them.

Problems with too much sensitivity (nuisance tripping)

Using an RCCB with very high sensitivity may seem safer. However, it can cause frequent power cuts for small, harmless current leaks. Imagine your fridge or washer stopping suddenly—it’s annoying, right?

Why too much sensitivity is bad:

• Frequent Power Cuts: Small current changes from appliances like microwaves can trigger the RCCB.
• Device Damage: Constant interruptions can harm your appliances over time.
• Daily Disruptions: Nuisance tripping can mess up your routine and damage electronics.

To fix this, choose RCCB sensitivity based on each room’s needs. For example, use 30mA in bathrooms but 100mA in safer areas.

Tip: If your RCCB trips often, ask an electrician to check its sensitivity.

Problems with too little sensitivity (unsafe conditions)

Using an RCCB with low sensitivity can miss small current leaks. This can make your home unsafe, especially in wet areas like kitchens or bathrooms.

Why too little sensitivity is risky:

• Shock Danger: Small leaks might not be detected, risking electric shocks.
• Fire Risk: Undetected leaks can cause overheating and fires.
• Breaking Rules: Safety standards like IEC 61008 require certain sensitivity levels. Ignoring them can break local laws.

For safety, use higher sensitivity (like 30mA) in risky areas. Lower levels are fine for safer zones, but never skip safety in critical places.

Note: When unsure, pick a more sensitive RCCB for risky areas.

Forgetting environment and local rules

Environmental conditions and safety rules matter when choosing RCCBs. Ignoring these can lead to poor performance or legal trouble. Outdoor areas need RCCBs that handle rain and dust.

Key points to remember:

• Environment: Humidity, heat, and dirt affect RCCBs. Outdoor RCCBs need protection from moisture and dust.
• Local Rules: Different places have unique RCCB safety standards. For example, Europe’s Green Deal focuses on eco-friendly RCCBs, while India’s BIS supports solar energy systems.

To stay safe and legal, check RCCB certifications like CE marks or IEC compliance. These show the RCCB meets safety standards.

Pro Tip: For outdoor or factory use, pick RCCBs with strong IP ratings and proper certifications.

By avoiding these mistakes, you can choose an RCCB that keeps your home safe and follows safety rules.

Picking the correct RCCB sensitivity is a smart way to keep your home safe. It helps protect your family from shocks and fire risks. For homes, a 30mA RCCB is usually the best option. It quickly detects small current leaks and stops power. This fast action prevents shocks and keeps your devices safe.

Here’s a simple guide to RCCB sensitivity levels:

Tip: Match RCCB sensitivity to each room’s needs. Wet areas like kitchens and bathrooms need higher sensitivity for safety.

Not sure about your home’s electrical system? Ask a licensed electrician for help. They can guide you to pick the right RCCB and ensure it meets safety rules. Your family’s safety is always worth it! 😊

FAQ

What’s the difference between RCCB and MCB?

RCCBs stop electrical shocks by finding current leaks. MCBs prevent damage from overloads or short circuits. RCCBs keep you safe from shocks, while MCBs protect your devices.

Tip: Use both RCCBs and MCBs for full home protection.

Can I install an RCCB myself?

No, you shouldn’t install an RCCB unless you’re a licensed electrician. Wrong installation can cause safety problems. Always hire an expert to set it up correctly.

Note: DIY electrical work can break rules and cancel warranties.

How often should I test my RCCB?

Test your RCCB every three months. Press the “Test” button to see if it trips. If it doesn’t work, call an electrician right away. Testing helps ensure your RCCB is ready to protect you.

Pro Tip: Add a reminder on your phone to test your RCCB regularly.

Is a 30mA RCCB enough for my whole house?

A 30mA RCCB is great for wet areas like bathrooms and kitchens. For other rooms, a 100mA RCCB might be better. Choose the sensitivity based on the room’s safety needs.

What if my RCCB keeps tripping?

If your RCCB trips often, it could mean bad wiring or a broken device. Check your appliances first. If the issue continues, call an electrician to check your system. Don’t ignore frequent trips—they signal danger.

Alert: Never reset a tripping RCCB without fixing the problem. It’s unsafe!
