Choosing the right type of miniature circuit breaker keeps things safe and ensures your electrical system operates efficiently. It’s important to understand your load type and check how much current it draws. You also need to consider how the type of miniature circuit breaker responds during surges. For instance, a Z-rated MCB, a specific type of miniature circuit breaker, can handle up to 20 times its rated current, making it ideal for equipment with high inrush currents. On the other hand, an A-rated MCB trips quickly at just 2-3 times its rated current, providing protection for sensitive devices. The table below compares these values and highlights why selecting the right type of miniature circuit breaker is crucial:
| MCB Rating | Trip Threshold (times rated current) | Best Use Case |
|---|---|---|
| A-rated | 2-3 | Sensitive electronics |
| Z-rated | Up to 20 | High inrush current devices |
You can match your type of miniature circuit breaker to your load by following clear steps. Breaking it down makes the process simple.
Key Takeaways
- Find out if your electrical load is resistive, inductive, or mixed. This helps you pick the right MCB for how your devices use power.
- Add up the total current your load uses. Choose an MCB with a current rating a little higher than that. This stops unwanted tripping and keeps things safe.
- Pick the MCB type (B, C, D, K, or Z) that fits your load’s trip curve. This helps stop false trips and keeps your equipment safe.
- Always look at the MCB’s breaking capacity. Make sure it can safely stop fault currents in your system.
- Use a clear step-by-step process. Ask experts or check datasheets if you are not sure. This keeps your electrical system safe and working well.
MCB Basics
What Is an MCB
A miniature circuit breaker, or MCB, helps protect your electrical circuits. It stops electricity if there is a problem, like too much current or a short circuit. An MCB is an electromechanical device that does this job by itself. If it trips, you do not need to buy a new one. You just reset it, which is easier and safer than using a fuse.
MCBs use two main parts to work:
- Thermal trip unit: This part has a strip that bends when it gets hot from too much current. When it bends enough, it makes the breaker open.
- Magnetic trip unit: This part acts fast if there is a very high current, like in a short circuit. It uses a magnet to trip the breaker right away.

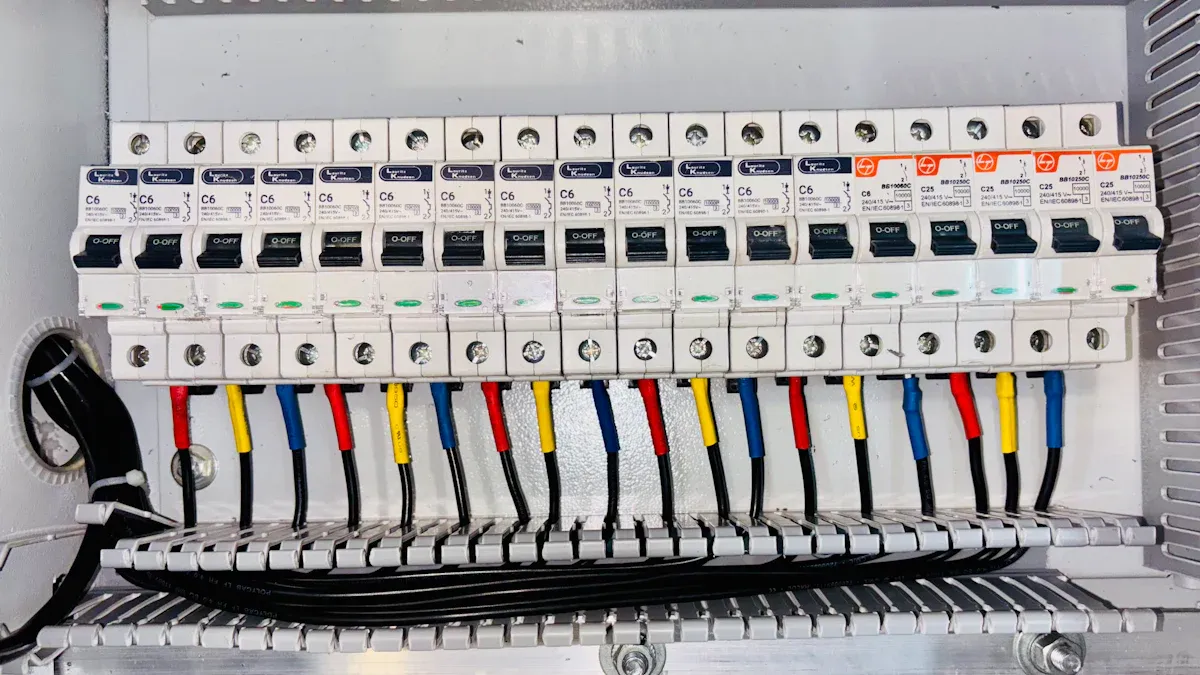

You can find MCBs in many places, like homes, schools, offices, and factories. They come in different sizes and ratings for different jobs. A small MCB might be used for a bedroom light. A bigger one could be used for a machine in a workshop.
Tip: You can reset MCBs after they trip. This means you do not have to replace them every time. It saves you time and money.
Why MCBs Matter
MCBs are important for keeping people and property safe. They protect wires, devices, and appliances from getting damaged by too much current. If something goes wrong, the MCB quickly shuts off the power to stop danger.
Here are some reasons why MCBs are important:
- They help stop electrical fires by cutting power during overloads or short circuits.
- They protect people from electric shocks, especially if there is a ground fault.
- You can reset them easily, so you do not have to wait long or spend extra money.
- Only the circuit with a problem shuts off, so the rest of your system keeps working.
- There are many sizes and ratings, so you can pick the right one for any load.
More people are using MCBs as homes and businesses use more electricity. New technology, like smart grids and remote monitoring, makes MCBs even more useful for keeping electrical systems safe today.
Load Types
Understanding your load type helps you choose the right circuit protection. Each load acts differently when you turn it on or off. You need to know if your load is resistive, inductive, or mixed. This step makes your selection process much easier.
Resistive Loads
Resistive loads use electricity to create heat or light. These loads do not have coils or magnets. You see them in devices like:
- Electric heaters
- Incandescent light bulbs
- Toasters
- Ovens
When you switch on a resistive load, the current stays steady. You do not see a big spike in current. This makes it easy to protect with most circuit breakers. You can usually use a standard MCB for these loads. The breaker trips only if the current goes above its rated value for too long.
Tip: For most home lighting and heating, you deal with resistive loads.
Inductive Loads
Inductive loads use coils or magnets. These loads store energy in a magnetic field. You find them in:
- Electric motors
- Transformers
- Fans
- Pumps
When you turn on an inductive load, the current can jump very high for a short time. This is called inrush current. The breaker must handle this spike without tripping right away. You need to pick a breaker that allows for this surge but still protects against real faults.
| Inductive Load Example | Inrush Current? | Needs Special MCB? |
|---|---|---|
| Motor | Yes | Yes |
| Transformer | Yes | Yes |
Mixed Loads
Mixed loads combine resistive and inductive elements. Many real-world circuits fall into this group. For example, a washing machine has a heating element (resistive) and a motor (inductive). Office equipment and kitchen appliances often have mixed loads.
You must look at both parts when you choose protection. Check if the load has a motor or transformer. If yes, plan for inrush current. If it has heating or lighting, check the steady current. This helps you select the right breaker for safety and performance.
Note: Always match your breaker to the main load type. If you are unsure, ask a professional or check the device label.
Type of Miniature Circuit Breaker
Picking the right type of miniature circuit breaker keeps your electrical system safe. Each type acts in its own way when the current changes. You should learn how each one works before you choose.
Trip Curves (B, C, D, K, Z)
Trip curves tell you how fast a miniature circuit breaker reacts to a sudden jump in current. You can think of them as the “personality” of each breaker. The main types are B, C, D, K, and Z. Each one is best for a certain kind of load.
- Type B trips when the current is 3 to 5 times higher than normal. This type is good for simple loads like lights or heaters. It reacts fast to small surges.
- Type C trips at 5 to 10 times its rated current. This type is used for circuits with small motors or mixed loads. It can handle a short burst of high current.
- Type D trips at 10 to 20 times its rated current. You use this type for big motors or machines that need a lot of power to start.
- Type K trips at 8 to 12 times its rated current. This type works well for loads with high inrush currents, like transformers or large motors.
- Type Z trips very quickly, at 2 to 3 times its rated current. This type is best for sensitive electronics that cannot handle even small surges.
Tip: Always look at the trip curve on the breaker label or datasheet. This helps you stop nuisance tripping and keeps your equipment safe.
Technical documents about miniature circuit breakers talk about things like rated voltage, current, and breaking capacity. They explain how thermal and magnetic tripping work and how arc interruption happens. These documents follow rules like IEC 60898 and IEC 60947-2. They do not usually talk about reliability rates or failure numbers, but they do show how each type of miniature circuit breaker fits different jobs.
Choosing by Application
You need to match the type of miniature circuit breaker to your load. Each job has its own needs. If you pick the wrong type, you might get nuisance tripping or your equipment might not be safe.
- For homes and offices, you often use Type B. These breakers protect lights, outlets, and small appliances.
- For places with small motors or mixed loads, like shops or small workshops, Type C is best.
- For heavy machines or big motors, like in factories, Type D or Type K gives better protection.
- For sensitive electronics, like computers or lab equipment, Type Z is the safest choice.
You also need to think about how you install the breaker. Some types, like plug-in MCBs, make it quick and easy to put in home panels. Others, like bolt-on or cable-in/cable-out types, are made for special jobs in commercial or industrial places.
- MCBs have trip-free parts, small size, and last a long time.
- You can use them in lighting, industrial machines, and heaters.
- They keep your circuits safe by cutting power during overloads or short circuits.
- You pick the right type of miniature circuit breaker by looking at amperage, voltage, and short-circuit rating.
- Thermal-magnetic trip parts work well for most jobs. Hydraulic-magnetic types are good for places with big temperature changes.
Note: Always check the breaking capacity of your breaker. Most MCBs can handle up to 10 kA, which is good for smaller panels or loads further down the line.
Quick Reference Table: MCB Types vs. Load Types
| Type of Miniature Circuit Breaker | Typical Trip Range (times rated current) | Best Use Case |
|---|---|---|
| B | 3 – 5 | Lighting, resistive loads, homes |
| C | 5 – 10 | Mixed loads, small motors, shops |
| D | 10 – 20 | Large motors, heavy machinery |
| K | 8 – 12 | Transformers, high inrush devices |
| Z | 2 – 3 | Sensitive electronics, labs |
🛠️ If you are not sure which type of miniature circuit breaker to use, check the device label or ask a professional. This helps you avoid mistakes and keeps your system safe.
Selection Steps
Picking the right miniature circuit breaker takes a few steps. This guide helps you keep your system safe and working well.
Identify Load Type
First, find out what kind of load you have. Loads can be resistive, inductive, or mixed. You can check voltage, current, and apparent power to help you decide. If the current stays steady when you turn on the device, it is probably a resistive load. If the current jumps up fast and then drops, it is likely an inductive load.
| Parameter | What It Shows | How It Helps You Identify Load Type |
|---|---|---|
| Voltage | Measures bus voltage | Shows how load responds to voltage changes |
| Instantaneous Current | Measures current at a moment | Reveals inrush or steady current |
| Apparent Power | Combines voltage and current | Helps model load behavior |
| Time Constants | Shows recovery after a disturbance | Distinguishes dynamic load types |
Tip: Look at device labels or manuals to find the load type. If you do not know, use a clamp meter to check the current when you turn the device on.
Calculate Load Current
Next, figure out how much current your load uses. Add up the wattage for all devices on the circuit. Divide the total watts by the voltage to get amps. For three-phase systems, use this formula:
I_L = Total Power (W) / (√3 × Voltage (V) × Power Factor)
- Use demand and diversity factors so you do not guess too high. Not every device runs at full power all the time.
- For lighting with discharge lamps, multiply lamp power by 1.8 before dividing by voltage.
- For motors, remember inrush current is much higher than running current.
Note: Getting the load current right stops nuisance tripping and keeps you protected.
Select MCB Type
Now, match the type of miniature circuit breaker to your load. Check the trip curve and load details:
- Pick Type B for lighting and resistive loads.
- Pick Type C for mixed loads or small motors.
- Pick Type D for large motors or heavy machines.
- Pick Type K for high inrush devices like transformers.
- Pick Type Z for sensitive electronics.
Check the trip range for each type. For example, Type B trips at 3-5 times rated current. Type D trips at 10-20 times. This helps you stop nuisance tripping and keeps your equipment safe.
🛠️ Always look at the manufacturer’s datasheet for the trip curve and notes.
Check Current Rating
Pick an MCB with a current rating just above your load current. This stops nuisance tripping but still protects your wires and devices. For example, if your load is 12 amps, pick a 16-amp breaker, not a 10-amp one.
| Selection Aspect | Guideline |
|---|---|
| MCB current rating | Slightly higher than maximum load current |
| Long-delay trip current | Must be greater than load current |
| Instantaneous trip current | 6-20 times load current (depends on circuit type) |
Note: The current rating is on the MCB. Never use a breaker with a lower rating than your load.
Verify Breaking Capacity
Breaking capacity shows how much fault current the breaker can stop safely. If a short circuit happens, the breaker must stop the current without breaking. Look for ratings like Icu (short-circuit breaking capacity) and Ics (service breaking capacity).
| Breaking Capacity Rating | What It Means | Why It Matters |
|---|---|---|
| Icu | Maximum short-circuit current breaker can interrupt | Prevents catastrophic failure |
| Ics | Percentage of Icu for repeated interruptions | Shows durability under fault conditions |
Safety Alert: Old or weak breakers can fail during faults. Always pick a breaker with enough breaking capacity for your system’s highest fault current.
Choose Poles and Voltage
Pick the right pole setup and voltage rating for your system:
| Pole Configuration | Description & Voltage Rating | Best Use Case |
|---|---|---|
| 1P | Controls live wire only (single-phase) | Simple home circuits, cost-saving |
| 1P+N | Controls live and neutral (neutral not tripped) | Avoids confusion during maintenance |
| 2P | Both live and neutral trip | Essential circuits, higher safety |
| 3P | Three-phase loads, no neutral | Industrial motors, three-phase appliances |
| 3PN/4P | Three-phase plus neutral | Mixed loads, three-phase four-wire systems |
Make sure the voltage rating on the breaker matches your system. Using the wrong voltage rating can cause nuisance tripping or leave your system unprotected.
Tip: For tricky or important systems, ask a professional or check the National Electrical Code (NEC) and manufacturer datasheets.
- Figure out where you will use the breaker (home, office, factory).
- Measure or calculate your load current.
- Pick the type of miniature circuit breaker based on load type and trip curve.
- Choose a current rating just above your highest load.
- Check the breaking capacity to match your system’s fault level.
- Pick the right pole setup and voltage rating.
- Think about the environment and how you will install it.
- Ask a pro or check datasheets if you are not sure.
Following these steps helps you match the type of miniature circuit breaker to your electrical load. This keeps your system safe and working well.
You can find the right miniature circuit breaker by using a few easy steps. First, figure out what kind of load you have. Next, work out how much current your devices use. Then, pick the breaker type and rating that fits. Doing this helps keep your system safe and working well.
- In real life, picking the right breaker makes things safer. It also stops problems in places like data centers and ships.
- Studies show that checking breaker health and choosing the right type helps things work better and last longer.
If your system is tricky or very important, look at datasheets or ask an expert. Picking carefully keeps your equipment safe and helps you worry less.
FAQ
What happens if you choose the wrong type of MCB?
If you pick the wrong MCB, your breaker may trip too often or not trip when needed. This can damage your devices or cause safety risks. Always match the breaker to your load for the best protection.
How do you know the current rating for your MCB?
You can find the current rating on the MCB label or datasheet. To choose the right one, calculate the total current your devices use. Pick a breaker with a rating just above your highest load.
Can you use one MCB for different types of loads?
You should not use one MCB for all load types. Each load, like motors or lights, needs a breaker with the right trip curve. Using the wrong type can cause nuisance tripping or leave your system unprotected.
Do you need a professional to select an MCB?
For simple home circuits, you can follow the steps in this guide. For complex or large systems, ask a licensed electrician. This keeps your system safe and up to code.
