Circuit Breaker Selection for Hospital Power Supply Systems

When you select circuit breakers for a hospital power supply system, safety should be your top priority. It’s essential to ensure that they operate efficiently and comply with regulations. Circuit protection devices are crucial in preventing electrical hazards, thereby safeguarding both patients and staff. Choosing the appropriate breakers is vital to ensure that important medical equipment remains operational without interruption or failure. Hospitals have unique requirements for their emergency power supply systems, so you must choose breakers that can meet these specific needs. They play a critical role in supporting life-saving operations.

Key Takeaways

• Always put safety first when picking circuit breakers for hospitals. Make sure they follow NEC and NFPA rules to keep patients and staff safe.
• Do a coordination study before you put in circuit breakers. This makes sure only the closest breaker trips if there is a problem. It helps keep important equipment working.
• Pick the right kind of circuit breaker for what the hospital needs. You can use thermal magnetic, LSI, or RCD breakers for different jobs.
• Test and check circuit breakers often to stop false alarms. This keeps important medical equipment running and powered.
• Keep records of all your choices and studies up to date. These papers show you follow safety rules when you have inspections.

Compliance Standards

NEC and NFPA

You have to follow strict rules when picking circuit breakers for hospitals. The National Electrical Code (NEC) and the National Fire Protection Association (NFPA) make the main rules. These codes help keep patients and staff safe. They make sure power stays on for important equipment.

Tip: Always look at the newest NEC and NFPA rules before you start your design.

The NEC says you need selective coordination. This means if there is a problem, only the closest breaker turns off. The other breakers keep working. This keeps power on in the rest of the hospital. This is very important because many panels connect to life safety and critical branch circuits.

Here is a table that lists the main NEC rules for hospital circuit breakers:

NFPA rules also help you choose. The NEC says emergency systems are needed by law and called emergency by different codes. NFPA 110 explains the parts of emergency power systems. This includes the emergency power supply and its systems. This shows how important these systems are in hospitals.

You can see some important NFPA and NEC rules in the table below:

You should know about EES types too:

• EES Type 1 is for Category 1 spaces, where losing power could cause big harm.
• EES Type 2 is for Category 2 spaces, where losing power is less risky.
• The main difference between Type 1 and Type 2 is how power is given out.

IEC and Local Codes

If you work outside the U.S., you might need to follow International Electrotechnical Commission (IEC) rules. These rules help you pick the right circuit breakers for hospitals. IEC 60601-1 is important for medical electrical equipment. It makes sure breakers turn off power during overcurrent and keep equipment safe.

Here is a table that explains the most important IEC rules for hospital circuit breakers:

You should also remember these things:

• IEC 60601-1 is the main rule for safety in medical products.
• Circuit protection devices stop electrocution and fire.
• Following these rules keeps hospital equipment working well.

Local codes can add more rules. Local authorities make sure you follow these codes. They might have special rules for emergency power or occupancy. Here is a table that compares local codes with national standards:

You should always check both national and local codes before picking circuit breakers for a hospital power supply system. This helps you avoid trouble and keeps your hospital safe and working well.

Hospital Power Supply System Coordination

Selective Coordination

All parts of a hospital power supply must work together. Selective coordination helps with this. It means only the closest circuit breaker to a problem will trip. The rest of the system keeps running. This stops big power outages in important places.

Without selective coordination, small problems can get worse. One fault might make many breakers trip at once. This could turn off important equipment and put patients in danger.

Many things led to this big problem. It started because the overcurrent devices were not selectively coordinated. A motor winding touched the ground and caused trouble. The hospital had done a coordination study before. But they did not use it because some managers did not want to shut down areas at night.

The National Electrical Code (NEC) says hospitals must use selective coordination. NEC Article 517 says all overcurrent protective devices must be coordinated. This rule keeps emergency and life safety systems working, even if there is a fault somewhere else.

You should always check your system for selective coordination. You can use tables, charts, or software to help. Make sure you write down your work. This helps you show inspectors that your system follows NEC rules.

Coordination Studies

You need to do a coordination study before you install or change your hospital power supply. A coordination study finds the best settings for each breaker. It shows how each device will act if there is a problem. This helps make sure only the right breaker trips.

Update your coordination study every time you change your system. This includes adding new equipment or changing breaker settings. If you skip this, you might miss problems that cause outages.

Here are some steps for a good coordination study:

1. Collect all system drawings and breaker data.
2. List all loads and how important they are.
3. Use software or charts to model the system.
4. Check that each breaker trips in the right order.
5. Write down your results and keep them safe.

Keep your coordination study documents in a safe place. Inspectors may want to see them. Good records help you prove your hospital power supply meets NEC rules.

When you use selective coordination and do regular studies, you help keep your hospital safe. You also make sure important equipment stays on during emergencies.

Breaker Types

Thermal Magnetic

Thermal magnetic circuit breakers are common in hospitals. These breakers use two ways to protect circuits. The thermal part works when there is a slow overload. The magnetic part acts fast if there is a short circuit. Both parts help keep equipment safe from electrical problems.

Here are some good and bad things about them:

• The thermal part can act differently if the room is hot or cold.
• In a hot room, the breaker might trip sooner than you want.
• In a cold room, it might not trip as fast as needed.

To make sure it works well, keep the load current under 80% of what the breaker is rated for. This is very important if your hospital has rooms with changing temperatures.

LSI Breakers

LSI breakers use microprocessors to control when they trip. You can set these breakers to fit your hospital’s needs. LSI breakers give very exact protection for medical equipment.

• LSI breakers let you adjust trip settings for each circuit.
• They help you make sure only the right breaker trips during a problem.
• You can use a 3:1 ratio for breakers to clear faults, but LSI breakers let you make this even closer.

Use LSI breakers in important places like operating rooms and intensive care units. They work well for both normal and emergency power.

RCDs

Residual Current Devices (RCDs) protect people from electric shock. These breakers sense small leaks of current and trip fast to stop harm. Use RCDs in wet places like bathrooms or labs where shock risk is higher.

RCDs add extra safety to your hospital. They work with other breakers to protect people and equipment. You can use them in both regular and emergency circuits.

Technical Specs

Ampere Rating

You have to pick the right ampere rating for each breaker. This rating shows how much current the breaker can take before it trips. Hospitals often use breakers with high interrupting abilities. These breakers protect important machines and keep power on in key places. Many hospitals use electronic trip units for better overload and short-circuit protection. Always look at the datasheet to find the correct ampere rating. Make sure it fits what your hospital needs.

• Some common ampere ratings in hospitals are:
  • 15A, 20A, 30A for branch circuits
  • 100A, 225A, 400A for main and feeder circuits

Tip: Do not guess the ampere rating. Use load calculations and follow the code rules.

Fault Current

Fault current is the biggest current that can flow during a short circuit. You must pick breakers that can safely stop this current. If you choose a breaker with a low interrupting rating, it might not work during a fault. Hospitals need breakers with high fault current ratings because they have lots of equipment and backup power. Always check the highest fault current at each panel. Pick breakers that can handle this or more.

Voltage

You need to match the breaker’s voltage rating to the system voltage. Most hospital circuits use 120V, 208V, or 480V. Using the wrong voltage rating can make the breaker fail. Always check the voltage on the datasheet and compare it to your system. Some breakers work at different voltages, but always check before you install them.

Environmental Factors

The environment can change how breakers work. You should put breakers in clean, dry air and at normal room temperature. High humidity, dust, or very hot or cold rooms can affect how a breaker trips. Some hospital areas, like labs or machine rooms, may need special covers. Always read the datasheet for limits on where you can use the breaker. If you put a breaker in a tough place, pick one made for harsh spots.

Note: Most datasheets use 60 Hz and normal room conditions for ratings. Always check if your site is the same as these conditions.

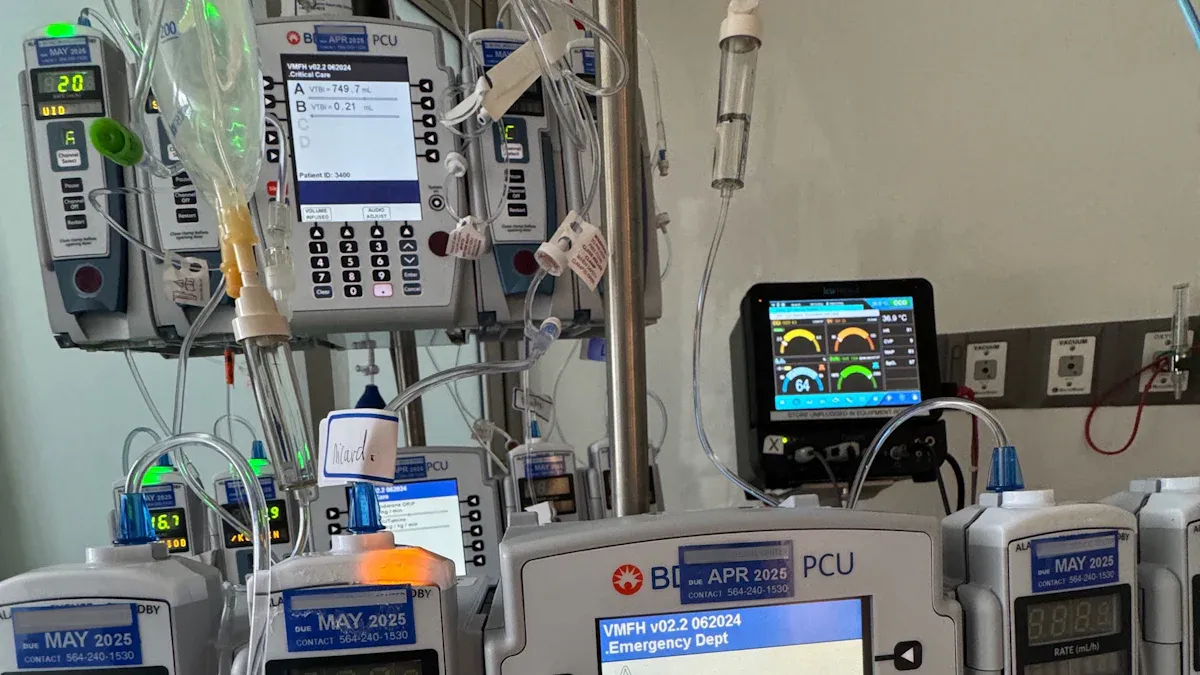

Emergency Power

Runtime Requirements

Hospitals need emergency power that lasts during blackouts. This power keeps important machines working if the main power stops. NFPA 110 gives rules for how long emergency power should last in hospitals. This rule also tells you how to set up and care for emergency power systems.

NFPA 110 says Level 1 systems are the most important. These systems protect people’s lives. You must use emergency power supplies that are always ready in these areas. The table below shows how long different emergency power systems must run and how fast they must start:

Check which class your hospital needs before you choose. Some hospitals may need power for even longer, like 96 hours, for special cases. Always plan for the worst so patients stay safe.

Tip: Test your emergency power system often. This helps you find problems before an emergency happens.

Breaker Selection

Pick circuit breakers that work well with your emergency power. Not all breakers are made the same way. For emergency circuits, use breakers that can handle quick power changes and big loads. These breakers must trip fast if there is a problem but stay on during normal power surges.

Look for these things when picking breakers for emergency power:

• High interrupting capacity for big fault currents.
• Fast response time to meet the 10-second rule.
• Works with backup generators and transfer switches.
• Can work in tough places, like hot or wet rooms.

Make sure the breakers are easy to test and reset. This helps your staff keep the hospital power system working during emergencies.

Practical Considerations

Nuisance Tripping

Nuisance tripping happens when a circuit breaker turns off power for no real reason. This is bad in hospitals because it can stop important equipment. There are many things that can cause nuisance tripping:

• If the circuit is not sized right, it can trip too much.
• Plugging in too many devices can overload the circuit.
• Damaged wires or a hot wire touching a neutral wire can make a short circuit.
• Ground faults happen a lot in wet places like bathrooms or labs.
• Computers and other electronics can make residual current devices trip randomly.
• Harmonic currents from voltage problems can also make breakers trip.

Tip: Always pick a breaker size that matches the load. Check the wires often to help stop nuisance tripping.

Reliability

Hospitals need circuit breakers that work well all the time. Reliability means the equipment is good, there are backup systems, and you do regular maintenance. Hospitals use Electrical Breaker Management Programs to help follow safety rules and keep things working. Using good breakers and taking care of them lowers the chance of losing power during medical care.

Reliable circuit breakers stop overloads and short circuits. This keeps patient care safe and does not let power go out.

Compatibility

When you put new circuit breakers in a hospital, you have to check if they fit with what you already have. Some new breakers are sensitive to things like heat or cold. Advanced breakers might need special care. If the hospital’s power is not steady, breakers can trip more often and interrupt care. Old systems sometimes do not work well with new breakers. It can be hard if there are not enough trained workers to fix problems.

• New breakers might not work with old systems.
• Bad power quality can make equipment not work right.
• Always look at the hospital’s power quality before putting in new breakers.

Make sure new breakers fit your hospital’s needs and work with what you have. This helps you avoid trouble and keeps your hospital safe.

Selection Checklist

Step-by-Step Guide

Here are easy steps to help you pick the right circuit breakers for your hospital power supply system:

1. Review Codes and Standards
   Look at the newest NEC, NFPA, IEC, and local codes. Make sure you know all the rules for hospitals.
2. Identify Critical Loads
   Write down all equipment that must stay on if power goes out. Mark which circuits are for life safety and emergencies.
3. Select Breaker Types
   Pick from thermal magnetic, LSI, or RCD breakers. Match each breaker type to the right area and equipment.
4. Check Technical Specs
   Check the ampere rating, fault current, and voltage. Use datasheets to make sure each breaker is a good fit.
5. Plan for Emergency Power
   Choose breakers that work with backup generators and transfer switches. Make sure they meet rules for how long and how fast they work.
6. Ensure Selective Coordination
   Do coordination studies to set up your breakers. Make sure only the closest breaker trips when there is a problem.
7. Consider Practical Issues
   Try to stop nuisance tripping. Pick breakers that are reliable. Make sure new breakers work with your current system.

Tip: Always keep records of your choices and studies. Inspectors might want to see proof.

Quick Reference

Use this table to help you remember what to check when picking circuit breakers:

✅ Use this checklist every time you work on a hospital power supply system.

You help keep your hospital’s power safe and working well. Picking the right circuit breaker protects people from electrical dangers. If you follow the rules and check breaker details, you stop outages and equipment problems. Hospitals change and face new risks all the time. Look at your checklist often and change your choices when rules or technology change. Checking your system and having clear rules makes everything safer and stronger.

FAQ

What is selective coordination, and why does it matter in hospitals?

Selective coordination means just the nearest breaker trips when there is a problem. Other parts of the hospital keep getting power. Hospitals need this to keep important machines working. It also helps stop big power outages. Using selective coordination helps you follow safety rules.

How do you choose the right ampere rating for a hospital circuit breaker?

You look at how much current each circuit uses. Add a little extra for safety. Always check the code rules and datasheets. Never guess the ampere rating. Picking the right rating keeps people and equipment safe.

Can you use regular home circuit breakers in a hospital?

No, you cannot use home breakers in hospitals. Hospital breakers must follow strict codes and handle bigger problems. They need special features for life safety and emergency power. Home breakers do not protect hospital equipment well enough.

How often should you test hospital circuit breakers?

Test hospital breakers at least once every year. Follow your hospital’s plan for checking them. Look for dirt, damage, or worn parts. Keep a record of every test you do. Testing often helps stop failures and keeps patients safe.

What should you do if a breaker trips often in a hospital?

Check the load and wiring if a breaker trips a lot. Look for broken equipment or too many things plugged in. Change out bad breakers if you need to. Do not ignore breakers that trip often. Fixing the problem keeps hospital power safe and working.
