Relationship Between Circuit Breaker Size and Installation Space

You must look at circuit breaker dimensions when you plan to install. The size of each breaker changes how much space you need. It also changes how safe the panel is to use. Always follow the rules for clearances. Keep the panel handles between 4 feet and 6 feet 7 inches from the floor. Leave at least 3 feet of space in front of the panel. Good lighting and easy access help stop accidents. These things keep your setup safe.

Key Takeaways

Measure your panel space before you buy a circuit breaker. This makes sure it fits right and keeps your system safe.
Keep at least 3 feet of space in front of your panel. This makes it safer and easier to reach in emergencies.
Pick the right size breaker for what you need. If it is too big or too small, it can be dangerous and hurt your equipment.
Think about future upgrades and get a panel with extra slots. This will help you save time and money when you add new circuits later.
Check the manufacturer’s instructions and local rules before you install. This helps you avoid problems and keeps things safe.

Breaker Size and Space

Direct Impact on Installation

When you pick a circuit breaker, you need to check its size. Circuit breaker dimensions tell you how much space you need in your panel. If the breaker is too big, it might not fit in your panel. If it is too small, it might not handle the power you need.

You can look at the table below to see the size and use:

Type of Circuit Breaker	Typical Amperage	Application
Residential	10A – 63A	General lighting, small appliances, dedicated circuits
Commercial	100A – 1000+ A	Small factories, large HVAC systems, industrial setups

Most homes use residential breakers. These breakers work for lights, outlets, and appliances. Commercial breakers are bigger. You find them in offices, factories, and large buildings. Bigger breakers need more space in your panel.

Tip: Always read the panel’s rules before you buy a breaker. This helps you make sure it fits and is safe.

Common Sizing Issues

Problems can happen if the breaker size does not match your panel space. Here are some common problems:

Oversized breakers might not trip when needed. This can cause overheating or fire.
Undersized breakers can trip too much. This can stop your power and hurt equipment.
The wrong size can make your system unsafe and break electrical codes.

Here is a quick list of what can go wrong with mismatched breakers:

Issue	Description
Failing to Trip When Needed	A mismatched breaker might not trip on an overload or short circuit. This can cause fires or damage.
Improper Fit and Connection	Breakers from different brands might not fit right. This can cause arcing or overheating.
Non-Compliance with Electrical Codes	Using the wrong breakers can break the rules. This can affect insurance or selling your property.
Safety Hazards	Breakers from other places may not have safety features. This can be risky for people and property.

You should always measure your space and check circuit breaker dimensions before you install. This keeps your system safe and helps you follow the rules.

Circuit Breaker Dimensions Explained

Key Measurements

You need to know the main sizes when looking at circuit breaker dimensions. These sizes help you pick the right breaker for your panel. The three most important sizes are height, width, and depth. Each breaker type uses a different number of modules. A module is a standard width unit in a panel. The table below shows how many modules each type usually needs:

Circuit Breaker Type	Physical Size (Modules)
MCB	1–4 modules
MCCB	3–10 modules
RCBO	2–4 modules
RCCB	2–4 modules
ACB	Standalone units
Contactor	Compact to large
SPD	1–3 modules

Some breakers, like ACBs, are standalone units. Others, like MCBs and RCBOs, fit into panels using modules. Always check how many modules you need before buying a breaker.

Why Size Matters

You must match circuit breaker dimensions to your panel space. If you pick the wrong size, it may not fit or be safe. Manufacturers use the type and rated current to set the size. They follow rules from UL 489 and the National Electrical Code (NEC). These rules make sure each breaker works safely.

Manufacturers list the size by type and current rating.
UL 489 sets the test rules for breakers.
The NEC says to use breakers at 80% of their rated current to stop overheating.

Note: Always follow the manufacturer’s guide and local codes. This keeps your setup safe and legal.

When you know circuit breaker dimensions, you can plan your panel better. You avoid mistakes and keep your electrical system safe.

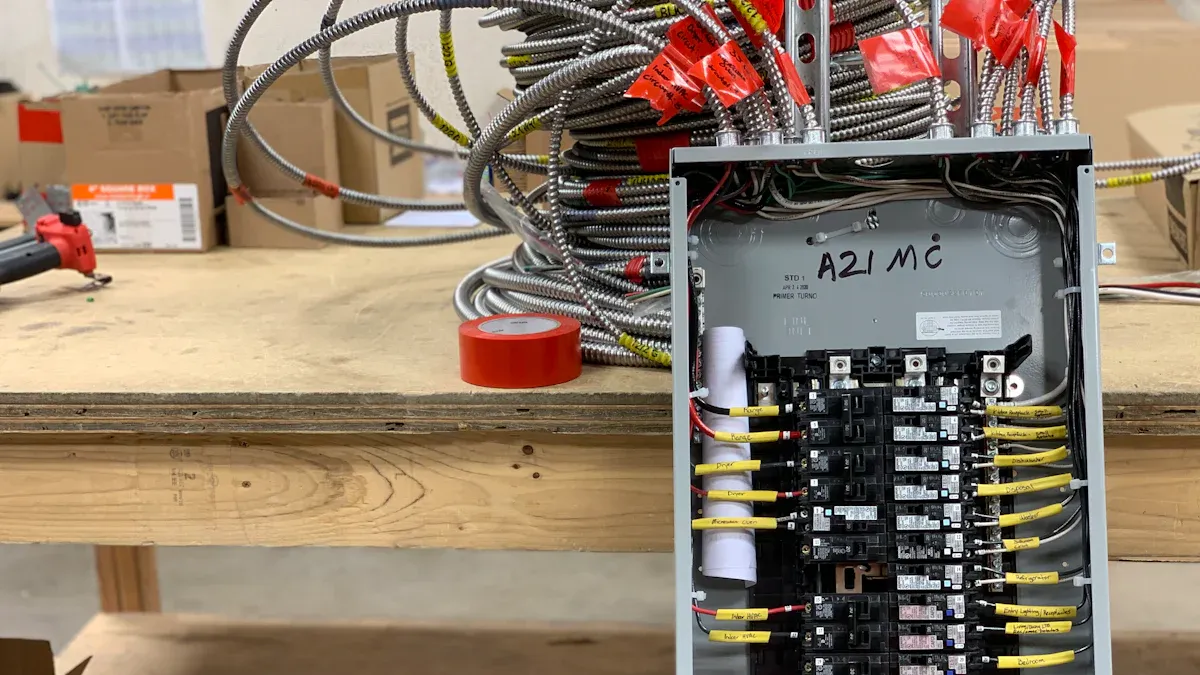

Installation Space Requirements

Clearance Guidelines

You have to follow strict clearance rules when you put in a circuit breaker panel. These rules help keep people safe and make sure you pass inspections. The National Electrical Code (NEC) tells you the smallest space you need around your panel. Look at the table below for the main rules:

Requirement Type	Measurement/Condition
Minimum clearance in front of panel	3 feet (0.9 meters)
Minimum workspace width	30 inches (76 centimeters) or panel width, whichever is greater
Vertical clearance above panel	6 feet (1.8 meters) or height of equipment, whichever is greater
Maximum height of panel	6 feet 7 inches (2 meters) above the floor
Height for operating handles	4 feet (1.2 meters) to 6 feet 7 inches (2 meters) from the floor

You must keep these spaces open. Do not put boxes or tools in front of the panel. In commercial buildings, you have to follow Article 110.26 of the NEC. This rule makes sure you have enough room to work safely. At home, the rules are not as strict, but you still need to keep the area clear. Factories and big buildings need even more space because their equipment is bigger.

Tip: Always measure your space before you start. This helps you avoid mistakes and keeps your setup safe.

Panel Layout

How you arrange breakers in your panel changes how much space you need. Most panels use slots that are a standard size. You will see slots that are 1 inch or 3/4 inch wide. These sizes decide how many breakers you can fit in the panel. If you use breakers that are too wide, you will run out of space fast.

Main breaker panels are easier to install. They have disconnects built in, so you do not need extra switches.
Main lug panels need a separate disconnect. This setup takes up more space and is harder to put in.

You should plan your layout before you buy breakers. Put the biggest breakers near the top. Use smaller breakers for less important circuits. This way, you use your space well and follow the rules. Good panel layout also makes upgrades easier later.

When you match your panel layout to your circuit breaker dimensions, you stop crowding and keep your system safe. Careful planning helps you follow the rules and makes your electrical system easy to use.

Choosing the Right Circuit Breaker Dimensions

Measuring for Fit

You need to measure your panel before you choose a breaker. Start by opening the panel and looking at the available slots. Use a tape measure to check the width, height, and depth of the space. Write down these numbers. Most panels use slots that are either 1 inch or 3/4 inch wide. Count how many open slots you have. This tells you how many breakers you can add.

Follow these steps to make sure your breaker will fit:

Measure the width of each slot in your panel.
Count the number of open slots.
Check the depth and height of the panel to see if larger breakers will fit.
Read the panel label for the maximum breaker size allowed.
Compare your measurements with the breaker’s size on the package or in the manual.

Tip: Always use a flashlight when you look inside the panel. Good lighting helps you see all the details and avoid mistakes.

Matching Panel and Breaker

You must match the breaker to your panel to avoid problems. If you use the wrong breaker, it might not fit or work safely. You should always check the panel manufacturer’s specifications before you buy a breaker. Look for a list of approved breaker brands and models inside the panel door or in the manual.

Here are some important points to remember:

Make sure the panel and breakers match to avoid compatibility issues.
Avoid third-party breakers that are not listed by the panel manufacturer.
Always check the panel manufacturer’s specifications before installing a breaker.
Consult the UL compatibility list or local electrical codes if the breaker and panel brands do not match.

You can see common breaker sizes and their uses in the table below:

Circuit Breaker Size	Common Application
15 amps	Lighting circuits and general outlets
20 amps	Kitchen circuits and larger appliances
30 amps	Heavy appliances like electric dryers
40 amps	Air conditioners and similar equipment

You should always follow both the manufacturer’s guidelines and local electrical codes. This keeps your system safe and helps you pass inspections. Following these rules helps prevent electrical fires or shocks. It also makes your system more efficient and can lower your energy costs. If you feel unsure, hire a licensed electrician. Electricians know how to choose the correct size and type of breaker for your panel.

Note: Never guess when picking a breaker. Always measure, check the panel specs, and follow the rules. This keeps your home or business safe.

When you take time to measure and match your panel and breaker, you avoid costly mistakes. You also make sure your installation meets all safety standards. Circuit breaker dimensions play a key role in this process.

Best Practices for Installation

Ensuring Clearance

You must keep enough space around your circuit breaker panel to stay safe and follow the rules. When you install a panel, you should check the area for obstacles. You want to make sure nothing blocks your access. Many people make mistakes by placing panels behind doors or in tight corners. These spots can make it hard to reach the panel during an emergency.

Here are some important steps to follow:

Keep at least 3 feet (0.9 meters) of clear space in front of panels that operate at 600 volts or less. For higher voltage systems, increase the clearance to 4 feet (1.2 meters).
Install operating handles between 4 feet (1.2 meters) and 6 feet 7 inches (2 meters) above the floor. This height makes it easy for most people to use the panel.
Choose a location that is easy to reach. Avoid placing panels in closets, behind furniture, or in small rooms where door swings can block access.
Make sure the area around the panel is well-lit. Good lighting helps you see labels and work safely.
Do not store boxes, tools, or other items in front of the panel. You need space for maintenance and repairs.

Tip: Professional electricians use regular inspections and proper labeling to keep panels safe and easy to find. They also follow manufacturer guidelines and hire inspectors to check for violations.

Planning for Expansion

You should think about the future when you choose your panel and breakers. If you plan to add new appliances or remodel your home, your electricity needs may grow. You can save time and money by planning ahead.

Consider these best practices:

Estimate the wattage of any future additions, such as air conditioners or kitchen upgrades.
Pick a panel that has extra slots for new breakers. This makes it easier to expand later.
Invest in a larger panel now if you expect your needs to increase. Upgrading later can cost more and take longer.
Keep the area around your panel clear so you can add new circuits without moving things.

🛠️ Good planning helps you avoid common mistakes and keeps your electrical system safe for years to come.

You have to make sure circuit breaker dimensions fit the space. This keeps your system safe. Always follow the rules for clearance and codes. The table below explains why these steps are important:

Action	Why It Matters
Keep panels easy to reach	Makes repairs and emergencies safer
Provide enough working space	Lowers the chance of accidents and helps with maintenance
Plan for future upgrades	Lets you add new circuits or smart tech more easily

Measuring and planning help stop overloads and too many trips. If you hire a licensed electrician, your setup will follow safety codes. It will also be ready for changes in the future.

FAQ

What happens if my circuit breaker does not fit the panel?

You cannot install a breaker that does not fit. This can cause unsafe connections or damage. Always check the panel label and measure before you buy.

How much space do I need in front of my breaker panel?

You need at least 3 feet of clear space in front of your panel. This space lets you work safely and helps you pass inspections.

Can I use any brand of breaker in my panel?

No, you should only use breakers listed by your panel’s manufacturer. Using the wrong brand can cause poor connections and may break electrical codes.

Why do breaker dimensions matter for future upgrades?

Breaker size affects how many circuits you can add later. If you plan for extra space now, you make upgrades easier and safer in the future.
