When you measure and match surge protection devices, it’s essential to consider the dimensions of surge protection devices along with your panel’s available space, the device’s size, and whether it fits properly with mounting and wiring. Choosing the right size and dimensions of surge protection devices is crucial for safety and compliance with regulations. Selecting the wrong size or dimensions of surge protection devices can lead to several issues:
- Fire hazards if the device fails or deteriorates
- Damage to equipment if surge protection is compromised
- Overheating or explosion if the device’s dimensions do not align with circuit breakers or fuses
You must adhere to the National Electrical Code, which requires listed devices and proper installation methods. Always verify the dimensions of surge protection devices to ensure effective protection and prevent errors such as improper grounding or failure to test ground resistance.
Key Takeaways
- Check the space in your electrical panel before you pick a surge protection device. This helps make sure it will fit right.
- Make sure the surge protection device’s size, mounting type, and terminal spacing match your panel’s layout and wiring. This keeps installation safe and simple.
- Pick surge protection devices that match your panel’s amperage and breaker ratings. This helps stop safety problems and damage to equipment.
- Use the right grounding and follow the manufacturer’s instructions. This helps your surge protection device work well and last longer.
- Always get a licensed electrician to put in surge protection devices. Double-check your measurements to keep your system safe and following the rules.

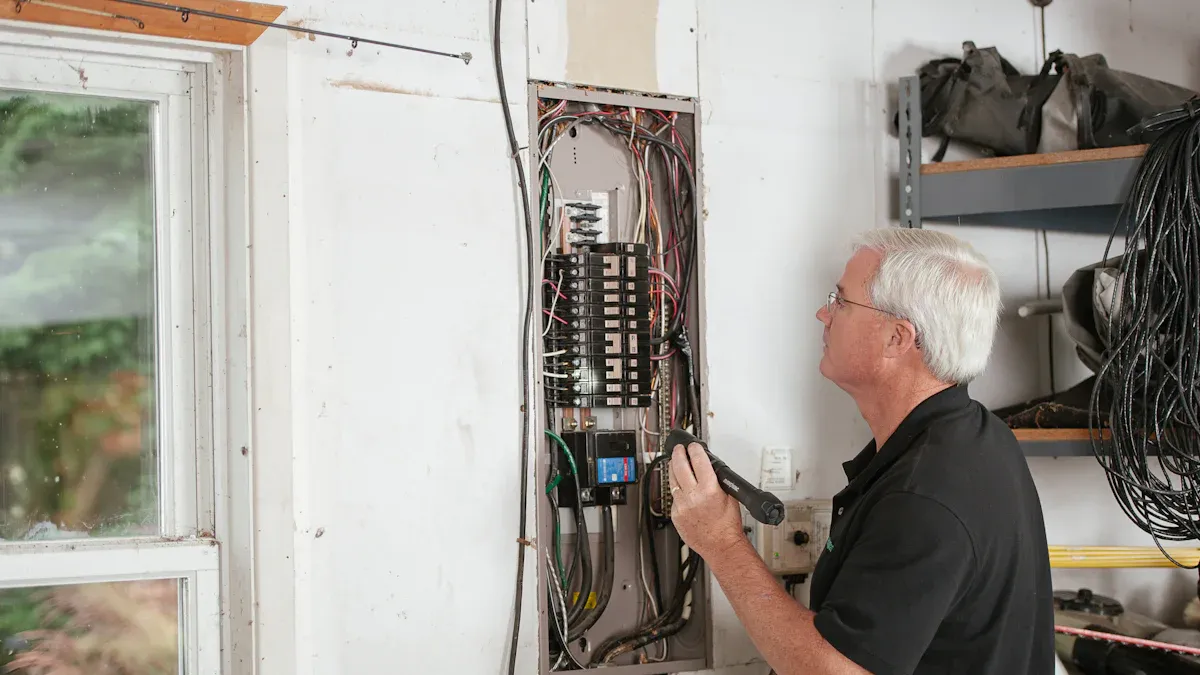

Identify Your Panel
Panel Type
You need to know your electrical panel type before picking a surge protection device. Electrical panels come in many types and sizes. Each type has its own job and fits certain places. You can find panels in homes, offices, or factories. The table below lists common panel types and where they are used:
| Panel Type | Setting | Description | Key Features/Use Case |
|---|---|---|---|
| Main Breaker Panels | Residential, Commercial | Standard panels with a main breaker to shut off power to the entire building. | Used in homes, offices, and commercial spaces. |
| Subpanels | Residential | Auxiliary panels connected to the main panel, used to add circuits in remote areas. | Expands power capacity for garages or workshops. |
| Transfer Switches | Residential, Commercial | Specialized subpanels for backup generators. | Useful during power outages. |
| Fuse Boxes (Outdated) | Residential | Older panels using fuses instead of breakers. | Found in legacy systems, often need replacement. |
Look for a label inside the panel door. This label tells you the panel type and amperage. Most new homes use main breaker panels or subpanels. Older homes might have fuse boxes. Big buildings and factories use larger panels with more power.
Tip: If you see a main breaker at the top or bottom, you probably have a main breaker panel. If you only see branch breakers and no main shutoff, it is likely a subpanel.
Measure Space
After you know your panel type, measure the space for the surge protection device. Open the panel door and look for empty spots near the breakers. Use a tape measure to check the height, width, and depth of the open space. Write down these numbers. Only measure the space you can use, not the whole panel.
- Measure from one breaker’s edge to the next.
- Look for wires or things that could block the device.
- Leave extra space for safe wiring and air to move.
Check the panel’s amperage rating too. Here are some common sizes:
| Panel Amperage | Setting | Typical Use Case |
|---|---|---|
| 100-Amp | Residential | Older homes with low power demand. |
| 150-Amp | Residential | Typical modern homes. |
| 200-Amp | Residential | New homes and major renovations. |
| 400-Amp | Residential | Large homes with high power needs. |
| 200–4,000 Amps | Commercial, Industrial | Offices, factories, and buildings with heavy equipment. |
Knowing your panel type and measuring space helps you pick the right surge protection device. This step helps you avoid mistakes and keeps your electrical system safe.
Dimensions of Surge Protection Devices
When you pick a surge protection device, look at its size. The dimensions of surge protection devices are important. These numbers help you know if the device will fit in your panel. Different companies make devices in many sizes. Always check the product datasheet before buying.
Height, Width, Depth
First, measure the height, width, and depth of the device. These three numbers show how much room the device needs. If you skip this, the device might not fit. That can make installation hard.
Here is an example of typical dimensions of surge protection devices from a top company:
| Dimension | Size (mm) |
|---|---|
| Length | 186 |
| Width | 47 |
| Height | 72 |
Some models are bigger or smaller than this one. Always compare the device’s size to the space in your panel. If you forget, the device could block other breakers or wires.
Note: Use a tape measure to check your panel’s space before buying a surge protection device.
Mounting Type
Mounting type means how you attach the device to your panel. There are two main ways to mount these devices. You can put it inside the panel or outside next to the panel.
- Internal mounting puts the device inside the breaker panel. This looks neat and makes repairs easier.
- External mounting puts the device next to the panel. Use this if there is not enough space inside or if your system is old.
Some surge protection devices, like Type 1, do not need their own breaker. You can put them at the meter or outside the panel. This gives you more ways to mount the device. Always follow the product datasheet and local codes. A licensed electrician should install the device to keep things safe.
Tip: If your panel has little space, pick surge protection devices made for external mounting.
Terminal Spacing
Terminal spacing is the distance between the connection points. You must match the terminal spacing to your panel’s wiring. If the terminals are too close or too far, wiring can be hard or unsafe.
Industry rules say to size surge protection devices by your main breaker’s rating, not just the panel’s size. For example:
- If your main breaker is 200 A to 400 A, use a surge protection device with a disconnector rated for 100–125 A.
- For bigger breakers, use a device with a higher-rated disconnector.
You must match the surge protection device with the disconnect device. This keeps things safe and gives the best protection. The dimensions of surge protection devices help make sure everything fits and works right.
Remember: Always check the product datasheet for terminal spacing and wiring needs.
If you know the dimensions of surge protection devices, you can avoid mistakes. This helps your installation stay safe, follow the rules, and work well.
Compare with Panel
When you pick a surge protection device, check if it fits your panel. This step helps you avoid problems when you install it. You need to compare the device’s size and features with your panel’s space and layout. Follow these steps to get the best fit and keep things safe.
Overlay Measurements
First, match the measurements from your panel with the dimensions of surge protection devices you want. Use your tape measure inside the panel to check height, width, and depth. Then, look at the product datasheet for the device’s size.
- Write down both sets of measurements.
- Make sure the device does not block other breakers or wires.
- Leave extra space for air and safe wiring.
Tip: Always check your numbers twice before you buy. Even a small mistake can stop you from installing the device.
Many people forget to check for space around the device. If you use more than one surge protection device, keep enough space between them. This helps each device work well and keeps your system safe. You also need to keep wires short—less than 0.5 meters if you can. Short wires lower voltage drops and make your surge protection stronger.
Check Mounting Fit
Next, see how the device will mount inside or outside your panel. Some panels have little space, so you may need to use external mounting. Check if your panel supports the mounting type in the device’s datasheet.
Common mounting problems include:
- Keeping connection wires very short to lower impedance.
- Avoiding long or tangled wires that can weaken protection.
- Making sure you have enough room for more than one device if needed.
- Using the metal parts of the panel for better grounding.
If you need to install more than one surge protection device, plan their positions carefully. Place them so they do not touch or crowd each other. This helps with coordination and keeps your system safe. You should also check if your panel has space for an upstream disconnector, like a circuit breaker or fuse. This device protects the surge protection device and your whole system.
Note: Never pick a device just because it is cheap or has a high joule rating. Look at the mounting needs, current-carrying capacity, and your panel type.
Wiring Access
Now, check if you can reach all the wiring points easily. Good wiring access makes installation faster and safer. Look for clear paths from the surge protection device’s terminals to your panel’s busbars or breakers.
- Make sure you can keep wires short and straight.
- Avoid running wires across other devices or sharp bends.
- Check if you need to add or move breakers to fit the device.
Proper wiring also means you need to match the terminal spacing of the device with your panel’s layout. If the terminals are too close or too far apart, you may have trouble connecting wires safely. Always follow the device’s datasheet for wiring instructions.
Many people forget about proper grounding. Without a good ground, even the best surge protection device cannot work right. Use the metal parts of your panel for bonding and grounding if you can. If you use more than one device, make sure they all have good earth connections.
⚡ Alert: Never forget the need for an upstream disconnector. This device helps isolate the surge protection device during a fault and keeps your system safe.
By carefully comparing your panel with the dimensions of surge protection devices, you can avoid common mistakes. You will also make sure your system works well and stays safe for years.
Tips for Panel Types
Main Panels
When you put a surge protection device in a main panel, you must think about space, breaker fit, and how to mount it. Here are some easy tips:
- Put the surge protection device on a 20A/2P breaker for good safety. Do not use bigger breakers unless you add inline fuses.
- If you want to use another breaker, check if the breaker lug can hold two wires. Some brands like Square D QO and Cutler Hammer CH let you do this, but not all brands do.
- If you cannot use double lugs, make a pigtail connection. This means you twist the surge protection device wires with another wire using a wire nut.
- You can put the surge protection device anywhere after the main breaker. The spot you pick does not change how well it works.
- If you run out of room or have breaker type problems, you can put surge protection devices at subpanels closer to where you need them.
- Always check if the breaker lug fits and make sure the wire size is right for the breaker.
Tip: Look at the panel’s wiring diagram before you start. This helps you stay safe and avoid mistakes.
Subpanels
Subpanels usually have less room, so you need to plan ahead. You should pick the right surge protection device for what the panel does.
- Use Type 2 surge protection devices at subpanels to stop surges from inside your building, like from motors or switches.
- Put Type 1 surge protection devices at the main panel for outside surges, like lightning. Use Type 3 surge protection devices near sensitive electronics for extra safety.
- Make sure the surge protection device matches your power system type, like TN-S, TT, or IT.
- If you do not have enough space, use an outside box for the surge protection device.
- Good grounding is very important. Connect the surge protection device to a strong ground so it works well.
- Look for things like low clamping voltage, high energy absorption, and fast response time.
Note: Using both Type 1 and Type 2 surge protection devices gives your whole system better protection.
Industrial Panels
Industrial panels need more care because they use more power and can get bigger surges. You must pick surge protection devices that fit your system and the panel.
DIN-rail surge protection devices are good for industrial panels. They save space and are simple to put in. Always check that the surge protection device’s voltage and current ratings match your system. For three-phase systems, use surge protection devices made for that kind of setup.
- Pick surge protection devices with high surge power and long life. This matters a lot for factories and big buildings.
- Put surge protection devices in different places: at the main entrance, at distribution panels, and near important equipment.
- Make sure the surge protection device meets rules like UL 1449 and UL 508A.
- In tough places, use surge protection devices made for electrical noise or harsh weather.
⚡ Alert: Never use surge protection devices that are too small in industrial places. They can break early and leave your equipment at risk.
Compatibility Checklist
Measurement Steps
You need to make sure your surge protection device fits in your panel. Follow these steps to check if it will work:
- Look at where you want to put the device. Find your main board and see how power comes in.
- Check your system’s voltage and current numbers. Make sure they match the surge protection device you want to use.
- Look at the surge protection device’s electrical details. Find numbers like Uc, In, and Imax.
- Measure the space in your panel. Use a tape measure to check height, width, and depth. Leave some extra space for wires and air.
- Compare the dimensions of surge protection devices to your panel space. Make sure the device will not block other breakers or wires.
- Match the surge protection device’s wire size to the right breaker. For example, if the device uses 10 AWG wires, use a 30A breaker. This keeps your system safe and helps the device work well.
- Follow the maker’s instructions when you install the device. This keeps your warranty and safety rules.
- Make sure the spot is dry and clean. This helps your surge protection device last longer and work better.
🛠️ Tip: Always check your measurements and details twice before you buy or install a surge protection device.
Reference Table
Use this table to quickly check if your surge protection device fits your panel:
| Step | What to Check | Why It Matters |
|---|---|---|
| Panel Space | Height, width, depth | Makes sure the device fits |
| Device Dimensions | Dimensions of surge protection devices | Stops crowding or blocking |
| Voltage & Current Ratings | System vs. SPD specs (Uc, In, Imax) | Makes sure it works with your system |
| Breaker Size | Matches SPD wire gauge (e.g., 10 AWG = 30A) | Keeps things safe |
| Mounting Type | Internal or external | Fits your panel’s setup |
| Terminal Spacing | Matches panel wiring | Makes wiring easy and safe |
| Installation Area | Dry and clean | Helps the device last longer |
📋 Note: Always use the product datasheet for exact sizes and how to install.
You can keep your home safe by doing these things:
- First, measure the space in your panel and check its amperage.
- Pick a surge protector that matches your panel’s brand and design.
- Make sure the mounting type is right for your panel.
- Check if the surge protector’s size fits in your panel.
- Look for UL 1449 certification and make sure it is grounded right.
- Always have a licensed electrician put it in and check it later.
Always read the datasheet from the maker and ask an expert if you are not sure. A good fit keeps your system safe and helps your surge protector last a long time.
Choosing ONESTOP Surge Protector: With over 20 years of manufacturing experience, international certification guarantees, and excellent quality, we help you comprehensively improve circuit safety protection.
FAQ
How do you know if a surge protection device will fit your panel?
First, measure the open space in your panel. Check the height, width, and depth with a tape measure. Look at the device’s datasheet for its size. Make sure nothing is in the way of the spot. Always leave extra room for wires and air to move.
Can you install a surge protection device yourself?
It is best to hire a licensed electrician. Working with electrical panels can be risky. An expert will make sure the device fits and follows the rules. This helps keep you and your home safe.
What if your panel does not have enough space for an SPD?
You can use a surge protection device that mounts outside the panel. Some models are made to attach on the outside. Always read the manufacturer’s instructions for the right way to mount it.
Do all surge protection devices fit every panel type?
Not every device fits all panels. You need to match the device’s size, mounting type, and terminal spacing to your panel. Always check the datasheet and look at your panel’s layout before you buy.
Why is grounding important for surge protection devices?
Grounding helps the surge protection device send extra voltage away from your equipment. Without good grounding, the device cannot protect your system. Always connect the ground wire as the instructions show.
