You can identify the type of circuit breaker you have by checking the panel label. Look for brand names on the breaker and notice the color of the handle. See if there are test or reset buttons. Being able to identify the type of circuit breaker, whether it’s standard, GFCI, or AFCI, helps keep you safe and prevents electrical hazards.
Many house fires and injuries occur due to electrical issues.
- Circuit breakers protect you by cutting power during electrical problems.
- Some panels, like older Federal Pacific Electric models, may fail to trip and can cause fires.
- Homes with outdated panels carry higher risks and might not meet current safety standards.
If you take the time to identify the type of circuit breaker you have, you can also spot warning signs that indicate when it’s time to call a professional for an inspection.
Key Takeaways
- Look at the panel labels, handle color, and test buttons to find out your circuit breaker type safely. – Knowing your breakers helps stop electrical dangers and lets you act fast in emergencies. – Follow electrical rules by keeping clear labels and using the right breaker for each circuit. – Press test buttons every month to make sure GFCI and AFCI breakers work and keep your home safe. – Call a licensed electrician if you see damage, unclear labels, or have electrical problems.
Why Identification Matters
Safety
Knowing how to identify your circuit breakers keeps you safe. When labels are clear, you make fewer mistakes. This helps stop electrical dangers.
- If you know which breaker is which, accidents are less likely.
- You can turn off the right breaker fast in an emergency. This can stop fires, shocks, and broken appliances.
- The Electrical Safety Foundation says about 30,000 people get shocked each year in the U.S. Many of these shocks could be stopped with good labels.
- The National Fire Protection Association says electrical fires cause about 13% of house fires. If you can find the right breaker quickly, you can save lives and your home.
Tip: Always look for clear labels and a circuit map inside your panel. This helps you act fast if something goes wrong.
Code Compliance
You need to follow electrical codes to keep your home safe. The National Electrical Code (NEC) says all circuits must have clear labels.
- The NEC now wants AFCI breakers in more rooms because of fire danger.
- Electrical fires cause over $2 billion in damage each year. There are about 61,000 fires and 432 deaths.
- AFCI breakers help protect your home from fires and do not cost much.
- Rules like those for AFCIs are the best way to make homes safer from fire.
Note: Good labeling helps you follow safety rules and avoid breaking codes.
Troubleshooting
If you have electrical problems, knowing your breakers saves time and money.
- If you know which breaker is which, you can find problems faster.
- You can fix things quickly and your power will be off for less time.
- Good tools and clear labels make your electrical system work better.
If you cannot find the right breaker or fix a problem, call a licensed electrician. Good labeling helps them work faster and keeps your home safe.
Identify the Type of Circuit Breaker
Check Panel Labels
Start by looking at the labels inside your electrical panel. These labels show the brand and model number. Sometimes, they also tell you the type of breaker. Here are some steps to help you do this safely:
- Get your tools and safety gear ready. You need insulated gloves, safety glasses, a screwdriver, a multimeter, and a flashlight.
- Stand on a dry floor and make sure your hands are dry.
- Open the panel door. Look for a circuit map or label inside the door.
- Read the labels next to each breaker. The labels may say which room or appliance each breaker controls.
- Find the manufacturer’s name and model number on the panel or breakers. This helps you match the right breaker if you need a new one.
Tip: Do not touch any wires or metal parts inside the panel. If you see damage or feel unsure, call a licensed electrician.
Examine Markings and Handle Color
You can find the type of circuit breaker by checking for markings and the handle color. Different brands use special colors and markings to help you spot the breaker type.
- Look for the brand name, like Square D, Siemens, Eaton, or GE, printed on the breaker.
- Check for a model number or series code. These are usually on the front or side of the breaker.
- Notice the handle color. For example, Square D QO breakers have a black handle with a small orange mark. Homeline breakers have a solid black handle.
Here is a table to help you match brands and model numbers:
| Breaker Brand | Model Series | Compatible Panelboards | Notes |
|---|---|---|---|
| Square D | QO Series | Square D QO Panels | Not interchangeable with Homeline |
| Square D | Homeline Series | Square D Homeline Panels | Not compatible with Siemens, Eaton, Cutler-Hammer |
| Siemens | QP Series | Siemens, Murray Panels | Murray owned by Siemens |
| Eaton/Cutler-Hammer | BR Series | Eaton BR, Challenger, Westinghouse | Not compatible with Square D, GE, Homeline |
| GE | THQL Breakers | GE Load Centers | Not compatible with Siemens, Eaton, Square D QO, Homeline |
Always match the model number and brand to your panel. This helps you find the right type of circuit breaker and keeps you safe.
Note: The UL Panelboard Application Guide says you must use the correct manufacturer and model number to keep your system safe and up to code.
Look for Test and Reset Buttons
Some breakers have test and reset buttons. These buttons help you know the type of circuit breaker and check if it works.
- GFCI breakers have a TEST button (usually white or yellow) and a RESET button (often black or red).
- AFCI breakers also have a TEST button, but it may say “AFCI TEST.”
- Pressing the TEST button should trip the breaker and cut power. Then, press the RESET button to turn the power back on.
- If the breaker trips when you press TEST, it works right.
- If the breaker does not reset or keeps tripping, you may need a professional.
⚠️ Safety Alert: Only use the TEST and RESET buttons when you know which circuit you are testing. If you are not sure, ask an electrician for help.
Note Breaker Size and Shape
You can also find the type of circuit breaker by looking at its size and shape. Standard breakers are usually single-pole or double-pole. GFCI and AFCI breakers are bigger and have extra buttons.
- Single-pole breakers are thin and control one circuit.
- Double-pole breakers are wider and control big appliances like dryers or ovens.
- GFCI and AFCI breakers are larger and have test/reset buttons.
- Some panels use special shapes or mounting styles. Always compare the breaker to the others in your panel.
If you see a breaker that looks different or does not match the others, check the markings and labels. This helps you find the type of circuit breaker and avoid using the wrong one.
Tip: If you cannot find the type of circuit breaker or see damage, call a licensed electrician. Never force a breaker into a panel if it does not fit.
Types of Circuit Breakers
Standard (Single-Pole, Double-Pole)

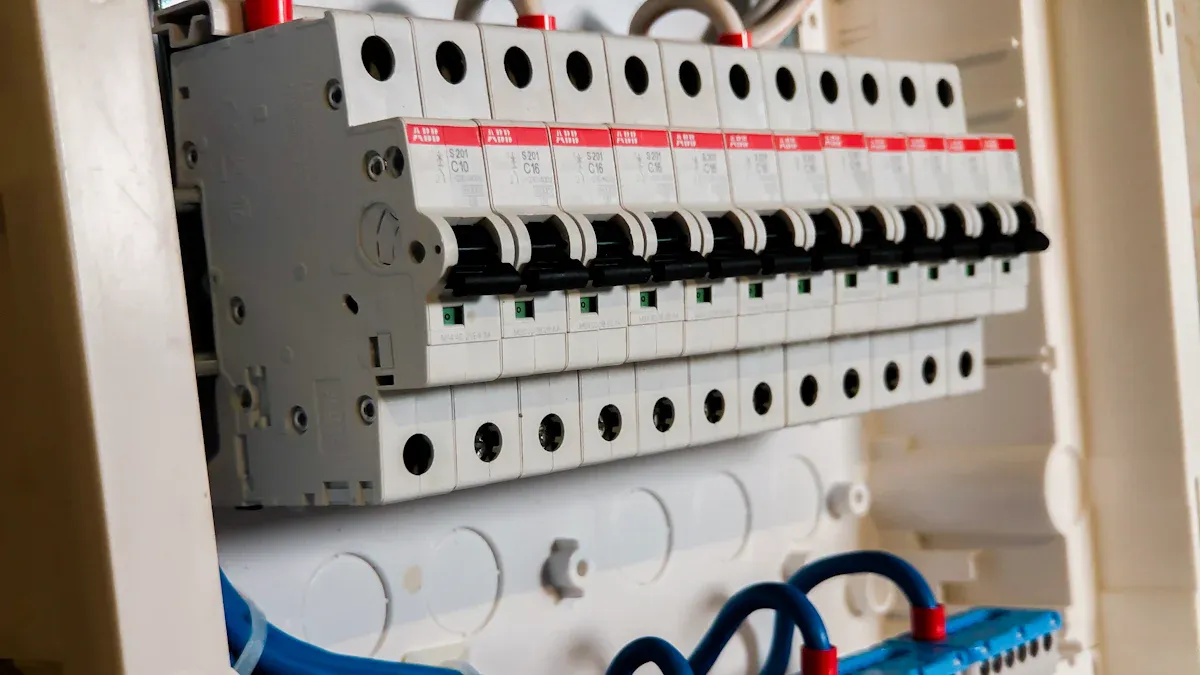

Standard circuit breakers are also called Miniature Circuit Breakers (MCBs). They stop too much current and short circuits in your home. You will find these in almost every panel. Single-pole breakers are thin. They control one circuit, like lights or outlets in a room. Double-pole breakers are wider. They handle big appliances, such as dryers or ovens. Standard breakers have a simple look. They do not have test or reset buttons. Most homes use these for basic protection.
Tip: To find the type of circuit breaker, look for these basic shapes and sizes first.
GFCI Breakers
GFCI (Ground Fault Circuit Interrupter) breakers protect you from electric shock. You will see them in places with water, like bathrooms, kitchens, garages, and outside outlets. Look for a TEST and RESET button on the breaker. GFCI breakers sense when electricity goes where it should not, like through water or a person. They shut off power very fast.
The National Electrical Code (NEC) now says you need GFCI protection in more kitchen outlets and all wet areas. These breakers help keep you safe from shocks.
AFCI Breakers
AFCI (Arc Fault Circuit Interrupter) breakers protect your home from fires. These fires can start from bad wiring or damaged cords. You will see a TEST button that says “AFCI TEST.” AFCI breakers are often bigger than standard breakers. AFCIs find dangerous arcs that can start fires. Since 1999, the NEC has said you need AFCIs in bedrooms, living rooms, and now kitchens and laundry rooms. Studies show AFCIs have lowered electrical fires and injuries. Most AFCI trips happen because the breaker is stopping a real danger.
🔥 Did you know? AFCI breakers can tell safe arcs from unsafe ones. They turn off power before a fire can start.
Other Types (MCB, MCCB, RCD, etc.)
You might see other types of breakers, but they are not common in homes:
- MCB (Miniature Circuit Breaker): Used in most homes for basic protection.
- MCCB (Molded Case Circuit Breaker): Used for higher currents, usually in businesses.
- RCD (Residual Current Device): Like GFCI, but more common outside the U.S.
- Dual-function breakers: These combine AFCI and GFCI protection. They save space and meet code in places with both fire and shock risks, like kitchens and laundry rooms.
Here is a quick chart to help you spot the type of circuit breaker in your panel:
| Feature/Aspect | Standard Breakers (MCB) | AFCI Breakers | GFCI Breakers |
|---|---|---|---|
| Main Job | Overcurrent, short circuit | Arc fault/fire | Ground fault/shock |
| Where Used | All circuits | Living spaces | Wet/damp areas |
| Buttons | None | TEST | TEST, RESET |
| NEC Code | General | Article 410.12 | Section 210.8 |
If you see a breaker with both TEST and RESET buttons and special labels, you may have a dual-function breaker. Always match the breaker type to your panel and the room for the best safety.
When to Call a Professional
Unclear Identification
Sometimes, you may not know the type of circuit breaker in your panel. If labels are missing or hard to read, do not guess. Guessing can be dangerous and cause mistakes. Some breakers may look different from the others. They might be a different size, shape, or color. If you see any of these things, call a licensed electrician for help.
🛑 Tip: Never try to force a breaker into the panel. Do not replace a breaker if you are not sure about its type. This could break things or even start a fire.
You should also call a professional if you notice these warning signs:
- Breakers with labels that are faded or missing
- Breakers with shapes or brands you do not know
- Wires that look confusing or panels that are crowded
- Not knowing which breaker controls which circuit
Electricians have special training and tools to check all types of breakers safely. They can also make a new map and add labels to your panel for later.
Electrical Issues
Never ignore electrical problems in your house. Some problems need an expert right away. If breakers trip a lot, or you smell burning, hear buzzing, or see lights flicker, call a professional. These signs can mean bigger problems that only an electrician can fix.
- Breakers that keep tripping after you reset them
- Strange or burning smells near the breaker box
- Lights that flicker all the time
- Buzzing sounds coming from the panel
- Old panels or too many circuits in one panel
Trying to fix these problems yourself is not safe. If you do not have the right skills, you could get shocked, start a fire, or break things. Licensed electricians know how to find and fix these problems safely.
⚡ Note: Having a professional check your system often helps stop emergencies and keeps your home safe.
Here is a table that shows how often professionals find problems during checks:
| Project Description | Number of Breakers Checked | Breakers Needing Correction | Percentage Corrected |
|---|---|---|---|
| Academic building renovation (Northeastern university) | 156 | 25 | 17% |
| Academic lab renovation | 31 | 1 | 3.2% |
| New athletic facility (Midwestern university) | 91 | 15 | 16% |
| New hospital campus (Midwestern hospital) | 273 | 21 | 8% |
These numbers show that even new or fixed buildings often need changes. Regular checks by professionals help keep your home safe and following the rules.
You can figure out what kind of circuit breaker you have by looking at the labels and markings. Check the handle color and see if there are test buttons. Always remember to be safe. Use a multimeter to check for voltage. Make sure everything is installed the right way.
- Knowing the right type helps stop electrical problems and keeps your home safe.
- Getting a professional to check can find hidden problems and make sure you follow the rules.
If you are not sure, call a licensed electrician. Finding the right breaker keeps your home and family safe.
FAQ
How do you safely open your electrical panel?
You should stand on a dry surface and wear rubber-soled shoes. Use one hand to open the panel door. Never touch wires or metal parts inside. If you feel unsure, call a licensed electrician.
What if your breakers have no labels?
You can make your own labels. Turn off one breaker at a time and see which lights or outlets lose power. Write down the room or appliance for each breaker. Use a permanent marker or printed labels.
Can you replace a breaker yourself?
You should not replace a breaker unless you have training. Installing the wrong breaker can cause fires or damage. Always call a licensed electrician for breaker replacement or repairs.
Why do some breakers have test buttons?
Test buttons help you check if GFCI or AFCI breakers work. Press the button to trip the breaker. If it trips, the breaker works. If it does not, you may need a new breaker or professional help.
How often should you check your breakers?
You should test GFCI and AFCI breakers every month. Look for signs of damage or wear once a year. If you notice problems, call an electrician right away.
