You use circuit breakers every day to keep your home safe. They protect you from electrical dangers. The current of household circuit breaker shows the most electricity it can handle safely. Using the right current rating stops circuits from getting too full. Overloaded circuits can cause home fires.
- Every year, electrical problems start about 47,700 home fires in the U.S. These fires cause hundreds of deaths. They also cause over a billion dollars in damage.
- Overloaded circuits can give warning signs. You might see tripped breakers, flickering lights, or warm outlets.
Picking the right current of household circuit breaker keeps your family and home safe.
Key Takeaways
- Pick the correct circuit breaker rating to stop electrical fires and keep your home safe.
- Make sure the breaker size matches the right wire gauge and appliance. This helps stop overloads and keeps breakers from tripping a lot.
- Use the 80 percent rule. Do not use breakers over 80% for a long time. This helps stop overheating.
- Look for warning signs like warm breakers, breakers that trip a lot, or burning smells. Call an electrician if you see these signs.
- Have a professional check your electrical panel often. This helps find problems early and keeps your home safe.
Circuit Breaker Basics
What Is a Circuit Breaker

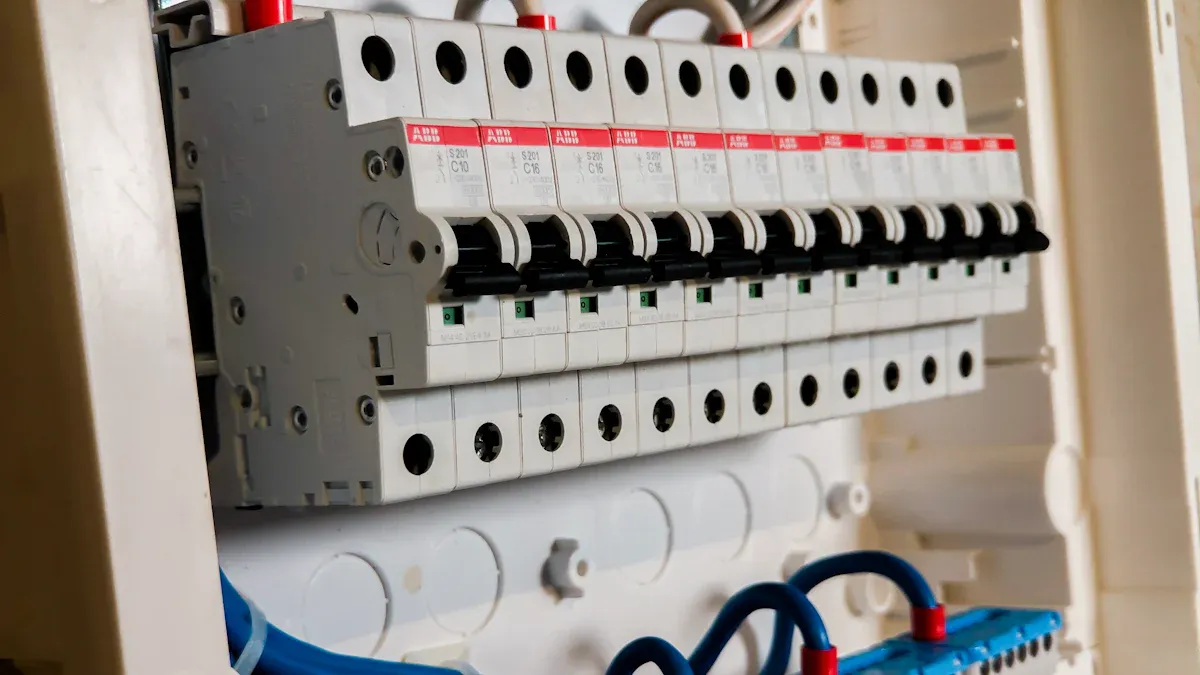

A circuit breaker is a safety device for your home. It sits inside your electrical panel. When too much electricity moves through, it shuts off the power. This keeps wires from getting too hot and starting fires.
You can turn a circuit breaker back on after it trips. You do not need to buy a new one like a fuse. Most home circuit breakers find problems in two ways. Thermal circuit breakers have a strip that bends when it gets hot. Magnetic circuit breakers use an electromagnet to sense quick surges. Many new breakers use both ways to protect better.
A circuit breaker has many parts inside. These are a frame, contacts, an arc extinguisher, and a trip unit. If something goes wrong, the breaker opens the contacts to stop power. Some breakers use air, vacuum, or oil to break the flow safely. This design helps the breaker work fast and keep your home safe.
Why Circuit Breakers Matter
Circuit breakers are important for home safety. They stop dangerous electrical problems before they hurt anyone. You use them every day, even if you do not see them.
- Good circuit breakers stop fires by blocking high currents.
- They keep your appliances from breaking.
- They help your electrical system work well.
- Special breakers like AFCIs find arcing faults and stop fires in over 60 million appliances.
- Studies show AFCIs help electricians spot wiring issues before they get worse.
The UL 489I test checks circuit breakers in hard situations. This makes sure they are safe and strong. Using the right circuit breakers lowers the chance of fire and shock at home.
Current of Household Circuit Breaker Ratings
Standard Amp Ratings
You will find that most homes use a few common circuit breaker sizes. The current of household circuit breaker often comes in 15, 20, 30, or 50 amp ratings. Each size matches the needs of different rooms and appliances.
- 15-amp breakers: These protect lighting circuits and most bedroom or living room outlets.
- 20-amp breakers: You will see these in kitchens, bathrooms, and laundry rooms. They handle more powerful appliances like microwaves or hair dryers.
- 30-amp breakers: These serve large appliances such as electric dryers or water heaters.
- 50-amp breakers: These are for heavy loads like electric ranges or EV chargers.
Tip: You can check the number on the breaker switch to see its amp rating.
The National Electrical Code and safety organizations recommend these standard sizes. They help prevent overloads and keep your home safe. OSHA rules also say that the outlet rating must match the breaker size. For example, a 15-amp circuit should only have 15-amp outlets. This keeps the wiring and devices from overheating.
Here is a table to help you see the relationship between circuit ratings, outlet ratings, and safe load limits:
| Circuit Rating (amps) | Allowed Outlet Ratings (amps) | Max Load (amps) |
|---|---|---|
| 15 | 15 | 12 |
| 20 | 15 or 20 | 16 |
| 30 | 30 | 24 |
| 40 | 40 or 50 | N/A |
| 50 | 50 | N/A |
You should always match the current of household circuit breaker to the wire size and the devices you plan to use.
Main Breaker vs. Branch Breakers
Your electrical panel has two main types of breakers. The main breaker controls all the power coming into your home. Branch breakers control power to smaller sections or single rooms.
| Feature | Main Breaker | Branch Circuit Breakers |
|---|---|---|
| Function | Shuts off all power to the house | Shuts off power to one area or circuit |
| Size | Large switch, usually at the top of the panel | Smaller switches in rows below main breaker |
| Current Handling | Handles large loads (100-200 amps or more) | Handles smaller loads (15-50 amps) |
| Voltage Control | Interrupts 240 volts from main lines | Controls 120 volts on each circuit |
| Usage | Used for full system shutoff or big repairs | Used for isolating rooms or appliances |
You use the main breaker when you need to cut power to the whole house. You use branch breakers to control power to specific rooms or appliances. The current of household circuit breaker for each branch matches the needs of that area. For example, your kitchen may need a 20-amp breaker, while a bedroom may only need 15 amps.
The 80 Percent Rule
You should know about the 80 percent rule when choosing a breaker. This rule says you should not load a breaker to more than 80% of its rated current for long periods. For example, if you have a 20-amp breaker, you should only use up to 16 amps for things that run for three hours or more.
Note: The 80 percent rule helps prevent overheating and keeps your wiring safe.
This rule comes from the National Electrical Code. It says that continuous loads (like heaters or EV chargers) should only use 80% of the breaker’s rating. Some special breakers allow 100% loading, but only if the panel and breaker are rated for it.
Here is a quick guide:
- 15-amp breaker: Safe continuous load = 12 amps
- 20-amp breaker: Safe continuous load = 16 amps
- 30-amp breaker: Safe continuous load = 24 amps
You must also match the wire size to the breaker. For example, a 15-amp breaker needs 14-gauge wire, and a 20-amp breaker needs 12-gauge wire. Using the right wire and breaker size keeps your home safe and up to code.
Choosing the Right Rating
Matching Breaker to Appliance
You need to pick the right breaker for each room and appliance. A 15-amp breaker is good for bedroom lights and outlets. Kitchen outlets need a 20-amp breaker for things like toasters. Big appliances, like electric dryers, use a 30-amp breaker. Heavy items, such as electric ranges or EV chargers, need a 40- or 50-amp breaker. Rules like the National Electrical Code help you choose the right breaker. These rules look at the load, voltage, and wire size. They help stop overloads and keep your home safe. If you add new appliances or remodel, check if your panel can handle more power.
Tip: Label each breaker in your panel. This makes it easy to find the right one and avoid mistakes.
Wire Gauge and Safety
You must use the right wire size for each breaker. The American Wire Gauge system tells you which wires carry more current. For example, 14 AWG wire goes with a 15-amp breaker. A 12 AWG wire matches a 20-amp breaker. Using the wrong wire size can make wires too hot and cause fires. The breaker keeps the wire’s cover safe, not just the metal inside. Always follow the National Electrical Code to stay safe. If you are not sure, ask a licensed electrician to check your wires.
Upgrading Older Panels
Older homes may have panels that are not safe today. You might see old breakers or wires that cannot handle new appliances. If you upgrade your kitchen or add devices, check if your panel supports the breaker you need. Sometimes, you need to replace the whole panel to be safe and follow the rules. Electricians can help you know if you need an upgrade. They also make sure your home follows all local codes and safety rules.
Risks of Incorrect Ratings
Overloads and Tripping
If you use the wrong circuit breaker rating, your home is at risk. Overloads and tripping can happen a lot. A breaker that is too small will trip often. For example, if a compressor uses more than 80% of its current for a long time, the breaker will trip. This stops wires from getting too hot. A 200-amp breaker should not carry more than 160 amps for hours. Testing rules say breakers must trip when overloaded. Sometimes, tests use up to 300% of the breaker’s value. These tests make sure the breaker opens before wires overheat. If you use a breaker that is too big for the wire, it may not trip in time. This can let wires get too hot and cause harm. Experts use short-circuit and coordination studies to find these problems early. Preventive maintenance helps lower the chance of breaker failure. It keeps your system ready to stop overloads and short circuits.
Fire Hazards
Wrong circuit breaker ratings can cause fire dangers in your home. If a breaker does not trip during an overload, wires can get too hot and start a fire. Studies show bad or broken breakers cause thousands of fires each year. One faulty breaker brand caused about 2,800 fires every year in the U.S. This led to injuries, deaths, and millions in damage. Older homes have higher risks because their systems may have old or worn breakers. Research shows homes built in the 1960s and 1970s have more fires. This is because of old wiring and wrong breaker ratings. Recall notices warn that bad breakers raise the risk of fire and injury. Using the right breaker rating is one of the best ways to keep your home safe from electrical fires.
Warning Signs
You can see warning signs if a circuit breaker is working too hard. Look for these problems:
- Breakers trip a lot for no clear reason
- Breakers feel warm or hot when you touch them
- Burn marks, melted parts, or burning smells near the panel
- Breakers will not reset after they trip
- Outlets get hot or you hear buzzing from the panel
- Breakers look discolored, rusty, or loose
Note: If you see any of these signs, call a licensed electrician right away. Regular checks and fast repairs help stop dangers and keep your electrical system safe.
Knowing about the current of household circuit breaker helps keep your home safe. Picking the right breaker size and wire gauge lowers fire and shock risks. A professional should check your system often to find problems early.
- Yearly checks can find bad wiring, too many things on one circuit, or old breakers.
- Testing breakers and looking at GFCI or AFCI devices keeps your family safe from hidden dangers.
Watch for warning signs and have your panel checked often to make sure your electrical system stays safe and works well.
FAQ
What does the amp rating on a circuit breaker mean?
The amp rating shows the maximum current the breaker can handle safely. You use this number to match the breaker to your home’s wiring and appliances. This helps prevent overheating and electrical fires.
What happens if you use the wrong breaker size?
If you use a breaker that is too large, wires can overheat and cause fires. If you use one that is too small, it will trip often. Always match the breaker to the wire and appliance.
What wire size matches common breaker ratings?
| Breaker Size (amps) | Wire Gauge (AWG) |
|---|---|
| 15 | 14 |
| 20 | 12 |
| 30 | 10 |
You should always check both the breaker and wire size before making changes.
What signs show a breaker may need replacing?
You may notice frequent tripping, warm breakers, or a burning smell. Sometimes, breakers will not reset. These signs mean you should call an electrician for help.
What should you do before upgrading your breaker panel?
You should check your home’s total electrical load. You also need to look at wire sizes and local codes. Always ask a licensed electrician to inspect your system before making upgrades.
