Why MCBs Alone Can’t Protect Against Electric Shocks

You may think your home is safe with only an MCB, but this device does not stop electric shocks. Think of a door lock that keeps out thieves; it does not help if there is a fire. MCBs work like this: they stop overloads but do not protect you from shocks. Recent reports say:

• Electric shocks cause 63.5% of home electrical accidents.

Now, let’s look at an easy comparison of MCB vs RCCB safety:

Knowing the difference between MCB vs RCCB safety helps you pick the best protection for your family.

Key Takeaways

• MCBs stop overloads but do not stop electric shocks. They only turn off when the current is very high. This means you can still get shocked.
• RCCBs find current leaks and can stop shocks fast. They often work in less than a second. RCCBs are very important for keeping people safe.
• Using both MCBs and RCCBs gives full protection at home. MCBs protect your devices. RCCBs keep people safe from shocks.
• Test your RCCB every month to make sure it works. This easy habit can save lives.
• Be extra careful in wet places like bathrooms and kitchens. These areas have a higher risk of shocks because water carries electricity.
• Pick the right sensitivity for your RCCB. A 30mA rating works for most homes. A 10mA rating is best for high-risk places.
• Always ask a licensed electrician to install or upgrade. Good installation is very important for safety.
• Check your electrical safety every month. Simple checks can lower the chance of accidents a lot.

MCBs and Electric Shock Risks

MCBs—Overload and Short Circuit Protection

MCBs are often the main safety device in your home. They keep wires and appliances safe from too much current or sudden faults. If you plug in many devices or wires touch, the MCB cuts power.

Typical MCB Ratings

MCBs have ratings that fit your home’s needs. You may see ratings like 6A, 10A, 16A, or 32A. These numbers show the most current the breaker can handle. If you use more current, the MCB turns off to stop overheating and fire.

Here is how MCBs find and fix problems:

Human Safety Thresholds

Your body is more sensitive to electricity than wires. Even a small current, like 30 milliamps (mA), can hurt you. MCBs only trip at much higher currents, usually several amps. So, you can still get shocked even if the MCB does not trip.

Tip: The current that hurts people is much less than what trips an MCB. You need extra protection to stay safe.

Why MCBs Miss Earth Faults

MCBs cannot find earth faults, which cause many electric shocks. An earth fault happens when electricity escapes and goes to the ground, sometimes through a person. The MCB does not notice this small leak, so it stays on and lets the shock happen.

Here are common causes of electric shocks in homes with only MCBs:

You may think your MCB will protect you, but it does not. Here are some real-life examples that show why MCBs are limited:

• MCBs do not find leakage currents that can go through a person, which is a big problem for stopping electric shock injuries.
• MCBs are not made to protect against electric shock. They only work for big electrical faults. If you touch a live wire, the MCB may not trip, and you can get shocked.
• Circuit breakers, like MCBs, are made to stop wires from causing fires, not to protect people from electric shocks. Devices like GFCI, RCD, or RCBO are made for that job.

When you compare MCB vs RCCB safety, you see MCBs protect equipment and wires. RCCBs protect people from electric shocks. You need both to keep your home safe.

Earth Faults and Shock Hazards

What Is an Earth Fault?

An earth fault happens when electricity leaves its normal path. It finds a way to the ground. This can happen if a live wire touches metal that is connected to the earth. The current may travel through this new path. Sometimes, it can go through your body. Earth faults often happen because insulation breaks down or equipment fails. Problems in metal cases of electrical devices can also cause them. Homes with high earth impedance have more risk of earth faults. Earth faults send current straight to the ground. They do not follow the usual circuit.

• Earth faults mean current leaks right to the ground.
• Ground faults are when current leaves its path and goes to the ground because something is wrong in the system.

Insulation Breakdown

Insulation keeps you safe from live wires. If insulation gets old, hot, or damaged, it stops working. Then, electricity can escape. You might touch metal that is now live because the insulation failed. This lets current flow through your body to the ground.

Damaged Appliances

Broken appliances can also cause earth faults. If a cord is frayed or a wire inside breaks, metal parts can get energized. You could get shocked if you touch these parts. Many times, people do not notice damaged appliances until someone gets hurt.

Wet Conditions

Water helps electricity move more easily. Wet floors, damp walls, or using things near water make earth faults more likely. You could get shocked if you use a hair dryer in the bathroom. Touching a switch with wet hands is also risky. Wet places make it easier for current to go through your body to the ground.

Note: Earth faults are common in homes with old wiring, broken devices, or wet areas. You need to know about these risks to keep yourself and your family safe.

Effects on the Human Body

Electricity can hurt your body in many ways. The danger depends on how much current flows. Even small currents can be harmful. The table below shows what happens at different current levels:

At 1 mA, you may feel a tiny tingle. At 16 mA, you might not be able to let go of a wire. At 20 mA, your breathing muscles can stop working. At 100 mA, your heart can beat in a dangerous way. At 2 amps, your heart can stop, and your organs can get badly hurt.

MCB vs RCCB safety is easy to see when you look at these effects. MCBs do not turn off at these low, dangerous currents. RCCBs can find small leakage currents and cut power fast. This helps stop serious injury or death.

⚠️ Electric shock can happen very quickly. You need the right protection to stay safe.

RCCBs—How They Prevent Electric Shocks

RCCB Operation Principle

It is important to know how an RCCB works. An RCCB keeps track of electricity in your home. It checks both the live wire and the neutral wire. If everything is normal, the current going out matches the current coming back. If there is a difference, some electricity is leaking. This leak often goes to the ground. Sometimes, the leak can go through a person. This is very dangerous.

Current Imbalance Detection

An RCCB uses a special ring called a toroidal core. It measures the current in both wires all the time. If the current in the live wire does not match the neutral wire, the RCCB knows something is wrong. This is called a current imbalance. It usually means electricity is escaping somewhere unsafe.

Fast Disconnection

When the RCCB finds a current imbalance, it acts very fast. If the leak is above a safe level, the RCCB shuts off the power in less than a second. This quick action can save your life. For example, if you touch a live wire, electricity can flow through your body to the ground. The RCCB will sense the leak and turn off the power before you get badly hurt.

⚡ Tip: RCCBs work faster than you can move. They can turn off power before a shock harms you.

RCCB Sensitivity Ratings

RCCBs come with different sensitivity ratings. These ratings show how much leakage current will make the RCCB trip. Lower ratings mean better protection for people.

10mA, 30mA, 100mA, 300mA

Most homes use RCCBs with a 30mA rating. This level protects you from electric shocks. Some places, like hospitals or wet areas, use 10mA RCCBs for extra safety. Higher ratings, like 100mA or 300mA, protect against fire from big leaks but do not protect people as well.

🏠 Note: For most homes, a 30mA RCCB gives the best mix of safety and protection.

RCCB vs MCB: Key Differences

You might wonder how RCCBs and MCBs are different. Both protect your home, but they do different things. RCCBs protect people from electric shocks by finding small leaks. MCBs protect wires and appliances from too much current or short circuits.

Here is a simple example. If you touch a live wire, the MCB will not trip because the current is not high enough. The RCCB will sense the small leak and turn off the power. This is why MCB vs RCCB safety is important to know. You need both devices for full protection.

✅ Remember: MCB vs RCCB safety is not about picking one. You need both to keep your home and family safe.

MCB vs RCCB Safety Comparison

Protection Functions

It is important to know how MCBs and RCCBs keep you safe. MCBs stop too much current or short circuits in your wires. If you use too many devices or wires touch, the MCB turns off the power. RCCBs help by stopping electric shocks. They find when electricity leaks out and goes to the ground, sometimes through a person.

When you use both, you get better safety. MCBs fix overcurrent problems. RCCBs stop shocks from current leaks. Together, they protect your home from most dangers.

Tip: Always use both MCBs and RCCBs for full safety. MCB vs RCCB safety means you do not pick just one. They work best when used together.

Residential Panel Setup

Your home’s panel needs the right devices for safety. Most new panels use both MCBs and RCCBs. MCBs protect each wire from too much current or short circuits. RCCBs watch for leaks and stop shocks. Some homes also use GFCIs and AFCIs for extra help.

Ask an electrician to check your panel. Make sure you have both MCBs and RCCBs. Wet places like kitchens and bathrooms need more protection. If you upgrade your panel, add GFCIs and AFCIs for better safety.

⚡ Note: A good panel setup keeps you safe from shocks, fires, and damage. Do not trust only one device for safety.

RCBO Alternative

You might hear about RCBOs when you want better safety. An RCBO does what an MCB and an RCCB do together. It stops too much current, short circuits, and earth leaks. This means you get both types of safety in one device.

• MCBs stop short circuits and too much current.
• RCCBs turn off power if they find earth faults.
• RCBOs do both jobs, stopping shocks and lowering fire risk.

Inside an RCBO, there are parts from both MCBs and RCCBs. The MCB part stops overloads and shorts. The RCCB part finds leaks and earth faults. You can use RCBOs for single wires, like in bathrooms or outside.

🛠️ Tip: RCBOs give you full safety in one device. They make your panel safer and easier to use.

Now you know how MCB vs RCCB safety works at home. Using the right mix of devices keeps your family safe from shocks and fires.

RCCB Selection Guide

Identifying High-Risk Circuits

You should know which circuits are most risky for electric shock. Some circuits are more dangerous because of how or where you use them. Water, big appliances, and being outside make faults more likely. High-risk circuits are:

• Lighting circuits and socket outlets. You use these every day.
• Circuits for ovens, washing machines, and other big appliances.
• Bathrooms, outdoor areas, and pools. Water in these places makes shocks more likely.

💡 Tip: Always check circuits in wet or outdoor spots. These places need extra protection because water helps electricity move.

Choosing Sensitivity and Type

Picking the right RCCB means looking at sensitivity and type. Sensitivity shows how much leakage current will trip the device. Type tells you what kind of electrical signals the RCCB can handle. Most electricians say to use RCCBs rated between 32A and 63A. You should pick a tripping sensitivity of 30 mA for your home. This level protects you because it matches the most current your body can handle safely.

Type AC, A, B

Different RCCB types work for different needs:

• Type AC: Good for normal circuits like lights and sockets.
• Type A: Needed for appliances with electronics, like washing machines or heat pumps.
• Type B: Used for special things like EV charging stations with three-phase power.

Here is a quick guide for picking RCCB types and sensitivity:

• Lighting circuit: 30 mA – Type AC
• Socket outlets: 30 mA – Type AC
• Heating circuit: 30 mA – Type AC
• Appliance circuit: 30 mA – Type A
• Heat pump: Type A or Type Asi
• EV charging station: Type Asi (single-phase) or Type B (three-phase)

⚠️ Note: Always match the RCCB type to the circuit and appliance. Using the wrong type means you may not be protected.

Sensitivity Matrix

You can use this matrix to help pick the right RCCB for each job:

2-Pole vs 4-Pole RCCBs

You must pick between 2-pole and 4-pole RCCBs based on your home’s wiring. The number of poles means how many wires the RCCB can watch and protect.

If your home uses single-phase power, you need a 2-pole RCCB. Homes with three-phase power, often in bigger buildings or for special equipment, need a 4-pole RCCB.

🛠️ Tip: Always ask your electrician which RCCB is right for your home’s wiring. Using the right device keeps every circuit safe.

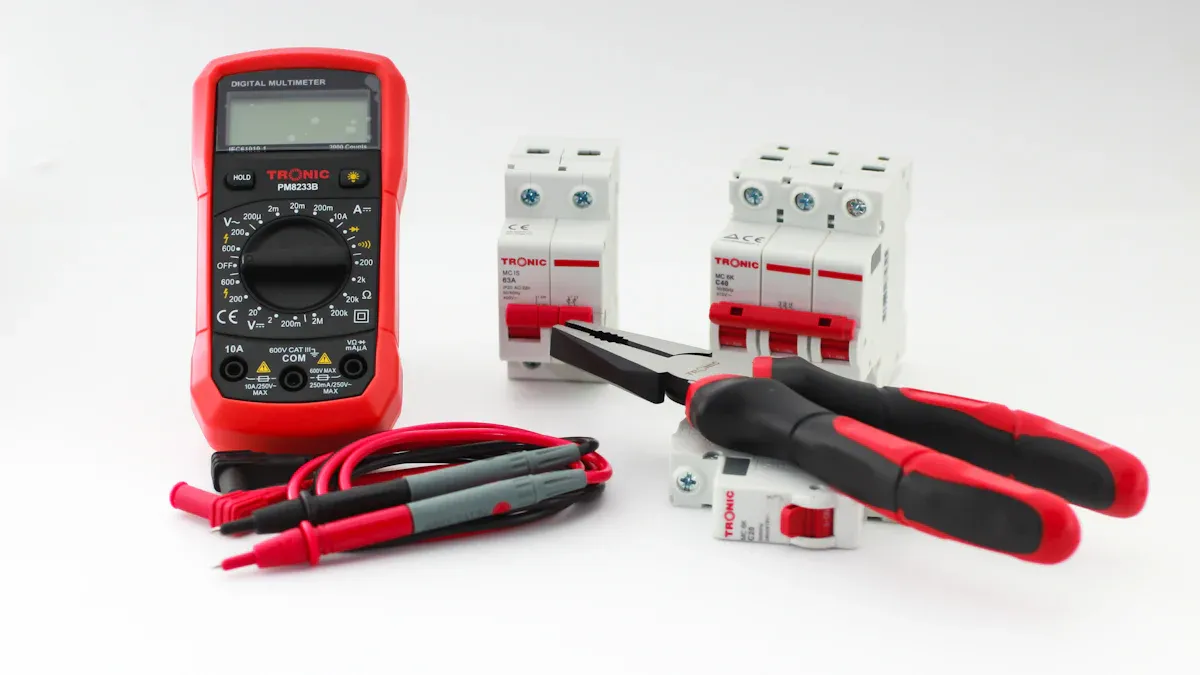

Installation and Testing Tips

Proper Wiring

Correct wiring keeps your RCCB working as it should. You must follow some important steps before you start:

1. Turn off the main power supply. Always switch off the main breaker and use a multimeter to check that there is no voltage.
2. Inspect the RCCB and your tools. Look for any damage before you begin.
3. Wear protective gear. Use rubber gloves, safety shoes, and goggles to protect yourself.
4. Work in a dry environment. Water increases the risk of electric shock.
5. Inform others nearby. Let people know you are working so no one turns the power back on by mistake.

After you prepare, connect the wires carefully:

• Identify the live, neutral, and ground wires. Follow local wiring rules.
• Connect the live wire to the terminal marked ‘L’ or ‘Line’.
• Attach the neutral wire to the terminal labeled ‘N’ or ‘Neutral’.
• Secure the ground wire to the ground terminal. Tighten all screws.

You should also:

• Label the RCCB and its circuit. This makes future checks or repairs easier.
• Make sure the RCCB stands upright and the terminals are easy to reach.
• Use cable ties to keep wires neat and prevent tangles.

All Conductors Through RCCB

You must run all live and neutral conductors for a protected circuit through the RCCB. If you leave out any wire, the RCCB cannot sense leaks or protect you from shocks. Always double-check that every conductor passes through the device.

⚠️ Tip: Skipping this step can leave parts of your home unprotected. Always check your wiring twice.

Monthly Testing

You need to test your RCCB every month to make sure it works. This simple habit can save lives. Here’s how you do it:

1. Plug a small lamp into a power point and turn it on.
2. Make sure the main switch is on and the lamp lights up.
3. Turn off all sensitive electronics, like computers and TVs.
4. Press the test button on the RCCB. Do not hold the button down. The RCCB should trip and turn off the power.
5. Check that the lamp goes off. Test other outlets with the lamp. If any outlet still works, call a licensed electrician.
6. After testing, turn the RCCB back on and check that the lamp works again.

Test Button Use

The test button checks if the RCCB can sense a leak and trip. You should press it once a month. If the RCCB does not trip, it may be faulty. Call an electrician to replace it.

💡 Note: Regular testing helps you catch problems before they become dangerous.

Common Mistakes

Many people make mistakes when installing or using RCCBs. These errors can leave you at risk. Here are some of the most common ones:

Upstream RCCB Only

If you install only one RCCB at the main panel, some circuits may not get full protection. You should use separate RCCBs for high-risk areas like bathrooms or kitchens.

Neutral-Sharing

Never share a neutral wire between circuits protected by different RCCBs. This can stop the RCCB from working and leave you unprotected.

Wrong RCCB Type

Using the wrong type of RCCB for your appliances or circuits can cause the device to miss faults. Always match the RCCB type to your needs.

Nuisance Tripping

Sometimes, RCCBs trip when there is no real danger. This can happen if you use the wrong sensitivity or type. Ask an electrician to check your setup if this happens often.

✅ Tip: Avoid these mistakes to keep your RCCB working and your home safe.

Action Plan for Home Safety

Immediate Steps

You can make your home safer right away by following a few simple habits. These steps help lower the risk of electric shock and keep your family protected:

• Learn how much power each outlet can handle. Spread out your appliances so you do not overload one outlet.
• Test your smoke detectors and ground-fault circuit interrupters (GFCIs) every month. Press the test button to make sure they work.
• Check that all outlets work properly. Replace any broken surge protectors.
• Keep electrical appliances away from water. Dry your hands before you touch any device or plug.
• Never use appliances near sinks or in wet areas. Store cords and outlets away from places that get wet.
• Use a Class C fire extinguisher for electrical fires. Never use water to put out an electrical fire.

💡 Tip: Make these safety checks part of your monthly routine. Small habits can prevent big accidents.

Upgrades and Budget

Upgrading your electrical system with RCCBs or RCBOs gives you better protection. You should plan for both the cost of materials and the work needed. Permit fees help make sure your upgrade meets safety codes. These fees usually range from $50 to $300, depending on your project. Getting a permit keeps your home legal and safe.

Here is a table to help you understand the typical costs:

Other costs include:

• Circuit breakers: $20 to $50 each.
• High-quality copper wiring: $1 to $2 per foot.
• Grounding rod: $30 to $60.
• New service mast or meter socket: $50 to $200.

🛠️ Note: Always ask a licensed electrician for a detailed quote before starting any upgrade.

Prioritizing Wet Circuits

Wet areas in your home, like bathrooms and kitchens, have a higher risk of electric shock. Water helps electricity travel, so even a small leak can be dangerous. You should always give these circuits extra attention.

• Install RCCBs or RCDs on circuits that supply power to bathrooms, kitchens, laundry rooms, and outdoor outlets.
• Many countries require RCDs for wet area circuits by law.

⚠️ Alert: Moisture increases the risk of electric shock. Protect wet circuits first to keep your family safe.

You can make your home much safer by acting now. Start with simple checks, plan your upgrades, and always protect wet areas first.

You need to use both MCBs and RCCBs to keep your home safe from electric shocks and fires. Pick the right device for your needs. Make sure you install it the right way. Test it every month to be sure it works. Safety experts say you should follow these steps:

You must install and test RCCBs the right way to keep your home safe. If you are not sure how to do this, ask a trained electrician for help.

FAQ

What is the main difference between an MCB and an RCCB?

You use an MCB to protect wires and appliances from too much current. You use an RCCB to protect yourself from electric shocks by detecting current leaks.

Can an MCB prevent electric shocks?

No, you cannot rely on an MCB to stop electric shocks. It only trips when there is a large current. Small leaks that can harm you do not trigger it.

How often should you test your RCCB?

You should test your RCCB every month. Press the test button to make sure it trips. This simple habit helps keep your home safe.

Do you need both MCBs and RCCBs in your home?

Yes, you need both for complete safety. MCBs protect equipment. RCCBs protect people. Using both devices lowers the risk of fire and electric shock.

What should you do if your RCCB trips often?

Frequent tripping means there may be a wiring problem or faulty appliance. You should unplug devices and call a licensed electrician to check your system.

Can you install an RCCB yourself?

You should not install an RCCB without proper training. Incorrect installation can leave you unprotected. Always ask a qualified electrician for help.

Which areas in your home need RCCB protection most?

Wet areas like bathrooms, kitchens, and outdoor outlets need RCCB protection first. Water increases the risk of electric shock. Protect these circuits to keep your family safe.
