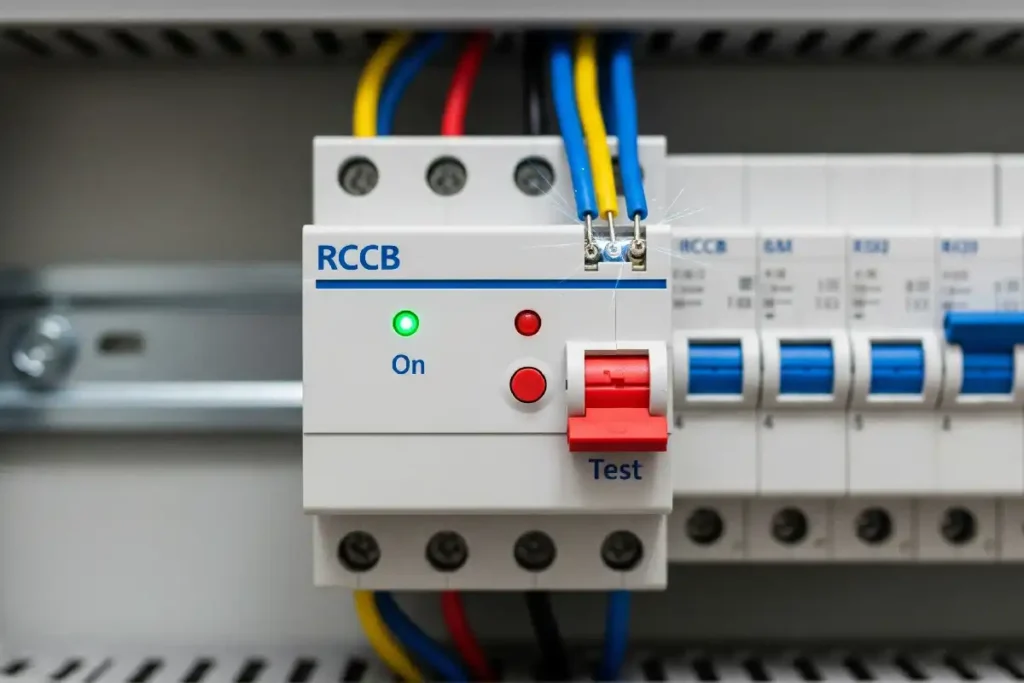

The RCCB electrical full name means residual current circuit breaker. You use an RCCB to keep people and property safe from electrical dangers. The RCCB full form shows its main job. It cuts off circuits when it finds leakage currents. Knowing the RCCB electrical full name helps you pick the right safety device.
- An RCCB checks the flow of current and turns off power fast if it finds danger.
- Many countries need RCCB installation in homes and buildings. This lowers electrical accident rates and fire risks.
Key Takeaways
- RCCB means Residual Current Circuit Breaker. It keeps people safe by turning off power fast when it finds dangerous leaks. The device checks the current going in and out. If it sees a difference, it turns off the power to stop shocks and fires. There are different RCCBs based on how sensitive they are and how many poles they have. Picking the rightone helps protect your home or business. RCCBs stop electric shocks but do not stop overloads. Use them with MCBs or pick RCBOs for full safety. Knowing the RCCB full name and what it does helps you choose the right safety device. This keeps your electrical system safe and working well.
RCCB Electrical Full Name
RCCB Full Form
The RCCB electrical full name is “Residual Current Circuit Breaker.” People use this term a lot when talking about electrical safety. Each word in the RCCB full form means something special:
- Residual Current: This is the small current that leaks out of the circuit. It can happen if there is a problem or if electricity goes through a person to the ground. The device finds this leakage to stop harm.
- Circuit: This is the path where electricity moves. It includes both live and neutral wires.
- Breaker: This means the device can stop the circuit. When the RCCB finds a problem, it shuts off the power. This keeps you safe from electric shock or fire.
You use an RCCB to watch the current in your system. It checks if the current going in matches the current coming out. If there is a difference, the RCCB trips and stops the power. This keeps you and your things safe from electrical dangers. The RCCB electrical full name helps you know its main job—protecting against dangerous leakage currents.
Residual Current Circuit Breaker

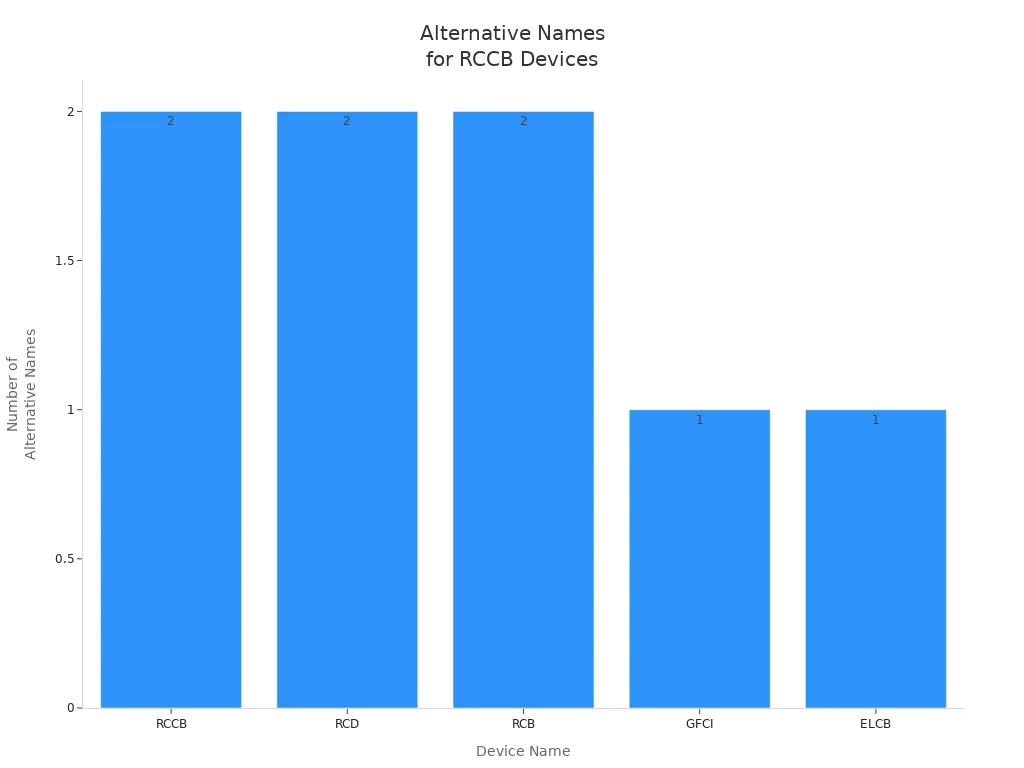

You might hear other names for the residual current circuit breaker. These names change by country or standard. Here is a table to help you see the differences:
| Device Name | Alternative Names | Region/Standard | Function | Key Differences |
|---|---|---|---|---|
| RCCB | RCD, RCB | Europe, UK (IEC) | Finds earth leakage current and trips the circuit to stop electric shock | No overload protection; trips on imbalance between live and neutral currents |
| RCD | RCCB, RCB | Europe, UK | General name for devices that protect against residual current | Can include devices with or without overcurrent protection (like RCBO) |
| RCB | RCCB, RCD | Europe, UK | Same as RCCB | Same as RCCB |
| GFCI | Ground Fault Circuit Interrupter | USA (NEC) | Finds ground faults and trips the circuit | Usually trips at 5 mA sensitivity; often built into outlets; uses electronics |
| ELCB | Earth Leakage Circuit Breaker | Older term, mostly not used now | Checks for earth leakage using voltage | Less sensitive; needs earth connection; replaced by RCCB/RCD |
You may also see these words:
- Residual current device (RCD): A general name for devices that protect against residual current.
- Residual current breaker (RCB): Another name for RCCB.
- RCBO: Gives both residual current and overcurrent protection.
- GFCI: Used in the United States, works like an RCCB but is often in outlets.
- ELCB: An old device, now mostly replaced by RCCB and RCD.
Note: All these devices try to keep you safe from electric shock. They do this by finding leakage currents and turning off the circuit. The main differences are how sensitive they are, extra features, and rules in different places.
Knowing the RCCB electrical full name helps you pick the right device for your home or business. You can find the correct product on labels and in manuals. You also learn what the device does and why it is important for safety.
You see more RCCBs in homes and buildings now. Governments and safety codes want them in many places. The RCCB electrical full name reminds you that this device acts fast when there is a problem. It protects you from electric shocks and fires. You can trust the residual current circuit breaker to keep your electrical system safe.
How RCCB Works
Detecting Leakage Current
You depend on an RCCB to check electricity in your circuit. It uses a special part called a toroidal core. This core senses current in both live and neutral wires. When things are normal, the current going in matches the current going out. This means no electricity is leaking.
If something goes wrong, like a wire touches water or a person touches a live wire, some current escapes to the ground. The RCCB finds this difference. If the difference is bigger than a set amount, usually between 5 and 30 milliamperes, the RCCB turns off the power. Most homes use 30 mA sensitivity to keep people safe. In places like bathrooms, you may see even more sensitive devices.
Here is how the RCCB works:
- The RCCB checks the current in both wires.
- If the currents match, the power stays on.
- If there is a difference, it means there is leakage.
- If the leakage is too high, the RCCB shuts off the circuit.
Tip: The RCCB still works if the ground wire is broken or missing. This makes it safer than older devices.
Protection Against Electric Shock
The RCCB’s main job is to keep you safe from electric shock. When it finds leakage current, it acts quickly. It shuts off the power in just milliseconds. This stops electricity from hurting people or damaging things. The device uses a special magnetic field to flip its switch and cut the power before anyone gets hurt.
RCCBs do not stop overloads or short circuits. You need other devices, like miniature circuit breakers (MCBs), for full protection. Still, the residual current circuit breaker gives strong protection against electric shock and helps stop electrical fires. You see RCCBs in homes, offices, and wet places where shock risk is higher.
Types of RCCB
Sensitivity and Poles
There are different RCCB types. They are based on how sensitive they are and how many poles they have. The number of poles shows if it works for single-phase or three-phase circuits. Sensitivity tells what kind of current the device can sense. Look at the table below to see the main types and where you use them:
| Classification Aspect | Type/Category | Description | Application |
|---|---|---|---|
| Number of Poles | Single-pole (two-pole) | Has two terminals, live and neutral. Used mostly in single-phase systems. | Homes and small factories |
| 4-pole | Has four terminals: L1, L2, L3, and N. Used in three-phase systems. | Factories and big home circuits | |
| Sensitivity / Application Type | Type AC | Finds sinusoidal AC residual currents. Used for many things. | Homes and factories |
| Type A | Finds pulsating DC and AC residual currents. Good for electronic loads with rectifiers. | Circuits with inverters or VFDs | |
| Type F | Made for variable speed drives and odd waveforms. Sensitive to fault currents but not to inrush currents. | HVAC and motor controllers | |
| Type B | Finds AC, pulsating DC, and smooth DC currents at many frequencies. | EV charging, solar panels, and three-phase rectifiers |
You should always pick the right number of poles and sensitivity for your circuit. This helps protect your equipment. For example, Type AC is good for most homes. Type B is best for solar panels and electric car chargers.
Typical Applications
You see RCCBs used in many places. They protect people and equipment at home, at work, and in factories. Here are some common uses:
- Residential: RCCBs protect home circuits for things like lights, appliances, and water pumps.
- Commercial: Offices and stores use RCCBs to keep people safe. They protect lights, computers, and display units.
- Industrial: Factories use RCCBs to protect machines and stop problems. They work well with big motors and heavy equipment.
RCBOs are important in these places too. You find RCBOs in homes, offices, shops, and factories. They protect against both leakage currents and overloads. This means you get two kinds of protection in one device. RCBOs fit into most electrical panels. You can use them for circuits up to 20 amps. They are small and work fast, so many people choose them.
When you pick an RCCB or RCBO, check the rated current, sensitivity, and number of poles. Make sure the device matches your voltage and meets safety rules like IEC 61008. RCBOs help you follow safety rules and keep your system working well.
Tip: Always use RCCBs with MCBs or use RCBOs for full safety. This keeps your home or business safe from shock and fire.
RCCB vs Other Devices
RCCB vs MCB
You see RCCB and MCB in panels. They do different jobs. RCCB keeps you safe from electric shock. It finds leakage currents. If it finds a small imbalance, it trips the circuit. This stops injuries and fires.
MCB protects wires and devices from too much current. It trips if there is an overload or short circuit. This stops cables and appliances from getting too hot or burning. MCB does not find earth faults or leakage currents. You need both for full protection.
Here is a table to show the differences:
| Aspect | RCCB Protection Focus | MCB Protection Focus |
|---|---|---|
| Protection Type | Detects leakage currents to prevent electric shocks and earth faults | Detects overcurrent conditions like overloads and short circuits |
| Operating Principle | Measures imbalance between live and neutral currents, trips on leakage | Senses excessive current flow, trips on overload or short circuit |
| Safety Emphasis | Human safety from electric shocks and fire hazards caused by leakage | Protection of circuits and appliances from damage due to excess current |
| Response Time | Trips within milliseconds on detecting leakage | Trips in milliseconds to seconds depending on current magnitude |
| Sensitivity | Highly sensitive to small leakage currents (e.g., 30mA ratings) | Rated for higher current thresholds (e.g., 6A, 10A, 32A) |
Tip: Use both RCCB and MCB together for best safety.
RCCB vs ELCB
You may wonder how RCCB and ELCB are different. ELCB is older. It works by sensing voltage on the earth wire. It trips only if it finds a voltage rise from a fault. Sometimes, it misses dangerous problems.
RCCB uses a newer design. It checks current in live and neutral wires. If it finds a difference, it trips the circuit. This gives better protection. RCCB works in more cases. It does not need a working earth wire.
| Aspect | ELCB (Earth Leakage Circuit Breaker) | RCCB (Residual Current Circuit Breaker) |
|---|---|---|
| Device Type | Voltage-operated device | Current-operated device |
| Connection | Connected to phase, neutral, and earth wires | Connected to phase and neutral wires only |
| Fault Detection | Detects earth leakage current flowing through the main earth wire | Detects any kind of earth fault by comparing live and neutral currents |
| Application | Older technology, limited to earth leakage faults | Modern installations, broader and more sensitive protection |
Note: Pick RCCB for new setups. It is safer and works in more places.
RCCB vs RCD
You may see RCD on labels or manuals. RCD means Residual Current Device. RCCB is a type of RCD. Both find imbalances in live and neutral wires. They trip fast to stop shock or fire.
RCD is a general name. It includes RCBO, which does both RCCB and MCB jobs. RCBO protects from leakage, overloads, and short circuits. You use RCBO when you want both protections in one device.
Here is a table to help you understand:
| Aspect | RCD (Residual Current Device) | RCCB (Residual Current Circuit Breaker) |
|---|---|---|
| Definition and Scope | General term for devices detecting leakage currents; may include overcurrent protection | Specific type of RCD focused only on residual current detection and disconnection |
| Overcurrent Protection | May include overcurrent protection (e.g., RCBO) | Does not provide overcurrent protection |
| Application | Broader use including devices with combined protections | Used exclusively for residual current protection |
If you want to protect from leakage and overload, use RCBO. You find RCBO in kitchens, bathrooms, and outside circuits. RCBO gives safety from shock and too much current.
Knowing the full name of RCCB shows why it is important for safety.
- This device finds when the current is not balanced and shuts off power fast. This helps stop electric shocks and fires.
- If you know how RCCB is different from old devices, you can follow the right rules and pick the best protection.
- When you install it the right way, you help keep people and things safe for a long time.
Always use RCCB in every building to keep everyone safe for many years.
FAQ
What does an RCCB do in your home?
An RCCB protects you from electric shock. It detects when electricity leaks from a circuit. If it finds a problem, it quickly shuts off the power. This helps keep you and your family safe.
What is the difference between RCCB and MCB?
An RCCB detects leakage currents and protects you from electric shock. An MCB protects your wires and devices from too much current. You need both for complete safety in your electrical system.
What should you check before installing an RCCB?
You should check the rated current, sensitivity, and number of poles. Make sure the RCCB matches your circuit and follows safety standards. Always ask a qualified electrician for help if you are unsure.
What happens if an RCCB keeps tripping?
If your RCCB trips often, it means there is a leakage current or a wiring problem. You should unplug your devices and call an electrician. Do not ignore frequent tripping, as it signals a safety risk.
