ATS means Automatic Transfer Switch in electrical systems. The ATS Electrical Full Name helps people know the device. It switches power from the main source to a backup generator during an outage. > Knowing this term helps anyone working with electrical setups. They can see how an Automatic Transfer Switch keeps the power on.
Key Takeaways
- ATS means Automatic Transfer Switch. It is a device that changes power from the main source to backup power by itself when there is an outage.
- An ATS helps keep power working well. It can sense power problems and switch to backup power fast. It does this without anyone needing to help.
- ATS makes things safer. It stops both power sources from joining at once. It follows strict rules to keep people and equipment safe.
- These switches are very important in places like hospitals, data centers, and factories. These places need power all the time to stop problems and damage.
- ATS costs more money and needs regular check-ups. But it works fast, is reliable, and does not need people to use it. This makes it the best choice for important power systems.

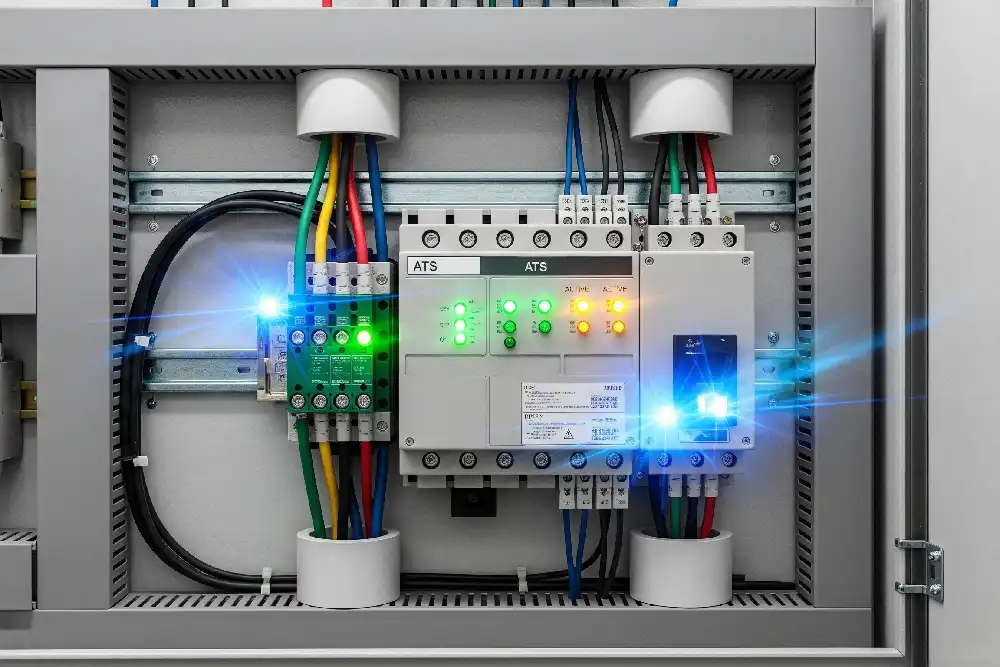

ATS Electrical Full Name
What Does ATS Stand For?
The ATS Electrical Full Name is Automatic Transfer Switch. This name is used in electrical systems. It means a device that moves power from the main source to a backup source if the main source stops working. International electrical standards, like those in the CNC Electric blog, use ATS for Automatic Transfer Switch. People everywhere know this name. It shows the device’s job is to switch power sources without anyone doing it by hand.
The ATS Electrical Full Name helps people know what the device does in power systems. When someone sees this name, they understand the equipment will change power during outages. The National Electrical Code uses this name too. It says transfer equipment like ATS must work by itself and stop both power sources from joining at once. This rule keeps electrical systems safe and working well.

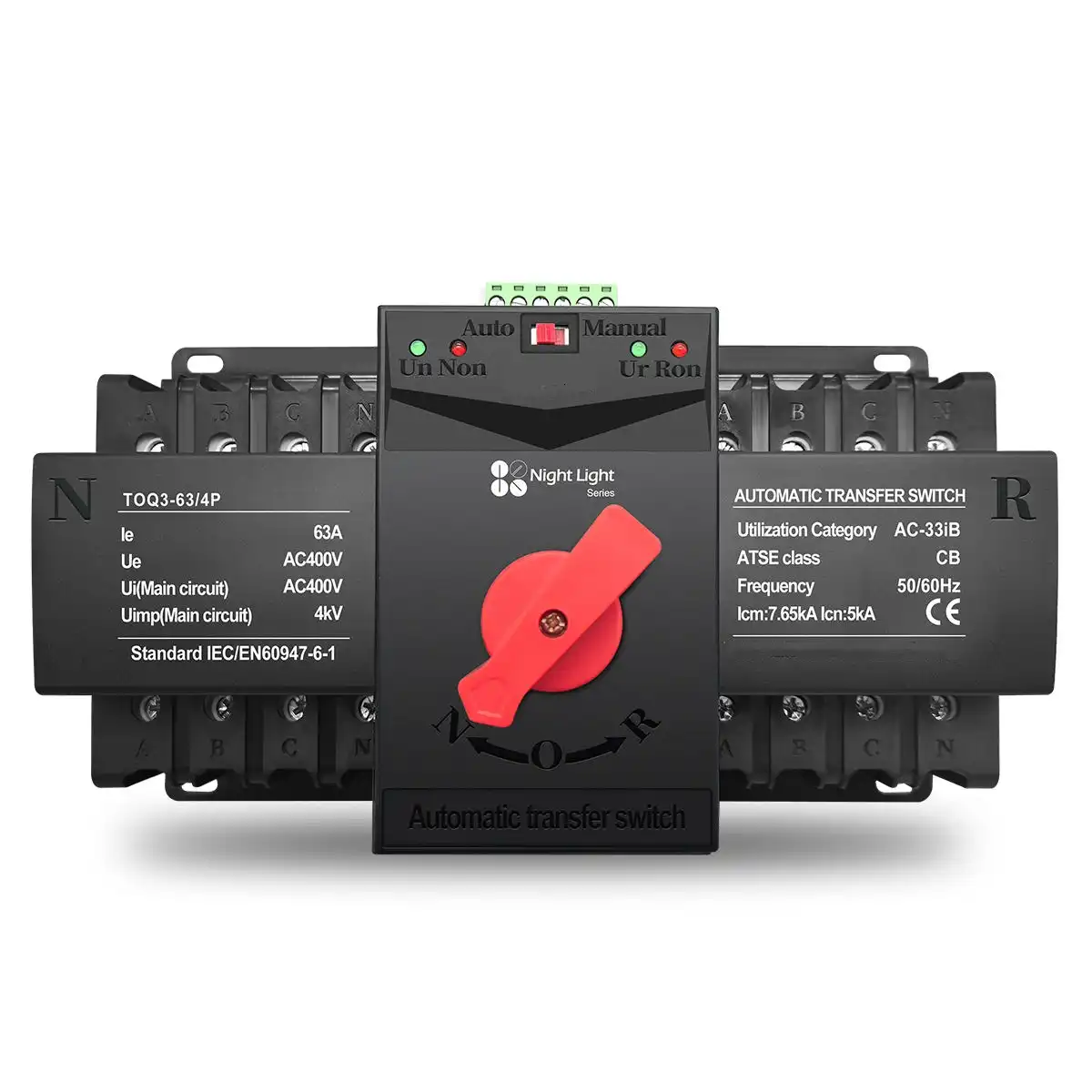

What Is an Automatic Transfer Switch?
An Automatic Transfer Switch is a smart device in electrical systems. It has sensors and control parts to check the main power supply. If the main power stops or gets weak, the ATS quickly moves the load to a backup source, like a generator or battery. The switch happens by itself, so no one needs to be there to do it.
The ATS Electrical Full Name shows this device is not manual. It works alone to keep power going to important things.
Key jobs of an Automatic Transfer Switch are:
- Watching the main power supply all the time.
- Finding power problems with sensors.
- Moving power from the main source to a backup source to stop interruptions.
- Going back to the main source when it is stable again.
- Stopping both sources from joining at once, which keeps the system safe.
The National Electrical Code says an ATS must move power to the backup source in 10 seconds for emergency systems and in 60 seconds for standby systems. This quick action is very important for places like hospitals, data centers, and security systems.
The ATS Electrical Full Name also means the device follows strict safety and quality rules. International rules like IEC60947-6-1 and UL 1008 say ATS devices must be safe, reliable, and installed the right way. These rules help make sure the ATS will work well during a power outage.
The table below shows how Automatic Transfer Switches and manual transfer switches are different:
| Feature | Automatic Transfer Switch (ATS) | Manual Transfer Switch (MTS) |
|---|---|---|
| Operation | Switches power by itself, no person needed | Needs someone to switch it |
| Response Time | Very fast, little downtime | Slow, may cause problems |
| Safety | High, lowers electrical dangers | Lower, more chance of mistakes |
| Convenience | Easy, no hands needed | Needs work, not as easy |
| Cost | Costs more to buy and install | Cheaper, easier to set up |
| Suitability | Best for places that need power all the time | Good for simple backup needs |
The ATS Electrical Full Name matters for anyone working with electrical systems. It tells them the device will keep power safe and steady, even when the main power goes out.
How ATS Works
Main Components
An Automatic Transfer Switch has many important parts. These parts work together to keep power on. The main parts are sensors, control logic, switching contacts, mechanical linkages, bus bars, and an enclosure. Sensors check the voltage, frequency, and phase for both power sources. Control logic uses a microprocessor to decide when to switch power. Switching contacts are made of copper with tungsten tips. They move electricity from one source to another. Mechanical linkages use steel rods to move the contacts safely. Bus bars are made of silver-plated copper and carry the current. The enclosure keeps all the parts safe and uses strong welded seams.
| ATS Component | Material Description |
|---|---|
| Switching Contacts | Solid extruded copper, machined, with tungsten arcing tips |
| Mechanical Linkages | Anodized steel rods, machined, with aircraft-style ball joint fittings |
| Bus Bars | Solid copper, silver plated |
| Enclosure Seams | Arc-welded for extra bracing and smooth corners |
Modern ATS units have new features. These include real-time diagnostics, remote monitoring, and voltage compatibility. These features help users watch system health and make the system more reliable.
Operation Sequence
The ATS uses sensors and control logic to watch utility power all the time. If the voltage drops or the frequency is wrong, the ATS knows the main power failed. The microprocessor starts the transfer process. First, the ATS disconnects the load from the utility source. Next, it tells the backup generator to start. When the generator has the right voltage and frequency, the ATS connects the load to the backup source.
The Automatic Transfer Switch can sense a power outage in milliseconds. It switches from utility power to the backup generator quickly. This helps keep downtime short. The ATS switches back when grid power is stable again.
Control logic keeps switching safe. It uses mechanical and electrical interlocks. These stop both power sources from joining at the same time. The ATS can use open, closed, or delayed transitions. Open transition breaks the connection before switching. Closed transition lets both sources overlap for a short time. Delayed transition adds a pause to let voltages settle and protect equipment.
Most ATS systems have preset delays. Transfer delay lasts from 0 to 6 seconds. This stops switching during short outages. Return delay can last up to 30 minutes. This makes sure utility power is stable before switching back. The ATS keeps power safe and steady for important places like hospitals and data centers.
ATS Pros and Cons
Advantages
Automatic Transfer Switches (ATS) have many good points in electrical systems. They help keep power on and protect important equipment.
- Continuous Power Supply: ATS switch to backup power if the main power stops. This fast switch keeps lights, computers, and machines working with almost no break.
- Improved Uptime: Hospitals and data centers use ATS to stop downtime. The table below shows how ATS and manual switches are different:
| Feature | Automatic Transfer Switch (ATS) | Manual Transfer Switch (MTS) |
|---|---|---|
| Operation Mode | Checks and switches power by itself, no person needed | Needs a person to switch power |
| Response Time | Very fast, usually less than a second | Slower, depends on how fast someone acts |
| Risk of Human Error | Low, because it works by itself | Higher, mistakes can happen if someone is slow or wrong |
| Power Interruption | Very short or none, switches almost right away | Can be slow, so power might go out for a while |
| Suitability for Data Centers | Great, keeps power on for important things | Not good, too slow and needs a person |
| Additional Features | Can check itself, be watched from far away, and switch in many ways | Few or none |
- Safety and Compliance: ATS help follow safety rules and lower mistakes. They keep people safe when the power goes out and meet strict emergency rules.
- Convenience: ATS work by themselves, so no one has to flip a switch. This is great during storms or at night.
- Advanced Features: Many ATS can be checked from far away and test themselves. These features help people find problems early.
ATS switch power fast, safely, and reliably. They help protect important places from losing power.
Disadvantages
Even though ATS are helpful, they have some downsides.
- Higher Cost: ATS cost more than manual switches. It can cost $600 to $2,500 to put one in, which is more than manual ones.
- Maintenance Needs: ATS need regular checks and cleaning. Technicians must look for dust, loose wires, and worn parts. If not checked, ATS might not work when needed.
- Possible Failures: ATS can have problems like tripped breakers or loose wires. Wetness and dust can also cause trouble.
- Complex Installation: Putting in an ATS takes skill. If not done right, it can overload or not work well.
- Environmental Limits: ATS need to be in dry, cool places with good air. Floods, heat, or bad air can hurt the system.
Checking and installing ATS the right way helps lower these problems. People should think about the cost and care before picking an ATS.
ATS Applications
Common Uses
Automatic Transfer Switches are used in many places where power is very important. Some places that use ATS a lot are:
- Hospitals
- Data centers
- Drilling operations
- Mining operations
- Factories
- Healthcare centers
- Critical infrastructure
These places need ATS to keep important things working. Hospitals use ATS so life-support machines do not stop. Data centers use ATS to keep servers from turning off. Mining and drilling sites use ATS to stop expensive breaks. Factories put in ATS to keep machines and safety tools running.
Telecommunications hubs also use ATS. The table below shows how ATS features help telecom systems:
| Feature | Description | Relevance to Telecommunications Infrastructure |
|---|---|---|
| Transfer Time | Less than 4 milliseconds | Lets power switch almost right away, so no downtime |
| Switching Components | Uses SCRs or IGBTs (solid-state devices) | Switches fast and safely, with no moving parts |
| Applications | Mission-critical facilities including data centers and telecom infrastructure | Keeps power on for important telecom equipment |
| High Surge Current | Supports high surge current capability | Protects telecom gear when power changes |
| Frequent Switching | Suitable for systems requiring frequent switching | Makes sure telecom systems work well, even with changing loads |
ATS help telecom networks stay online by switching power fast and safely.
Typical Scenarios
Many businesses must use ATS because of safety rules. Factories put in ATS to stop work from halting. Office buildings use ATS to protect computers and security alarms. Hospitals need ATS for emergency power for life-support machines. Data centers use ATS to keep servers and network tools working.
Rules often say ATS must be used where losing power could be dangerous or cause big problems. Healthcare, data centers, and factories need ATS to follow safety laws. ATS also keep workers safe by keeping power sources apart and stopping power from going back into the grid.
Modern ATS can work with smart grid systems. WIFI-enabled ATS send data to the grid and to building managers. These smart switches send alerts about outages and show if the generator is on. New ATS can control power from solar panels, batteries, generators, and electric cars. This helps make power more steady and saves energy.
ATS are very important in places that need power all the time. They keep power on for important things and help buildings follow safety and energy rules.
Knowing the ATS Electrical Full Name helps people see what keeps power on when there is an outage. An Automatic Transfer Switch finds when power is lost. It switches to backup power right away. This helps hospitals, data centers, and factories avoid stopping work. Some main benefits are:
- Power stays on for important equipment
- Less chance of mistakes or electrical danger
- Better system strength with regular checkups
ATS are very important for keeping key systems safe and working well. People should think about using ATS anywhere that must not lose power.
FAQ
What does an Automatic Transfer Switch do?
An Automatic Transfer Switch moves power from the main source to backup. It does this when the main power stops working. This keeps important things running. No one needs to flip a switch.
What are the main parts of an ATS?
An ATS has sensors, control logic, switching contacts, and linkages. It also has bus bars and an enclosure. These parts help the switch find power loss. They move electricity to backup safely.
What places use ATS most often?
Hospitals use ATS to keep machines working. Data centers need ATS for computers and servers. Factories use ATS for safety and business. Telecom centers use ATS to keep phones and networks on.
What is the difference between ATS and manual transfer switches?
| Feature | ATS (Automatic) | MTS (Manual) |
|---|---|---|
| Switching | Works by itself | Needs a person |
| Speed | Switches very fast | Switches slower |
| Safety | Safer for people | Not as safe |
What happens if an ATS fails?
If an ATS fails, backup power might not turn on. Important things could lose power. Checking the ATS often helps stop problems. This keeps the system working well.
