You see the main difference between 6kA and 10kA MCBs in their breaking capacity. Breaking capacity means the highest fault current an MCB can stop safely. When you pick an MCB, this rating is important. It helps protect wires and equipment from harm or fire. Rules like IEC 60947-2 say you must match the MCB’s breaking capacity to the fault current at your site. For houses, a 6kA rating is usually enough. A 10kA MCB is better for places with higher fault currents, like stores or factories.
Key Takeaways
- MCB breaking capacity means the most fault current it can safely stop. This is measured in kiloamperes (kA). Use 6kA MCBs in homes with lower fault currents. Use 10kA MCBs in places like stores or factories with higher fault currents. Always check the fault current at your place before picking an MCB. This helps keep things safe and gives the right protection. Follow safety rules and standards when you put in MCBs. Use certified breakers and do proper testing. Picking the right MCB rating stops fires and equipment damage. It also saves money by not choosing too high or too low a rating.
Breaking Capacity Explained
kA Rating Meaning
Breaking capacity shows how much fault current an MCB can stop. The value is measured in kiloamperes, called kA. When you check an MCB, you see numbers like 6kA or 10kA. These numbers tell you the biggest current the breaker can handle safely.
Breaking capacity is like the MCB’s power. If a short circuit happens, a strong MCB can stop more electricity. If the current is too high, the breaker might break or cause a fire.
Breaking capacity is the most fault current the breaker can stop safely. There are two types: Ultimate Breaking Capacity (Icu) and Service Breaking Capacity (Ics). Icu is the highest current the breaker can stop one time, but it may need to be replaced after. Ics is the current the breaker can stop many times without breaking. Most homes and offices use MCBs with breaking capacities from 6kA to 25kA. These ratings follow rules like BS EN 60898 and IEC 60947-2.
Safety Importance
You must match the MCB’s breaking capacity to the fault current in your system. If you pick a breaker with a low kA rating, it may not protect your wires or equipment. This can cause overheating, fire, or damage to your electrical system.
- A higher kA rating gives more safety.
- The right rating keeps your home or business safe.
- Standards make sure the breaker works well.
When you choose an MCB, always check the fault current at your site. This helps you pick the best device for safety and reliability.

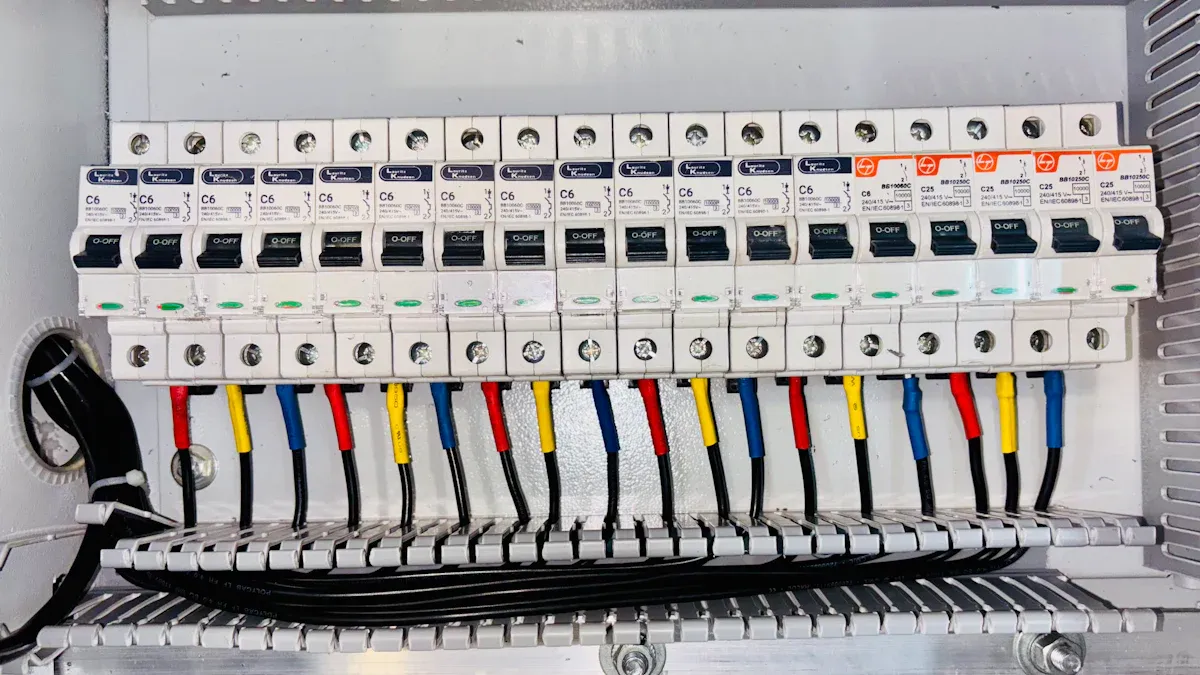

6kA vs 10kA MCB Applications
Residential Use
Most homes use 6kA MCBs. These breakers work well because home fault current is usually not over 6kA. You can put them in normal fuse boxes. House wiring and equipment are made for lower fault currents.
Tip: Always check the PSCC before picking an MCB for your house. If your house is near a transformer or has low loop impedance, the fault current might be higher than 6kA.
Electrical safety groups have rules for using 6kA MCBs at home:
- The MCB must handle the PSCC at your house.
- The 18th Edition Wiring Regulations say devices must handle the PSCC.
- You need covers on fuse boxes to keep fingers safe and stop sparks or melted metal.
- RCD protection is needed on circuits for safety.
- Landlords must give EICRs to show they follow the rules.
- The device rating must be the same as or higher than the PSCC.
If you do not follow these rules, your system could overheat, catch fire, or get damaged. Some old houses have fuses that can handle more than 6kA. Always check if your MCB fits your fuse box and wiring.
Commercial and Industrial Use
You see 10kA MCBs in stores and factories. These places have bigger fault currents because they use large transformers, long cables, and strong machines. A 10kA MCB gives more protection and meets tough safety rules.
Many office and factory boards need breakers with higher breaking capacity. You must use a 10kA MCB if the fault current is over 6kA. This breaker helps protect expensive machines and keeps your business safe.
Note: Stores and factories often need higher-rated breakers to follow local codes and insurance rules.
Always check the fault current and pick the right MCB for your system. Using a breaker with too low a rating can cause failure or fire. Most new boards can use both 6kA and 10kA MCBs, but you should check before you install.
Cost and Safety Margin
You might wonder why 10kA MCBs cost more than 6kA ones. Usually, 10kA MCBs cost about 25–30% more than 6kA types. They cost more because they can handle bigger faults. Some breakers have smart features or special certificates, which can make them even more expensive.
| MCB Type | Typical Use | Price Difference | Safety Margin |
|---|---|---|---|
| 6kA MCB | Homes, small shops | Lower | Standard |
| 10kA MCB | Offices, factories | 25–30% higher | Higher |
A 10kA MCB gives you a bigger safety margin. This means it can handle bigger faults and keeps you safer. If you want to save money and your fault current is low, a 6kA MCB is fine. If you need more safety or have high fault current, pick a 10kA MCB.
Remember: The right MCB keeps your place safe and follows all rules. Always match the breaker to your fault current and where you use it.
Choosing a 10kA MCB
Fault Current Assessment
You must know the fault current before picking a 10kA MCB. Fault current is the biggest electric current during a short circuit. You can find this by using special tools or computer programs. Electricians often use live tests called PSC and PFC tests. These tests give you real numbers and are not hard to do.
Here is how you check the fault current: 1. Turn the power ON, but keep the main switch OFF. 2. For PSC, put test leads between line and neutral at the main switch. If you have three phases, test each one and double the number. 3. For PFC, put test leads between line, neutral, and earth. Again, test each phase and double the highest number. 4. Write down the biggest number you get. This is your fault current. 5. Compare this number to your MCB’s breaking capacity. If your number is close to or over 6kA, you need a 10kA MCB.
You can also use software like A_FAULT for harder systems. This program helps you find fault currents for different voltages and gives you reports. Always wear safety gear and follow safety rules when testing live wires.
Tip: Always write down your test results and save them for later checks.
Standards and Compliance
You must follow strict rules when you put in a 10kA MCB. In the United States, look for marks like UL 489 or UL 1077. These marks show the breaker is safe. Put the MCB in an approved box. Do not use IEC-only devices unless they are in a listed box.
You also need to follow the National Electrical Code, called NEC, and NFPA 70. Local rules and power company rules may ask for more. Keep all papers that show your MCB is certified. Label your breaker, use the right tightness for wires, and test the system often.
- Checklist for Compliance:
- UL 489 or UL 1077 certification
- Put in an approved box
- NEC (NFPA 70) rules followed
- Proper labels and papers
- Regular tests and care
Note: Good papers and regular checks help you pass checks and keep your system safe.
Selection Steps
You can use these steps to pick the right 10kA MCB for your system:
- Measure Fault Current: Use PSC and PFC tests or software to find the biggest fault current at your place.
- Check MCB Type: Pick the right breaker type (B, C, or D) for your stuff. Type B is for lights, Type C for motors, and Type D for big machines.
- Calculate Load: Make sure the MCB can handle normal and extra currents from your equipment.
- Consider Environment: Think about heat, wetness, and dust. High heat or high places can lower the MCB’s power.
- Check Ratings: Match the voltage and current numbers with your system.
- Review Standards: Make sure the MCB has the right marks and follows local rules.
- Document Everything: Keep records of your tests, marks, and how you put it in.
| Step | What to Do | Why It Matters |
|---|---|---|
| Measure Fault Current | Use PSC/PFC tests or software | Makes sure you pick the right kA rating |
| Check MCB Type | Choose B, C, or D | Matches what you use it for |
| Calculate Load | Check normal and extra currents | Stops the breaker from tripping too much |
| Consider Environment | Think about heat, dust, and height | Keeps things safe and working |
| Check Ratings | Match voltage and current | Makes sure it fits your system |
| Review Standards | Check marks and rules | Follows the law |
| Document Everything | Keep all records | Helps with checks and safety |
Picking the right 10kA MCB keeps your equipment safe and your building protected. Always match the breaker to your system and follow all safety rules.
Common Misconceptions
Overrating and Underrating
Some people think a higher kA rating is always better. This is not true. If you pick a breaker with a much higher rating than needed, you do not get more safety. You just spend more money for no good reason. If you use a breaker with a lower kA rating than your fault current, your system is in danger. The breaker might not work during a short circuit. This can cause a fire or damage.
Some people think using a bigger MCB helps motors with high starting currents. But this can make overload protection weaker. Motors could get damaged. You should always match the breaker rating to your system’s fault current and what your equipment needs.
Tip: Always check the fault current. Pick an MCB with a breaking capacity that is the same as or just above that number. This keeps your system safe and stops waste.
kA Rating Myths
Many people do not understand how kA ratings work. Here are some common myths:
- A higher kA rating does not make the breaker trip faster or give better daily protection.
- Some think C-curve MCBs are best for motors. These breakers trip at 5–10 times their rated current. Motors can start at 8–10 times their rated current. This can make the breaker trip too soon and shut things down.
- Making the breaker bigger to stop tripping does not protect motors. It can make the system less safe by making overload protection weaker.
- MCBs cannot sense phase failures. These are important for motor safety. Motor protection circuit breakers can find these problems and keep motors safer.
- Most MCBs have a limit on how much short-circuit current they can stop. Factories may need breakers with much higher ratings for full safety.
Note: The kA rating only shows how much fault current the breaker can stop during a short circuit. It does not change how the breaker works in normal use.
If you know these facts, you can avoid mistakes and pick the right breaker for your needs.
You now know the main differences between 6kA and 10kA MCBs.
- 6kA MCBs work best for homes with lower fault currents.
- 10kA MCBs suit places with higher fault currents, like factories or large stores.
Tip: Always check the fault current at your site before you choose an MCB. This step keeps your system safe and helps you pick the right 10kA MCB if needed.
FAQ
What does the kA rating on an MCB mean?
The kA rating shows the maximum fault current the MCB can safely stop. You use this number to match the breaker to your system’s needs. A higher kA rating means the breaker can handle bigger faults.
What happens if you use a lower kA MCB than needed?
If you use a lower kA MCB, it may fail during a short circuit. This can cause fire or damage to your equipment. Always match the MCB’s kA rating to your site’s fault current.
What is the main difference between 6kA and 10kA MCBs?
A 6kA MCB can stop up to 6,000 amps of fault current. A 10kA MCB can stop up to 10,000 amps. You pick the right one based on your system’s possible fault current.
What type of buildings need 10kA MCBs?
You usually find 10kA MCBs in commercial or industrial buildings. These places have higher fault currents because of bigger transformers and heavy machines. Homes rarely need 10kA MCBs.
What should you check before choosing an MCB?
Always check the fault current at your site. You should also look at the breaker’s certification and make sure it fits your panel. Write down your test results for safety checks.
