Type 1 vs Type 2 vs Type 3 Surge Protective Devices Explained

Type 1, Type 2, and Type 3 surge protective devices each have a special job. They help keep electrical systems safe from strong surges. The biggest difference is where you put each device and how much surge it can stop. A Surge Protective Devices Comparison table helps explain this. Type 1 units go at the service entrance and stop the biggest surges. Type 2 and Type 3 devices protect at distribution panels and near important equipment. Picking the right surge protective device is important. Ratings like Uc and Up need to fit your system for good protection. Using all three types together gives the best safety.

Key Takeaways

• Type 1, Type 2, and Type 3 SPDs protect electrical systems in different places. They handle different surge sizes to keep things safe.
• Type 1 SPDs are put at the main service entrance. They stop big surges like lightning and protect the whole building.
• Type 2 SPDs are put in distribution panels. They catch medium surges and protect branch circuits and equipment inside.
• Type 3 SPDs protect single devices near outlets from small surges. They give the last layer of defense.
• Using all three SPD types together gives layered protection. This lowers the risk of damage and helps equipment last longer.
• SPDs need to be installed right with short wires and good grounding. This helps them work well and stay safe.
• Checking SPDs often and replacing them on time keeps the system safe. This stops failures after surges.
• Following rules and hiring licensed electricians gives safe, reliable surge protection. It also makes sure you follow local laws.

Surge Protective Devices Comparison

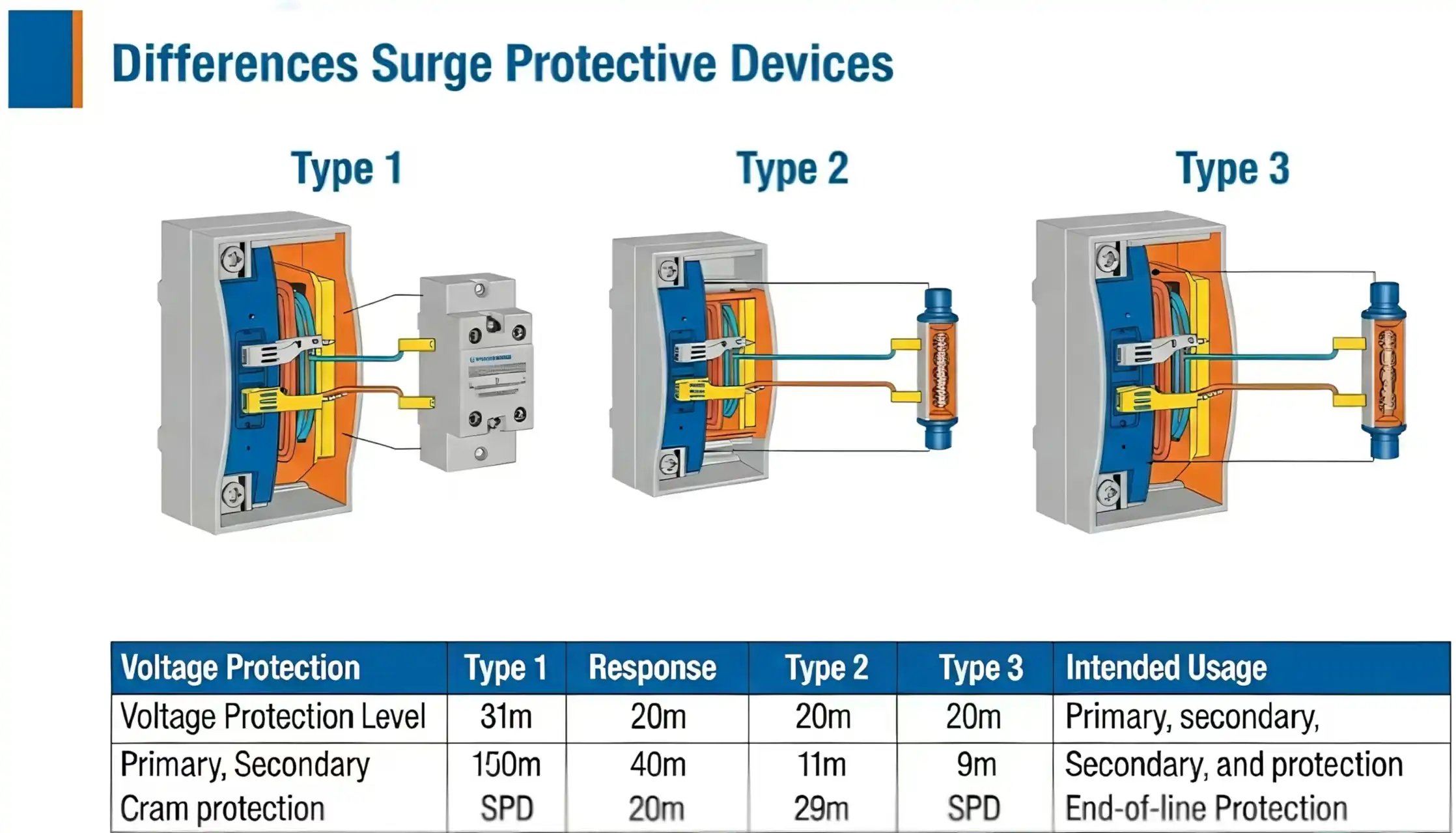

Quick Comparison Table

A surge protective devices comparison helps people spot the main differences between Type 1, Type 2, and Type 3 SPDs. The table below shows how each type works in a building’s electrical system.

Tip: Always check the voltage and rating before you install any surge protective device. This helps make sure the device fits your system and gives the right protection.

Main Differences

When you compare SPD types, you see that each one has a special job in the electrical system. Type 1 SPDs go at the service entrance. They stop big surges, like those from lightning. These devices have the highest surge capacity. Type 2 SPDs are put in distribution panels. They handle medium surges that get past the first layer. These devices protect branch circuits and sensitive equipment from inside surges. Type 3 SPDs are used near or plugged into appliances. They give the last layer of defense for things like computers and TVs.

A surge protective devices comparison shows that Type 1 SPDs protect the whole building from big outside surges. Type 2 SPDs help protect branch circuits and equipment from leftover or inside surges. Type 3 SPDs guard single devices from small, local surges. Each type is made for a certain voltage and job. The best surge protective device depends on what your system needs, the voltage at each spot, and how sensitive your equipment is. Using all three types together makes a layered plan. This way, every part of the electrical system gets the best protection.

Note: UL Standard 1449 and IEEE guidelines say you should pick the SPD type based on system voltage, grounding, and how much surge you expect. The strongest SPD should go near the service entrance. Put more SPDs closer to sensitive equipment.

A surge protective devices comparison shows that no single device can protect everything. Each type works best in its own place and with its own surge level. By comparing SPD types, people can pick the right device for each part of their system and keep their equipment safe.

SPD Overview

What Are SPDs

A surge protective device, or SPD, helps keep electrical systems safe. It protects against sudden jumps in voltage called surges. Surges can happen from lightning or power outages. They can also come when big machines turn on or off. SPDs move extra voltage away from important equipment. This keeps electronics from getting damaged and helps things work well.

SPDs come in many types and sizes. Each type goes in a certain spot in the system. Some SPDs protect the whole building. Others protect just one device. People use SPDs in homes, hospitals, factories, and offices. In hospitals, SPDs help keep machines safe for patients. Reports show SPDs with tracking software help work go faster. They also help check quality and track equipment. This makes sure everything works right.

Note: SPDs do not fix every electrical problem, but they lower the chance of damage from surges.

Why Surge Protection

Surge protection is important because surges can cause big problems. Surges can break computers, TVs, and medical devices. They can also cost a lot to fix and cause delays. Lightning causes many surges, but some come from inside buildings. For example, when big machines start or stop.

Studies show surge protection is needed in many places. For example:

• Factories use SPDs to protect machines and electronics from power problems and lightning.
• Commercial buildings use more SPDs as they add new equipment and follow safety rules.
• States like Florida and Louisiana use many SPDs because they get lots of lightning.
• Asia Pacific uses more SPDs as people buy more electronics and want to keep them safe.

Places with more SPDs have fewer surge problems. Tests and real-life use show SPDs work well and last long. Surge protection is needed in homes and big factories. It keeps equipment safe and helps avoid expensive problems.

Layered Protection

Cascading Approach

A layered surge protection system uses more than one SPD. Each SPD is put in a different place in the electrical network. Type 1 SPDs are at the service entrance. Type 2 SPDs go in distribution panels. Type 3 SPDs are close to the devices you want to protect. Each layer helps stop surges from going further into the system.

Studies show one SPD is not always enough. For example, in the Boscan oil field, lightning storms caused many failures. When only one SPD was used, equipment still broke. After adding more SPDs in layers, the system worked better. There was less downtime and less damage. This real-life example shows that using layers works best, especially where surges happen a lot.

A surge protection hierarchy helps stop surges from many places. Surges can come from outside, like lightning, or from inside, like big machines turning on. By putting SPDs in several spots, each one can catch surges the others miss. This also blocks surges that move both ways along cables. Putting SPDs at both ends of a cable is like putting up roadblocks. This keeps surges away from important equipment.

Tip: Always make sure each SPD has good grounding. Good grounding lets surges leave the system safely.

Why Use Multiple Types

Using more than one SPD type gives better protection. Each SPD type does a special job. Type 1 SPDs stop big surges from outside, like lightning. Type 2 SPDs stop surges that start inside the building. Type 3 SPDs protect things like computers and TVs from small surges.

• Type 1 SPDs stop the biggest surges at the main entrance.
• Type 2 SPDs catch leftover surges at distribution points.
• Type 3 SPDs protect single devices where they are used.

This setup works better than just one SPD. It lowers the risk of damage from all kinds of surges. Experts say this method is best because the SPD types work together. The right SPD depends on the system’s voltage and grounding. Each layer adds more safety and makes the system stronger.

Layered protection also helps at home. Whole-house SPDs at the panel stop most surges. Point-of-use protectors catch any surges that get through. Unplugging devices during storms adds even more safety. No system can stop every surge, but using many SPD types gives the best chance to keep things safe.

Type 1 SPD

Type 1 SPD Features

Type 1 SPD is the first defense in an electrical system. It protects buildings from strong surges, like those from lightning. This device uses spark gap or discharge gap technology. It moves big surges away from important equipment. Type 1 SPD can handle the strongest surges, even the 10/350 µs waveform from lightning.

Here is a table with key facts about type 1 SPD:

Type 1 SPD gives the most protection of all types. It often has disconnectors to stop damage if it fails. The good things about type 1 SPD are strong surge handling, steady work, and use in places with lots of lightning.

Tip: Type 1 SPD works best at the main entrance. It stops surges before they reach other circuits.

Type 1 SPD Installation

Installing type 1 SPD the right way gives the best protection. Electricians put this device at the service entrance, main board, or transformer panel. They do this during new building work or big upgrades.

Key steps for installation:

• Turn off the power and follow safety rules.
• Mount the type 1 SPD close to the main panel.
• Keep wires short, under 0.5 meters, to lower inductance.
• Wire the SPD in parallel, before the main breaker.
• Connect the ground wire straight to the main ground bar.

It is important to follow standards like IEC 61643-11 and UL 1449. These rules say how to test and use the device. Type 1 SPD must handle the surges and voltages these rules list. Tests show that good installation helps the device stop big surges and lower dangerous voltages.

Note: Type 1 SPD should work with Type 2 and Type 3 devices. Using all types together gives full protection.

Type 1 SPD Maintenance

Checking type 1 SPD often keeps it working well. Electricians look at LED lights or flags to see if it is still good. They check for damage, loose wires, or wear after storms or power problems.

Maintenance checklist:

• Look at the SPD for damage or color changes.
• Check lights or flags to see if it works.
• Tighten any loose wires.
• Change the SPD after a big surge or if it fails.
• Test the device often and write down checks and changes.

A study shows type 1 SPD can fail if it gets too much energy or charge. If a surge is too strong or the voltage is too high, it may stop working. Checking often and changing it on time lowers the risk and keeps things safe.

Tip: Always write down what you do for maintenance. Good records help you know when to replace the device before it fails.

Type 2 SPD

Type 2 SPD Features

Type 2 SPD helps protect electrical systems from surges inside a building. This device is put in the distribution panel. It keeps branch circuits and equipment safe from surges that get past the main entrance. Type 2 SPD uses metal oxide varistors or similar parts to react fast to voltage spikes.

A type 2 SPD can handle medium surges. It works well for surges caused by big machines turning on or problems in the power grid. The device acts quickly and keeps sensitive equipment safe. Most type 2 SPDs have a surge current rating between 20 kA and 100 kA. They also have a voltage protection rating that fits the system’s needs.

Here is a table with important features:

Note: Type 2 SPD does not take the place of type 1 SPD. It adds another layer of protection for equipment inside the building.

Type 2 SPD Installation

Electricians put type 2 SPD in the distribution panel or sub-panel. This spot lets the device protect all circuits connected to that panel. The installation follows safety rules like UL 1449 and IEC 61643-11.

Steps for installation:

1. Turn off the main power supply.
2. Mount the type 2 SPD close to the distribution panel.
3. Use short, straight wires to connect the device. This lowers the chance of extra voltage.
4. Connect the ground wire right to the panel’s ground bar.
5. Check all connections before turning the power back on.

Good installation helps the type 2 SPD work well. Electricians should always follow the maker’s instructions. Good wiring and grounding make the device work better.

Tip: Keep the wires as short as you can. Short wires help the SPD react faster to surges.

Type 2 SPD Maintenance

Regular checks keep a type 2 SPD working well. Electricians should check the device after storms or power problems. Most type 2 SPDs have lights or flags that show if the device still works.

A simple maintenance checklist:

• Look at the SPD for damage or wear.
• Check the light or flag.
• Tighten any loose wires.
• Change the SPD if it fails or after a big surge.
• Write down all checks and changes.

Type 2 SPDs are easy to check and replace. Many models have clear signs that show when service is needed. Regular checks help stop equipment damage and keep the system safe.

Callout: Always write down what you do for maintenance. Good records help you track each SPD and plan for replacements.

Type 3 SPD

Type 3 SPD Features

Type 3 SPD is the last layer of protection for electronics. People use it at wall outlets or on power strips. It guards things like computers, TVs, and home appliances from small surges. These surges can get past other protection. The device reacts fast to voltage spikes. It helps keep sensitive devices safe.

Type 3 SPD has a lower surge current rating than other types. It can handle surges from 10 kA to 50 kA. Many models have LED lights that show if they still work. Some also have USB ports or extra outlets for easy use.

Type 3 SPD is easy to install and reacts quickly to surges. It gives direct protection to valuable devices. These devices help stop expensive damage and keep electronics working well.

Tip: Put a type 3 SPD close to the device you want to protect. This gives the best results.

Type 3 SPD Installation

It is important to install type 3 SPD the right way. Plug the device straight into a wall outlet or mount it near your equipment. Do not use long extension cords. Long wires make it harder for the device to stop surges. Never put a type 3 SPD at the main panel or service entrance. It is not made for big surges.

Here are some best ways to install a type 3 SPD:

• Plug it right into the outlet near your equipment.
• Keep the grounding wire short.
• Do not use type 3 SPD with other types in the same spot.
• Make sure the device matches the equipment’s voltage.

Type 3 SPD should work with other SPDs in the system. When installed right, all the devices work together to block surges.

Note: Always check the LED light after plugging in a type 3 SPD. A green light means the device is working.

Type 3 SPD Maintenance

Check type 3 SPD often to keep it working well. Look at the LED light to see if it is still good. If the light goes off or changes color, you may need to replace it. After a big surge, like a lightning storm, check the device for damage.

Here is a checklist for type 3 SPD:

• Check the LED light often.
• Replace the device if the light shows a problem.
• Look for cracks, burns, or color changes.
• Replace it after a big surge or when it shows end-of-life.

Doing these steps helps type 3 SPD last longer and keeps your equipment safe. Checking and replacing it on time helps protect your system.

Callout: Checking and installing type 3 SPD the right way helps it last longer and keeps your electronics safe.

Surge Protective Devices Comparison: Detailed Analysis

Installation Location

When you compare surge protective devices, start with where they go. Type 1 SPDs are put at the main service entrance. This is right after the main circuit breaker. They stop big surges from things like lightning. Type 2 SPDs are put on distribution or sub-panels. These panels send power around the building. Type 2 units stop surges that get past the first device. Type 3 SPDs are used near important equipment, like computers or TVs. People plug them into wall outlets or power strips.

Experts say it is best to use more than one type. Each surge protective device works best in its own spot. The main service entrance needs the strongest protection. Panels and outlets use devices with lower ratings. This setup stops surges at every step. Putting each device in the right place gives the best voltage protection.

• Type 1: Main service entrance (stops big outside surges)
• Type 2: Distribution/sub-panels (blocks leftover or inside surges)
• Type 3: Near equipment (protects against small, local surges)

Putting each device in the right spot helps it work well. It also helps the SPD and the equipment last longer.

Surge Capacity

Surge capacity is how much energy a device can handle. Type 1 SPDs have the highest surge capacity. They protect against strong surges, like lightning. These devices are rated from 40 kA up to 200 kA. Type 2 SPDs have a medium surge capacity, from 20 kA to 100 kA. They stop surges from inside the building or ones that get past the first device. Type 3 SPDs have the lowest surge capacity, from 10 kA to 50 kA. They stop small surges that reach sensitive devices.

Important things for surge capacity are Nominal Discharge Current (In), Maximum Surge Current (Imax), and Voltage Protection Rating (VPR). The right surge capacity depends on where you put the device, the type of building, and the voltage. Factories need higher surge capacity because they get bigger surges. Commercial buildings often use all three types to cover different needs.

A surge protective devices comparison shows that higher surge capacity means better protection and longer life. Picking the right surge capacity for the place keeps the system safe and working well.

Applications

Type 1 SPDs protect the whole building from big outside surges. They work well in places with lots of lightning or where the power company switches lines often. Factories and big buildings use type 1 SPDs at the main entrance to stop big voltage spikes.

Type 2 SPDs protect branch circuits and equipment inside the building. They fit in distribution panels. They help keep equipment safe from surges caused by machines turning on or off. Many office buildings use type 2 SPDs to protect lights and computers.

Type 3 SPDs protect single devices. People use them for things like computers, TVs, and other electronics. These SPDs plug into outlets near the equipment. They give the last layer of protection against small surges that get through.

A surge protective devices comparison shows that using all three types is best in many places. Each type matches a certain voltage and surge risk. Using the right SPD in the right spot keeps every part of the system safe.

Tip: Always check the voltage and surge capacity before picking an SPD. This helps make sure the device fits your system’s needs.

Cost and Lifespan

When picking a surge protective device (SPD), people want to know about price and how long it lasts. These two things help you choose the best SPD for your home, office, or factory. Each SPD type has its own cost and how long it works.

Cost Comparison

The price of an SPD depends on what type it is, how much surge it can stop, and what features it has. Type 1 SPDs cost the most. They protect the whole building and stop the biggest surges. Type 2 SPDs are in the middle for price. They protect branch circuits and important equipment. Type 3 SPDs cost the least. People use them for single things like computers or TVs.

Here is a simple table to show the usual costs:

Tip: A higher price often means the SPD can stop bigger surges and has more features, but always check the ratings before you buy.

Lifespan Overview

How long an SPD lasts tells you when it needs to be replaced. Type 1 SPDs last the longest. They are made with strong parts and can handle many surges. Type 2 SPDs last a medium amount of time. They protect against smaller surges but get used a lot in busy places. Type 3 SPDs last the shortest time. They protect one device and may need to be replaced after a few big surges.

Many things change how long an SPD lasts:

• Surge Events: More surges make the SPD wear out faster.
• Surge Strength: Stronger surges make the SPD not last as long.
• Quality: Better SPDs last longer.
• Maintenance: Checking the SPD often helps it last longer.

A normal lifespan for each type:

• Type 1 SPD: 8–15 years (sometimes longer if there are not many surges)
• Type 2 SPD: 5–10 years
• Type 3 SPD: 2–5 years (may need to be replaced sooner after big surges)

Note: Always look at the SPD’s lights or flags. Replace the SPD if it shows a problem or after a big surge.

Practical Advice

People should think about both the first price and when they will need to replace the SPD. Using all three types together costs more at first, but it keeps your equipment safe and saves money on repairs. Checking SPDs often and replacing them on time keeps everything safe and working.

Callout: Buying good SPDs saves money over time because it stops damage to your important equipment.

How to Choose the Right Surge Protective Device

Assessing Risk

Picking the right surge protection starts with checking for risks. Every building has its own surge dangers. Some places get hit by lightning more often. Others have big machines that can cause power spikes. Experts use a risk check that looks at many things:

1. Find out how often lightning strikes in your area. More lightning means you need stronger protection.
2. See if your building is close to power stations or factories. These places can make more electrical surges.
3. Check the voltage and current of your power supply. Higher numbers can mean bigger surges.
4. Look at how the wires are set up. Longer wires make it easier for surges to reach your equipment.
5. Make a list of all devices and see which ones are sensitive to voltage changes.
6. Look at old records to see if surges happened before.
7. Always follow local electrical rules and standards.

Some countries, like France, have special rules for this. Experts say you should always use Type 2 SPDs. If the equipment is far from the panel, add Type 3 SPDs for extra safety. Using more than one type helps protect everything.

Tip: Doing a good risk check helps stop damage and saves money over time.

Equipment Sensitivity

Not all equipment reacts the same to surges. Some things, like computers and medical tools, are very sensitive. Others, like lights or heaters, can handle small surges. When picking a surge protective device, check how sensitive each thing is.

The table below shows what to look for and why it matters:

Sensitive things need SPDs with low let-through voltage and quick action. Match the SPD’s ratings to what your devices need. For example, a computer lab needs lower voltage protection than a warehouse with only lights.

Note: Speed and energy ratings can be confusing. Focus on the main ratings in the table for the best results.

Regulatory Standards

Following the right rules keeps people and equipment safe. Standards also help you pick the right surge protective device. The most important rules are:

• UL 1449: This rule checks if SPDs are safe and work well in North America.
• IEC 61643: This rule explains how to test and rate SPDs. It covers surge current, voltage protection, and short-circuit ratings.
• ANSI/IEEE C62.41.2: This rule gives advice for surge testing and protection levels.

SPDs come in three main types under IEC 61643:

• Type 1: Protects against direct lightning at the main entrance.
• Type 2: Stops indirect lightning and switching surges at distribution boards.
• Type 3: Gives point-of-use protection for sensitive equipment, but only works well if a Type 2 SPD is upstream.

Meeting these rules helps keep equipment safe, lowers fire risk, and makes devices last longer. It also makes sure your system follows local and world rules.

Callout: Always look for labels that show the SPD meets the rules before you buy. Trusted brands like ONESTOP sell products that follow these standards.

Budget Factors

Picking the right surge protective device depends on your budget. People want to keep their things safe but also save money. Each SPD type has a different price. Type 1 SPDs cost the most because they protect the whole building. Type 2 SPDs are in the middle for price and protect branch circuits. Type 3 SPDs are the cheapest and protect single devices.

A simple table shows the prices:

People should think about the first cost and how much they save later. A more expensive SPD can stop more damage and save money on repairs. Fixing broken things often costs more than buying a good SPD. Using all three types together costs more at first but gives the best safety.

Tip: Always check the warranty and how long each SPD lasts. A longer warranty can mean you get better value.

Some people try to save money by buying just one SPD. This may not protect everything. Spending a bit more on layered protection can stop big losses later. People should also think about what they might need in the future. Adding more equipment or sensitive things may mean you need more SPDs.

When to Use All Types

Using all three SPD types gives the best safety. Each type stops surges at a different place in the system. Type 1 SPDs block big surges from outside, like lightning. Type 2 SPDs stop leftover surges inside the building. Type 3 SPDs protect sensitive things from small, local surges.

People should use all types if:

• The building is in a place with lots of lightning.
• There is expensive or sensitive equipment, like computers or medical tools.
• The electrical system has long wires, which let surges travel farther.
• The building has many branch circuits or sub-panels.
• The owner wants to follow strict safety rules or insurance needs.

A layered plan works like a team. Each SPD type helps cover what the others miss. This lowers the risk of things breaking or losing data.

Note: Experts say to use all three types for homes, offices, factories, and places with important equipment.

People who want strong surge protection should pick trusted brands. ONESTOP makes surge protectors that meet safety rules and give strong protection for many needs.

Layering Benefits

Redundancy

A layered surge protection system adds extra safety to electrical systems. When people use more than one surge protective device, each one backs up the others. If one device stops working or gets too much surge, the next device can still protect the equipment. This setup lowers the chance of everything failing at once. For example, if a Type 1 SPD at the main entrance fails after a big lightning strike, a Type 2 SPD in the panel can still block leftover surges.

Redundancy means no single failure leaves devices unprotected. This way works well in places with lots of power problems or storms.

A table can help show how redundancy helps:

Stress Reduction

Layered protection spreads out the work between several devices. Each SPD only deals with the surges it is made for. Type 1 SPDs take the biggest surges. Type 2 and Type 3 SPDs handle smaller surges. This keeps any one device from wearing out too fast. When each device does its job, the whole system lasts longer.

• Type 1 SPDs take the strongest surges.
• Type 2 SPDs catch leftover or inside surges.
• Type 3 SPDs protect sensitive devices from small spikes.

This method also helps lower repair costs. People do not have to replace all their SPDs at once. Instead, they can just change the device that is worn out. This makes surge protection cheaper over time.

Sensitive Equipment Protection

Many homes and businesses use sensitive electronics every day. These include computers, smart TVs, and medical tools. Layered surge protection gives these items the best chance to stay safe. Expensive devices, like servers or lab equipment, need extra care because even a small surge can cause big problems.

A layered system protects sensitive devices at every step. Type 1 and Type 2 SPDs stop most surges before they reach the outlets. Type 3 SPDs give the last layer of defense right where people plug in their equipment. This setup helps stop data loss, equipment failure, and costly downtime.

Tip: People should always use layered surge protection if they have sensitive or expensive devices in their building.

Installation Guidelines

Safety Precautions

Safety is the most important thing when working with surge protective devices. Electricians always turn off the main power before they start. They use tools with rubber handles and wear rubber gloves to stay safe. Warning signs tell others to stay away from the work area. Electricians look for water or wet spots near panels because water makes shock more likely. They never touch wires if their hands are wet. Safety glasses keep their eyes safe from sparks or flying pieces. A fire extinguisher should be nearby in case something goes wrong. Electricians also follow local rules to make sure the work is safe.

Tip: Always check again that the power is off before touching any wires or equipment.

Wiring and Grounding

Good wiring and grounding help surge protective devices work right. Electricians use short, straight wires to connect the device to the panel. Short wires help stop extra voltage during a surge. They do not make sharp bends or loops in the wires. The ground wire goes straight to the main ground bar. This lets extra voltage move away from equipment safely. Electricians pick the right size wire for the device. They make sure all wires are tight and secure. Loose wires can make the device fail or even cause a fire. Color-coded wires help stop mistakes when installing.

A simple wiring checklist helps keep things safe:

• Use short, straight wires.
• Connect the ground wire directly.
• Make sure all wires are tight.
• Do not make sharp bends in wires.
• Use the right size wire.

Note: Good grounding is very important for surge protection. Without it, the device cannot protect your equipment.

Qualified Installation

Only trained professionals should install surge protective devices. Electricians know how to read wiring diagrams and follow directions. They understand the dangers and know how to stay safe. A qualified installer checks the voltage and matches the device to the system. They test the device after putting it in to make sure it works. Electricians also show how to check the device’s lights or indicators. Homeowners should not try to install these devices by themselves. Mistakes can break equipment or hurt someone.

Following the best ways to install keeps the system safe and helps it last longer. Professional installation also helps with insurance and code rules. Many companies want proof of professional installation for the warranty.

Callout: Always hire a licensed electrician to install surge protective devices. This keeps people and equipment safe.

Maintenance Best Practices

Inspection

Checking surge protective devices often helps them work well. Electricians look for damage like burns or cracks. They also check if the device has changed color. They look at the indicator lights or flags. A green light means the device is working. A red or off light means it may need fixing. Electricians listen for buzzing sounds near the device. They also smell for burning odors. These signs can mean there is a problem inside.

A good inspection plan includes:

• Check devices after every big storm or power surge.
• Inspect all devices at least two times each year.
• Look for loose wires or bad connections.
• Make sure the ground wire is tight and safe.

Tip: Finding problems early helps stop equipment from breaking and keeps things safe.

Replacement

All surge protective devices only last for a certain time. Big surges or many small surges can wear them out. If a device shows a warning light or fails a check, electricians replace it fast. They do not wait until it stops working. Replacing it quickly keeps the system safe.

Here is a simple replacement list:

1. Turn off the power before taking out the old device.
2. Remove the device and look for hidden damage.
3. Put in the new device and follow the maker’s steps.
4. Use short, straight wires for best results.
5. Test the new device to make sure it works right.

A table helps track when to change each device:

Note: Always use the right device type in each spot to keep things safe.

Documentation

Keeping good records helps with maintenance. Electricians write down every check, replacement, and repair. They note the date, the device type, and any problems. These notes help track how old each device is. They also help plan when to change them.

A sample log entry could look like this:

Date: 2024-06-10
Device: Type 2 SPD, Panel A
Action: Inspected, no issues found
Next Check: 2024-12-10

Clear records help electricians see if one area has more problems. This can help decide if upgrades or changes are needed.

Callout: Good records make it easier to follow safety rules and meet insurance needs.

Regulatory Compliance

Key Standards

Surge protective devices must follow important technical standards. These rules help keep electrical systems safe and working well. There are three main standards for surge protective devices:

• UL 1449: Underwriters Laboratories made this rule for North America. It checks if a device can handle surges safely. UL 1449 makes sure the device does not cause fires or shocks.
• IEC 61643: The International Electrotechnical Commission made this rule. It explains how to test surge protective devices and what they must do. IEC 61643 is used in many countries.
• EN 50539: This European rule is for surge protective devices in solar systems. It makes sure these devices work with solar panels and protect them from surges.

If a surge protective device meets these rules, it should work as needed. It will also match local electrical codes and help keep people and equipment safe. Many places only allow surge protective devices that pass these tests to be sold or installed.

Note: Always check for labels or papers that show a surge protective device meets these rules. This helps you pick safe and good products.

Importance of Compliance

Following the rules is more than just obeying the law. It helps keep people, equipment, and businesses safe from harm. When installers use surge protective devices that meet the main rules, they lower the risk of fires, shocks, and broken equipment.

A surge protective device that follows the rules gives many good things:

• Keeps the system safe and lowers the chance of accidents.
• Matches local rules, so inspections are easier.
• Makes the system more reliable and stops long downtime.
• Saves money on repairs by stopping damage.
• Helps businesses keep running without problems.

Some jobs have extra rules to keep data and systems safe. For example, the Payment Card Industry Data Security Standard has some important steps:

1. Set up and keep firewalls to protect data.
2. Change default passwords to strong new ones.
3. Only let certain people see sensitive data.
4. Give each person a special ID and strong login.
5. Limit and watch who can get to data in person.
6. Keep track of who uses network resources.
7. Test security systems often with checks and scans.
8. Keep and share a security plan that matches the rules.
9. Teach all workers about security.

These steps show that following the rules is not just about laws. It helps stop data leaks and keeps systems safe. For surge protective devices, following the rules and best ways protects both equipment and information.

Callout: Following the rules for surge protective device installation is needed for safety and the law. It keeps people safe, protects important things, and helps businesses run well.

Common Misconceptions

Single SPD Myth

Some people think one surge protective device will keep everything safe. This is not true. Surges can come from many places, not just the main power line. Lightning can hit nearby and send a surge through the ground. Surges can also travel through phone or cable lines. Big appliances inside can make their own surges when they turn on or off. One surge protective device at the main panel cannot stop every surge. Some surges get past it and reach other parts of the building. That is why experts say to use more than one type. Using Type 1, Type 2, and Type 3 together gives better safety. Each device works in a different spot. This setup helps catch surges that others miss.

Tip: Using more than one surge protective device is the best way to keep electronics safe, especially if you have a lot of devices.

Joule Ratings

Many people look at the joule rating when they buy a surge protective device. They think a bigger number means better safety. This is not always right. The joule rating shows how much energy the device can take before it stops working. Real surges, like lightning, can have much more energy than any small device can handle. No small surge protective device can take that much energy. Here are some facts about joule ratings and surge safety: Joule ratings do not show how well a device will protect against real surges. Lightning can bring more energy than any device can handle. Good surge safety depends more on good grounding and how you install it, not just the joule number. UL1449 ratings are about fire safety, not about stopping every surge. Some surge protective devices use special designs that do not only absorb energy. A high joule rating can help the device last longer with small surges, but it does not mean full safety. How you install the device and the earth ground are more important.

Lifespan Issues

Some people think surge protective devices last forever or that a high rating means they last longer. This is not true. Every surge protective device has a limited life. Each time it stops a surge, it loses some of its power to protect. Big surges or many small surges can wear it out faster. Here are some important points about how long surge protective devices last: A basic whole house protector should have a 50,000 amp rating to handle normal lightning surges. Fuses and circuit breakers are too slow to protect electronics from fast surges. Many point-of-use surge protective devices do not stop all types of surges, like those from appliances. Some devices use designs that last longer, but no device lasts forever. Insurance may be the only way to recover from very strong surges, because warranties and ratings do not cover every event.

Note: Check your surge protective devices often and replace them when needed. Do not trust only the rating or warranty for long-term safety.

Protection Limits

A lot of people think surge protective devices can stop every electrical problem. This is not true. Every SPD has limits. These devices help lower damage from voltage spikes, but they cannot make a system totally safe from all surges. SPDs work best against normal surges, like those from turning big machines on or off, or small lightning strikes. Some surges are just too strong for any device. For example, a direct lightning hit brings more energy than any SPD can handle. Even the best surge protection may not save all equipment in these cases.

Note: Surge protective devices lower risk, but they do not remove it.

What SPDs Can and Cannot Do

SPDs do not fix bad wiring or poor grounding. If a building has old or broken wires, surges can still cause harm. Good grounding helps SPDs work better. Without it, even the best SPD may not help. Some people think using more SPDs always gives better safety. This is not true. Too many devices in one spot can cause problems. Each SPD must match the system’s voltage and be put in the right place.

Tip: Always use SPDs as part of a full electrical safety plan. Combine them with good wiring, proper grounding, and regular checks.

Realistic Expectations

SPDs help protect electronics, but they do not make equipment unbreakable. After a big storm or power event, people should check their SPDs. If a device shows a warning or stops working, replace it right away. Here are some facts to remember: No SPD can stop every surge. Direct lightning strikes can still cause damage. Good installation and maintenance improve protection. SPDs work best with other safety steps. People should know the limits of surge protection. This helps them make better choices and keep their equipment safer.

Picking the right surge protective device helps keep electrical systems safe. Using Type 1, Type 2, and Type 3 SPDs together gives the best safety. Each type works in a different place and stops different surges. The table below shows how they work as a team:

Experts say using all three types lowers risk and helps equipment last longer. People should think about what they need, ask an expert, and look for trusted brands like ONESTOP for good surge protection.

FAQ

What is the main job of a surge protective device (SPD)?

An SPD keeps electrical systems safe from sudden voltage jumps. It sends extra energy away from your equipment. This helps stop damage and lets electronics keep working.

Can one SPD protect an entire building?

One SPD cannot keep everything safe. Surges can come in from many places. Using Type 1, Type 2, and Type 3 SPDs together gives the best safety for all your equipment.

How often should someone check or replace an SPD?

People should look at SPDs after big storms or power surges. Experts say to check them two times each year. Change any SPD that shows warning lights or looks damaged.

Do SPDs need professional installation?

Yes. A licensed electrician should put in SPDs. Good installation makes sure the device works right and is safe. If installed wrong, it may not protect well or could be dangerous.

What happens if a surge is too strong for the SPD?

If a surge is too strong, the SPD might stop working. Some energy could still reach your equipment. Using more than one SPD helps lower this risk. Always check SPDs after big surges.

Are SPDs only for homes with expensive electronics?

No. SPDs protect all kinds of equipment, not just costly things. Homes, offices, and factories all need surge protection. Even simple appliances can get hurt by surges.

How can someone tell if an SPD is working?

Most SPDs have lights that show if they work. A green light means the device is good. A red or no light means it needs to be changed. Always look at the light after storms or power problems.

The following information may be of interest to you

Type 1 and Type 2 surge devices explained in 5 steps

How does SPD deal with strong surge voltage?

What You Need to Know About Surge Protection Device Lifespan

Surge protective device
