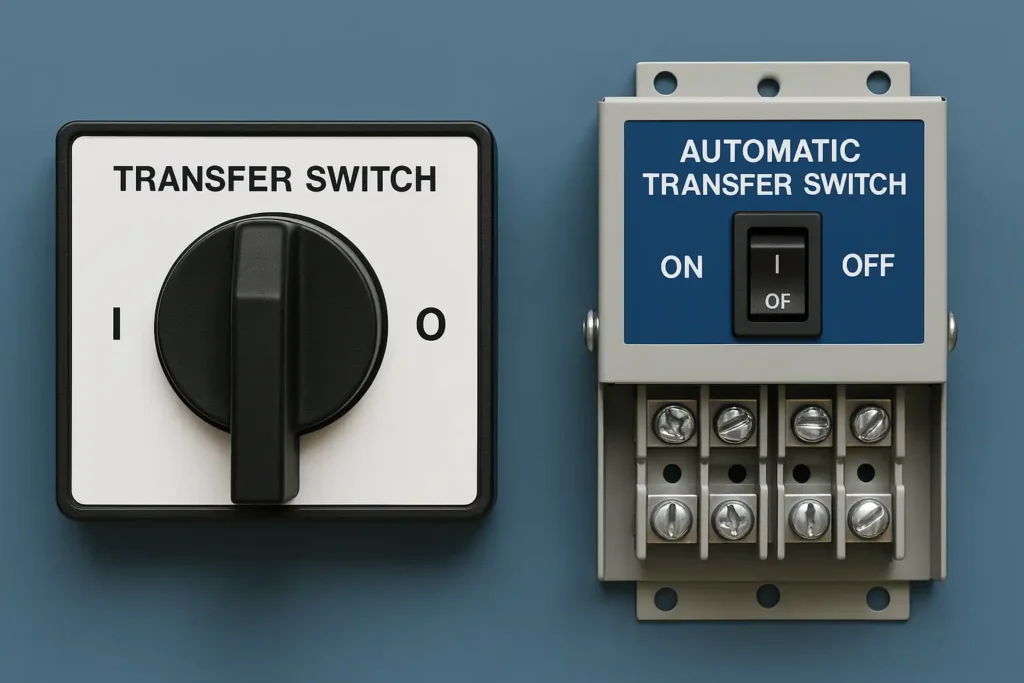

When you look at backup power, the big difference between a transfer switch and an automatic transfer switch is how they work in a power outage. A manual switch needs you to flip it by hand. An automatic transfer switch does this for you. It switches power right away if the main power fails. This difference is important for your safety and comfort. Using the right switch keeps your home safe. It also protects your appliances and follows electrical rules. More people are picking automatic options now, especially in smart homes and businesses:
| Market Segment | Key Insight | Additional Details |
|---|---|---|
| Transfer Switch Types | ATS has the most demand | This includes contactor, circuit, and static transfer switches |
| Residential Sector Share | Biggest share among end-use sectors | Needed for backup power, especially in places with disasters |
| Commercial Sector | Many use ATS | Data centers, renewable energy, and upgrades drive this |
| Market Trend | ATS has the biggest demand in transfer switches | Shows people like automatic more than manual transfer switches |
Key Takeaways
- A transfer switch lets you safely change power from the main grid to a backup generator when the power goes out.
- Manual transfer switches need you to turn the switch yourself, but automatic transfer switches change the power by themselves in just a few seconds.
- Automatic transfer switches work faster, are safer, and need less effort during outages, but they cost more and need regular check-ups.
- Manual transfer switches are cheaper, have simple designs, and let you control them, but you must be there and do the work when the power goes out.
- Pick the right switch for you by thinking about your power needs, how much money you want to spend, safety rules, and how often you lose power; always have a licensed electrician install it.
Transfer Switch Basics
What Is a Transfer Switch
A transfer switch lets you change your power source safely. You can switch from the main grid to a backup generator. This helps keep your lights and appliances on during an outage. The main job of a transfer switch is to move power from your main source to backup when needed. It stops both sources from connecting at once. This keeps your home safe and protects workers fixing power lines.
Here’s a quick look at what makes up a standard transfer switch:
| Component/Aspect | Description/Function |
|---|---|
| Main Function | Moves power from utility to backup source during outages. |
| Types of Transfer Switches | Automatic, nonautomatic, and manual. |
| Transfer Operations | Open-transition (brief outage) or closed-transition (seamless transfer). |
| Construction Standards | Must meet UL 1008, UL 1008A, and NFPA 110 standards. |
| Key Components | Enclosures, wiring, control devices, relays, and safety features. |
| Critical Requirements | Prevents both sources from connecting at once and ensures safe, reliable transfer. |
You can find transfer switches in homes, businesses, and hospitals. Brands like ASCO, Generac, and Kohler make popular models. Some are simple and manual. Others work by themselves.
Manual Transfer Switch
A manual transfer switch is the simplest kind. You have to use your hand to control it. When the power goes out, you walk over and flip the switch. This connects your generator. When the main power returns, you flip it back. You must be there to do this.
Manual transfer switches are used in homes and small businesses. You might use one to connect your house to a portable generator during a storm. In businesses, you can switch between two utility feeds or different generators.
Tip: Manual transfer switches must follow strict safety rules. They need to be UL 1008 listed and installed by the National Electrical Code (NEC). The box should have doors that lock and safety parts. This stops you from connecting both power sources at once.
Here are some things you’ll find in a manual transfer switch:
- Two circuit breakers that can’t close together
- Strong connectors and wiring
- A steel box that locks for safety
- Clear labels and instructions
Manual switches are dependable and cost less than automatic ones. You get peace of mind because you control when your backup power turns on.
Automatic Transfer Switch
How an Automatic Transfer Switch Works
An automatic transfer switch makes backup power easy and safe. You do not have to do anything if the power goes out. The switch can sense when your main power has a problem. It looks for things like low voltage or no power at all. When it finds a problem, it quickly tells your generator to turn on. Once the generator is ready, the automatic transfer switch moves your home or business to backup power. You get your electricity back in just a few seconds.
The switch keeps checking both the main power and the generator. When the main power comes back, the automatic transfer switch waits to make sure it is steady. Then, it moves you back to the main power and turns off the generator. You do not have to get up or flip any switches.
Note: The automatic transfer switch uses sensors and a control panel to do all this work. It only switches power when it is safe. This protects your appliances and keeps your home safe.
Features of Automatic Transfer Switch
You will see that an automatic transfer switch has many helpful features:
- Self-acting control: The switch checks the power all the time. It acts right away if there is a problem.
- Fast response: You get backup power in seconds, so you do not have to wait in the dark.
- Safety: The switch only lets one power source connect at a time. This stops dangerous back-feeding and keeps utility workers safe.
- No need for manual work: You do not have to go outside or touch anything during a storm or outage.
- Great for standby generators: Most people use an automatic transfer switch with a standby generator. This setup is perfect for homes, hospitals, and places where power is critical.
Here is a quick comparison to help you see the difference:
| Feature | Automatic Transfer Switch | Manual Transfer Switch |
|---|---|---|
| Operation | Automatic | Manual |
| Response Time | Seconds | Minutes (or more) |
| Safety | High | Depends on user |
| User Action Needed | None | Yes |
| Best Use | Critical power needs | Small homes, low budgets |
If you want less worry and less work during outages, an automatic transfer switch is a smart choice.
Manual vs. Automatic Transfer Switch
Key Differences
When you look at a manual transfer switch and an automatic transfer switch, you notice some big differences. A manual transfer switch needs you to do something. You have to flip the switch when the power goes out. You also flip it again when the power comes back. An automatic transfer switch does this job for you. It senses when the power is lost and switches to your generator right away. You do not have to get up or move.
Here is a quick side-by-side chart:
| Feature | Manual Transfer Switch | Automatic Transfer Switch |
|---|---|---|
| Operation | You flip the switch | Switches by itself |
| User Involvement | High | None |
| Response Time | Minutes (depends on you) | Seconds |
| Cost | Lower | Higher |
| Complexity | Simple design | More complex, more parts |
| Best For | Homes, small businesses | Hospitals, data centers, homes needing fast backup |
A manual switch gives you more control. But you also have more work to do. An automatic transfer switch gives you peace of mind. This is helpful if you need power right away.
Pros and Cons
Both types of transfer switches have good and bad points. Let’s look at them so you can pick what works for you.
Manual Transfer Switch
Pros:
- Costs less to buy and install.
- Simple design means fewer things can break.
- You choose when to switch power.
Cons:
- You must be there to use it.
- Waiting to switch can cause power loss.
- More steps mean more chances for mistakes. You could switch too early or too late. This might cause power surges or damage.
Automatic Transfer Switch
Pros:
- You do not need to do anything during an outage.
- Fast power switch keeps your lights and appliances on.
- Safer for sensitive equipment and people who cannot reach the switch fast.
- Less chance for mistakes and keeps utility workers safer.
Cons:
- Costs more to buy and install.
- More parts mean it needs regular checks.
- If it breaks, repairs can cost more.
Tip: Always let a licensed electrician install your transfer switch. This keeps your system safe and follows the rules. Using the right equipment and getting permits helps stop shocks, fires, or damage.
Typical Uses
You might wonder where each switch works best. Here are some common examples:
- Manual transfer switches are good for homes and small businesses. If you do not need power right away or want to save money, this is a good pick. Many people use them to keep the fridge and some lights on during storms.
- Automatic transfer switches are best where power is very important. Hospitals, data centers, and homes with medical gear use them. Businesses that cannot lose power also use them.
Safety and Installation Considerations:
- Both types need a licensed electrician to install them. This keeps you safe and follows local rules.
- Always use equipment that matches your generator and electrical system.
- For manual switches, follow the instructions carefully. Mistakes can cause surges or overloads.
- For automatic switches, check for damage, loose wires, or water. Keep the area dry and clean.
- Never run a generator inside. This can cause deadly carbon monoxide to build up.
Maintenance and Reliability:
- Manual switches need less care, but you should test them to make sure they work.
- Automatic transfer switches need regular checks. Look for dust, loose wires, and software updates. If you skip checks, you could have outages or even fires.
- Many people like how reliable an automatic transfer switch is. It keeps power on without you doing anything. Some people like manual switches for their simple design and lower price.
“I like how easy the ATS is in my MPP Solar all in one. There are no breakers, relays, or wires. Everything is inside. It works perfectly. My computers, router, switches, NAS, and DirecTv never notice when it switches.”
Cost Comparison:
| Transfer Switch Type | Installation Cost Range (USD) |
|---|---|
| Manual | $400 – $1,300 |
| Automatic | $600 – $2,500 |
Other things like generator size, where you put the switch, and permit fees can change the price.
Troubleshooting:
- Manual switches almost never break, but you must use them the right way.
- Automatic transfer switches can have problems like loose wires, water, or control issues. Regular checks help stop these problems.
If you want a simple and cheap way and do not mind doing the work, a manual transfer switch is a good choice. If you want fast, hands-off, and steady power, an automatic transfer switch is best.
Choosing the Right Switch
Factors to Consider
It can be hard to pick the right transfer switch. But you can choose well if you think about some important things. Here are some things to keep in mind:
- Reliability: If you need power all the time, like in a hospital, you need a switch that works fast and by itself. An automatic transfer switch does this for you. For places that are not as important, a manual switch might be fine.
- Cost: Manual switches are cheaper because they have fewer parts. Automatic switches cost more, but they give you more features and make things easier.
- Maintenance: Manual switches are simple and do not break often. Automatic switches have sensors and control panels, so they need to be checked often.
- How Often You Lose Power: If you lose power a lot, you may want a switch that works on its own. An automatic transfer switch can change power in less than a second, so you do not have to worry about being in the dark.
- Type of Generator: Permanent standby generators work best with automatic switches. Portable generators usually use manual switches.
- Safety and Codes: Always check your local rules and codes. Your switch should have the right safety labels, like UL 1008. Make sure a licensed electrician puts it in.
- Where You Install It: If you need the switch outside, get one with a weatherproof box. If it is inside, a regular box is okay.
- Power Needs: Think about how much power you need when the power goes out. Do you want to run your whole house or just a few things? This helps you pick the right size switch.
- Connection Options: Some switches use direct wires. Others use cam-style connectors for quick and safe hookups.
- Interlock Features: Look for safety features like key systems or double-throw levers. These stop both power sources from connecting at the same time.
💡 Tip: Never use your generator for more than it can handle. Always follow the watt limits for your circuits. Put in carbon monoxide detectors if you use a generator.
Now you understand how manual and automatic transfer switches are different. Manual switches need you to do something when the power goes out. Automatic switches do the work for you. Picking the right switch helps keep your backup power safe. It also makes sure your power is steady. Always choose a switch that fits your needs and follows safety rules.
- Think about how many times you lose power
- Decide which appliances you want to use
- Ask a licensed electrician before you put in a switch
The right switch helps you feel calm when the power stops.
Choosing ONESTOP Switch: With over 20 years of manufacturing experience, international certification assurance, and excellent quality, we help you comprehensively improve circuit safety protection.
FAQ
What does a transfer switch do?
A transfer switch lets you safely change your power source from the main grid to a generator. You use it to keep your home or business running during a power outage.
What happens if you do not use a transfer switch?
If you skip the transfer switch, you risk back-feeding electricity. This can hurt utility workers and damage your appliances. You also might break local electrical codes.
What size transfer switch do you need?
You pick a transfer switch based on your generator’s size and what you want to power. Check your generator’s wattage. Always ask an electrician if you feel unsure.
What is the main difference between manual and automatic transfer switches?
A manual switch needs you to flip it during an outage. An automatic switch senses power loss and changes over by itself. You get backup power faster with an automatic switch.
