The specification of circuit breakers indicates the maximum current and voltage they can safely manage. This information is crucial for protecting your home or business from electrical issues. By selecting the appropriate circuit breaker, you can prevent overloads and ensure the safety of your electrical system.
- Circuit breakers serve as the primary line of defense against faults and overloads, maintaining a stable power supply.
- Conducting regular tests, such as assessing contact resistance and insulation resistance, is essential to prevent outages and reduce fire hazards.
- Adhering to good specifications and proper maintenance ensures your equipment operates efficiently and minimizes safety risks.
Key Takeaways
- Circuit breakers keep your electrical system safe by stopping too much current. Pick the right type to stop overloads and keep everyone safe.
- It is important to test circuit breakers often. Check contact resistance and insulation resistance to stop power loss and fire risks.
- Know the details of circuit breakers, like current and voltage ratings. Make sure these match your system for best results.
- There are different circuit breakers for different jobs. Use GFCI in wet places. Use AFCI to help stop fires in living areas.
- Always follow safety rules when you put in or fix circuit breakers. Turn off the power and use a voltage tester to stay safe.
Circuit Breaker Basics
Definition & Function
A circuit breaker helps protect your electrical system. It acts like a safety switch. If too much current flows, it stops the electricity. Most circuit breakers can be reset after they trip. This makes them easy to use and dependable every day.
A circuit breaker has different parts. Each part does something important to keep things safe. The table below lists the main parts and what they do:
| Component | Function |
|---|---|
| Frame | Keeps the inside parts safe from outside things. |
| Operating mechanism | Lets you open or close the circuit breaker. |
| Contacts | Allows electricity to move when the breaker is closed. |
| Arc extinguisher | Puts out the arc when the breaker stops a fault. |
| Trip unit | Opens the breaker if there is too much current for too long. |
Every part helps the breaker work safely. The specification of circuit breaker shows how much current and voltage the parts can handle.
Key Roles: Protection, Switching, Monitoring
A circuit breaker does more than just stop electricity. It has three main jobs you depend on:
- Protection: The breaker stops current if it gets too high. It does this in two ways:
- Thermal trip: A strip heats up and bends to trip the breaker.
- Magnetic trip: An electromagnet pushes the switch during a short circuit.
- Switching: You can use a circuit breaker as a switch. It turns off power fast when needed.
- Monitoring: The breaker helps you watch your system’s health. It trips to show when something is wrong.
These jobs make circuit breakers important for homes, businesses, and factories. Always check the specification of circuit breaker to make sure it fits your needs.
Specification of Circuit Breaker
When you pick a circuit breaker, you need to check some important things. These things help you choose the right breaker for your system. The specification of circuit breaker has details like current rating, voltage rating, interrupting capacity, trip characteristics, and extra features. Knowing these helps you stop overloads, short circuits, and other dangers.
Current Rating
The current rating shows the most current the breaker can take before it trips. Some breakers are for small home circuits, like 15 amps. Big factories use breakers with much higher ratings. This number is very important for safety. If the current rating is too low, the breaker will trip a lot. If it is too high, it might not protect your wires or devices.
Tip: Always match the current rating to your wire size and load.
There are two main types of current ratings:
- 80%-Rated Breaker: Can only handle up to 80% of its rating. You must figure out 125% of the load for safety.
- 100%-Rated Breaker: Can handle all of its rated load. These cost more but work better for big or steady loads.
| Aspect | 80%-Rated Breaker | 100%-Rated Breaker |
|---|---|---|
| Maximum Capacity | Handles 80% of the rated load | Handles 100% of the rated load |
| Continuous Load Calculation | Needs 125% of the load for safety | No extra capacity needed for load |
| Cost Implication | Cheaper, may need a bigger size | Costs more, may save money later |
The current rating is a big part of the specification of circuit breaker. It helps stop wires from getting too hot and causing fires.
Voltage Rating
The voltage rating tells you the highest voltage the breaker can safely stop. Always use a breaker with a voltage rating as high or higher than your system. Most homes use low voltage, up to 500V. Factories may need medium or high voltage breakers.
| Voltage Category | Voltage Range |
|---|---|
| Low Voltage | Up to 500V |
| Medium Voltage | 1kV – 70kV |
| High Voltage | Above 70kV |
When you pick a breaker, check if it is for AC or DC and what it will protect. The voltage rating is a key part of the specification of circuit breaker. It makes sure the breaker can stop dangerous currents at the right voltage.
| Criteria | Description |
|---|---|
| Electrical characteristics | The breaker must match the AC or DC voltage of your system. |
| Short-circuit current | The breaker’s interrupting capacity must meet or beat the possible fault. |
| Load characteristics | Think about what the breaker will protect, like motors or lights. |
Interrupting Capacity
Interrupting capacity means the biggest short-circuit current the breaker can stop safely. If something goes wrong, the breaker must open the circuit without breaking. Makers test each breaker at the factory. You should check it again when you get it to make sure it meets the specification of circuit breaker.
Here is how to check the interrupting capacity:
- Figure out the biggest short-circuit current at the breaker’s spot.
- Use software or a study to find the highest fault current.
- Pick a breaker with interrupting capacity above that number.
- Make sure the breaker can clear faults without breaking.
Note: Makers follow strict rules like UL and NFPA to test interrupting capacity. This keeps your system safe and working well.
Trip Characteristics
Trip characteristics tell you how and when the breaker will trip if there is too much current. There are different curves and settings for different needs.
- Long Time Overload (L): Trips after a delay if the current is just a bit high. This stops overheating.
- Short Time Short Circuit (S): Waits a short time before tripping during a surge. This lets smaller breakers trip first.
- Instantaneous Short Circuit (I): Trips right away if the current is very high.
| Trip Characteristic | Description | Function |
|---|---|---|
| Long Time Overload (L) | Delayed trip for moderate overloads (1.05–5x rated current) | Stops overheating, avoids trips that are not needed |
| Short Time Short Circuit(S) | Brief delay for surges (5–10x rated current) | Lets smaller breakers trip first |
| Instantaneous Short Circuit | Immediate trip for very high current (10–20x rated current) | Stops dangerous faults right away |
You will also see different trip curves:
- A curve: For sensitive electronics.
- B curve: For home appliances.
- C curve: For lights and general use.
- D curve: For motors and things with high starting current.
- K curve: For motor lines with high resistance to starting current.
Picking the right trip characteristic helps protect your equipment and stops power cuts you do not need.
Additional Features
Modern circuit breakers have extra features for safety and ease. Some breakers have smart tech that sends alerts to your phone or email if there is a problem. Remote monitoring lets you check your system from anywhere. You can see trends and get early warnings about possible problems.
- Smart breakers send alerts fast so you can act quickly.
- Remote monitoring helps managers keep systems safe, even when away.
- Looking at old data and trends helps you find problems early.
- Smart fault checks and health scores give warnings and help plan fixes.
Smart features in the specification of circuit breaker make your system safer and easier to use.
Breaker Types & Specs
Miniature Circuit Breaker (MCB)
Miniature circuit breakers are common in homes and small offices. MCBs stop circuits from getting too much current or short circuits. They have a low current rating, usually up to 100 amps. You can reset them easily after they trip. MCBs are good for lights and small appliances. Their simple design makes them work well every day.
Molded Case Circuit Breaker (MCCB)
MCCBs can handle more current than MCBs. People use them in big buildings and factories. MCCBs let you change the trip settings to fit your needs. They protect big motors and heavy machines. MCCBs have a wide range of current ratings, from 100 to 2,500 amps. You pick MCCBs when you need strong and flexible protection.
Residual Current Circuit Breaker (RCCB)
RCCBs help keep people safe from shocks and fires. You use them in places where safety is very important.
- RCCBs stop electric shocks from bad wires or touching live wires.
- They find earth faults and cut power before leaks cause fires.
RCBOs give overload, short circuit, and residual current protection. You can use them in homes, offices, and factories for extra safety.
Air Circuit Breaker (ACB)
Air circuit breakers are used in high-voltage systems. You find them in big buildings and factories. The specification of circuit breaker for ACBs has special needs:
| Specification Requirement | Description |
|---|---|
| Short-Time Current Duration | Maximum time to carry rated short-circuit current, usually 1–3 seconds for high-voltage breakers |
| Ratings for Capacitive Current Switching | Handles switching of no-load lines and capacitor banks, as defined by IEEE standards |
| Rated Out-of-Phase Switching Current | Manages out-of-phase conditions, typically 25% of symmetrical short-circuit current |
ACBs give strong protection for complex electrical systems.
Vacuum Circuit Breaker
Vacuum circuit breakers use vacuum interrupters to stop faults. You see them in medium and high-voltage systems.
- Vacuum interrupters wear out less, so VCBs last longer than air circuit breakers.
- VCBs need little care because they are sealed and have no gas.
- You can use VCBs many times before they need fixing.
- VCBs can stop higher voltages safely, so they are good for tough jobs.
Double-Pole Circuit Breaker
Double-pole circuit breakers protect big appliances and public places. They make things safer and help manage loads.
| Feature | Benefit |
|---|---|
| Safety Enhancement | Both circuits trip together, reducing risk of ongoing hazards |
| Load Management | Suitable for large appliances and wider public area protection |
You use double-pole breakers for things like water heaters, dryers, and air conditioners.
Comparison Table: Specs & Applications
You can look at different circuit breaker types by their specs and uses.
| Type of Circuit Breaker | Specifications | Applications |
|---|---|---|
| AC Circuit Breaker | Made for AC; uses zero crossings to stop arcs | Homes, offices, commercial spaces |
| DC Circuit Breaker | Made for DC; needs extra ways to stop arcs | Solar panels, electric vehicles |
| Oil Circuit Breaker (OCB) | Uses oil as insulation; bulk or minimum oil types | High-voltage substations |
| Ground Fault Circuit Interrupter | Finds current imbalance; shuts off power fast | Kitchens, bathrooms, wet areas |
| Arc Fault Circuit Interrupter | Finds arc faults; helps stop fires | Residential wiring |
| Common Trip Circuit Breaker | Stops many circuits at once | Three-phase systems |
Usage Scenarios
Residential
Circuit breakers keep your home safe every day. They stop electrical fires and shocks. Most homes use single-pole breakers for lights and outlets. Double-pole breakers are for big appliances like dryers and water heaters. Building codes say you need special breakers in some rooms. GFCI breakers protect bathrooms and kitchens from water. AFCI breakers help keep living rooms and bedrooms safe from arc faults.
Here is a table with common circuit breaker specs for homes:
| Circuit Breaker Type | Voltage | Amperage Rating | Application |
|---|---|---|---|
| Single-pole | 120V | 15 to 20 amps | General use |
| Double-pole | 240V | 15 to 200 amps | High demand appliances |
| GFCI | N/A | N/A | Moisture-prone areas |
| AFCI | N/A | N/A | Living areas, bedrooms |
You must follow electrical codes for safety. These codes say to use circuit breakers and fuses. They stop too much current and short circuits. GFCI breakers are needed in wet rooms. AFCI breakers are now needed in many living spaces.
When picking a breaker for your home, think about these things:
| Factor | Description |
|---|---|
| Voltage Rating | Make sure the breaker matches or is higher than the voltage. |
| Frequency | Use breakers for 50 to 60 Hertz to keep power steady. |
| Setup | Put breakers away from heat, sunlight, and water for best results. |
Commercial
You find circuit breakers in offices, stores, and schools. Commercial buildings have lots of circuits for lights, computers, and HVAC. You need to manage loads for different tenants and equipment. Good labels help you fix problems quickly. You must follow the National Electrical Code for safety.
Here is a table comparing commercial and industrial needs:
| Aspect | Commercial Facilities | Industrial Facilities |
|---|---|---|
| Load Management | Manage loads for tenants | Use strict safety and labeling |
| Circuit Identification | Label circuits for easy maintenance | Label circuits for quick identification |
| Compliance with Codes | Follow general NEC rules | Meet specific NEC articles for industry |
| GFCI/AFCI Requirements | Standard safety requirements | Expanded GFCI protection in key areas |
| Maintenance Practices | Review schematics and inspect regularly | Match real-world setups to schematics |
Commercial buildings need breakers with adjustable trip settings. Pick breakers with the right interrupting capacity for faults. Breakers must work in places with heat, humidity, or chemicals.
| Specification | Importance in Commercial Usage |
|---|---|
| Interrupting Capacity | Must match or be higher than fault current for safety. |
| Current Rating | Handles the biggest load without tripping. |
| Environmental Resistance | Protects against heat, humidity, and chemicals. |
| Tripping Current Level Adjustment | Lets you set protection for overloads and short circuits. |
| Frequency | Must match the building’s electrical system. |
Industrial
Factories and plants use circuit breakers for big machines and high voltages. You need strong breakers with high interrupting capacity. Industrial places have strict safety rules and clear labels. Use breakers that meet special NEC rules for industry.
Industrial breakers often have insulated case or power circuit breakers. These breakers can be adjusted for protection. You use them in large plants and switchgear setups. Maintenance is very important. Check that the real setup matches the plans.
Selection Guidance
You must match the specification of circuit breaker to your needs. Here is a table to help you pick the right type:
| Type | Description | Use Case |
|---|---|---|
| Miniature Circuit Breakers | Small, not adjustable; protect against overloads | Homes, schools, healthcare panel boards |
| Molded Case Circuit Breakers | Adjustable; for commercial or light industrial use | Offices, panel boards, motor control centers |
| Insulated Case Circuit Breakers | Many adjustments; for bigger jobs | Hospitals, large factories |
| Power Circuit Breakers | For low/medium voltage switchgear; need care | Switchgear in industrial plants |
Check the voltage rating, current rating, and interrupting capacity. Always think about the environment. Do not put breakers in hot, wet, or sunny places. Use the right breaker for each load and spot.
Safety Tips

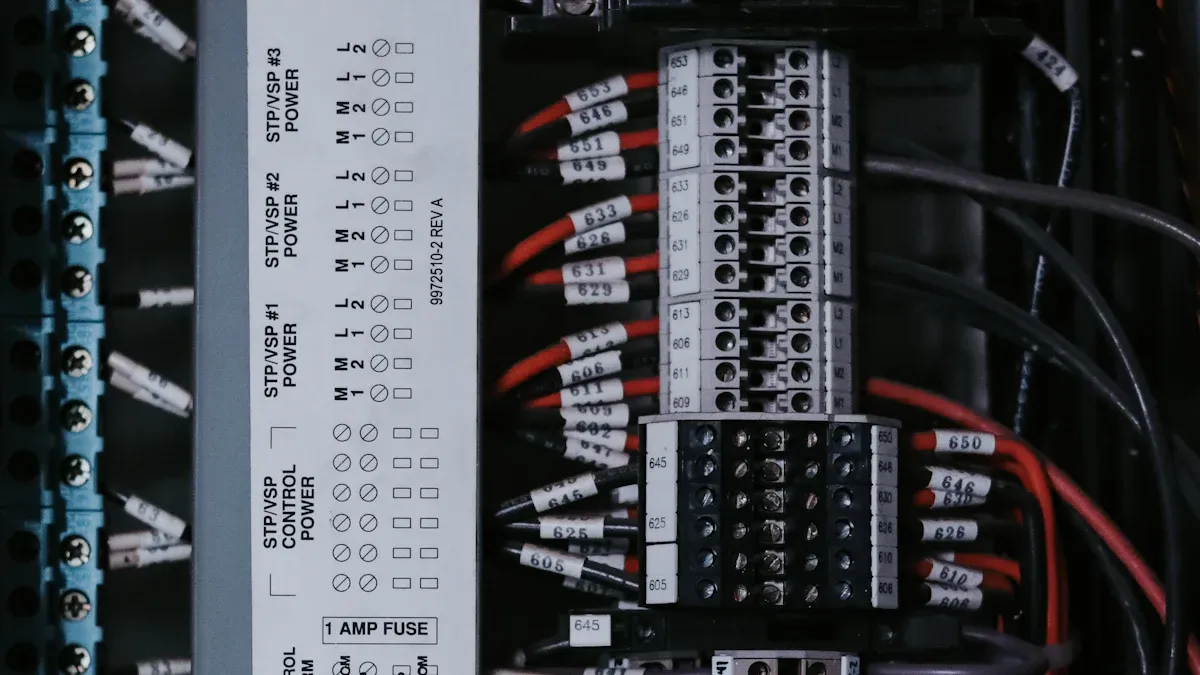

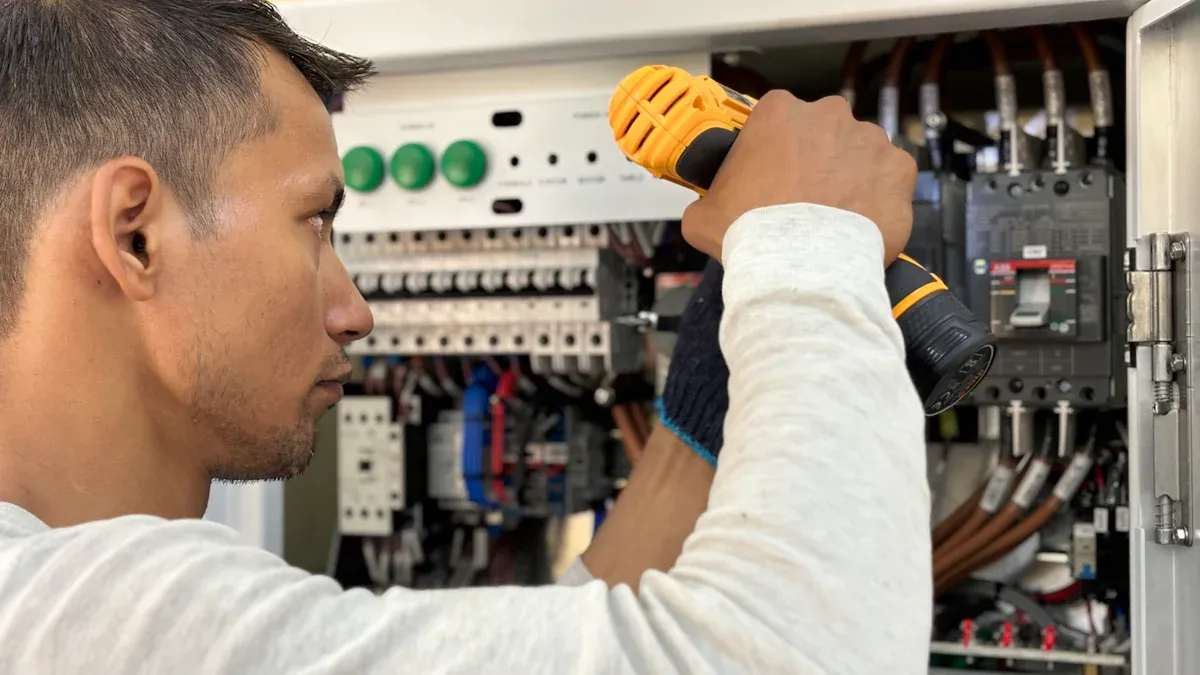

⚡ Always turn off the power and use a voltage tester before you install or work on a circuit breaker.
Follow these safety tips to keep your system safe:
- Read and follow the manufacturer’s instructions.
- Pick the right breaker size for your electrical load.
- Make sure all wire connections are tight and safe.
- Use good insulation for wires to stop shocks.
- Check and test the breaker after installing to make sure it is safe.
You keep your home, business, or factory safe when you do these things. Good installation and care stop fires and keep people safe.
Knowing circuit breaker specifications helps you avoid electrical dangers and keep things safe. Picking the right breaker for each job protects your home or work from too much current, shocks, and fires.
- GFCI breakers help stop shocks in places with water.
- AFCI breakers help prevent fires by finding arc faults.
- Choosing the right breaker keeps important equipment working during problems.
If your setup is tricky, always follow national rules and ask an electrician for help. Using the right circuit breaker makes your system safer, more reliable, and better for a long time.
FAQ
What happens if you use a circuit breaker with the wrong current rating?
If you use a breaker with a low rating, it trips often. If you use one with a high rating, it may not protect your wires. Always match the breaker to your load.
How do you know when to replace a circuit breaker?
You should replace a breaker if it trips for no reason, feels hot, or shows signs of damage. Listen for buzzing sounds. If you see burn marks, replace it right away.
Can you reset a tripped circuit breaker yourself?
Yes, you can reset most breakers. First, turn off the breaker fully. Then, switch it back on. If it trips again, check for problems or call an electrician.
Why do some rooms need special breakers like GFCI or AFCI?
GFCI breakers protect you from shocks in wet areas. AFCI breakers help stop fires in bedrooms and living rooms. Building codes require these for extra safety.
Do circuit breakers need regular maintenance?
You should check breakers for dust, loose wires, or signs of wear. Test them once a year. Clean the panel and keep it dry. Regular care helps prevent problems.
