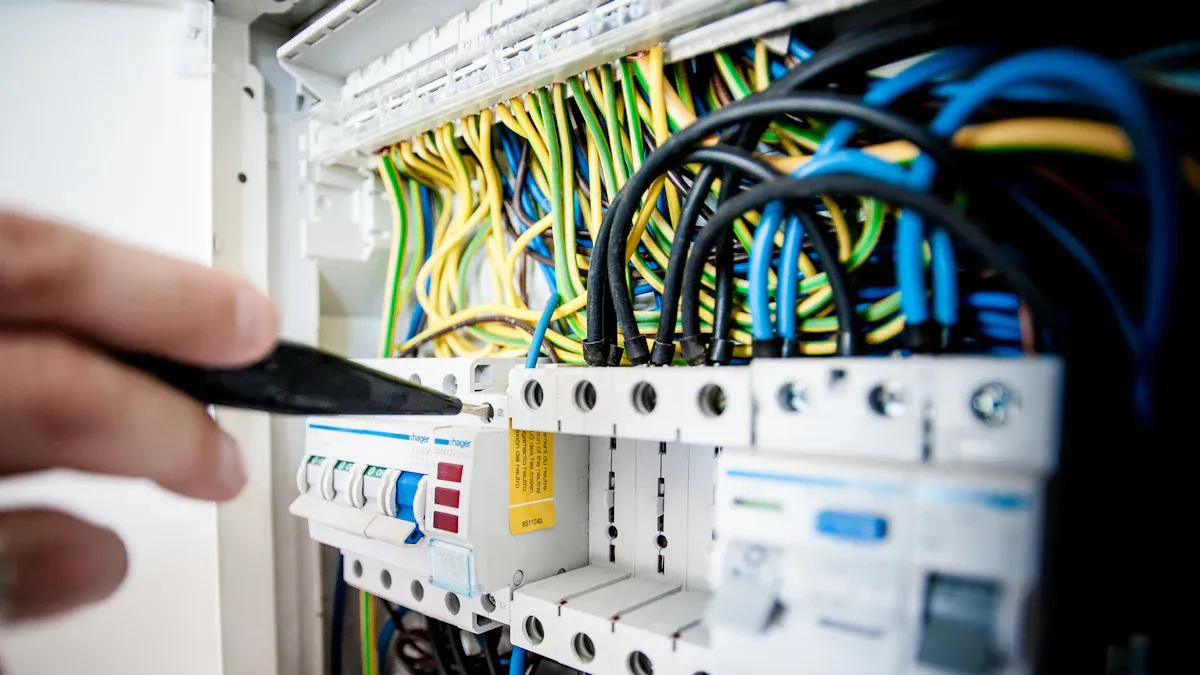

Choosing the right size and setup for your distribution box keeps your electrical system safe and working well. You lower the chance of circuits getting too hot or overloaded when you pick the right box for your needs.
- You leave space for safety devices like circuit breakers and surge protectors.
- You get ready for any future changes or growth in your building.
- You follow important rules from groups like the NEC and IEC, which helps stop electrical dangers.
Key Takeaways
- Pick the right size distribution box to keep things safe. This stops too much power and keeps wires from getting too hot. It also lets you add more stuff later if needed.
- Use electrical diagrams to see where circuits go. Diagrams are like maps for your wires. They help you plan what breakers you need.
- Choose the correct circuit breaker for each load. Make sure the breaker matches what it protects. This stops fires and helps everything work right.
- Follow electrical codes like NEC for safety. These rules keep you safe from electrical problems. Always use them when working with electricity.
- Think about what you might need in the future. Leave room for more breakers in your box. Plan ahead so you can upgrade later if you want.
Load Calculation
Identify Circuits
First, you need to know which circuits are in your building. Each circuit gives power to a certain area or equipment. Electrical distribution diagrams can help you see how things are connected. These diagrams show where each circuit breaker, switch, and wire is placed.
- Diagrams act like a map for your electrical system.
- Electricians and repair teams use these diagrams to fix problems.
- Diagrams help you follow safety rules and keep things neat.
When you know all the circuits, you can decide how many breakers you need. This makes your system safer and easier to handle.
Estimate Total Load
You must figure out the total electrical load before picking circuit breakers. This stops overloads and keeps everything safe. There are different ways to do this:
- Put your electrical loads into resistive, inductive, and capacitive groups.
- Use diversity factors because not all equipment runs at once.
- Do load studies to get real numbers on electricity use.
After you add up the loads, you need to use safety margins. The table below shows how to figure out these margins for each load type:
| Load Type | Calculation Method | Safety Margin |
|---|---|---|
| Continuous Load | 125% of the continuous load | 25% increase |
| Non-Continuous Load | 100% of the non-continuous load | No increase |
| Total Load | Sum of both calculations | N/A |
Tip: Always leave some extra space in your distribution box. This helps if you want to add more later and keeps your system easy to change.
Breaker Selection
Breaker Types
You must pick the right circuit breaker for each circuit. Each breaker type has a special use and fits certain needs. The table below lists the main types and where they work best:
| Circuit Breaker Type | Typical Applications |
|---|---|
| Molded-Case Circuit Breakers (MCCBs) | Used in homes, factories, and stores; protects systems with 15A to 1000A. |
| Insulated-Case Circuit Breakers | Good for low-voltage power in factories; frames range from 800A to 5000A. |
| Air Circuit Breakers (ACBs) | Used in factories; protects systems between 800A and 10K A. |
| Air-Blast Circuit Breakers (ABCBs) | Used in high-voltage systems (345kV-550kV); now replaced by better options. |
| Gas Circuit Breakers | Often used instead of air-blast and oil breakers; works from 15kV to 65kV. |
| Vacuum Circuit Breakers (VCBs) | Works well in medium and high-voltage systems; handles up to 15kV. |
| Oil Circuit Breakers (OCBs) | Used before in high-voltage places; now replaced by greener choices. |
| Miniature Circuit Breakers (MCBs) | Common in homes and offices; breaking capacity of 10KA to 16KA. |
| Ground Fault Circuit Interrupters (GFCIs) | Used in wet places to stop shocks; cuts power if it finds a shock. |
You see MCBs most in homes and offices. They protect against too much current and short circuits. RCDs and GFCIs help stop electric shocks. RCDs check if current is balanced between wires and trip if there is a leak. GFCIs work best in bathrooms, kitchens, and outside where water is found.
Note: RCDs protect from shocks even if the earth wire is broken. MCBs do not stop earth faults, so you need both for full safety.
Modern distribution boxes often use MCBs, RCDs, and GFCIs together. This setup makes things safer and easier to use. Some new breakers have digital screens. You can see power use and problems right away. Smart breakers let you control loads from far away and warn you about trouble early.
Sizing to Load
You must match each breaker size to the load it protects. If a breaker is too big, it may not trip when needed. This can cause wires to get too hot and start fires. If a breaker is too small, it will trip a lot and stop your equipment.
- Breakers that are too big may not trip and can cause fires.
- Breakers that are too small trip often and stop power.
You need to follow rules and use formulas to pick the right size. The table below shows some important rules and formulas:
| Standard/Formula | Description |
|---|---|
| IEC 60364, 60898-1, 60947-2 | International rules for electrical setups and equipment. |
| NEC 210.19 | Use only 80% of the rated current for loads that run all the time. |
| Power Formula | P = V × I × √3 for three-phase circuits. |
| Current Calculation | I = P / (V × √3) to find current from power and voltage. |
Start by finding the total load for each circuit. Use the power formula for three-phase systems. For single-phase, use P = V × I. After you know the load, pick a breaker just above your current. Always use the 80% rule for loads that run all the time. This keeps your box safe and ready for changes.
Tip: New smart breakers can watch loads and change settings by themselves. They help stop overloads and keep your system working well.
Modern boxes have more cool features. Some let you watch from far away and switch things automatically. These features protect against surges and overloads. You can also find boxes that make it easy to add new circuits or upgrade safety.
Distribution Box Setup
Arrangement
You must set up breakers for safety and easy use. The panel size tells you how much power it can handle. Look at this table to see panel sizes and their load limits:
| Panel Size (Amps) | Maximum Load Capacity |
|---|---|
| 60 | Low |
| 100 | Moderate |
| 125 | Moderate |
| 150 | Moderate |
| 200 | High |
| 220 | High |
| 300 | Very High |
| 400 | Very High |
Put two-pole breakers close to the main lugs at the top. This helps with phasing and keeps big wires short. Place the bigger breakers at the top of the panel. This makes it easier to install and keeps things tidy. Add AFCI and GFCI breakers after the big ones. This helps you keep wire lengths under control. Always connect wires on the side where they come into the panel. Start with ground wires at the top of the ground bus and move down. Keep wire bundles loose so you can reach the bus easily.
You can use single pole, double pole, or tandem breakers. Single pole breakers protect normal circuits. Double pole breakers are for big appliances like ovens or dryers. Tandem breakers let you add more circuits without needing more space. This is good for older homes with small panels. Tandem breakers help you add more circuits for less money. You only need to put them where you want extra circuits. This leaves other spots open for things that use a lot of power.
Tip: A neat panel makes upgrades and repairs much easier later.
Expansion Options
You might need more power as time goes on. There are ways to make your distribution box bigger. Tandem breakers save space and money. You can add circuits when your panel is almost full. If you need even more, you might need a bigger panel or a sub-panel. Sub-panels are good for garages, workshops, or new rooms. They help spread out the power and keep wires neat.
Here are some ways to expand:
- Tandem breakers for fast and cheap circuit adds.
- Sub-panels for big spaces or heavy machines.
- Bigger main panels for big changes or new appliances.
How many circuits you need depends on your building and power use. This table shows how many circuits different homes might need:
| Building Type | Number of Circuits |
|---|---|
| Ordinary Single Apartment | 5-6 |
| Small Apartment | 7-8 |
| Large Apartment | ~10 |
| Villa | More than 10 |
In business buildings, panels often have 200 amps or more. These panels run lots of circuits for lights, HVAC, and machines. For homes, a 100-amp or 200-amp panel is usually enough. If you want to add electric cars, hot tubs, or new rooms, you may need a bigger panel.
Upgrading your box costs money. Here is a table with common prices:
| Amperage | Cost Range | Additional Notes |
|---|---|---|
| 100-amp | $1,200 – $1,800 | Good for small homes with simple needs. |
| 200-amp | $1,800 – $4,500 | Price changes with panel type and wiring. |
| 400-amp | $8,000 – $12,000 | Harder to install and needs more wires. |
| Meter Box | $200 – $800 | Might need a new one if the old one is bad. |
| Permits | $50 – $300 | Needed for checks and to follow the rules. |
| Panel Relocation | $800 – $4,000 | Needed if you move the panel, which changes wiring and circuits. |
Note: Always think about the future when setting up your box. Leave room for more breakers and plan for upgrades.
Safety and Compliance
Code Standards
You must follow strict electrical codes when setting up your system. These codes keep you safe and help prevent fires or shocks. The National Electrical Code (NEC) gives clear rules for sizing and configuring circuit breakers. Here is a table with some important NEC sections:
| NEC Section | Requirement |
|---|---|
| NEC 408 | Electrical panel must have enough ampere rating for the total load. |
| NEC 408 | Circuit breakers must match the circuits they protect. |
| NEC 408 | Overcurrent protection must fit the load and the wire size. |
| NEC 408.36 | No over-current protection needed on the line side for service equipment with multiple devices. |
| NEC 230.79(C) | Main service for a one-family home must be at least 100A, 120V, 3-wires. |
You should also remember the 80% rule for panelboards:
- The 80% rule comes from sizing wires at 125% of the continuous load.
- For example, if you have a 200A continuous load, you must size wires for 250A. This means the breaker should not carry more than 80% of its rating for long periods.
- Breakers work best and stay safe when you do not exceed this limit.
Common mistakes during inspections include:
- Mislabeled breakers
- Overloaded circuits
- Wrong wire sizes for breakers
- Missing GFCIs
- Open or missing junction boxes
Tip: Always label each breaker and check that wire sizes match the breaker ratings.
Professional Advice
You should always ask a licensed electrician or engineer for help with your setup. Experts know how to design a system that fits your needs and keeps you safe. They make sure your distribution box meets all codes and works well for your home or business.
Benefits of working with professionals:
- They design custom solutions for your needs.
- They help you avoid costly mistakes and safety risks.
- They make sure your system follows all safety standards.
- They check that your setup will work well as your needs grow.
To future-proof your system, follow these tips:
- Use a licensed electrician for all installations.
- Keep the box easy to reach and well-ventilated.
- Plan for future appliances and upgrades.
- Choose a box that lets you add more circuits later.
Regular maintenance keeps your system safe:
- Inspect the box and breakers for damage.
- Clean out dust and debris.
- Test breakers to make sure they trip when needed.
- Replace any broken parts right away.
- Ask a professional to check your system every few years.
Note: A well-maintained and code-compliant system protects your property and helps you avoid insurance problems.
You can keep your electrical system safe by doing a few things. First, plan your circuits and figure out the load. Next, pick the right size and type of breaker. Then, add surge protection and keep your wiring tidy. Always check breaker brands and specs before you install them. Safety and future needs are important. Use this checklist to help you:
| Practice | Details |
|---|---|
| Secure Connections | Use insulated tools and make sure outlets fit right. |
| Circuit Balance | Spread out the load so nothing gets too full. |
| Regular Inspections | Look at cables and connections for damage or wear. |
| Proper Orientation | Stand the unit up straight so it works its best. |
FAQ
What size distribution box do you need for a house?
You need to check your total electrical load. Most homes use a 100-amp or 200-amp panel. If you plan to add big appliances, choose a larger box for future needs.
How do you know which circuit breaker to use?
You match the breaker to the wire size and the load it protects. Use the 80% rule for continuous loads. Always check the label on the breaker and wire.
Tip: Ask an electrician if you feel unsure about sizing.
Can you add more breakers later?
Yes, you can add more breakers if your box has space. Use tandem breakers for quick upgrades. If your box is full, install a sub-panel for extra circuits.
Why do you need GFCI or AFCI breakers?
GFCI breakers protect you from electric shocks in wet areas. AFCI breakers stop fires from faulty wiring. You should use them in kitchens, bathrooms, and bedrooms for safety.
