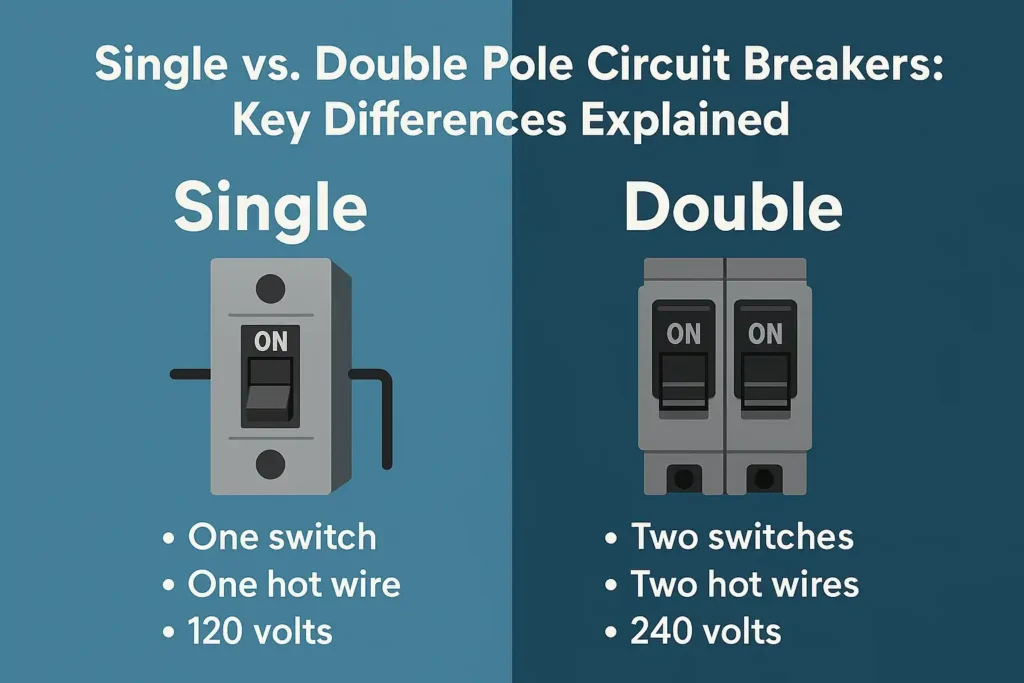

Single vs. Double Pole Circuit Breakers: Key Differences Explained

You need to know the main difference between a single pole circuit breaker and double pole circuit breaker. A single pole breaker controls one wire and handles lower voltage, while a double pole breaker controls two wires and handles higher voltage. > Choosing the right breaker protects your home from electrical hazards. You keep your appliances safe and avoid overloads when you match the correct breaker to each circuit. Understanding this difference helps you make smart and safe choices for your electrical system.

Key Takeaways

• Single pole breakers control one wire and supply 120 volts, ideal for lights and small appliances.
• Double pole breakers control two wires and supply 240 volts, perfect for large appliances like dryers and ovens.
• Always match the breaker’s amperage to the wire size and the device’s power needs to prevent overloads.
• Use proper wiring color codes: black or red for hot wires, white for neutral, and green or bare for ground.
• Double pole breakers have a common trip feature that shuts off both wires together for added safety.
• Choose breakers compatible with your electrical panel brand to ensure safe and reliable operation.
• Call a licensed electrician if breakers trip often, show damage, or if you feel unsure about installation.
• Regularly inspect and maintain breakers to spot problems early and keep your home safe.

Single Pole Breaker

Definition

A single pole circuit breaker is a device that protects one electrical circuit in your home. You use it to control and protect a single “hot” wire. When too much current flows through the circuit, the breaker trips and stops the flow of electricity. This action prevents overheating and reduces the risk of fire. You find single pole breakers in most homes because they handle everyday electrical needs. The breaker fits into your electrical panel and has a small switch you can flip on or off. You can reset it easily if it trips. The design is simple, with one switch and one connection point for the hot wire.

Voltage & Amperage

Single pole breakers usually work with standard household voltage. In the United States, you see these breakers rated for 120 volts. The amperage rating tells you how much current the breaker can handle before it trips. Most single pole breakers in homes have ratings like 15 amps or 20 amps. You can find the amperage printed on the handle or faceplate of the breaker. This number is important because it matches the wire size and the devices you plug into the circuit. If you want to check the actual current, you can use a clamp meter. You clamp it around the wire to see how much current flows through the breaker. This helps you make sure the circuit is not overloaded.

Here is a table showing typical ratings for single pole breakers:

Tip: Always match the breaker’s amperage to the wire size and the devices you plan to use. This keeps your circuit safe and prevents tripping.

Wiring

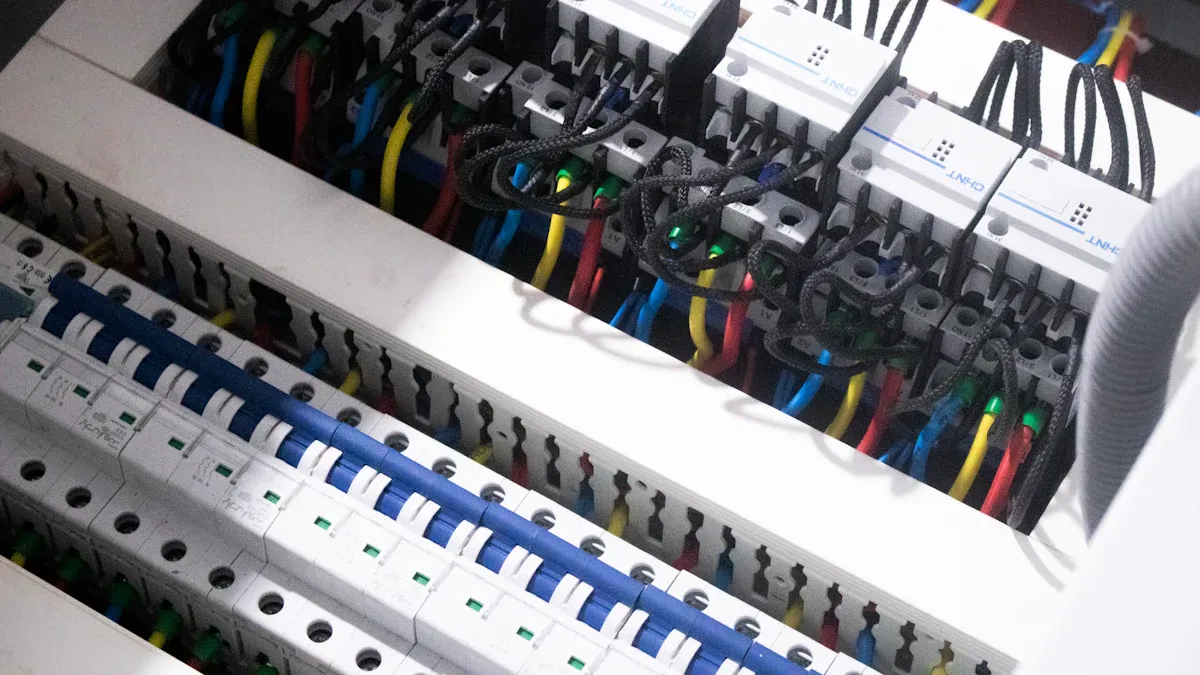

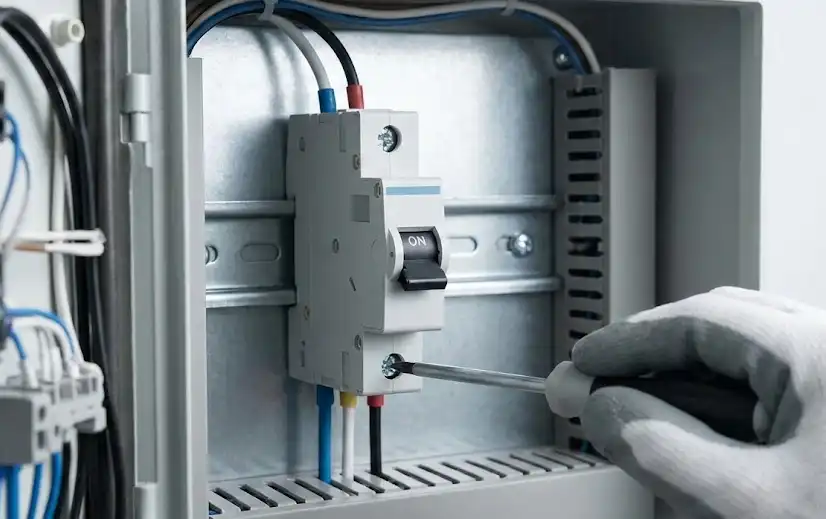

You wire a single pole breaker with one hot wire and one neutral wire. The hot wire connects to the breaker, and the neutral wire connects to the neutral bar in the panel. You also need a ground wire for safety. The National Electrical Code (NEC) recommends using at least 12 AWG wire for a 20-amp breaker. This wire size handles the current safely and allows for future load increases. You should limit the number of outlets or lights on each circuit to avoid overloading. The NEC suggests using individual branch circuits for sensitive or high-capacity appliances. This practice helps prevent interference and voltage drops. You must also follow color coding for wires—usually black or red for hot, white for neutral, and green or bare for ground. Proper labeling of each circuit in the panel helps you identify and maintain your electrical system.

• Use at least 12 AWG wire for 20-amp circuits.
• Limit the number of outlets per circuit.
• Provide separate circuits for sensitive appliances.
• Follow color coding for all wires.
• Label each circuit clearly in the panel.

By following these wiring practices, you keep your home safe and your electrical system reliable.

Common Uses

You find single pole circuit breakers in almost every home. These breakers protect many of the circuits you use every day. You rely on them for basic electrical needs. When you flip a light switch or plug in a phone charger, you use a circuit protected by a single pole breaker.

Single pole breakers work best for circuits that do not need a lot of power. You see them in places where you use small appliances or devices. Here are some of the most common uses:

• Lighting Circuits: You use single pole breakers to protect the wiring for ceiling lights, wall sconces, and lamps. Most rooms in your house have lighting circuits on single pole breakers.
• Standard Electrical Outlets: You plug in TVs, computers, and phone chargers into outlets protected by these breakers. Bedrooms, living rooms, and home offices often use single pole breakers for outlets.
• Small Kitchen Appliances: You use toasters, blenders, and coffee makers on circuits with single pole breakers. These appliances do not draw much power, so a single pole breaker works well.
• Bathroom Outlets: You find single pole breakers protecting outlets in bathrooms. These outlets often have ground fault circuit interrupters (GFCIs) for extra safety.
• Garage and Basement Outlets: You use single pole breakers for outlets in garages and basements. These areas often need power for tools, lights, or small appliances.
• Outdoor Lighting and Outlets: You protect porch lights, garden lights, and outdoor outlets with single pole breakers. These circuits help you enjoy safe lighting outside your home.

Note: You should not use single pole breakers for large appliances. Devices like electric dryers, ovens, or central air conditioners need more power. These appliances require double pole breakers.

Here is a table that shows typical uses for single pole breakers:

You can see that single pole breakers handle most of the everyday electrical needs in your home. You keep your home safe and your devices working when you use the right breaker for each circuit. If you ever add new outlets or lights, you should check if your panel has space for more single pole breakers. Always match the breaker size to the wire and the devices you plan to use. This practice helps you avoid overloads and keeps your electrical system safe.

Double Pole Breaker

Definition

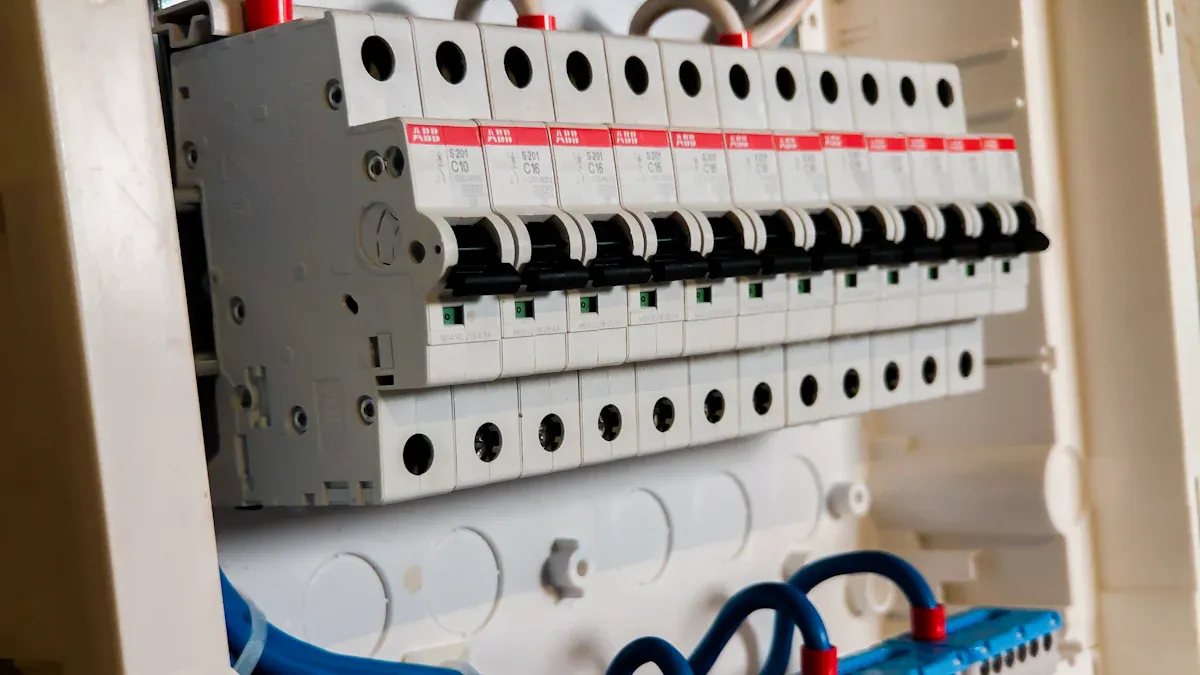

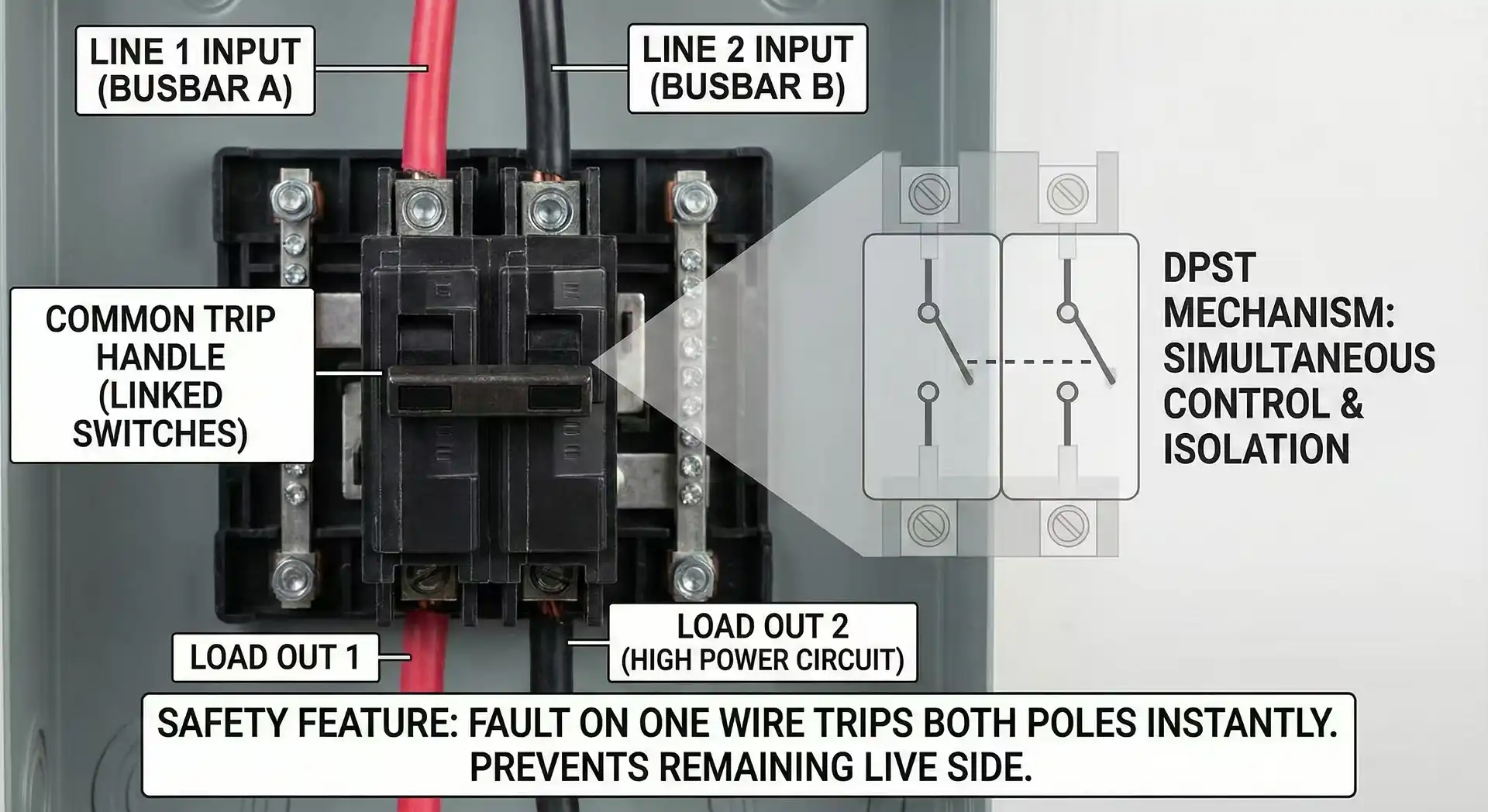

A double pole breaker protects two separate wires in your electrical system. You use it to control and disconnect both wires at the same time. This breaker has two switches that move together. When you flip the breaker, both switches turn off or on at once. This design is called a common trip feature. It keeps both wires safe and prevents one side from staying live if a problem happens.

You find double pole breakers in your panel. They take up two slots because they connect to two different bus bars. This setup lets you handle more power than a single pole breaker. The double pole breaker uses a DPST (Double-Pole Single-Throw) switch. This switch controls two circuits with one action. It has two channels, each with input and output terminals. Both channels open or close together. This design gives you complete isolation for both wires. You get better safety and easier control for high-power circuits.

Here is a table showing the main structural features:

Voltage & Amperage

You use double pole breakers for circuits that need more power. These breakers handle 240 volts, which is double the voltage of a single pole breaker. You see them rated for higher amperage, such as 30, 40, or 50 amps. This makes them perfect for large appliances like dryers, ovens, and water heaters.

The National Electrical Code (NEC) requires double pole breakers with a common trip for many 240V loads. This rule keeps both sides of the circuit safe. If one side trips, the other side turns off too. You avoid the danger of one wire staying live. Double pole breakers also protect against overloads and short circuits in high-demand appliances. You find these breakers in two slots of your panel, which lets them connect to both phases and deliver full 240V power.

• Double pole breakers are the standard for circuits above 30 amps.
• You use them for high-demand appliances that need more voltage and current.
• They provide overcurrent protection and keep your home safe.

Wiring

You wire a double pole breaker with two hot wires. Each wire connects to a separate terminal on the breaker. These wires come from two different bus bars in your panel. This setup gives you 240 volts across the circuit. You also need a ground wire for safety. Some circuits may use a neutral wire, depending on the appliance.

The National Electrical Code (NEC) sets rules for wiring double pole breakers. You must use the correct wire size for the breaker’s amperage. For example, a 30-amp breaker needs at least 10 AWG wire. You connect each hot wire to the breaker lugs and make sure the wires are tight. You test the circuit for shorts before turning on the power. This wiring method matches code requirements and keeps your installation safe and legal.

Tip: Always check your local codes and use the right wire size for your breaker. Proper wiring prevents overheating and keeps your appliances running safely.

Common Uses

You use double pole circuit breakers when you need to power large appliances or equipment in your home. These breakers handle more electricity than single pole breakers. You find them in places where you need 240 volts and higher amperage. Double pole breakers protect circuits that run heavy-duty machines. They keep your home safe by shutting off both wires if there is a problem.

Here are some of the most common uses for double pole breakers:

• Electric Dryers: You need a double pole breaker for most electric dryers. These machines use a lot of power to heat and spin your clothes. The breaker protects the circuit from overheating.
• Ovens and Ranges: Electric ovens and stoves require 240 volts to cook food evenly. You use a double pole breaker to supply enough power for these appliances.
• Water Heaters: Many electric water heaters need a double pole breaker. The breaker helps deliver the high current needed to heat water quickly.
• Air Conditioners and HVAC Systems: Central air conditioning units and heat pumps draw a lot of electricity. You use double pole breakers to keep these systems running safely.
• Electric Furnaces: If you have an electric furnace, you need a breaker that can handle high amperage. Double pole breakers provide the protection these systems need.

You can see how different brands and models of double pole breakers match specific home appliances. The table below shows some examples:

Tip: Always check the label on your appliance to find the correct breaker size. Using the right breaker keeps your equipment safe and prevents electrical fires.

You also use double pole breakers for some workshop tools, such as table saws or welders. These tools need more power than a regular outlet can provide. Double pole breakers make sure these tools get enough electricity without overloading the circuit.

You should remember that double pole breakers are not just for homes. You find them in small businesses and workshops, too. Any place that uses high-power machines needs this type of breaker. When you install a new appliance, always match the breaker to the power needs of the device. This practice keeps your home safe and your appliances working well.

Single Pole Circuit Breaker and Double Pole Circuit Breaker: Key Differences

Voltage

You see a clear difference in voltage between a single pole circuit breaker and double pole circuit breaker. A single pole breaker supplies 120 volts. This voltage works well for most lights and small appliances in your home. You use it for everyday tasks like charging your phone or turning on a lamp.

A double pole breaker supplies 240 volts. This higher voltage is needed for large appliances. You use it for machines that need more power, such as electric dryers or ovens. The double pole breaker connects to both bus bars in your panel. This setup gives you double the voltage of a single pole breaker.

Tip: Always check the voltage requirement of your appliance before choosing a breaker. Using the wrong voltage can damage your device or cause safety problems.

Amperage

The amperage rating tells you how much current a breaker can handle. You find that a single pole circuit breaker and double pole circuit breaker have different amperage ranges. Single pole breakers usually handle between 15 and 30 amps. This range fits most household outlets and small devices.

Double pole breakers can handle much more current. You see ratings from 15 up to 200 amps. Most homes use double pole breakers with 30, 40, or 50 amps for large appliances. Some special equipment may need even higher amperage.

Here is a table that shows the typical amperage and voltage for each type:

You can see that double pole breakers cover a much wider range of amperage. This makes them the right choice for high-power needs.

Wiring

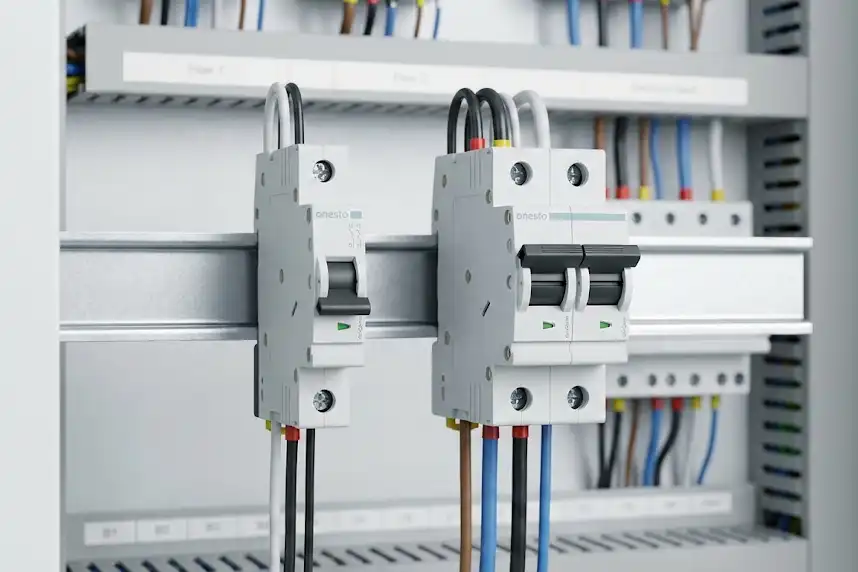

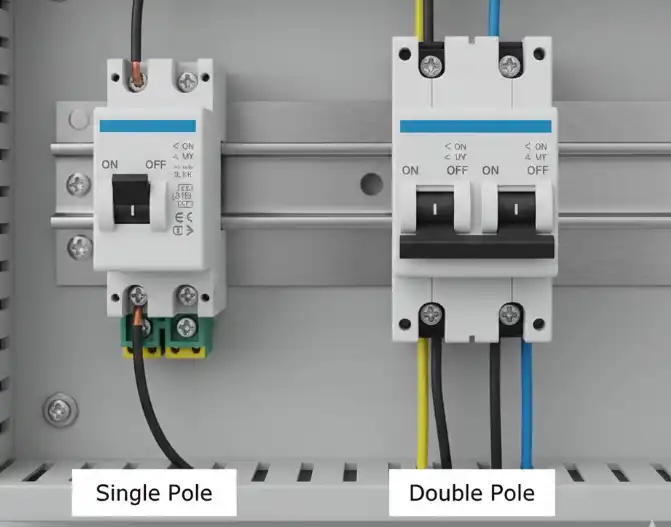

The wiring for a single pole circuit breaker and double pole circuit breaker is not the same. You connect a single pole breaker with one hot wire and one neutral wire. The hot wire carries the current from the breaker to your device. The neutral wire returns the current to the panel. You also use a ground wire for safety.

A double pole breaker uses two hot wires. Each wire connects to a different bus bar in the panel. This setup gives you 240 volts across the two wires. Some appliances also need a neutral wire, but not all. You always use a ground wire for safety. The double pole breaker trips both wires at once if there is a problem. This feature keeps you safe from electric shock.

• Single pole breaker: one hot wire, one neutral wire, one ground wire.
• Double pole breaker: two hot wires, sometimes a neutral wire, one ground wire.

Note: Always follow the color codes for wires. Black or red for hot wires, white for neutral, and green or bare for ground. Label your circuits to avoid confusion.

Applications

You use a single pole circuit breaker and double pole circuit breaker for different jobs in your home. Each type fits a specific need. When you choose the right breaker, you protect your devices and keep your home safe.

A single pole circuit breaker works best for circuits that power small loads. You use it for lights, outlets, and small appliances. These breakers handle most of the everyday tasks in your house. You find them in bedrooms, living rooms, and kitchens. You also use them for bathroom outlets and outdoor lights.

A double pole circuit breaker handles bigger jobs. You use it for large appliances that need more power. These include electric dryers, ovens, water heaters, and central air conditioners. You also find double pole breakers in workshops for tools like table saws or welders. When you need 240 volts, you must use a double pole breaker.

Here is a table to help you see the main applications for each type:

Tip: Always check the power needs of your device before you pick a breaker. Using the wrong type can cause damage or create a safety risk.

You can see that a single pole circuit breaker and double pole circuit breaker each have a clear role. When you match the breaker to the job, you keep your electrical system running smoothly.

Safety

Safety is one of the most important differences between a single pole circuit breaker and double pole circuit breaker. You must understand how each type protects you and your home.

A single pole circuit breaker trips when it senses too much current. This action stops the flow of electricity and prevents overheating. You avoid fires and damage to your wires. You also protect your devices from overloads.

A double pole circuit breaker adds another layer of safety. It has a common trip feature. When one side of the breaker trips, both sides turn off together. You never have one wire live while the other is off. This design keeps you safe from electric shock, especially with high-voltage circuits. You also lower the risk of electrical fires in large appliances.

Here are some key safety points to remember:

• Always use the correct breaker for the job.
• Never replace a single pole breaker with a double pole breaker, or the other way around.
• Make sure you match the breaker size to the wire and device.
• Label each breaker in your panel for easy identification.
• Call a licensed electrician if you are unsure about installation.

⚠️ Warning: Misusing a single pole circuit breaker and double pole circuit breaker can lead to serious hazards. You could face electric shock, fire, or damage to your appliances.

You keep your home safe when you follow these rules. You also make sure your electrical system works the way it should. Always put safety first when you work with circuit breakers.

Choosing the Right Breaker

Assessing Needs

You need to know what your electrical system requires before you pick a circuit breaker. Start by figuring out the job of the circuit. Is it for lighting, outlets, or a large appliance? Each task needs a different type of breaker. You should look at the rated current and voltage for your devices. The breaker must match these numbers to work safely.

When you choose a breaker, you also need to think about the environment. High temperatures or high altitudes can change how much current a breaker can handle. Some breakers have special features for these conditions. You should check the short-circuit rating, too. This tells you how much fault current the breaker can safely stop. If your home has older wiring or unique needs, you may need a breaker with extra protection.

Here is a simple checklist to help you assess your needs:

1. Identify the purpose of the circuit (lighting, outlets, motor, appliance).
2. Check the rated current and voltage for your devices.
3. Consider the environment (temperature, altitude, humidity).
4. Look at the short-circuit rating and breaking capacity.
5. Make sure the wire size matches the breaker’s rating.
6. Decide on the mounting type for your panel.
7. Confirm the breaker fits your panel and meets code requirements.

Tip: Always read the rating plate on the breaker. It shows important details like type, size, and breaking capacity.

Appliance Compatibility

You must match the breaker to your appliances and your electrical panel. Not all breakers fit every panel. Manufacturers design breakers for specific brands and models. Using the wrong breaker can cause safety problems or even damage your system.

Check the compatibility chart for your panel and breaker brand. For example, Siemens breakers fit Siemens panels. Eaton breakers work with many brands, but you should always check the list. Some brands, like Square D, have different lines that do not mix. Using a breaker that only fits physically does not mean it is safe electrically.

• Manufacturer-approved breakers ensure safety and compliance.
• Physical fit does not guarantee electrical compatibility.
• Avoid using discontinued brands like Zinsco or Federal Pacific.

Note: Always use the breaker recommended by your panel’s manufacturer. This keeps your system safe and your warranty valid.

When to Call a Pro

Some situations require a licensed electrician. You should not try to fix complex electrical problems yourself. Here are signs that you need professional help:

• Breakers trip often or will not reset.
• Lights flicker or you lose power without reason.
• You smell something burning or see frayed wires near the panel.
• Outlets or switches feel warm to the touch.
• Your home has an old or complicated electrical panel.

A professional can diagnose hidden problems, check for faulty wiring, and make sure your system meets safety codes. Electricians use special tools and follow strict rules to keep your home safe. They also provide permits and inspections, which you need for insurance and resale.

⚡ Call a pro if you see any warning signs. This protects your home and your family from electrical hazards.

Safety & Compliance

Installation

You need to know what makes a safe circuit breaker installation. A proper setup starts with the right fit. The breaker must align smoothly in the panel. If you force it, you risk damage or poor contact. You should always check that the breaker matches the panel brand and model. Compatibility prevents malfunctions and keeps your system safe.

Before you install, inspect all parts for signs of damage. Look for discoloration, corrosion, or burn marks. These signs mean the breaker or panel may not work safely. You should also check that all connections are tight. Loose wires can cause overheating and fire risks.

Testing is a key part of safe installation. You need to test insulation resistance between poles and to ground. This step helps you find moisture or worn insulation. You should also test the trip functions to make sure the breaker will shut off power during a fault. If your breaker has extra features like trip indicators or shunt trips, test those too.

Tip: Always wear safety gear such as insulated gloves and safety glasses when working near electrical panels.

Code Requirements

You must follow electrical codes to keep your installation safe and legal. The National Electrical Code (NEC) sets rules for breaker placement, wiring, and panel access. For example, codes require that breaker boxes sit at a certain height and have clear space around them. This makes it easy for you to reach the panel in an emergency.

Recent code updates add new safety features. The 2023 NEC now requires more GFCI protection in kitchens and for hard-wired appliances. Surge protection is also a must for many new homes and commercial buildings. Barriers inside panels help prevent accidental contact with live parts. Tamper-resistant outlets are now required in places like childcare centers and dorms.

You should always follow the manufacturer’s instructions for installation. These instructions help you meet both NEC and local code requirements. Hiring a licensed electrician ensures your system meets all standards and reduces the risk of electrical failures.

Common Mistakes

Many people make mistakes when dealing with circuit breakers. One common error is using a breaker that does not match the panel. This can cause the breaker to fail or not trip when needed. Another mistake is loose or misplaced wiring. If wires are not secure, you risk overheating and fire.

Some people try to fix or replace breakers without enough knowledge. DIY repairs can hide faults or create new hazards. Outdated panels, especially those over 50 years old, often fail to trip during overloads. These panels can cause fires, injuries, and property damage. You should never try to repair these old panels. Replacement by a licensed electrician is the safest choice.

• Always double-check wiring connections.
• Inspect for damage before and after installation.
• Use the right tools and wear safety gear.
• Avoid DIY repairs if you are not trained.
• Schedule regular maintenance and inspections.

⚠️ Warning: Improper installation or ignoring code requirements can lead to frequent breaker trips, fire risks, and serious safety hazards. Always put safety first when working with electrical systems.

Troubleshooting & Maintenance

Signs of Issues

You can spot problems with circuit breakers by watching for certain warning signs. These signs help you know when something is wrong with your electrical system. If you notice any of these, your breaker may need attention:

• Frequent tripping of circuit breakers
• Flickering or dimming lights, especially after adding new fixtures
• Buzzing or clicking noises coming from the breaker panel
• Breakers that feel warm to the touch
• Burning smells near breakers or outlets
• Physical damage such as cracks, corrosion, burn marks, or melting
• Sparks or popping sounds from outlets or the panel
• Breakers that will not reset after tripping
• Multiple breakers tripping at the same time
• Outlets that do not work or make buzzing sounds
• Scorched marks near sockets

These signs often point to overloaded circuits, short circuits, ground faults, arc faults, or loose connections. You may also see these problems if the breaker itself is faulty or worn out. When you see these symptoms, you should take them seriously. Ignoring them can lead to bigger problems, including fire or electric shock.

Safe Replacement

You need to follow safe steps when replacing a circuit breaker. This keeps you and your home safe from electrical hazards. Here is what a safe replacement process looks like:

1. Gather the right tools and make sure the new breaker matches the old one in size and rating.
2. Turn off the main breaker to cut power to the panel.
3. Remove the cover from the breaker box.
4. Label and disconnect the wires from the old breaker.
5. Carefully remove the old breaker without touching any live parts.
6. Install the new breaker and secure it in place.
7. Reconnect the wires to the new breaker, following your labels.
8. Replace the panel cover.
9. Turn the main breaker back on and test the new breaker.

Professional electricians also check voltage, amperage, and wiring connections before and after replacement. They use special tools to test for hidden problems. You should always consider hiring a licensed electrician for this job. Service lugs and incoming power lines stay live even when the main breaker is off, so extra caution is needed.

⚠️ Warning: Never try to replace a breaker if you feel unsure or see signs of major damage. Call a professional to avoid serious injury.

Preventive Tips

You can keep your circuit breakers working well by following some simple maintenance tips. Regular care helps you avoid sudden failures and keeps your home safe.

• Schedule regular inspections and tests for your breakers, at least once a year.
• Keep a maintenance log that tracks breaker type, manufacturer, installation date, and test results.
• Record insulation resistance, contact resistance, and trip test results in your log.
• Check for signs of wear, overheating, or moisture during each inspection.
• Use a computerized system or notebook to organize your maintenance records.
• Look for patterns in your logs that show if a breaker is starting to fail.
• Replace breakers that show repeated problems or fail tests.

A good maintenance program helps you spot issues early. You can prevent most electrical failures by staying alert and keeping good records. This approach gives you peace of mind and helps your electrical system last longer.

You now know what sets a single pole circuit breaker and double pole circuit breaker apart. You use a single pole breaker for basic circuits like lights and outlets. You choose a double pole breaker for large appliances that need more power. Picking the right breaker keeps your home safe and your devices working well. If you feel unsure, always check local codes or ask a licensed electrician for help.

FAQ

What is the main job of a single pole circuit breaker?

You use a single pole circuit breaker to protect one wire in a circuit. It stops the flow of electricity if the current gets too high. This helps prevent fires and damage to your devices.

What makes a double pole breaker different from a single pole breaker?

You use a double pole breaker for circuits that need more power. It controls two wires at once and supplies 240 volts. This type keeps both wires safe by shutting off both sides together.

What appliances need a double pole circuit breaker?

You need a double pole breaker for large appliances. These include electric dryers, ovens, water heaters, and central air conditioners. These machines require more voltage and current than small devices.

What happens if you use the wrong type of breaker?

If you use the wrong breaker, you risk damaging your appliances or causing a fire. The breaker may not trip when needed. Always match the breaker to the device and wire size.

What wire colors do you use for single and double pole breakers?

You use black or red wires for hot connections. White wires are for neutral. Green or bare wires are for ground. Double pole breakers use two hot wires, while single pole breakers use one.

What should you do if your breaker keeps tripping?

You should unplug devices and check for overloads. If the breaker still trips, you may have a wiring problem or a faulty breaker. Call a licensed electrician for help.

What safety steps should you follow when replacing a breaker?

You must turn off the main power before you start. Wear safety gear and use the right tools. Always check that the new breaker matches the old one. If you feel unsure, call a professional.

What is the best way to label your breaker panel?

You should use clear, simple labels for each breaker. Write the room or device it controls. This helps you find the right breaker quickly during repairs or emergencies.

The following information may be of interest to you

KCP10pro Single pole miniature circuit breaker

KC6-KU 3 pole circuit breaker

Adjustable double throw automatic transfer switch

What You Need to Know About Circuit Breaker Replacement Costs
