How to Make the Right Choice When Buying a Circuit Breaker Panel

When you choose a circuit breaker panel, you match its size and type to your home’s electrical needs and future plans. A circuit breaker panel sits at the heart of your electrical system. It keeps your home safe by shutting off power if too much current flows through the wires. You need to look at amp rating and electrical load to make sure everything runs smoothly. Compatibility with your home’s wiring also matters.

Key Takeaways

Pick a circuit breaker panel that fits your home’s needs. Think about the size and amp rating for safety and good use.
Figure out your home’s electrical load by listing all appliances and their wattage. This helps you stop overloads and pick the right panel.
Check for new safety features like AFCIs and GFCIs in your panel. These keep you safe from fires and shocks.
Get a licensed electrician to install or upgrade your panel. Experts make sure it is safe and follows local rules.
Check your circuit breaker panel often for any damage. Fix problems like many trips or burning smells right away.

Circuit Breaker Panel Basics

What Is a Circuit Breaker Panel

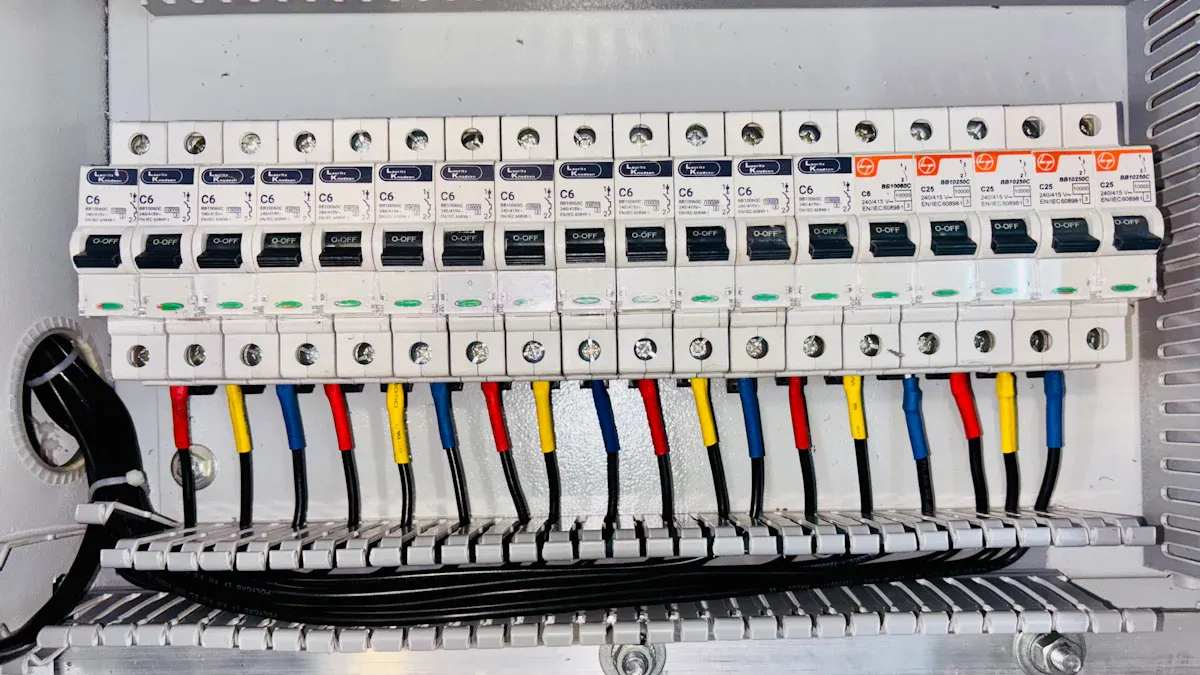

A circuit breaker panel is the main spot for your home’s electricity. You usually see it on a wall in the basement, garage, or utility room. The panel splits up the power into smaller circuits. Each circuit has its own breaker switch. If too much electricity goes through, the breaker turns off the power. This helps stop fires and keeps things safe.

Modern panels have features that make homes safer and easier to use. Many panels have Arc Fault Circuit Interrupters (AFCIs) and Ground Fault Circuit Interrupters (GFCIs). AFCIs find dangerous arcs and stop them before they start fires. GFCIs help protect you from shocks, especially in bathrooms and kitchens. Better circuit distribution helps keep your system from getting overloaded.

Here is a table with the most common types of breakers you might see in a home circuit breaker panel:

Type of Breaker	Description
Single-Pole Breakers	Most common type, protects 120V circuits with one black and one white wire.
Double-Pole Breakers	Used for 240V circuits, necessary for larger appliances like dryers and ovens.
Tandem Breakers	Designed to maximize circuit capacity in limited space, allowing more circuits in a single panel.
Quad Breakers	Similar to tandem but allows for even more circuits in a single panel configuration.

Why Panel Choice Matters

Picking the right circuit breaker panel keeps your home safe and your things working well. If you choose a panel that is too small or does not fit, you can have problems:

Fires can start if wires get too hot or break.
Your electronics and appliances might break sooner from bad power.
Home inspections can take longer if the panel is not up to code.
It can be hard to add new rooms or appliances if your panel is too weak.
Some insurance companies may not cover you if your panel is old or rusty.

A good panel protects your home in many ways:

It turns off power if circuits get too full, stopping fires.
It shuts off power during short circuits, keeping you safe.
AFCIs and GFCIs give extra safety by stopping arc faults and ground faults.

When you know these basics, you can make better choices for your home’s electricity.

Panel Size & Amperage

Calculating Electrical Load

You need to know how much electricity your home uses before you pick a circuit breaker panel. This helps you avoid overloads and keeps your home safe. Follow these steps to figure out your household electrical load:

List all the appliances, lights, and electronics you use at home. Write down their wattage.
Use the formula: Volts x Amps = Watts. This helps you find out how much power each device needs.
To find the amps for each device, use: Watts ÷ Volts = Amps.
Remember, not every device runs at the same time. Think about which ones run together and use a demand factor to estimate real usage.
Check that each branch circuit can handle the power for its devices. This prevents overloads.
Ask a licensed electrician to review your numbers. They can help you decide if you need a bigger panel or an upgrade.

Tip: Always round up your total load. This gives you extra room for new devices or future upgrades.

Amp Rating Guidelines

Choosing the right amp rating for your circuit breaker panel is important. The amp rating tells you how much electricity your panel can safely handle. Homes with big appliances like electric ovens, dryers, or HVAC systems need higher amp ratings.

Here is a table to help you see what amp ratings common appliances need:

Appliance Type	Amp Rating (Amps)	Voltage Requirement
Electric Ovens/Stoves	10	240 volts
Electric Ovens/Stoves	50	240 volts
Clothes Dryers	10	240 volts
Clothes Dryers	30	240 volts

If you have several high-wattage appliances, you may need a 150-amp or 200-amp panel. This gives you enough power for everything to run safely.

Note: An oversized panel can be dangerous. If the breaker allows too much current, wires can overheat and melt. This can cause fires or damage your devices.

Compatibility with Sub-Panels and Existing Systems

You must make sure your new panel works with your current electrical system and any sub-panels. Here is how you can check compatibility:

Look at the manufacturer labels on your old panel and breakers.
Follow local electrical codes to meet safety rules.
Buy panels and breakers from authorized dealers.
Ask an electrician to check your system before you buy.

Each panel manufacturer designs breakers for their own panels. For example, Square D Homeline breakers only fit Square D Homeline panels. They may not work or be safe in other brands like Siemens or Eaton.

The National Electrical Code says breakers must be listed for the specific panel. This keeps your home safe and up to code.

If you plan to add a sub-panel, make sure your main panel can handle the extra load. The sub-panel must also match the main panel’s brand and type.

An old or mismatched panel may not trip during overloads. This can damage your devices and increase the risk of fire.
Always check with a professional before making changes to your electrical system.

When to Upgrade Your Panel

Warning Signs

You need to know when your circuit breaker panel can no longer keep up with your home’s needs. Watch for these clear warning signs:

Frequent Breaker Trips
If your breakers trip often, your panel may not handle your home’s power demand.
Flickering or Dimming Lights
Lights that flicker or dim when you turn on appliances show your panel is undersized.
Panel Age Over 25 Years
Older panels may lack modern safety features and cannot support new technology.
Burning Smells or Warm Panels
A burning smell or a panel that feels warm signals a serious fire risk. You should act right away.
Major Home Upgrades Planned
If you plan to add new rooms or large appliances, your current panel may not be enough.

Tip: Panels older than 25 years often cannot meet today’s electrical needs. Upgrading can lower your energy bills and may even reduce your insurance premiums.

Many homeowners upgrade because they add new appliances, remodel, or want to improve home value. Old panels also run less efficiently, which can cost you more each month.

Safety & Compliance

Upgrading your panel keeps your home safe and up to code. The National Electrical Code (NEC) sets rules for modern panels. Here are some key requirements:

Requirement	NEC Reference	Description
GFCI Protection	NEC 210.8	Needed for outlets in kitchens, bathrooms, and outside to prevent shocks.
AFCI Protection	NEC 210.12	Needed for most rooms to stop dangerous arcs.
Panel Fill Capacity	NEC 312.7	Do not overcrowd your panel with too many circuits.
Main Disconnect	NEC 230.70	Must have a main switch to shut off all power.
Panel Grounding	NEC 250	Proper grounding and bonding required for safety.
Panel Rating	NEC 408	Panel must handle your home’s total electrical load.
Panel Labeling	NEC 408.4	Each circuit must be clearly labeled.

Local building codes also require your panel to be easy to reach and have enough space around it. You need at least 3 feet of clearance in front of the panel. If you upgrade, a licensed electrician can help you meet all safety and code rules.

Note: Most panels last 25 to 40 years. If yours is older, consider an upgrade for better safety and efficiency.

Circuit Breaker Panel Types

Main Panel vs. Subpanel

It is important to know about main panels and subpanels. The main panel connects straight to the power from the utility company. It sends electricity to every circuit in your house. The subpanel gets its power from the main panel. You use a subpanel to add more circuits or control power in one area, like a garage.

Here is a table that compares main panels and subpanels:

Feature	Main Panel	Sub-Panel
Connection	Direct link to utility power	Powered by the main panel
Function	Controls all circuits in the home	Handles circuits for certain areas
Installation	Needs a professional for safety	Homeowners with basic skills can install
Use	Central hub for your home’s electricity	Adds circuits where you need them
Efficiency	Manages all power in the house	Makes power use more efficient in zones

You might want a subpanel for extra circuits. It helps you reach breakers in new areas. It also lets you control electricity in different parts of your house.

Tip: If your main panel is full, a subpanel can help. It keeps your system from getting overloaded.

Breaker Types

There are different types of breakers you can pick. Each type protects your home in its own way. Here is a table that shows how each breaker works and where to use it:

Circuit Breaker Type	Protection Mechanism	Application
RCBO	Stops both overcurrent and leakage	General home circuits
GFCI	Detects current imbalance to prevent shocks	Bathrooms, kitchens, wet areas
AFCI	Stops arc faults that can cause fires	Most rooms in your home
Common Trip	Shuts off multiple circuits at once	3-phase systems
ELCB	Finds leakage current to prevent electric shock	Used with MCBs in home systems
Current ELCB (RCD)	Breaks circuit if it finds leakage current	Extra shock protection

Pick breakers based on where you need them. Use GFCI breakers in places with water. Use AFCI breakers in bedrooms and living rooms.

Buying Tips

Brand Selection

Pick a circuit breaker panel that works well and lasts long. Choose brands that many electricians trust. Some good brands are Siemens, GE, Cutler Hammer, Schneider Electric, and SENTOP. Schneider Electric has extra safety features. Leviton is good for smart homes and flexible setups. These brands follow strict safety rules. They work well and keep your home safe. Look for panels with marks like UL, CE Mark, or ISO. These marks show the panel meets safety and quality rules.

Professional Help

Always hire a licensed electrician to install or upgrade your panel. Electricians know how to work with electrical systems. They follow local codes and keep your home safe. If you try to do it yourself, you could get hurt or damage your home. Professionals make sure everything is safe and done right. This helps you avoid problems later and saves money.

Tip: Licensed electricians keep your home safe from electrical dangers. Their work helps you feel calm and safe.

Buyer Checklist

Use this checklist when you buy a circuit breaker panel. It helps you pick the right panel and avoid mistakes.

Component/Feature	Description
Main Breaker	Turns electricity on or off for the whole panel.
Bus Bars	Send power to each circuit breaker.
Circuit Breakers	Stop circuits from getting too much current.
Neutral and Ground Bars	Give electricity a safe path to travel.
Load Calculation	Make sure the panel can handle all your home’s power needs.
Circuit Count	Check how many circuits your home needs.
Voltage and Phase	Match the panel to your home’s voltage and phase.
Safety Features	Look for surge protection and covers that lock.

Note: Label every circuit inside the panel door. Use the right wire size and protect all cables. Make sure the grounding is strong.

You can choose the right circuit breaker panel by focusing on safety, planning for future needs, and getting expert advice. Always keep the area around your panel clear and check for signs of damage. Pick a panel with extra slots for future circuits. If you see frequent breaker trips or burning smells, call a licensed electrician. Use the checklist to guide your choice. When you follow these steps, you protect your home and feel confident in your decision. 🏡

FAQ

How do you know what size circuit breaker panel you need?

You should add up the wattage of all your appliances and devices. Divide the total by the voltage. This gives you the amps your home uses. Choose a panel with a higher amp rating for future upgrades.

Can you install a circuit breaker panel yourself?

You should not install a panel yourself. Only licensed electricians have the training to do this safely. They follow local codes and prevent electrical hazards. You protect your home and family by hiring a professional.

What is the difference between a main panel and a subpanel?

A main panel connects directly to the utility power and controls all circuits in your home. A subpanel gets power from the main panel. You use a subpanel to add circuits in areas like garages or workshops.

How often should you check your circuit breaker panel?

You should check your panel once a year. Look for signs of rust, loose wires, or burning smells. If you see problems, call an electrician right away. Regular checks keep your home safe.

What safety features should you look for in a circuit breaker panel?

Look for panels with AFCI and GFCI breakers. These features protect you from fires and shocks. Choose panels with clear labeling and strong grounding. Safety features help prevent accidents and keep your home secure.
