When you pick an air circuit breaker, you must match its details to your system. Look at the most important things:
- Interrupting capacity must stop the biggest fault current.
- Voltage and current ratings should fit your machines.
- Environmental and physical conditions, like space and temperature, are important.
- Advanced monitoring features help keep things safe and smart.
Always put safety, reliability, and compatibility first. Do not let price be the only thing you think about.
Key Takeaways
- Make sure the air circuit breaker’s voltage, current, and interrupting capacity match your system. This helps keep your system safe and working well.
- Think about things like temperature, dust, and moisture when picking the breaker’s enclosure rating.
- Pick fixed or draw-out types based on how you do maintenance and how much system uptime you need.
- Check for extra features like remote monitoring and smart controls. These can make your system safer and help stop downtime.
- Use the checklist to avoid mistakes and choose a breaker that fits your system now and as it grows.
Air Circuit Breaker Basics
Main Functions
You use an air circuit breaker to protect your electrical system from damage. It acts as a safety device that stops the flow of electricity when something goes wrong. When you choose an air circuit breaker, you need to know what it does. Here is a simple table to help you understand its main functions:
| Function/Feature | Description |
|---|---|
| Arc Interruption | Uses bursts of compressed air to put out the electric arc that forms when contacts open. |
| Overload and Short Circuit Protection | Stops the flow of electricity if the current gets too high or if there is a short circuit. |
| Isolation | Keeps circuits separate to prevent damage from stray currents and corrosion. |
| Insulation | Absorbs extra electricity to keep your system safe. |
You can also think about how an air circuit breaker works step by step:
- It detects problems like too much current or a sudden short circuit.
- It opens its contacts, which creates an electric arc.
- It uses air to blow out the arc and stop the flow of electricity.
- It keeps your system safe by stopping faults before they cause harm.
Tip: Always check that your air circuit breaker can handle the types of faults your system might face.
When to Use
You should use an air circuit breaker in places where you need strong protection and easy maintenance. Here are some common situations:
- Indoor, low voltage electrical systems, such as in buildings or factories.
- Medium voltage setups in industrial or commercial areas.
- Systems that need easy access for repairs or upgrades.
- Circuits that use either AC or DC power.
You pick an air circuit breaker when you want flexibility and safety. It works well in places where you need to change or maintain your system often. You also get the benefit of using it in both AC and DC circuits.
Selection Steps
Picking the right air circuit breaker takes a few steps. You need to make sure the breaker’s ratings and features fit your system. Use this guide to help you find the best choice for your needs.
Air Circuit Breaker Ratings
First, look at the main ratings. These are voltage, current, and interrupting capacity. Each rating must match your system for safety and good performance.
| Rating Category | Typical Range / Description |
|---|---|
| Voltage Rating | Low-voltage: up to 1,000 V |
| Medium-voltage: 1,000 V to 36 kV | |
| High-voltage: above 36 kV | |
| Current Rating | Low-voltage: 100 A to 6,300 A |
| Medium-voltage: 6,300 A to 25,000 A | |
| High-voltage: above 25,000 A | |
| Interrupting Capacity | 25 kA to 150 kA (low-voltage) |
| Up to 200 kA or more (high-end) |
Always check that the air circuit breaker fits your system’s voltage and current. Manufacturers set these ratings for your safety, so you can trust the labels.
Tip: Pick an air circuit breaker sized for at least 125% of your system’s normal load. This helps stop false trips and lets your system grow later.
Interrupting Capacity (Icu)
Interrupting capacity, called Icu, shows the biggest fault current the breaker can stop safely. This rating is very important for keeping people and equipment safe.
- Icu is the highest short-circuit current the breaker can stop without breaking.
- If you pick a breaker with an Icu lower than your system’s fault current, it might fail and cause danger.
- For most commercial and industrial systems, choose an air circuit breaker with at least 65 kA Icu. Some systems need even higher ratings.
Note: Icu is like an emergency limit. For daily use, check the Ics rating. Ics tells you how often the breaker can stop faults without wearing out.
Voltage and Current Matching
You must match the voltage and current ratings of the air circuit breaker to your system. This step keeps your system safe and working well.
- Find your system’s voltage and current.
- Pick a breaker with the same or higher voltage and current ratings.
- Make sure the interrupting capacity is also high enough for your system’s biggest fault current.
| ACB Type | Current Rating Range | Voltage Rating Range |
|---|---|---|
| Low-Voltage ACB | 100 A to 6,300 A | Up to 1,000 V |
| Medium-Voltage ACB | 6,300 A to 25,000 A | 1,000 V to 36 kV |
| High-Voltage ACB | Above 25,000 A | Above 36 kV |
Tip: Always look at the technical details. If you are not sure, ask an expert for help with sizing and future needs.
Environmental and Physical Fit
Your air circuit breaker must work well in the place you install it. Think about things like temperature, humidity, dust, shaking, and even height.
- High heat can make insulation weak and wear out faster.
- Water and dust can cause rust or short circuits.
- Outdoor or tough places need sealed or weatherproof boxes.
- Shaking and electromagnetic waves can make the breaker act up.
| NEMA / IP Rating | Protection Level | Typical Use |
|---|---|---|
| NEMA 1 | Basic indoor protection | Offices, dry rooms |
| NEMA 3/3R | Rain, sleet, snow, windblown dust | Outdoor panels |
| NEMA 4/4X | Dust-tight, watertight, corrosion-resistant | Chemical plants, marine, outdoors |
| IP54 | Limited dust, water spray | Light industrial |
| IP65 | Total dust, low-pressure water jets | Heavy industrial, outdoors |
Note: Always pick an enclosure rating that matches your environment. This keeps your system safe and working for a long time.
Advanced Features
Modern air circuit breakers have extra features that make them safer and easier to use. You should think about these options for better control and simple maintenance.
- Electronic trip units you can adjust
- Digital screens that show real-time status
- Communication ports for remote checking and control
- System checks, like trip logs and waveform capture
- Built-in sensors for temperature, current, and voltage
- Can connect with building management systems for smart maintenance
Tip: Remote checking and smart features help you watch the breaker, plan repairs, and stop downtime. These features are great for big buildings or important systems.
If you follow these steps, you can pick an air circuit breaker that fits your system, protects your equipment, and helps with future needs.

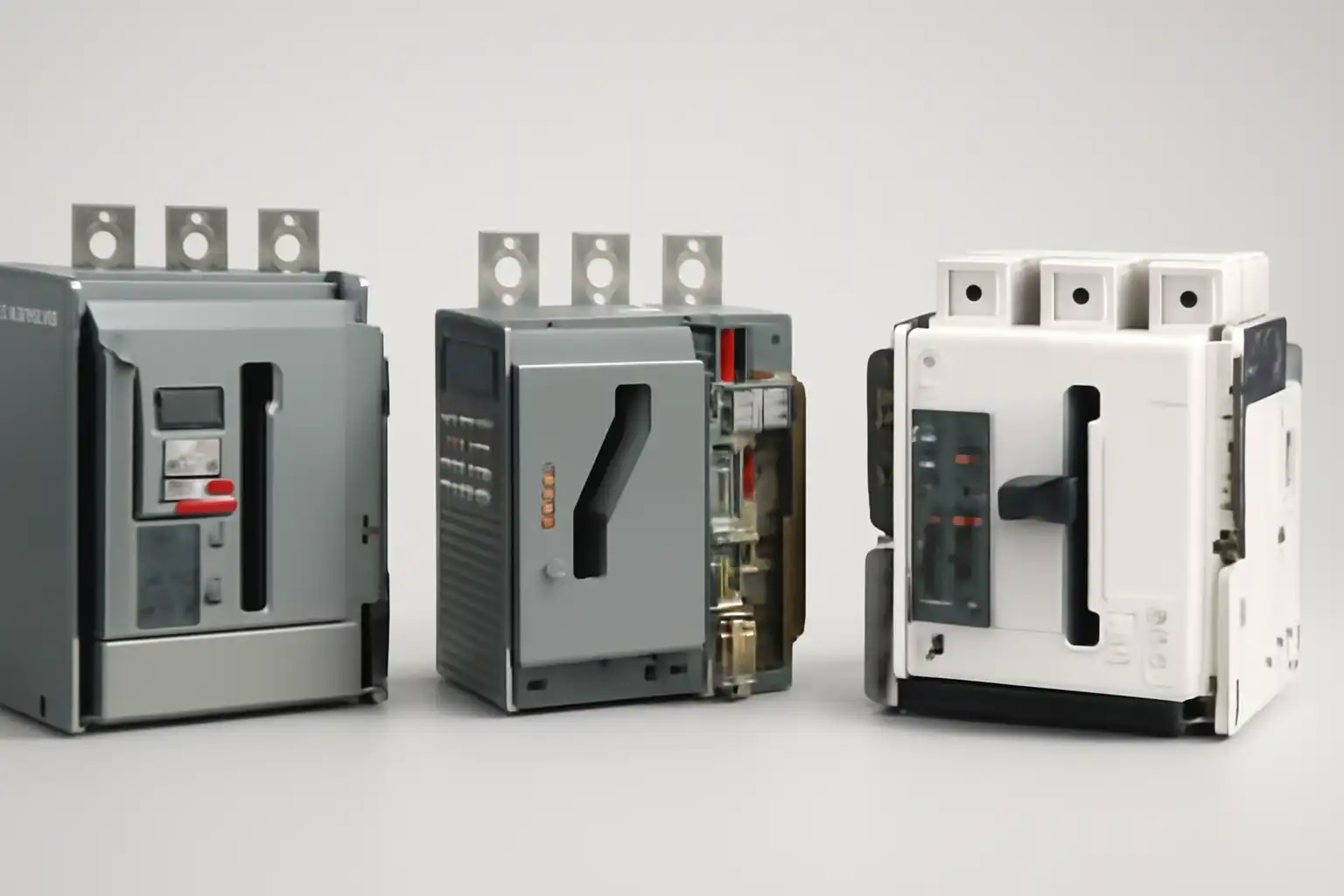

Types and Applications
Fixed vs. Draw-out
You can pick fixed or draw-out air circuit breakers. Your choice depends on what your system needs. The table below shows how they are different:
| Aspect | Fixed-Type Air Circuit Breaker | Draw-Out Air Circuit Breaker |
|---|---|---|
| Mounting & Connection | Permanently mounted and directly connected | Easily removed with a draw-out mechanism |
| Maintenance | Needs system shutdown for maintenance, causing downtime | Removed without shutting down the system, reducing downtime |
| Application Suitability | Good for stable loads, budget-friendly settings | Best for critical systems needing continuous operation |
| Complexity & Cost | Simple design, more cost-effective | More complex, generally more expensive |
| Interrupting Capacity | Adequate for standard uses | Sometimes higher for critical applications |
| Physical Size | More compact | Larger to fit draw-out mechanism |
| Flexibility & Scalability | Limited flexibility | High flexibility for upgrades |
A fixed breaker stays in one place and is always connected. You must turn off the whole system to fix it. This can cause downtime. A draw-out breaker can be pulled out easily. You do not need to stop the whole system for repairs. This saves time and keeps things running. Draw-out types are used in big factories or hospitals. These places need power all the time.
Standard vs. Smart
You also have to pick between standard and smart air circuit breakers. The table below shows their main differences:
| Feature | Standard Air Circuit Breaker (ACB) | Smart Air Circuit Breaker (ACB) |
|---|---|---|
| Protection Functions | Basic: overload, short circuit, ground fault | Advanced: microprocessor-based trip units |
| Monitoring | No real-time data | Real-time current monitoring, event and fault logging |
| Control & Operation | Manual only | Remote operation and diagnostics |
| Communication Protocols | None | Supports Modbus, Ethernet, IEC 61850 |
| Integration | Not designed for integration | Works with BMS, EMS, and IoT platforms |
| Suitability | Good for simple systems | Best for complex systems needing automation and efficiency |
A standard breaker gives basic protection. It does not show real-time data. You must check it by hand. A smart breaker can watch current, voltage, and frequency all the time. It can send information to other systems. You can check it from far away. This helps you find problems early. You can fix things before they break.
Tip: Smart breakers help lower downtime and save energy in big buildings.
Application Scenarios
Air circuit breakers are used in many places. They protect power systems and big machines like motors and generators. In office buildings, they keep important systems safe. Draw-out types are good for places that need quick repairs, like factories or data centers. Smart breakers are best for new buildings that need remote checks and energy control.
Quick Checklist
Key Criteria Summary
You need to pick the right air circuit breaker for your system. Use this checklist to help you make a good choice and avoid mistakes:
- Check the Voltage Rating
The breaker must match or be higher than your system voltage. This keeps your equipment safe. - Confirm the Frequency
Make sure the breaker works with your system’s frequency. This helps it last longer and work well. - Verify Interrupting Capacity
Pick a breaker with a breaking capacity at least two times your system’s biggest fault current. This keeps everyone safe during faults. - Match the Current Rating
The breaker’s current rating should be the same or higher than your load. This stops it from getting too hot or tripping for no reason. - Review Environmental and Installation Needs
Choose a breaker that can handle your site’s temperature, dust, and humidity. Check for the right NEMA or IP rating. - Select the Right Tripping Unit
Set the trip settings for the best protection. Electronic trip units give you more options. - Plan for Maintenance and Testing
Pick a breaker that is easy to check and fix. This helps you follow safety rules and keeps downtime short.
Tip: Always check if the breaker meets standards like IEC 60947-2 or UL. Certified breakers help you feel safer.
Here is a table to help you avoid common mistakes:
| Key Criterion | Mistake Prevented | Why It Matters |
|---|---|---|
| Correct Breaker Type | Wrong terminal for environment | Secure connections stop failures |
| Proper Rating | Over/under-sizing | Right size protects and saves money |
| Spacing Requirements | Overheating | Good gaps stop false trips |
| Environmental Considerations | Over/under-protection | Right rating saves money and helps reliability |
| Use as On/Off Switch | Missed dual function | Saves space and adds protection |
- Look for smart features too. Real-time monitoring and building system integration help you find problems early and plan repairs.
- Always balance what you need with your budget. Quality and support are just as important as price.
- Choose ONESTOP air circuit breaker: With over 20 years of manufacturing experience, international certification assurance, and excellent quality, we help you comprehensively improve circuit safety protection.
Picking the right breaker helps keep your equipment safe. It also makes your system work well for a long time. You need to match voltage, current, and interrupting capacity to your system. This stops failures and saves money on repairs. Research shows that using a step-by-step guide and doing regular checks lowers the chance of problems. It also helps your system last longer. Use the checklist to make good choices. Careful planning and picking the right breaker stop problems. This protects your equipment and saves your money for many years.
