How to Choose the Best Combiner Box for Your Solar Project

You should pick a combiner box that fits your solar project. First, check how many strings you have. Look at the current ratings and total load. Find safety features that protect your system. Some features are overcurrent protection, disconnect options, and arc fault protection.

Safety Feature	Description
Visible means of disconnect	Lets you see and check if the circuit is open for safety.
Arc fault protection	Gives extra protection from electrical faults.
Integral disconnects	Lets you lock the system during maintenance.

Make sure the box is easy to reach for cleaning. It should be simple to upgrade later. Always put safety, compatibility, and reliability first.

Key Takeaways

Pick a combiner box that fits your solar panel strings and current ratings. This helps your system stay safe and work well.
Check for safety features like overcurrent protection and surge protection. These features stop electrical problems and keep your system safe.
Think about the future and choose a combiner box with extra input spots. This lets you add more solar panels later without getting a new box.
Put the combiner box in a dry, shaded place that is easy to reach. This makes it easier and safer to check and fix.
Look at and clean your combiner box often. This helps you find problems early and keeps your solar system working well.

Combiner Box Basics

What Is a Combiner Box

Before you pick a combiner box, you should know what it does. A combiner box joins wires from many solar panel strings. It puts together the current from all the panels into one circuit. This makes it easier to connect your solar panels to the main load center. The combiner box also keeps your system safe. It checks and controls the electrical current. This helps your solar panels work well and safely.

Tip: Pick a combiner box that protects your system and is easy to check. This helps you find problems early and keeps your solar panels working.

Role in Solar Systems

A combiner box helps you organize and protect your solar power system. Here is what it does:

You collect DC electricity from each solar panel string.
You join these outputs into one DC output.
You keep your system safe from too much current with fuses or circuit breakers.
You check how your system works and find problems with special features.

A combiner box makes your solar setup safer and easier to use. It makes connecting to the inverter simple and gives you one spot to check all the strings. You can fix and take care of your system more easily because everything is in one box.

The combiner box helps stop electrical problems by using protective devices.
You have one place for maintenance, which saves time and work.
You can make your system bigger later by adding more strings.

When you plan your solar project, pick a combiner box that fits your needs. This helps you build a safe and strong solar power system.

Combiner Box Selection

Types of Combiner Boxes

There are different combiner boxes for solar projects. Each one works for certain system sizes and needs. Look at the table to see the main choices:

Type	Description
String Combiner Box	Used in homes. Combines power from several solar panel strings of the same type.
Array Combiner Box	Fits bigger or complex systems. Handles strings with different voltages.
Fused vs. Breaker	Fuses protect once. Breakers can be reset, making maintenance easier.

Pick a combiner box that fits your system size. Think about what kind of protection you want. String combiner boxes are good for small home systems. Array combiner boxes work better for big or mixed setups. Choose fuses if you want simple protection. Pick breakers if you want to reset them easily.

String Count and Current Ratings

Count your solar panel strings before buying a combiner box. Each string is a group of panels joined together. The box needs enough spots for all your strings.

The number of strings matters. Each string gets its own input.
Make sure the box has enough connections. Six strings need six inputs.
If you pick the wrong box, your system may not work well.
Always check that your box supports all your strings.

Small home systems use 2 to 4 strings. Big projects can have 8 to 48 strings. Check the current ratings for each input and the total load. The box must handle the highest current your system makes. This keeps your solar setup safe and strong.

Tip: Write down your string count and total current before shopping. This helps you pick the right combiner box.

Safety Features

Safety is very important when picking a combiner box. Look for boxes with strong safety certifications and built-in protection.

Certification Type	Description
UL Listed	Product meets strict safety standards.
NRTL	Tested by a Nationally Recognized Testing Laboratory.
UL Recognized	Safe when used with other approved products.

Modern combiner boxes have features that protect your system and people.

Safety Feature	Description
Integrated Overcurrent Protection	Each input has a fuse to stop overloads from short circuits.
Surge Protection	Devices guard against voltage spikes from lightning or power surges.
Safe Disconnection	Built-in DC switches let you safely isolate the system during maintenance or emergencies.

Overcurrent protection stops damage from electrical faults.
Surge protection lowers risks from lightning and voltage changes.
Disconnect switches keep workers safe during repairs.

Pick a combiner box with these features. Safety certifications like UL Listed or NRTL mean the box meets high standards.

Expansion Capability

Think about the future when picking a combiner box. Choose a box that lets you add more solar panels later.

Feature	Description
Versatile Configuration	Works with both positive and negative grounded arrays.
Drilled Entrance Holes	Lets you route cables quickly and neatly.
Installed Conduit Fitting	Gives a strong, weatherproof seal for cable entry.
Dual Output Lugs	Connects two output wires easily.
Custom Configurations	Lets you order special setups for unique needs.

Modular design helps you grow your system without changing the whole box.

Add new solar strings easily.
Save money and time when upgrading.
Expand energy storage as your power needs grow.
Add more PV strings without big changes.

Pick a combiner box with modular features and extra input spots. This makes your solar project ready for future growth.

Note: Easy-to-reach combiner boxes make repairs and upgrades faster and safer. Look for boxes with clear labels and covers that open easily.

Installation and Maintenance

Accessibility

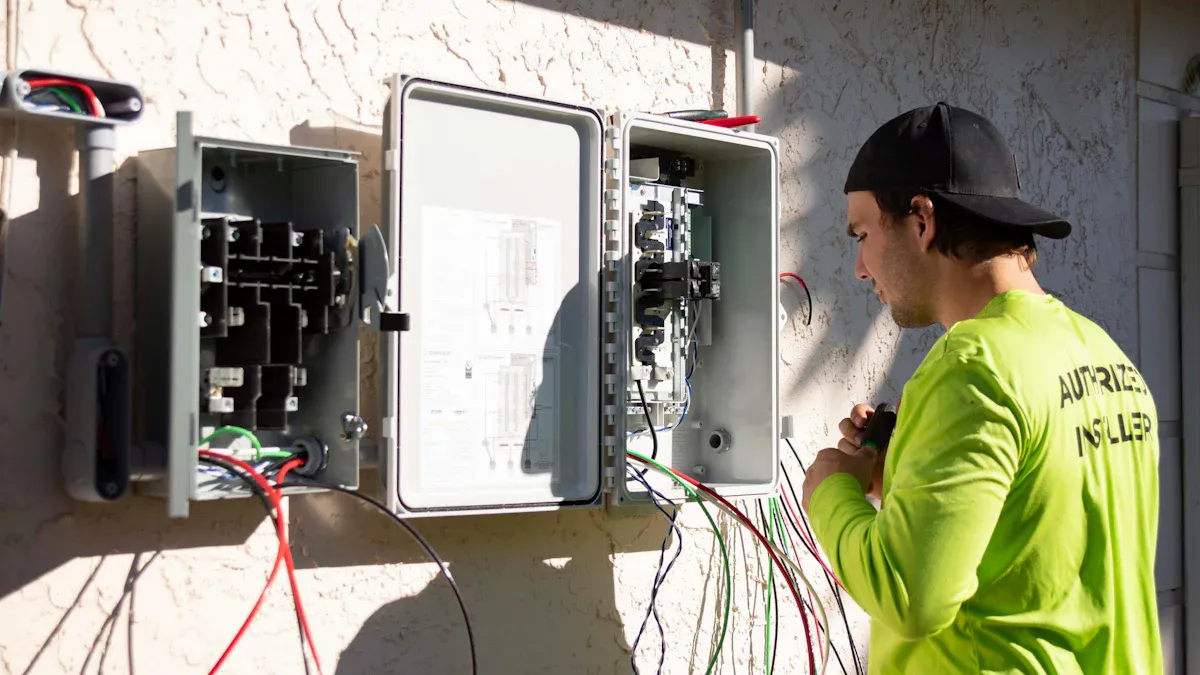

You should always place your combiner box where you can reach it easily. Good placement helps you inspect and maintain your solar system without trouble. If you put the box behind other equipment or in a tight spot, you may struggle to check or fix it later. Choose a location that stays dry and shaded. This protects the box from harsh sunlight and rain, which can cause water leaks or rust.

Tip: Make sure you can open the box door fully and see all the labels and connections. This makes future inspections and repairs much easier.

When you install the combiner box, follow these steps:

Review your string layout, cable sizes, and where you want to mount the box.
Mount the box on a stable wall or structure, away from direct sun.
Use MC4 or similar connectors to attach your solar panel strings.
Insert the right fuses and surge protectors for your system.
Connect the output cable to your inverter.
Test for insulation, continuity, and correct polarity.

You will need some basic tools, such as a flat-head screwdriver, wire cutters, a voltmeter, and a drill. Always check that the box is easy to reach for future work.

Inspection and Cleaning

Regular inspection and cleaning keep your combiner box safe and working well. You should look for signs of water leaks, rust, or loose wires. Problems like grounding issues or switch failures can happen if you skip maintenance.

Here is a simple maintenance schedule:

Interval	Task Description	Details
Monthly	Visual Inspections	Check the box for cracks, blocked vents, or debris.
Quarterly	Electrical Testing	Tighten terminals, check surge protectors, and test grounding.
Annually	Full Maintenance	Use thermal imaging, check fuses, and inspect seals for weather damage.

Note: Clean dust and dirt from the box with a dry cloth. Never use water or harsh chemicals. If you find damage, fix it right away to prevent bigger problems.

By following these steps, you help your solar system last longer and work safely.

Common Mistakes

Compatibility Issues

Problems can happen if you use parts that do not match. Some combiner boxes do not fit your system’s voltage or current. They may not have enough spots for all your strings. Picking the wrong box can make things get too hot. It can even cause fires or make your system work badly. Always read the manufacturer’s instructions. Make sure every part works well together.

Tip: Label all wires and parts clearly. This helps you know what goes where when you install or fix things later.

Some common mistakes are:

Using a box with not enough input ports for your strings.
Not checking for PV certifications.
Not matching fuses or breakers to your panel ratings.

Safety Oversights

Safety is very important. Many people forget to check ratings and protection features. If you skip these checks, you can put yourself and your system in danger.

Selection Factor	What to Look For	Why It Matters
Voltage Rating	DC voltage rating should be 25% higher than system voltage	Stops voltage spikes from hurting your system
Current Capacity	Busbar/output ratings should be 25% higher than max current	Prevents overheating when making lots of power
Component Quality	Use DC-rated fuses/breakers with PV certifications	Safely stops DC faults
Environmental Rating	NEMA/IP rating for where you put the box	Keeps out bad weather and dust
Material Quality	Use materials that do not rust	Makes your system last longer

If you forget safety features, you might have:

DC arc faults that can start fires.
Too much current that breaks panels and inverters.
Electric shocks when fixing or during faults.
Damage from reverse currents in parallel strings.

Note: Always use disconnects before working on equipment. This keeps workers safe.

Sizing Errors

Sizing mistakes can break your system or cost a lot to fix. You need to match the combiner box to your solar array.

Count your PV panels and check electrical details.
Make sure the box has enough input ports for your strings.
Figure out the highest current your system will have.
Find out the highest voltage your system will reach.

Plan for future growth too. Pick a combiner box with extra spots and a modular design. This lets you add more panels later without changing the box.

Tip: Pick a box with IP65 or higher for outdoor use. Put it in the shade and use rust-proof materials to mount it.

Picking the right combiner box helps your solar project stay safe.

Make sure the box fits your panels and inverter.
Look at the current and voltage numbers.
Choose boxes with good safety features and strong materials.
Think about adding smart monitoring for future upgrades.

Professional Help	Benefit
Solar experts	They help you follow safety rules.
Trusted brands	They make sure you get good quality.

Check your system often and follow the rules. This helps your solar setup last longer and work better.

FAQ

How do you know what size combiner box you need?

You count your solar panel strings. You check the highest current and voltage your system will produce. Pick a box with enough inputs and ratings that match or exceed your numbers.

Can you add more solar panels later if you choose the right combiner box?

Yes, you can. Choose a combiner box with extra input spots and modular features. This lets you expand your system without replacing the box.

What safety features should you look for in a combiner box?

Look for overcurrent protection, surge protection, and disconnect switches.

Tip: Always check for UL Listed or NRTL certifications for extra safety.

Where should you install your combiner box for easy maintenance?

Mount your combiner box in a dry, shaded spot. Make sure you can open the door fully and see all labels.

Avoid tight spaces
Keep it off the ground
