You need to know how many strings your solar combiner box can handle before building your solar power system. The maximum string count depends on the box’s rated input, current, voltage, and how many input terminals it has. Most models connect anywhere from 3 to 52 strings, but always look at your exact model’s specifications.
Here is a table showing common ratings for combiner boxes:
| Input Count | Rated Voltage | Current Rating |
|---|---|---|
| 6 | 1500 V DC | 21 A – 32 A |
| 7 | 1500 V DC | 21 A – 32 A |
| 8 | 1500 V DC | 21 A – 32 A |
| 1 | 1000 V DC | 21 A – 32 A |
| 2 | 1000 V DC | 21 A – 32 A |
| 3 | 1000 V DC | 21 A – 32 A |
| 4 | 600 V DC | 21 A – 32 A |
| 5 | 600 V DC | 21 A – 32 A |
You can use these numbers to match each string to the right input and keep your solar power system safe.
Key Takeaways
- Look at the rated input of your solar combiner box. This shows how many strings it can hold safely.
- Always make sure the voltage and current match for each string. If you mix voltages, it can hurt your system.
- Pick the right size wires and fuses for your setup. This stops wires from getting too hot and keeps things safe.
- Plan for future growth. Get a combiner box that lets you add more strings later.
- Check your solar combiner box often. Watch for loose wires and damage to keep your system safe.
Solar Combiner Box Capacity
Rated Input
When picking a solar combiner box, check the rated input. The manufacturer decides how many strings the box can take. They look at the electrical details of each string. They use the total input current, input voltage, and number of input terminals. You can find this information in the product specs.
Tip: Always read the manual from the manufacturer before you connect your solar panel strings. This helps you avoid mistakes and keeps your system safe.
Here is a table that shows how rated input values are different for each type of solar setup:
| Application Type | Number of Strings Supported | Input Current Rating |
|---|---|---|
| Residential | 2 to 6 | Up to 50 amps |
| Small Commercial | 2 to 6 | Up to 50 amps |
| Mid-tier Commercial | 7 to 12 | 51 to 100 amps |
| Large-scale Plants | > 12 | 101 to 200 amps and above |
You can see that homes and small businesses use fewer strings. Big solar plants need boxes that can handle more strings and higher currents.
Manufacturers also give other important details:
| Parameter | Value |
|---|---|
| Maximum Strings | 24 |
| System Voltage | 1500V DC |
| Protection Features | String monitoring, arc fault detection, fast shutdown |
| Input Terminals | 1-16 |
| Output Terminals | 1-3 |
| Current Rating | Over current protection |
| Voltage Rating | Maximum open circuit voltage 1000V |
You need to match the number of solar panel strings to the input terminals and the rated input current. If you connect too many strings, the box can get too hot or have electrical problems. This could break your inverter or other parts of your system.
Amperage Limits
You should check the amperage limits for your solar combiner box. The highest current depends on the short-circuit current (Isc) of each string, how many strings you have, and a safety factor. For example, if each string has an Isc of 5.54 amps and you use two strings, you figure out the needed ampacity like this:
Required Ampacity = Isc × Safety Factor × Number of Strings
Required Ampacity = 5.54 × 1.56 × 2 = 17.28 amps
The National Electrical Code (NEC) says you must multiply the PV source circuit current by 125%. This covers higher currents when the sun is very bright. You should always follow these rules to keep your system safe.
- If you have three or fewer strings, you might not need a solar combiner box. Small systems can connect right to the inverter.
- For bigger systems with more strings, you need a combiner box to keep wires neat and protect each string.
Note: Matching the amperage of each string helps your solar panel strings work well together. This keeps your system working right and stops problems.
You must always check the input terminals, input current rating, and input voltage before you connect your solar panel strings. If you connect too many strings, the box can get too hot or have electrical problems. Picking the right size and rating for your solar combiner box is important for safety and good performance.

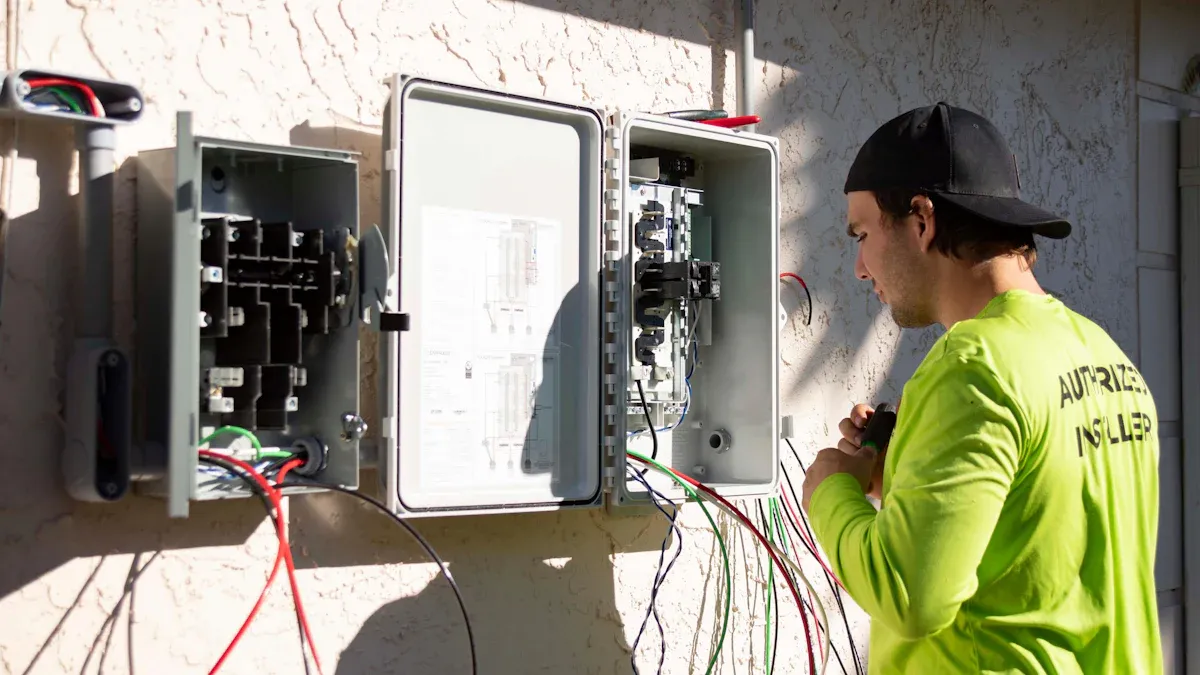

Connect Solar Panels Safely
Input Terminals
When you hook up solar panels, count the input terminals first. Each input terminal is for one string. If there are six terminals, you can use six strings. Do not put more than one string in a terminal unless the manufacturer says it is okay. This keeps each string on its own and makes it easier to check how they work.
- One string goes in each input terminal.
- Putting more than one string in a terminal is not good.
- The voltage and current ratings tell you how many strings are safe.
Check the breaker slots too. Each slot matches an input terminal. If you put too much on one input, it can get too hot or blow a fuse. Always do what the manufacturer says. If you do not check the input count, you could break your system.
Tip: Use a torque tool that is set right when you tighten the wires. This stops the wires from getting too hot or breaking because they are too loose or too tight.
Some people make mistakes like using wires that are too small, not adding surge protection, or not sealing the box. You need to use the right size wire, put in surge protection, and make sure the box is closed tight. If you put too many strings in one input, it can get too hot or blow a fuse. Grounding the system the right way keeps it safe.
| Mistake | Description |
|---|---|
| Undersized Wiring | Wires that are too small can get hot and lose power. Use wires made for DC voltage and current. |
| Overloaded Inputs | Too many strings in one input can make it hot or blow a fuse. |
| No Grounding | Not grounding can be dangerous. Make sure all metal parts are grounded. |
Voltage Matching
You have to match the voltage and current of each string before you connect them. If you mix strings with different voltages, your equipment can break. If the wattages are not the same, strings can get too hot if there is a short. The system will only work as well as the weakest string.
| Configuration | Voltage Change | Current Change | Combiner Box Needed? |
|---|---|---|---|
| 2P6S | Voltage goes up by half | No change in current | No |
| 3P4S | Voltage stays the same | Current goes up by half | Yes |
If you connect panels in series, the voltage goes up. If you connect them in parallel, the current goes up. Make sure the voltage does not go over the box’s rating. Too much voltage can break your equipment.
- Mixing strings can make your system work worse.
- Too much voltage can break your system.
- Strings with different wattages can get too hot.
Always match the voltage and current for each string. This keeps your system safe and working well. If you do these things, you can connect solar panels safely and avoid problems.
Solar Panel Strings and Protection
Fuses and Breakers
You need to protect each string with a fuse or breaker. These stop too much current from going through a string. If you use the wrong size, you could cause damage or even a fire. Most homes use a 15A fuse or breaker for each input. Commercial systems often use the same, but can go up to 30A for the most output.
| Application Type | Fuse/Circuit Breaker Rating | Maximum Output Current |
|---|---|---|
| Residential | Usually 15A | Up to 20A |
| Commercial | Usually 15A | Up to 30A |
You should check the short-circuit current (Isc) for every string. Multiply this number by 1.25 or 1.56 to get the right fuse or breaker size. For example, if your string has an Isc of 9A, you need a fuse that is at least 11.25A. Most people pick a 15A fuse or breaker to be safe.
| Parameter | Calculation Formula | Example Value | Recommended Specification |
|---|---|---|---|
| Fuse/Circuit Breaker Rating | Isc × 1.25 or 1.56 | 9A × 1.25 = 11.25A | 15A fuse or breaker |
| Combiner Box Total Current | Number of strings × Isc | 10 × 9A = 90A | ≥ 100A rated combiner box |
A solar combiner box also has other protection devices. Overcurrent protection stops fires from starting. Arc fault reduction lowers the chance of electrical arcs. Ground fault detection lets you know about dangerous leaks. Surge protection keeps your system safe from lightning. Each input should have its own fuse or breaker. This keeps every string and the main output safe from harm.
- Overcurrent protection helps stop fires.
- Arc fault reduction makes electrical arcs less likely.
- Ground fault detection warns you about leaks.
- Surge protection guards your system from lightning.
Safety Margins
You need to leave a safety margin when you size your solar combiner box. The National Electrical Code (NEC) says to multiply the highest current for each string by 1.25. This helps your system work on bright and hot days. Always check that the total current does not go over the box’s rating.
If you skip safety margins, your equipment can get too hot, break early, or cause electrical problems. This can make your solar panel strings and system not last as long.
When you plan your system, think about what you might need later. Many solar combiner boxes let you add more strings in the future. If you leave some input terminals open, you can add more strings without getting a new box.
| Benefit/Recommendation | Description |
|---|---|
| Modularity | Combiner boxes can be made to let you add more solar panels later. |
You should also follow the newest safety codes. Standards like UL 1741, IEC 61439, and NEC 690 give rules for safe setup and labels. These codes help keep your solar combiner box safe and working well for a long time.
You can figure out the safe number of strings for your solar combiner box by doing these steps:
- Count the strings you want to connect.
- Look at the rated input, current, voltage, and input terminals.
- Make sure each string’s wire size and fuse match your system.
- Leave some room if you want to add more strings later.
Always check the manufacturer’s instructions. Find details about input channels, wire size, overcurrent protection, and enclosure rating. This helps you make a safe and strong system.
FAQ
How do you know if your solar combiner box is the right size?
You check the number of input terminals, rated voltage, and current. Make sure your solar panel strings match these ratings. If you plan to add more panels, choose a box with extra capacity.
Can you connect different types of solar panels to one solar combiner box?
You should use panels with the same voltage and current. Mixing different types can cause problems. Your system works best when all strings match.
What happens if you overload a solar combiner box?
Overloading can cause overheating, blown fuses, or damage to your inverter. Always follow the manufacturer’s guidelines to keep your system safe.
Do you need a solar combiner box for a small home system?
If you have three or fewer strings, you may not need a solar combiner box. You can connect your panels directly to the inverter.
How often should you check your solar combiner box?
You should inspect your solar combiner box every six months. Look for loose wires, signs of overheating, and make sure all protection devices work.
